Ford F-150 Towing Capacity Chart: All Years & Engines (2004–2026)
Ford F-150 towing capacity ranges from 5,000 lbs to 14,000 lbs depending on model year, engine, cab configuration, and whether the Max Trailer Tow Package is equipped. The maximum Ford F-150 tow rating is 14,000 lbs, achieved with the 3.5L EcoBoost V6 engine, SuperCrew or SuperCab body, 5.5-foot bed, and the Max Trailer Tow Package. Base configurations with the 2.7L EcoBoost or 5.0L V8 typically rate between 8,200 and 13,000 lbs.
Whether you’re buying a used F-150 or optioning a new one, this complete Ford F-150 towing capacity chart covers every model year from 2004 to 2026 with engine-by-engine breakdowns so you can find the exact number for your truck. Last updated: April 2026.

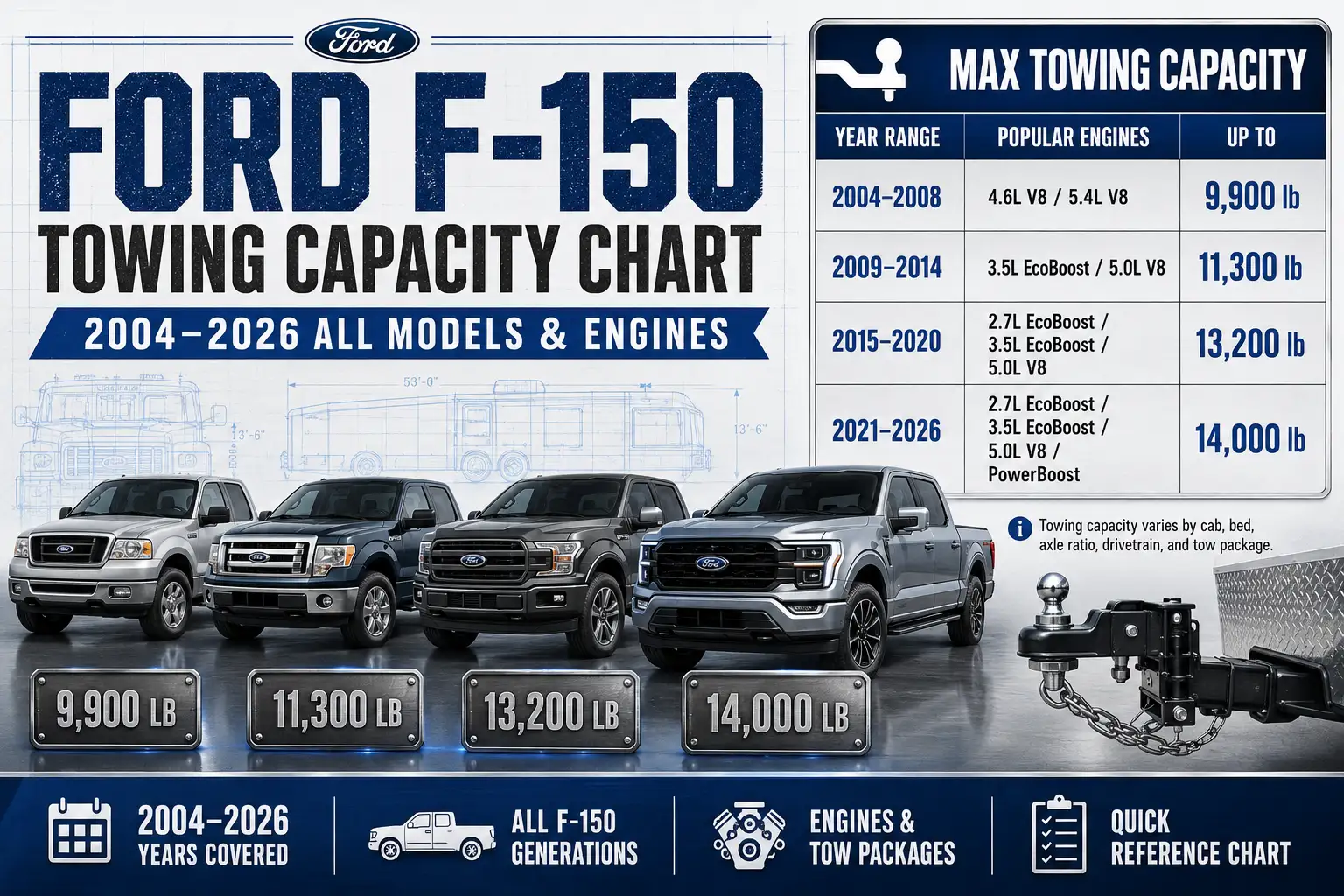

Ford F-150 Towing Capacity Chart (2015–2026)
The table below covers the 13th generation (2015–2020) and 14th generation (2021–2026) F-150. All figures are maximum ratings with the proper tow package equipped unless noted.
| Model Year | Engine | Cab / Bed | Max Tow (lbs) | Notes |
|---|---|---|---|---|
| 2026 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 14,000 | Max Trailer Tow Pkg req’d |
| 2026 | 5.0L Ti-VCT V8 | SuperCab/SuperCrew | 13,000 | Max Trailer Tow Pkg req’d |
| 2026 | 2.7L EcoBoost V6 | Any | 8,500 | — |
| 2025 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 14,000 | Max Trailer Tow Pkg req’d |
| 2025 | 5.0L V8 | SuperCab/SuperCrew | 13,000 | Max Trailer Tow Pkg req’d |
| 2025 | 3.0L Power Stroke Diesel | SuperCrew | 12,100 | — |
| 2024 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 14,000 | Max Trailer Tow Pkg req’d |
| 2024 | 5.0L V8 | SuperCab/SuperCrew | 13,000 | Max Trailer Tow Pkg req’d |
| 2024 | 2.7L EcoBoost V6 | Any | 8,500 | — |
| 2023 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 14,000 | Max Trailer Tow Pkg req’d |
| 2023 | 5.0L V8 | SuperCab/SuperCrew | 13,000 | Max Trailer Tow Pkg req’d |
| 2022 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 14,000 | Max Trailer Tow Pkg req’d |
| 2022 | 5.0L V8 | SuperCab/SuperCrew | 13,000 | Max Trailer Tow Pkg req’d |
| 2022 | 3.0L Power Stroke Diesel | SuperCrew 5.5′ bed | 12,100 | — |
| 2021 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 14,000 | Max Trailer Tow Pkg req’d |
| 2021 | 5.0L V8 | SuperCab/SuperCrew | 13,000 | Max Trailer Tow Pkg req’d |
| 2020 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 13,200 | Max Trailer Tow Pkg req’d |
| 2020 | 5.0L V8 | SuperCab/SuperCrew | 11,600 | — |
| 2019 | 3.5L EcoBoost V6 | SuperCab/SuperCrew 5.5′ bed | 13,200 | Max Trailer Tow Pkg req’d |
| 2019 | 5.0L V8 | SuperCab/SuperCrew | 11,600 | — |
| 2018 | 3.5L EcoBoost V6 | SuperCab/SuperCrew | 13,200 | Max Trailer Tow Pkg req’d |
| 2018 | 5.0L V8 | SuperCab/SuperCrew | 11,100 | — |
| 2017 | 3.5L EcoBoost V6 | SuperCab/SuperCrew | 12,200 | Max Trailer Tow Pkg req’d |
| 2017 | 5.0L V8 | SuperCab/SuperCrew | 11,100 | — |
| 2016 | 3.5L EcoBoost V6 | SuperCab/SuperCrew | 12,200 | Max Trailer Tow Pkg req’d |
| 2016 | 5.0L V8 | SuperCab/SuperCrew | 11,100 | — |
| 2015 | 3.5L EcoBoost V6 | SuperCab/SuperCrew | 12,200 | Max Trailer Tow Pkg req’d |
| 2015 | 5.0L V8 | SuperCab/SuperCrew | 11,100 | — |
Note: Figures above represent maximum rated towing. Actual capacity varies with axle ratio, trailer type (fifth-wheel vs. conventional), and specific trim. Always verify with the door-jamb sticker or Ford's official F-150 towing guide for your VIN.
Ford F-150 Towing Capacity: 2004–2014 (12th Gen)
| Model Year | Engine | Max Tow (lbs) | Notes |
|---|---|---|---|
| 2014 | 3.5L EcoBoost V6 | 11,300 | Max Tow Pkg req’d |
| 2014 | 5.0L V8 | 11,100 | — |
| 2011–2013 | 3.5L EcoBoost V6 | 11,300 | — |
| 2009–2014 | 4.6L V8 | 7,700 | — |
| 2004–2008 | 5.4L V8 (Triton) | 9,900 | — |
| 2004–2008 | 4.6L V8 (Triton) | 7,700 | — |
F-150 Towing Capacity by Engine
3.5L EcoBoost V6 (Best Towing Engine)
The twin-turbocharged 3.5L EcoBoost is the top tow engine across all F-150 generations. Introduced in 2011, it produces up to 400 hp and 500 lb-ft of torque in its latest tune. When paired with the Max Trailer Tow Package, the 2021–2026 models are rated up to 14,000 lbs — the highest in class for conventional towing. The 2015–2020 models max at 13,200 lbs with the same package. This engine is the clear recommendation if towing above 10,000 lbs is a priority.
5.0L Ti-VCT V8
The naturally aspirated 5.0L Coyote V8 offers strong torque at lower RPMs, making it a popular choice for frequent towers. The 2021–2026 models are rated up to 13,000 lbs with the Max Trailer Tow Package. The 2015–2020 generation caps at 11,100–11,600 lbs depending on year. Towing feel is notably linear compared to the turbocharged EcoBoost, which some drivers prefer for longer hauls.
2.7L EcoBoost V6
The smaller twin-turbo V6 produces 325 hp and 400 lb-ft of torque and is rated for up to 8,500 lbs of towing on 2021–2026 models. The 2015–2020 generation rates up to 8,800 lbs. While not suited for heavy trailers, it handles most boats, small campers, and utility trailers well. The 2.7L also delivers the best fuel economy of any F-150 tow-capable configuration — roughly 20 mpg combined when not towing.
3.0L Power Stroke Diesel V6
Available on Lariat and above from 2018 onward, the 3.0L diesel produces 250 hp and 440 lb-ft of torque. It is rated for 12,100 lbs maximum towing and offers the best real-world fuel economy while towing — owners typically report 18–20 mpg towing mid-size trailers. This is the engine for high-mileage towers who prioritize range over raw capacity.
What Affects Ford F-150 Towing Capacity?
Multiple variables combine to determine your specific F-150's maximum tow rating. Understanding each one helps you avoid over-loading and ensures your configuration actually achieves the rated number.
- Max Trailer Tow Package: This factory option (typically $500–600 MSRP) is required to reach the top tow rating on every modern F-150. It adds a larger radiator, upgraded hitch receiver, trailer brake controller wiring, and a 7-pin connector. Without it, the 3.5L EcoBoost is limited to around 11,100 lbs.
- Cab and bed configuration: SuperCrew and SuperCab bodies with a 5.5-foot bed consistently earn the highest ratings because the wheelbase-to-overhang ratio meets SAE J2807 test standards at higher loads. Regular Cab configurations often rate 1,000–2,000 lbs lower with the same engine. See F-150 wheelbase and cab dimensions for full measurements.
- 4WD vs. 2WD: Four-wheel-drive models typically rate 100–200 lbs less than comparable 2WD configurations due to added drivetrain weight, but the difference is minor for most buyers.
- Axle ratio: Higher axle ratios (e.g., 3.73 vs. 3.31) improve towing capability at the cost of highway fuel economy. Many Max Trailer Tow Packages include the 3.73 axle ratio. You can verify your axle code from the door-jamb sticker — see our Ford axle code chart.
- GVWR and payload: Tongue weight (typically 10–15% of trailer weight) counts against payload capacity, not towing capacity. A truck rated for 14,000 lbs of towing may only have 1,800 lbs of payload — so passengers, gear, and tongue weight all compete for that budget. Check F-150 payload capacity chart alongside towing ratings.
How To Find Your F-150's Exact Tow Rating
The quickest way to find your specific truck's tow rating is the yellow or white sticker on the driver's door jamb. It lists the GVWR, GAWR, and often the maximum towing weight. If that sticker is missing or faded:
- Locate your axle code on the door-jamb sticker (typically a 2-character code like “X3E” or “3.73”). Cross-reference our Ford axle code chart to confirm your ratio.
- Check if the Max Trailer Tow Package was factory-ordered. This appears on the window sticker (Monroney label) or in Ford's ETIS system using your VIN.
- Use the F-150 wheelbase chart to confirm your cab and bed configuration, since the tow rating varies by body style.
- Visit Ford's official towing guide (available on ford.com) and enter your year, engine, and configuration to get the exact SAE-rated number.
If you are comparing F-150 to Super Duty, see our Ford F-250 towing capacity chart — the F-250 starts where the F-150 leaves off, with conventional tow ratings up to 22,800 lbs.
Ford F-150 Towing Capacity — FAQ
What is the max towing capacity of a Ford F-150?
The maximum towing capacity of the Ford F-150 is 14,000 lbs. This applies to 2021–2026 models with the 3.5L EcoBoost V6, SuperCrew or SuperCab body, 5.5-foot bed, and the Max Trailer Tow Package.
Can an F-150 tow 10,000 lbs?
Yes. The 3.5L EcoBoost and 5.0L V8 F-150 configurations from 2015 onward are capable of towing 10,000+ lbs with the Max Trailer Tow Package. The 2021–2026 EcoBoost reaches 14,000 lbs.
What engine is best for towing with an F-150?
The 3.5L EcoBoost V6 earns the highest tow rating across all F-150 generations (up to 14,000 lbs on 2021–2026 models). For fuel economy during long towing hauls, the 3.0L Power Stroke Diesel (rated 12,100 lbs) is the better choice.
Does F-150 towing capacity change with cab size?
Yes. SuperCrew and SuperCab bodies with a 5.5-foot bed earn the highest tow ratings. Regular Cab models typically rate 1,000–2,000 lbs lower with the same engine due to SAE J2807 wheelbase requirements.
How much does the Max Trailer Tow Package add?
On the 2021–2026 3.5L EcoBoost, the Max Trailer Tow Package increases the rating from ~11,100 lbs to 14,000 lbs — a nearly 3,000-lb gain. The package costs approximately $500–600 from the factory and includes a larger radiator, integrated trailer brake controller, and 7-pin connector.
