Ford F-150 Towing Capacity by Trim: Full Chart 2024-2026
Ford F-150 towing capacity by trim ranges from 8,400 lbs on a base XL with the 2.7L EcoBoost to 13,500 lbs on an XLT, Lariat, King Ranch, Platinum, or Limited properly equipped with the 3.5L EcoBoost V6, the Tow/Haul Package, and the Max Tow Axle upgrade. The number printed on a brochure is not specific to your trim — it is specific to a configuration within that trim.
Most buyers know their trim name before they know their engine. That gap is where towing confusion starts. This chart organizes the 2025 F-150 towing specs exactly the way most people shop — by trim name first, then by engine and package options.

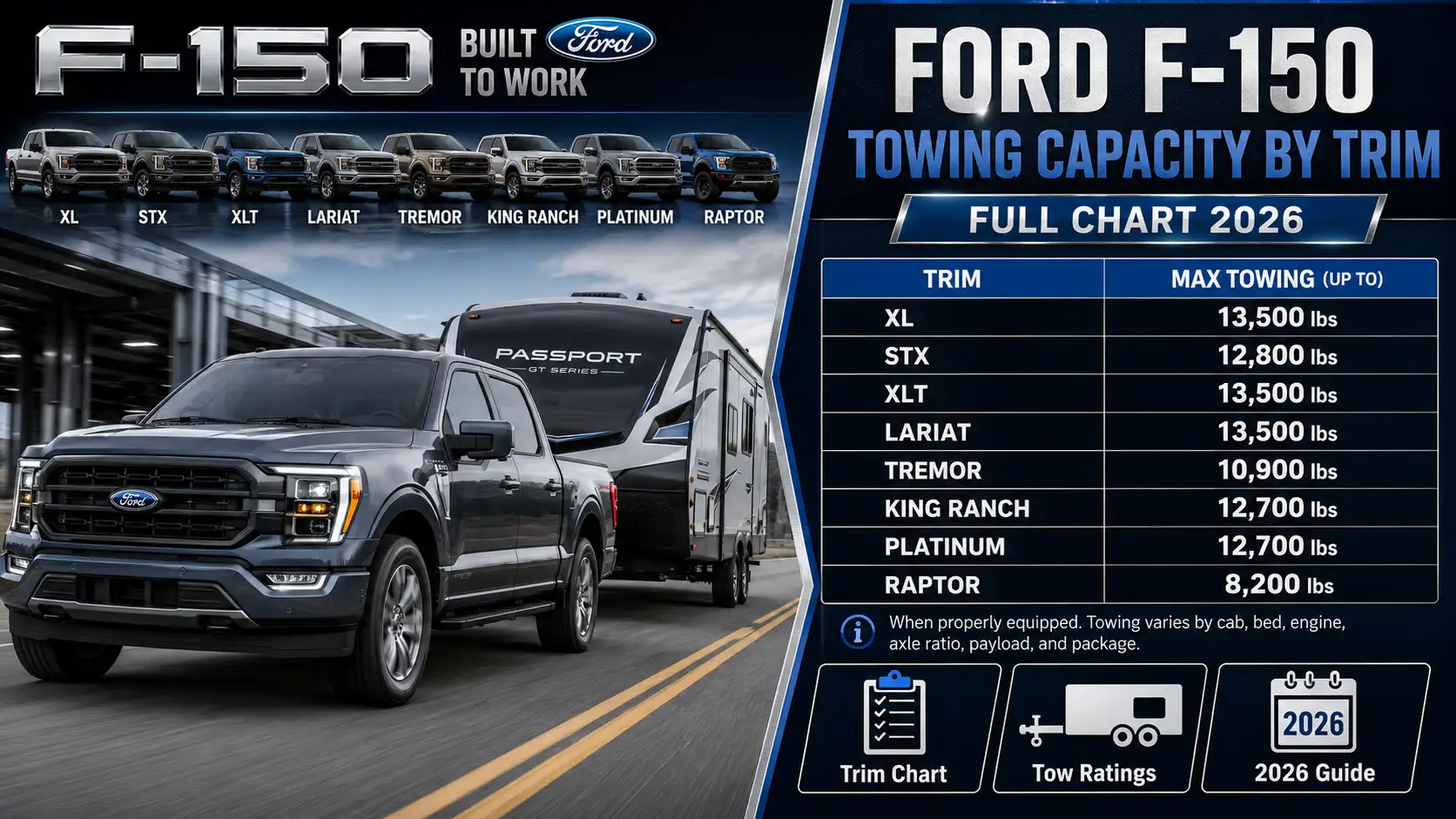

Ford F-150 towing capacity by trim level — 2025 model year infographic showing max tow ratings from XL to Raptor R
Ford F-150 towing capacity by trim — 2025-2026
MAX RATED TOW · WHEN PROPERLY EQUIPPED · SOURCE: FORD 2025 TOWING GUIDE
Ratings are maximum when properly equipped — SuperCrew cab, 6.5-ft box, correct axle config. Without a weight-distributing hitch, Ford caps conventional tow at 5,000 lbs on all trims. Always verify against your door jamb sticker.
How Trim Affects F-150 Towing Capacity in 2024 and 2025
Your trim level controls your engine menu — and your engine choice controls your tow rating.
Each F-150 trim sets three things that determine where your tow rating lands: which engines are on the order sheet, which axle ratios are available, and what packages can be added. The 3.5L EcoBoost is available from XL all the way through Limited. But whether you can actually order it with your trim — and whether you can add the Max Tow Axle — depends on the specific trim and equipment group.
Cab and bed configuration shift the number further. A SuperCrew with a 6.5-ft box on a 157.2-inch wheelbase is the configuration Ford uses to certify the 13,500-lb headline. Switch to a Regular Cab with a shorter wheelbase, and the number drops, even with the same engine and packages.
Drivetrain matters too. A 4×2 configuration typically rates slightly higher than a 4×4 build of the same spec because it carries less curb weight. On higher trims like the Lariat and above, 4×4 is the only drivetrain available in 2025.
One rule applies across every trim and engine: if you tow without a weight-distributing hitch, Ford caps the conventional tow rating at 5,000 lbs, regardless of what your sticker says. That limit is in the official towing guide footnotes and is non-negotiable.
With that context, here is how every trim stacks up.
Ford F-150 Towing Capacity Chart by Trim for 2024 and 2025
The table below shows the standard engine for each trim, the available engine upgrades, and the maximum tow rating achievable with the right configuration. All figures are for the 2025 model year per Ford’s official 2025 F-150 towing guide. The 2024 F-150 shared the same 13,500-lb maximum after the SAE J2807 re-test revision from the prior 14,000-lb certification.
Two caveats apply to every maximum in the chart. First, figures shown are for the optimal SuperCrew, 6.5-ft box, 4×4 configuration — shorter cabs or beds produce lower numbers. Second, reaching any rating above 11,600 lbs requires the Tow/Haul Package (53T) plus the Max Tow Axle upgrade.
For a year-by-year breakdown of F-150 towing across all model generations and engine families, the Ford F-150 towing capacity chart covering 2004 through 2026 gives the full picture.
What the “Properly Equipped” Label Actually Means
The number on the brochure assumes a specific truck — not the one most buyers end up with.
“Properly equipped” is not a throwaway disclaimer. Ford builds headline tow ratings around a defined stack of engine, axle ratio, cab/bed config, and installed packages. Pull any one element out of that stack, and the certified number no longer applies to your truck.
What the Tow/Haul Package (53T) Includes
The Tow/Haul Package (53T) is the foundation for any serious towing on the 2025 F-150. Per verified dealer order guides, it includes an integrated trailer brake controller, an electronic-locking rear axle with an enhanced ratio (3.55 or 3.73 depending on engine and trim), a heavy-duty reinforced rear bumper, a 4-/7-pin trailer connector, and Pro Trailer Hitch Assist.
The Max Tow Axle is a separate upgrade added on top of 53T. According to verified 2025 towing sources, it upgrades the rear differential to a reinforced locking unit and is required to unlock the full 13,500-lb rating. Without it, ratings on configurations requiring the Max Tow Axle drop below the headline figure. Think of the Tow/Haul Package as the foundation, and the Max Tow Axle as the multiplier.
Why Payload Limits Matter More Than the Tow Rating
F-150 forum veterans consistently point out that payload — not tow rating — is often the real limit on higher-content trims. Every pound of luxury hardware Ford adds to the King Ranch or Platinum (leather seats, moonroof, technology packages) adds to the truck’s curb weight, which directly reduces the available payload.
As noted by owners on f150forum.com, two trucks with identical published tow ratings can have different safe trailer limits in real use, because the higher-content truck has less remaining payload margin to absorb tongue weight, passengers, and cargo. Your door jamb sticker shows your specific truck’s payload — not the maximum published for the trim. Work from that number, not the brochure.
Raptor and Tremor Towing Compared to Street Trims
The Raptor’s 8,700-lb rating surprises buyers coming from a Lariat or XLT — here is why.
The Raptor runs the same basic 3.5L EcoBoost architecture as the street trims that hit 13,500 lbs, but the high-output (HO) tune, 37-inch tires, long-travel Fox suspension, and higher curb weight drop the certified tow rating to 8,700 lbs for the standard Raptor and the Raptor R. Ford’s official towing guide confirms that Raptor’s geometry and configuration simply are not optimized for max tow certification, regardless of raw horsepower.
The Tremor tells a different story. As an off-road-oriented trim built on the standard F-150 chassis with a 5.0L V8, the Tremor rates at up to 12,900 lbs with the Tow/Haul Package — the same ceiling as the Lariat with the V8. If you need legitimate off-road clearance and still plan to tow regularly over 10,000 lbs, the Tremor is the right call. The Raptor is not.
If you regularly pull over 10,000 lbs, choose the XLT, Lariat, King Ranch, or Platinum with the 3.5L EcoBoost and the Tow/Haul Package plus Max Tow Axle. The Raptor’s power is real. Its tow rating is not built for heavy trailer work.
How to Find Your Truck’s Exact Tow Rating
The chart above shows what your trim can do. Your door jamb sticker shows what yours will do.

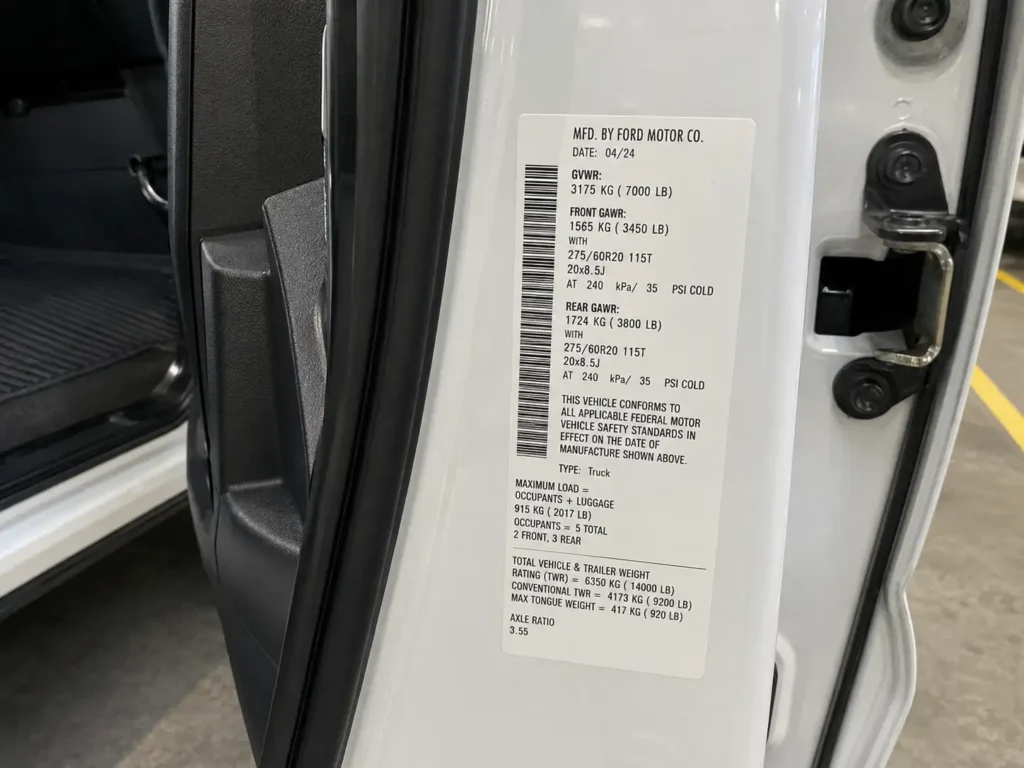

The sticker on the driver-side door jamb is the only binding number for your specific truck. It reflects the actual built configuration — axle ratio, GVWR, payload — not the trim’s published maximum. Here is how to confirm your actual rating in three steps:
- Read the axle ratio on the door jamb sticker. It will show something like “3.31,” “3.55,” or “3.73.” That ratio, combined with your engine, sets your base certified tow range.
- Cross-reference that axle ratio against Ford’s annual towing guide for your model year. The guide is organized by engine, axle, cab, and wheelbase. Your intersection on that table is your certified maximum.
- Check your remaining payload margin before any tow. Trailer tongue weight (roughly 10% of loaded trailer weight) plus passengers plus any bed cargo cannot exceed your door jamb payload figure.
To verify your full configuration’s rating using Ford’s towing capacity data tools, enter your truck’s build details and the guide will confirm your exact ceiling.
For a detailed look at how payload figures break down across F-150 configurations, the Ford F-150 payload capacity chart covers every cab and engine combination.
What F-150 Trim Should You Choose for Maximum Towing
The XLT with the 3.5L EcoBoost and the Tow/Haul Package plus Max Tow Axle is the best-value towing configuration in the entire F-150 lineup.
It hits the same 13,500-lb ceiling as the King Ranch and Platinum when identically equipped, at a significantly lower base price. The difference between XLT and King Ranch towing is not capability — it is standard equipment. The King Ranch comes with the Tow/Haul Package as standard equipment and the 3.5L EcoBoost as the base engine. The XLT requires you to add both.
If you want the 3.5L EcoBoost and Tow/Haul Package without paying to option them separately, the King Ranch or Platinum bundles them in. That is a legitimate reason to step up — convenience on the order sheet, not a difference in tow capacity.
When to avoid spec’ing for maximum tow: if your primary use is off-road or overlanding, the Raptor or Tremor serve that purpose. Just accept that the Raptor’s tow ceiling is 8,700 lbs, and plan your trailer weight accordingly.
Match Your Trim to Your Trailer Before You Buy
Ford F-150 towing capacity by trim is not a single number — it is a range that your engine selection and package choices determine. The 3.5L EcoBoost is available from XL through Limited and unlocks 13,500 lbs on any trim it can be ordered with, provided you add the Tow/Haul Package and Max Tow Axle.
Two steps matter most before you tow: confirm your exact configuration against Ford’s towing guide, and read your door jamb sticker for your truck’s specific payload. The brochure tells you the ceiling. The sticker tells you your actual truck.
For a full breakdown of how these towing numbers have shifted across every F-150 generation since 2004, the complete Ford F-150 towing capacity chart by year and engine covers every model year through 2026.
Frequently Asked Questions
What is the maximum towing capacity of the Ford F-150 by trim?
The 2025 F-150 maximum is 13,500 lbs, achievable on the XL, XLT, Lariat, King Ranch, Platinum, and Limited trims when equipped with the 3.5L EcoBoost V6, the Tow/Haul Package (53T), and the Max Tow Axle upgrade. The Raptor and Raptor R top out at 8,700 lbs due to their off-road configurations.
Does the F-150 XLT have the same towing capacity as the King Ranch?
Yes, both can reach 13,500 lbs when equipped with the 3.5L EcoBoost, Tow/Haul Package, and Max Tow Axle. The King Ranch includes the Tow/Haul Package and 3.5L EcoBoost as standard equipment; on the XLT, both are paid options on the order sheet.
Why does the Raptor tow less than the XLT if it has a similar engine?
The Raptor uses a high-output tune of the 3.5L EcoBoost paired with 37-inch tires and long-travel off-road suspension, which changes the truck’s certified tow rating to 8,700 lbs. The standard 3.5L EcoBoost in street-oriented trims is tuned and configured specifically to hit the 13,500-lb ceiling with the proper packages.
Do I need the Max Trailer Tow Package to reach my trim’s rated towing capacity?
For any configuration targeting above 11,600 lbs, yes. The Tow/Haul Package (53T) is the base requirement, and the Max Tow Axle upgrade is additionally required to unlock the full 13,500-lb rating. Without both, your truck’s certified limit will be lower than the trim’s published maximum.
How do I find the exact tow rating for my specific F-150?
Read the payload and axle ratio from the driver-side door jamb sticker, then cross-reference that axle ratio and your engine against Ford’s annual towing guide for your model year. Your door jamb number overrides any brochure figure for your specific truck. The Ford F-150 payload capacity chart is also useful for understanding your real-world tow margin.
