Ford Bronco Towing Capacity Chart – All Years Trims and Engines 2021 to 2026
The Ford Bronco towing capacity ranges from 3,500 lbs on most standard trims to 4,500 lbs on the Raptor and Heritage Edition equipped with the 3.0L EcoBoost V6. Every Bronco in the sixth-generation lineup requires a factory Tow Package to reach its rated limit. Without it, the hitch receiver is not included.
Two vehicles carry the Bronco name: the full-size body-on-frame Bronco and the smaller unibody Bronco Sport. Their towing numbers are very different, and this chart covers both.
Use the sections below to find your year, engine, and trim. The full-size Bronco chart is first, followed by the Bronco Sport chart, a trim-by-trim breakdown, and a practical guide to what those numbers mean for real trailers.
Ford Bronco Towing Capacity by Year and Engine 2021 to 2026
The sixth-generation Bronco has maintained consistent tow ratings since its 2021 relaunch. Engine choice drives the ceiling, not model year. The only meaningful change between 2021 and 2026 is the arrival of the Raptor trim in 2022, which added the 3.0L EcoBoost V6 and pushed the lineup maximum to 4,500 lbs.
Nearly every Bronco carries the same 3,500 lb tow rating regardless of door count, drivetrain, and suspension. The sole exceptions are the four-door Badlands with the V6 and Sasquatch Package (3,460 lbs) and the Raptor (4,500 lbs).

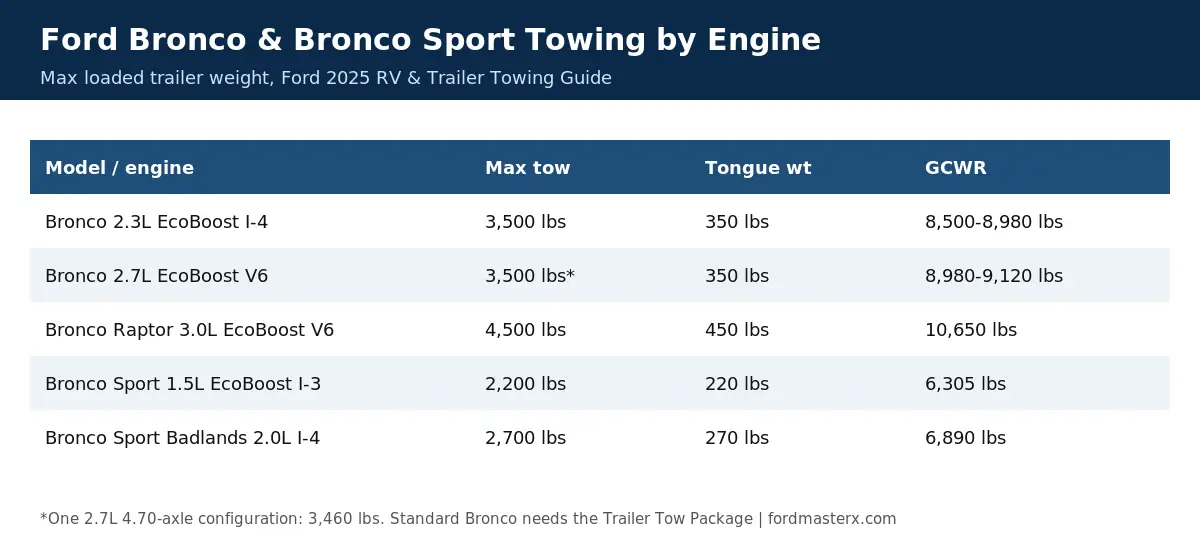

Full-Size Bronco Towing Capacity by Year and Engine
| Year | Engine | Max Tow Rating | GCWR | Notes |
|---|---|---|---|---|
| 2021 | 2.3L EcoBoost I-4 | 3,500 lbs | 8,480 lbs | Raptor not yet available; all trims 3,500 lbs max |
| 2021 | 2.7L EcoBoost V6 | 3,500 lbs | 8,740 lbs | 4-door Badlands V6 + Sasquatch: 3,460 lbs |
| 2022 | 2.3L EcoBoost I-4 | 3,500 lbs | 8,480 lbs | Raptor debuts with 3.0L V6 |
| 2022 | 2.7L EcoBoost V6 | 3,500 lbs | 8,740 lbs | 4-door Badlands V6 + Sasquatch: 3,460 lbs |
| 2022 | 3.0L EcoBoost V6 (Raptor) | 4,500 lbs | 10,650 lbs | Raptor Tow Package standard; 418 hp / 440 lb-ft |
| 2023 | 2.3L EcoBoost I-4 | 3,500 lbs | 8,480 lbs | Unchanged from 2022 |
| 2023 | 2.7L EcoBoost V6 | 3,500 lbs | 8,740 lbs | 4-door Badlands V6 + Sasquatch: 3,460 lbs |
| 2023 | 3.0L EcoBoost V6 (Raptor) | 4,500 lbs | 10,650 lbs | Raptor Tow Package standard |
| 2024 | 2.3L EcoBoost I-4 | 3,500 lbs | 8,480 lbs | Heritage Edition adds 3.0L option |
| 2024 | 2.7L EcoBoost V6 | 3,500 lbs | 8,740 lbs | 4-door Badlands V6 + Sasquatch: 3,460 lbs |
| 2024 | 3.0L EcoBoost V6 (Heritage / Raptor) | 4,500 lbs | 10,650 lbs | Heritage Edition joins Raptor at 4,500 lb tier |
| 2025 | 2.3L EcoBoost I-4 | 3,500 lbs | 8,480 lbs | No powertrain changes from 2024 |
| 2025 | 2.7L EcoBoost V6 | 3,500 lbs | 8,740 lbs | 4-door Badlands V6 + Sasquatch: 3,460 lbs |
| 2025 | 3.0L EcoBoost V6 (Heritage / Raptor) | 4,500 lbs | 10,650 lbs | Unchanged |
| 2026 | 2.3L EcoBoost I-4 | 3,500 lbs | 8,480 lbs | 60th Anniversary year; no towing changes |
| 2026 | 2.7L EcoBoost V6 | 3,500 lbs | 8,740 lbs | 4-door Badlands V6 + Sasquatch: 3,460 lbs |
| 2026 | 3.0L EcoBoost V6 (Raptor only) | 4,500 lbs | 10,650 lbs | Heritage Edition not listed for 2026; Raptor carries the 4,500 lb rating |
Tongue weight on all standard trims is rated at 350 lbs. The Raptor with the 3.0L V6 supports up to 450 lbs of tongue weight, which gives more flexibility when loading heavier trailers. Towing capacity only deviates from 3,500 lbs in two specific cases: the four-door Badlands with the V6 and Sasquatch Package drops to 3,460 lbs, and the Raptor climbs to 4,500 lbs.
Your trim determines more than just the baseline number. The next section breaks down what each trim can actually do and flags the package combination that confuses most buyers.
Ford Bronco Towing Capacity Breakdown by Trim Level
Your trim matters more than your model year when calculating how much your Bronco can pull. Most buyers know their trim before they know their engine, so this section works from that starting point.
For a full comparison of what separates each trim across all specs, see our Ford Bronco trim levels chart.
Big Bend, Black Diamond and Outer Banks
All three trims run the 2.3L EcoBoost I-4 as standard, with the 7-speed manual or 10-speed automatic transmission. Maximum tow rating is 3,500 lbs with the factory Tow Package installed. GCWR is 8,480 lbs.
These are the volume trims. If you plan to tow a jet ski, utility trailer, or pop-up camper, the 2.3L gets the job done within the 3,500 lb ceiling.
Wildtrak
The Wildtrak steps up to the 2.7L EcoBoost V6 as standard. Despite the larger engine producing 330 hp versus the 2.3L’s 300 hp, the tow rating stays at 3,500 lbs. GCWR increases to 8,740 lbs, reflecting the heavier V6 engine.
The V6 does not increase towing over the four-cylinder here because the added engine weight offsets the power gain within Ford’s SAE J2807 methodology.
Badlands
The Badlands is available with either the 2.3L or 2.7L EcoBoost. Both produce a 3,500 lb tow rating in standard configuration. The one exception: the four-door Badlands with the optional V6 and Sasquatch Package drops 40 lbs to a 3,460 lb rating.
That 40 lb reduction is marginal and will not affect any real-world towing decision. It is a result of the Sasquatch Package’s heavier tires and suspension components increasing the truck’s curb weight.
Heritage Edition and Bronco Raptor
Both the Heritage Edition and the Raptor use the 3.0L EcoBoost V6. The Raptor’s 3.0L EcoBoost V6, producing 418 hp and 440 lb-ft of torque, supports a maximum tow rating of 4,500 lbs and a GCWR of 10,650 lbs. The Heritage Edition matches that 4,500 lb number from the 2024 model year onward.
The Raptor Tow Package is included as standard equipment on Raptor models. No separate add-on is required.
What the Tow Package Includes
The factory Tow Package on the standard Bronco is required to reach the rated 3,500 lb limit on most trims. It adds a Class II trailer hitch receiver, a 4-pin and 7-pin wiring harness, an upgraded radiator, and a transmission oil cooler. The package also enables Trailer Sway Control through the existing stability control system.
Without the Tow Package installed, Ford does not rate the Bronco for any trailer weight beyond light accessories.
Ford Bronco Sport Towing Capacity by Year 2021 to 2026

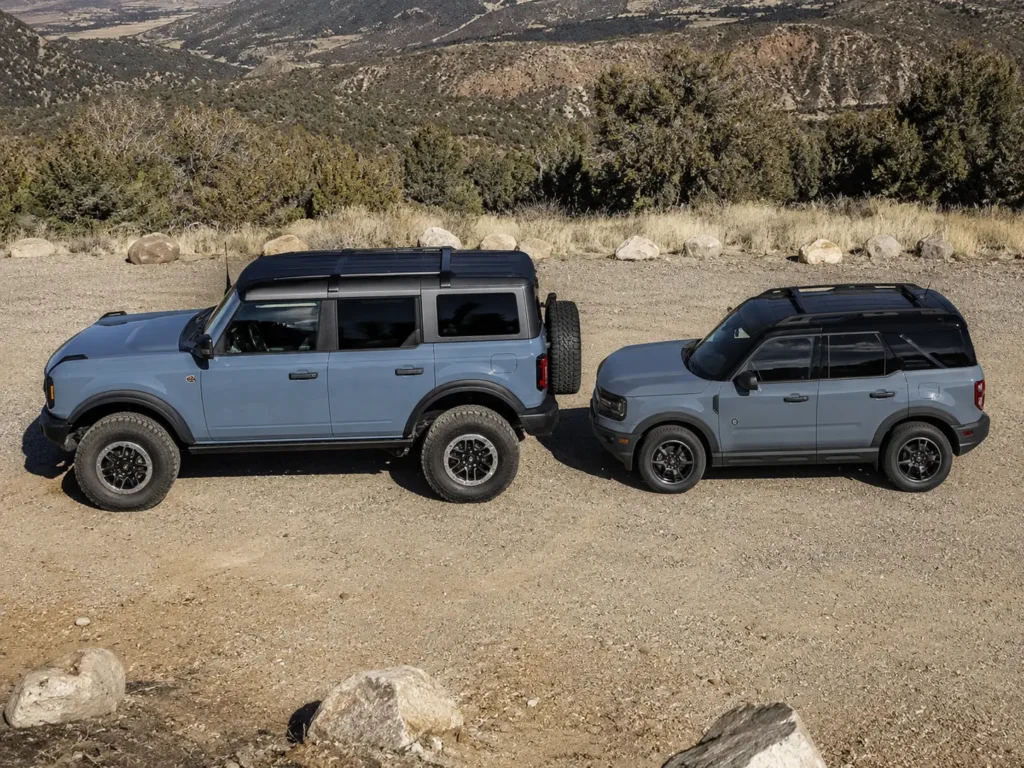

The Bronco Sport shares a name but not a platform. It runs on the same unibody architecture as the Ford Escape, not the Bronco’s body-on-frame construction. That fundamental difference is why the Sport tows roughly 60% less than the full-size Bronco.
If you are deciding between the two for towing purposes, our Bronco vs. Bronco Sport comparison covers the full picture beyond towing numbers alone.
Bronco Sport Towing Capacity by Year
| Year | Engine | Trim | Max Tow Rating | Notes |
|---|---|---|---|---|
| 2021–2024 | 1.5L EcoBoost I-3 | Big Bend, Outer Banks, Others | 2,000 lbs | Consistent across all four years |
| 2021–2024 | 2.0L EcoBoost I-4 | Badlands | 2,200 lbs | Class II Tow Package required |
| 2025–2026 | 1.5L EcoBoost I-3 | Big Bend, Outer Banks, Others | 2,200 lbs | 200 lb increase with updated Class II Tow Package |
| 2025–2026 | 2.0L EcoBoost I-4 | Badlands | 2,700 lbs | Class II Trailer Tow Package standard on Badlands |
The Bronco Sport’s Class II Trailer Tow Package includes a Class II hitch receiver, 4-pin and 7-pin wiring harness, trailer sway control, and a transmission oil cooler. Towing any trailer over 1,500 lbs without this package installed may void the truck’s limited warranty.
The Badlands is the only Bronco Sport trim with the 2.0L EcoBoost. If maximum towing is the priority, it is the only Sport trim worth considering.

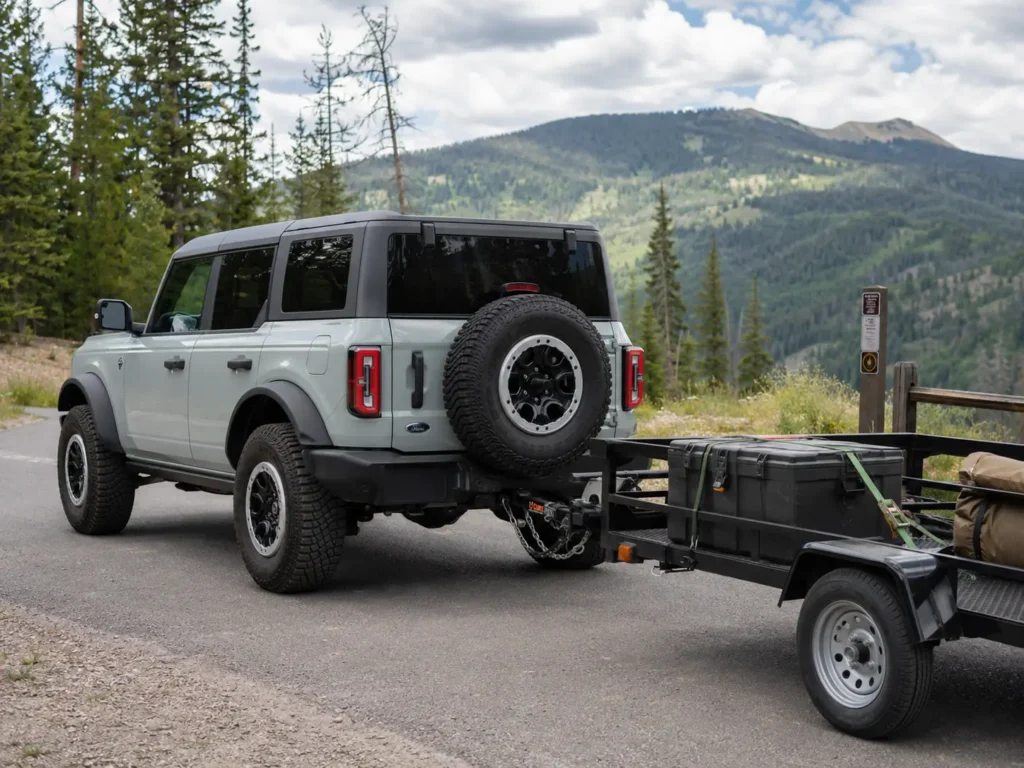

What You Can Actually Tow with a Ford Bronco
A 3,500 lb tow rating covers the most common recreational loads Bronco owners haul. Here is how those numbers translate to real trailer categories:
3,500 lb tier (most full-size Bronco trims):
- Personal watercraft on a single trailer: 900 to 1,200 lbs total
- Small aluminum fishing boat with trailer: 1,800 to 2,500 lbs total
- Pop-up camper: 1,500 to 2,800 lbs loaded
- Utility trailer with lawn equipment or ATVs: 2,000 to 3,200 lbs total
- Small flatbed cargo trailer: up to 3,000 lbs
4,500 lb tier (Raptor and Heritage Edition):
- Small travel trailer or teardrop camper: 3,500 to 4,200 lbs
- Larger watercraft on a double axle trailer: 3,800 to 4,400 lbs
- UTV or side-by-side on an enclosed trailer: 3,500 to 4,000 lbs
A note on trailer sway for 2-door Broncos: The 2-door Bronco’s wheelbase is 100.4 inches, which makes it more susceptible to trailer sway than longer-wheelbase trucks. With loads over 3,000 lbs, keep highway speeds under 65 mph and use a weight distribution hitch where possible.
Tongue weight should stay between 10% and 15% of the total loaded trailer weight on any Bronco configuration. On a 3,500 lb trailer, that puts tongue weight in the 350 to 525 lb range, right at or above the standard trim limit of 350 lbs. If your tongue weight approaches the upper end of that range, the Raptor’s 450 lb tongue weight rating gives more margin.
For owners considering a higher-capacity Ford truck for heavier towing, the Ford F-150 towing capacity chart covers ratings up to 14,000 lbs across all F-150 engine and axle configurations.
If you plan to tow without a trailer at all, the flat towing rules for the Bronco are a separate topic entirely. Our guide on whether you can flat tow a Ford Bronco covers transfer case position, speed limits, and manufacturer requirements.
Know Your Bronco Towing Limits Before You Hitch Up
The Ford Bronco towing capacity chart tells a simple story: 3,500 lbs for most trims, 4,500 lbs for the Raptor and Heritage Edition. The Tow Package is not optional if you want to reach either ceiling.
If you own a Bronco Sport, the 2025-2026 Badlands with the 2.0L EcoBoost is the only configuration that gets close to the full-size Bronco’s entry-level rating, topping at 2,700 lbs. Every other Sport trim stays at 2,000 to 2,200 lbs.
For any tow session near the rated limit, cross-check your specific build against the towing supplement in your glovebox or through Ford’s official owner portal at owner.ford.com. The supplement will list your exact GCWR and tongue weight limits based on your VIN configuration.
Ford Bronco Towing Capacity Frequently Asked Questions
What is the maximum towing capacity of the Ford Bronco?
The maximum towing capacity of the full-size Ford Bronco is 4,500 lbs, available on the Bronco Raptor and Heritage Edition with the 3.0L EcoBoost V6. All other trims with the 2.3L or 2.7L EcoBoost are rated at 3,500 lbs maximum when the factory Tow Package is installed.
Does the Ford Bronco need a tow package to tow a trailer?
Yes. The factory Trailer Tow Kit for the Bronco includes a hitch receiver, trailer module, and 4/7-pin wiring connector, and requires dealer installation to perform a software update that enables the electrical functions. Without the Tow Package, Ford does not rate the Bronco for trailer weight beyond light accessories.
What is the Ford Bronco Raptor towing capacity?
The Ford Bronco Raptor has a maximum towing capacity of 4,500 lbs across all model years from 2022 to 2026, with a GCWR of 10,650 lbs. The Raptor Tow Package is standard equipment, so no separate add-on is needed to reach the rated limit.
How much can the Ford Bronco Sport tow?
The Bronco Sport tows between 2,000 and 2,700 lbs depending on year and trim. The highest rating is 2,700 lbs on the 2025 and 2026 Badlands with the 2.0L EcoBoost and the Class II Trailer Tow Package. From 2021 through 2024, the maximum was 2,200 lbs on the Badlands trim.
Can a Ford Bronco tow a camper?
A full-size Bronco can tow a pop-up camper or small travel trailer within the 3,500 lb limit. Pop-up campers typically range from 1,500 to 2,800 lbs loaded, well within reach of any Bronco trim with the Tow Package. For small travel trailers in the 3,500 to 4,000 lb range, the Raptor or Heritage Edition with the 3.0L V6 is the right choice.
