Ford F250 Towing Capacity By Year – Charts & Engine Specs 2026

The Ford F-250 Super Duty occupies a critical, dominating space in the heavy-duty automotive landscape. Prior to 1999, heavy-duty pickups were largely adaptations of their half-ton counterparts. However, as commercial and recreational towing demands accelerated, it became clear that adapting a light-duty chassis was no longer sufficient.

Introduced for the 1999 model year, the Super Duty lineage marked a structural and philosophical divergence from the consumer-oriented Ford F-150 platform. By engineering a dedicated, heavier-duty chassis with robust suspension components and specialized powertrains, the F-250 was built specifically to accommodate extreme payloads and massive towing requirements.

Over the ensuing decades, the towing capacity of the Ford F-250 has escalated at a staggering pace. Early models hovered around the 10,000-pound to 14,000-pound threshold, relying on massive displacement engines with relatively low horsepower and simple automatic transmissions. Today, the modern F-250 can confidently tow up to 22,000 pounds conventionally and 23,000 pounds utilizing a gooseneck or fifth-wheel hitch.

This exponential growth is not merely a byproduct of increased engine displacement or higher horsepower figures. It is the result of systematic, generation-over-generation advancements in metallurgy, high-strength steel frame rigidity, forced-induction diesel technology, computational thermal management, and sophisticated multi-gear transmissions.

Understanding the true towing capabilities of the Ford F-250 requires parsing through decades of engine options, cab configurations, and axle ratios. Furthermore, it necessitates an intimate understanding of the mechanical thresholds that govern heavy towing, including payload depletion, gross combined weight ratings, and structural physics. This analysis provides an exhaustive breakdown of the Ford F-250 towing capacity by year, detailing the mechanical evolution of one of the world’s most capable work vehicles.

The Physics of Towing: Understanding Jargon and Capacities

To accurately assess the capabilities of any heavy-duty truck, the underlying metrics governing automotive mass and force must be explicitly defined. Towing capacity is never an isolated metric; it is part of a complex mathematical equation that balances the weight of the truck, the load on the axles, and the integrity of the braking and suspension systems.

Automakers design trucks to operate within specific thermal and structural windows. Operating outside these windows compromises the vehicle and public safety.

Gross Vehicle Weight Rating (GVWR)

The Gross Vehicle Weight Rating (GVWR) is the absolute maximum allowable weight of the fully-loaded vehicle itself. This figure encompasses the curb weight of the truck, all vital fluids, passengers, onboard cargo, and the downward tongue weight exerted by a connected trailer.

The F-250 is traditionally classified as a Class 2 or Class 3 truck. Modern F-250 GVWRs typically range between 10,000 pounds and 11,400 pounds depending on the specific suspension packages equipped. The 10,000-pound GVWR is a critical legal threshold in many jurisdictions, separating light-duty passenger vehicles from commercial vehicles subject to Department of Transportation (DOT) regulations.

Gross Axle Weight Rating (GAWR)

The Gross Axle Weight Rating (GAWR) denotes the maximum weight that a single axle can safely support without suffering catastrophic structural or bearing failure. Heavy-duty trucks distribute weight unevenly, especially when under load.

When a conventional trailer is hitched to the rear bumper, it applies a downward force (tongue weight) that presses down heavily on the rear axle. Because the hitch is located behind the rear wheels, it acts as a lever, simultaneously lifting the front axle. Exceeding the rear GAWR compromises steering geometry, reduces front-tire traction, and accelerates suspension component failure.

Gross Combined Weight Rating (GCWR)

The Gross Combined Weight Rating (GCWR) is the maximum allowable weight of the truck and the trailer combined, fully loaded with all cargo, fluids, and passengers. The GCWR is fundamentally dictated by the powertrain’s ability to pull mass up a grade without overheating, and the braking system’s ability to halt that mass safely.

Modern F-250 models equipped with the High-Output 6.7L Power Stroke diesel engine and heavy-duty axle upgrades can achieve a staggering GCWR of up to 30,000 pounds. This means the truck, trailer, and everything inside them cannot legally or mechanically exceed 15 tons.

Payload Capacity and Payload Depletion

Payload capacity is calculated by subtracting the vehicle’s base curb weight from its Gross Vehicle Weight Rating (GVWR). Payload is frequently the most critical, yet overlooked, constraint in heavy towing.

A common misconception in the automotive space is that a truck can tow its maximum rated towing capacity regardless of how much weight is inside the cab or bed. However, a trailer exerts massive downward force directly onto the truck.

For a conventional bumper-pull trailer, the tongue weight should represent 10% to 15% of the total loaded trailer weight to prevent dangerous trailer sway. For a fifth-wheel or gooseneck trailer, the pin weight typically rests between 15% and 25% of the total trailer weight.

Consider a mathematical example: An operator is towing a 15,000-pound fifth-wheel trailer at a 20% pin weight. That trailer exerts 3,000 pounds of force directly onto the bed of the truck. If the specific F-250 has a maximum payload capacity of 3,500 pounds, the addition of two adult passengers, a full tank of diesel, and basic tools will easily push the vehicle over its legal GVWR, even though a 15,000-pound trailer is well below the truck’s advertised “towing capacity.”

Conventional vs. Fifth-Wheel and Gooseneck Towing

The physical location of the hitch fundamentally alters the physics of towing, which directly dictates why automakers offer different weight ratings for different hitch types.

Conventional towing utilizes a receiver hitch mounted beneath the rear bumper. Because the pivot point is located far behind the rear axle, heavy loads act as a lever. This geometry is inherently less stable at high speeds and makes the truck susceptible to trailer sway induced by crosswinds or passing semi-trucks. Consequently, conventional towing capacities are generally lower.

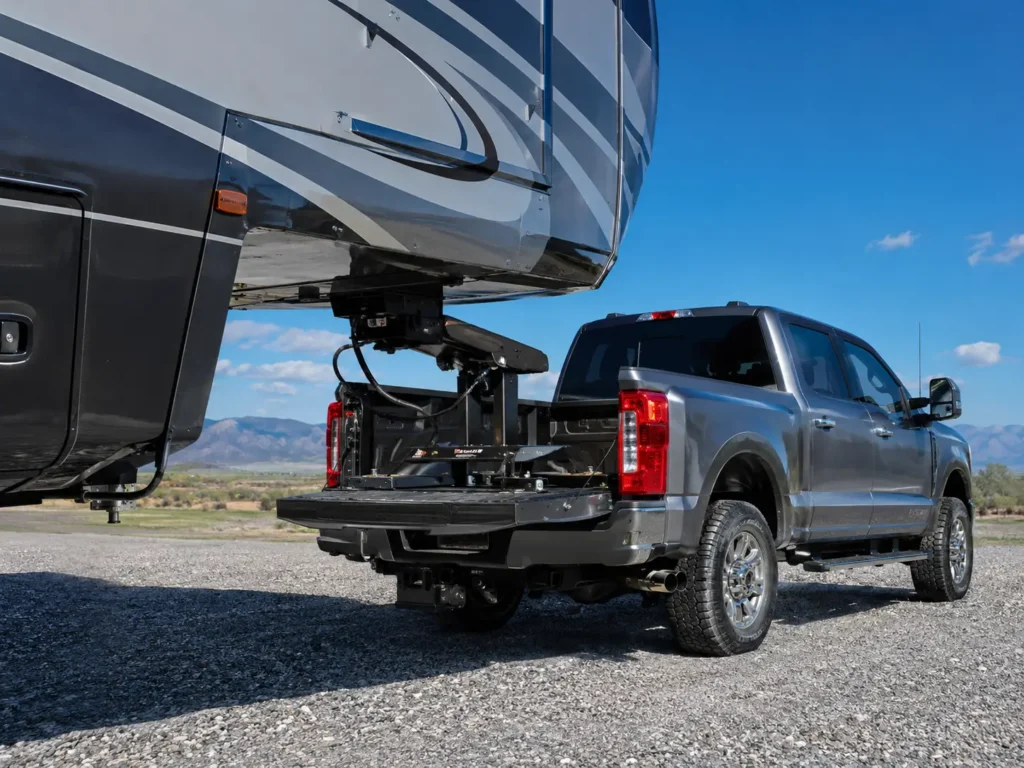

Fifth-wheel and gooseneck hitches are mounted directly in the bed of the truck. This places the downward force directly over, or slightly ahead of, the rear axle. This configuration completely eliminates the rear-bumper lever effect, improves weight distribution across all four of the truck’s tires, and drastically enhances high-speed stability. This structural and geometric advantage explains why F-250 gooseneck ratings consistently exceed conventional ratings by up to several thousand pounds.

The SAE J2807 Towing Standard Explained

Historically, the automotive industry lacked a unified testing metric for tow ratings. Automakers calculated tow ratings using proprietary, internal testing protocols that were rarely disclosed to the public. This led to an industry landscape where advertised towing capacities were heavily influenced by marketing departments and were not directly comparable across brands. A truck rated for 15,000 pounds by one manufacturer might perform worse in real-world conditions than a competitor’s truck rated for 13,000 pounds.

To rectify this discrepancy and prioritize consumer safety, the Society of Automotive Engineers (SAE) developed the SAE J2807 standard. First published in 2008 and updated periodically, SAE J2807 establishes rigorous, brutal performance requirements for determining tow-vehicle GCWR and trailer weight ratings.

Ford was a major proponent of this shift and began applying the SAE standard to its F-Series and Super Duty lines to ensure consistent, verifiable comparisons against competitors like the Chevrolet Silverado HD and Ram HD. For further reading on industry standardization, consult the guidelines.

Core SAE J2807 Testing Metrics

The testing framework requires the vehicle to operate under severe thermal and mechanical stress, measuring acceleration, braking, handling, and thermal management. The tests are divided between Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) configurations.

The SAE J2807 standard goes far beyond acceleration and braking. The most grueling portion of the certification is the Davis Dam Grade test.

This test simulates climbing a steep, 11.4-mile stretch of Highway 68 in Arizona. To pass, the fully loaded truck and trailer combination must ascend this continuous grade at ambient temperatures exceeding 100°F (38°C). Furthermore, the vehicle must complete the climb with the air conditioning running at maximum capacity. The truck cannot overheat, trigger a “limp mode,” or fail to maintain a strict minimum speed limit.

Only when a specific engine, axle, cab, and cooling system configuration passes these stringent benchmarks without mechanical degradation does it earn its official SAE J2807 certified towing capacity.

First Generation (1999-2007): The Birth of the Dedicated Super Duty

Prior to the 1999 model year, Ford’s heavy-duty offerings were badged as F-250 and F-350, but they shared vast amounts of sheet metal, frame design, and suspension architecture with the lighter-duty F-150. As trailers grew heavier and commercial demands intensified, adapting the F-150 platform became an engineering dead end.

Ford made the bold decision to split the F-Series line. The 1999 Super Duty was born, featuring a massive, dedicated high-strength steel frame, heavy-duty solid axles front and rear, and vastly oversized braking systems.

Towing capacities during this initial generation spanned from roughly 6,800 pounds for base models to a peak of 17,000 pounds for properly equipped fifth-wheel configurations.

The First Generation Powertrain Lineup

The inaugural Super Duty models relied on a mix of large-displacement gasoline engines and highly durable diesel powerplants sourced from Navistar International.

• 5.4L Triton V8: The base gasoline engine provided adequate power for light commercial use. It was a reliable, albeit underpowered, workhorse. Towing capacities for the 5.4L typically ranged between 8,000 and 10,000 pounds.
• 6.8L Triton V10: A unique heavy-duty gasoline alternative, the V10 offered a significant torque advantage over the V8 without the upfront cost of a diesel. It pushed towing capacities into the 10,000 to 13,000-pound range.
• 7.3L Power Stroke V8 Turbodiesel (1999-2003): Regarded to this day as one of the most reliable and legendary diesel engines ever produced, the 7.3L Power Stroke transformed the F-250. Properly equipped configurations could achieve conventional tow ratings of up to 12,500 pounds and fifth-wheel tow ratings exceeding 14,200 pounds.
• 6.0L Power Stroke V8 Turbodiesel (2003-2007): Replacing the 7.3L to meet increasingly strict federal emissions regulations, the 6.0L offered increased horsepower and quicker spooling. It pushed fifth-wheel towing capabilities up to the 17,000-pound mark. However, this engine was plagued by severe reliability issues regarding its exhaust gas recirculation (EGR) cooler, engine oil cooler, and weak head studs, leading to massive warranty claims.

First Generation Structural Limitations

Despite its rugged, truck-focused design, the First Generation F-250 faced structural limitations compared to modern iterations. The payload capacity hovered around a maximum of 3,840 pounds.

Furthermore, the transmission technology of the era limited towing efficiency. The use of older 4-speed automatic transmissions meant there were large gaps between gear ratios. This limited the engine’s ability to maintain optimal RPM power bands during steep ascents. Additionally, the lack of integrated, computer-controlled exhaust braking meant drivers towing heavy fifth wheels down steep grades had to rely heavily on the truck’s physical service brakes, drastically increasing the risk of brake fade.

Second Generation (2008-2010): Power, Refinement, and Emissions

The Second Generation Super Duty represented a significant leap forward in exterior styling, interior refinement, and raw towing power. Ford completely redesigned the front end, creating a massive, stacked grille assembly. This was not purely aesthetic; it was required to force massive amounts of cooling air over the complex heat exchangers necessitated by new diesel emission standards.

Overall towing capacities saw a marked increase, ranging from 9,500 pounds on the low end to 16,800 pounds at the absolute maximum for fifth-wheel setups. The payload capacity during this era saw a slight structural dip, peaking at 3,220 pounds. This reduction in payload was due in part to the increased curb weight of the heavily reinforced chassis and the addition of heavy emissions control hardware on the diesel engines.

The 6.4L Power Stroke Era

The defining feature of this generation was the introduction of the 6.4L Power Stroke V8 Turbodiesel. Engineered by Navistar to replace the troubled 6.0L, the 6.4L utilized a sophisticated sequential twin-turbocharger system and introduced the diesel particulate filter (DPF) to the Super Duty line. The sequential turbos provided a massive, immediate surge in low-end torque, virtually eliminating the turbo lag that plagued older diesels.

When properly equipped with the correct axle ratios, an F-250 with the 6.4L Power Stroke could handle conventional trailers up to 16,000 pounds and fifth-wheel trailers up to 16,800 pounds.

This generation also ushered in the widespread use of Ford’s 5R110W TorqShift 5-speed automatic transmission. The integration of a highly refined, dedicated “Tow/Haul” mode fundamentally changed the heavy-hauling experience. The computer altered shift points to hold gears much longer on steep ascents and, crucially, actively downshifted on descents to utilize engine compression braking, saving the physical brake pads.

Despite the impressive performance metrics, the 6.4L engine is historically noted for its complex maintenance requirements. The regeneration cycles of the DPF created immense thermal loads, making meticulous upkeep critical for sustained heavy towing reliability.

Gasoline options for the Second Generation remained the 5.4L V8 and 6.8L V10, offering steady, reliable towing capabilities in the 9,000 to 11,000-pound range, appealing to commercial fleets that wanted to avoid the complexity of the new diesel emission systems.

Third Generation (2011-2016): Ford’s In-House Power Revolution

The 2011 model year was a watershed moment for the Ford F-250. For the first time since the inception of the Power Stroke nameplate in the 1990s, Ford parted ways with Navistar International. Ford designed, engineered, and manufactured its own proprietary diesel engine: the 6.7L Power Stroke V8, internally code-named the “Scorpion”.

This generation solidified the F-250 as a dominant, uncompromising force in the heavy-duty sector. The combination of hyper-capable engines, advanced in-cab technology, and robust frame construction made this generation a favorite among hot-shot truckers and severe commercial fleets.

The Scorpion Diesel and The Boss V8

The gasoline engine lineup was also entirely revamped.

• 6.2L Boss V8 Gas: Replacing both the aging 5.4L V8 and the fuel-thirsty 6.8L V10, the new 6.2L V8 became the standard gasoline engine. It utilized a Single Overhead Cam (SOHC) architecture. It offered a simpler, more robust platform with strong, high-revving towing capabilities, generally resting in the 12,000 to 13,000-pound conventional towing range.
• 6.7L Power Stroke V8 Turbodiesel: This engine revolutionized Ford’s towing capabilities. Utilizing a compacted graphite iron (CGI) block, the engine was physically lighter yet significantly stronger than traditional cast iron. It featured a unique “reverse-flow” cylinder head design—where the exhaust manifolds are located in the valley of the engine block rather than on the outside. This allowed the turbocharger to be mounted squarely in the center of the engine, routing exhaust gases directly into the turbine housing. This nearly eliminated turbo lag.

Early iterations of the 6.7L diesel produced 390 horsepower and 735 lb-ft of torque. However, in a highly publicized battle for towing supremacy with General Motors, Ford quickly issued a dealer software flash that upgraded output to 400 horsepower and 800 lb-ft. By the end of this generation in 2016, torque numbers had climbed into the mid-800s.

Interestingly, the emissions testing for these engines varied based on the truck’s GVWR. Trucks rated under 14,000 pounds GVWR (like the F-250) were tested using a chassis dynamometer, while heavier medium-duty vehicles were tested via an engine dyno, highlighting the strict federal oversight placed on these heavy haulers.

Capacity Breakthroughs and Exhaust Braking

The F-250’s maximum conventional towing capacity reached a highly stable 14,000 pounds, while fifth-wheel and gooseneck configurations comfortably achieved 16,800 pounds. Because Ford engineered the new powertrains to be highly efficient and integrated, the maximum payload capacity rebounded significantly compared to the previous generation, reaching up to 4,290 pounds in optimized setups.

Furthermore, the integration of a factory-installed, driver-selectable exhaust brake on the 6.7L diesel models was a game-changer. By restricting exhaust flow and creating backpressure against the engine cylinders, the exhaust brake provided unparalleled control over heavy loads on steep downgrades, drastically reducing the wear and thermal stress on the mechanical friction brakes.

Fourth Generation (2017-2022): Aluminum Architecture and The Godzilla V8

The Fourth Generation Super Duty underwent one of the most radical structural and engineering shifts in automotive history. Following the massive success of the light-duty F-150, Ford transitioned the F-250 to a high-strength, military-grade, aluminum-alloy body.

This lightweight body was bolted to a fully boxed, high-strength steel frame that was vastly more rigid than the open C-channel frames of its predecessors. The aluminum body shed approximately 350 pounds of curb weight from the vehicle. Instead of using this weight reduction solely to improve fuel economy, Ford reinvested those saved pounds directly into the truck’s payload and towing capacity ratings.

Record-Breaking Capacities

Towing capacities exploded during this aluminum era. Conventional towing limits for the F-250 surged to 15,000 pounds for gasoline engines and an astonishing 20,000 pounds for properly equipped diesel configurations.

Maximum gooseneck and fifth-wheel towing capacities peaked at an unprecedented 22,800 pounds. This massive figure effectively blurred the historical lines between the 3/4-ton F-250 and 1-ton commercial trucks, offering operators Class-3 capability within a Class-2 form factor. Payload capacity remained immensely strong, topping out at 4,270 pounds.

Powertrain Innovations: Enter Godzilla

• 7.3L “Godzilla” V8 Gas: Introduced in 2020, this massive displacement pushrod V8 was designed specifically for severe-duty commercial towing. Generating 430 horsepower and 485 lb-ft of torque, it provided diesel-like low-end torque and durability without the complex emissions systems (DEF, DPF) required by modern diesels. Ford opted for an older pushrod (OHV) design over overhead cams (OHC) to keep the engine physically narrower, allowing for massive displacement within the engine bay. A 2022 F-250 equipped with the 7.3L V8 could tow up to 15,000 pounds conventionally and manage up to 19,500 pounds with a fifth-wheel.
• Refined 6.7L Power Stroke: Continual upgrades to the fuel delivery systems, turbocharger housing, and internal engine components pushed the 6.7L diesel to 475 horsepower and an earth-moving 1,050 lb-ft of torque.

Technological Towing Aids

The sheer scale of the weights being towed necessitated advanced safety technology. This generation saw the widespread deployment of Pro Trailer Backup Assist, allowing drivers to steer the trailer in reverse simply by turning a dashboard knob while the truck managed the steering wheel inputs. The Ultimate Trailer Tow Camera System provided 360-degree views, crucial for navigating tight campsites or commercial lots with a 40-foot gooseneck trailer.

Fifth Generation (2023-Present): Pushing Past 22,000 Pounds

The Fifth Generation F-250, introduced for the 2023 model year, represents the absolute pinnacle of 3/4-ton towing architecture to date. While the aesthetic facelift brought “C-clamp” lighting and functional aerodynamic side vents, the most critical updates occurred deep within the powertrain and chassis data management systems.

Ford aggressively expanded the powertrain lineup to include four distinct engines. Crucially, every engine in the lineup is now paired with a heavy-duty 10-speed TorqShift automatic transmission. This 10-speed gearbox optimizes gear ratios for heavy load management, keeping the engine in its peak powerband and virtually eliminating the “gear hunting” that plagued older 4-speed and 5-speed generations on highway grades.

The Modern Powertrain Matrix

1. 6.8L V8 Gas: Operating as the new standard engine and replacing the older 6.2L, this slightly downsized pushrod engine produces 405 horsepower and 445 lb-ft of torque. It achieves a highly respectable maximum conventional and fifth-wheel towing capacity of 17,300 pounds, making the base model highly capable right off the dealership lot.
2. 7.3L V8 Gas: The Godzilla engine remains the choice for peak payload efficiency. Because gas engines weigh hundreds of pounds less than their cast-iron and CGI diesel counterparts, the 7.3L maximizes available payload (up to 4,302 pounds in specific regular cab configurations). It can tow up to 18,200 pounds conventionally and 19,500 pounds via gooseneck.
3. 6.7L Power Stroke V8 Turbodiesel: Generating 475 horsepower and 1,050 lb-ft of torque, the standard diesel variant achieves 20,000 pounds of conventional towing and up to 22,900 pounds of gooseneck towing.
4. 6.7L High-Output Power Stroke V8 Turbodiesel: The crown jewel of the towing lineup. Engineered with a water-jacketed turbine housing and upgraded exhaust manifolds to handle immense thermal loads, the H.O. diesel produces an unprecedented 500 horsepower and 1,200 lb-ft of torque. This pushes the F-250 to its absolute physical limits: 22,000 pounds conventional towing and 23,000 pounds gooseneck towing.

The High-Capacity Trailer Tow Package (535)

To achieve the maximum 22,000-pound conventional and 23,000-pound gooseneck ratings on the diesel engines, the F-250 must be factory-equipped with the High-Capacity Trailer Tow Package (Option Code 535).

This is not a mere electronic tweak or software tune. The 535 Package fundamentally alters the truck’s rear suspension and axle architecture. It replaces the standard Sterling rear axle with a heavier-duty Dana rear axle, installs F-350-grade rear leaf springs, and upgrades the electronic locking differentials.

Crucially, this package elevates the official GVWR of the F-250 to 11,400 pounds. Furthermore, the inclusion of 18-inch all-season or 20-inch all-terrain tires is strictly required by Ford, as standard tires cannot safely handle the extreme sidewall stress generated by maneuvering a 20,000+ pound trailer.

Onboard Scales and Smart Hitch Technology

Towing 23,000 pounds safely requires absolute precision in weight distribution. The Fifth Generation introduced Onboard Scales with Smart Hitch technology.

This system utilizes advanced suspension height sensors to calculate the truck’s exact payload and the trailer’s tongue weight in real-time. The weight data is displayed clearly on the center infotainment screen, the digital gauge cluster, and even via the FordPass smartphone app.

This allows operators to perfectly balance their trailers to the optimal 10-15% conventional tongue weight ratio as they are loading cargo, effectively neutralizing the risk of trailer sway caused by poor weight distribution long before the truck ever hits the highway.

Detailed 2026 F-250 Towing Capacities by Configuration

Towing capacity is highly sensitive to the specific configuration of the truck. Axle ratios, wheelbase lengths, and cab styles directly manipulate the final SAE J2807 rating.

To illustrate how configuration changes the math, consider the detailed 5th-wheel/gooseneck metrics for the 2026 F-250 equipped with the standard 6.7L V8 Turbo Diesel :

Data derived from Ford’s 2026 RV & Trailer Towing Guide specifications.

This data underscores a critical automotive truth: upgrading to a larger, heavier cab (like a Crew Cab) or adding the heavy transfer case of a four-wheel-drive system directly eats into your GCWR. Therefore, these upgrades actually reduce your maximum towing capacity unless the weight is offset by moving to a higher numerical axle ratio (e.g., from 3.31 to 3.55) and an upgraded gross combined weight rating package.

Looking Ahead: The 2027 Ford F-250 Updates

As revealed ahead of Work Truck Week 2026, the 2027 Ford Super Duty line continues to evolve, specifically targeting extreme off-road towing capability. The recreational landscape is changing, with more operators demanding the ability to tow heavy loads far off the paved highway.

Historically, buyers had to choose between maximum off-road capability and maximum heavy-hauling utility. For 2027, Ford has expanded the Tremor Off-Road Package—which includes 35-inch aggressive tires, a factory suspension lift, electronic locking rear differentials, Trail Control, and underbody skid plates—to the base XL trim via the STX Appearance Package.

More crucially, the Tremor package is now available on the massive Crew Cab configuration with the 176-inch wheelbase and 8-foot bed. Paired with a cavernous 48-gallon fuel tank, this creates an unparalleled platform for off-grid towing and overlanding operations, answering significant consumer demand.

While the monstrous F-450 makes the headlines for the 2027 model year with a staggering 40,000-pound maximum gooseneck capacity via its High-Capacity Gooseneck Package , the F-250 remains the dominant, versatile entry point for 3/4-ton capability, holding steady at up to 22,000 pounds of conventional towing power and acting as the backbone of Ford’s heavy-duty fleet.

How to Determine Exact Towing Capacity for a Specific F-250

Because tow ratings vary by thousands of pounds based on subtle option changes, consulting marketing brochures or generalized charts can be dangerous. Overloading a truck voids factory warranties, compromises insurance liability in the event of an accident, and drastically increases the risk of catastrophic mechanical failure on public roads.

To determine the exact towing capacity of a specific Ford F-250, owners must analyze two critical data points: the Safety Compliance Certification Label and the Vehicle Identification Number (VIN).

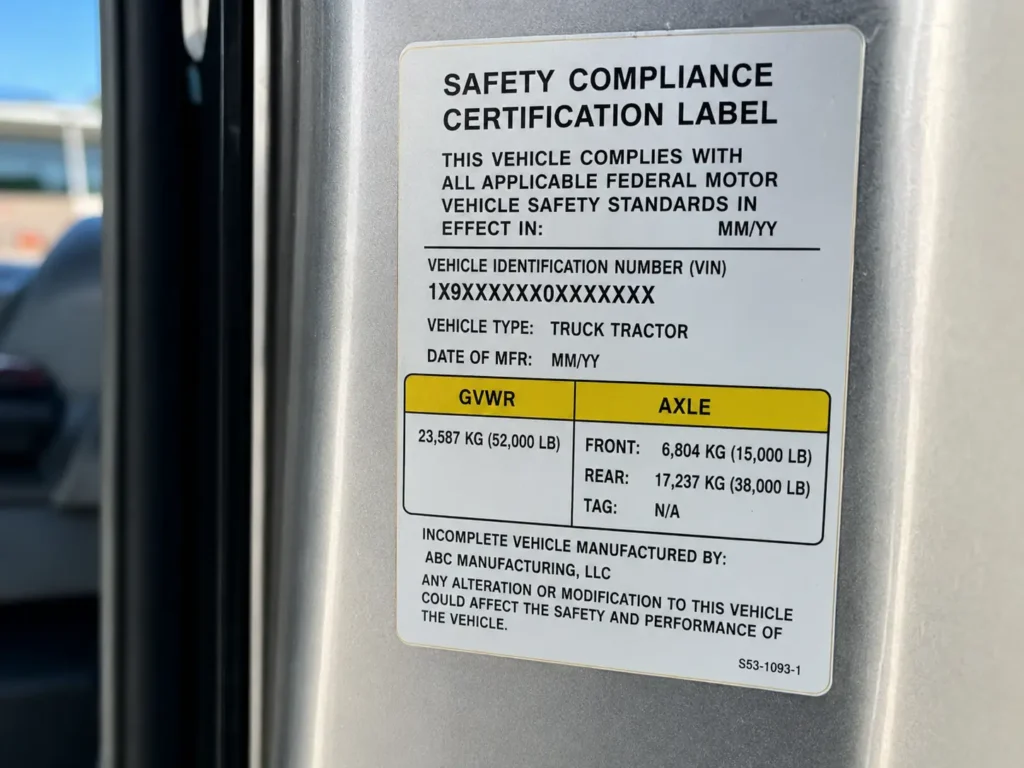

Decoding the Door Sticker and Axle Codes

Located inside the driver’s side doorframe, the Safety Compliance Certification Label contains the definitive, legal GVWR and GAWR limits for that specific vehicle as it left the factory.

Beneath the barcode on this label is an “AXLE” section containing a two-digit alphanumeric code. The rear axle ratio is the primary mechanical multiplier of engine torque. A higher numerical ratio (e.g., 4.30) multiplies torque more effectively at low speeds, enabling heavier towing at the expense of higher RPMs and lower highway fuel economy. A lower numerical ratio (e.g., 3.31) provides better fuel economy but struggles to pull heavy loads from a dead stop.

Common Ford Super Duty axle codes found on the door sticker include:

By matching the engine, cab configuration, and this specific axle code to, an owner can pinpoint the exact SAE J2807 certified towing limits for their exact setup.

The Ford VIN Towing Calculator

For 2020 model year and newer F-Series trucks, Ford eliminated the complex chart-reading process by releasing an official, highly accurate online towing calculator. By entering the 17-digit VIN into the(https://www.ford.com/support/towing-calculator/), the system directly queries the factory build sheet.

The calculator allows the user to input the specific, real-world weights of occupants, cargo, and aftermarket accessories (like heavy steel bumpers or winches). The system then instantly calculates the exact remaining Max Tongue Load and Max Trailer Weight that the specific truck can legally and safely handle. This tool is indispensable for fleet managers and RV owners ensuring they remain within DOT compliance.

F-250 vs. F-350: Which Super Duty is Right for the Job?

A recurring dilemma for consumers entering the heavy-duty market is deciding between the F-250 and the F-350. Parked side-by-side, they share identical sheet metal, identical powertrain options, identical transmissions, and identical interior luxury features. However, the mechanical underpinnings dictate vastly different legal and practical use cases.

The F-250 is fundamentally a 3/4-ton truck. It features a slightly softer rear leaf spring suspension geometry and is typically classified with a GVWR of exactly 10,000 pounds (unless heavily upgraded with the High Capacity 535 package). This 10,000-pound threshold is highly strategic.

In many municipalities and states, vehicles exceeding a 10,000-pound GVWR are subject to stringent commercial vehicle regulations, significantly higher annual registration fees, and mandatory weigh-station stops. The F-250 provides immense towing capability while often remaining legally classified as a standard light-duty passenger vehicle.

The F-350 is a 1-ton truck. It features stiffer rear leaf springs (or supplemental overload springs built into the pack) and a significantly higher GVWR out of the box. Most importantly, the F-350 is available in a Dual Rear Wheel (DRW) configuration, commonly referred to as a “dually,” which places four tires on the rear axle.

• When to choose the F-250: Ideal for daily driving, hauling large conventional bumper-pull travel trailers (up to 15,000-20,000 lbs), medium construction equipment, and mid-sized fifth-wheel RVs. Because the rear springs are slightly softer, it offers a vastly superior unladen ride quality compared to the rigid F-350.
• When to choose the F-350 SRW (Single Rear Wheel): Provides greater payload headroom for heavy fifth-wheel pin weights without the hassle of stepping up to a massive, hard-to-park, wider dually truck.
• When to choose the F-350 DRW (Dual Rear Wheel): The mandatory choice for towing massive, multi-slide fifth-wheel toy haulers, luxury RVs, or heavy gooseneck horse trailers. The dual rear wheels offer unparalleled lateral stability against high crosswinds, mitigating the intense sway forces generated by 40-foot trailers. The F-350 DRW can handle gooseneck weights up to an astonishing 38,000 pounds.

Frequently Asked Questions (People Also Ask)

How does trailer tongue weight affect my F-250’s payload capacity?

Tongue weight is not free weight; it is directly subtracted from the truck’s total payload capacity. If your F-250 has a payload capacity of 3,500 pounds, and you attach a conventional trailer that puts 1,500 pounds of tongue weight on the hitch, you only have 2,000 pounds of payload remaining for passengers, cargo in the bed, fuel, and the hitch hardware itself. Ignoring this payload depletion calculation is the most common cause of overloaded, unsafe rear axles. For the safest towing practices, operators should adhere to(https://www.nhtsa.gov/equipment/towing-trailer-safety).

What is the F-250 High Capacity Trailer Tow Package (Option 535)?

The 535 package is a mandatory mechanical factory upgrade required to unlock the absolute maximum 22,000+ pound towing capacities on modern diesel F-250s. It physically replaces the standard rear axle with a heavier-duty Dana axle, upgrades the rear leaf springs to heavier F-350 specifications, and increases the truck’s official Gross Vehicle Weight Rating (GVWR) from the standard 10,000 lbs to 11,400 pounds.

Does a 4×4 F-250 tow less than a 4×2 F-250?

Yes, in almost all configurations. Towing capacity and payload capacity are calculated by subtracting the physical curb weight of the truck from the Gross Combined Weight Rating (GCWR) and Gross Vehicle Weight Rating (GVWR), respectively. The mechanical components required for four-wheel-drive—such as the transfer case, front differential, heavier front driveshaft, and reinforced front suspension—add hundreds of pounds to the truck’s curb weight. This added dead weight directly reduces the amount of available towing and payload capacity compared to an identical, lighter 4×2 model.

Which F-250 engine is best for towing?

The “best” engine depends entirely on the operator’s specific application and cargo style. For outright maximum towing capacity (22,000+ pounds) and effortless mountain grade climbing without losing speed, the 6.7L High-Output Power Stroke Diesel is the undisputed champion due to its 1,200 lb-ft of torque and highly effective integrated exhaust brake. However, diesel engines are cast from heavy metals. If your primary goal is to maximize payload capacity for carrying heavy bed cargo (like a large slide-in camper), the lighter 7.3L Godzilla gas V8 is structurally superior, as its lighter block leaves significantly more available payload capacity (up to 4,302 pounds) on the chassis.

Why is gooseneck and 5th-wheel capacity higher than conventional capacity?

Conventional hitches are located at the extreme rear of the vehicle, far behind the rear axle. Heavy weights placed on a conventional hitch create a massive lever effect, pushing the rear of the truck down and physically lifting the front tires off the pavement. This compromises steering control and braking efficiency. A gooseneck or fifth-wheel hitch is mounted directly inside the bed of the truck, situated exactly over or slightly ahead of the rear axle. This geometry safely distributes the heavy pin weight across both the front and rear axles simultaneously, allowing the truck’s chassis to safely manage and stabilize thousands of additional pounds.
