Ford Truck Wheelbase Chart by Year: All Models

A Ford truck wheelbase chart by year has to cover a lot of ground, because “Ford truck” spans six very different platforms. The shortest wheelbase in the current lineup belongs to the Bronco at 100.4 inches, and the longest belongs to Super Duty Crew Cab at 175.9 inches, a spread of more than 75 inches.

That range decides three things: whether a truck fits your garage, how it tows, and how tight it can turn off-road. Below is the full breakdown by model and generation, followed by what each number actually changes about how the truck drives.

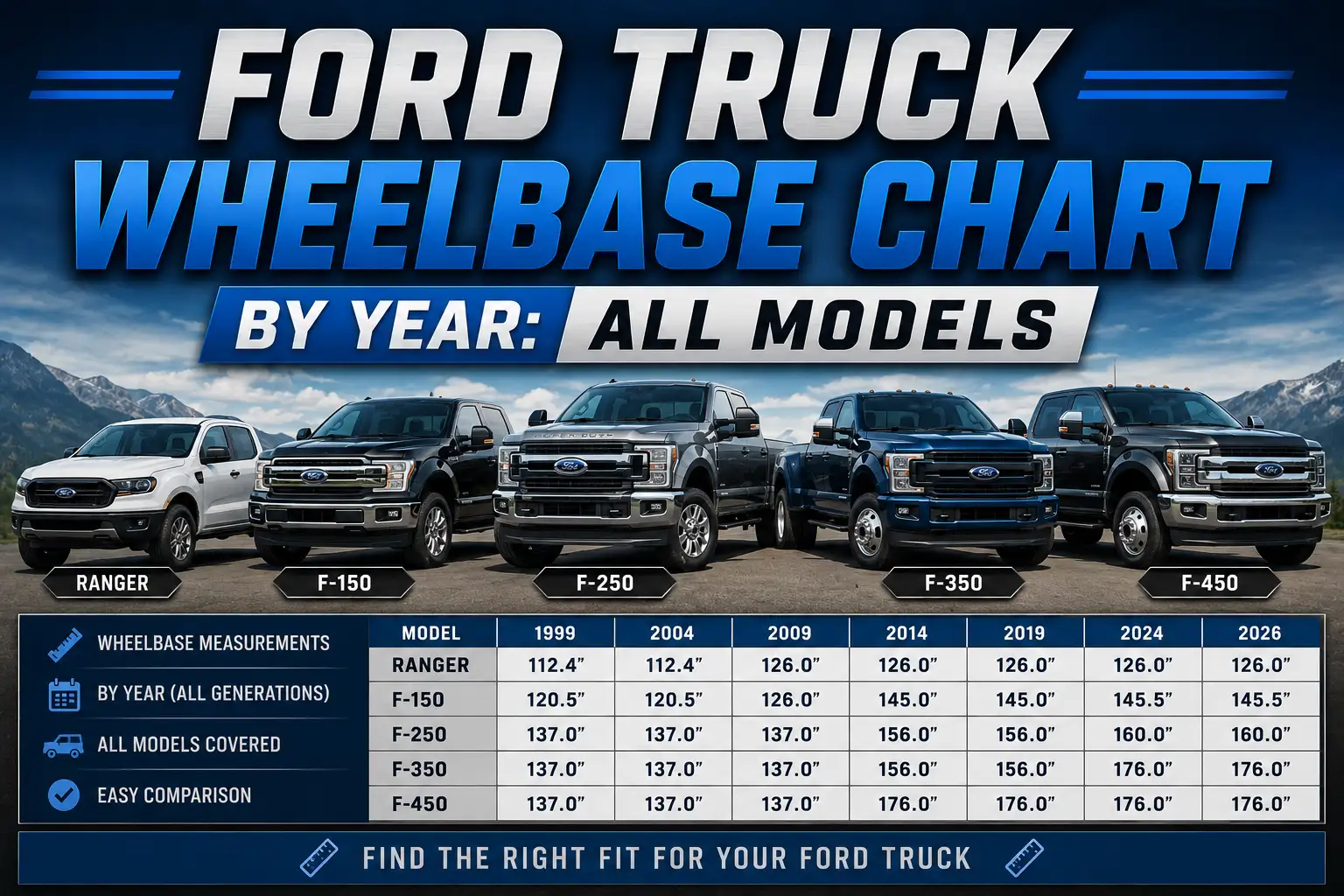

Ford Truck Wheelbase Chart By Model And Generation

The table below breaks down wheelbase for every current Ford truck and SUV platform, plus the F-150’s generational range for context.

The F-150 carries the widest internal spread because it offers the most cab and bed combinations. For the full year-by-year F-150 breakdown, see the Ford F-150 wheelbase chart.

How Wheelbase Affects Towing Stability By Truck Size

A longer wheelbase does one specific job when you are towing. It resists trailer sway by putting more distance between the front and rear axles, which reduces how much a crosswind or a swaying trailer can pivot the truck.

This is why Super Duty Crew Cab, at up to 175.9 inches, tows heavier trailers with more composure than a Ranger or Maverick at roughly half that wheelbase. It is not just about tow rating on paper. It is about how the truck actually feels at 65 mph with 8,000 pounds behind it.

The F-150 sits in between, and its towing numbers shift by configuration for the same reason. The Ford F-150 towing capacity chart breaks down exactly how wheelbase and towing package interact by model year.

Wheelbase And Garage Or Parking Fit By Cab Configuration

Wheelbase alone will not tell you if a truck fits your garage. You need to add front and rear overhang, since overall length is always longer than wheelbase.

A Maverick at 121.1 inches of wheelbase and 199.7 inches overall fits almost any standard garage. A Super Duty Crew Cab long bed, at 175.9 inches of wheelbase and up to 266.2 inches overall, will not fit a typical 20-foot garage door opening.

Ranger and Bronco Sport sit in the middle. Both stay under 130 inches of wheelbase, which keeps them maneuverable in tighter driveways and parking structures.

F-150 Wheelbase Deep Dive See The Full Chart By Year

If you specifically own or are shopping for an F-150, the model-specific breakdown goes several layers deeper than the summary table above.

That page covers every generation from 2004 through 2026, cab and bed combination by combination, along with how each wheelbase option affects turning radius and towing. Start with the F-150 wheelbase and cab dimensions if that is your model.

Super Duty Wheelbase And Why It Differs From F-150

Super Duty wheelbase numbers exist for a different reason than F-150’s do. They are built around payload and hitch geometry, not cab comfort.

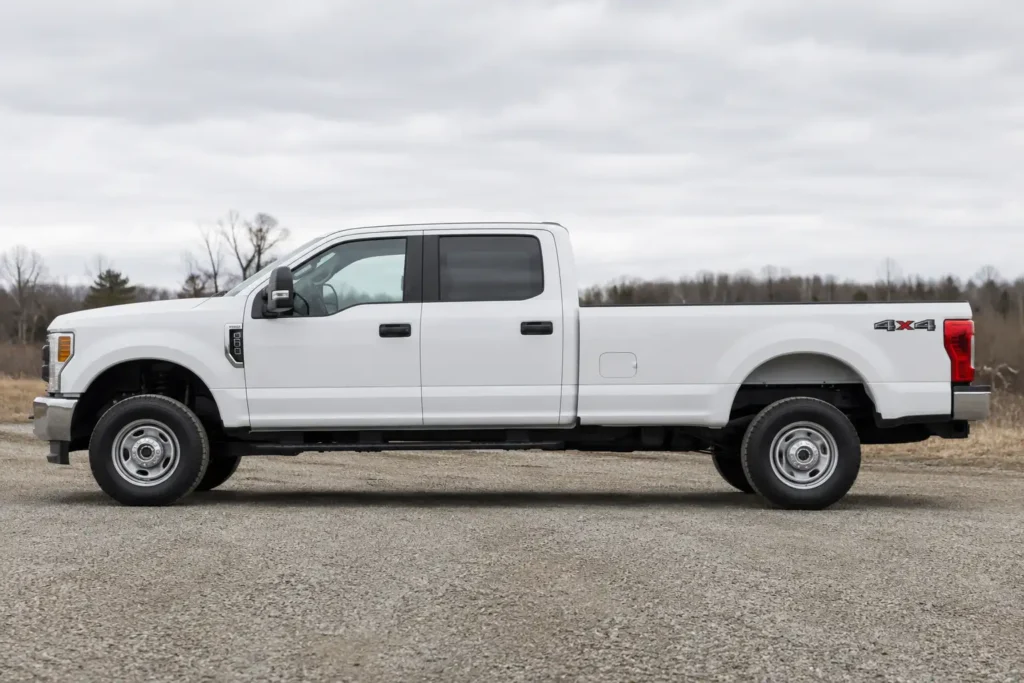

Current F-250 SuperCab configurations run 147.8 to 164.1 inches depending on bed length, while Crew Cab configurations extend to 159.7 and 175.9 inches. The longer options place the rear axle further from the hitch, which matters directly for gooseneck and fifth-wheel setups.

F-250 and F-350 share most of these wheelbase figures, though payload and axle ratings separate the two. See the difference between F-250 and F-350 for how that plays out beyond the frame dimensions.

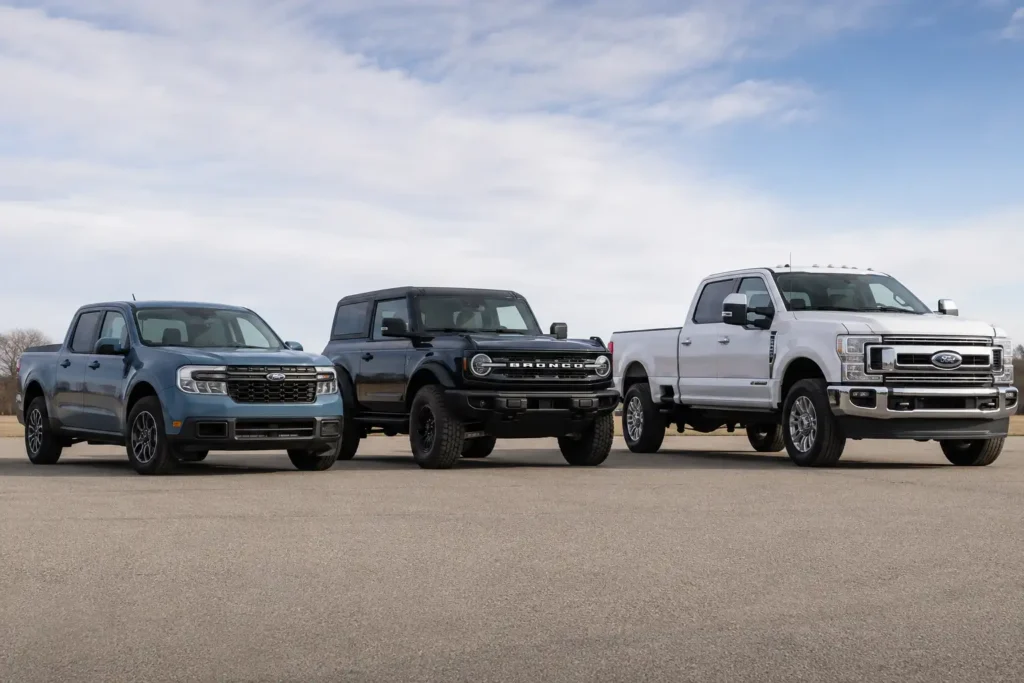

Ranger Maverick And Bronco The Short Wheelbase Ford Trucks

At the other end of the lineup, Ranger, Maverick, and Bronco all use a shorter wheelbase on purpose.

Maverick’s 121.1-inch wheelbase keeps it small enough to serve as a daily driver with a bed, not a scaled-down full-size truck. The redesigned 2024-and-later Ranger stretched to 128.7 inches specifically to add bed space, an increase of about 2 inches over the prior generation’s roughly 126.8 inches.

Bronco takes the opposite approach for a different reason. Its 100.4-inch two-door wheelbase is deliberately short to maximize breakover angle for off-road departure and approach, while the 116.1-inch four-door trades some of that geometry for interior space.

Choosing The Right Wheelbase For How You Use Your Ford Truck

Short wheelbase Ford trucks like the Maverick and two-door Bronco win on parking, maneuverability, and off-road geometry. Long wheelbase trucks like Super Duty Crew Cab win on towing stability and hauling capacity.

Across the full Ford lineup, wheelbase runs from 100.4 inches to 175.9 inches, and where your truck falls on that range tells you more about how it will actually behave than horsepower ever will. Match the wheelbase to your primary use, whether that is trail clearance, garage fit, or trailer control, and the rest of the buying decision gets a lot simpler.

FAQs

What is the longest wheelbase Ford truck available?

The 2023 to 2026 Ford F-250 Super Duty Crew Cab long bed has the longest wheelbase in the current Ford truck lineup at 175.9 inches. This configuration is built for maximum towing stability with gooseneck and fifth-wheel trailers.

Does a longer wheelbase improve towing stability?

Yes. A longer wheelbase increases the distance between axles, which reduces trailer sway and improves stability at highway speed. This is why Super Duty and long-bed F-150 configurations tow heavier loads more confidently than shorter trucks.

What is the shortest wheelbase Ford truck?

The two-door Ford Bronco has the shortest wheelbase in the current lineup at 100.4 inches. It is intentionally short to maximize off-road breakover and approach angles.

Is Ford F-150 wheelbase the same across all trims?

No. F-150 wheelbase ranges from 122.4 to 163.7 inches depending on cab and bed configuration, not trim level. Check the F-150 wheelbase and cab dimensions for the exact figure by generation.

How do I measure my Ford truck’s wheelbase?

Measure from the center of the front wheel hub to the center of the rear wheel hub in a straight line. Ford’s published specs, listed above, are the more reliable source for exact figures if you need them for towing or fitment planning.
