2024 Ford F-150 Towing Capacity Chart With Max Tow Ratings
Looking for another year? See the full Ford F-150 Towing Capacity Chart (all years, 2004–2026).
When you’re shopping for a truck that can handle everything from weekend camping trips to serious job site hauling, the 2024 Ford F-150 towing capacity chart is one of the most important tools in your research. For 2024, the F-150 got a refresh, and Ford’s 2024 F-150 towing guide rates it up to 13,500 lbs, which Ford says is the most in its class. Whether you’re eyeing a basic work truck or a tech-packed luxury trim, knowing exactly what your F-150 can tow will help you choose the right configuration the first time.
Key Points:
- Max towing capacity reaches 13,500 lbs when properly equipped, per Ford.
- Engine, cab style, bed length, and axle ratio all impact towing ratings.
- The 3.5L EcoBoost V6 remains the best choice for top towing performance.
Quick Answer — Max Towing for the 2024 Ford F-150
For most buyers asking “What’s the most a 2024 F-150 can tow?”, the short answer is 13,500 lbs, per Ford’s 2024 towing guide. To hit this number, you’ll need:
- 3.5L EcoBoost V6 engine
- SuperCrew cab with 6.5′ bed
- 4×4 drivetrain
- Tow/Haul Package and the optional Max Tow Axle
This setup delivers the highest rating in the 2024 Ford F-150 towing capacity chart, and Ford rates the other engines from 8,200 lbs (Raptor) to 12,900 lbs (5.0L V8).
2024 Ford F-150 Towing Capacity Chart by Engine, Cab & Bed
Below is the first of two tables you’ll see in this article — a quick-glance chart that shows how each engine performs with ideal configurations.

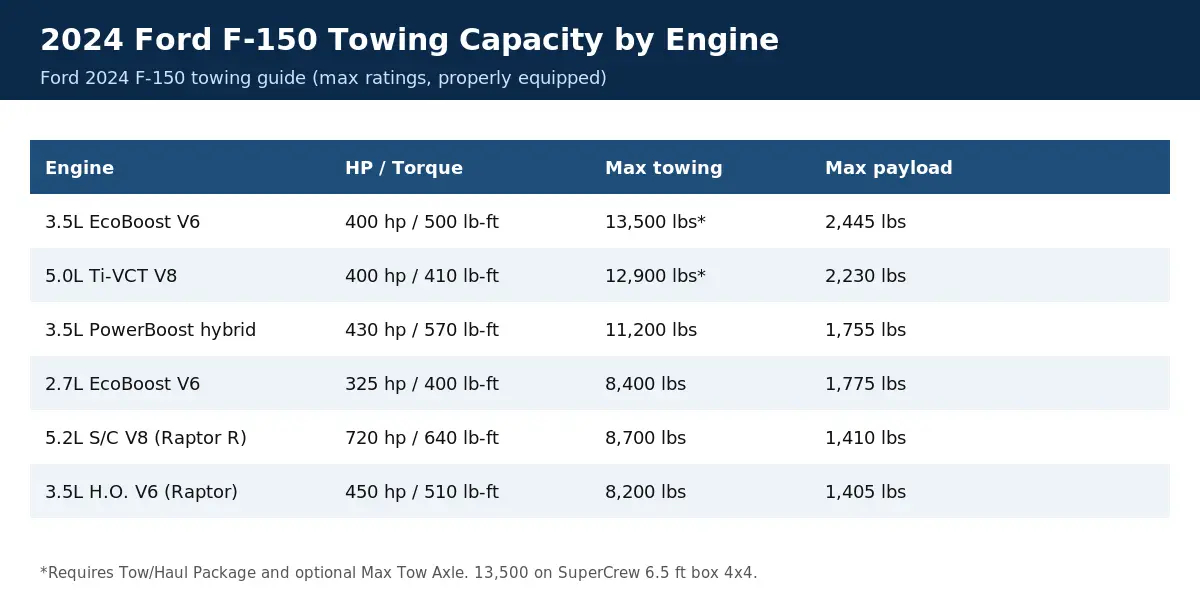

Table 1: Engine vs. Max Towing Capacity (Ford 2024 ratings)
| Engine | Horsepower | Best Cab/Bed Combo | Drivetrain | Max Towing (lbs) | Max Payload (lbs) | Max Tow Package Required? |
|---|---|---|---|---|---|---|
| 3.5L EcoBoost V6 | 400 | SuperCrew, 6.5′ bed | 4×4 | 13,500 | 2,445 | Yes (Tow/Haul + Max Tow Axle) |
| 5.0L Ti-VCT V8 | 400 | Varies (check Ford guide) | Varies | 12,900 | 2,230 (SuperCrew 4×2) | Yes (Tow/Haul + Max Tow Axle) |
| PowerBoost Hybrid (3.5L) | 430 | SuperCrew only | 4×4 | 11,200 | 1,755 | Check Ford guide |
| 2.7L EcoBoost V6 | 325 | Varies (check Ford guide) | Varies | 8,400 | 1,775 | Check Ford guide |
| 3.5L EcoBoost H.O. V6 (Raptor) | 450 | SuperCrew | 4×4 | 8,200 | 1,405 | No |
| 5.2L Supercharged V8 (Raptor R) | 720 | SuperCrew | 4×4 | 8,700 | 1,410 | No |
Source: Ford 2024 F-150 towing guide. Max towing and max payload are separate ratings that may not be reached at the same time. Payload figures are Ford’s maximums. The 3.3L V6 was not offered for 2024.
Engine Options and How They Affect Towing Capacity
3.5L EcoBoost V6 — The Top Performer
If your goal is maximum towing ability, this is the engine to get. With 500 lb-ft of torque, the Tow/Haul Package and the optional Max Tow Axle, Ford rates it at 13,500 lbs on a SuperCrew 6.5-foot box 4×4.
5.0L V8 — A Classic Choice for Power and Sound
The 5.0L Ti-VCT V8 offers a satisfying naturally aspirated feel. Ford rates it at up to 12,900 lbs with the Tow/Haul Package and Max Tow Axle, close to the 3.5L EcoBoost.
2.7L EcoBoost V6 — Best for Light Towing and Efficiency
This engine is perfect for drivers who tow occasionally and want better fuel economy. Ford rates it at up to 8,400 lbs, enough for many boats and small campers once you check payload and tongue weight.
PowerBoost Hybrid — Balanced Power and Efficiency
With 430 hp and 570 lb-ft, the hybrid has the most torque in the lineup. Ford rates it at up to 11,200 lbs towing and 1,755 lbs payload for 2024.
Cab Styles and Bed Length Impact on Towing
Regular Cab
Usually the lightest cab, which can help payload. Check Ford’s guide for the engines and ratings offered on your configuration.
SuperCab
Middle ground between Regular Cab and SuperCrew — good for work fleets and small families.
SuperCrew
Ford quotes its 13,500-lb max on a SuperCrew with the 6.5′ bed and 4×4. It has the most passenger space, and its extra weight can reduce payload.
Key Packages and Features That Boost Towing
Tow/Haul Package and Max Tow Axle
Ford’s 2024 guide ties the top ratings for the 3.5L EcoBoost and 5.0L V8 to the Tow/Haul Package plus the optional Max Tow Axle. Contents vary by trim, so check the window sticker. Towing equipment Ford lists for the F-150 includes:
- Standard Tow/Haul Mode and Trailer Sway Control
- Available Trailer Brake Controller
- Available Onboard Scales with Smart Hitch
- Available Pro Trailer Backup Assist and Pro Trailer Hitch Assist
Pro Trailer Technology
Includes Pro Trailer Backup Assist and Pro Trailer Hitch Assist — systems that help line up the hitch and control trailer movement with a knob instead of the steering wheel.
Pro Access Tailgate
New for 2024, it opens like a normal tailgate or swings out to the side, which helps you reach the bed when a trailer is hitched.
Real-World Towing Examples
These are illustrative examples, not tests. A 10,500-lb enclosed car hauler is within the 3.5L EcoBoost’s 13,500-lb max only if your truck is equipped for it and the tongue weight (about 1,050 to 1,575 lbs at 10–15%) fits your payload.
A 5,500-lb boat is within the 2.7L EcoBoost’s 8,400-lb max. Still check the trailer rating for your exact cab, bed and axle.
Understanding Towing Terms (GVWR, GCWR, GAWR, Tongue Weight)
Knowing these acronyms will help you read the chart and avoid overloading your truck:
- GVWR: Gross Vehicle Weight Rating — total weight of truck + passengers + cargo + tongue weight.
- GCWR: Gross Combined Weight Rating — the maximum allowed weight of the loaded truck and loaded trailer together.
- GAWR: Gross Axle Weight Rating — max weight each axle can carry.
- Tongue Weight: The downward force the trailer exerts on the hitch, which Ford’s F-150 owner’s manual says should be 10–15% of the loaded trailer weight for a conventional trailer.
How to Find Your F-150’s Exact Towing Capacity
- Check the Tire and Loading Information label on the driver’s door jamb. Ford says it shows the carrying capacity of your specific truck.
- Look up your engine, cab, bed, axle ratio and packages in Ford’s 2024 F-150 towing guide, or ask a dealer to check by VIN.
- Compare to your owner’s manual to confirm.
Expert Tips for Safe and Legal Towing
- Many owners leave a margin below the max rating. Never exceed your truck’s rating, GCWR or payload.
- Use a weight-distributing hitch when the trailer exceeds the weight-carrying limit on your hitch receiver label.
- Check tire pressure before every trip.
- Distribute trailer cargo evenly to prevent sway.
2024 Ford F-150 Towing Capacity Comparison Table
Table 2: Cab Style and Bed Length vs. Towing Range
| Cab Style | Bed Length | Engine Options | Max Towing Range (lbs) |
|---|---|---|---|
| Regular Cab | 6.5′ or 8′ | Varies (no 3.3L for 2024) | Check Ford’s 2024 guide for your build |
| SuperCab | 6.5′ | Varies | Check Ford’s 2024 guide for your build |
| SuperCrew | 5.5′ or 6.5′ | All engines | Up to 13,500 (3.5L EcoBoost, 6.5′ box, 4×4) |
Final Thoughts — Choosing the Right 2024 Ford F-150 for Your Towing Needs
The 2024 Ford F-150 towing capacity chart makes one thing clear: the right engine, cab and package combination makes all the difference. If you tow heavy regularly, aim for the 3.5L EcoBoost with the Tow/Haul Package and Max Tow Axle. For lighter duties, the 2.7L or hybrid might fit better while still giving you excellent versatility.
At FordMasterX.com, we always recommend matching your purchase to your actual towing needs — that way you’re getting the most truck for your money without overpaying for unused capacity.
FAQ
What is the maximum towing capacity of the 2024 Ford F-150?
Ford rates it at 13,500 lbs with the 3.5L EcoBoost V6 on a SuperCrew with the 6.5′ box and 4×4, with the Tow/Haul Package and optional Max Tow Axle.
Does the 2024 F-150 tow more with a Regular Cab or SuperCrew?
Ford quotes its 13,500-lb max on a SuperCrew 6.5′ box 4×4. Lighter cabs can help payload, but check Ford’s guide for the rating on your exact configuration.
Do I need the Max Trailer Tow Package for heavy towing?
For 2024, Ford ties the top 3.5L EcoBoost and 5.0L V8 ratings to the Tow/Haul Package plus the optional Max Tow Axle. Without them, your rating is lower.
Which F-150 engine is best for towing?
The 3.5L EcoBoost V6 has the highest 2024 rating at 13,500 lbs. Ford rates the 5.0L V8 at up to 12,900 lbs and the PowerBoost hybrid at up to 11,200 lbs.
