Ford F-150 Engine Comparison Chart: Specs by Year and Engine Type – 2026

Ford has offered ten distinct F-150 engines since the 2011 EcoBoost launch redefined what a half-ton truck could do. Choosing the right one, whether you’re buying used or speccing a new build, comes down to matching horsepower, torque,

towing capacity, and real-world reliability to how you actually use the truck. Below is the full lineup broken down by generation, followed by a complete side-by-side spec chart.

Ford F-150 Engine Lineup by Generation (2011-2026)

2011-2014: Ford introduced the twin-turbo 3.5L EcoBoost alongside the carryover 3.7L Ti-VCT V6, the 5.0L Ti-VCT V8 (Coyote), and the 6.2L V8 used in heavier-duty and SVT Raptor configurations. This was the model year the EcoBoost badge first appeared on an F-150.

2015-2020: Ford moved the F-150 to a high-strength aluminum-alloy body starting in 2015, adding the 2.7L EcoBoost V6 to the lineup that same year. The 3.5L EcoBoost was significantly reworked for 2017, gaining a new turbocharger design, a 10-speed transmission, and a meaningful jump in output.

2021-2026: The current-generation F-150 dropped the 3.7L V6 and 6.2L V8 entirely, standardized on the 3.3L Ti-VCT V6 as the base engine through 2023, and introduced the 3.5L PowerBoost Full Hybrid. Since 2024, the 2.7L EcoBoost has taken over as the standard engine on most trims, and the 5.2L Supercharged V8 arrived exclusively in the Raptor R.

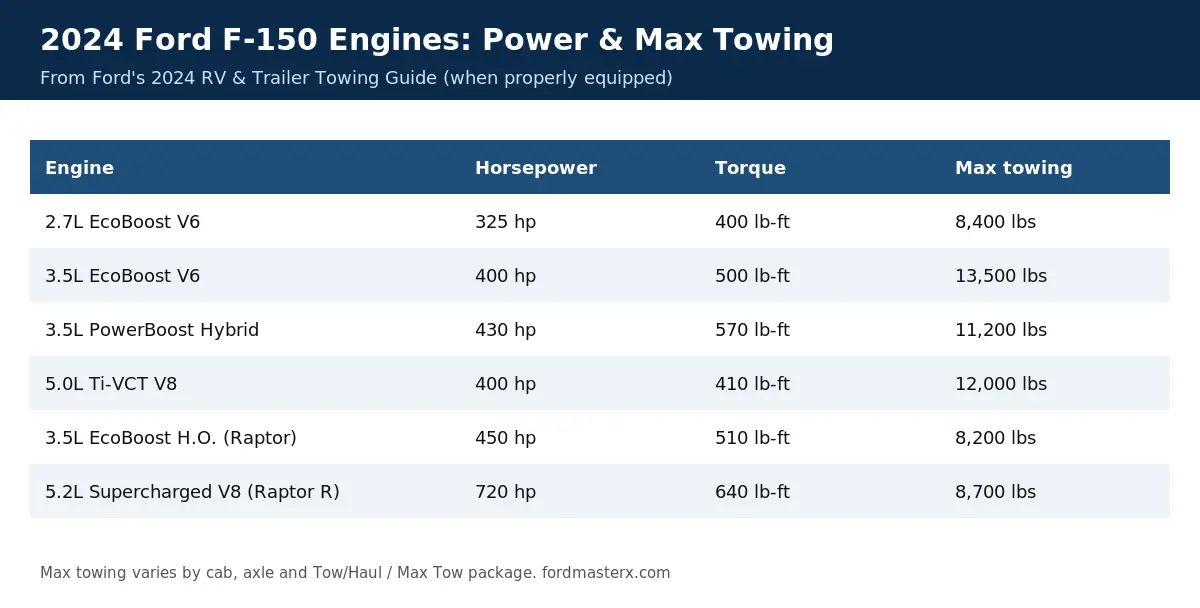

Full Ford F-150 Engine Specs Comparison Chart (All Engines, 2011-2026)

Figures marked unverified reflect genuine gaps or conflicts in publicly available spec sheets rather than filler numbers. Confirm the flagged rows against owner.ford.com or motorcraftservice.com before publishing.

2.7L EcoBoost vs 3.5L EcoBoost Specs and Reliability

The 3.5L EcoBoost has always out-muscled the 2.7L, and the gap is wider than the displacement difference suggests. The current 3.5L PowerBoost and standard-output 3.5L both clear 400 lb-ft of torque, while the 2.7L tops out at 400 lb-ft only in its updated 2018+ form and pulls meaningfully less at low RPM. For anyone towing regularly, the 3.5L is the stronger pick; for daily-driver duty with occasional light towing, the 2.7L’s smaller turbos and lighter front end make it the easier engine to live with.

Reliability tells a more complicated story. Cam phaser failure has affected both engines. Owners on f150forum.com and f150ecoboost.net report the telltale cold-start rattle showing up anywhere from 31,000 to 160,000 miles on Gen 1 and Gen 2 3.5L EcoBoosts, with dealer repair quotes commonly landing between $4,500 and $5,000.

The 2.7L wasn’t spared either; owners on f150gen14.com have reported the same rattle as early as 14,000 miles on 2023 model-year trucks. The redesigned Gen 3 phaser used from roughly 2021 onward is holding up well so far, with multiple owners passing 100,000 miles without the issue resurfacing, though it’s too early to call it fully resolved.

For a deeper breakdown of how these two engines stack up long-term, see our 3.5L EcoBoost vs 5.0L reliability comparison.

5.0L Coyote V8 Specs and Long-Term Reliability

The 5.0L Coyote is the engine most F-150 owners point to when asked which one to buy with the least worry. Output climbed steadily across three generations: 360 hp/380 lb-ft in the 2011-2014 Gen 1, up to 395-400 hp in the Gen 3 versions found in 2018-2024 trucks. Unlike the EcoBoost engines, the Coyote has no widespread cam phaser failure pattern reported at scale, and it’s commonly cited as reaching 250,000-300,000 miles with routine maintenance.

That durability comes with a trade-off in outright torque and towing versus the 3.5L EcoBoost, so the Coyote suits owners who prioritize long-term simplicity and naturally aspirated reliability over maximum tow numbers. For the full breakdown of the current Gen 3 architecture, see our Gen 3 Coyote engine specs guide.

3.3L V6 and 5.2L Supercharged V8 (Base and Raptor R Extremes)

The 3.3L Ti-VCT V6 served as the F-150’s base engine from 2015 through 2023, putting out 290 hp and 265 lb-ft with an 8,200-lb max tow rating. It’s a fine choice for light-duty work and daily commuting, but it’s the weakest engine in the modern lineup for anyone who tows or hauls with any regularity, and Ford has since replaced it with the 2.7L EcoBoost as the new base engine starting in 2024. For a closer look at where the 2.7L sits in the lineup now that it holds the entry-level slot, see our 2.7L EcoBoost specs breakdown.

At the opposite extreme sits the 5.2L Supercharged V8, exclusive to the Raptor R since 2023. It produces a class-leading 700 hp and 640 lb-ft of torque, built for high-speed off-road performance rather than towing efficiency, and its 8,700-lb tow rating actually trails several other engines in the lineup because towing was never the design priority.

Which Ford F-150 Engine Tows the Most by Year

Based on the chart above, the standard-output 3.5L EcoBoost holds the F-150’s highest conventional towing figures across most model years, peaking at 14,000 lbs in the 2021-2023 trucks. The 3.0L Power Stroke diesel and 3.5L PowerBoost hybrid both land in the 11,200-11,500-lb range, trailing the gas-only 3.5L despite their torque advantage on paper, largely due to how Ford packages max-tow options across trims. If you’re cross-shopping towing figures against a specific model year and configuration rather than engine alone, our Ford F-150 towing capacity chart by year breaks down the exact numbers by trim and package.

FAQ — Ford F-150 Engine Questions Owners Ask

Which F-150 engine is most reliable?

The 5.0L Coyote V8 has the strongest long-term track record, with owners commonly reporting 250,000-300,000 miles before major work. It doesn’t share the cam phaser failure pattern seen across the EcoBoost lineup.

Is the 2.7L EcoBoost as strong as the 5.0L V8?

No. The 2.7L makes less torque at low RPM than the 5.0L and has a lower max towing rating in most configurations, though it’s lighter and returns better fuel economy for daily driving.

What engine did the F-150 have in 2018?

2018 F-150 buyers could choose from the 3.3L V6, updated 2.7L EcoBoost, 3.5L EcoBoost (Gen 2), 5.0L Coyote (Gen 3), and the 3.0L Power Stroke diesel.

Which F-150 engine should I avoid?

The 2011-2016 Gen 1 3.5L EcoBoost has the widest-reported history of cam phaser failures and intercooler condensation issues at higher mileage, making it the engine to inspect most carefully on a used truck.

Conclusion

There’s no single “best” Ford F-150 engine, only the right one for how you use the truck. The 5.0L Coyote remains the safest long-term bet for owners who want naturally aspirated simplicity, the 3.5L EcoBoost still leads the lineup on towing, and the 2.7L EcoBoost and PowerBoost hybrid both make strong cases for daily-driver efficiency. Whatever year or trim you’re comparing, cross-check the engine against its reported reliability pattern before you buy, not just its spec sheet.
