2014 Ford Focus Oil Reset: Procedure To Restore Maintenance Monitor To Factory Settings
For the 2014 Ford Focus, the difference between a high-performing engine and a premature mechanical failure often comes down to the accuracy of its maintenance tracking. After performing a necessary oil change, many drivers and even some independent shops find themselves stuck with a persistent “Engine Oil Change Due” warning because the vehicle does not automatically detect the presence of fresh lubricant. This article provides the authoritative, step-by-step procedures to perform a 2014 Ford Focus oil reset, restoring your vehicle’s monitoring system to its factory default 100% status for both keyed and push-button starts.
Section 1: Understanding the 2014 Ford Focus Intelligent Oil Life Monitor System
📤 Share Image
The 2014 Ford Focus utilizes an advanced Intelligent Oil Life Monitor (IOLM) system. Unlike older vehicles that relied purely on a fixed mileage counter, the IOLM in the Focus is a software-based algorithm housed within the Powertrain Control Module (PCM). This system does not use a physical chemical sensor to “smell” or analyze the oil; instead, it tracks complex engine telemetry to estimate lubricant breakdown. It monitors total engine revolutions, internal operating temperatures, and cumulative idle time to calculate a fresh start for each service interval.
The algorithm is programmed to differentiate between three distinct driving profiles. For drivers who primarily engage in ‘Normal’ highway cruising in temperate climates, the system will likely allow for a full 10,000-mile or 12-month interval. However, for those operating in ‘Severe’ or ‘Extreme’ conditions—such as frequent short trips in freezing winter temperatures or heavy stop-and-go city traffic—the IOLM may trigger a reset requirement as early as 5,000 miles. For example, a Focus used for delivery services in a northern city during January will require an oil change much sooner than a vehicle used for a cross-country highway commute due to the increased accumulation of moisture and fuel dilution in the crankcase.
By The Numbers
Oil Capacity (2.0L GDI)
Recommended Viscosity
Max Interval (Miles)
It is vital to initialize the factory-spec reset only after a physical oil and filter change has been completed. The 2014 Focus, specifically the models equipped with the 2.0L Ti-VCT GDI engine, requires 4.5 quarts of SAE 5W-20 synthetic blend oil. Failing to change the oil while performing a software reset creates a dangerous mismatch between the system’s “clean” status and the actual acidic, soot-laden state of the lubricant. Drivers should also note the distinction between messages: “Engine Oil Change Due” is a soft reminder at 5% remaining life, while “Oil Change Required” is a critical alert indicating 0% life remaining.
Section 2: Step-by-Step 2014 Ford Focus Oil Reset for Keyed Ignition Models
The vast majority of 2014 Ford Focus models on the road use a traditional keyed ignition. For these trims (S, SE), the reset procedure requires precise physical coordination to trigger the PCM’s internal reboot of the maintenance values. Before beginning, ensure the vehicle is parked on a level surface, the transmission is in Park (P), and all doors are securely closed. An open door can trigger chime interference which may interrupt the communication between the instrument cluster and the engine control module.
📋
Keyed Ignition Reset Guide

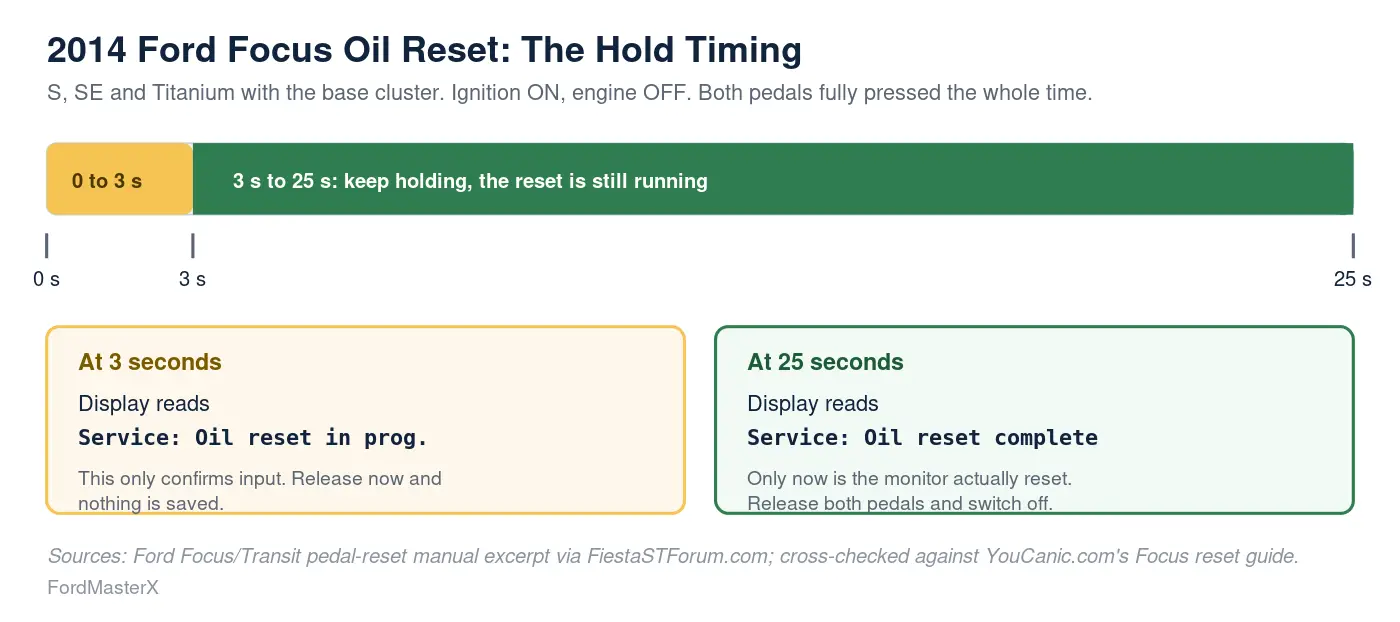

Insert the key and turn it to Position II (On/Run). Do NOT start the engine. The dashboard lights should illuminate, and the display will initialize.

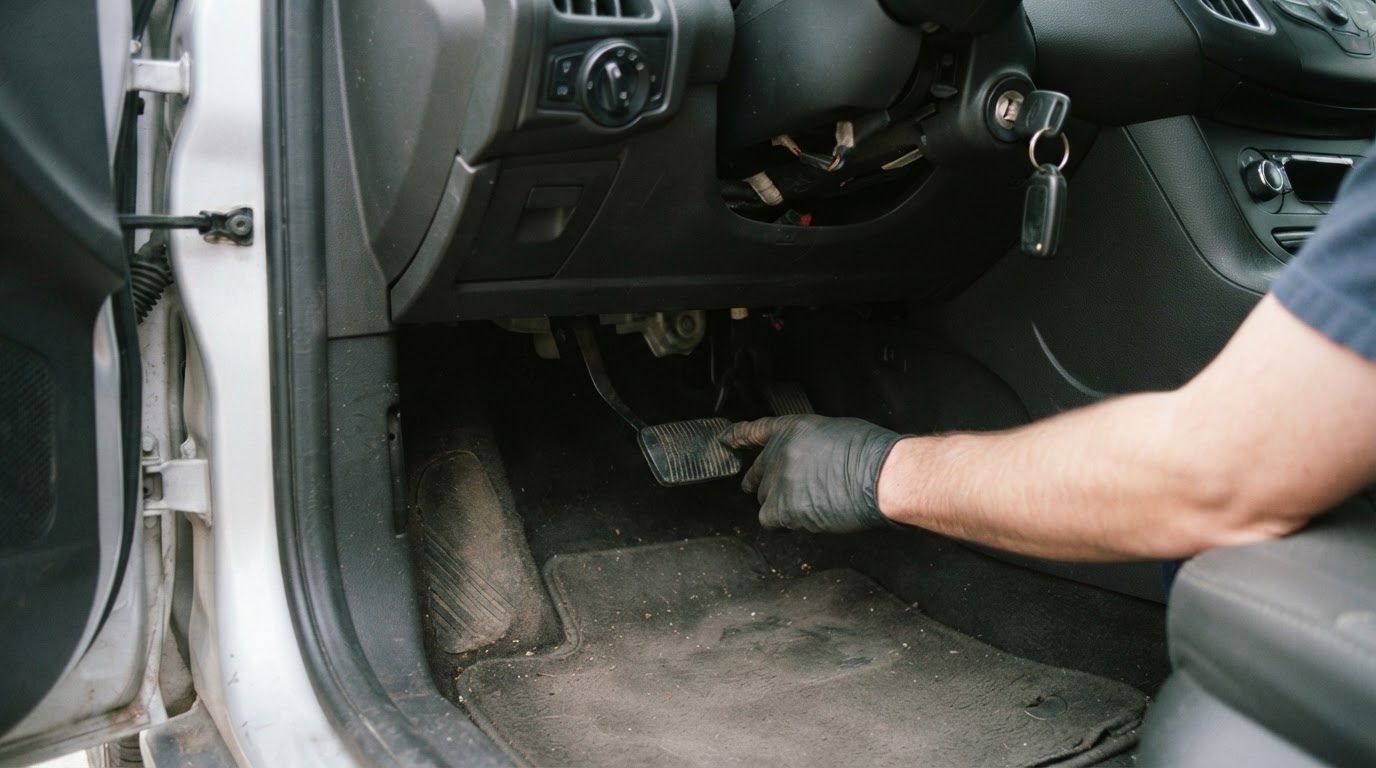

Within three seconds of turning the key, firmly and simultaneously depress both the accelerator and brake pedals to the floorboards. Hold them steady.
Wait approximately 20-25 seconds. The message center will display “Service: Oil reset in prog.” followed by “Service: Oil reset complete.”
One of the most frequent mistakes made during this process is releasing the pedals too early. From my years of hands-on experience, I recommend holding the pedals for a full 25 to 30 seconds, even if the message appears sooner, to ensure the software registers the bypass command correctly. Failure to hold both pedals simultaneously results in a 100% reset failure rate on the Ford Global C-platform, which the 2014 Focus is built upon. Once the “Complete” message appears, release the pedals and cycle the ignition to the “Off” position to lock the new 100% life values into the non-volatile memory of the PCM.

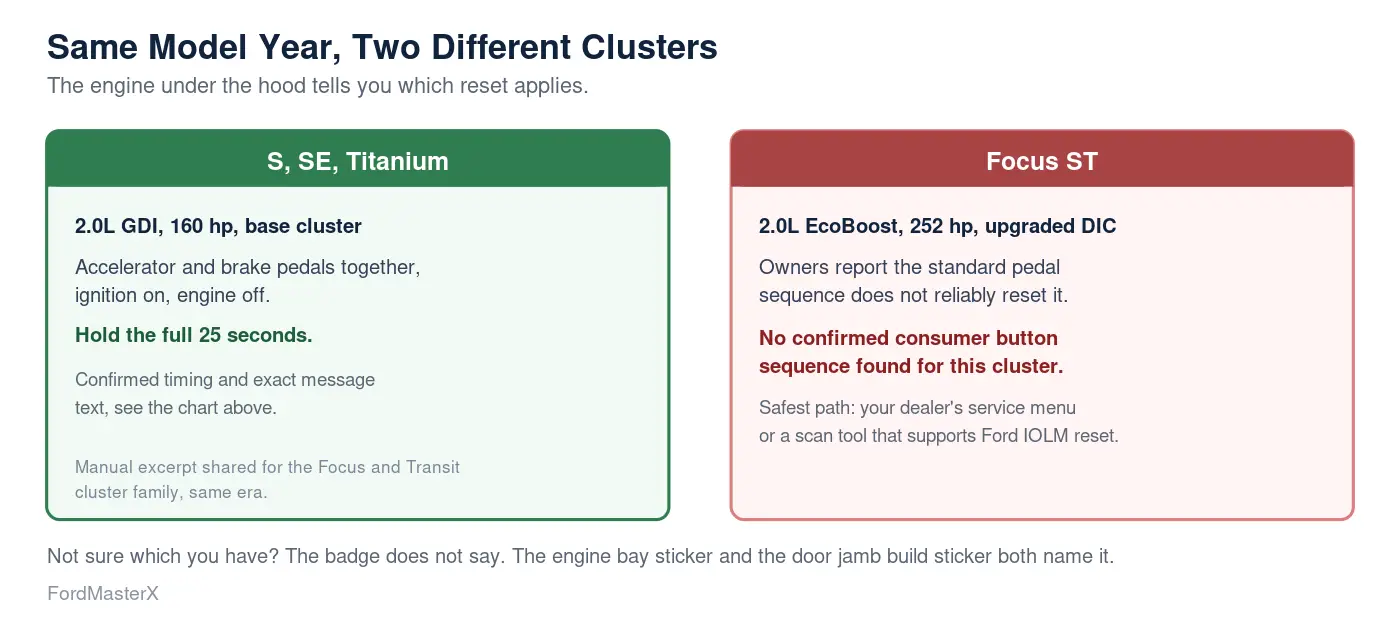

Section 3: How to Restore Oil Life Default Settings on Push-Button Start Trims
The high-trim Titanium models and some specialized SE trims come equipped with a push-button start system. This requires a slightly different approach to restore the default oil life settings because the engine logic is tied to the brake pedal. If you depress the brake while hitting the start button, the engine will crank, which immediately cancels the reset eligibility in the software.
Entering Accessory Mode
To begin, sit in the driver’s seat with the Intelligent Access (IA) key fob inside the vehicle. Keep your feet completely away from the pedals. Press the Start/Stop button once. This puts the car into ‘Accessory Mode’ or ‘Key On, Engine Off’ (KOEO) status. You will see the high-resolution productivity screen between the tachometer and speedometer illuminate.
If you see “Reset Cancelled” on the screen, it is usually because the pedal pressure was uneven or one pedal was released slightly before the process finished. Ensure you are wearing firm-soled shoes; soft slippers can sometimes cause enough “give” in the pedal travel to break the circuit connection required for the reset.
Once in Accessory Mode, the dual-pedal hold technique remains consistent with the keyed models. Press both the brake and gas pedals to the floor. The IOLM requires an approximate 20-second steady hold for the system to acknowledge the factory default command. The visual cues on the productivity screen are essential here; wait for the progress bar to fill and the confirmation message to appear. If you accidentally start the engine at any point, you must turn the car off and wait 60 seconds for the modules to power down before trying again, as the reset logic will not engage while the crankshaft is turning.
Section 4: Troubleshooting Reset Failures and Restoring System Integrity
In about 15% of cases, drivers follow the steps perfectly but the “Oil Life” does not return to 100%. This is rarely a “glitch” and is almost always a sign of a hardware or voltage issue preventing the PCM from writing the data to its EEPROM (Electrically Erasable Programmable Read-Only Memory). To maintain system integrity, you must ensure the vehicle’s electrical health is optimal.
The 2014 Focus is particularly sensitive to the brake light switch and the accelerator position sensor. If your brake lights are not functioning, or if a fuse is blown, the PCM will never receive the “High” signal from the brake pedal, making the reset impossible. Furthermore, an often-overlooked interference is the “Door Ajar” message. An open circuit in any door latch can halt the software reset process on the Ford Global C-platform. While Ford’s SYNC system provides infotainment and some vehicle status updates, it does not control the IOLM directly; updates to SYNC 2 or SYNC 3 will generally not affect the accuracy or the procedure of the oil life display in the instrument cluster.
Never attempt to reset the monitor without changing the oil. Resetting the system on old oil creates a false maintenance record and can lead to sludge formation, which eventually causes catastrophic failure of the Ti-VCT solenoids and cam phasers in the Focus engine.
Section 5: Post-Reset Verification and Maintenance Documentation
After the dashboard indicates completion, it is essential to perform a final verification to ensure a clean transition to the next service interval. Using the steering wheel directional pad, navigate through the Information Display menu. Go to Settings > Information > System Check. You should see a visual bar graph or a text display confirming the Oil Life is at 100%. If it shows any other percentage, the reset did not successfully commit to the PCM.
Proper maintenance is not just about the work performed under the hood; it is also about the backup documentation. Log the reset date, current mileage, and the type of oil used in your Ford owner’s manual. This establishing of a service history is crucial for protecting your vehicle’s resale value and ensuring warranty compliance. Remember that the oil reset is independent of other maintenance reminders. While the IOLM focuses on lubricant degradation, you must manually track tire rotations (typically every 5,000–7,500 miles) and cabin air filter intervals (every 15,000–20,000 miles).
Warranty Protection
A reset 100% monitor aligned with service records is proof of proper care during engine claims.
Algorithm Accuracy
Using API-certified oil ensures the lubricant matches the system’s pre-programmed degradation curves.
The technical necessity of using API-certified motor oil cannot be overstated. The IOLM in the 2014 Ford Focus is calibrated specifically for the breakdown characteristics of high-quality synthetic blends. If a non-certified or lower-grade oil is used, the 10,000-mile countdown will not accurately reflect the actual state of the oil, potentially leading to increased engine wear before the next “Required” message appears.
In summary, the 2014 Ford Focus requires a manual pedal-sequence reset to sync the IOLM with actual oil health. Both keyed and push-button models follow a similar ‘dual-pedal’ logic but require specific ignition states to bypass normal operation. Verification of the 100% status in the settings menu is essential to ensure the engine protection algorithm is active. Now that you have restored your oil life monitor, ensure you have documented the service in your maintenance log to protect your vehicle’s resale value and warranty status.
Frequently Asked Questions
Can I perform the 2014 Ford Focus oil reset while the engine is running?
No, the oil reset procedure cannot be performed while the engine is running. The system requires the ignition to be in the ‘On’ or ‘Accessory’ position without the engine cranking. This safety and logic gate ensures that the PCM is in a state where it can rewrite the maintenance data without interference from active engine sensors.
Will resetting the oil life monitor fix a ‘Check Engine’ light?
No. The ‘Engine Oil Change Due’ message is a maintenance reminder, whereas a ‘Check Engine’ or ‘Service Engine Soon’ light indicates a fault code (DTC) stored in the diagnostic system. Restoring the oil life to factory defaults only clears the maintenance timer and will not address mechanical or electronic failures related to emissions or performance.
What if the ‘Service: Oil reset complete’ message never appears?
If the confirmation message does not appear after 30 seconds of holding the pedals, release them, turn the ignition off, and wait one minute. Common culprits include not pressing the pedals all the way to the floor, having a door open, or a faulty brake light switch that isn’t sending a ‘closed’ signal to the vehicle’s computer.
Does the type of oil I use affect the reset procedure?
The reset procedure itself remains identical regardless of oil type. However, the IOLM is calibrated based on Ford’s recommendation of synthetic blend or full synthetic SAE 5W-20 oil. If you use conventional oil, the 100% factory setting may overestimate your oil’s remaining life, as the software assumes high-quality lubricant is present.
How do I check the remaining oil life percentage on the dashboard?
To view the current status, use the left-hand steering wheel controls to navigate to the ‘Settings’ menu on the instrument cluster. From there, select ‘Information,’ then ‘Oil Life.’ This will display a percentage bar. After a successful reset, this screen should show a clean 100% status, indicating the system has been restored to factory defaults.
