Ford Wheelbase Chart: Every Current Model (2011–2026)

Ford’s current lineup spans wheelbases from 100.4 inches on the two-door Bronco to 175.9 inches on a Crew Cab F-250 with the long bed. That’s a 75-inch swing between the tightest turning SUV Ford sells and its longest heavy-duty configuration. Whether you’re checking garage clearance, matching an exhaust system on a Super Duty, or comparing tow stability between two trucks, the wheelbase number tells you more than the overall length does.

Below is every current Ford model in one table, followed by the config-specific breakdowns that actually matter once you get past the headline number.

Ford Wheelbase Chart: Every Current Model at a Glance (2026)

Here’s every current Ford model’s wheelbase in one table. Models with multiple cab or body configurations show a range — see the breakdown sections below for the exact number by configuration.

For trucks with multiple cab and bed configurations, the number above is only the starting point — here’s the full breakdown.

Ford Truck Wheelbase Chart by Cab and Bed Configuration (F-150, Super Duty, Ranger, Maverick)

Cab and bed choice changes an F-150 or Super Duty’s wheelbase by more than a foot, so a single number per model isn’t useful for buyers or builders working with a specific configuration.

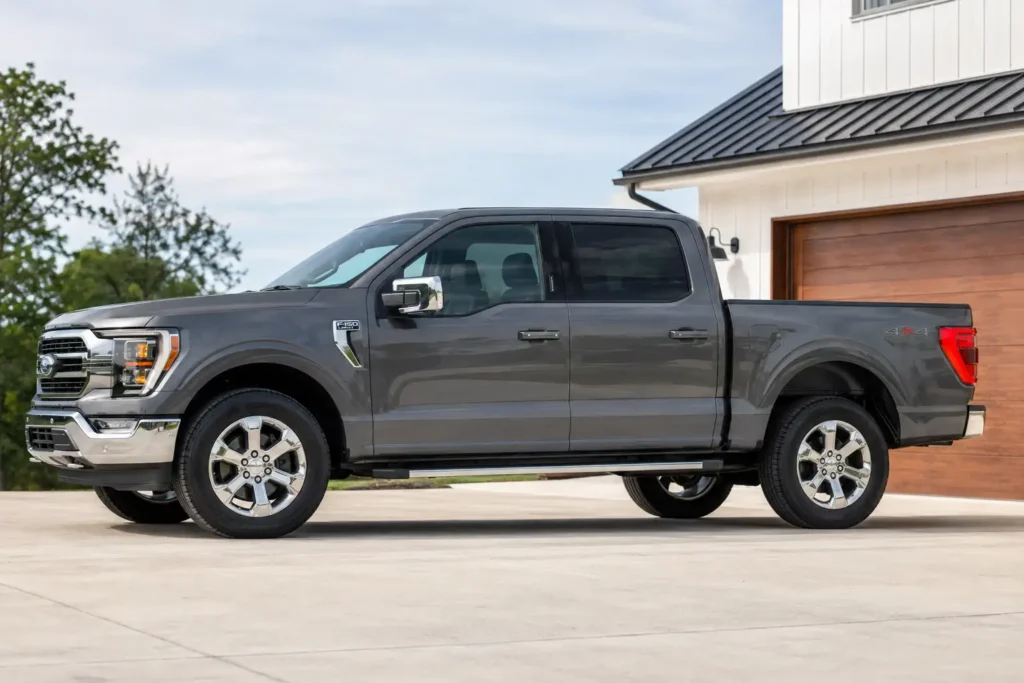

F-150 (current generation, 2021–2026):

The SuperCab (6.5-foot box) and SuperCrew (5.5-foot box) share the same 145.4-inch wheelbase — this is the volume-seller configuration and the one most aftermarket kits (exhaust, driveshafts, running boards) are built around by default. See the Ford F-150 Wheelbase Chart for the full generational history back to 2004, including how these numbers shifted across the 11th through 14th generations.

F-250/F-350 Super Duty:

The Crew Cab with the 8-foot bed is the longest wheelbase Ford currently sells on a production truck. That extra length improves fifth-wheel and gooseneck towing stability, but it also means some Crew Cab LWB Super Duty configurations exceed 266 inches overall — worth checking against your driveway or garage before ordering.

Ranger: The redesigned 2024–2026 Ranger rides on a 128.7-inch wheelbase, about two inches longer than the 126.8-inch wheelbase on the 2019–2023 previous generation. If you’re cross-shopping a used Ranger against a new one, this is a real generational difference, not a measurement error between sources.

Maverick: A single 121.1-inch wheelbase across every trim, including the Tremor and Lobo. FWD and AWD models share the same number — drivetrain doesn’t change the wheelbase on the Maverick.

SUVs follow a simpler pattern — most have one wheelbase per trim family.

Ford SUV Wheelbase Chart: Bronco, Bronco Sport, Explorer, Expedition

Ford’s SUV lineup keeps wheelbase simpler than the trucks — mostly one number per body length, with only the Bronco and Expedition splitting by variant.

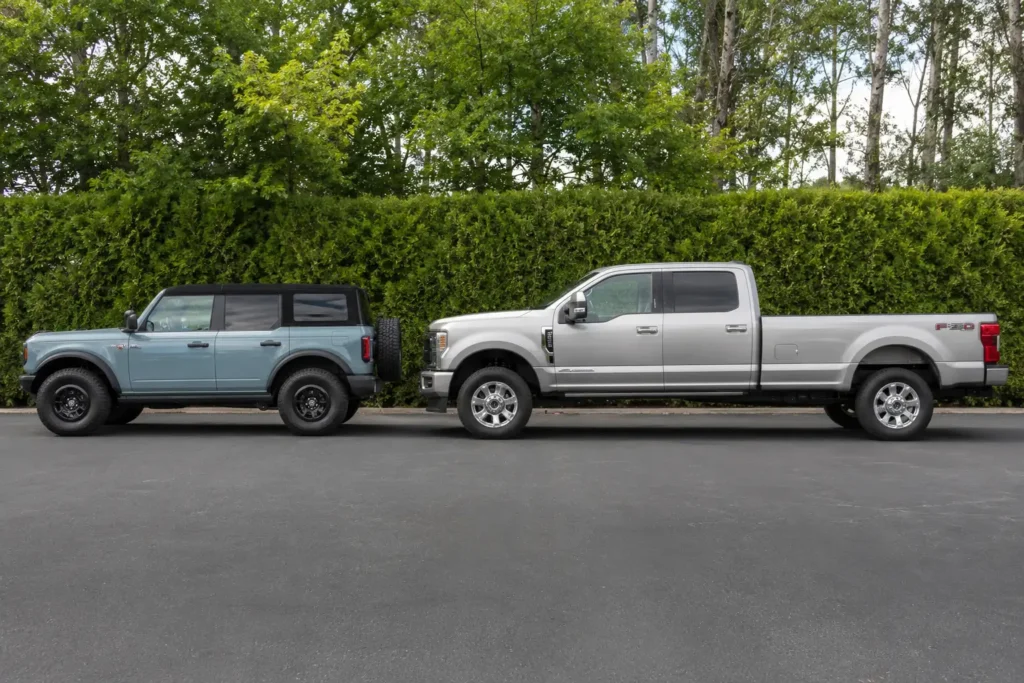

The 2-door and 4-door Bronco aren’t just a body-length difference — the 4-door rides on a wheelbase nearly 16 inches longer, which is why the 4-door feels noticeably more planted at highway speed while the 2-door retains a tighter turning radius for trail work. The Bronco Sport, despite sharing a platform lineage with the Maverick, has its own 105.1-inch wheelbase and isn’t interchangeable in wheelbase terms with either the Bronco or the Maverick. For a full look at how these two SUVs compare beyond wheelbase, see the Ford Bronco Model Comparison Chart.

Expedition MAX adds 9 inches of wheelbase over the standard Expedition, all of which goes toward third-row legroom and cargo space rather than front-seat room.

So why does this number matter enough to build a whole chart around it?

Why Wheelbase Matters: Towing Stability, Garage Fit, and Breakover Angle

A wheelbase number only matters once you know what it changes.

Towing stability. Wheelbase acts as a lever arm resisting the side-to-side sway a trailer puts on a tow vehicle. This is part of why SAE J2807 — the towing capacity standard Ford uses — rates longer-wheelbase configurations higher for the same engine, and why Regular Cab trucks typically tow 1,000–2,000 lbs less than SuperCrew models with an identical drivetrain. For the full picture on how this plays out across F-150 configurations, see the Ford F-150 Towing Capacity Chart.

Garage and driveway fit. A standard single-car garage runs 20–24 feet deep. A 145.4-inch wheelbase F-150 SuperCrew has an overall length around 232 inches (19.3 feet) — it fits a 20-foot garage with a few feet to spare. A Crew Cab Super Duty with the 175.9-inch wheelbase and 8-foot bed pushes past 266 inches (over 22 feet) and can exceed a 20-foot garage entirely. If you’re parking indoors, measure your actual garage depth against the overall length for your specific configuration, not just the wheelbase.

Breakover angle. Shorter wheelbase generally means a better breakover angle — the truck is less likely to high-center its undercarriage cresting a hill or ditch. This is why off-road-focused trims (Bronco 2-door, Ranger, shorter-wheelbase F-150 configurations) are built around shorter wheelbases rather than the longest available option.

Custom builds and part swaps. For Super Duty owners buying used parts (exhaust systems, driveshafts) from a truck with a different cab/bed combination, wheelbase — not overall length — is the number that determines whether a part needs an extension section or bolts on directly.

Before you use this chart to make a decision, it helps to know what these numbers don’t tell you.

How to Read a Ford Wheelbase Chart (and What It Doesn’t Tell You)

Wheelbase and overall length aren’t the same measurement, and mixing them up is the most common mistake when comparing charts like this one. Wheelbase is strictly the distance between the front and rear axle centerlines. Overall length includes the front and rear overhangs (bumpers, tow hitch mounting points) beyond the axles — two trucks with an identical wheelbase can still have different overall lengths depending on bumper design and trim.

Manufacturer spec sheets typically round to the nearest 0.1 inch, and real-world measurements on an individual vehicle can vary slightly from the published spec due to normal manufacturing tolerance and tire size. For most practical purposes (garage fit, towing math) the published number is accurate enough — but if you’re doing a precision fabrication job, measure the actual truck.

Trim packages generally don’t change wheelbase. An off-road package like Tremor or an appearance package changes ride height, tire size, and sometimes track width, but not the distance between the axles — that’s set by the cab/bed combination (or body style, for SUVs), not the trim level.

If you’re buying a used Ford and need to confirm the exact wheelbase for your specific VIN, the door jamb certification label lists the body/cab code, which you can cross-reference against Ford’s spec documentation, or a dealer parts department can pull it directly from the VIN.

With that in mind, here’s a quick recap of where each current Ford model lands.

Choosing the Right Ford Wheelbase for Your Use Case

Ford’s current lineup runs from the 100.4-inch two-door Bronco built for tight trails up to the 175.9-inch Crew Cab Super Duty built for maximum towing stability. The number that matters isn’t just which model you’re looking at — it’s which cab, bed, or body variant, since F-150 and Super Duty wheelbases can swing by 15–30 inches depending on configuration alone.

If garage fit, towing stability, or trail clearance is driving your decision, match the exact configuration’s wheelbase (not just the model name) against your actual need before you buy or build. For F-150 owners specifically, the full generational wheelbase history — including how these numbers shifted from the 11th through 14th generation — is broken down in the dedicated F-150 wheelbase chart linked above.

Frequently Asked Questions

What is the longest wheelbase Ford currently makes?

The 2024–2026 F-250/F-350 Super Duty Crew Cab with the 8-foot bed has a 175.9-inch wheelbase, the longest in Ford’s current lineup. It’s also one of the few configurations that can push overall length past 266 inches.

Does wheelbase affect towing capacity?

Yes. A longer wheelbase improves resistance to trailer sway, which is factored into SAE J2807 towing ratings. This is a major reason Regular Cab trucks typically tow 1,000–2,000 lbs less than SuperCrew models with the same engine — see the Ford F-150 Towing Capacity Chart for exact figures by configuration.

What’s the difference between wheelbase and overall length?

Wheelbase is the distance between the front and rear axle centerlines. Overall length adds the front and rear overhangs beyond the axles, so two vehicles with the same wheelbase can still have different overall lengths depending on bumper and hitch design.

Do the Ford Maverick and Bronco Sport share a wheelbase?

No. Despite sharing platform lineage, the Maverick has a 121.1-inch wheelbase while the Bronco Sport has a 105.1-inch wheelbase — a 16-inch difference.

How do I find my specific truck’s wheelbase by VIN?

Check the door jamb certification label for your cab/body code, or ask a Ford dealer’s parts department to pull the exact wheelbase from your VIN. This matters most for Super Duty owners sourcing used exhaust or driveshaft parts, where an incorrect wheelbase assumption means the part won’t bolt on.
