Wheelbase is the distance between the center of the front axle and the center of the rear axle. On a Ford Ranger, this single number affects more than most owners realize: turning radius, trailer stability, ride quality, off-road approach and departure angles, and, for builders, whether a given Ranger frame will work for a body swap or custom project.

The Ranger’s wheelbase hasn’t stayed constant. Across three North American generations (1983–2011) and the modern global-platform Ranger (2019–present), Ford stretched, shortened, and restretched the frame depending on cab style, bed length, and market demands. Below is a generation-by-generation breakdown, followed by the practical reasons this number matters.

Ford Ranger Wheelbase by Generation (1983–2025)

Here’s the full wheelbase lineup by generation, cab style, and bed length.

Owner forum records citing a 1992 Ranger sales booklet list the standard cab/long bed wheelbase as both 113.9 in on one page and 114 in on another page of the same brochure. This is almost certainly a rounding inconsistency in Ford’s original printed material rather than a running change. Treat 114 in as the practical figure for 1989–1992 standard cab/long bed trucks, but confirm against a brochure scan or motorcraftservice.com before using this number in a safety- or fitment-critical application.

The 1998–2011 Extended Cab wheelbase appears as 125.9 in in one source and 125.7 in in another (TrueDelta, 2007 model year data). The half-inch gap is likely a metric-to-imperial rounding difference rather than a real spec change, but if you’re doing a frame swap or precision fabrication, measure your own frame rather than relying on either published number.

1983–1997 Ford Ranger Wheelbase: First and Second Generation

The original Ranger, built on a C-section frame that Ford later boxed from the front bumper to the A-pillars for added rigidity, used a 107.9-inch wheelbase on the Regular Cab/Short Bed configuration, the shortest of any Ranger generation. The Extended Cab (introduced partway through this era) stretched that to 125.4 inches.

This generation is the one most frequently searched for frame swaps and custom builds, largely because of its simple, well-documented chassis and the sheer number of surviving trucks. If you’re chasing a specific number for a swap project, confirm the exact wheelbase against your VIN and body style rather than the era-wide average, since early (1983–1988) and late (1989–1997) trucks within this generation had minor frame revisions.

1998–2011 Ford Ranger Wheelbase: Third Generation

The 1998 redesign stretched the standard cab by roughly 3 inches, driven by a 3.6-inch increase in wheelbase, bringing the Regular Cab/Short Bed figure to 111.5 inches. The Extended Cab wheelbase grew slightly as well, to approximately 125.9 inches.

This generation also introduced a boxed frame section and rack-and-pinion steering, changes that affect handling more than wheelbase alone, worth noting if you’re comparing ride quality across generations rather than just chassis dimensions. For a full breakdown of exterior length and other dimensions from this era, see our Ford Ranger length and dimensions guide.

2019–2023 Ford Ranger Wheelbase (T6 Platform Return)

After a seven-year hiatus, the Ranger returned to North America for 2019 on Ford’s global T6 platform, the same architecture that underpins international Rangers sold since 2011. Both SuperCab and SuperCrew configurations of this generation carry a 126.8-inch wheelbase.

This figure comes from a single dealer-published source rather than a Ford factory spec sheet. Cross-check against owner.ford.com or a Ford press kit before treating it as final, particularly if SuperCab and SuperCrew wheelbases differ by trim in ways the dealer listing didn’t capture.

Practically, the longer wheelbase compared to the outgoing 2011 Ranger translates to a more stable ride at highway speed and while towing, a tradeoff against the tighter turning radius of the older, shorter trucks.

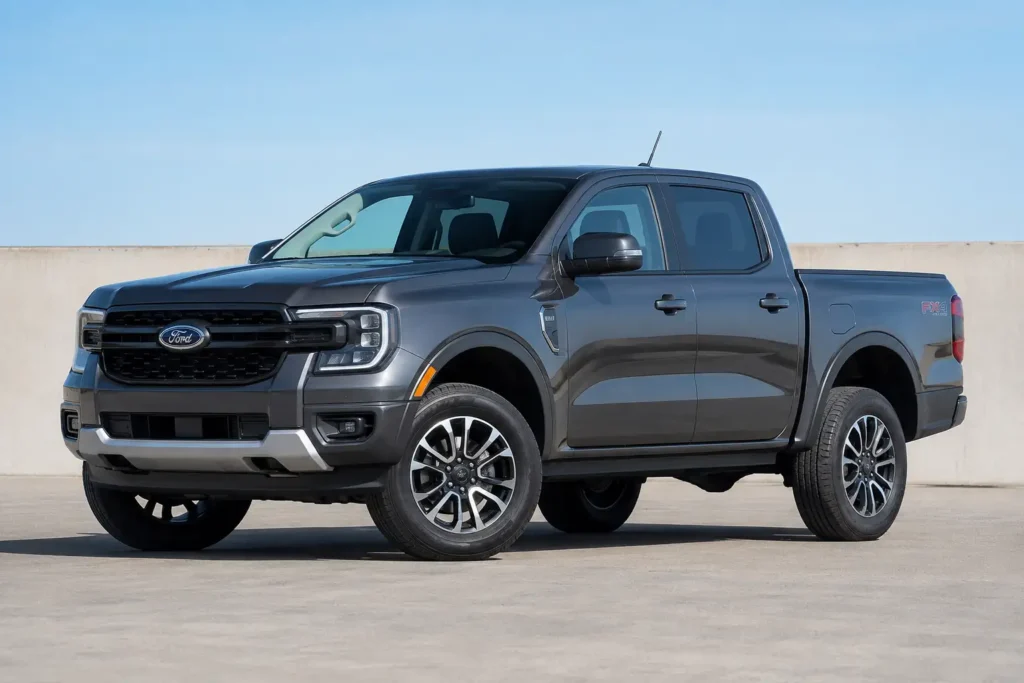

2024–2025 Ford Ranger Wheelbase (Facelift Generation)

The redesigned 2024 Ranger extended the wheelbase by about 2 inches over the prior generation, landing at 128.7 inches for SuperCrew models, confirmed independently across two dealer sources. That extra length was allocated to bed space rather than cabin room, part of why the current Ranger’s cargo volume (up to 43.5 cubic feet) leads the segment.

Whether the Ranger Raptor trim shares this exact 128.7-inch figure or carries a Raptor-specific wheelbase (as some performance trims do) was not confirmed in available sourcing; check Ford’s official Raptor spec sheet before publishing a Raptor-specific claim.

Why Ford Ranger Wheelbase Matters for Towing, Off-Roading, and Frame Swaps

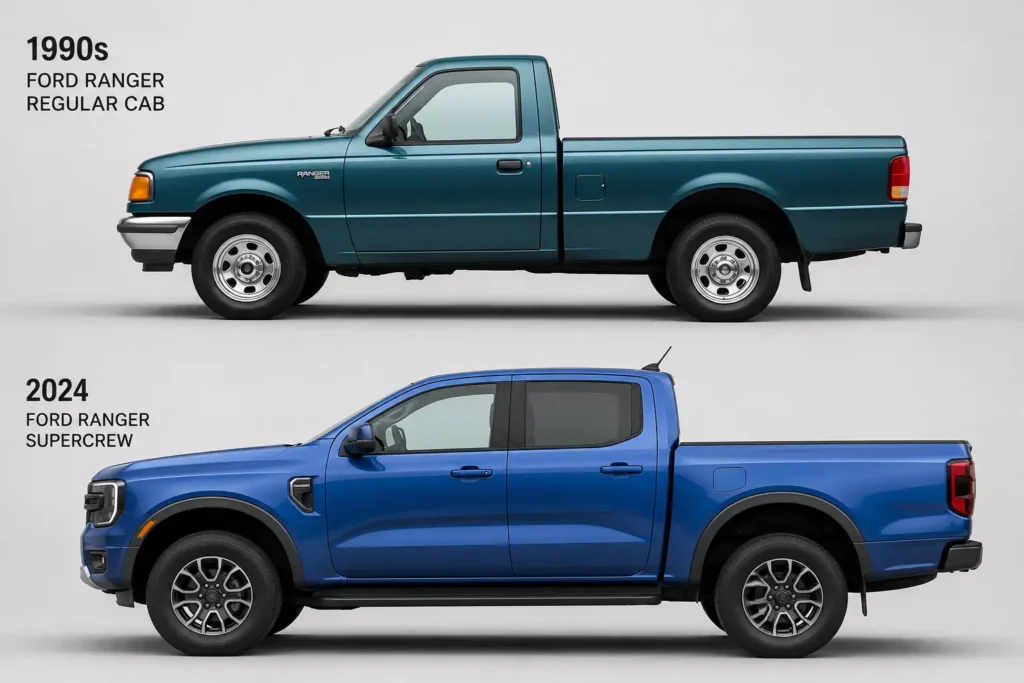

A shorter wheelbase generally means a tighter turning radius and better approach and departure angles off-road, one reason the early, short Regular Cab Rangers remain popular for off-road builds and technical trail driving. A longer wheelbase, on the other hand, tends to deliver more stability at highway speed and while towing a trailer, since the added distance between axles reduces pitching and sway.

For the frame-swap and custom-build community, a significant share of the traffic searching this exact topic, wheelbase is the first number checked before any body-on-frame project, since a mismatched wheelbase means the donor body won’t sit correctly on the target frame. If towing capability is your primary concern rather than wheelbase alone, our Ford Ranger towing capacity chart breaks down payload and towing limits by year and configuration.

How to Find Your Ford Ranger’s Exact Wheelbase (VIN + Door Jamb Method)

Published charts give you the wheelbase for your Ranger’s general configuration, but trim packages and regional variants can shift the number slightly. To confirm your specific truck:

1. Check the door jamb sticker on the driver’s side door frame: many Ford trucks list wheelbase or body-code information here alongside tire pressure specs.
2. Decode your VIN: the eighth character of a Ford VIN typically identifies engine and sometimes chassis configuration; a full VIN decode through Ford or a NHTSA VIN lookup will confirm cab and bed configuration, which you can then match to the chart above.
3. Measure directly: for frame-swap or fabrication work, measure center-of-hub to center-of-hub on both axles rather than relying solely on published specs, since minor running production changes aren’t always reflected in public data.

For bolt pattern and wheel fitment alongside your wheelbase confirmation, see the Ford bolt pattern chart.

FAQs

What is the wheelbase of a 2024 Ford Ranger?

The 2024 Ranger SuperCrew has a wheelbase of 128.7 inches, per dealer-published specs, about 2 inches longer than the 2019–2023 generation.

Did the Ford Ranger wheelbase change in 2019?

Yes. The 2019 Ranger’s return to North America on the global T6 platform brought a 126.8-inch wheelbase, different from both the outgoing 2011 model (111.5 in Regular Cab / 125.9 in Extended Cab) and the later 2024 refresh (128.7 in).

What’s the shortest wheelbase Ford Ranger?

The 1983–1997 Regular Cab/Short Bed configuration, at 107.9 inches, is the shortest wheelbase across all Ranger generations sold in North America.

Can I swap a Ranger frame onto another Ford truck or vice versa?

Wheelbase compatibility is the first check for any frame or body swap, but a matching number alone doesn’t guarantee compatibility; suspension mounting points, driveline length, and body mounts must also line up. For Ranger-specific reliability context before taking on a swap project, see our Ford Ranger reliability guide.
