Ford F-250 Wheelbase Chart by Year, Cab and Bed
The Ford F-250 wheelbase ranges from 137 inches on a 1999 to 2016 Regular Cab up to 176.0 inches on a 2017 to 2026 Crew Cab with the 8 foot bed. The exact number depends on three things: generation, cab style, and bed length, not trim level. A King Ranch and a base XL on the same cab and bed share the same wheelbase.
That range matters because wheelbase drives towing stability, turning radius, and whether a slide in camper sits right on the frame. The chart below breaks down every F-250 wheelbase by generation, cab, and bed so you can find your exact configuration.
Ford F-250 Wheelbase By Generation
Wheelbase in inches, by cab style and bed length
1999 to 2016
Classic through Gen III Super Duty
| Cab / Bed | Wheelbase |
|---|---|
| Regular Cab 8 ft | 137.0 in |
| SuperCab 6.75 ft | 141.8 in |
| Crew Cab 6.75 ft | 156.2 in |
| SuperCab 8 ft | 158.0 in |
| Crew Cab 8 ft | 172.4 in |
2017 to 2026
fourth (2017–2022) and fifth (2023–2026) generations
| Cab / Bed | Wheelbase |
|---|---|
| Regular Cab 8 ft | 141.6 in |
| SuperCab 6.75 ft | 148.0 in |
| Crew Cab 6.75 ft | 159.8 in |
| SuperCab 8 ft | 164.2 in |
| Crew Cab 8 ft | 176.0 in |
Bars are scaled relative to the longest configuration shown, the 2017 to 2026 Crew Cab with the 8 foot bed at 176.0 inches. Figures from Ford’s 2016 and 2017 Super Duty order guides and the 2026 Super Duty towing guide. Ford’s 2026 technical specifications list some 2023–2026 figures 0.1 to 0.2 inch shorter (for example 175.9 inches).
How Ford F-250 Wheelbase Changed Across Two Eras
The F-250 wheelbase held steady for 18 years, then jumped when Ford redesigned the Super Duty cab for 2017. Here is the full breakdown.
Note: the 1999 F-250 nameplate also covered the F-250 Light Duty (1997–1999), which was built on the F-150 platform and uses different wheelbases. The figures below are for the Super Duty F-250 only.
1999 to 2016 Super Duty (Classic through Gen III)
| Cab Style | Bed Length | Wheelbase |
|---|---|---|
| Regular Cab | 8 foot | 137.0 in |
| SuperCab | 6.75 foot | 141.8 in |
| SuperCab | 8 foot | 158.0 in |
| Crew Cab | 6.75 foot | 156.2 in |
| Crew Cab | 8 foot | 172.4 in |
2017 to 2026 Super Duty (fourth (2017–2022) and fifth (2023–2026) generations)
| Cab Style | Bed Length | Wheelbase |
|---|---|---|
| Regular Cab | 8 foot | 141.6 in |
| SuperCab | 6.75 foot | 148.0 in |
| SuperCab | 8 foot | 164.2 in |
| Crew Cab | 6.75 foot | 159.8 in |
| Crew Cab | 8 foot | 176.0 in |
In plain terms, every configuration gained about 3.6 to 6.2 inches of wheelbase in 2017, when Ford redesigned the Super Duty with an aluminum-alloy body. The 2023 redesign changed the front end, powertrain, and interior, but the wheelbases carried over: Ford’s 2026 Super Duty towing guide lists the same 141.6, 148.0, 164.2, 159.8, and 176.0 inch figures as the 2017 order guide.
How To Identify Your F-250 Cab And Bed Setup

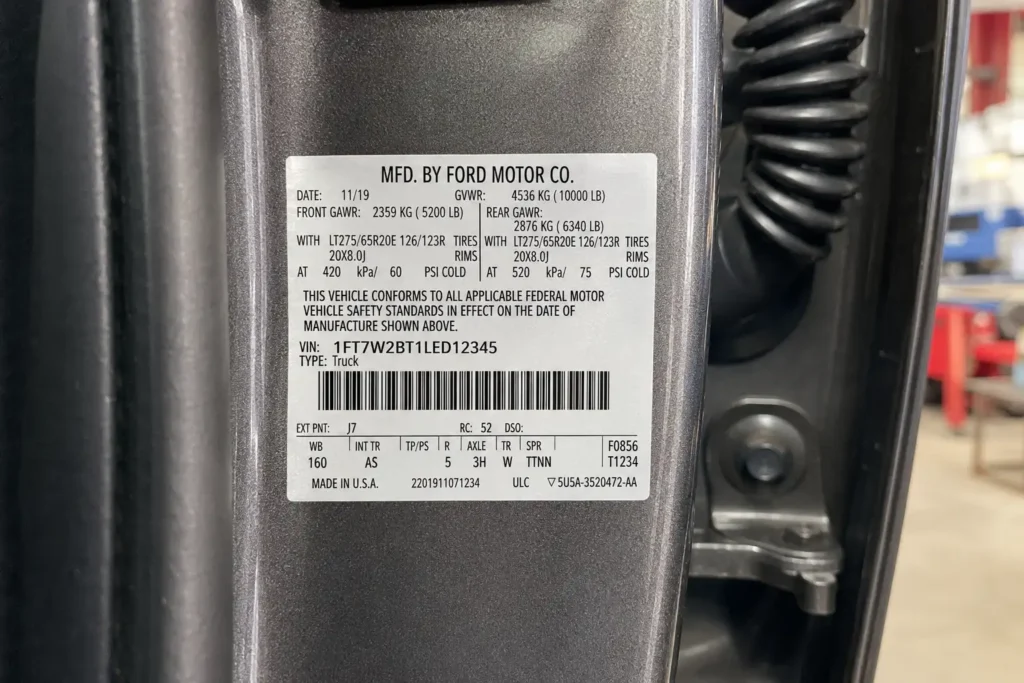

Your F-250’s wheelbase is fixed by two things stamped right on the truck. Check the driver’s side door jamb sticker for the body and cab codes, which sit near the VIN.
The VIN’s fourth through eighth characters, known as the Vehicle Description Section, encode cab type directly. The exact codes vary by model year, so use a VIN decoder or ask a Ford dealer to confirm the cab code for your truck.
Visually, a Regular Cab has two doors and one row of seats. A SuperCab has two full doors plus small rear access doors. A Crew Cab has four full size doors.
Bed length is the other half of the equation. A 6.75 foot bed is Ford’s short box on Super Duty, while an 8 foot bed is the long box, and that difference alone shifts wheelbase by roughly 16 inches within the same cab.
If you want the exact cargo dimensions that go with each bed length, the F-250 bed size by cab configuration breaks down width, height, and volume for both options.
Why F-250 Wheelbase Affects Towing And Turning Radius
A longer wheelbase steadies the truck under a loaded trailer, but it costs you turning clearance in tight spots. This is the core trade off behind every cab and bed decision on a Super Duty.
On the current generation, a Regular Cab with its 141.6 inch wheelbase has a turning diameter of roughly 47.6 to 49.1 feet. A Crew Cab with the 8 foot bed and its 176.0 inch wheelbase needs closer to 57.8 to 59.6 feet to complete the same turn, based on Ford’s 2026 Super Duty technical specifications (curb-to-curb, 4×4 to 4×2).
That extra length is not wasted, though. A longer wheelbase spreads the trailer’s tongue weight over a larger footprint, which reduces sway and keeps the rear axle planted under a heavy gooseneck or fifth wheel load.
Shorter wheelbase trucks respond faster in traffic and fit tighter job sites, but they feel busier under a heavy trailer at highway speed. Matching wheelbase to your actual towing setup matters more than chasing the longest bed on the lot, and the F-250 towing capacity chart shows exactly how much each configuration can pull.
Short Or Long Wheelbase Which F-250 Fits You
If you are choosing between configurations, match the wheelbase to what you actually haul, not the biggest number on the chart.
For a daily driver working in a tight garage or job site, the Regular Cab or SuperCab short bed keeps the wheelbase under 148 inches and the turning circle manageable. This is the easiest F-250 to park and maneuver around a shop.

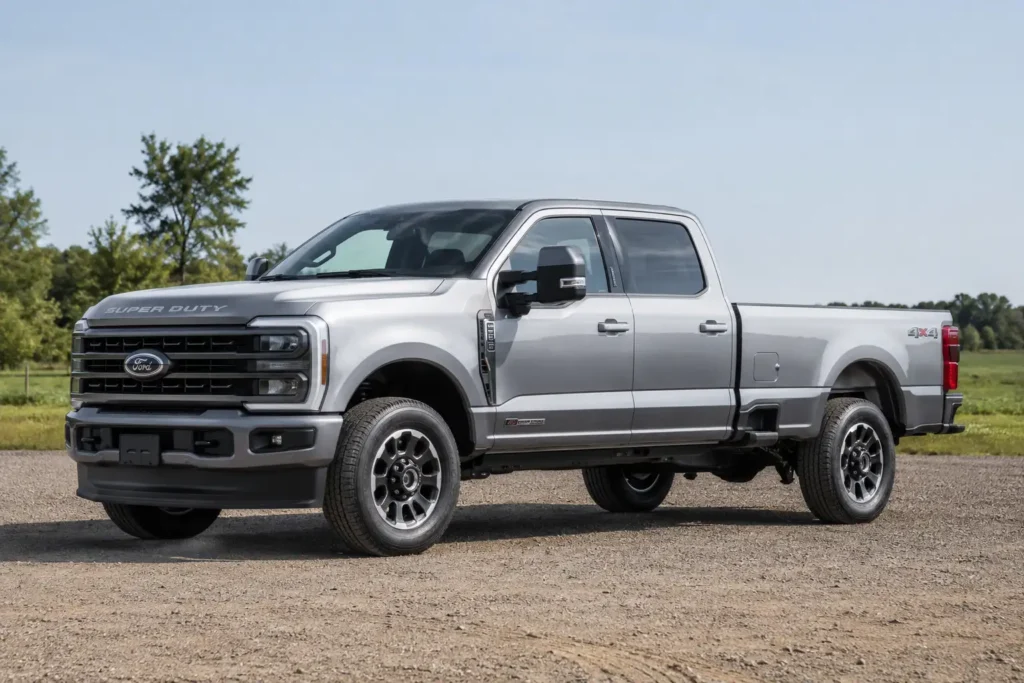

For heavy fifth wheel or gooseneck towing, the Crew Cab with the 8 foot bed and its 176.0 inch wheelbase gives the most stable platform. The extra length pays off specifically when a heavy trailer is attached, less so when driving empty.
For a slide in truck camper, the 8 foot bed matters more than the cab choice, since the longer bed shifts the camper’s center of gravity forward over the rear axle instead of hanging past the tailgate.
How F-250 Wheelbase Compares To F-150 And F-350
The F-250 shares its platform with the F-350, so their wheelbase numbers match almost exactly on single rear wheel models. Ford’s own Super Duty specification sheet lists identical wheelbase figures for both trucks across Regular Cab, SuperCab, and Crew Cab configurations, based on Ford’s Regular Cab Pickup Super Duty Series specification table for the F-250, F-350, and F-450.
The F-150 is a different story. Its wheelbase tops out around 157 inches on a SuperCrew, well short of the F-250’s 176.0 inch maximum, since the Super Duty frame is built longer and heavier from the start. If you are cross-shopping between the two, the Ford F-150 wheelbase chart lays out the same generation by generation breakdown for the half ton line.
Where the F-350 pulls ahead is the dual rear wheel option. The F-250 is single rear wheel only, while an F-350 DRW keeps the same wheelbase for its cab and bed but adds width at the rear axle for heavier loads. For F-350 and F-450 wheelbase details, including DRW and F-450 configurations, see the Ford Super Duty wheelbase chart.
Picking The Right F-250 Wheelbase For Your Truck
Wheelbase on the F-250 comes down to one trade off. Longer means more towing stability and less turning clearance, shorter means the reverse.
Check your door jamb sticker to confirm your exact cab and bed, match it against the chart above, and then decide based on what you actually tow or haul day to day. A truck that fits your driveway and your trailer at the same time is the right F-250 wheelbase, regardless of what the spec sheet calls impressive.
Frequently Asked Questions
What is the wheelbase of a Ford F-250?
F-250 wheelbase ranges from 137 inches on a 1999 to 2016 Regular Cab to 176.0 inches on a 2017 to 2026 Crew Cab with the 8 foot bed. The exact figure depends on generation, cab style, and bed length.
Does F-250 wheelbase differ between Regular Cab and Crew Cab?
Yes. On the current generation, Regular Cab wheelbase is 141.6 inches while Crew Cab ranges from 159.8 to 176.0 inches depending on bed length. The difference comes from the extra cab length, not the frame itself.
Is F-250 wheelbase the same as F-350 wheelbase?
Yes, for single rear wheel models. Ford’s Super Duty spec sheet lists identical wheelbase figures for the F-250 and F-350 SRW across every cab and bed combination.
Does a longer wheelbase improve F-250 towing stability?
Yes. A longer wheelbase spreads trailer tongue weight over a larger footprint, which reduces sway and keeps the rear axle planted under heavy fifth wheel or gooseneck loads.
How do I find my F-250’s exact cab and bed configuration?
Check the driver’s side door jamb sticker for the body and cab codes near the VIN. The cab type is visible directly too, since Regular Cab, SuperCab, and Crew Cab have distinct door counts.
Full wheelbase guide: Ford Wheelbase Chart (Every Model, 2011–2026)
