Ford Explorer Towing Capacity By Year Chart – 2026
The Ford Explorer towing capacity by year ranges from about 5,000 pounds on many modern models to a peak of 7,300 pounds on properly equipped 2002 to 2010 V8 models.
The exact number depends on model year, engine, drivetrain, axle ratio, and factory tow package. A 2025 or 2026 Explorer is commonly listed at up to 5,000 pounds when properly equipped, while 2020 to 2024 3.0L EcoBoost models reached up to 5,600 pounds.
Use the chart first. Then check the engine, tow package, payload label, and loaded trailer weight before hitching up.

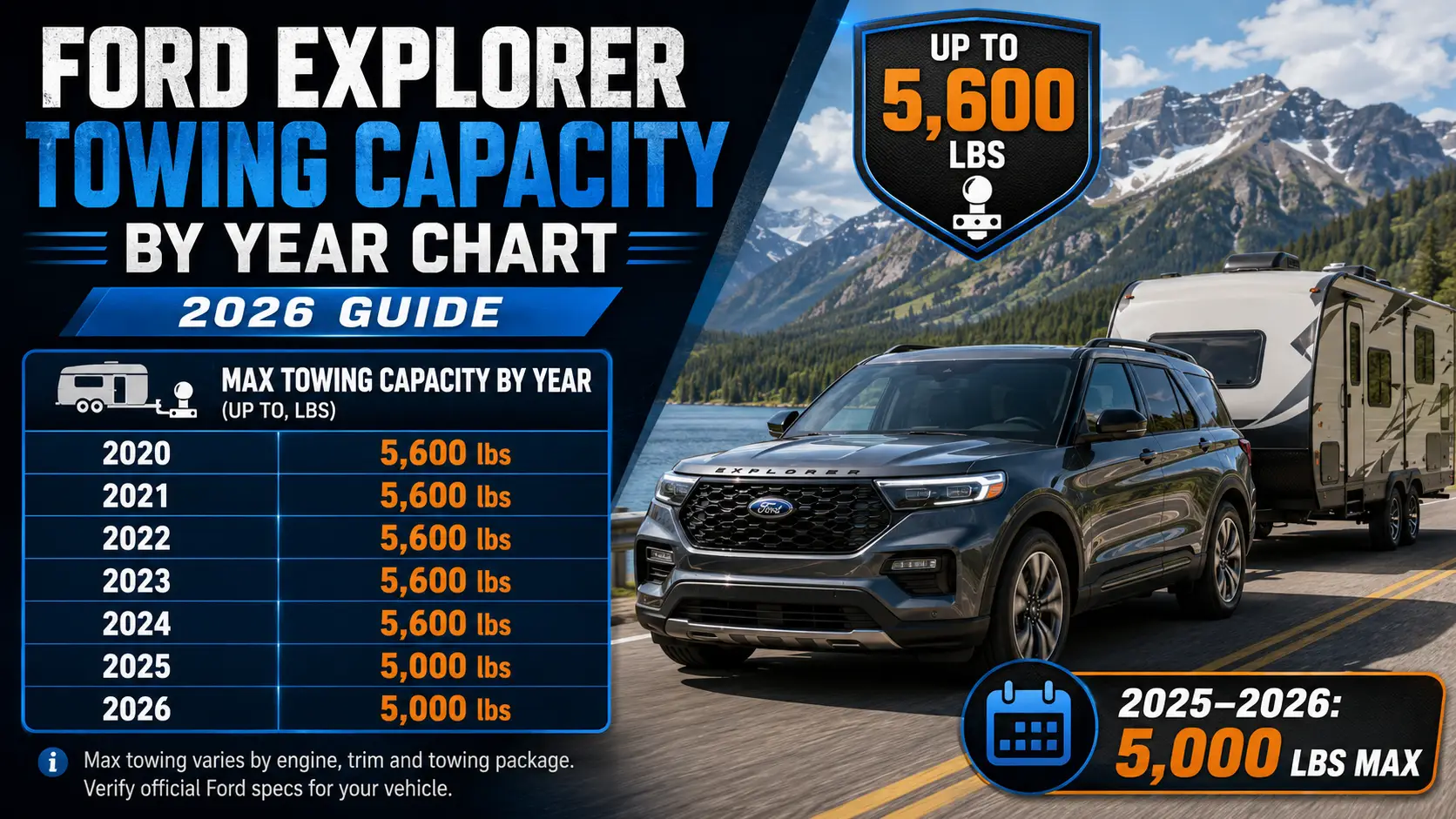

Ford Explorer Towing Capacity By Year Chart
This table shows the maximum Ford Explorer tow rating by model year. These are peak ratings for properly equipped US-spec models, not the rating for every trim.
Ford Explorer Towing Capacity By Generation
This visual compares the highest published towing ratings from each major Explorer generation. Exact capacity still depends on engine, drivetrain, axle ratio, and factory tow package.
| Model Year | Max Towing Capacity | Highest Rated Setup | Tow Package Note |
|---|---|---|---|
| 1991 | 5,700 lbs | 4.0L V6 | Frame-mounted hitch setup required |
| 1992 | 5,700 lbs | 4.0L V6 | Frame-mounted hitch setup required |
| 1993 | 5,700 lbs | 4.0L V6 | Frame-mounted hitch setup required |
| 1994 | 5,700 lbs | 4.0L V6 | Frame-mounted hitch setup required |
| 1995 | 6,500 lbs | 5.0L V8 when equipped | Tow package and correct drivetrain required |
| 1996 | 6,500 lbs | 5.0L V8 when equipped | Tow package and automatic transmission required |
| 1997 | 6,500 lbs | 5.0L V8 when equipped | Tow package and automatic transmission required |
| 1998 | 6,500 lbs | 5.0L V8 when equipped | Tow package and automatic transmission required |
| 1999 | 6,500 lbs | 5.0L V8 when equipped | Tow package and automatic transmission required |
| 2000 | 6,500 lbs | 5.0L V8 when equipped | Tow package and automatic transmission required |
| 2001 | 6,500 lbs | 5.0L V8 when equipped | Tow package and automatic transmission required |
| 2002 | 7,300 lbs | 4.6L V8 with 3.73 axle | Class III or IV setup required |
| 2003 | 7,300 lbs | 4.6L V8 with 3.73 axle | Class III or IV setup required |
| 2004 | 7,300 lbs | 4.6L V8 with 3.73 axle | Class III or IV setup required |
| 2005 | 7,300 lbs | 4.6L V8 with 3.73 axle | Class III or IV setup required |
| 2006 | 7,300 lbs | 4.6L V8 with tow prep | Class III or IV setup required |
| 2007 | 7,300 lbs | 4.6L V8 with tow prep | Class III or IV setup required |
| 2008 | 7,300 lbs | 4.6L V8 with tow prep | Class III or IV setup required |
| 2009 | 7,300 lbs | 4.6L V8 with tow prep | Class III or IV setup required |
| 2010 | 7,300 lbs | 4.6L V8 with tow prep | Class III or IV setup required |
| 2011 | 5,000 lbs | 3.5L V6 with Class III package | Without package, much lower |
| 2012 | 5,000 lbs | 3.5L V6 with Class III package | 2.0L EcoBoost lower |
| 2013 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | Class III package required |
| 2014 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | Class III package required |
| 2015 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | Class III package required |
| 2016 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | 2.3L EcoBoost lower |
| 2017 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | Class III package required |
| 2018 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | Class III package required |
| 2019 | 5,000 lbs | 3.5L V6 or 3.5L EcoBoost | Class III package required |
| 2020 | 5,600 lbs | 3.0L EcoBoost V6 | 2.3L and Hybrid lower |
| 2021 | 5,600 lbs | 3.0L EcoBoost V6 | 2.3L and Hybrid lower |
| 2022 | 5,600 lbs | 3.0L EcoBoost V6 | 2.3L and Hybrid lower |
| 2023 | 5,600 lbs | 3.0L EcoBoost V6 | 2.3L and Hybrid lower |
| 2024 | 5,600 lbs | 3.0L EcoBoost V6 | 2.3L and Hybrid lower |
| 2025 | 5,000 lbs | 2.3L or 3.0L EcoBoost | Class III package standard |
| 2026 | 5,000 lbs | Properly equipped Explorer | Class III package expected |
The existing FordMasterX Explorer page lists the generation peaks as 5,700 pounds for 1991 to 1994, 6,500 pounds for 1995 to 2001, 7,300 pounds for 2002 to 2010, 5,000 pounds for 2011 to 2019, and 5,600 pounds for 2020 to 2025 before the updated 2025 data is applied.
The highest historical number belongs to the 2002 to 2010 body-on-frame Explorer with the 4.6L V8 and proper tow hardware.
Which Ford Explorer Years Tow The Most
The strongest Ford Explorer towing years are 2002 to 2010. Properly equipped 4.6L V8 models from this era reached up to 7,300 pounds.
Those years used a body-on-frame layout, which gave the Explorer a more truck-like towing base than the 2011 to 2019 unibody generation.
The next strongest group is 1995 to 2001. V8-equipped second-generation Explorers reached up to 6,500 pounds when properly equipped.
For newer shoppers, 2020 to 2024 models are the sweet spot. The 3.0L EcoBoost V6 versions reached up to 5,600 pounds, while the 2.3L EcoBoost and Hybrid versions had lower maximum ratings.
The 2025 and 2026 Explorer are simpler to understand. Current reporting lists both at up to 5,000 pounds when properly equipped.

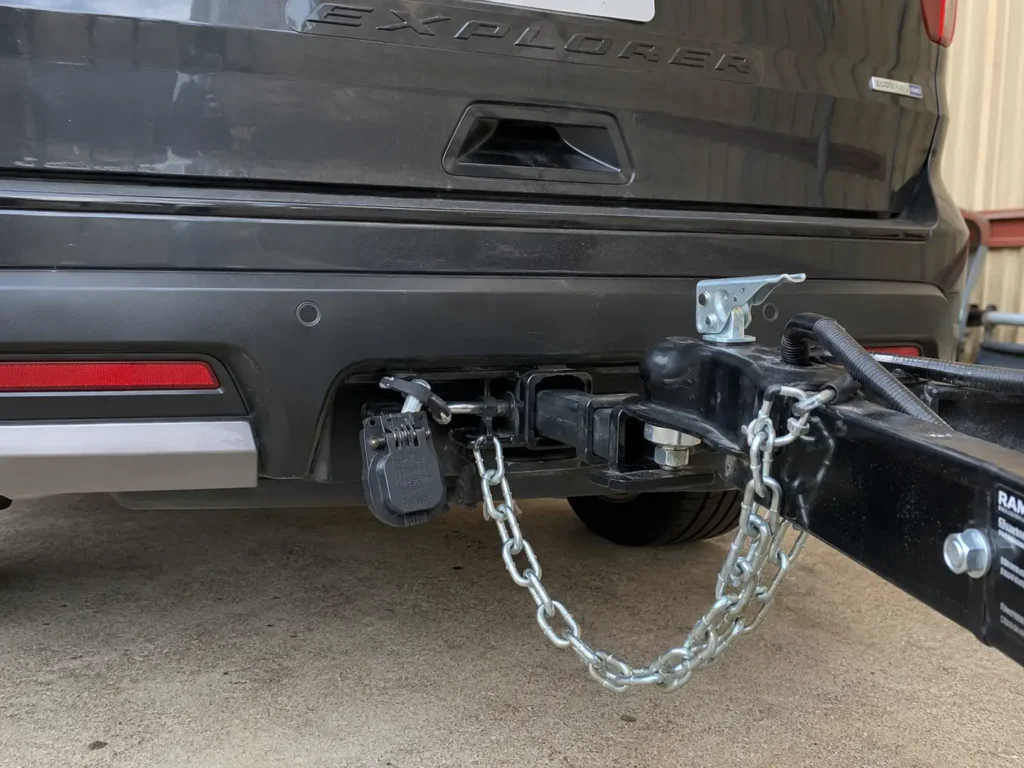

How Engine And Tow Package Change Explorer Towing
Engine power does not decide the Explorer tow rating by itself. The factory tow package, axle ratio, cooling hardware, hitch class, wiring, and transmission setup also matter.
Older V6 And V8 Models
The first-generation Explorer used a 4.0L V6 and reached up to 5,700 pounds in properly equipped form. The second generation added the 5.0L V8, which pushed the peak rating to 6,500 pounds.
Manual transmission versions and lower axle-ratio setups can tow far less. Do not assume every 1995 to 2001 Explorer can tow 6,500 pounds.
Third And Fourth Generation V8 Models
The 2002 to 2010 Explorer is the towing peak for the nameplate. The strongest versions used the 4.6L V8 with a proper towing setup.
FordMasterX’s current page lists 4.6L V8 models in this era at 7,140 to 7,300 pounds, while 4.0L V6 models ranged much lower depending on axle ratio and hitch class.
For older used Explorers, the transmission and axle setup matter. The Ford transmission identification chart is useful when you are confirming drivetrain details before buying a tow vehicle.
Fifth Generation V6 Models
The 2011 to 2019 Explorer moved to a unibody layout. That improved comfort and packaging, but the maximum towing number dropped to 5,000 pounds.
The 3.5L V6 and 3.5L EcoBoost versions needed the factory Class III Trailer Tow Package for the 5,000 pound rating. Four-cylinder EcoBoost models were rated lower, commonly around 2,000 to 3,000 pounds depending on package.
Sixth Generation EcoBoost Models
The 2020 Explorer returned to a rear-wheel-drive-based platform. That change helped the 3.0L EcoBoost V6 reach up to 5,600 pounds in 2020 to 2024 models.
The 2.3L EcoBoost was commonly rated up to 5,300 pounds with the right package, while the 3.3L Hybrid was listed at up to 5,000 pounds in FordMasterX’s existing data.
How Payload And Tongue Weight Reduce Real Towing
Max tow rating is not the same as usable towing capacity. Your passengers, cargo, roof gear, hitch weight, and trailer load all reduce the real margin.
Tongue weight is the downward weight the trailer places on the hitch. A common towing guideline is 10 to 15 percent of loaded trailer weight. That means a 5,000 pound loaded trailer may place about 500 to 750 pounds on the Explorer before you count passengers or cargo.
Payload is the weight your Explorer can carry inside and on itself. That includes people, luggage, cargo, and tongue weight.
Example: if your Explorer has 1,300 pounds of payload and your trailer tongue weight is 600 pounds, you only have about 700 pounds left for passengers and cargo. A family of four plus luggage can use that remaining margin quickly.
Check the driver-side door jamb label before towing. That label gives the payload number for your exact Explorer, not a brochure estimate.

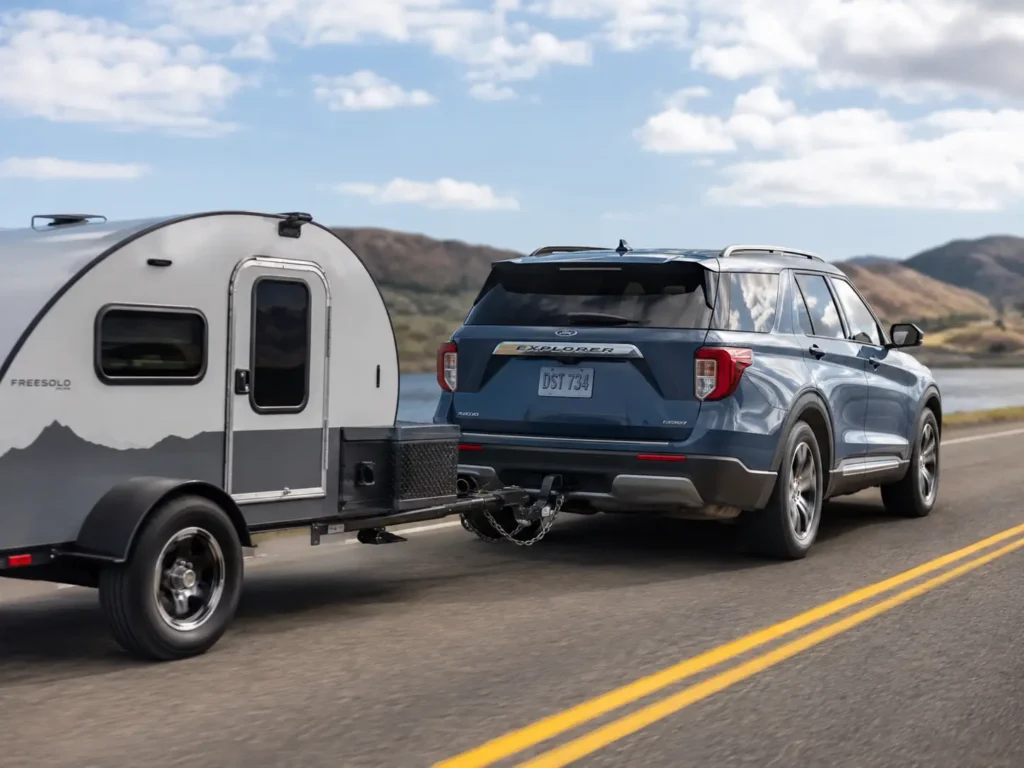

What Trailers A Ford Explorer Can Tow
Trailer type matters more than empty brochure weight. Always compare your Explorer rating against the loaded trailer weight, including water, fuel, food, batteries, gear, and cargo.
| Trailer Type | Typical Loaded Weight | Explorer Suitability |
|---|---|---|
| Small utility trailer | 1,000 to 2,500 lbs | Good for most properly equipped Explorers |
| Personal watercraft trailer | 1,000 to 2,500 lbs | Good with proper hitch and wiring |
| Small fishing boat | 2,000 to 4,000 lbs | Usually workable with tow package |
| Pop-up camper | 2,000 to 3,800 lbs | Good match for many 5,000 lb Explorers |
| Teardrop camper | 1,500 to 3,500 lbs | Good match if loaded weight is controlled |
| Small enclosed trailer | 2,500 to 5,000 lbs | Depends heavily on payload and wind drag |
| Lightweight travel trailer | 3,500 to 5,000 lbs | Use caution near the rating limit |
A 5,000 pound Explorer rating does not automatically make a 5,000 pound camper a good match. Once passengers, cargo, tongue weight, and wind resistance are added, the real towing margin may be too small.
For smaller truck comparisons, the Ford Maverick towing capacity chart helps show how tow packages change ratings on Ford’s compact pickup.
When A Ford Explorer Is Not Enough For Towing
An Explorer is a capable midsize SUV, but it is not a half-ton truck. Move to a larger Ford if your trailer regularly sits close to the Explorer’s limit.
A Ford Explorer is usually not the right tow vehicle when:
- The loaded trailer is near 5,000 pounds.
- You carry a full family and cargo while towing.
- The trailer is tall and catches heavy wind.
- You tow through mountain grades or hot climates.
- You need to tow long highway distances often.
- Your payload label leaves little tongue weight margin.
If your trailer sits above the comfortable Explorer range, compare it with the Ford Expedition towing capacity chart or the Ford F-150 towing capacity chart.
Those platforms give more room for payload, wheelbase, cooling, and trailer control.
Quick Ford Explorer Towing Decision Guide
This five-step check is safer than trusting one max tow number.
- Find your model year. Start with the year chart above.
- Confirm your engine. A 2.3L EcoBoost, 3.0L EcoBoost, Hybrid, V6, and V8 can have different limits.
- Check the tow package. The factory package can change the rating by thousands of pounds.
- Calculate loaded trailer weight. Use the trailer’s real loaded weight, not the dry weight.
- Check payload and tongue weight. Keep enough margin for passengers and cargo.
| If Your Situation Looks Like This | Best Decision |
|---|---|
| Trailer is under 3,000 lbs loaded | Most tow-package Explorers are suitable |
| Trailer is 3,000 to 4,500 lbs loaded | Check payload, tongue weight, and package carefully |
| Trailer is 4,500 to 5,000 lbs loaded | Use caution and leave margin |
| Trailer is over 5,000 lbs loaded | Choose Expedition, F-150, or larger |
| Trailer is tall and boxy | Treat wind drag as a serious limit |
The safer approach is simple. Match the trailer to your exact Explorer, then leave margin instead of towing at the published maximum.
What To Check Before You Tow
The Ford Explorer towing capacity by year gives you the starting number, not the full towing answer.
Before towing, confirm your model year, engine, drivetrain, factory tow package, payload label, hitch rating, trailer weight, and tongue weight. For 2025 and 2026 models, current reporting lists the Explorer at up to 5,000 pounds when properly equipped.
If your loaded trailer is close to the limit, move up to a larger Ford SUV or truck. Towing with margin is always better than towing at the edge of the rating.
Ford Explorer Towing Capacity Questions
What Is The Ford Explorer Towing Capacity By Year
Ford Explorer towing capacity by year ranges from about 5,000 pounds on many newer models to 7,300 pounds on the strongest 2002 to 2010 V8 models. The exact number depends on engine, tow package, axle ratio, and drivetrain.
Which Ford Explorer Can Tow 5,600 Pounds
The 2020 to 2024 Ford Explorer with the 3.0L EcoBoost V6 can tow up to 5,600 pounds when properly equipped. The 2.3L EcoBoost and Hybrid versions are rated lower in the existing FordMasterX data.
Can A Ford Explorer Tow A Camper
Yes, a Ford Explorer can tow some campers if the loaded weight fits within the SUV’s tow rating and payload limit. Pop-up campers, teardrops, and lightweight campers are better matches than full-size travel trailers.
Does A Ford Explorer Need A Tow Package
Yes, the factory tow package is required for the highest Explorer tow ratings. An aftermarket hitch alone does not add the same cooling, wiring, and factory trailering hardware.
How Much Can A 2026 Ford Explorer Tow
A 2026 Ford Explorer can tow up to 5,000 pounds when properly equipped, according to current Edmunds reporting through AP. Always confirm the final number with the owner manual and door label for the exact vehicle.
Is A Ford Explorer Good For Towing A Boat
Yes, a Ford Explorer can be a good tow SUV for small boats, fishing boats, and personal watercraft trailers. The key is loaded trailer weight, tongue weight, and whether the Explorer has the proper tow package.
What Happens If I Tow Over The Explorer Rating
Towing over the Explorer rating can overload the drivetrain, brakes, tires, hitch, and suspension. It can also create sway, overheating, longer stopping distances, and insurance or liability problems after a crash.
