Ford Fusion Paint Code Chart By Year: 2026 Colors, Codes & Location
The Ford Fusion paint code chart below identifies factory exterior colors for U.S.-market Fusion sedans from 2006 through 2020. Find your model year, compare the color names and codes, then check the original paint label before ordering touch-up paint.
A Ford paint code is usually a short combination of letters and numbers. For example, a 2020 Fusion in Rapid Red uses D4, while Iconic Silver uses JS. Those codes are not interchangeable, even when two colors look similar in a photograph.
The tables cover the gasoline, Hybrid, and Energi model family where applicable. Actual color availability may vary by trim and production date.
Eight exterior colors with Ford order-guide codes. Locate your exact code before buying touch-up paint.
Factory color and code pairs
-
Rapid Red
Paint codeD4 -
Velocity Blue
Paint codeE7 -
Magnetic
Paint codeJ7 -
Iconic Silver
Paint codeJS -
Alto Blue
Paint codeL3 -
White Platinum
Paint codeUG -
Agate Black
Paint codeUM -
Oxford White
Paint codeYZ
Color previews are illustrative. Screens cannot reproduce an OEM paint formula. Actual trim availability may vary; your door-jamb label is the final match reference.
Verify before you buy in four steps
-
1
Confirm the year
Use the color list for your Fusion’s model year.
-
2
Open driver’s door
Find the vehicle certification label on the door jamb.
-
3
Read the paint field
Look for the exterior paint code, often marked EXT PNT.
-
4
Match the formula
Order paint by model year and code, then test a sample.

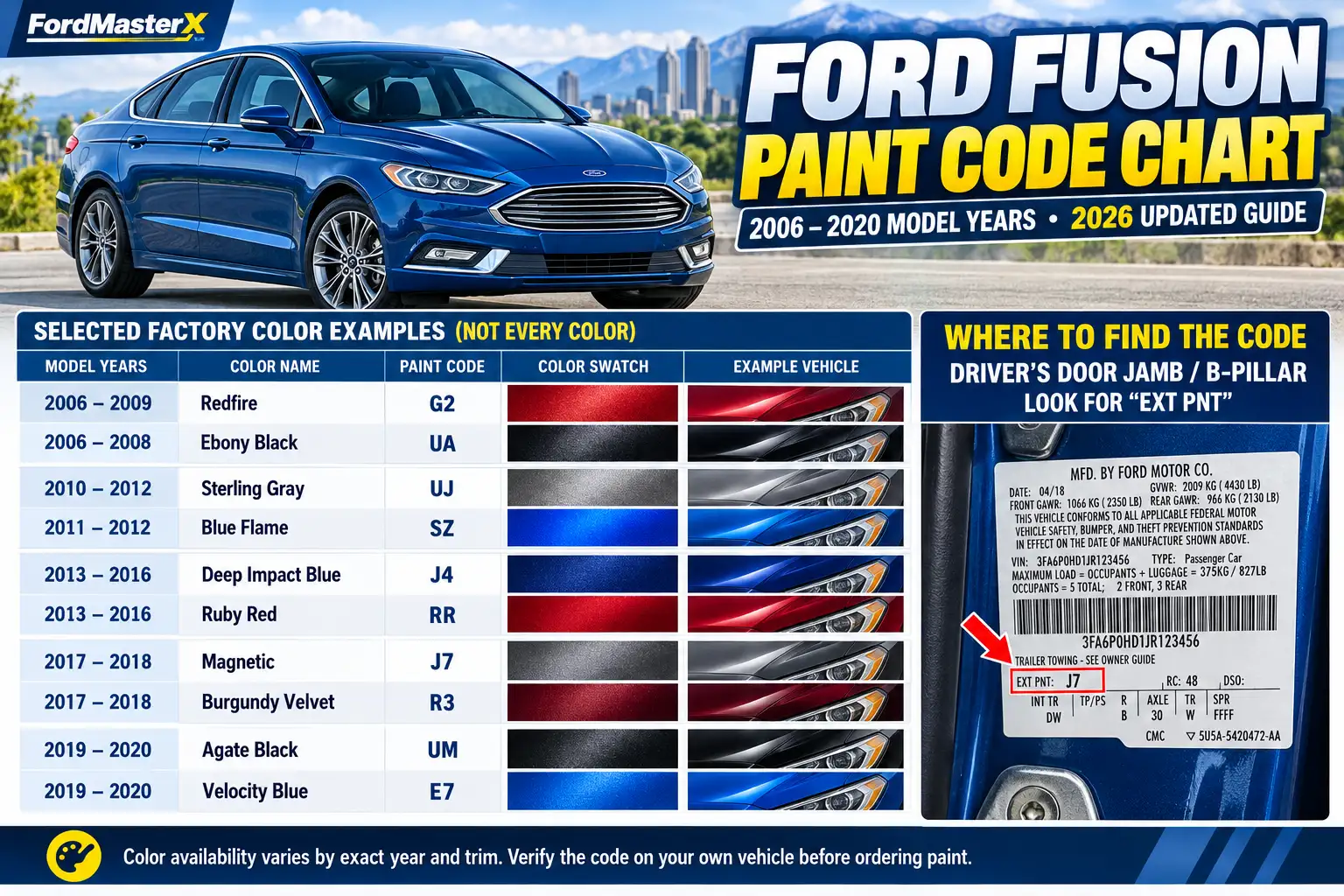

Ford Fusion Paint Code Chart for 2006 to 2020
Use the year headings below to locate your factory color. Each row pairs a reported Fusion exterior color with its two-character code. You can also compare the historical swatches in the Ford Fusion paint chart archive. Color names sometimes differ slightly between Ford’s brochures and paint suppliers; the code and model year are the better matching references.
| Model Year | Example Factory Color | Code |
|---|---|---|
| 2006 | Dark Blue Pearl | DX |
| 2010 | White Suede | WS |
| 2013 | Deep Impact Blue | J4 |
| 2016 | Magnetic | J7 |
| 2019 | Velocity Blue | E7 |
| 2020 | Rapid Red | D4 |
How to use this chart: Find the year first. Then compare the code on your driver’s door label with the relevant color row. Do not select a paint solely because its preview swatch resembles your car.
2006 to 2009 Ford Fusion Factory Paint Colors
Early Fusion paint options included several greens, silvers, dark blues, and red finishes. Colors changed each year, so an identical-looking 2006 and 2009 sedan may not share a paint formula.
2006 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Titanium Green Metallic | DV |
| Dark Blue Pearl | DX |
| Merlot Metallic | FX |
| Redfire Metallic | G2 |
| Dune Pearl Metallic | ND |
| Dark Stone Metallic | T7 |
| Tungsten Silver Metallic | T8 |
| Silver Frost Metallic | TS |
| Ebony Black | UA |
| Oxford White | YZ |
The earliest Fusion chart uses some supplier names, including Titanium Green and Dark Stone. When a seller calls a color by a different marketing name, compare its code, not just its description.
2007 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Dark Blue Pearl | DX |
| Merlot Metallic | FX |
| Redfire Metallic | G2 |
| Alloy Metallic | G5 |
| Dark Toreador Red Pearl | JL |
| Silver Birch Metallic | JP |
| Dune Pearl Metallic | ND |
| Light Sage Metallic | NH |
| Dark Amethyst Metallic | PG |
| Satellite Silver Metallic | T3 |
| Tungsten Silver Metallic | T8 |
| Ebony Black | UA |
| Oxford White | YZ |
2008 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Dark Ink Blue Metallic | DI |
| Redfire Metallic | G2 |
| Silver Birch Metallic | JP |
| Dune Pearl Metallic | ND |
| Light Sage Metallic | NH |
| Moss Green Metallic | P6 |
| Ebony Black | UA |
| White Suede | WS |
| Vapor Silver Metallic | ZY |
2009 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Dark Ink Blue Pearl | DI |
| Redfire Metallic | G2 |
| Smokestone Metallic | HG |
| Moss Green Metallic | P6 |
| Sport Blue Metallic | U1 |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Brilliant Silver Metallic | UI |
| White Suede | WS |
2010 to 2012 Ford Fusion Paint Codes
The facelift-era Fusion offered shades such as White Suede, Blue Flame, and Sterling Gray. Some metallic and tinted finishes require more careful matching than a simple solid color.
2010 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Smokestone Metallic | HG |
| Sangria Red | JV |
| Light Ice Blue Metallic | LS |
| Sport Blue Metallic | U1 |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Brilliant Silver Metallic | UI |
| Sterling Gray Metallic | UJ |
| Atlantis Green Metallic | UL |
| White Suede | WS |
2011 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Toreador Red Metallic | FL |
| Bordeaux Reserve Metallic | FQ |
| Cinnamon Metallic | HT |
| Light Ice Blue Metallic | LS |
| Blue Flame Metallic | SZ |
| Red Candy Tinted Metallic | U6 |
| Ebony Black | UA |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Sterling Gray Metallic | UJ |
| Steel Blue Metallic | UN |
| Ingot Silver Metallic | UX |
| White Suede | WS |
The 2011 catalog includes a broader set of cross-reference entries than some consumer brochures. Your own certification label establishes which color was applied to your car.
2012 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Cinnamon Metallic | HT |
| Ginger Ale Metallic | JY |
| Blue Flame Metallic | SZ |
| Red Candy Tinted Metallic | U6 |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Sterling Gray Metallic | UJ |
| Steel Blue Metallic | UN |
| Ingot Silver Metallic | UX |
| White Suede | WS |
For 2012, some service references also list Crystal Champagne JZ and refer to Red Candy with another identifier, R2. Because these entries do not match every supplier chart, ask a Ford parts department or paint mixer to verify any conflicting reference against the vehicle label before ordering.
2013 to 2016 Ford Fusion Paint Codes
The redesigned 2013 Fusion brought Deep Impact Blue, Ice Storm, and Ruby Red into the model-year references. Newer colors did not automatically carry over into each succeeding year.
2013 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Bordeaux Reserve Metallic | FQ |
| Deep Impact Blue Metallic | J4 |
| Ginger Ale Metallic | JY |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Sterling Gray Metallic | UJ |
| Ingot Silver Metallic | UX |
| Ice Storm Metallic | YQ |
| Oxford White | YZ |
2014 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Dark Side Metallic | BT |
| Sunset Metallic | D7 |
| Deep Impact Blue Metallic | J4 |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Sterling Gray Metallic | UJ |
| Ingot Silver Metallic | UX |
| Ice Storm Metallic | YQ |
| Oxford White | YZ |
2015 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Bronze Fire Metallic | H9 |
| Tectonic Silver Metallic | HI |
| Guard Metallic | HN |
| Deep Impact Blue Metallic | J4 |
| Magnetic Metallic | J7 |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Tuxedo Black Metallic | UH |
| Ingot Silver Metallic | UX |
| Oxford White | YZ |
2016 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Shadow Black / Absolute Black | G1 |
| Bronze Fire Metallic | H9 |
| Tectonic Silver Metallic | HI |
| Guard Metallic | HN |
| Deep Impact Blue Metallic | J4 |
| Magnetic Metallic | J7 |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Ingot Silver Metallic | UX |
| Oxford White | YZ |
For G1, some refinish catalogs use Absolute Black while Ford marketing materials use Shadow Black. Matching the G1 code and correct model year matters more than the wording.
2017 to 2020 Ford Fusion Paint Codes
The last four model years introduced Lightning Blue, Burgundy Velvet, Velocity Blue, Agate Black, and other finishes. Ford’s 2019 and 2020 order guides clarify several codes that online databases sometimes mislabel.
2017 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Shadow Black | G1 |
| White Gold Metallic | GN |
| Magnetic Metallic | J7 |
| Lightning Blue Metallic | N6 |
| Burgundy Velvet Tinted Clearcoat | R3 |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Ingot Silver Metallic | UX |
| Oxford White | YZ |
2018 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Blue Metallic / Blue Diamond | FT |
| Shadow Black | G1 |
| White Gold Metallic | GN |
| Magnetic Metallic | J7 |
| Lightning Blue Metallic | N6 |
| Burgundy Velvet Tinted Clearcoat | R3 |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Ingot Silver Metallic | UX |
| Oxford White | YZ |
Code FT may appear as Blue Metallic in Ford material and Blue Diamond Metallic in refinish catalogs. Both labels are recorded for this color family, but always verify the code on your car.
2019 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Rich Copper Tinted Clearcoat | B6 |
| Velocity Blue Metallic | E7 |
| Blue Metallic | FT |
| White Gold Metallic | GN |
| Magnetic Metallic | J7 |
| Ruby Red Tinted Clearcoat | RR |
| White Platinum Tri-Coat | UG |
| Agate Black Metallic | UM |
| Ingot Silver Metallic | UX |
| Oxford White | YZ |
The official 2019 Ford Fusion order guide identifies UM as Agate Black and includes E7 Velocity Blue. Some aftermarket lists incorrectly keep the older black code G1 on the 2019 roster.
2020 Ford Fusion Colors
| Factory Color | Paint Code |
|---|---|
| Rapid Red Tinted Clearcoat | D4 |
| Velocity Blue Metallic | E7 |
| Magnetic Metallic | J7 |
| Iconic Silver Metallic | JS |
| Alto Blue Tinted Clearcoat | L3 |
| White Platinum Tri-Coat | UG |
| Agate Black Metallic | UM |
| Oxford White | YZ |
The official 2020 Ford Fusion order guide lists these eight exterior colors. It assigns Alto Blue L3, not LB, and Iconic Silver JS, not J7.

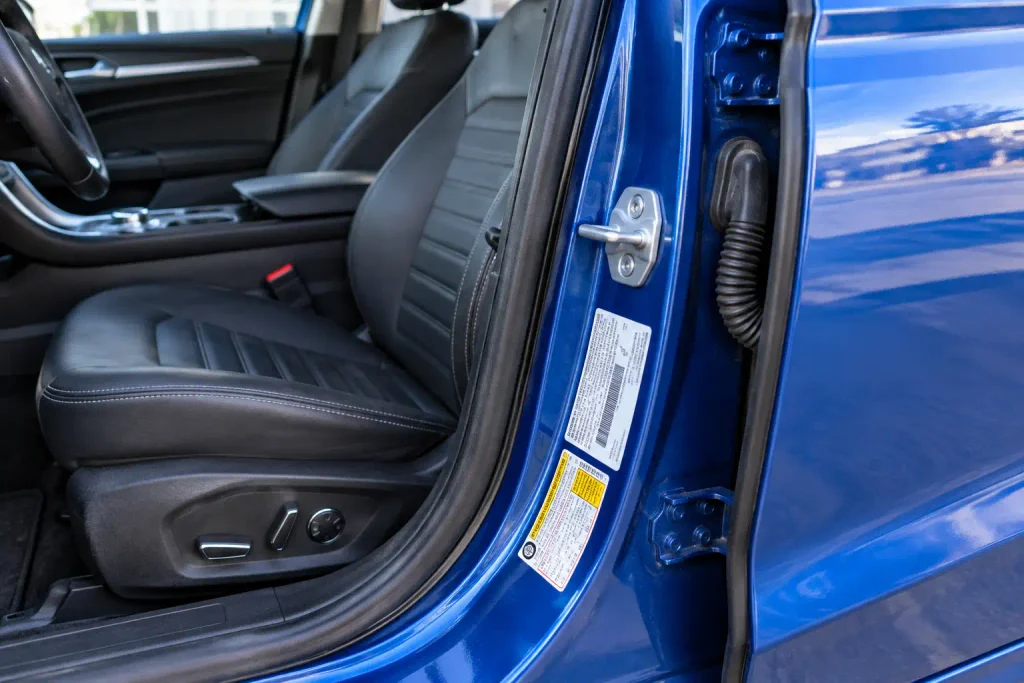

How to Find Your Ford Fusion Paint Code
Ford says the vehicle color code is printed on a sticker on the front, left-hand side door jamb. In a U.S.-market Fusion, that is the driver’s door opening. The 2020 Ford Fusion owner’s manual confirms this location in its minor paint repair instructions.
- Park the car safely and open the driver’s front door.
- Inspect the certification label on the door jamb near the latch area.
- Find the exterior paint field, commonly labeled EXT PNT, and copy its code exactly.
- Compare that code with the chart for your Fusion’s model year, then confirm it with the paint supplier.
If the label is worn or missing, use our guide to locating Ford touch-up paint codes for a closer explanation of Ford label fields. Do not confuse the exterior paint entry with the VIN, interior trim code, or transmission code.
Why Ford Fusion Paint Codes Sometimes Look Confusing
Two color names can sound alike without using the same paint formula. The final two Fusion model years offer clear examples:
| Similar Colors | Correct Codes | Why It Matters |
|---|---|---|
| Ingot Silver vs. Iconic Silver | UX vs. JS | Different factory silver finishes |
| Ruby Red vs. Rapid Red | RR vs. D4 | Different tinted red formulations |
| Shadow Black vs. Agate Black | G1 vs. UM | Different black codes across years |
| Lightning Blue vs. Velocity Blue | N6 vs. E7 | Different blue finishes |
Another complication is naming. A paint supplier may describe FT as Blue Diamond Metallic while Ford calls the 2019 color simply Blue. That is a naming variation, not permission to substitute an unrelated code.
The 2020 Alto Blue code is L3 in Ford’s order guide. Some online databases list LB instead. For that reason, confirm the actual label whenever listings disagree.
This article concerns the U.S.-market Ford Fusion sedan, not the unrelated European-market Fusion hatchback, which uses a different model and paint-reference catalog.
How to Match Ford Fusion Touch Up Paint
Use the factory code as the starting point, then make sure the replacement product suits the damage and finish.
- Read the original label. Record the model year and the exact exterior code before shopping.
- Match the supplier listing. Search by Ford Fusion year and paint code, then double-check the color name and formula details.
- Choose the repair format. A pen or brush is convenient for small stone chips; aerosol products cover broader scuffs but require more preparation.
- Check the finish system. Metallic, pearlescent, and tinted-clearcoat finishes may require more than one product or application stage.
- Test before painting the visible panel. Use a test card or inconspicuous sample and inspect the dried color in daylight.
For model-specific and older factory color references, our Ford paint code list and color chart explains Ford’s general code system without repeating the Fusion-only tables.
A correct code does not guarantee an invisible repair on aged paint. Sun exposure, prior repainting, and application technique can affect how closely new paint matches the surrounding panel.
Which Fusion Colors Need Multi Stage Paint
Finish type affects how a touch-up repair looks. Do not assume every Fusion color can be reproduced with a single bottle of base color.
| Finish Type | Fusion Example | Matching Consideration |
|---|---|---|
| Solid color | Oxford White YZ | Confirm the exact factory formula |
| Metallic | Magnetic J7 | Metallic flake orientation affects appearance |
| Tri-coat pearl | White Platinum UG | Additional color or effect layer may be required |
| Tinted clearcoat | Ruby Red RR, Rapid Red D4 | Coat thickness affects color depth |
For a small chip, buy a kit specified for the full finish system. For a large repaired panel, a professional body shop can adjust the formula and blend adjacent paint more effectively.
If your 2020 Fusion is Rapid Red, our Ford Rapid Red D4 paint code guide explains that specific finish and why the correct repair materials matter.
How to Confirm the Correct Ford Fusion Color
The Ford Fusion paint code chart is a useful lookup, but the code printed on your own vehicle is the final check. Select the correct model year, read the driver’s door-jamb label, and match the code to a supplier’s year-specific formula. A color name alone cannot confirm the correct paint.
If the label is missing, request the original color information from a Ford parts department using the VIN. Our guide to finding a Ford color code with a VIN explains why the VIN itself does not encode the paint color.
Before applying a repair, confirm the finish type and test the mixed paint. Those steps are especially valuable for metallic, pearl, and tinted-clearcoat Fusion colors.
Ford Fusion Paint Code Questions Answered
Where Is the Paint Code on a Ford Fusion?
Look on the vehicle certification sticker in the driver’s front door jamb. Find the exterior paint field, often marked EXT PNT, and compare the recorded code with the chart for your model year.
Can I Find My Ford Fusion Paint Code Using the VIN?
Not by decoding the VIN characters alone. A Ford dealer may be able to use your VIN to retrieve factory build or vehicle records, which can help confirm the original paint when the label is unreadable.
What Is the Paint Code for a 2013 Ford Fusion?
There is no single 2013 Fusion paint code. For example, Deep Impact Blue uses J4, Ruby Red uses RR, and Ingot Silver uses UX. Check your actual exterior color and door label before ordering paint.
What Is the 2020 Ford Fusion Rapid Red Paint Code?
D4 is the 2020 Fusion code for Rapid Red Metallic Tinted Clearcoat. Ford’s 2020 order guide also lists Iconic Silver as JS and Alto Blue as L3, which should not be confused with codes shown by some third-party databases.
How Do I Match Faded Ford Fusion Paint?
Start with the factory code, then have the supplier or paint shop compare a physical sample with the car’s current finish. Aged paint may require tint adjustment and blending, especially on larger panels or complex finishes.
