Ford Edge Paint Code Chart By Year: 2026 Colors, Codes & Location
The Ford Edge paint code chart below matches factory exterior color names with two-character codes for US-market Edge SUVs from 2007 through 2024. Choose your model year, find the color, and compare its code with the EXT PNT field on your driver’s door-jamb certification label.
Do not order paint from a color name or screen swatch alone. The correct code, model year, and paint finish must agree with your vehicle. Ford offered different colors across model years and, in some cases, different trims.

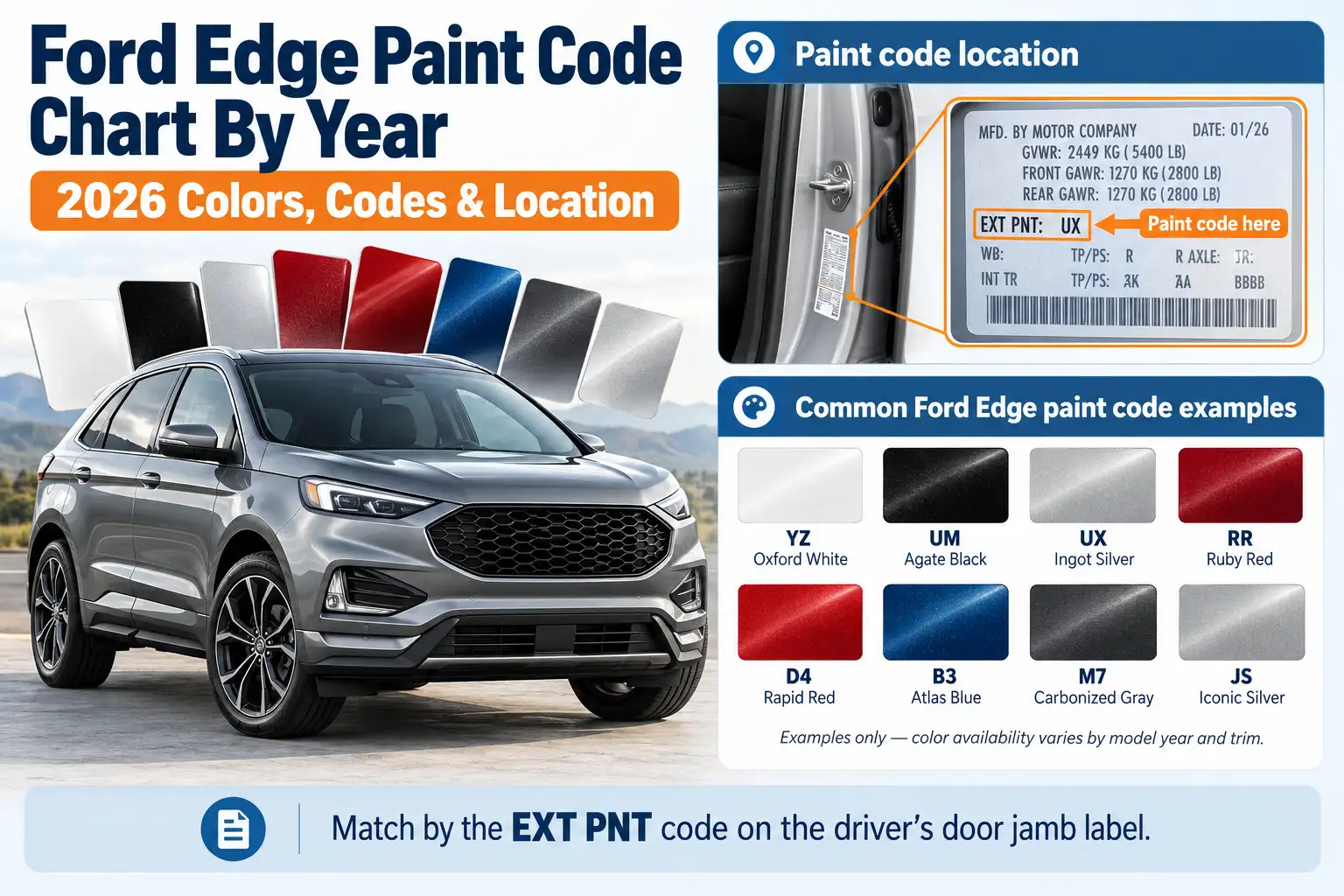

A quick visual check before you buy touch-up paint or order a pre-painted replacement panel.
Example: UM identifies Agate Black Metallic on applicable 2019–2024 US Ford Edge models. Your SUV may show another code.
Start with the 2007–2024 Edge chart. Colors and availability changed over time.
Open the driver’s door and copy the exterior paint code exactly. Do not use INT TR or WB.
Match the code, model year, and paint type with the supplier before buying or spraying.
Illustration for education only. Swatch colors are approximate and must not be used for paint matching. Availability may vary by trim and market.
Ford Edge Paint Code Chart for 2007 to 2024
These tables list documented exterior color and code combinations. Codes in parentheses are the short Ford paint identifiers, not aftermarket formula numbers. Some finishes were restricted to particular trims or offered during only part of a model year. For codes used on other Ford vehicles, see our Ford paint code chart by model and year.
Ford Edge Paint Codes From 2007 to 2014
| Model Year | Exterior Colors and Paint Codes |
|---|---|
| 2007 | Redfire Metallic G2; Carbon Metallic G5; Blazing Copper Metallic GW; Pewter Metallic HJ; Dune Pearl Metallic ND; Light Sage Metallic NH; Dark Amethyst Metallic PG; Creme Brulee PH; Black UA |
| 2008 | Dark Ink Blue DI; Redfire Metallic G2; Orange Crush GW; Light Ice Blue LS; Dune Pearl ND; Creme Brulee PH; White Chocolate PV; Black UA; Vapor Silver ZY |
| 2009 | Dark Ink Blue DI; Redfire G2; Cinnamon HT; Light Ice Blue LS; Sport Blue U1; Black UA; White Platinum UG; Brilliant Silver UI; Sterling Gray UJ; White Suede WS |
| 2010 | Dark Ink Blue DI; Cinnamon HT; Sport Blue U1; Red Candy U6; White Platinum UG; Tuxedo Black UH; Sterling Gray UJ; Ingot Silver UX; White Suede WS |
| 2011 | Dark Blue Pearl DX; Toreador Red FL; Bordeaux Reserve FQ; Mediterranean Blue HQ; Earth HS; Cinnamon HT; Kona Blue L6; Mineral Gray TK; Red Candy U6; Black UA; White Platinum UG; Tuxedo Black UH; Ingot Silver UX; White Suede WS |
| 2012 | Dark Blue Pearl DX; Bordeaux Reserve FQ; Earth HS; Cinnamon HT; Ginger Ale JY; Crystal Champagne JZ; Kona Blue L6; Red Candy RZ; Mineral Gray TK; Black UA; White Platinum UG; Ingot Silver UX; White Suede WS |
| 2013 | Kodiak Brown J1; Deep Impact Blue J4; Ginger Ale JY; Ruby Red RR; Mineral Gray TK; White Platinum UG; Tuxedo Black UH; Ingot Silver UX; White Suede WS |
| 2014 | Sunset D7; Kodiak Brown J1; Deep Impact Blue J4; Ruby Red RR; Mineral Gray TK; White Platinum UG; Tuxedo Black UH; Ingot Silver UX; Oxford White YZ |
Ford’s original 2007 Edge order guide identifies nine factory exterior finishes and shows that availability differed among SE, SEL, and SEL Plus. For example, Dark Amethyst PG was not listed for the base SE, while Black UA appeared across the range.
Older paint records may use slightly different marketing names for the same short code. Redfire G2, for instance, can appear as Vivid Red in a paint manufacturer’s catalog. Use the code and vehicle year rather than the marketing name alone.
Ford Edge Paint Codes From 2015 to 2018
| Model Year | Exterior Colors and Paint Codes |
|---|---|
| 2015 | Electric Spice H8; Bronze Fire H9; Guard HN; Deep Impact Blue J4; Magnetic J7; Ruby Red RR; White Platinum UG; Tuxedo Black UH; Ingot Silver UX; Oxford White YZ |
| 2016 | Shadow Black G1; Electric Spice H8; Bronze Fire H9; Magnetic J7; Kona Blue L6; Too Good to Be Blue LC; Ruby Red RR; White Platinum UG; Ingot Silver UX; Oxford White YZ |
| 2017 | Canyon Ridge C7; Shadow Black G1; White Gold GN; Magnetic J7; Blue Jeans N1; Burgundy Velvet R3; Ruby Red RR; White Platinum UG; Ingot Silver UX; Oxford White YZ |
| 2018 | Blue FT; Shadow Black G1; White Gold GN; Magnetic J7; Lightning Blue N6; Burgundy Velvet R3; Ruby Red RR; White Platinum UG; Ingot Silver UX; Oxford White YZ |
The redesigned 2015 Edge introduced distinctive colors such as Electric Spice H8, Bronze Fire H9, Guard HN, and Magnetic J7. Ford’s 2015 Edge brochure documents these colors and their trim-dependent availability.
Shadow Black G1 and Tuxedo Black UH are not the same paint. A black 2015 Edge may use UH, while a black 2016–2018 Edge may use G1. The model year narrows the search; the door label confirms the actual finish.
Ford Edge Paint Codes From 2019 to 2024
| Model Year | Exterior Colors and Paint Codes |
|---|---|
| 2019 | Baltic Sea Green BG; Stone Gray D1; Ford Performance Blue FM; Blue FT; Magnetic J7; Burgundy Velvet R3; Ruby Red RR; White Platinum UG; Agate Black UM; Ingot Silver UX; Oxford White YZ |
| 2020 | Star White AZ; Atlas Blue B3; Dark Persian Green D9; Rapid Red D4; Ford Performance Blue FM; Desert Gold G6; Iconic Silver JS; Magnetic J7; Burgundy Velvet R3; Agate Black UM; Oxford White YZ |
| 2021 | Star White AZ; Atlas Blue B3; Rapid Red D4; Ford Performance Blue FM; Desert Gold G6; Iconic Silver JS; Carbonized Gray M7; Burgundy Velvet R3; Lithium Gray TB; Agate Black UM; Oxford White YZ |
| 2022 | Star White AZ; Atlas Blue B3; Stone Blue C8; Rapid Red D4; Iconic Silver JS; Forged Green L9; Carbonized Gray M7; Burgundy Velvet R3; Agate Black UM; Oxford White YZ |
| 2023 | Star White AZ; Atlas Blue B3; Stone Blue C8; Rapid Red D4; Iconic Silver JS; Forged Green L9; Carbonized Gray M7; Burgundy Velvet R3; Agate Black UM; Oxford White YZ |
| 2024 | Star White AZ; Atlas Blue B3; Stone Blue C8; Rapid Red D4; Iconic Silver JS; Forged Green L9; Carbonized Gray M7; Burgundy Velvet R3; Agate Black UM; Oxford White YZ |
The 2019 Edge introduced Agate Black UM and other new choices. For 2020, Ford brought in Atlas Blue B3, Iconic Silver JS, Rapid Red D4, and Star White AZ, replacing several earlier colors. The 2021 lineup then added Carbonized Gray M7 and Lithium Gray TB. Notably, M7 was already available for the 2021 Edge; it did not debut on this model in 2022.
Ford’s 2024 Edge order guide gives the final North American model-year lineup, including trim restrictions. The same source confirms UM for Agate Black, JS for Iconic Silver, M7 for Carbonized Gray, and YZ for Oxford White. The Edge’s US-market run ended with the 2024 model year.
How Edge Paint Colors Changed From 2007 to 2014
The first-generation Edge used a different collection of reds, blues, browns, and silvers than later models. Early examples include Redfire G2, Dark Amethyst PG, and Dune Pearl ND. By 2009–2010, options included Cinnamon HT, Sterling Gray UJ, and White Platinum UG.
A key change arrived near the end of this generation. The 2013 lineup included Deep Impact Blue J4 and Kodiak Brown J1. The 2014 chart then added Sunset D7 and Oxford White YZ.
Do not assume two colors share a paint formula because their names or appearance are similar. The 2014 Oxford White YZ is not the same code as White Platinum UG, even though both appear white in photographs.
What Changed With Ford Edge Paint Colors in 2015
The redesigned 2015 Edge kept several familiar finishes but changed the overall palette. Bronze Fire H9 offered a warm metallic shade, Electric Spice H8 introduced an orange-brown option, and Guard HN gave owners a dark gray-green choice. Magnetic J7 became an important gray reference for this generation.
These colors were not universally available on every trim. Electric Spice, for example, was associated with the Sport in Ford’s 2015 brochure.
The difference matters when replacing a bumper or buying a painted body part: matching only the model year and a descriptive color name may still produce the wrong finish. Check EXT PNT before ordering.
Which Edge Colors Were Available From 2019 to 2024
The refreshed 2019 Edge used Agate Black UM, while the 2020 model introduced six replacement colors. Iconic Silver JS replaced Ingot Silver UX, and Star White AZ replaced White Platinum UG. These are different paint codes, not simply updated names.
For 2021, Carbonized Gray M7 and Lithium Gray TB broadened the gray choices. By 2022, Stone Blue C8 and Forged Green L9 were also present. The 2023 lineup retained that ten-color selection, and Ford’s 2024 guide continued listing the same ten color codes.
The final 2024 selection includes tri-coat or tinted-clearcoat finishes such as Star White AZ, Rapid Red D4, and Burgundy Velvet R3. Their paint systems can be more demanding to match than a simple solid color, particularly on a large repaired panel.
Where to Find Your Ford Edge Paint Code
Open the driver’s door and inspect the certification label on the door jamb or body pillar. Look for EXT PNT, which means exterior paint. The short entry beside it identifies the factory body color.
- Open the driver’s door and locate the rectangular manufacturer label.
- Find the field marked EXT PNT.
- Write down the code exactly as printed, including any letter or number.
- Compare the code with the matching model-year row above.
Do not confuse EXT PNT with the VIN, trim code, axle code, or WB, which generally identifies wheelbase on Ford certification labels. Our Ford touch-up paint code location guide explains the label layout in more detail.
How to Verify Ford Edge Paint Codes Before Ordering
A chart narrows the search, but your Edge’s label is the best starting point for a factory match.
- Confirm the model year. Use the vehicle’s actual model year rather than its registration year or purchase date.
- Read the exterior paint code. Match the letters and numbers under EXT PNT, not a nearby field.
- Resolve missing labels. If the label has been replaced, damaged, or painted over, provide your VIN to a Ford dealership’s parts department and ask for the original factory color information. The VIN does not itself spell out the paint formula; it can help retrieve a build record.
- Check the repair-paint listing. Verify the supplier’s Ford code, year, color description, and finish system before purchase.
For missing-label cases, our guide to checking a Ford color code by VIN describes the verification process and its limitations.
Which Ford Edge Paint Codes Are Commonly Confused
| Similar Color Names | Correct Distinction |
|---|---|
| Shadow Black and Agate Black | G1 is Shadow Black; UM is Agate Black Metallic. |
| Tuxedo Black and Agate Black | UH is Tuxedo Black Metallic; UM is the later Agate Black Metallic. |
| Ingot Silver and Iconic Silver | UX is Ingot Silver; JS is Iconic Silver. |
| Magnetic and Carbonized Gray | J7 is Magnetic; M7 is Carbonized Gray. |
| White Platinum and Star White | UG is White Platinum; AZ is Star White. |
| Oxford White and Star White | YZ is Oxford White; AZ is Star White Metallic Tri-Coat. |
Paint catalogs may also include longer references, such as UM/M7414 for Agate Black. The short vehicle-label code is UM; M7414 is a longer manufacturer or paint-industry reference. Our dedicated Ford Agate Black paint code guide covers that distinction.
Never substitute a color because its digital swatch looks close. Different monitor settings, paint aging, metallic flakes, and clearcoat condition can all affect the appearance.
How to Match Ford Edge Touch Up Paint Correctly
Once you confirm the code, choose paint formulated for that exact Ford code and appropriate model year. Verify whether the finish is solid, metallic, pearl, tinted clearcoat, or tri-coat. The application process may require more than one color layer plus clearcoat.
Test the mixed paint on a sample panel or inconspicuous area before a visible repair. Even paint mixed to the factory code may not visually match an older panel without adjustment because the original finish has aged. For larger repairs or complicated pearl finishes, a body shop can evaluate spray-out samples and blend into adjoining panels where necessary.
How to Confirm Your Ford Edge Factory Paint Color
The Ford Edge paint code chart is the starting point, not a substitute for the certification label on your SUV. First, select the correct model year. Next, identify the original color and corresponding two-character code. Finally, compare that code with EXT PNT before ordering any repair paint.
This process matters most when two Ford colors look alike, such as Ingot Silver and Iconic Silver or Magnetic and Carbonized Gray. It also helps avoid a mismatched repair on metallic and tri-coat finishes. If the label is missing, have a Ford parts department check the factory color against your VIN. Order by verified code and finish, not by a screen color alone.
Frequently Asked Questions About Ford Edge Paint Codes
Where Is the Paint Code on a Ford Edge?
The Ford Edge paint code is generally on the certification label inside the driver’s door opening. Find EXT PNT and read the adjacent two-character value. That is the factory exterior color code to compare with the table for your model year.
Can I Find My Ford Edge Paint Code Using the VIN?
Yes, a dealership may be able to retrieve the original factory paint information using the VIN. The VIN itself does not directly encode the paint formula. If the label is intact, checking EXT PNT is usually faster and more direct.
Does Every Ford Edge Model Year Use the Same Paint Codes?
No. Ford changed its exterior colors repeatedly between 2007 and 2024. For example, 2015 Tuxedo Black uses UH, while later Shadow Black uses G1 and Agate Black uses UM. Always start with your actual model year.
What Is the Ford Edge Agate Black Paint Code?
The Ford Edge Agate Black Metallic code is UM, used on the 2019–2024 US-market Edge. It is different from Shadow Black G1 and Tuxedo Black UH. Confirm UM on your door label before purchasing touch-up paint.
Why Does My Ford Edge Touch Up Paint Look Different?
A correct factory code does not guarantee an invisible repair. Sun exposure, paint aging, application technique, and metallic or pearl effects can change the visible match. Check the code and finish first, then test a spray-out sample before repairing a prominent panel.
