Ford 5.0 Coyote Oil Capacity Chart: All Years and Generations (2011-2026)
The Ford 5.0 Coyote oil capacity is not one number. It depends on which generation of the engine sits under your hood, and the figure changed twice between 2011 and 2026: 7.7 quarts, then 8.8 quarts, then back down to 7.7 quarts.
Getting this wrong in either direction causes real problems, from oil starvation on cold starts to foaming under load. This chart breaks down the exact capacity, oil type, and filter for every 5.0 Coyote year so you can match the right number to your specific truck.
Ford 5.0 Coyote V8
Oil Capacity Across Three Generations
2011–2017
Gen 1 / Gen 2
7.7 qt
5W-20
WSS-M2C945-A
2018–2020
Gen 3 Early
8.8 qt
5W-20
WSS-M2C945-A
2021–2025
Gen 3 Revised
7.7–7.75 qt
5W-30 Full Synthetic
API SP / GF-6A
Quick Reference: 5.0 Coyote Oil Capacity by Generation
| Model Years | Generation | Oil Capacity (with filter) | Oil Type / Viscosity | Ford WSS Spec |
|---|---|---|---|---|
| 2011-2017 | Gen 1 / Gen 2 | 7.7 quarts | 5W-20 | WSS-M2C945-A |
| 2018-2020 | Gen 3 (early) | 8.8 quarts | 5W-20 (0W-20 in extreme cold) | WSS-M2C945-A |
| 2021-2026 | Gen 3 (revised) | 7.7-7.75 quarts | 5W-30 full synthetic | API SP / ILSAC GF-6A |
Always confirm your exact year against the door-jamb sticker or owner’s manual before an oil change. The 2021 changeover in particular catches a lot of owners off guard.
Why the 5.0 Coyote Oil Capacity Changed Twice
The 5.0 Coyote uses Twin Independent Variable Camshaft Timing, or Ti-VCT, on all four camshafts. Engine oil is not just a lubricant here. It also acts as the hydraulic fluid that actuates the cam phasers, so the Gen 3 Coyote engine changes that arrived in 2018 were not cosmetic.
When Ford moved to Gen 3 for the 2018 model year, the oil pan and sump design grew to support the engine’s added direct injection hardware and higher compression ratio. That pushed capacity up to 8.8 quarts.
By 2021, Ford refined the pan baffling and windage control enough to shrink the sump back down without losing protection. Capacity dropped to roughly 7.7 quarts, and the factory spec moved to a full synthetic 5W-30 for better film strength under towing loads.
2011-2017 F-150 5.0 Coyote: 7.7 Quarts
Gen 1 and Gen 2 trucks share the same oil capacity across the board. These engines take 7.7 quarts with a filter change, using 5W-20 synthetic or synthetic blend oil that meets Ford’s WSS-M2C945-A specification.
This range covers the original 2011 Coyote launch through the final year before the Gen 3 redesign. If your truck falls in this window, 7.7 quarts is the number, not the 8 quarts some shops default to.
2018-2020 F-150 5.0 Coyote: 8.8 Quarts
This is the range most likely to get shorted during a service. Owners have compared notes on F150Forum after finding their 2018 owner’s manual lists 8.8 quarts on one page and the 5W-20 viscosity spec on the facing page, which has led some dealers to second-guess the number and underfill the truck.
Stick with 8.8 quarts and 5W-20 for standard conditions. Ford calls for 0W-20 instead if you regularly start the truck in extreme cold.
2021-2026 F-150 5.0 Coyote: 7.7-7.75 Quarts
This is the range where the old 8.8-quart figure causes the most damage if it gets reused out of habit. Starting in 2021, capacity dropped to roughly 7.7 quarts and the factory oil moved to a full synthetic 5W-30 meeting API SP and ILSAC GF-6A standards.
Pouring in a full 8.8 quarts on one of these newer trucks overfills the pan by more than a full quart. That causes aeration, foaming, and can push oil past seals under load.
Ford 5.0 Coyote Oil Filter: One Part Number for Every Year

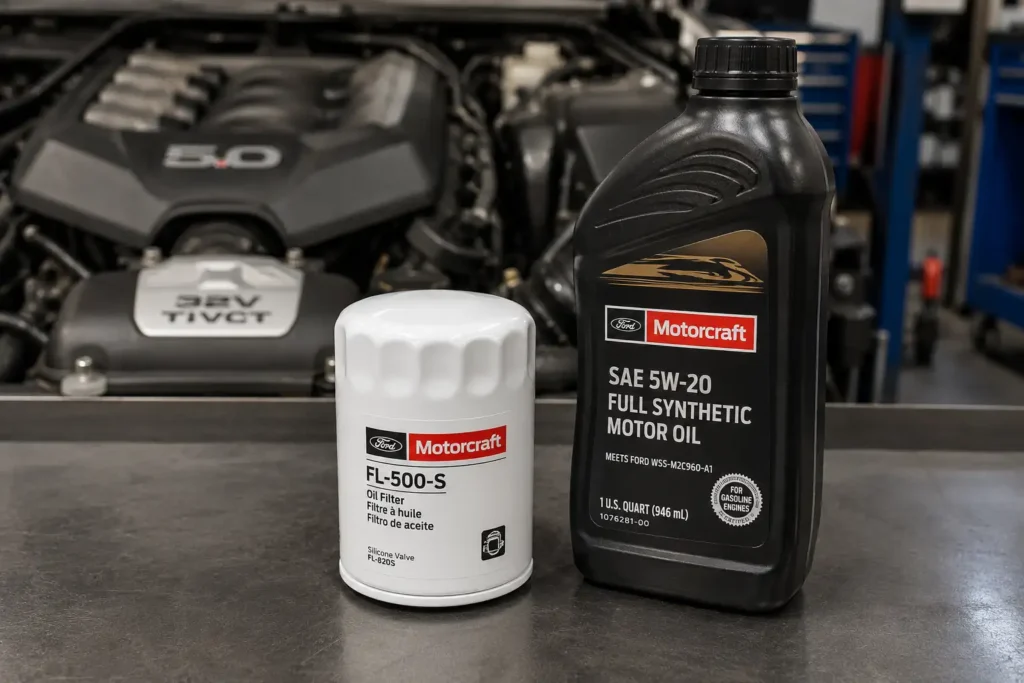

Every 5.0 Coyote from 2011 through 2026 uses the same oil filter: the Motorcraft FL-500-S, Ford part number AA5Z-6714-A. If you are already under the truck for an oil change, this is also a good time to check your ignition components. Our 5.0 Coyote spark plug guide covers the correct plugs and gap spec for this engine.
Do not substitute the FL-820-S. That filter is built for the older Triton V8 and does not match the 5.0 Coyote’s oil pump flow rate or thread pattern.
How to Confirm Your Exact 5.0 Coyote Oil Capacity
Match your capacity number in three steps.
- Check your build date and VIN to confirm which generation you actually have, since some 2018 model year trucks were built on 2017 production lines.

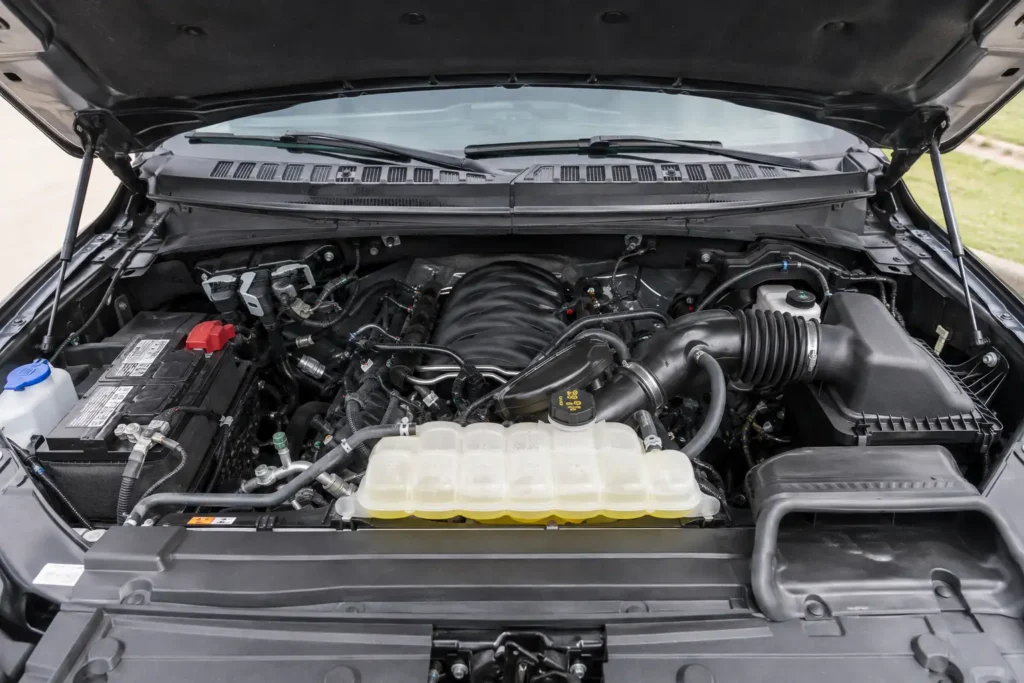

- Read the oil fill cap or door-jamb sticker, which lists the factory-specified capacity and viscosity for your exact truck.
- Cross-check your owner’s manual page for oil specifications rather than relying on a generic spec sheet.
If you are trying to identify your engine bay layout to confirm which generation you are looking at, our 5.0 engine diagram identification guide walks through the visual differences.
One more source of confusion worth flagging: the 5.0 Coyote in the Mustang GT takes approximately 8.0 quarts, a different figure from any F-150 generation. If you search generically for “5.0 Coyote oil capacity,” Mustang-specific results will mix in with F-150 data and throw off the number you need.
Full 5.0 Coyote Oil Capacity Chart by Year
| Model Year | Oil Capacity (with filter) | Viscosity |
|---|---|---|
| 2011 | 7.7 quarts | 5W-20 |
| 2012 | 7.7 quarts | 5W-20 |
| 2013 | 7.7 quarts | 5W-20 |
| 2014 | 7.7 quarts | 5W-20 |
| 2015 | 7.7 quarts | 5W-20 |
| 2016 | 7.7 quarts | 5W-20 |
| 2017 | 7.7 quarts | 5W-20 |
| 2018 | 8.8 quarts | 5W-20 |
| 2019 | 8.8 quarts | 5W-20 |
| 2020 | 8.8 quarts | 5W-20 |
| 2021 | 7.7-7.75 quarts | 5W-30 full synthetic |
| 2022 | 7.7-7.75 quarts | 5W-30 full synthetic |
| 2023 | 7.7-7.75 quarts | 5W-30 full synthetic |
| 2024 | 7.7-7.75 quarts | 5W-30 full synthetic |
| 2025/26 | 7.7-7.75 quarts | 5W-30 full synthetic |
This chart covers the standard F-150 5.0 Coyote only. The supercharged 5.2L in the Raptor R uses a different oil system and is outside the scope of this guide.
Frequently Asked Questions
How much oil does a 2020 F-150 5.0 take?
The 2020 F-150 5.0 Coyote takes 8.8 quarts with a filter change, using 5W-20 synthetic oil meeting Ford’s WSS-M2C945-A specification.
Can I overfill my 5.0 Coyote?
Yes, and it causes real problems. Overfilling leads to foaming and aeration as the crankshaft whips the excess oil, which can starve the cam phasers of clean pressure.
What oil filter fits the 5.0 Coyote?
The Motorcraft FL-500-S, part number AA5Z-6714-A, fits every 5.0 Coyote from 2011 through 2026. Do not substitute the FL-820-S.
Does the Mustang GT 5.0 take the same oil capacity as the F-150?
No. The Mustang GT 5.0 Coyote takes approximately 8.0 quarts, which differs from every F-150 generation’s figure.
How often should I change 5.0 Coyote oil?
Ford’s standard interval is 7,500 miles or 6 months, whichever comes first, though trucks used for towing or heavy loads benefit from more frequent changes.
Bottom Line
The 5.0 Coyote oil capacity comes down to three brackets: 7.7 quarts for 2011-2017, 8.8 quarts for 2018-2020, and 7.7 to 7.75 quarts for 2021 and newer. Confirm your exact year against the door-jamb sticker before your next oil change, and pair it with the correct viscosity rather than defaulting to whatever number you remember from a previous truck. For oil capacity and type across every other Ford engine, see our Ford Engine Oil Recommendation Chart.
