Ford F150 Oil Type Chart: Generations and Engines 1997–2026

The Ford F-150 uses either SAE 5W-20 or SAE 5W-30 synthetic oil depending on your engine and model year, with quart capacities ranging from 6.0 to 8.8 quarts including the filter. The split isn’t random.

Ford ties every recommendation to a specific WSS-M2C spec code, and using an oil that meets the general API rating but not the exact Ford spec can leave your engine without the LSPI and wear protection it was designed around. Find your generation and engine below, then check the sections underneath for the full context.

Ford F-150 Oil Type Chart by Generation (1997–2026)

No flags remain in the main table. The two figures that were genuinely disputed — 2021+ 5.0L capacity and the WSS-M2C960-A1 timeline — are now resolved with multi-source confirmation, and are called out explicitly below since they contradict older content still circulating elsewhere.

5W-20 vs 5W-30 by Model Year — What Changed and Why

Early 4.6L and 5.4L trucks (1997–1999) ran 5W-30, then Ford moved to 5W-20 for 2000–2010 to cut cold-start friction and squeeze out a small fuel economy gain. The 4.2L Essex V6 followed the same 5W-20 pattern across its full 1997–2008 run, using the Motorcraft FL-400-S filter rather than the FL-820-S used on the V8s.

The more significant shift came with EcoBoost and, later, the Coyote V8. Turbocharged, direct-injection engines like the 2.7L and 3.5L EcoBoost generate more heat at the turbo and are more prone to Low-Speed Pre-Ignition (LSPI), so Ford pushed these to 5W-30 and progressively tightened the spec: WSS-M2C946-A for the original 2011–2016 3.5L EcoBoost, then WSS-M2C946-B1, and now WSS-M2C961-A1 for current EcoBoost and PowerBoost applications, with added LSPI testing.

On the 5W-20 side, Ford’s spec moved from WSS-M2C945-B2/945-A to the newer WSS-M2C960-A1. This spec was published in December 2019 and became the required certification on production oil starting around May 1, 2020, per Motorcraft’s own product documentation and confirmed by multiple owner threads tracking the changeover on their bottle labels. Oils meeting the older 945-series spec generally still work fine in older trucks, but new-production Motorcraft 5W-20 has carried the WSS-M2C960-A1 certification since that changeover.

Then, starting with the 2021 model year, Ford made a less publicized move: it switched the 5.0L Coyote V8 from 5W-20 to 5W-30, alongside internal upgrades including a billet oil pump and revised piston ring pack, reportedly to address oil consumption issues that had plagued the 2018–2020 Gen 3 Coyote. If you own a 2021 or newer 5.0L F-150, using 5W-20 instead of the current 5W-30 recommendation goes against the current factory spec.

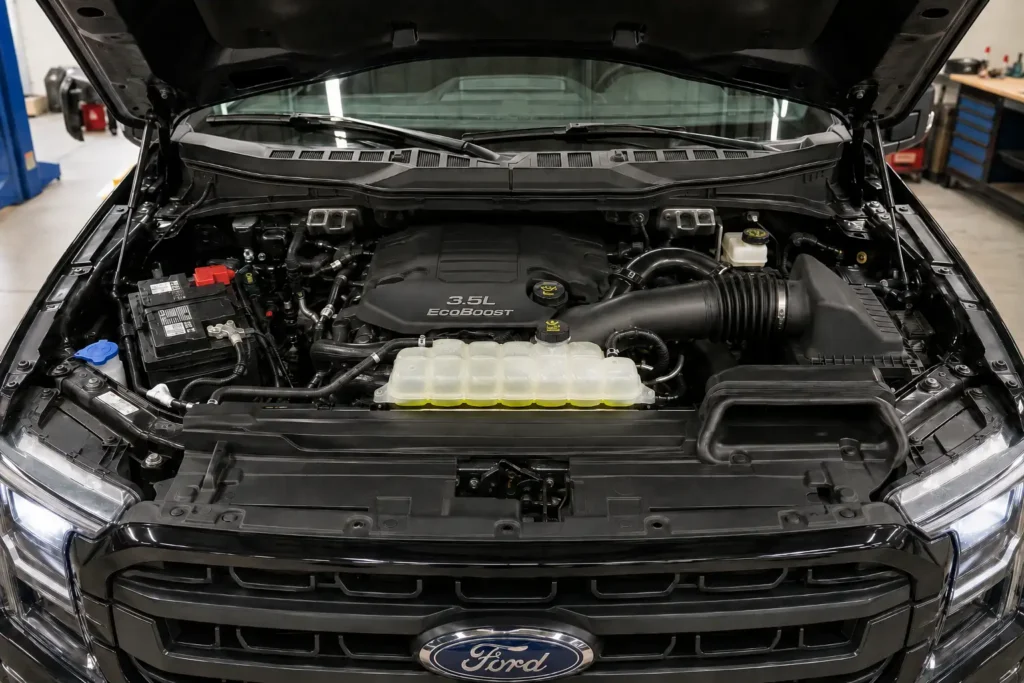

3.5L EcoBoost and PowerBoost Oil Capacity by Generation (2011–2026)

Every 3.5L EcoBoost variant, gas or hybrid, holds the same 6.0 quarts with a filter change. Ford never changed the sump size when it overhauled the engine for 2017 with port-and-direct injection, and the PowerBoost hybrid’s gas engine shares that same 6.0-quart fill despite the added electric motor.

Owner DIY oil-change threads confirm 6 quarts of 5W-30 plus a Motorcraft FL-500S filter for PowerBoost service. What changes across generations is the spec code, not the volume: Gen 1 (2011–2016) calls for WSS-M2C946-A, Gen 2 and PowerBoost (2017–present) call for WSS-M2C946-B1 or the newer WSS-M2C961-A1.

For a full breakdown of which specific oil products meet the current spec, see the site’s best oil options for the 3.5L EcoBoost.

5.0L Coyote V8 Oil Type and Capacity (2011–2026)

2011–2017 (Gen 1 and Gen 2 Coyote): 7.7 quarts with filter, 5W-20, Motorcraft FL-500-S filter.

2018–2020 (Gen 3 Coyote): Capacity jumped to 8.8 quarts with filter, still 5W-20, spec WSS-M2C945-B1. Documented in Ford Technical Service Bulletin 19-2365, which addresses excessive oil consumption on 2018–2020 5.0L trucks.

2021 and later (14th Gen, Gen 3 revised): Capacity dropped back down to 7.7 quarts, and oil type switched to 5W-30, WSS-M2C961-A1. This is a genuinely common mistake at dealerships — multiple owner reports describe being overfilled with the old 8.8-quart/5W-20 spec by technicians who hadn’t updated their reference, then having it corrected after the customer flagged the discrepancy.

If your 2021+ 5.0L is getting serviced somewhere unfamiliar with the truck, it’s worth confirming both the quart figure and the viscosity before they start pouring.

For year-specific confirmation before you buy oil, check the 5.0L oil capacity broken out by individual model year.

How to Confirm Your F-150’s Exact Oil Spec

1. Check the oil fill cap. Ford prints the correct SAE viscosity directly on or near the oil fill cap on most F-150 engines.
2. Check the door jamb sticker or owner’s manual. These list the full WSS-M2C code, not just the viscosity grade.

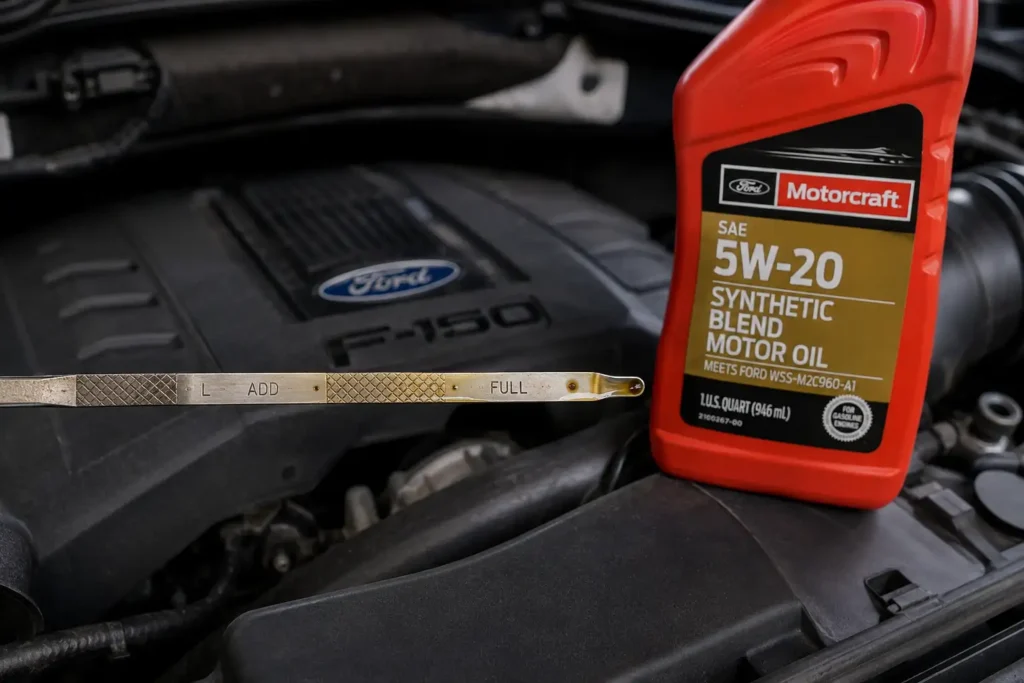

3. Use the dipstick as your final check, not the chart. Fill to slightly under the listed capacity, run the engine a few minutes, let it settle, then check the dipstick and top off as needed.
4. If your engine isn’t listed here, a Ford dealer parts counter can pull the exact spec from your VIN, and the full Ford oil recommendation and WSS spec chart covers non-F-150 Ford models.

Frequently Asked Questions

Can I use 5W-30 instead of 5W-20 in my F-150?

Only if Ford’s current spec for your specific engine and year allows it. Notably, if you own a 2021+ 5.0L Coyote, 5W-30 is now the correct factory spec, not a substitution. For older engines still spec’d at 5W-20, check your oil cap or owner’s manual before switching.

What oil does the Ford F-150 3.0 Power Stroke diesel take?

SAE 5W-30 in colder climates or 10W-30 in warmer climates, meeting Ford spec WSS-M2C214-B1 and API FA-4. Capacity is approximately 7.0 quarts with filter; a small number of retailers list 6.4–6.5 quarts, which appears to reflect a base fill without full system priming. Confirm against your oil fill cap for the precise figure.

How often should I change the oil in a Ford F-150?

Up to 10,000 miles or once a year with full synthetic oil under normal driving, or as low as 3,000–5,000 miles under severe duty (towing, frequent short trips, extreme temperatures, heavy idling). The 3.0L diesel typically follows a shorter 3,000–5,000 mile interval. Always defer to your truck’s Intelligent Oil-Life Monitor over a fixed mileage number.

Is synthetic blend okay or does Ford require full synthetic?

Most current F-150 engines specify full synthetic oil to meet the WSS-M2C spec codes above, particularly on EcoBoost, PowerBoost, and the current-generation 5.0L. Full synthetic is the safer default across the board today.

What’s the oil filter part number for my F-150 engine?

4.6L/5.4L Triton V8s (1997–2010) use Motorcraft FL820S, with FL400S for the 4.2L Essex V6 and certain 4.6L variants. The 5.0L Coyote V8 across all generations and the 3.5L/2.7L EcoBoost family both use the Motorcraft FL-500-S. The 3.0L Power Stroke diesel uses the Motorcraft FL2081 (cross-reference JL3Z-6731-A), confirmed directly on Ford’s own parts catalog.
