2012 Ford Focus Fuse Box Diagram: All 3 Panels, Full Charts
Your 2012 Ford Focus has three fuse boxes. The passenger compartment panel is below the glove box, fuses 56 through 89. The power distribution box is under the hood, fuses 7 through 48. A third box sits in the trunk, fuses 2 through 37, and most sites skip it.
The cigar lighter and rear 12V power point share fuse 61, rated 20A. It stays 20A across the whole 2012-2018 generation. Not every fuse on this car does.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free As an Amazon Associate I earn from qualifying purchases.One warning before you trust any chart for this car. Ford facelifted this generation in 2014 and quietly swapped what two fuses do. Skip to what changes after the facelift if you want to confirm your 2012 matches this chart exactly.
Where are the fuse boxes on a 2012 Ford Focus?
Recommended Best Deal Products

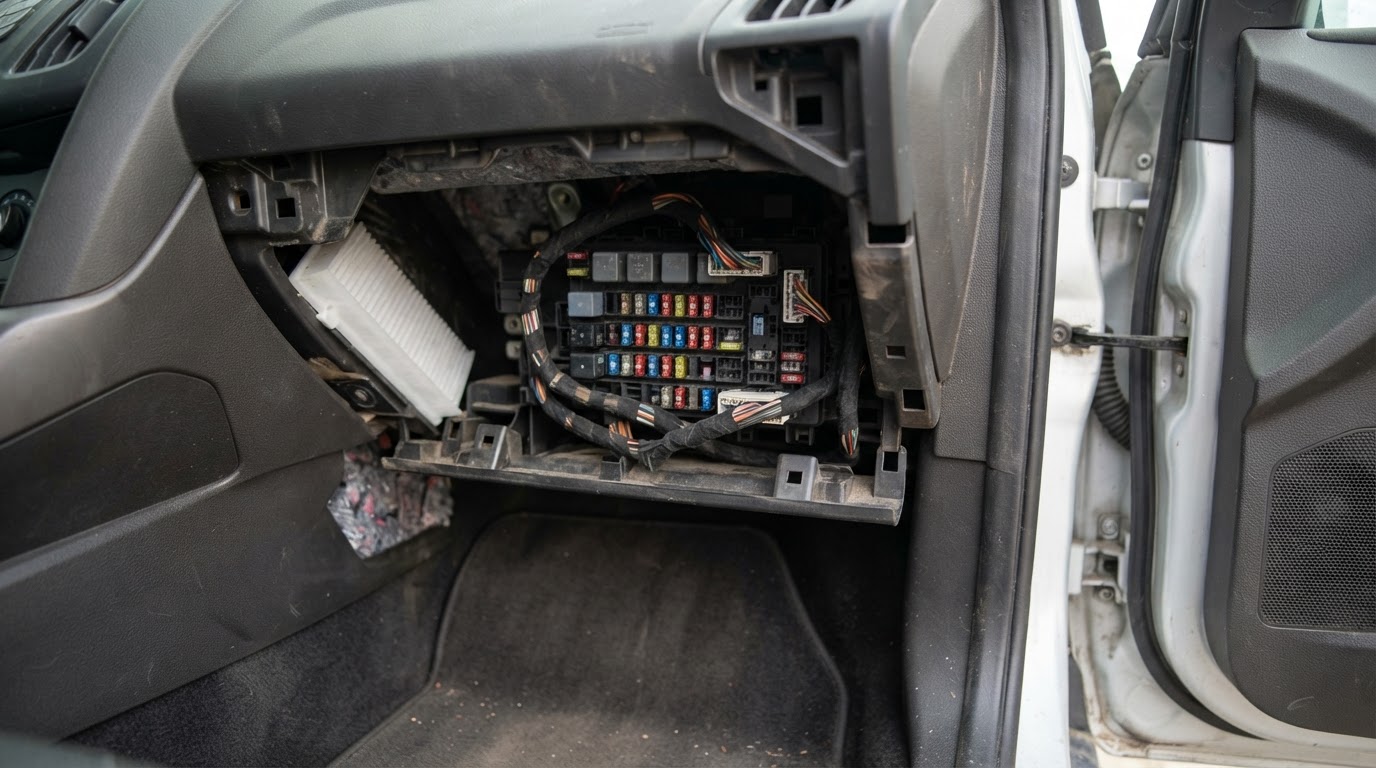

Passenger compartment fuse panel. Passenger side, below the glove box, behind a removable trim cover. Open the glove box, release the stops, and the panel sits directly above your right foot.

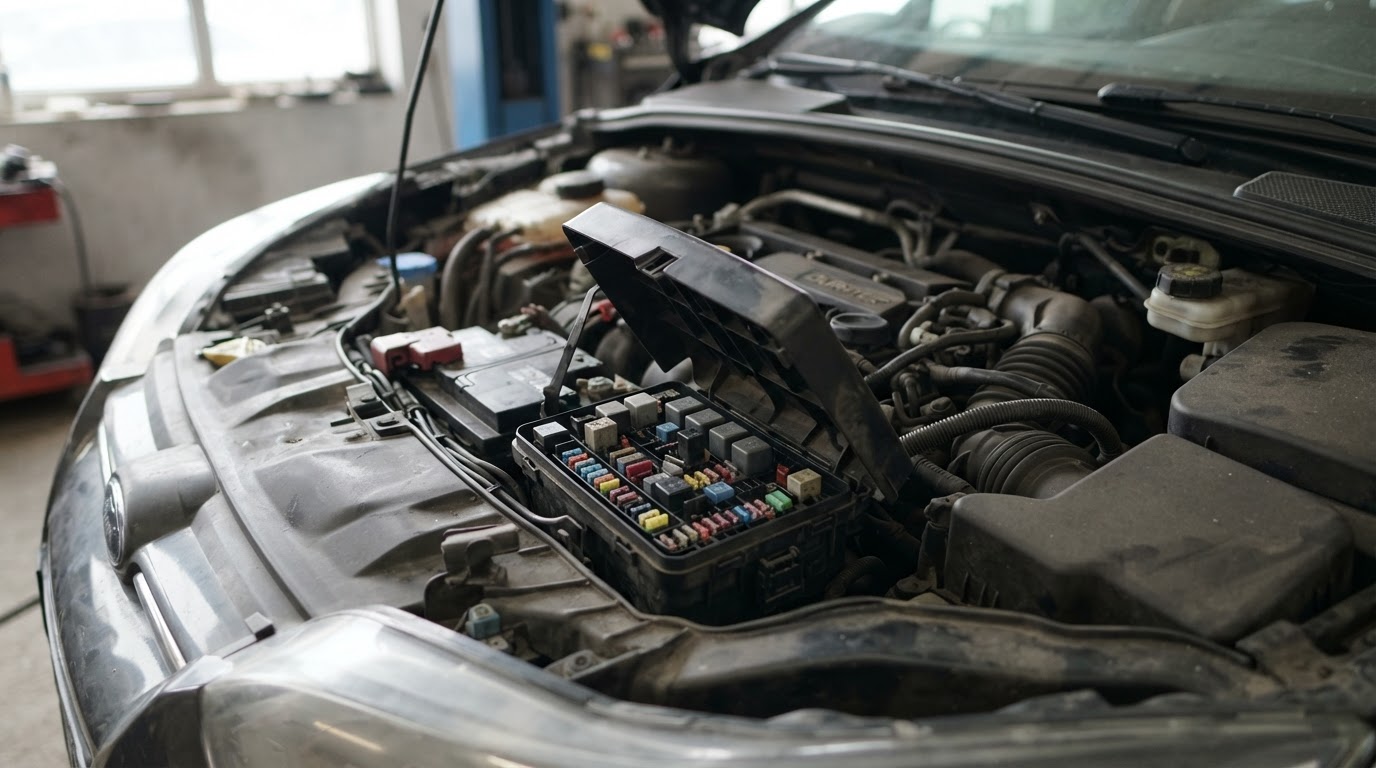

Power distribution box. Engine bay, driver side, next to the battery, under a black plastic cover. The fuse map is printed on the underside of that cover.
Luggage compartment fuse box. Left side of the trunk, behind the plastic side trim panel. This is the box a generic “2 fuse box” listicle leaves out, and it carries the audio amplifier and both heated seat fuses.
Does a 2012 Focus share fuses with other Mk3 Focus years, 2011-2018?
Mostly, but not completely. Your car is the third-generation Focus, chassis code C346, sold in North America from 2012 through 2018. Ford facelifted it for the 2014 model year.
Most published charts for this car do not say that. I checked fusecheck.com, one of the few sources that actually splits its Mk3 table by year instead of printing one “2010 to 2018” chart. It confirms two circuits change at the facelift.
Fuse 74 protects the low beam headlamps on your 2012 car, rated 15A. On a 2014-2018 Focus after the facelift, Ford reassigns fuse 74 to the high beams instead. Same fuse, same amperage, a different circuit.
Fuse 71 runs the manual air conditioning control head and dual-zone automatic climate control on your 2012 car at 10A. From 2014 on, it drops to 7.5A and covers air conditioning only.
I also checked autogenius.info, which publishes a Focus “2011-2015” chart. Its fuse numbering does not match startmycar.com, car-box.info or fusecheck.com at all, different numbers, different circuits entirely. Treat that page as evidence the data is contested, not as a source.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days As an Amazon Associate I earn from qualifying purchases.| Fuse | 2012 (your car, pre-facelift) | 2014-2018 (after the facelift) |
|---|---|---|
| 71 | 10A: manual A/C control head, dual auto climate | 7.5A: air conditioning only |
| 73 | 5A: alarm backup sounder, OBD II data link connector | 7.5A: data link connector only |
| 74 | 15A: low beam headlamps | 15A: high beam headlamps |
| 87 | Not used | 15A: heated steering wheel |
Every other passenger panel position, the full power distribution box, and the luggage compartment box read the same across the whole 2012-2018 run in every US-market source checked for this guide.
Which fuse is the cigar lighter on a 2012 Ford Focus?
Recommended Best Deal Products
Fuse 61 in the passenger compartment panel, rated 20A. It also feeds the rear 12V power point, so a dead front outlet and a dead rear outlet usually share one cause.
This is the number a generic combined “Mk3” chart gets right, because fuse 61 never moves across the whole 2011-2018 generation. The two that trip owners up are fuse 74 and fuse 71, covered above.
Three independent sources agree on fuse 61 at 20A for your 2012 car: startmycar.com, which cites the 2012 Focus owner’s manual directly, car-box.info, and fusecheck.com.

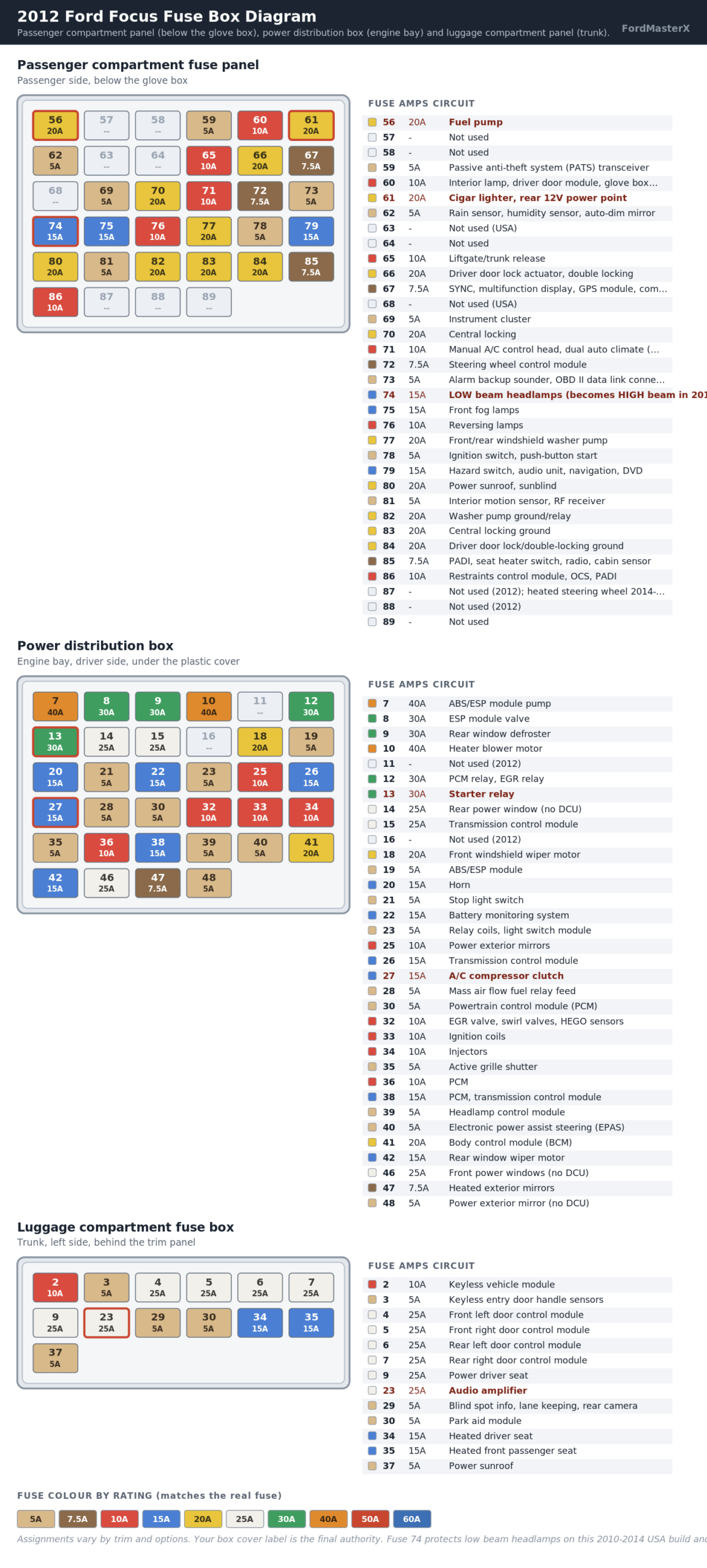

2012 Ford Focus passenger compartment fuse chart: fuses 56 to 89
The complete passenger panel for your exact model year. Fuses 74 and 71 are marked where the facelift years differ.
| Fuse | Amps | Circuit |
|---|---|---|
| 56 | 20A | Fuel pump |
| 57 | Not used | – |
| 58 | Not used | – |
| 59 | 5A | Passive anti-theft system (PATS) transceiver |
| 60 | 10A | Interior lamp, driver door module, glove box light, ambient lighting, overhead console |
| 61 | 20A | Cigar lighter, rear 12V power point |
| 62 | 5A | Rain sensor, humidity sensor, auto-dimming mirror |
| 63 | Not used | US market. Adaptive cruise control on Europe-spec cars |
| 64 | Not used | – |
| 65 | 10A | Liftgate or trunk release |
| 66 | 20A | Driver door lock actuator, double locking |
| 67 | 7.5A | SYNC, multifunction display, GPS module, compass |
| 68 | Not used | US market. Steering column lock on Europe-spec cars |
| 69 | 5A | Instrument cluster |
| 70 | 20A | Central locking |
| 71 | 10A | Manual A/C control head, dual-zone automatic climate control (7.5A, A/C only, from 2014) |
| 72 | 7.5A | Steering wheel control module |
| 73 | 5A | Alarm backup sounder, OBD II data link connector (7.5A, DLC only, from 2013-2014) |
| 74 | 15A | Low beam headlamps (reassigned to high beam headlamps from 2014) |
| 75 | 15A | Front fog lamps |
| 76 | 10A | Reversing lamps |
| 77 | 20A | Front and rear windshield washer pump |
| 78 | 5A | Ignition switch, push-button start |
| 79 | 15A | Hazard switch, audio unit, navigation system, DVD player, door lock switch |
| 80 | 20A | Power sunroof, sunblind |
| 81 | 5A | Interior motion sensor, RF receiver |
| 82 | 20A | Washer pump ground, washer relay |
| 83 | 20A | Central locking ground |
| 84 | 20A | Driver door lock and double-locking ground |
| 85 | 7.5A | Passenger airbag deactivation indicator, seat heater switch, manual A/C heater module, radio, cabin temperature and humidity sensor |
| 86 | 10A | Restraints control module, occupant classification system, passenger airbag deactivation indicator |
| 87 | Not used on 2012 | Heated steering wheel, from 2014 |
| 88 | Not used on 2012 | – |
| 89 | Not used | – |
A cheap fuse assortment kit covers both mini and standard blade sizes used across this car. It costs less than one dealer fuse and saves a second trip. Any brand meeting the ATO/ATC standard fits.
Power distribution box fuse chart: fuses 7 to 48
Recommended Best Deal Products
The under-hood box. These values read the same across the whole 2012-2018 generation in every US-market source checked for this guide, no facelift trap here.
| Fuse | Amps | Circuit |
|---|---|---|
| 7 | 40A | ABS/ESP module pump |
| 8 | 30A | ESP module valve |
| 9 | 30A | Rear window defroster |
| 10 | 40A | Heater blower motor |
| 11 | Not used | Start-stop module, from 2014 |
| 12 | 30A | Powertrain control module relay, EGR relay |
| 13 | 30A | Starter relay |
| 14 | 25A | Rear power window, without door control unit |
| 15 | 25A | Transmission control module |
| 16 | Not used | Battery monitoring sensor, 2018 only |
| 18 | 20A | Front windshield wiper motor |
| 19 | 5A | ABS/ESP module |
| 20 | 15A | Horn |
| 21 | 5A | Stop light switch |
| 22 | 15A | Battery monitoring system |
| 23 | 5A | Relay coils, light switch module |
| 25 | 10A | Power exterior mirrors |
| 26 | 15A | Transmission control module |
| 27 | 15A | A/C compressor clutch |
| 28 | 5A | Mass air flow fuel relay feed |
| 30 | 5A | Powertrain control module (PCM) |
| 32 | 10A | EGR valve, swirl control valves, heated oxygen sensors (HEGO) |
| 33 | 10A | Ignition coils |
| 34 | 10A | Injectors |
| 35 | 5A | Active grille shutter |
| 36 | 10A | PCM |
| 38 | 15A | PCM, transmission control module |
| 39 | 5A | Headlamp control module |
| 40 | 5A | Electronic power assisted steering (EPAS) |
| 41 | 20A | Body control module (BCM) |
| 42 | 15A | Rear window wiper motor |
| 46 | 25A | Front power windows, without door control unit |
| 47 | 7.5A | Heated exterior mirrors |
| 48 | 5A | Power exterior mirror, without door control unit |
Luggage compartment fuse box chart: the box most sites skip
Left side of the trunk, behind the trim panel. This box handles the audio amplifier, both heated seats, and the door control modules.
| Fuse | Amps | Circuit |
|---|---|---|
| 2 | 10A | Keyless vehicle module |
| 3 | 5A | Keyless entry door handle sensors |
| 4 | 25A | Front left door control module: power window, locks, mirror |
| 5 | 25A | Front right door control module: power window, locks, mirror |
| 6 | 25A | Rear left door control module: power window |
| 7 | 25A | Rear right door control module: power window |
| 9 | 25A | Power driver seat |
| 23 | 25A | Audio amplifier |
| 29 | 5A | Blind spot information, lane keeping, rear view camera |
| 30 | 5A | Park aid module |
| 34 | 15A | Heated driver seat |
| 35 | 15A | Heated front passenger seat |
| 37 | 5A | Power sunroof |
2012 Ford Focus symptom to fuse guide
Readers arrive with a symptom, not a fuse number. Start here, then confirm the position in the full charts above.
| Symptom | Check this | Box |
|---|---|---|
| Cigar lighter or rear 12V outlet is dead | Fuse 61, 20A | Passenger panel |
| Radio or touchscreen will not power on | Fuse 79, 15A, and fuse 67, 7.5A for SYNC | Passenger panel |
| Stereo powers up but asks for a radio code | Not a fuse problem. See the Ford Focus radio code guide instead | – |
| One low beam is out, bulb tests good | Fuse 74, 15A, on your 2012 car specifically | Passenger panel |
| A/C blows but will not get cold | Fuse 71, 10A, and fuse 27, 15A, for the clutch | Both boxes |
| Heated seats do not warm up | Fuse 34 driver, fuse 35 passenger, both 15A | Luggage box |
| Horn stays silent | Fuse 20, 15A, relay R2 | Power distribution box |
| Fuel pump will not prime, hard no-start | Fuse 56, 20A | Passenger panel |
| Front power windows dead on both doors | Fuse 46, 25A | Power distribution box |
| One rear door window dead | Fuse 6 left or 7 right, 25A each | Luggage box |
| No crank, starter will not engage | Fuse 13, 30A, relay R10 | Power distribution box |
| Rear window defroster will not clear | Fuse 9, 30A | Power distribution box |
| Aftermarket amplifier has no power | Fuse 23, 25A | Luggage box |
| Airbag warning light stays on | Fuse 86, 10A | Passenger panel |
How do you tell if a fuse is actually blown?
A blown fuse shows a broken metal strip inside the clear plastic body. Pull the fuse and hold it up to a light to check.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual Plans As an Amazon Associate I earn from qualifying purchases.A hairline break is easy to miss. Test continuity with a multimeter set to ohms if the strip looks intact. Near zero resistance means the fuse is good.
Never guess the replacement rating. Match the number on the old fuse against your box cover label. A higher rated fuse lets the wiring become the fuse instead, and that failure costs far more to fix.
Why does the same fuse keep blowing?
A fuse that blows once is usually a one-off surge. One that blows again within days is telling you something is wrong upstream, not asking for a bigger fuse.
Unplug whatever you most recently added. A phone charger left in the power point is a common repeat offender. So is an aftermarket amplifier wired into fuse 23.
Check for chafed insulation where the harness flexes, especially near the door hinges and the liftgate.
If a fuse blows the instant you push it in, that circuit has a hard short. Stop replacing fuses and trace the wiring with a proper diagnostic tool instead of guessing. A plastic fuse puller keeps you from cracking the panel housing while you work through the circuit.
Does this chart apply to other Focus years or an older Focus?
It applies to any 2012-2018 US-market Focus on fuses 61, 56, and the whole power distribution and luggage boxes. For fuses 71, 73, 74 and 87, confirm your year against the facelift table above.
If you have an older Focus, this chart does not apply at all. Ford replaced the entire electrical architecture for the third-generation car. A 2008-2011 North American Focus uses a Central Junction Box and Battery Junction Box layout with its own separate numbering. See our 2010 Ford Focus fuse box diagram for that generation.
An even older Focus, built through 2007, carries a different layout again. See our 2007 Ford Focus fuse box diagram for that car.
None of the fuse numbers on this page carry across to either of those older cars. Treat each generation as its own chart.
2012 Ford Focus fuse quick reference
The fuses owners look up most, in one place.
| What you want | Fuse | Amps | Box |
|---|---|---|---|
| Cigar lighter, rear 12V power point | 61 | 20A | Passenger panel |
| Fuel pump | 56 | 20A | Passenger panel |
| Low beam headlamps (2012-2013 only) | 74 | 15A | Passenger panel |
| Starter relay | 13 | 30A | Power distribution box |
| Heater blower motor | 10 | 40A | Power distribution box |
| A/C compressor clutch | 27 | 15A | Power distribution box |
| Rear window defroster | 9 | 30A | Power distribution box |
| Audio amplifier | 23 | 25A | Luggage box |
| Heated driver seat, heated passenger seat | 34, 35 | 15A each | Luggage box |
| Restraints control module, airbags | 86 | 10A | Passenger panel |
Not sure your car matches this exactly? Your box cover label is the final authority. That matters most on fuses 71 and 74, the two positions the 2014 facelift changed.
Sunroof, heated seats, and the audio amplifier are options that add fuses this guide covers. A base trim 2012 Focus may not use all of them.
