2004 Ford Expedition Fuse Box Diagram: Locations and Fuse List

Your 2004 Ford Expedition has two fuse boxes. The passenger compartment panel is under the right side of the instrument panel, fuses 1 through 42.

The power distribution box is under the hood, fuses 101 through 118 plus fuse 401. The cigar lighter is fuse 41, rated 20A.

Recommended Best Deal Products

One warning before you trust any chart for this truck. Ford renumbered several of these circuits inside the same body style, both before and after your model year. Skip to what changed by year if you want to confirm your truck matches this chart exactly.

Where are the fuse boxes on a 2004 Ford Expedition?

Recommended Best Deal Products

Passenger compartment fuse panel. Under the right side of the instrument panel, behind a PULL-tab cover. Place a finger behind the tab, pull it toward you, and swing the panel away to reach the fuses.

Power distribution box. Under the hood, in the engine compartment. It carries the high current circuits.

That means the starter relay, the ABS pump, the front blower motor and the air suspension compressor.

Worth knowing: my source does not state which side of the engine bay the power distribution box sits on. Your box cover label is the final authority here, and on any fuse this chart does not match.

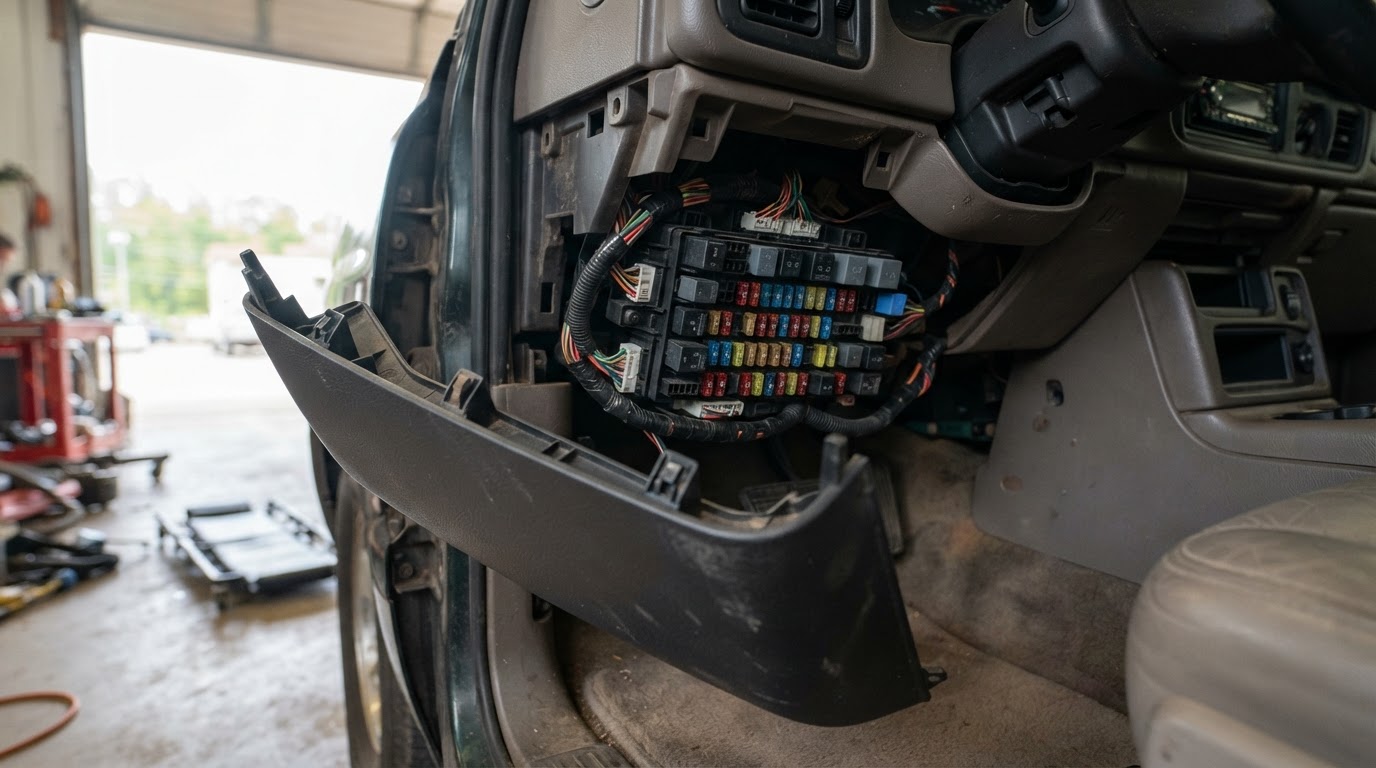

a dark trim panel pulled away from under the right side of a dashboard in an early 2000s American full size SUV, revealing a dense black plastic fuse panel underneath with many small colored fuses visible
The passenger compartment fuse panel sits under the right side of the instrument panel. Pull the trim cover toward you to reach it.

Does a 2004 Expedition use the same fuses as a 2003 or a 2005 to 2006 Expedition?

Recommended Best Deal Products

No, not on every position. Your truck is the same generation, body style U222, built 2003 through 2006. Ford redesigned the Expedition again for 2007.

Ford renumbered eight circuits inside that single generation. Your 2004 truck sits in the middle of that change, not at either end.

Most published charts for this truck do not say that. I checked two of the largest aggregator sites, fuseandrelay.com and autogenius.info. Both publish one table under a page titled “2003 to 2006.”

Recommended Best Deal Products

Both match the 2005 to 2006 values, not your 2004 truck. A 2004 owner who trusts either chart gets the wrong amperage or circuit on five of these eight positions.

Fuse 2003 2004 (your truck) 2005 to 2006
1 10A: wipers, cluster, TPMS 10A: wipers, cluster, TPMS, same as 2003 7.5A: wipers, cluster. TPMS dropped from this fuse
4 10A: DVD player, rear audio, CD changer 15A: DVD player, rear audio, navigation radio 15A: same as 2004
7 7.5A: radio 7.5A: radio start signal, same as 2003 5A: radio start signal
9 10A: alternator Not used Not used, same as 2004
12 10A: speed control servo and switch 10A: speed control servo and relay, same as 2003 15A: fuel pump relay, shut-off switch, driver module, motor
30 30A: body module door locks, liftgate glass release 30A: same circuits as 2003 25A: air suspension module, 4×4 transfer case clutch
33 20A: canister vent solenoid, HEGO sensors 20A: same as 2003, adds IMTV and EVR solenoids Not used
34 20A: PCM, fuel injectors, idle air control, MAF sensor 20A: adds fuel pump relay, shut-off switch and motor to the same fuse 15A: PCM, fuel injectors, MAF sensor. Fuel pump dropped from this fuse

Every other passenger panel position reads the same across all three years. So does every power distribution box position.

The trap sits in exactly these eight fuses, not the whole chart. Your 2004 truck only matches 2003 on four of them.

Which fuse protects the fuel pump on a 2004 Ford Expedition?

Recommended Best Deal Products

This is the number a generic “2003 to 2006” chart cannot give you. The circuit itself moved twice across this one generation. Your year sits at the point of the first move.

Recommended Best Deal Products

On a 2003 Expedition, the fuel pump relay is labeled R303. It lives inside the passenger compartment panel by relay name. It is not tied to one of the 42 numbered fuses in the public breakdown.

On your 2004 truck, fuse 34 is the one to pull. It is rated 20A. It now protects the fuel pump relay, the fuel pump shut-off switch and the fuel pump motor.

It still covers the PCM, the fuel injectors, the idle air control solenoid and the mass airflow sensor.

Ford changed this again for 2005. The fuel pump got its own dedicated fuse, 12, at 15A. Fuse 34 dropped back to 15A: PCM, injectors and the MAF sensor, fuel pump excluded.

Recommended Best Deal Products

If your fuel pump will not prime, check fuse 34 first on a 2004 truck. A 2003 owner should check relay R303 instead, and a 2005 or 2006 owner should check fuse 12. Three different answers to the same question, one per year.

2004 Ford Expedition passenger compartment fuse chart: fuses 1 to 42

The complete passenger panel, fuse by fuse, for your exact model year. Rows marked with a note change on a 2003 or a 2005 to 2006 truck. The year comparison above covers exactly what changes.

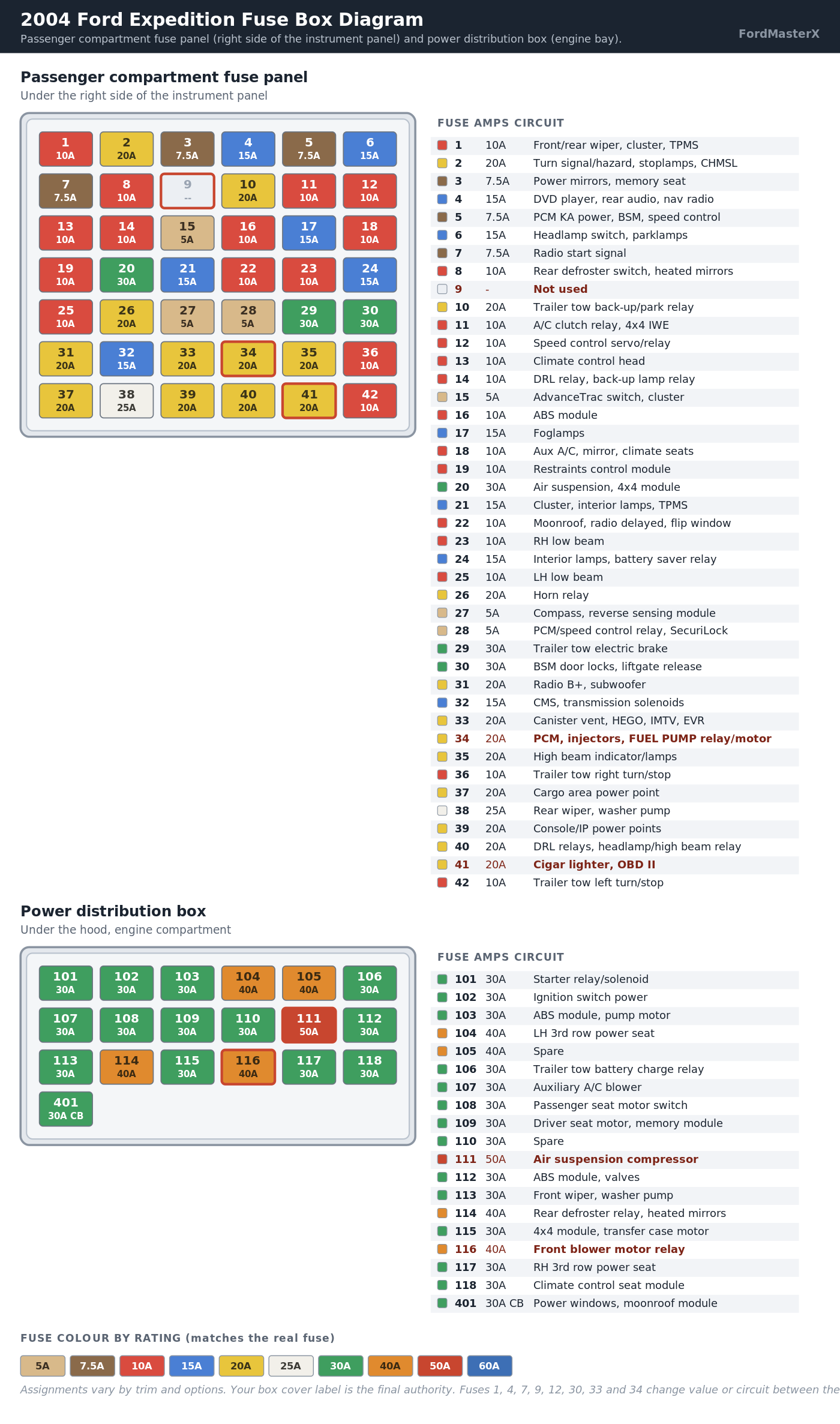

2004 Ford Expedition fuse box diagram showing every fuse position, amperage and circuit in both the passenger compartment panel and the power distribution box
Every fuse in both boxes for the 2004 model year specifically. Fuse 34 is highlighted: it carries the fuel pump relay and motor only in 2004, not in 2003 or 2005-2006. Fuse 9 is highlighted as not used this year.
Fuse Amps Circuit
1 10A Front wiper motor, instrument cluster, rear wiper motor, tire pressure monitoring system
2 20A Turn signal and hazard flasher, stoplamp switch, stoplamps, center high-mount stop lamp
3 7.5A Power mirror switch, power mirrors, driver seat memory switch and module
4 15A DVD player, rear seat audio controls, navigation radio CD changer (10A in 2003)
5 7.5A PCM ignition sense power, speed control deactivation switch, climate control head, brake-shift interlock solenoid, Body Security Module ignition sense, 3rd row seat relay coils
6 15A Headlamp switch, parking lamps, license plate lamps, foglamp relay coil, trailer tow brake controller illumination
7 7.5A Radio start signal (5A in 2005 to 2006)
8 10A Rear window defroster switch, heated mirrors, defroster indicator
9 Not used Alternator fuse in 2003 only. Dropped for 2004 and later.
10 20A Trailer tow back-up lamps relay, trailer tow parklamp relay
11 10A A/C compressor clutch relay and solenoid, 4×4 Integrated Wheel End solenoid
12 10A Speed control servo and relay (becomes the 15A fuel pump fuse in 2005)
13 10A Climate control head, rear defroster relay coil, A/C refrigerant containment switch, trailer tow battery charge relay coil
14 10A Daytime running lamp relay coil, back-up lamp relay coil, electrochromic mirror, navigation radio
15 5A AdvanceTrac switch, instrument cluster run and start feed
16 10A ABS and AdvanceTrac module run and start feed
17 15A Foglamps
18 10A Auxiliary A/C blend door actuator, electrochromic mirror, climate controlled seat modules
19 10A Restraints Control Module, airbags
20 30A Air suspension module solenoids and height sensors, 4×4 module
21 15A Instrument cluster, interior courtesy lamps, puddle lamps, tire pressure monitoring system
22 10A Moonroof switch illumination, radio delayed accessory feed, flip window switch and motors
23 10A Right-hand low beam headlamp
24 15A Front map and dome lamp, 2nd row dome lamp, glove box lamp, cargo lamp, battery saver relay
25 10A Left-hand low beam headlamp
26 20A Horn relay, horns
27 5A Compass module, reverse sensing system module, brake-shift interlock solenoid, air suspension run and start sense
28 5A PCM relay coil, speed control relay coil, SecuriLock transceiver
29 30A Trailer tow electric brake controller
30 30A Body Security Module door locks and liftgate glass release relay, liftgate glass release motor, door and liftgate lock motors (25A air suspension circuit in 2005 to 2006)
31 20A Radio battery feed, subwoofer
32 15A Catalyst Monitor Sensors, transmission solenoids
33 20A Canister vent solenoid, HEGO sensors, VMV solenoid, Intake Manifold Tuning Valve solenoid, EGR vacuum regulator solenoid (not used from 2005)
34 20A PCM, fuel injectors, idle air control solenoid, mass airflow sensor, fuel pump relay, fuel pump shut-off switch, fuel pump motor (drops to 15A and loses the fuel pump in 2005)
35 20A Instrument cluster high beam indicator, high beam headlamps
36 10A Trailer tow right turn and stop lamps
37 20A Cargo area power point
38 25A Rear wiper motor, rear washer pump
39 20A Console power points, instrument panel power point
40 20A Daytime running lamp relays, headlamp switch, high beam relay coil, low beam fuse backup feed
41 20A Cigar lighter, OBD II diagnostic connector
42 10A Trailer tow left turn and stop lamps

A cheap fuse assortment kit covers both the mini and standard blade sizes in this panel. It costs less than a single dealer fuse and saves a second trip. Any brand meeting the ATO/ATC standard fits.

Power distribution box fuse chart: fuses 101 to 401

The under hood box. These values read the same across 2003, 2004, 2005 and 2006 in every source checked for this generation. There is no year trap here, only in the passenger panel.

Fuse Amps Circuit
101 30A Starter motor relay and solenoid
102 30A Ignition switch power
103 30A ABS and AdvanceTrac module pump motor
104 40A Left-hand 3rd row power seat
105 40A Spare
106 30A Trailer tow battery charge relay
107 30A Auxiliary A/C blower relay and motor
108 30A Passenger power seat motor switch
109 30A Driver seat motor switch, memory module, memory mirrors, adjustable pedals
110 30A Spare
111 50A Air suspension compressor and relay
112 30A ABS and AdvanceTrac module valves
113 30A Front wiper motor, front washer pump
114 40A Rear window defrost relay and grid, heated mirrors
115 30A 4×4 module, transfer case shift motor
116 40A Front blower motor relay and motor
117 30A Right-hand 3rd row power seat
118 30A Driver and passenger climate control seat module
401 30A circuit breaker Power window circuit breaker, main window switch, window motors, moonroof module

2004 Ford Expedition symptom to fuse guide

Readers arrive with a symptom, not a fuse number. Start here, then confirm the position in the full charts above.

Symptom Check this Box
Cigar lighter or front 12V outlet is dead Fuse 41, 20A Passenger panel
Console or instrument panel power point is dead Fuse 39, 20A Passenger panel
Cargo area power point is dead Fuse 37, 20A Passenger panel
Radio is completely dead, no display Fuse 31, 20A, and fuse 7, 7.5A Passenger panel
Fuel pump will not prime, hard no-start Fuse 34, 20A, on your 2004 truck specifically Passenger panel
One low beam headlamp out, bulb tests good Fuse 23 right or 25 left, 10A Passenger panel
Both high beams out Fuse 35, 20A Passenger panel
Horn stays silent Fuse 26 relay, 20A Passenger panel
Front blower will not blow air on any setting Fuse 116, 40A Power distribution box
Rear window defroster will not clear Fuse 114, 40A, and fuse 8 for the switch Both boxes
Truck sagging, air suspension warning lamp on Fuse 111, 50A, and fuse 20, 30A Both boxes
No crank, starter will not engage Fuse 101 and 102, 30A each Power distribution box
Key will not start truck, SecuriLock light flashing Fuse 28, 5A Passenger panel
All power windows dead at once Fuse 401, 30A Power distribution box

How do you tell if a fuse is actually blown?

A blown fuse shows a broken metal strip inside the clear plastic body. Pull the fuse and hold it up to a light to check.

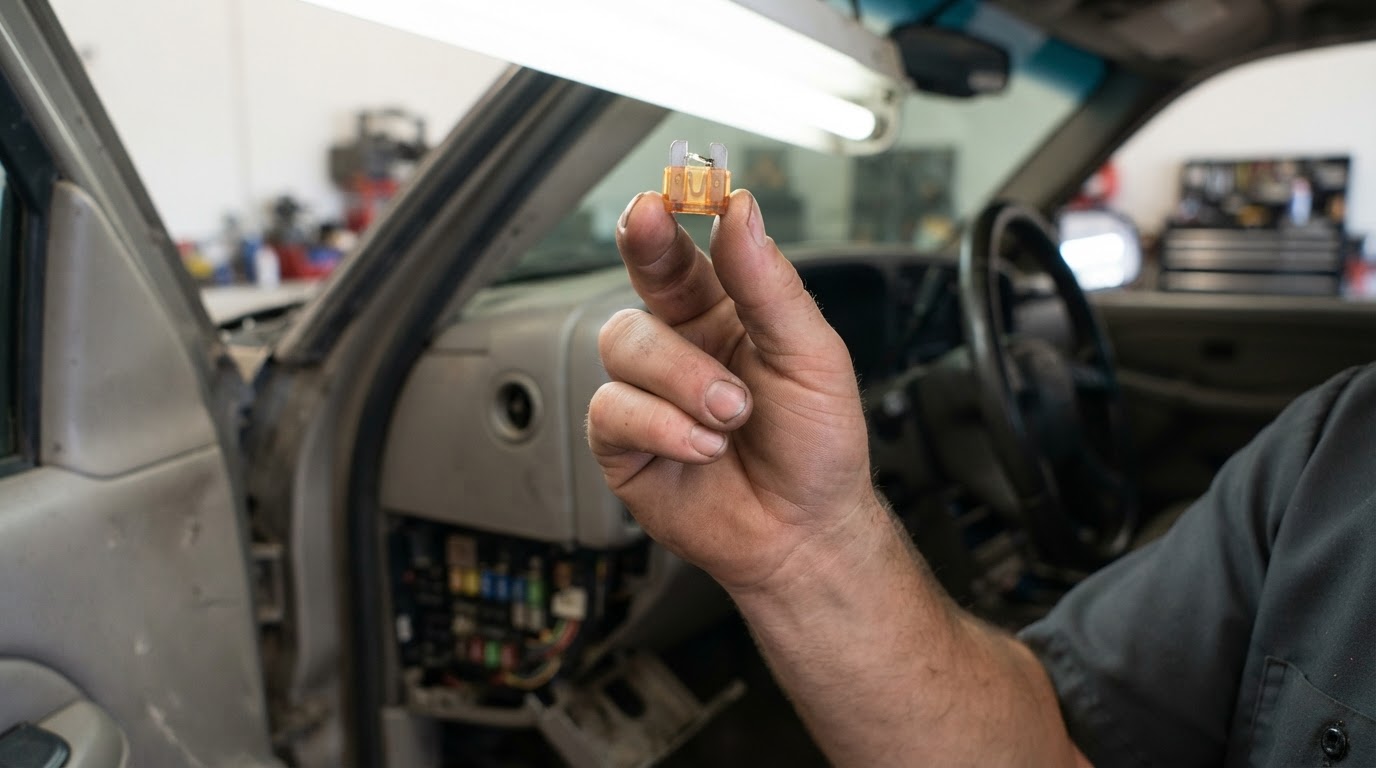

a mechanics hand holding a single small automotive blade fuse up close to an overhead light, showing the broken metal element inside the clear plastic body, workshop background softly blurred
A blown fuse shows a broken metal strip inside the clear body. Hold it up to a light to check before you test with a meter.

A hairline break is easy to miss. Test continuity with a multimeter set to ohms if the strip looks intact. Near zero resistance means the fuse is good.

Never guess the replacement rating. Match the number on the old fuse against your box cover label. A higher rated fuse lets the wiring become the fuse instead, and that failure costs far more to fix.

Why does the same fuse keep blowing?

A fuse that blows once is usually a one-off surge. One that blows again within days is telling you something is wrong upstream, not asking for a bigger fuse.

Unplug whatever you most recently added. A phone charger left in a power point is a common repeat offender. So is an aftermarket amplifier wired into the audio fuses.

Check for chafed insulation where the harness flexes, especially near the liftgate hinge and the driver door jamb.

If a fuse blows the instant you push it in, that circuit has a hard short. Stop replacing fuses and trace the wiring with a proper diagnostic tool instead of guessing. A plastic fuse puller keeps you from cracking the panel housing while you work through the circuit.

Does this chart apply to any other Expedition year?

Only 2003 through 2006. Ford built this body style, U222, for those four years only. The 2007 redesign brought a separate electrical architecture.

If you have a 2003 Expedition instead, most of this chart still applies. Four of the eight renumbered positions still match 2003. Four do not, including the fuel pump fuse.

Check the year comparison table above first, then see our 2003 Ford Expedition fuse box diagram for that year specifically.

If you have a 2007 Expedition or newer, that is the next generation. It carries its own fuse box and its own numbering. See our 2007 Ford Expedition fuse box diagram for that truck.

If you have a 2000 or 2001 Expedition instead, that is the earlier first generation body style. It also carries its own separate layout. See our 2001 Ford Expedition fuse box diagram for that generation.

2004 Ford Expedition fuse quick reference

The fuses owners look up most, in one place.

What you want Fuse Amps Box
Cigar lighter, front power point 41 20A Passenger panel
Fuel pump relay and motor 34 20A Passenger panel
Cargo area power point 37 20A Passenger panel
Console and instrument panel power point 39 20A Passenger panel
Starter relay 101, 102 30A each Power distribution box
Front blower motor 116 40A Power distribution box
Air suspension compressor 111 50A Power distribution box
Rear window defroster 114 40A Power distribution box
Restraints control module, airbags 19 10A Passenger panel
SecuriLock transceiver 28 5A Passenger panel
Power windows, all 401 30A Power distribution box

Not sure your truck matches this exactly? Your box cover label is the final authority. That matters most on fuse 9 and fuse 34, the two positions that changed for your model year specifically.

Trailer tow, air suspension and third row seating are options that add fuses this guide covers. Your specific build may not use all of them.
