2001 Ford Ranger Fuse Box Diagram: Every Fuse and Amp Rating
Your 2001 Ford Ranger has two fuse boxes. One panel is at the left end of the instrument panel. The other, the power distribution box, is in the engine bay near the fender and firewall. The cigar lighter is fuse 17, rated 20A, in the interior panel, not the engine bay box.
Where are the fuse boxes on a 2001 Ford Ranger?
Recommended Best Deal Products

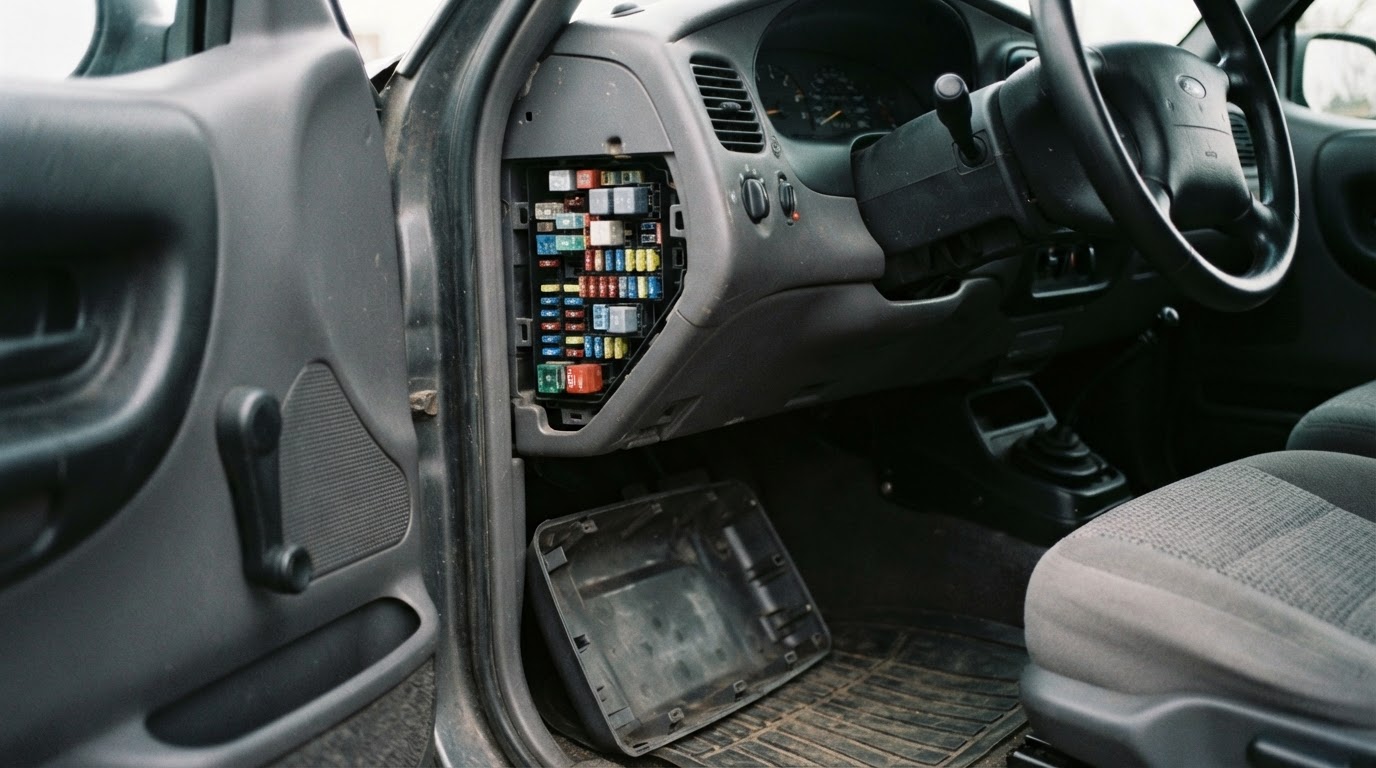

Passenger compartment fuse panel. Left end of the instrument panel, driver’s side, behind a removable access door. The door holds four spare fuses and a plastic fuse puller clipped inside it.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.

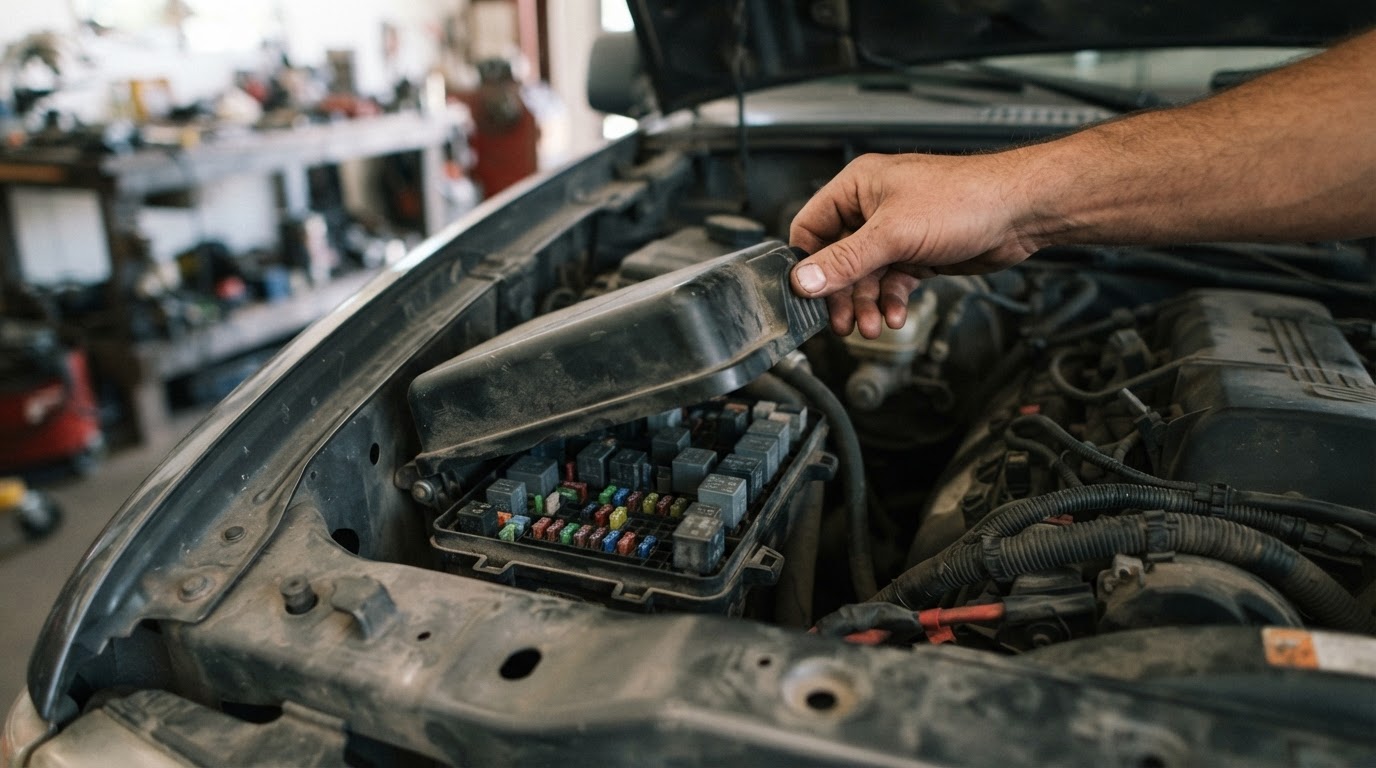

Start 6 Months Free As an Amazon Associate I earn from qualifying purchases.Power distribution box. Engine compartment, driver’s side, near the front fender and firewall, close to the brake master cylinder. Ford also calls this the fuse and relay box, and its layout depends on which engine your truck carries.
Most sites get this wrong: fuse 6 wasn’t live yet on your 2001 Ranger
The 2001 to 2003 Ford Ranger reads like one generation online. So most fuse charts republish a single table across all three years. That merge hides a change right on the 2001 to 2002 boundary.
I cross-checked The Ranger Station’s year-split reference table against Auto Genius’s 2001-2002-specific chart. Both agree fuse 6 in the passenger panel is not used on the 2001 model. The 2A brake pressure switch does not appear there until 2002 and 2003.
Two other frequently cited sources disagree. StartMyCar and Ricks Free Auto Repair Advice both list fuse 6 as live at 2A, with no year caveat. That is two sources against two, each claiming to be year-specific.
Fuse-box.info’s own 1998-2000 table shows fuse 6 changing twice already. Not used in 1998 and 1999, then reassigned to overdrive and back-up lamp circuits in 2000. Ford was actively reusing this position, so either reading is plausible for 2001.
Your box cover legend, printed inside the access door, is the final word for your truck. If it shows fuse 6 blank, that matches the majority of year-specific sources checked here.

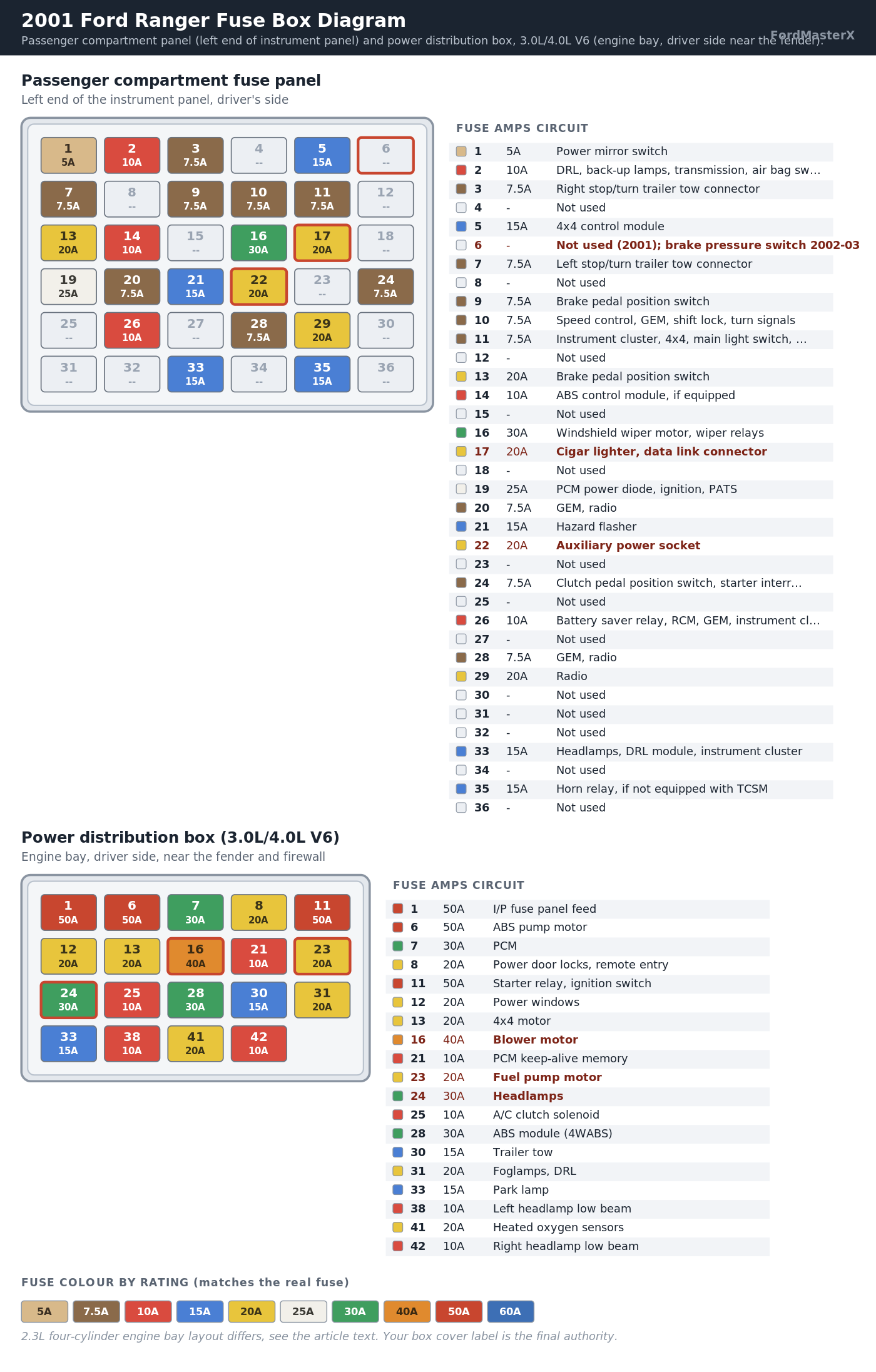

2001 Ford Ranger passenger compartment fuse chart
Recommended Best Deal Products
Left end of the instrument panel, driver’s side. 36 positions, all mini (ATO/ATC) fuses. Thirteen positions are not used on this model.
| Fuse | Amps | Circuit protected |
|---|---|---|
| 1 | 5A | Power mirror switch |
| 2 | 10A | DRL, back-up lamps, transmission, passenger air bag deactivation switch, blower motor relay |
| 3 | 7.5A | Right stop/turn trailer tow connector |
| 4 | – | Not used |
| 5 | 15A | 4×4 control module |
| 6 | – | Not used on 2001. Brake pressure switch (2A) on 2002-2003, per most sources; see the note above. |
| 7 | 7.5A | Left stop/turn trailer tow connector |
| 8 | – | Not used |
| 9 | 7.5A | Brake pedal position switch |
| 10 | 7.5A | Speed control servo, GEM (Generic Electronic Module), shift lock actuator, turn signals |
| 11 | 7.5A | Instrument cluster, 4×4, main light switch, Truck Central Security Module (TCSM) |
| 12 | – | Not used |
| 13 | 20A | Brake pedal position switch |
| 14 | 10A | ABS control module, if equipped |
| 15 | – | Not used |
| 16 | 30A | Windshield wiper motor, wiper hi-lo and park/run relays |
| 17 | 20A | Cigar lighter, data link connector (DLC) |
| 18 | – | Not used |
| 19 | 25A | PCM power diode, ignition, PATS (SecuriLock anti-theft) |
| 20 | 7.5A | GEM, radio |
| 21 | 15A | Hazard flasher |
| 22 | 20A | Auxiliary power socket |
| 23 | – | Not used |
| 24 | 7.5A | Clutch pedal position switch, starter interrupt relay |
| 25 | – | Not used |
| 26 | 10A | Battery saver relay, Restraint Control Module (RCM), GEM, instrument cluster |
| 27 | – | Not used |
| 28 | 7.5A | GEM, radio |
| 29 | 20A | Radio |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | – | Not used |
| 33 | 15A | Headlamps, DRL module, instrument cluster |
| 34 | – | Not used |
| 35 | 15A | Horn relay, if not equipped with TCSM |
| 36 | – | Not used |
2001 Ford Ranger power distribution box fuse chart
Engine bay, driver’s side. The layout splits by engine. The 3.0L and 4.0L V6 box is shown in full below, since it covers most 2001 Rangers on the road.
| Fuse | Amps | Circuit protected |
|---|---|---|
| 1 | 50A | Instrument panel fuse panel feed |
| 6 | 50A | ABS pump motor |
| 7 | 30A | Powertrain Control Module (PCM) |
| 8 | 20A | Power door locks, remote entry |
| 11 | 50A | Starter relay, ignition switch |
| 12 | 20A | Power windows |
| 13 | 20A | 4×4 motor |
| 16 | 40A | Blower motor |
| 21 | 10A | PCM keep-alive memory |
| 23 | 20A | Fuel pump motor |
| 24 | 30A | Headlamps |
| 25 | 10A | A/C clutch solenoid |
| 28 | 30A | ABS module (4WABS) |
| 30 | 15A | Trailer tow |
| 31 | 20A | Foglamps, DRL |
| 33 | 15A | Park lamp |
| 38 | 10A | Left headlamp low beam |
| 41 | 20A | Heated oxygen sensors |
| 42 | 10A | Right headlamp low beam |
Relays in this box: wiper hi/lo, wiper park/run, fuel pump, trailer tow, A/C clutch, front washer pump, fog lamps, PCM, blower and starter.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days As an Amazon Associate I earn from qualifying purchases.2.3L four-cylinder power distribution box. Positions 1, 6, 7, 8, 11, 12, 16, 21, 23, 24, 25, 31, 33 and 41 match the V6 box. Fuse 13 does not appear. 4×4 was not paired with the 2.3L that year.
Fuse 17 is live at 20A for the auxiliary cooling fan, a position the V6 box leaves unused. Positions 28, 30, 38 and 42 do not appear on the 2.3L box at all. Those circuits route through different positions not covered by the sources checked here.
What if a fuse keeps blowing on your 2001 Ranger?
Recommended Best Deal Products
A fuse that blows once is usually a fluke. A fuse that blows again within a week means the fault is upstream, not in the fuse itself.
| Symptom | Check this fuse |
|---|---|
| Cigar lighter dead | Fuse 17, passenger panel, 20A |
| Second 12V outlet (auxiliary power socket) dead | Fuse 22, passenger panel, 20A |
| Radio or display dead | Fuse 20, 28 or 29, passenger panel |
| Wipers do not run on any speed | Fuse 16, passenger panel, 30A |
| Horn does not sound | Fuse 35, passenger panel, 15A (trucks without TCSM) |
| Gauges or instrument cluster dead | Fuse 11, passenger panel, 7.5A |
| 4×4 will not engage electronically | Fuse 5, passenger panel, 15A, and fuse 13, engine bay (V6 only), 20A |
| Both headlamps out | Fuse 33, passenger panel, 15A, and fuse 24, engine bay, 30A |
| One low beam out, bulb tests good | Fuse 38 (left) or 42 (right), engine bay, 10A each. V6 box; see the 2.3L note above. |
| No crank, no start | Fuse 11, engine bay, 50A |
| ABS light on, pump does not cycle | Fuse 6, engine bay, 50A. Different fuse from the passenger panel’s fuse 6. |
| No fuel pump prime, engine cranks but will not start | Fuse 23, engine bay, 20A |
| Blower motor or heater fan dead | Fuse 16, engine bay, 40A |
| Power windows dead | Fuse 12, engine bay, 20A |
| Power door locks or remote entry dead | Fuse 8, engine bay, 20A |
| A/C compressor clutch will not engage | Fuse 25, engine bay, 10A |
| Truck won’t start, security light flashing (PATS) | Fuse 19, passenger panel, 25A |
If the replacement fuse blows again immediately, stop replacing fuses. Check for a short or a chafed harness instead.
A cheap fuse assortment kit covers every rating on this truck and costs less than a single dealer visit. Any brand meeting the ATO/ATC mini fuse standard fits. Fuse assortment kits on Amazon.
Where is the cigar lighter fuse on a 2001 Ford Ranger?
Fuse 17 in the passenger compartment panel, rated 20A. It shares the position with the data link connector. So a fault code reader that won’t power up points at the same fuse.
A second, separate 12V outlet runs through fuse 22 at 20A. That is a common mix-up on trucks with both an ashtray lighter and a separate accessory socket.
Is the 2001 fuse layout the same as 2000 or 2002?
Not the same as 2000. Fuse-box.info’s 1998-2000 table lists the cigar lighter position at 25A and the mirror switch position at 7.5A. Every 2001-specific source checked here puts those same two positions at 20A and 5A instead.
That is a real panel revision at the 2001 model year. It matches the facelift Ford gave the Ranger’s interior that year, not a copy error.
Closer to 2002 and 2003. The Ranger Station’s year-by-year notes list only two confirmed changes across 2001 to 2003.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual Plans As an Amazon Associate I earn from qualifying purchases.One is the fuse 6 addition covered above. The other is the trailer tow connector fuses at 3 and 7 swapping sides in 2003.
Treat this chart as accurate for a 2002 or 2003 truck except for those two items.
If the fuse keeps blowing after a fresh fuse, what next?
A fuse protects the wire, not the part. A short to ground or a chafed harness blows a fresh fuse in seconds. No amount of fuse-swapping fixes that.
At that point you need to read live data rather than keep guessing, which means a scan tool. Our Ford diagnostic tool comparison covers what actually works across these trucks.
A basic multimeter set to ohms will confirm a short to ground first. Check the ground straps at the engine and frame too. A corroded ground is a common, cheap cause of a circuit that blows fuses only under load.
2001 Ford Ranger fuse box quick reference
| Circuit | Fuse | Box | Amps |
|---|---|---|---|
| Cigar lighter | 17 | Passenger panel | 20A |
| Auxiliary power socket | 22 | Passenger panel | 20A |
| Wiper motor | 16 | Passenger panel | 30A |
| Blower motor | 16 | Engine bay | 40A |
| Fuel pump | 23 | Engine bay | 20A |
| ABS pump motor | 6 | Engine bay | 50A |
| Starter relay, ignition | 11 | Engine bay | 50A |
| Headlamps | 24 | Engine bay | 30A |
| Brake pressure switch (2002-03; see note) | 6 | Passenger panel | 2A |
Assignments vary by trim, engine and options. Your box cover label is the final authority for your specific truck.
Ford renumbers these boxes at generation lines. This chart is for 2001 Rangers only.
It does not carry over to a 1998-2000 Ranger or a 2004-and-later truck. Those use different panels entirely.
