Ford P0087 Code Causes, Diagnosis and Fixes: 2026 by Engine Type
Ford P0087 code means the engine computer has detected fuel rail pressure that is too low for the operating conditions. On a Ford F-150, Super Duty, or another Ford model, that can lead to hesitation, reduced power, hard starting, or stalling. It does not automatically mean the fuel pump has failed.
The right diagnosis depends on the engine, when the fault appears, and what the scanner shows. A 3.5L EcoBoost and a 6.7L Powerstroke have different fuel systems, so a repair that works on one may be wrong for the other.
Start by identifying your Ford’s engine and recording the fault data. Then follow the matching diagnostic path below before buying parts.
What Does Ford P0087 Code Mean for Fuel Pressure
P0087 is the diagnostic trouble code for Fuel Rail/System Pressure Too Low. The powertrain control module, or PCM, monitors fuel pressure and recognizes when the system cannot maintain the required level.
On an engine with a fuel rail pressure sensor, the PCM can compare commanded pressure with measured pressure. Commanded pressure is the target. Measured pressure is what the system reports achieving. A significant difference can indicate a supply problem, a control problem, or an unreliable sensor signal.
For a specific example, Ford’s 2013 6.7L diesel OBD documentation lists a P0087 trigger when commanded rail pressure exceeds measured pressure by 250 bar for 1.4 seconds. It also lists a measured-pressure threshold below 140 bar for 0.3 seconds. These are 2013 6.7L monitor criteria, not universal Ford fuel-pressure specifications.
The code tells you what the computer observed. It does not identify the failed part. That distinction makes the fault conditions important.
Which 4 Clues Narrow Down a Ford P0087 Fault
Four details can make a P0087 diagnosis substantially more precise. Record them before clearing the check engine light.
Ford Engine and Model Year
Identify the exact engine and model year, not just the badge on the truck. A 2018 F-150 with a 3.5L EcoBoost uses a different diagnostic path from a 2015 F-250 with a 6.7L Powerstroke. Fuel-system layout and service specifications can also change between model years.
Symptoms During Acceleration or Starting
Note whether the problem appears during hard acceleration, towing, idle, a cold start, or cranking. An under-load pressure drop and a no-start complaint do not call for an identical first test.
Recent Fuel System Repairs
Document recent injector, fuel-line, filter, or engine work. A fault that starts immediately after service deserves a check of the work performed before any expensive component is condemned.
Other Stored Diagnostic Trouble Codes
Record every stored, pending, and current DTC. In particular, P008A and fuel rail pressure sensor circuit codes can change the diagnostic direction. The next step is to preserve and interpret the scanner data rather than guess from symptoms.
How to Check P0087 Without Replacing Parts
Begin with non-invasive checks using a Ford-compatible scanner and engine-specific service information.
- Save codes and freeze-frame data. Record DTCs, engine load and speed, and available pressure readings before clearing codes.
- Confirm fuel level and recent service. Check fuel level, recent repairs, connectors and visible leaks without touching suspected leaks.
- Locate the correct live-data parameters. Compare commanded and actual rail pressure where supported. Review low-side supply data if available.
- Match the readings to the failure condition. Distinguish an acceleration fault from a cranking fault. Check sensor-circuit errors before trusting pressure readings.
- Select the next test from the service manual. Refer invasive or specialized tests to a qualified technician. Never loosen a common-rail connection to check fuel flow.
If you need to identify the component being measured, the existing guide to the Ford F-150 fuel pressure sensor location provides background. Confirm the exact location from the service information for your year and engine.
Once the scan data is recorded, follow the gasoline or diesel path rather than combining their pressure specifications.

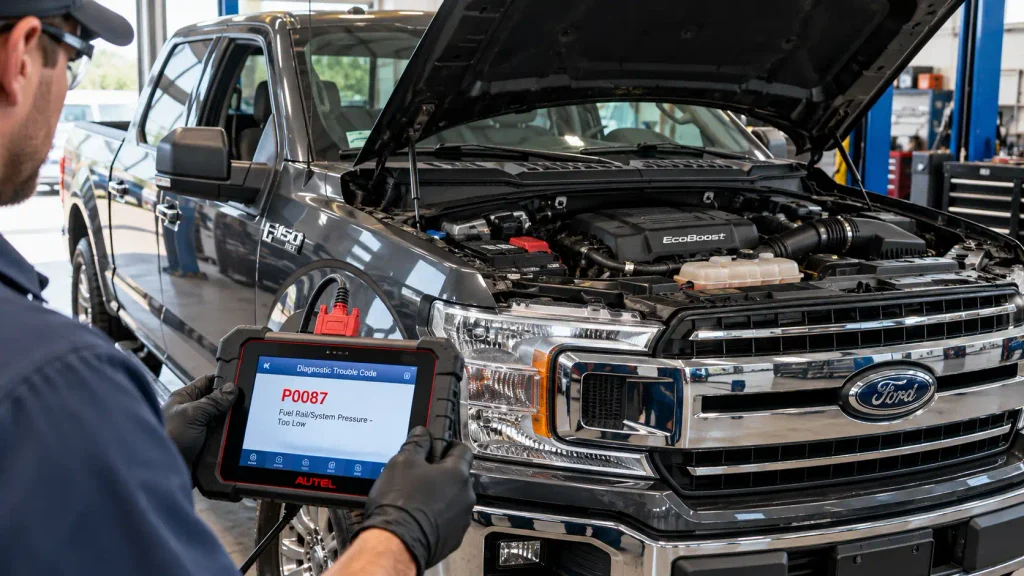

If Your EcoBoost Shows P0087 After Acceleration
On a Ford EcoBoost engine, a code appearing under acceleration can indicate that fuel delivery is not keeping pace with demand. That observation is a reason to test both supply and rail-pressure control, not proof of high-pressure fuel pump failure.
When Low Side Supply Drops
If the engine-specific test shows inadequate fuel reaching the high-pressure system, investigate the supply side first. Depending on the model, this can include the in-tank pump, its electrical control, restrictions, damaged lines, or an applicable fuel-pressure sensor.
Compare the findings with the exact Ford specification. Do not use a 6.7L diesel supply-pressure figure for a gasoline EcoBoost engine. Once the low side passes its specified test, move farther downstream.
When Rail Pressure Stays Low
If the supply side passes but actual rail pressure consistently falls below the requested value, the high-pressure pump and its control system become more relevant. The sensor signal, related wiring, and any applicable control faults still need to be checked before replacement.
Our guide to the 3.5 EcoBoost high-pressure fuel pump explains that component’s role. Use it for system background, not as proof that the pump is bad.
A recent repair can change the entire investigation, even when the pressure drop looks like a pump problem.
If P0087 Appears After Ford Fuel System Service
If P0087 began after injector replacement or engine work, check whether a Ford service communication applies before buying a pump.
Ford Special Service Message 50089, published through NHTSA, describes some gasoline-powered Ford and Lincoln models that may develop low rail pressure, stalling, or P0087/P008A after work involving the fuel jumper line between the high-pressure pump and port-injection rail.
The relevant line contains a one-way check valve. The bulletin says the Oetiker clamp should be nearest the port-injection rail connection. A line installed in reverse can produce the symptoms described in the communication.
The bulletin’s listed F-150 applications span 2017–2020, although its wider Ford and Lincoln coverage includes certain vehicles through 2021. Do not assume it applies to every 2021 F-150 or every EcoBoost variant.
If your model is covered and the trouble started after the specified repair, have the line orientation checked and corrected using the approved procedure. If there was no related service or the configuration is different, return to the normal diagnostic path.

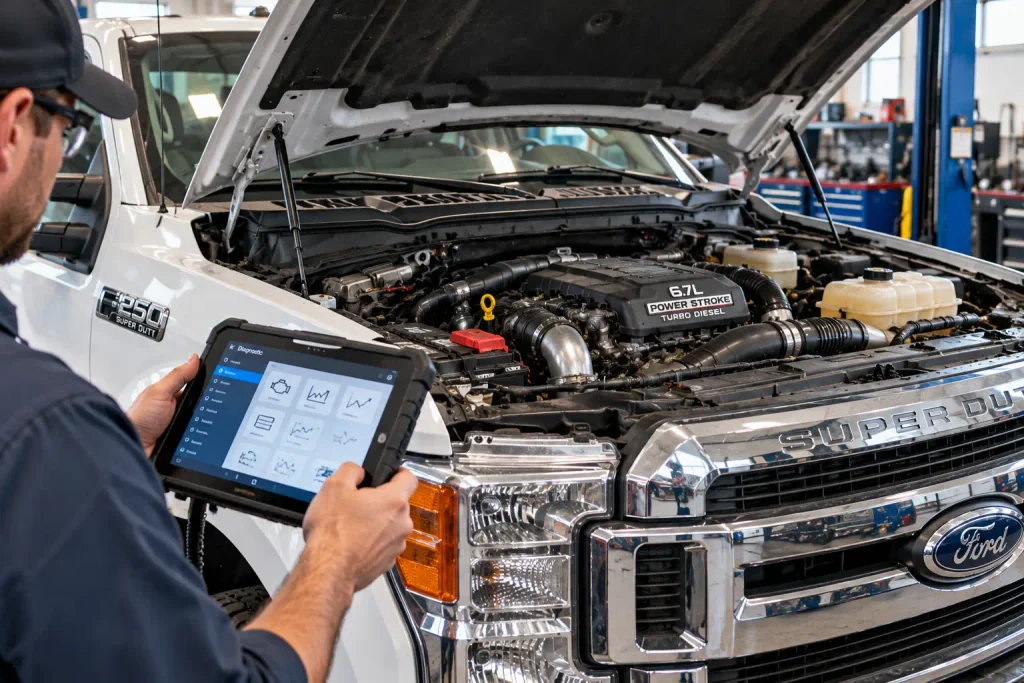

If Your 6.7 Powerstroke Sets P0087 Under Load
On a 6.7L Powerstroke, P0087 under load can indicate inadequate supply or rail-pressure control. Check supply before condemning the high-pressure pump.
Check Fuel Filters and Supply
Review filter history, water warnings, and recent service. Poor sealing, restriction, air entry, or supply-pump failure can reduce delivery.
The 2011–2016 6.7L Powerstroke diagnostic guidance from Oregon Fuel Injection specifies 53–73 psi as a normal low-side supply-pressure range for those model years and notes a fuel-delivery switch threshold around 52 psi. These figures must not be carried forward to other years without the correct service specification.
If a filter fault is confirmed, follow the correct year-specific procedure. Our 6.7 Powerstroke fuel filter change guide covers this maintenance separately.
Compare Actual and Desired Pressure
If low-side supply passes, compare commanded and actual rail pressure. A repeatable shortfall narrows the next test but does not prove pump failure.
After a filter change, check proper priming before repeated cranking.
Escalate Possible High Pressure Failures
If supply passes but rail pressure stays low, a technician may test regulators, injector return, and pump performance. Suspected metal debris needs professional inspection.
The 6.7 Powerstroke fuel system diagram identifies the supply and injection circuits before further testing.
The presence of another fault code can change these priorities.
What If P0087 Appears With P008A or P0193
A second code can point the diagnosis toward the supply circuit or sensor signal rather than automatically toward the high-pressure pump.
| Code | Meaning | Diagnostic Implication |
|---|---|---|
| P0087 | Fuel rail/system pressure too low | Confirm actual pressure versus the commanded value. |
| P008A | Low-pressure fuel system pressure too low | Prioritize applicable low-side supply checks. |
| P0193 | Fuel rail pressure sensor circuit high | Check the sensor circuit and signal validity. |
For example, P0087 with P008A can justify moving low-pressure supply checks up the list. P0193 is different: it refers to an electrical signal condition. The scanner’s reported pressure may need validation before a mechanical diagnosis is reliable.
Not every Ford engine uses every listed code in precisely the same way. Apply the model-specific fault tree and investigate relevant accompanying codes before replacing fuel-system parts.
Which P0087 Test Result Points to Each Repair
Use this matrix to choose a next diagnostic action, not a part to order. Compare results with year-specific specifications.
| What You Find | Next Diagnostic Check | Repair Direction if Confirmed |
|---|---|---|
| Low-side supply pressure below specification | Supply pump, control, restrictions, filters or line condition | Repair the verified supply fault. |
| Supply pressure meets specification but rail pressure is low | Rail control, pump performance and related sensor tests | Repair the failed high-pressure component only after isolation. |
| P0087 immediately after applicable fuel-line service | Verify SSM 50089 applicability and jumper-line orientation | Correct confirmed installation error. |
| P0087 plus a sensor circuit fault | Verify connector, wiring, reference and signal | Repair confirmed electrical fault first. |
| Suspected contaminated diesel high-pressure system | Specialist contamination inspection | Follow professional system repair requirements. |
Low pressure does not justify skipping sensor checks. A running pump also may not deliver enough pressure.
If repair involves hazardous fuel-system work, consider whether driving is safe.
When to Stop Driving With Ford P0087
Stop in a safe place and arrange assistance if your Ford stalls unexpectedly, loses substantial power in traffic, or shows signs of a fuel leak. Continued operation can leave you unable to accelerate or maintain speed when needed.
If the truck has a no-start condition, avoid repeated start attempts while the fuel-supply condition remains unknown. A diesel with suspected contaminated fuel or high-pressure pump debris needs professional evaluation before further operation.
Do not search for a fuel leak with your fingers. High-pressure diesel fuel can penetrate skin and cause severe injury. A suspected injection injury requires immediate emergency medical care even when the entry wound looks minor.
An intermittent P0087 without noticeable drivability symptoms still warrants a timely diagnosis. Whether it is safe to move the truck a short distance depends on the observed behavior and the absence of leakage, not simply on whether the warning light is steady.
Once the truck is safe, consider the likely cost of diagnosis before authorizing repairs.
How Much Does a Ford P0087 Diagnosis Cost
There is no single Ford P0087 repair price because the code can come from several different faults. A test cost is not the same as a fuel-pump replacement quote.
As a concrete benchmark, RepairPal’s Ford F-150 fuel pressure test estimate, last updated September 3, 2026, lists $61–$90 in estimated labor for that test. Taxes, location, related repairs, and additional diagnostic work are not included.
A restricted filter, damaged wiring, pump-control fault, or high-pressure pump failure can lead to very different totals. Ask for the diagnostic result and the specific failed component before approving replacement parts. An estimate that names only P0087 as the reason for a new pump is incomplete.
What to Do Next With Ford P0087
The Ford P0087 code is a warning about inadequate fuel rail pressure, not a purchase order for a new fuel pump. The safest and most economical approach is to identify your engine, record the fault conditions, and follow the correct supply or rail-pressure diagnostic branch.
For an EcoBoost, verify the gasoline fuel-supply and rail-control data, especially when the fault occurs under acceleration. After relevant service, check whether Ford’s jumper-line bulletin applies. For a 6.7L Powerstroke, begin with filter, supply, and scan-tool evidence before moving into high-pressure testing.
Save the codes and freeze-frame information today. If the truck stalls, leaks fuel, or needs intrusive high-pressure testing, have a qualified technician take over.
5 Common Ford P0087 Code Questions Answered
What Does Ford P0087 Code Mean?
P0087 means the PCM detected fuel rail or system pressure below the required level. It identifies a fuel-pressure condition, not a specific failed fuel pump, sensor, or injector. The engine and freeze-frame data are needed to choose the correct diagnostic checks.
Can I Drive My Ford With P0087?
Do not continue driving if the engine stalls, loses substantial power, or leaks fuel. If it runs normally and no leak is evident, arrange diagnosis promptly rather than treating the code as harmless. Driving risk depends on the symptoms, not on the code alone.
Can a Bad Fuel Filter Cause P0087?
Yes, a restricted fuel filter can contribute to P0087 on systems where filter restriction reduces supply pressure, including certain 6.7L Powerstroke applications. That does not mean every Ford has the same serviceable filters. Check the engine-specific fuel-supply system before replacing parts.
Does P0087 Mean the Fuel Pump Is Bad?
No. Inadequate supply, an installation mistake, pressure-control problems, or an unreliable sensor signal may all require investigation. A pump should be replaced only after the appropriate tests show it cannot meet the required operation and other relevant causes have been ruled out.
Will Clearing P0087 Fix the Problem?
Clearing the code does not repair the underlying fuel-pressure problem. It can also erase freeze-frame data that explains when the fault occurred. Save the diagnostic information first, perform the verified repair, and then follow the applicable Ford procedure to confirm the fault no longer returns.
