Ford F250 Alternator Amp Chart: 1999-2026 Year and Engine
Stock alternator output on the Ford F-250 ranges from 110 amps on early Powerstroke diesels up to 240 amps on the newest 6.7L Powerstroke trucks. Gas-engine F-250s generally sit in the 110–150 amp range depending on generation.
Several F-250 diesel engines — the 7.3L, 6.0L, and 6.7L Powerstroke — also offered a factory dual-alternator option, which trips up a lot of owners trying to source the correct replacement. Find your engine below for the exact stock rating.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free As an Amazon Associate I earn from qualifying purchases.
Ford F-250 Alternator Output by Engine
Stock Motorcraft amp rating, single-alternator configuration
Gasoline Engines
Powerstroke Diesel Engines
Ratings sourced from Ford Motorcraft OEM parts catalog listings. Confirm your exact part number before ordering, since build date can shift the stock rating within a generation.
How to Find Your Ford F-250’s Alternator Amp Rating
Recommended Best Deal Products
The fastest way to confirm your exact alternator is by the Motorcraft part number, not just engine size, since Ford used several different amp ratings within the same generation depending on build date, trim, and options.

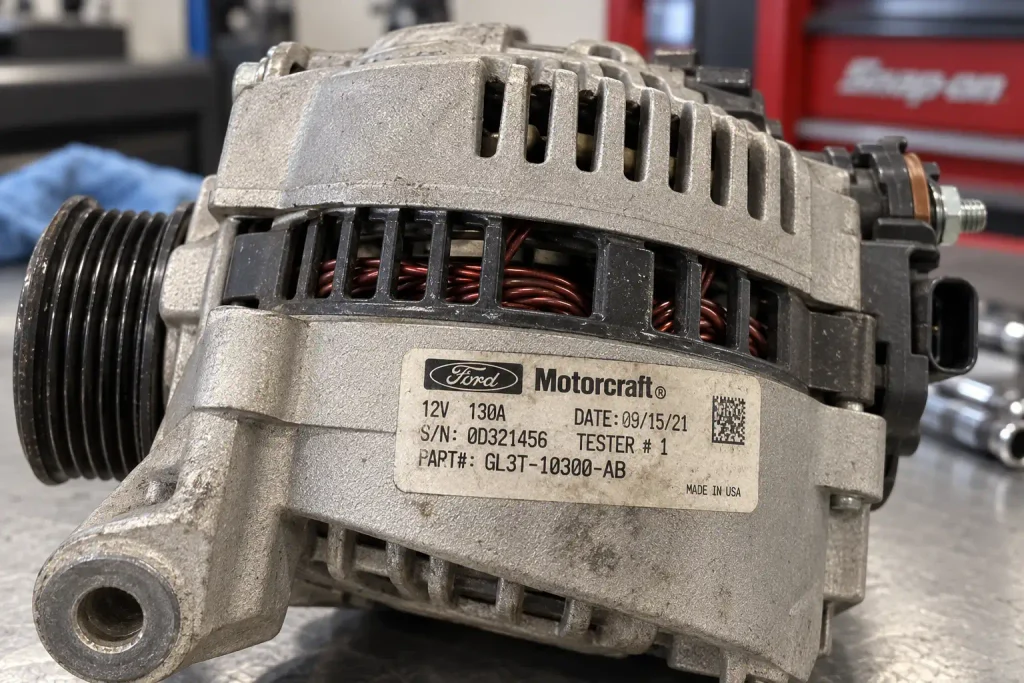

- Check the alternator housing. Motorcraft units have the amp rating printed directly on the case near the rear housing, alongside the Motorcraft part number (format like GL-8937 or GL-8697-RM). Ford’s own parts catalog literally labels these “157 Amplifier,” “175 Amplifier,” etc. — that’s the number to match.
- Pull your build sheet or door jamb sticker to confirm your engine code and production date, since several F-250 alternators changed amp rating mid-generation based on build date rather than model year.
- Cross-reference the full Motorcraft part number, not just the engine size, when ordering. As shown below, the same engine can carry two or three different part numbers with different amp ratings depending on single vs. dual configuration and build date.
- If your alternator has already been replaced with an aftermarket unit, the stamped rating won’t match factory spec — check the invoice or box from the last replacement.
5.4L Triton V8 F-250 Alternator Amp Output (1999–2010)
Ford’s own Motorcraft parts catalog (GLV-9117-RM cross-reference) shows a clear production-date cutover for the 5.4L (and 6.8L) Triton: 110 amps through November 4, 2002, then upgraded to a 130-amp unit for trucks built after that date.
This matches independently listed 130A OEM-equivalent alternators for both 1999–2001 and 2002–2003 5.4L trucks on the same platform, and a factory “High Output” 130A unit specifically cataloged for 2002–2003 F-250/F-350 Super Duty and Excursion.
Bottom line: 110A for trucks built before November 4, 2002; 130A for trucks built after.
6.8L Triton V10 F-250 Alternator Amp Output (1999–2010)
Recommended Best Deal Products
The 6.8L Triton V10 shares the same charging system architecture and the same 110A pre-11/04/2002 → 130A post-11/04/2002 cutover as the 5.4L, per the same Motorcraft cross-reference listing. This is also consistent with two independent RV/chassis-cab spec sheets documenting a 130-amp factory alternator on the Triton V10 platform.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days As an Amazon Associate I earn from qualifying purchases.7.3L Powerstroke F-250 Alternator Amp Output (1994–2003)
The 7.3L Powerstroke’s factory alternator is confirmed at 110 amps across four independent sources: Ford’s Motorcraft catalog (GL-572-RM / 4C4Z-10346-KA-RM), a second Motorcraft cross-reference (GLV-9118-RM, “F250 pick-up. 7.3l diesel. 110 amp”), a major OEM parts retailer, and aftermarket manufacturers marketing their upgrades against “the factory 110 amp alternator.”
The 7.3L also offered a factory dual-alternator option, also rated 110A per unit (GLV-9118-RM lists “Dual Alternators. 110 Amp”), commonly found on ambulance-package and other high-electrical-load F-250/F-350 builds.
If you’re chasing a wiring issue rather than an output question, see the 7.3 Powerstroke alternator wiring diagram for the connector pinout.
6.0L Powerstroke F-250 Alternator Amp Output (2003–2007)
The earlier 140A vs. 110A conflict is resolved: both figures are correct, for different configurations.
- Single-alternator trucks: 110 amps (Motorcraft GL-8697-RM / 6C3Z-10346-DB-RM), confirmed by two independent OEM parts catalogs
- Dual-alternator trucks (upper unit): 140 amps (Motorcraft GL-8698-RM / 6C3Z-10346-BB-RM), confirmed by a mechanic forum decoding the exact part-number difference, and independently by an OEM Motorcraft eBay listing
- A later dual-alternator running change (from December 5, 2005 production) used a 120-amp paired unit instead (Motorcraft GL-8756-RM)
Both GL-8697-RM and GL-8698-RM mount identically and are physically interchangeable — the part number, not appearance, is what tells them apart.
The 6.0L’s charging system is also directly tied to a well-documented reliability issue — see the FICM section below before assuming a weak charge is “just the alternator.” For wiring-side troubleshooting, see the 6.0 Powerstroke alternator wiring diagram.
6.4L Powerstroke F-250 Alternator Amp Output (2008–2010)
The 6.4L Powerstroke used a single, factory-confirmed 135-amp alternator (Motorcraft GL9914RM, “135 Amp — Heavy Duty Plus”), corroborated by independent OEM-fitment data listing “single alternator, 135 amperes” for 2008–2010 F-250/F-350 6.4L trucks. This generation did not offer a factory dual-alternator option.
6.7L Powerstroke F-250 Alternator Amp Output and Dual-Alternator Option (2011–Present)
This generation changed ratings more than once, and Ford also offered a factory dual-alternator option throughout.
Single-alternator trucks:
- 2011–2022: 175 amps — confirmed by Ford’s own Motorcraft catalog (GL8988, “175 Amp, With Power Point Plug,” referring to the factory 110V/2.0kW Pro Power outlet option) and independently by aftermarket manufacturers referencing “the factory 175 amp alternator” for 11–22 6.7L Powerstroke trucks. Some fitment databases list 155A for specific non-Power-Point trims within this range — if your truck lacks the Pro Power outlet option, your factory unit may be the lower 155A rating rather than 175A.
- 2023–present: 240 amps — Ford’s Motorcraft catalog (GL-9975) confirms a “Single alternator, 240 amp” rating on the current 6.7L Powerstroke, a clear step up from the 2011–2022 range.
Dual-alternator trucks (common with plow prep, camper prep, and heavy electrical-load packages):
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual Plans As an Amazon Associate I earn from qualifying purchases.- Lower/primary alternator: 200 amps (2011–2022, Motorcraft GL8836 / HL3Z-10346-E); 240 amps on 2023+ trucks (Motorcraft GL-9975, “dual alternator, primary, 240 amp”)
- Upper/secondary alternator: 157 amps (Motorcraft GL8937 / LC3Z-10346-C, labeled “Secondary. Dual Heavy Duty Alternators”)
That gives a 2011–2022 dual-alternator 6.7L roughly 357 amps of combined factory charging capacity, and meaningfully more on 2023+ trucks.
6.2L Gas F-250 Alternator Amp Output (2011–Present)
The 6.2L gas V8 F-250 runs a 150-amp factory alternator, now confirmed by two independent sources: Ford’s own OEM parts catalog (GL8686, “F250, f350 super duty. 6.2l. Without extra hd alternator… 150 amp,” covering the 2/2/2012–10/22/2013 production window) and an OEM-equivalent replacement listing for 2013–2022 trucks. Ford also lists a separate “extra HD alternator” option for this platform at a higher rating (200A), for trucks ordered with heavier electrical-load packages.
Single vs. Dual Alternator: Which F-250 Trims Got the Factory Setup
Based on the Motorcraft part-number data above, three F-250 diesel generations offered a factory dual-alternator option — this isn’t unique to the 6.7L:
- 7.3L Powerstroke (1994–2003): dual 110A units, most commonly on ambulance-package and other high-load builds
- 6.0L Powerstroke (2003–2007): dual units, 140A (pre-12/5/2005 build) or 120A (post-12/5/2005 build)
- 6.7L Powerstroke (2011–present): dual units, 200A primary + 157A secondary (2011–2022), or 240A primary + 157A secondary (2023+)
- 6.4L Powerstroke and all gas engines: single alternator only; no factory dual-alternator option was offered

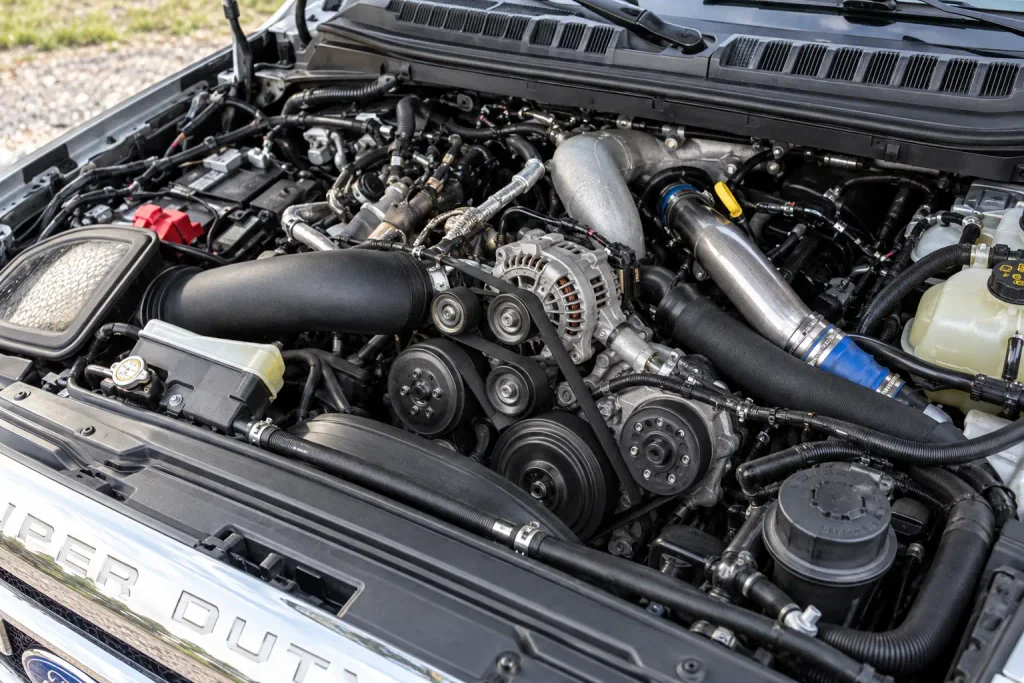

If you’re not sure which setup your truck has, look under the hood — a dual-alternator truck has a visibly larger secondary bracket and second alternator mounted near the top of the engine, not just one unit low on the passenger side; the Motorcraft part number stamped on the housing is the definitive way to confirm. For a broader compatibility reference across Ford models, see the Ford alternator compatibility chart.
Signs Your F-250 Alternator Can’t Keep Up
Watch for these symptoms, especially if you’ve added lighting, a winch, or a stereo system beyond the stock electrical load:
- Headlights or interior lights dimming at idle, brightening when you rev the engine
- Slow power windows or seats, especially at idle
- Battery warning light on the dash
- Battery voltage reading below roughly 13.5V at the battery terminals after a warm start, per common forum diagnostic consensus for confirming charging-system health
- On 7.3L and 6.0L Powerstroke trucks specifically: hard starting, rough cold idle, or white smoke on startup can point to a starved FICM (Fuel Injection Control Module). Per Driving Line’s documented 6.0L Power Stroke diagnostics, FICM output should read 45–48 volts with the key on, cranking, and running; 45V is considered the bare minimum before injector timing and duration are affected. A weak alternator or aging, mismatched batteries are a well-documented root cause of FICM failure over time — replacing a failing FICM without fixing the underlying charging problem typically kills the new module too.
For a deeper look at diagnosing a weak charging system before replacing parts, see signs of a failing alternator.
When to Upgrade to a High-Output Alternator
Stock output is usually fine for daily driving, but towing electronics, winches, off-road lighting bars, and aftermarket audio systems can exceed what a factory alternator was designed to sustain, especially at idle. Real, currently listed options by engine (prices as researched, confirm current pricing before purchase):
- 7.3L / 6.0L Powerstroke: Mechman High Output Alternator (99–07 fitment), 240A/320A/370A configurations, $429–$599 depending on output
- 6.4L Powerstroke: Mechman Elite Series 370A alternator (08–10 fitment), $599
- 6.7L Powerstroke: Mechman Elite Series, 320A ($519) or 370A ($599), fits the single-alternator or lower dual-alternator mount — does not replace the upper 157A factory unit on dual-alternator trucks
Before buying a high-output unit, confirm your truck’s wiring gauge can handle the increased output — undersized factory wiring is a common bottleneck that a bigger alternator alone won’t fix.
Quick FAQ
Does my F-250 have dual alternators?
Only certain 7.3L, 6.0L, and 6.7L Powerstroke trucks built with heavy electrical-load packages got a factory dual-alternator setup. Look for a second alternator mounted near the top of the engine, or check the Motorcraft part number stamped on the housing, to confirm.
Can I put a bigger alternator in my F-250?
Yes, high-output alternators exist for every F-250 engine covered above, typically 200–370+ amps. Confirm your wiring harness gauge can handle the increased load before upgrading.
What amp alternator do I need for towing?
Stock output is generally sufficient for towing alone, since trailer brake controllers and running lights draw relatively little current. Upgrade only if you’re also running winches, upfitted lighting, or heavy aftermarket electronics on top of towing.
