Ford Escape Dimensions Chart By Year: 2026 Length, Width, Wheelbase & Cargo
The Ford Escape dimensions chart covers every U.S. model year from 2001 through 2026. Depending on the year, the Escape measures about 173.0 to 181.2 inches long, 70.1 to 74.1 inches wide without mirrors, and 103.1 to 106.7 inches between the axles.
The model year is only the starting point. Drivetrain, hybrid equipment, roof accessories, and the way a specification is measured can change the number you need. Find your year below, then use the cargo and interior measurements to check passenger space, luggage fit, or garage clearance.
FordMasterX • Dimensions reference

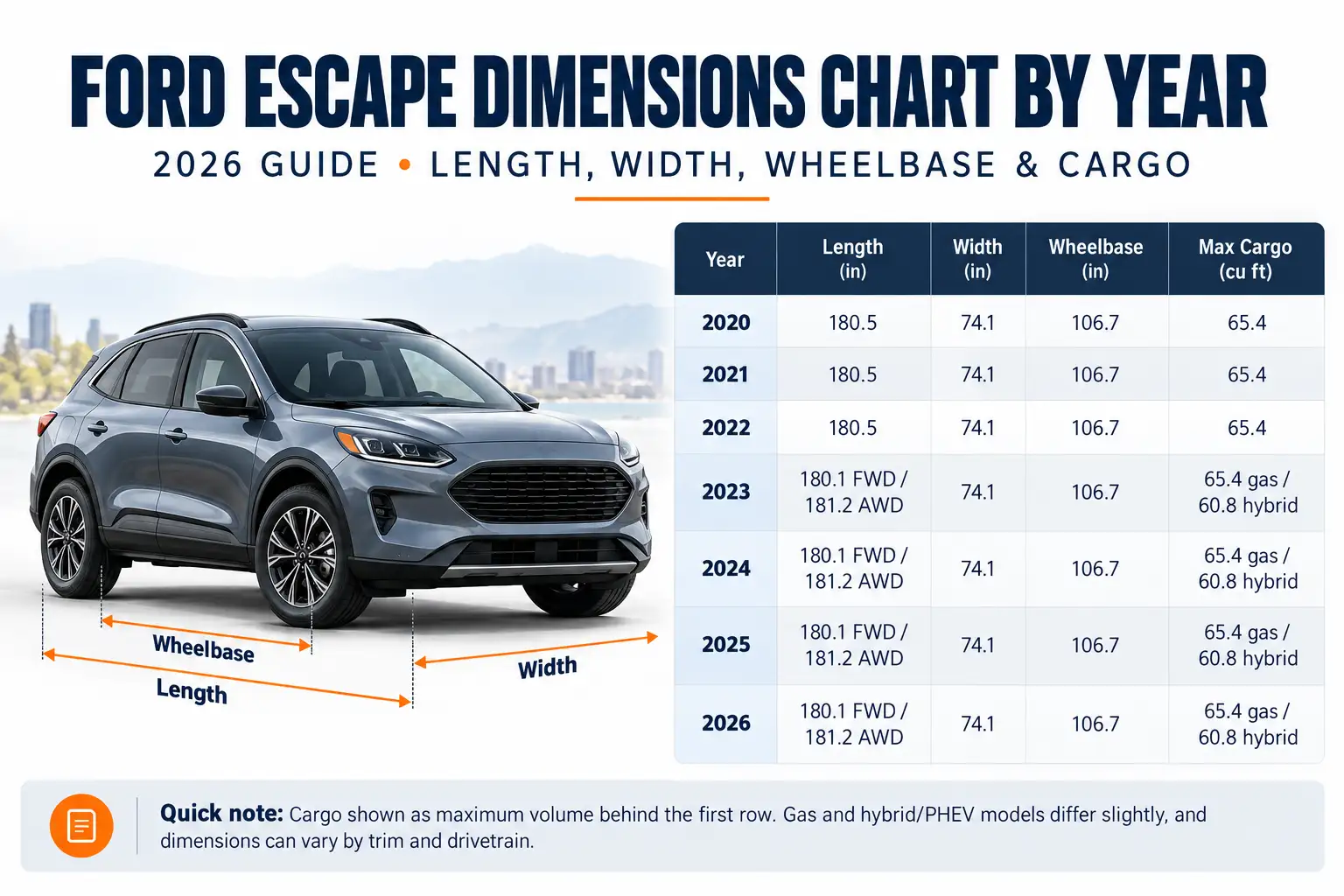

Ford Escape Dimensions by Year
U.S.-market exterior measurements for 2001–2026. Compare each model year and see how overall size changed across four generations.
Four Generations at a Glance
Representative length figures in inches. See the full year-by-year chart below.
Complete Year-by-Year Dimensions
All measurements are in inches. Swipe sideways on a phone to view all columns.
| Year | Length | Width | Height | Wheelbase |
|---|---|---|---|---|
| 2026 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2025 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2024 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2023 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2022 | 180.5 | 74.1 | 66.1 | 106.7 |
| 2021 | 180.5 | 74.1 | 66.1 | 106.7 |
| 2020 | 180.5 | 74.1 | 66.1 | 106.7 |
| 2019 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2018 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2017 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2016 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2015 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2014 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2013 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2012 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2011 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2010 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2009 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2008 | 174.7 | 71.1 | 67.7 | 103.1 |
| 2007 | 174.9 | 70.1 | 69.7* | 103.1 |
| 2006 | 174.9 | 70.1 | 69.7* | 103.1 |
| 2005 | 174.9 | 70.1 | 69.7* | 103.1 |
| 2004 | 173.0 | 70.1 | 69.1* | 103.1 |
| 2003 | 173.0 | 70.1 | 69.1* | 103.1 |
| 2002 | 173.0 | 70.1 | 69.1* | 103.1 |
| 2001 | 173.0 | 70.1 | 69.1* | 103.1 |
Width: Excludes mirrors. Ranges: Depend on year, drivetrain or equipment. G1–G4: Escape generations.
*Early-model height: Uses the period brochure’s reference value; some manuals and tire/4WD configurations differ. Check your exact trim before making a tight-clearance decision.
Ford Escape Dimensions Chart for 2001 to 2026
The chart lists published U.S.-market exterior dimensions in inches. Width is measured without side mirrors. Height means the standard published body height or height without optional equipment, not necessarily the highest point of an Escape fitted with roof racks.
| Model Year | Length (in.) | Width (in.) | Height (in.) | Wheelbase (in.) |
|---|---|---|---|---|
| 2026 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2025 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2024 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2023 | 180.1–181.2 | 74.1 | 66.0–66.1 | 106.7 |
| 2022 | 180.5 | 74.1 | 66.1 | 106.7 |
| 2021 | 180.5 | 74.1 | 66.1 | 106.7 |
| 2020 | 180.5 | 74.1 | 66.1 | 106.7 |
| 2019 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2018 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2017 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2016 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2015 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2014 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2013 | 178.1 | 72.4 | 66.3 | 105.9 |
| 2012 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2011 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2010 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2009 | 174.7 | 71.1 | 67.7–67.9 | 103.1 |
| 2008 | 174.7 | 71.1 | 67.7 | 103.1 |
| 2007 | 174.9 | 70.1 | 69.7* | 103.1 |
| 2006 | 174.9 | 70.1 | 69.7* | 103.1 |
| 2005 | 174.9 | 70.1 | 69.7* | 103.1 |
| 2004 | 173.0 | 70.1 | 69.1* | 103.1 |
| 2003 | 173.0 | 70.1 | 69.1* | 103.1 |
| 2002 | 173.0 | 70.1 | 69.1* | 103.1 |
| 2001 | 173.0 | 70.1 | 69.1* | 103.1 |
How to read the ranges: For 2009–2012, the shorter end of the height range can apply to a Hybrid, while gasoline FWD and 4WD specifications can differ slightly. For 2023–2026, 180.1 inches is the commonly published FWD length and 181.2 inches appears in AWD trim specifications. Ford documents are not perfectly consistent about whether every AWD model is listed at the longer length, so check the exact trim. The 66.0–66.1-inch height range distinguishes gasoline and electrified versions.
Published references used to cross-check generation baselines include the 2002 Ford Escape brochure, 2008 Ford Escape brochure, 2017 Ford Escape brochure, and Ford’s 2025 technical specifications. Other individual model-year specifications were cross-checked when the figures changed.
How Ford Escape Dimensions Changed Across Four Generations
The Escape’s four generations explain most of the size changes. Its length increased, but not every redesign made the vehicle taller.
First Generation 2001 to 2007
The original Escape measured 173.0 inches long, 70.1 inches wide, and 103.1 inches between the axles. The 2005 refresh increased published length to 174.9 inches while keeping the same 103.1-inch wheelbase. Standard height also rose from the earlier 69.1-inch brochure figure to 69.7 inches.
Second Generation 2008 to 2012
The redesigned 2008 Escape was 174.7 inches long and 71.1 inches wide, still on a 103.1-inch wheelbase. Its 67.7-inch standard height made it lower than the outgoing body. Later gasoline configurations are commonly listed at 67.8 or 67.9 inches; Hybrid versions can be lower.
Third Generation 2013 to 2019
The 2013 redesign brought a much more noticeable change: 178.1 inches of length, 72.4 inches of body width, and a 105.9-inch wheelbase. Its standard published height was 66.3 inches. The 2017 facelift altered the styling, but the main exterior measurements remained the same through 2019.
Fourth Generation 2020 to 2026
The 2020 redesign expanded the wheelbase to 106.7 inches and body width to 74.1 inches. The 2020–2022 published reference length was 180.5 inches. Later 2023–2026 configurations are listed at approximately 180.1 inches for FWD or 181.2 inches for certain AWD trims.
For a size comparison beyond the Escape, the Ford SUV size chart places it alongside other Ford SUVs rather than repeating the model-year measurements here.
How 2026 Ford Escape FWD and AWD Measurements Differ
For 2026, body width and wheelbase stay at 74.1 and 106.7 inches, respectively. The meaningful differences to check are exterior length, powertrain-related height, and cargo space.
| Measurement | 2026 Reference Figure |
|---|---|
| Length, FWD | 180.1 in. |
| Length, certain AWD specifications | 181.2 in. |
| Width without mirrors | 74.1 in. |
| Width with mirrors unfolded | 85.6 in. |
| Width with mirrors folded | 78.7 in. |
| Height, gasoline | 66.0 in. |
| Height, Hybrid or Plug-In Hybrid | 66.1 in. |
| Wheelbase | 106.7 in. |
Important: The public 2026 Ford model specification has also displayed 180.1 inches without a drivetrain breakdown. For a clearance-critical fit, confirm your exact 2026 configuration instead of assuming that every AWD Escape is 181.2 inches long.
The Escape’s width with mirrors unfolded is 11.5 inches greater than its 74.1-inch body width. That difference matters at a narrow garage door, parking gate, or trailer entrance. Folding the mirrors reduces the published width to 78.7 inches, but still does not remove the need for side clearance.
How Ford Escape Cargo Capacity Varies by Year
Cargo volume is the amount of three-dimensional storage space inside the Escape, expressed in cubic feet. It is not the same measurement as the length or width of the cargo floor.
| Reference Model | Behind Rear Seats | Rear Seats Folded |
|---|---|---|
| 2002 gasoline | 33.0 cu. ft. | 64.8 cu. ft. |
| 2005 gasoline | 29.3 cu. ft. | Up to 66.3 cu. ft.* |
| 2008 gasoline | 29.2 cu. ft. | 66.3 cu. ft. |
| 2008 Hybrid | 27.8 cu. ft. | 66.0 cu. ft. |
| 2013 gasoline | 34.3 cu. ft. | 68.1 cu. ft. |
| 2017 gasoline | 34.0 cu. ft. | 68.0 cu. ft. |
| 2025–2026 gasoline | Up to 37.5 cu. ft. | 65.4 cu. ft. |
| 2025–2026 Hybrid/PHEV | Up to 34.4 cu. ft. | 60.8 cu. ft. |
The 2005 maximum of 66.3 cubic feet uses Ford’s specified seat-cushion removal arrangement, not merely an ordinary seats-folded measurement. Likewise, some fourth-generation seats-up maximum figures depend on moving the sliding rear seat forward. Compare cargo measurement conditions before treating two values as directly equivalent.
In the modern Escape, the gasoline version has 3.1 cubic feet more maximum cargo space behind the rear seats than a Hybrid or Plug-In Hybrid. With the rear seats folded, the gas model’s advantage increases to 4.6 cubic feet.
Those differences do not automatically make the gasoline version better for every family. A sliding rear bench lets you exchange some rear passenger legroom for additional cargo room. The exact trade-off matters when the vehicle carries adults in the back seat and luggage at the same time.
What Are the Ford Escape Cargo Area Measurements
Cargo volume cannot tell you whether an assembled stroller, storage cabinet, or long suitcase will pass through the hatch. For a physical fit, use cargo floor length and the narrowest opening width.
Published dimensions for selected U.S. gasoline configurations are:
| Physical Cargo Measurement | 2008 Escape | 2020 Escape |
|---|---|---|
| Floor length behind front row | 66.7 in. | 68.5 in. |
| Floor length behind second row | 34.7 in. | 37.8 in. |
| Width between wheel housings | 40.7 in. | 41.4 in. |
These are reference configurations, not values for all 26 years. The 2020 gasoline cargo area is also listed with a rear opening approximately 42.1 inches wide at floor level and 30.4 inches high. A Hybrid’s underfloor layout and seat positions can change useful cargo measurements.
Before buying an item that barely fits on paper, measure the real object at its widest and tallest points. Then measure the hatch opening, cargo floor, wheel-arch pinch points, and the available depth with the front seats in their actual driving positions. Angling an item through the opening may be necessary, and cargo must not obstruct safe visibility or seat operation.
How Ford Escape Interior Legroom Changed by Generation
A longer wheelbase does not translate directly into the same increase in passenger legroom. Ford has also changed seat design, floor packaging, and rear-seat adjustment between Escape generations.
| Reference Model | Front Legroom | Rear Legroom | Front/Rear Headroom |
|---|---|---|---|
| 2002 | 41.6 in. | 36.4 in. | 40.4 / 39.2 in. |
| 2008 | 41.6 in. | 35.6 in. | 40.4 / 39.2 in. |
| 2013 | Up to 43.1 in. | 36.8 in. | 39.9 / 39.0 in. |
| 2017 | Up to 43.1 in. | 37.3 in. | 39.9 / 39.0 in. |
| 2025–2026 gasoline | 42.4 in. | Up to 40.7 in. | 40.0 / 39.3 in. |
| 2025–2026 Hybrid/PHEV | 42.4 in. | Up to 38.9 in. | 40.0 / 39.3 in. |
The most recent gasoline Escape provides substantially more published maximum rear legroom than the 2008 model. But the maximum figure may require the rear seats to slide backward, reducing cargo room behind them.
The newer Hybrid and Plug-In Hybrid versions have different published rear legroom from the gasoline model. When comparing interior space, look at the exact engine and seating adjustment rather than only the exterior wheelbase.

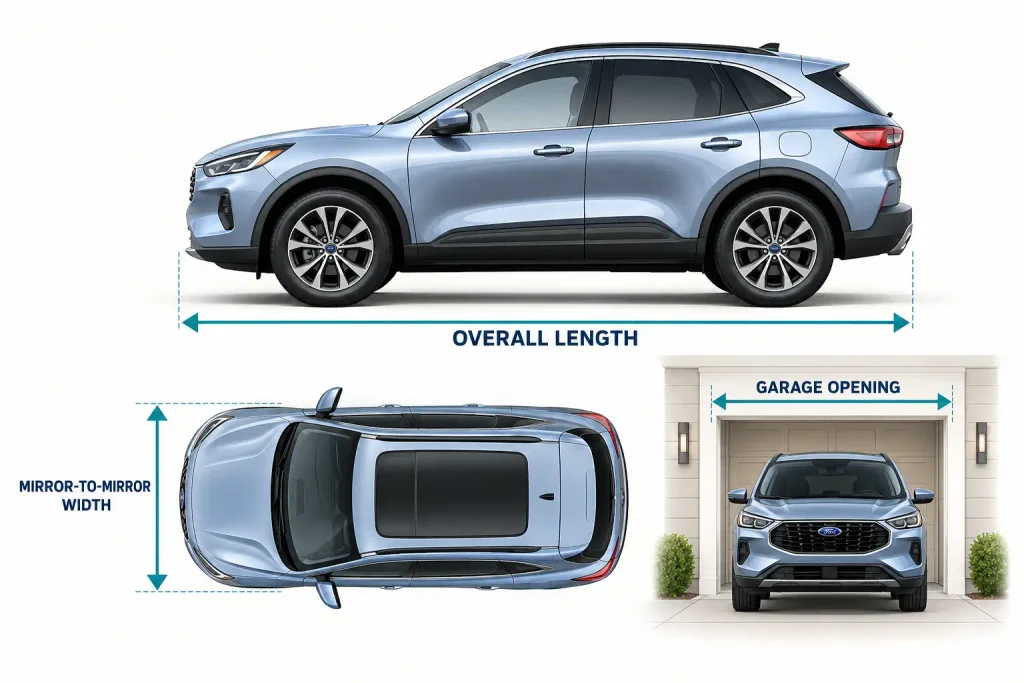

Will a Ford Escape Fit Your Garage
Start with the garage’s usable opening, not just the size printed on its floor plan. Measure interior parking length, doorway width, doorway height, and the room needed to open the liftgate after parking.
- Check bumper-to-bumper length. A 2026 Escape at 180.1 inches is just over 15 feet long. Allow additional room for the garage door, walking clearance, and anything stored against the wall.
- Check the mirror position. The modern Escape is 85.6 inches wide with mirrors extended and 78.7 inches with them folded. Neither figure includes a safety margin for imperfect steering or a narrow entrance.
- Check the highest fitted equipment. Roof racks, crossbars, cargo carriers, antennas, and some tire combinations may extend above the quoted 66.0–66.1-inch standard height.
- Check rear-liftgate space. Parking with the bumper near a wall can prevent the liftgate from opening even when the vehicle itself fits inside.
For example, a garage with exactly 190 inches of usable depth leaves only 9.9 inches total around a 180.1-inch Escape. That is not enough to assume comfortable access at both ends. For comparison shopping, the Ford SUV comparison chart shows the broader SUV lineup, but measure your own garage before choosing a model.
Why Ford Escape Dimension Specifications Sometimes Differ
Two published figures may both be valid when they describe different trim levels, wheel packages, measurement definitions, or markets. For this chart, U.S.-market specifications take priority over overseas Escape or Kuga data.
Historical Ford documentation shows why that distinction matters. Period brochures list the early Escape at 69.1 inches high, while an edition of the 2001 U.S. owner’s manual reports a different base-height figure and a separate maximum for certain 4WD tires. Those figures should not be blended into a false single precision value. The chart uses the contemporary brochure baseline and flags the disagreement.
Modern documents are not entirely uniform either. Ford’s 2025 technical sheet lists 180.1 inches for FWD and 181.2 inches for AWD, while other Ford fleet references show 180.1 inches across some listed configurations. Use the actual trim’s documentation and a physical measurement when an inch makes the difference between clearing an opening and hitting it.
Which Ford Escape Dimensions Should You Check First
The Ford Escape dimensions chart gives you a model-year starting point, but the most useful measurement depends on what you need to do. For parking, start with overall length and width including mirrors. For passengers, check actual rear legroom and seat travel. For equipment and luggage, compare cargo-floor dimensions and hatch clearance rather than cubic feet alone.
The biggest body-size changes follow the 2008, 2013, and 2020 redesigns, while later drivetrain and styling differences deserve their own checks. Identify your Escape’s model year, trim, and powertrain, select its row above, and verify the finished vehicle’s dimensions before making a tight-clearance or accessory purchase.
5 Common Ford Escape Dimensions Questions Answered
How Long Is a Ford Escape by Year?
U.S. Ford Escapes range from 173.0 inches long in the original 2001–2004 design to approximately 180.1–181.2 inches in newer configurations. The 2005–2007 model measures 174.9 inches, the 2008–2012 design 174.7 inches, the 2013–2019 design 178.1 inches, and the 2020–2022 design 180.5 inches.
How Wide Is a Ford Escape With Mirrors?
The modern 2023–2026 Escape is 85.6 inches wide with mirrors unfolded, compared with a body width of 74.1 inches excluding mirrors. Its published folded-mirror width is 78.7 inches. Earlier generations use different mirror widths, so do not apply the modern figure to an older SUV.
Which Ford Escape Generation Is the Longest?
The fourth-generation Escape, covering 2020–2026, has the longest body measurements in the chart. Published lengths include 180.5 inches for the 2020–2022 reference configuration and up to 181.2 inches for certain later AWD versions. The exact length depends on model year and trim.
How Much Cargo Space Does a Ford Escape Have?
A 2025–2026 gasoline Escape provides up to 37.5 cubic feet behind the rear seats and 65.4 cubic feet with them folded. The corresponding Hybrid and Plug-In Hybrid figures are 34.4 and 60.8 cubic feet. Older Escape generations have different capacities and may use different seat-folding conditions.
Are Ford Escape Hybrid Dimensions Different From Gas Models?
Yes. On the modern Escape, Hybrid and Plug-In Hybrid versions have slightly different published height, rear legroom, and cargo-volume figures from gasoline models. Earlier Escape Hybrids also have configuration-specific height and cargo capacities. Always compare the same model year and seat position.
