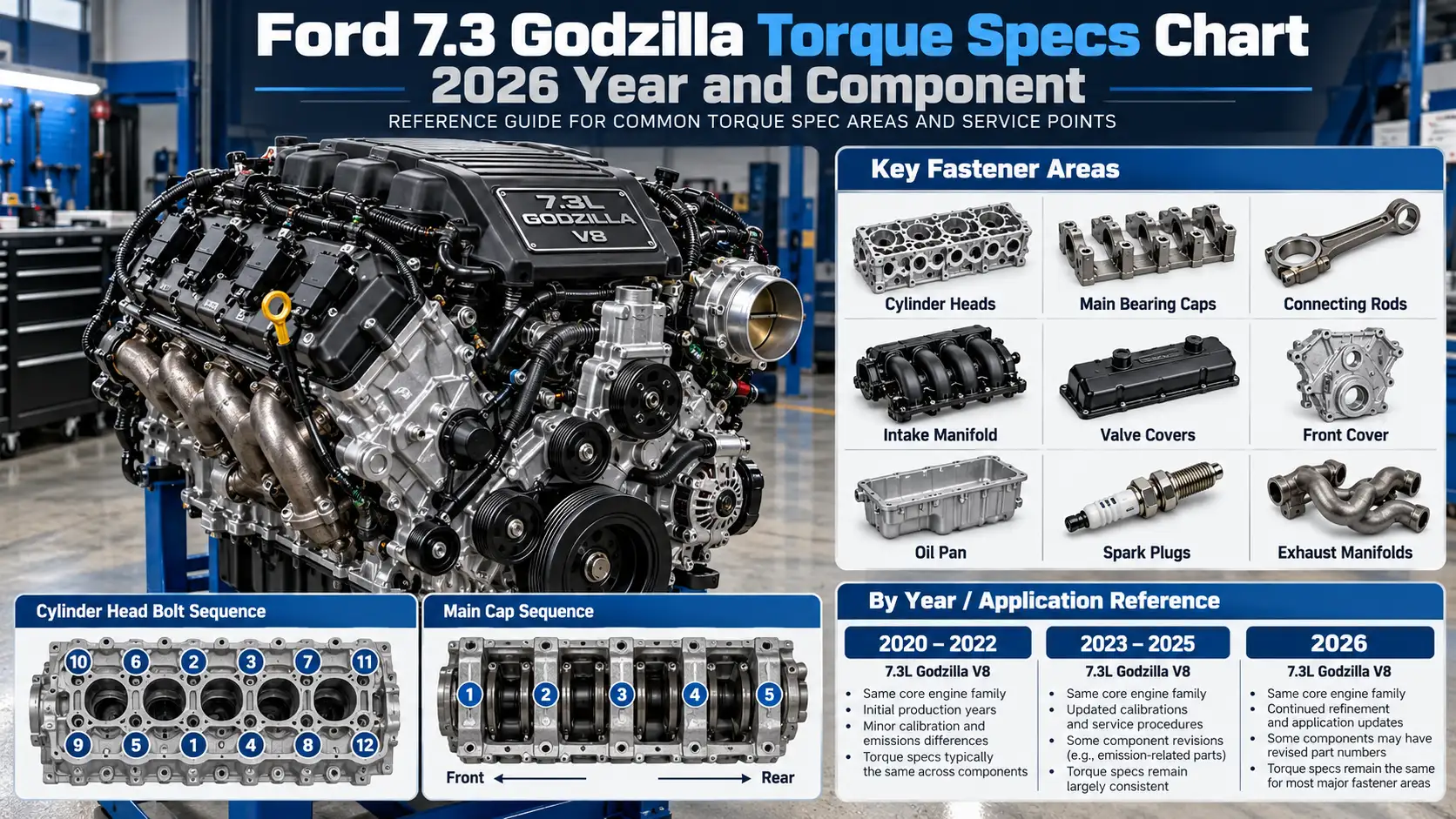

Ford 7.3 Godzilla Torque Specs Chart: 2026 Year & Component
The Ford 7.3 Godzilla torque specs depend on whether you mean engine output or the tightening torque for an individual fastener. Super Duty pickups with this gasoline V8 were rated at 475 lb-ft for 2020–2022 and 485 lb-ft for 2023–2026. Those figures describe engine output, not the torque setting for head bolts, spark plugs, or other engine parts.
For service work, the correct specification may involve several torque stages, an additional turning angle, and new bolts. The charts below distinguish Ford-published component values from a 2020 Ford service-manual example. Always confirm the procedure for your truck’s model year, engine application, and replacement hardware before tightening a critical fastener.
Selected fastener settings and staged tightening procedures. Engine output torque is a different measurement.
Read the full torque-and-angle sequence from left to right. Values apply only to the source and hardware shown.
| Fastener | Torque / stages | Document scope |
|---|---|---|
| Spark plugs | 133 lb-in (15 Nm) | Ford Performance 7.3L ignition instructions |
| Ignition coil bolts | 62 lb-in (7 Nm) + 45° | Ford Performance M-12029-SD73 kit |
| Engine oil drain plug | 19 lb-ft (26 Nm) | 2020 7.3L service procedure |
| Valve cover bolts | 89 lb-in (10 Nm) | 2020 7.3L service reference |
| Rocker arm bolts | 177 lb-in (20 Nm) + 30° | 2020 reference; sequence required |
| Fuel rail bolts | 89 lb-in (10 Nm) + 90° | 2020 reference; sequence required |
| Intake manifold bolts | 89 lb-in (10 Nm) + 45° | 2020 7.3L assembly reference |
| Exhaust manifold nuts | 18 lb-ft (24 Nm) → 24 lb-ft (32 Nm) → 24 lb-ft (32 Nm) | 2020 reference; sequence required |
| Timing chain guide bolts | 89 lb-in (10 Nm) + 45° | 2020 7.3L assembly reference |
| Timing chain tensioner bolts | 89 lb-in (10 Nm) + 45° | 2020 7.3L assembly reference |
| Oil pump bolts | 89 lb-in (10 Nm) + 45° | 2020 7.3L assembly reference |
Only for Ford Performance cylinder heads M-6049-SD73A and M-6050-SD73A, using the specified new bolts and the correct LH/RH sequence diagrams.
- 122lb-ft / 30 Nm
- 244lb-ft / 60 Nm
- 374lb-ft / 100 Nm
- 4+90°additional turn
- 5+90°additional turn
The cards show tightening stages, not bolt locations or bolt order. Consult the actual left- or right-hand cylinder-head diagram.
What Ford 7.3 Godzilla Torque Specs Actually Mean
The 7.3L Godzilla is a gasoline V8 with a camshaft in the block and a pushrod valvetrain. There are two different kinds of torque figures associated with it.
Engine torque measures the twisting force the running engine delivers. It is expressed in pound-feet (lb-ft) at a particular engine speed. It helps describe power delivery, but tells you nothing about how tightly to install an engine bolt.
Fastener torque describes a tightening requirement. A service instruction may give a value in pound-feet (lb-ft), pound-inches (lb-in), or newton-meters (Nm). Some joints also require an additional rotation, such as 45° or 90°, after the torque-wrench stage.
The units are not interchangeable: 12 lb-in equals 1 lb-ft, while a specified angle is a separate operation. Substituting a single torque number for a multistage procedure can leave a critical joint improperly clamped.
Ford 7.3 Gas Engine Torque Output by Year
Ford increased the pickup version’s rated peak torque for the 2023 model year. Horsepower remained at 430 hp in the configurations shown below.
| Super Duty Pickup Model Years | Horsepower | Peak Engine Torque |
|---|---|---|
| 2020–2022 | 430 hp | 475 lb-ft at 4,000 rpm |
| 2023–2026 | 430 hp | 485 lb-ft at 4,000 rpm |
Ford’s 2026 Super Duty specifications list 430 hp at 5,500 rpm and 485 lb-ft at 4,000 rpm for the 7.3L gas engine. Earlier pickup ratings were 430 hp and 475 lb-ft.
This is a pickup-engine comparison, not a blanket rating for every vehicle using the 7.3L. F-Series chassis cabs, E-Series applications, and crate engines can have different calibrations. If you are comparing usable truck capability rather than engine output alone, check the Ford Super Duty towing capacity by year for the correct configuration.
Ford 7.3 Godzilla Torque Specs by Engine Component
The following reference separates a factory service-manual example from Ford Performance instructions. The 2020 rows come from the 7.3L service procedure for 2020 F-250–F-550 Super Duty vehicles; they have not been independently established as universal 2020–2026 values. Ford’s procedures also depend on fastener condition, preparation, replacement requirements, and the illustrated tightening sequence.
| Component | Documented Tightening Specification | Application and Important Detail |
|---|---|---|
| Spark plugs | 133 lb-in (15 Nm) | Ford 7.3L engine family; also stated in 2020 service material |
| Ignition coil bolts | 62 lb-in (7 Nm), then 45° | Ford Performance M-12029-SD73 instructions |
| Engine oil drain plug | 19 lb-ft (26 Nm) | 2020 7.3L service procedure |
| Valve cover bolts | 89 lb-in (10 Nm) | 2020 7.3L service procedure, both banks |
| Rocker arm bolts | 177 lb-in (20 Nm), then 30° | 2020 procedure; tightening sequence required |
| Fuel rail bolts | 89 lb-in (10 Nm), then 90° | 2020 procedure; use specified installation sequence |
| Intake manifold bolts | 89 lb-in (10 Nm), then 45° | 2020 intake-manifold installation procedure |
| Exhaust manifold nuts | 18 lb-ft (24 Nm), then 24 lb-ft (32 Nm), then 24 lb-ft (32 Nm) | 2020 assembly procedure; tightening sequence required |
| Timing chain guide bolts | 89 lb-in (10 Nm), then 45° | 2020 procedure |
| Timing chain tensioner bolts | 89 lb-in (10 Nm), then 45° | 2020 procedure |
| Oil pump bolts | 89 lb-in (10 Nm), then 45° | 2020 assembly procedure |
The 2020 figures are documented in the Ford 7.3L engine service information reproduced as section 303-01C. This is a third-party-hosted copy of Ford-attributed service content, not an official Ford-hosted manual. Obtain the applicable current Ford Workshop Manual before performing the repair.
Read every staged value from left to right. For instance, a bolt specified at 89 lb-in followed by 45° does not have a final torque of 89 lb-ft. The angular turn is part of the installation requirement.
How To Tighten Ford 7.3 Godzilla Head Bolts
Ford Performance publishes a five-stage cylinder-head fastening procedure for its M-6049-SD73A right cylinder head and M-6050-SD73A left cylinder head. The instructions specify new bolts with lightly oiled threads and separate tightening-sequence diagrams for each bank.
| Tightening Stage | Ford Performance Head Bolt Specification |
|---|---|
| Stage 1 | 22 lb-ft (30 Nm) |
| Stage 2 | 44 lb-ft (60 Nm) |
| Stage 3 | 74 lb-ft (100 Nm) |
| Stage 4 | Turn each specified bolt an additional 90° |
| Stage 5 | Turn each specified bolt an additional 90° |
These stages appear in the original Ford Performance 7.3L cylinder-head instructions. They are not permission to apply the same sequence blindly to every aftermarket head, head stud kit, or unidentified replacement bolt.
Use the original drawing for the left-hand or right-hand head and complete each pass in the shown order. Do not invent a left-to-right bolt order from the written stages. The 2020 Ford engine assembly instructions likewise identify factory cylinder-head bolts as torque-to-yield fasteners that must not be reused.
If your engine has aftermarket studs, use the stud manufacturer’s supplied tightening specification and lubricant instructions. Stud torque values cannot be substituted for Ford’s factory head-bolt procedure.
Which Godzilla Maintenance Fasteners Need Different Torque
The most accessible Godzilla fasteners are not necessarily the least sensitive to incorrect torque. Spark plug threads are in the cylinder head, while the drain plug seals the oil pan. Each needs its own specified setting.
Spark Plugs and Ignition Coils
The Ford 7.3L spark plug specification is 133 lb-in (15 Nm). This equals approximately 11.1 lb-ft, but using an inch-pound wrench makes it easier to set the value accurately. Ford Performance confirms that figure in its 7.3L ignition coil and wire-set instructions.
The same instructions specify 62 lb-in (7 Nm), followed by 45°, for the kit’s ignition coil bolts. Start plugs by hand to avoid cross-threading, use the specified plug and thread condition, and do not treat a generic online 15 lb-ft spark plug entry as interchangeable with Ford’s 15 Nm instruction.
Ignition service can also be part of diagnosing a misfire. If the engine ticks, runs roughly, or stores cylinder-misfire codes, consult the Ford 7.3 Godzilla problems and diagnosis guide rather than assuming tighter spark plugs will resolve the symptom.
Oil Drain Plug and Valve Covers
The 2020 7.3L service oil-change procedure lists 19 lb-ft (26 Nm) for the engine oil drain plug. This is materially different from a third-party listing of 26 lb-ft. Identify the exact plug and oil pan before using the specification on another year or application.
For valve cover bolts, the 2020 Ford assembly procedure lists 89 lb-in (10 Nm). That is only about 7.4 lb-ft. More force is not a substitute for clean mating surfaces, a serviceable gasket, and the specified installation process.
For a separate discussion of oil quantity and viscosity, see the Ford 7.3 gas oil capacity and specifications. Engine oil service information belongs there; this page stays focused on tightening requirements.

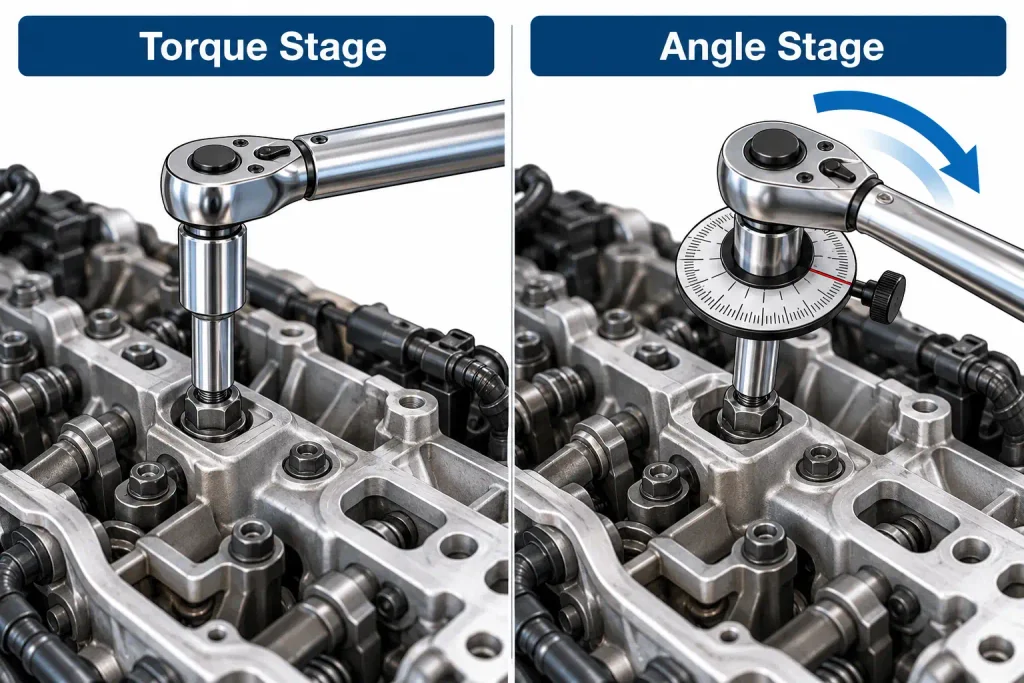

How Torque to Yield Bolts Work on the Godzilla
A torque-to-yield fastener is tightened by a controlled procedure intended to produce the required clamping load. The prescribed torque stages seat the joint, while specified angular rotations control the subsequent tightening movement.
That is why 90° means a quarter turn, not an extra 90 lb-ft. A torque angle gauge tracks the turn after the initial wrench setting. Different fasteners can have different stages, turning directions, lubrication requirements, and reuse rules.
For example, the 2020 Ford 7.3L engine assembly procedure gives distinct crankshaft and connecting-rod instructions:
| Internal Engine Fastener | 2020 Factory Assembly Stages |
|---|---|
| Connecting rod bolts | 177 lb-in (20 Nm), 28 lb-ft (38 Nm), then 105° |
| Outer vertical main cap fasteners | 26 lb-ft (35 Nm), 37 lb-ft (50 Nm), then 90° |
| Inner vertical main cap fasteners | 26 lb-ft (35 Nm), 43 lb-ft (58 Nm), then 150° |
| Cross-mounted main cap fasteners | 177 lb-in (20 Nm), 26 lb-ft (35 Nm), then 60° |
| Crankshaft pulley bolt | 66 lb-ft (90 Nm), loosen 360°, 129 lb-ft (175 Nm), then 150° |
These are service-manual reference examples, not a complete rebuild procedure. The workshop illustrations determine fastener positions and order. The 2020 procedure calls for new connecting-rod bolts and a new crankshaft pulley bolt. Main-bearing hardware, clearance checks, thread treatment, and the full service sequence must be checked in the applicable manual before assembly.
Why Ford 7.3 Torque Specifications Sometimes Conflict
Some online torque databases give one value for a component even where Ford’s procedure requires several stages. A single number can represent an early stage, a different fastener, or a completely different application.
One published third-party listing gives 15 lb-ft (20 Nm) for Godzilla spark plugs. Ford Performance instead states 133 lb-in (15 Nm). Those are not equivalent. Likewise, 26 lb-ft for the oil drain plug is not the same as Ford’s documented 26 Nm, which is approximately 19 lb-ft.
Head bolts and main caps create an even bigger problem for abbreviated charts. Recording only a first-stage torque and omitting subsequent angle passes removes the actual installation procedure.
Use an official Ford service instruction for the correct year and application as the controlling reference. Treat third-party numbers as leads to verify, not settings to apply without checking.
How To Verify Factory Torque Specs for Your Truck
- Identify the application. Record the model year, F-250 or F-350 configuration, engine and VIN. A commercial chassis-cab calibration may differ from a pickup.
- Identify the component and hardware. Distinguish factory bolts from aftermarket studs or replacement fasteners. Do not assume a generic component name identifies the exact hardware.
- Open the matching Ford Workshop Manual. Ford points technicians to Motorcraft Service for factory shop-manual access. Check the full removal-and-installation procedure, not only a torque summary.
- Read the complete instruction. Confirm units, tightening order, number of passes, angular turns, lubricant, fastener replacement rules, and any required special tool.
If a major internal-engine fastener’s current specification cannot be established, stop and obtain the correct service document before proceeding.
What To Check Before Tightening Godzilla Engine Bolts
Ford 7.3 Godzilla torque specs are not one universal list of pound-foot numbers. The Super Duty pickup’s 475 or 485 lb-ft peak engine output has no bearing on how you tighten its fasteners. For routine work, the Ford-published 133 lb-in (15 Nm) spark plug setting is a useful example of why the correct unit matters.
For engine assembly, each bolt group can have its own staged procedure. Cylinder-head fasteners, connecting rods, main caps, and the crankshaft pulley cannot safely be installed from isolated torque values alone.
Use this reference to identify the right specification, then match your truck and hardware to the complete Ford service procedure before turning the wrench.
Ford 7.3 Godzilla Torque Specs FAQs
What Is the Ford 7.3 Godzilla Engine Torque?
The 2020–2022 Super Duty pickup version was rated at 475 lb-ft, while the 2023–2026 pickup version is rated at 485 lb-ft. Both are rated at 430 horsepower. Commercial applications may have different ratings.
What Is the Head Bolt Torque for a 7.3 Godzilla?
For Ford Performance cylinder heads M-6049-SD73A and M-6050-SD73A, the published stages are 22 lb-ft, 44 lb-ft, 74 lb-ft, then 90° and another 90°. New bolts and the appropriate left- or right-bank tightening diagram are required. Other hardware must follow its own instructions.
What Is the Spark Plug Torque for a 7.3 Godzilla?
Ford Performance specifies 133 lb-in (15 Nm) for the 7.3L engine family, approximately 11.1 lb-ft. Use an appropriate torque wrench and the correct spark plug. Do not confuse 15 Nm with 15 lb-ft.
Are 2020 and 2026 Godzilla Torque Specs the Same?
Not necessarily. The rated pickup engine output changed from 475 to 485 lb-ft, and the 2020 repair procedures shown above have not been established as universal specifications for every later production engine. Verify individual bolt procedures using the manual for your model year and hardware.
Where Can I Find Official Ford 7.3 Torque Specifications?
The appropriate Ford Workshop Manual is the controlling resource for factory service work. Ford Performance also publishes part-specific instruction sheets for certain 7.3L components. Match the document to your engine application and part number before using its torque figures.
