How to Reset Ford Bronco Compass: Guide 2026, Models, Years
How to reset a Ford Bronco compass depends on the model year and the compass system installed. A 1995 Bronco with the optional overhead electronic compass uses a documented MODE, VAR, and CAL calibration procedure.
A 2021 or newer Bronco uses a digital instrument-cluster compass and should not automatically be given that older procedure.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free As an Amazon Associate I earn from qualifying purchases.Ford’s 2021 through 2025 Bronco manuals identify the compass as part of the instrument cluster. The modern system is different from the overhead-console compass Ford documented on the 1995 Bronco Eddie Bauer.
Start by identifying which system your Bronco has. That determines whether you need a true compass calibration or should troubleshoot the instrument cluster, navigation, or SYNC system instead.
Which Ford Bronco Compass System Do You Have
Recommended Best Deal Products
The controls in front of you are the easiest way to identify the correct reset path.
| Bronco Type | Compass Location | Correct Starting Point |
|---|---|---|
| 1995 Bronco Eddie Bauer with overhead console | Overhead compass and temperature display | MODE, VAR, and CAL procedure |
| 2021 to 2025 Bronco | Digital instrument cluster | Diagnose digital compass or display issue |
| 2026 Bronco | Digital instrument cluster and steering-wheel menu controls | Use current owner manual and digital-system troubleshooting |
| Bronco Sport | Separate Ford platform | Use Bronco Sport specific instructions |
Ford’s 1995 Bronco owner guide lists the compass and temperature display as part of the Eddie Bauer overhead console. The display uses a physical MODE button and supports two compass adjustments called Zone and Calibration.
The 2021, 2022, 2023, 2024, and 2025 Bronco manuals instead show the compass in the digital instrument cluster. Ford’s 2026 manual also uses steering-wheel controls to navigate instrument-cluster functions.
That difference matters. Do not hold buttons or drive calibration circles on a modern Bronco simply because the procedure worked on an older model.

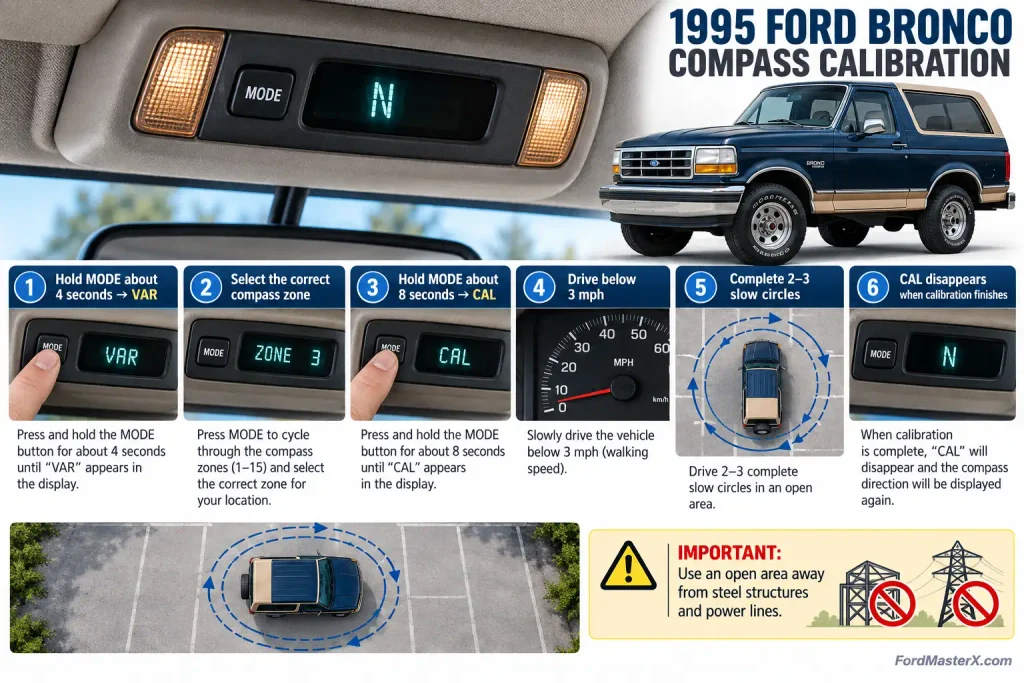

How to Reset a 1995 Ford Bronco Compass
Ford documents two adjustments for the 1995 Bronco electronic compass: Zone adjustment and Calibration adjustment. Set the correct zone first, then calibrate the compass if the direction remains inaccurate.
Set the Correct Compass Zone
The zone setting compensates for geographic variation in the earth’s magnetic field.
- Determine your location on the 15-zone compass map in the owner’s guide.
- Press and hold the MODE button.
- Continue holding it until VAR appears on the display.
- Ford specifies that VAR should appear after approximately 4 seconds.
- Release the MODE button.
- The currently stored zone number appears.
- Press MODE repeatedly until your correct zone number displays.
- After Zone 15, the system cycles back to Zone 1.
- Stop pressing MODE when the correct zone appears.
- Wait approximately three seconds for the display to return to normal operation.
Ford’s manual states that the display flashes its segments before returning to normal once the zone change is stored.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days As an Amazon Associate I earn from qualifying purchases.If the direction is now correct, further calibration may not be necessary. If it still points incorrectly, continue with the CAL procedure.
Enter Ford Bronco Compass Calibration Mode
Perform the calibration away from objects that could interfere with the magnetic compass.
Ford specifically recommends an open area away from steel structures and high-voltage lines. An open parking lot is a suitable location.
Then:
- Start the Bronco and remain in the open area.
- Press and hold the MODE button.
- Keep holding MODE until CAL appears.
- Ford specifies approximately 8 seconds.
- Release the MODE button when CAL is displayed.
The 1995 guide states that calibration cannot be performed unless the display actually shows CAL.
Drive Two or Three Slow Circles
Once CAL appears, begin driving slowly in a full 360-degree circle.
Keep vehicle speed below 3 mph or 5 km/h. Continue making complete circles until CAL disappears from the display.
Ford says the calibration normally finishes within two to three complete circles. Once CAL disappears, the system returns to the normal compass display.
If it still points in the wrong direction, verify the zone setting and move farther away from magnetic or metallic interference before repeating the procedure.
How to Check a 2021 to 2026 Bronco Compass
Recommended Best Deal Products
A 2021 or newer full-size Bronco should not automatically be calibrated with the older MODE, VAR, and CAL method.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual Plans As an Amazon Associate I earn from qualifying purchases.Ford’s 2021 through 2025 owner manuals show the compass as part of the digital instrument cluster rather than an overhead electronic compass. The reviewed modern Bronco manual pages do not establish the 1995 MODE-button procedure as a current-generation calibration method.
For a modern Bronco, identify exactly what is wrong before resetting anything.
Check Where the Wrong Direction Appears
First determine whether the incorrect heading appears in:
- the instrument-cluster compass
- Ford’s built-in navigation
- the SYNC center display
- Apple CarPlay
- Android Auto
This distinction can save you from resetting the wrong system.
For example, if the instrument-cluster compass reads correctly but Google Maps through Android Auto points incorrectly, the problem is more likely connected to the phone, app, or positioning data than a Bronco compass calibration.
If both the vehicle compass and built-in navigation display incorrect heading information, continue with vehicle-side troubleshooting.
Restart the Affected Digital System
If the heading is frozen rather than simply inaccurate, restart the affected display system before performing a factory reset.
A temporary software freeze can affect navigation or display information without indicating a failed compass sensor.
Do not treat a SYNC restart as a magnetic compass calibration. They solve different types of problems.
If the entire infotainment system is freezing, restarting, or behaving incorrectly, our Ford SYNC master reset guide explains the broader infotainment reset process.
A master reset should not be your first response to a compass-only problem because it returns SYNC settings to factory defaults and can remove stored personal information. Ford describes master or factory reset functions as methods that erase stored infotainment data and settings.
What to Check After Disconnecting the Bronco Battery
Battery work can affect several learned vehicle settings, but Ford does not describe the post-battery steering procedure as a compass reset.
For the 2022 Bronco, Ford says disconnecting or replacing the 12V battery requires several features to be reset or relearned, including:
- window bounce-back
- clock settings
- preset radio stations
- steering angle sensor
Ford’s procedure for recalibrating the steering angle sensor is to drive above 30 mph or 50 km/h for at least 1.2 miles or 2 km, including at least 30 seconds driving straight ahead.
That is a steering angle sensor calibration, not the old Bronco compass CAL procedure.
If your compass became incorrect immediately after battery replacement, drive the Bronco normally after completing Ford’s required relearn steps and recheck the heading before performing more aggressive resets.
Why Does a Ford Bronco Compass Read Wrong
An inaccurate compass does not always mean a component has failed.
Ford’s classic electronic-compass documentation specifically identifies environmental and vehicle-mounted objects that can affect compass accuracy.
Common interference sources include:
- large buildings
- bridges
- high-voltage power lines
- powerful antennas
- magnetic objects inside the Bronco
- metallic objects installed on or around the vehicle
If the compass starts reading incorrectly after installing accessories, remove or move the new equipment temporarily and check the compass again.
Magnetic phone mounts deserve particular attention because they introduce a strong magnet inside the cabin. Aftermarket electronics or metal equipment may also deserve inspection if the problem began immediately after installation.
For an older Bronco, move to an open area before performing CAL again. For a modern Bronco, first determine whether the error is coming from the cluster, built-in navigation, or a connected phone.
Should You Reset SYNC for a Bronco Compass Problem
A SYNC reset and a compass calibration are not the same procedure.
Use a SYNC reset when the problem involves broader infotainment behavior such as:
- frozen center display
- navigation software not responding
- repeated system crashes
- menus that fail to load
- multiple SYNC functions malfunctioning together
Do not factory reset SYNC simply because the compass direction is a few degrees off.
Ford warns that a master or factory reset returns the infotainment system to factory settings and removes stored personal information such as paired devices and other user data.
If the display problem appears software-related, checking for current software is a better intermediate step. FordMasterX has a separate Ford SYNC USB update guide for systems that support USB updating.
Software troubleshooting makes sense when navigation or SYNC is malfunctioning. It should not be presented as a substitute for the documented VAR and CAL calibration used by the older overhead compass.
When Does a Bronco Compass Need Professional Diagnosis
Repeated resets are unlikely to help when the heading never responds correctly to vehicle movement.
Further diagnosis makes sense when:
- the compass direction remains permanently fixed
- direction changes are obviously opposite to vehicle movement
- built-in navigation position and heading are both incorrect
- the error immediately returns after the correct procedure
- multiple instrument-cluster functions fail at the same time
- the problem began after module replacement or electrical repair
- the modern Bronco displays warnings or diagnostic faults along with the compass issue
For a 1995 overhead compass, first verify the correct zone and repeat the documented calibration in an interference-free area.
For a 2021 or newer Bronco, use the VIN-specific Ford owner’s manual and diagnostic information before assuming the old calibration procedure applies.
Which Ford Bronco Compass Reset Should You Use
Use this table to choose the correct first step.
| Your Situation | What to Do First | What to Avoid |
|---|---|---|
| 1995 Eddie Bauer overhead compass reads wrong | Verify VAR zone | Factory resetting unrelated systems |
| 1995 compass displays CAL | Drive slowly in complete circles | Driving above 3 mph |
| Wrong geographic zone stored | Select correct Zone 1 through 15 | Calibrating before correcting the zone |
| 2021 to 2025 cluster compass is wrong | Identify cluster, navigation, or SYNC fault | Using 1995 MODE instructions |
| 2026 Bronco has a display issue | Check VIN-specific current manual and digital system | Assuming classic procedure applies |
| Navigation or SYNC is frozen | Restart or troubleshoot SYNC | Calling it compass calibration |
| Reading changes near magnetic equipment | Remove interference and retest | Repeated factory resets |
| Compass remains permanently incorrect | Diagnose the system | Repeating resets indefinitely |
The safest rule is simple: use the calibration procedure that Ford documents for your specific compass system.
How to Keep Your Bronco Compass Reading Correctly
Learning how to reset a Ford Bronco compass starts with identifying the correct generation.
For the documented 1995 Eddie Bauer overhead compass, set the correct VAR zone first. If necessary, enter CAL mode and drive below 3 mph in two or three complete circles until CAL disappears.
For a modern Bronco, do not copy that procedure without model-specific documentation. Determine whether the incorrect heading comes from the instrument cluster, built-in navigation, SYNC, or a connected smartphone.
That approach fixes the correct system instead of resetting unrelated settings.
5 Common Ford Bronco Compass Reset Questions
How Do I Calibrate a 1995 Ford Bronco Compass
Hold the MODE button for approximately eight seconds until CAL appears. Then drive below 3 mph in complete circles until CAL disappears, which Ford says normally takes two or three circles. Set the correct VAR compass zone before calibration if necessary.
What Does CAL Mean on a Ford Bronco Compass
CAL means the older electronic compass is in calibration mode. On the documented 1995 system, the Bronco must display CAL before you begin driving slow circles to calibrate the compass.
What Does VAR Mean on a Ford Bronco Compass
VAR is the zone-adjustment mode used by the documented 1995 Bronco electronic compass. Hold MODE for about four seconds until VAR appears, then select the correct geographic zone from the 15-zone system.
Why Is My Ford Bronco Compass Showing the Wrong Direction
Magnetic interference, metallic objects, large structures, power lines, or an incorrect compass zone can affect older electronic compass readings. On a modern Bronco, also determine whether the incorrect direction comes from the vehicle cluster, navigation system, or a connected smartphone.
Will a SYNC Master Reset Fix the Bronco Compass
Not necessarily. A SYNC master reset is designed to restore infotainment settings and erase stored user data, not perform the documented magnetic compass calibration used by the older Bronco. Use it only when the problem involves SYNC or navigation behavior rather than a compass-only error.
