how to reset bronco window: Calibrated step-by-step
Does your Ford Bronco’s “express up” feature feel broken, or does the window stop halfway for no reason? After disconnecting your battery or replacing a door component, the window module loses its “home” position, causing it to default to a safe, limited travel mode. In this guide, we show you exactly how to reset your Bronco window, re-initialize the anti-pinch sensors, and restore full factory operation in under five minutes.
Why Your Bronco Windows Lose Calibration
📤 Share Image
How Power Loss Triggers Window Memory Loss
Modern Ford Bronco vehicles utilize intelligent door modules that track the position of the window glass relative to the top of the frame. This positioning is not static; it is stored in volatile memory within the Door Module. When you disconnect the battery for maintenance, install aftermarket lighting accessories, or replace a faulty motor, the memory is wiped. Without these stored values, the module defaults to a “safe mode,” which typically disables the “express up” feature and causes the window to drop slightly to prevent damage to the door seal.
Distinguishing Software Glitches from Regulator Failure
It is critical to understand the difference between a software-driven “reset” requirement and a mechanical failure. If your window exhibits a grinding noise, hangs up at a specific point, or moves unevenly, this usually indicates a failure of the window regulator, cable tensioner, or a physical obstruction. A software reset will not fix a mechanical snap or a burnt-out motor. The calibration procedure is strictly designed to teach the module the upper and lower limits of the glass travel, ensuring the anti-pinch sensor—which monitors current draw to detect obstructions—functions correctly.
Industry Data
Required after Battery Disconnect
Average Calibration Time

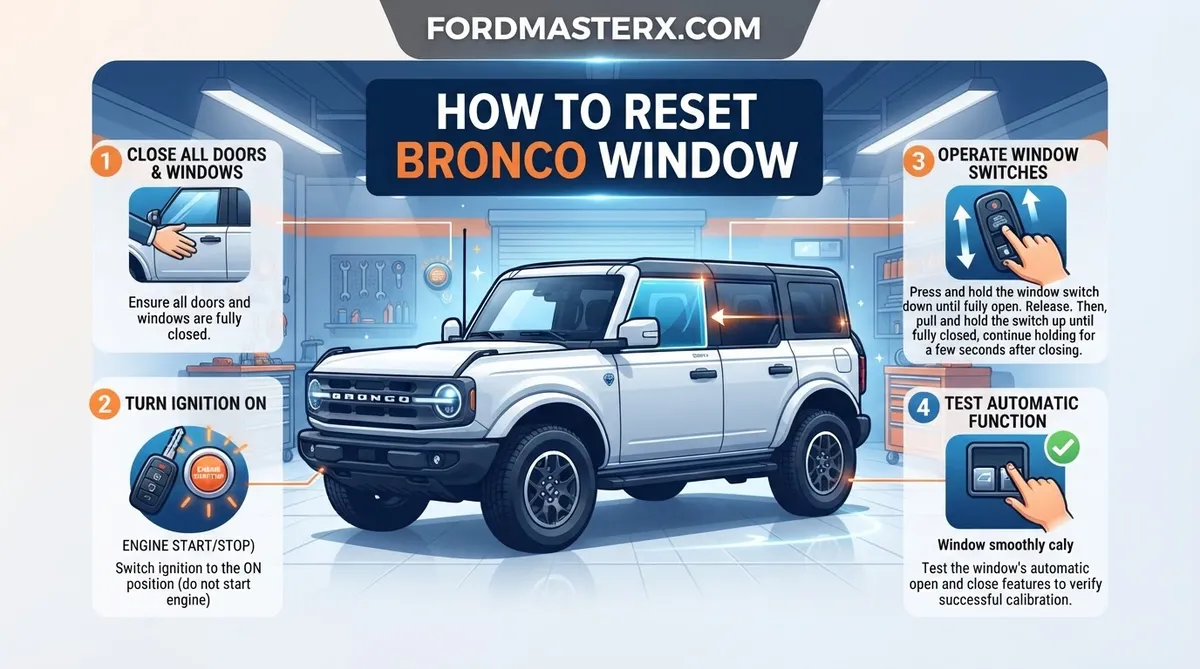

How To Reset Bronco Window Functions: Step-by-Step
Pre-Calibration Cleaning for Door Seals
Before you begin the initialization, inspect the window channel and the top seal. Dirt, ice, or debris creates friction. If the module senses resistance during the calibration phase, it may set the “top” position too low, causing the window to bounce back prematurely. Wipe the seals with a clean cloth to ensure a fresh start.
📋

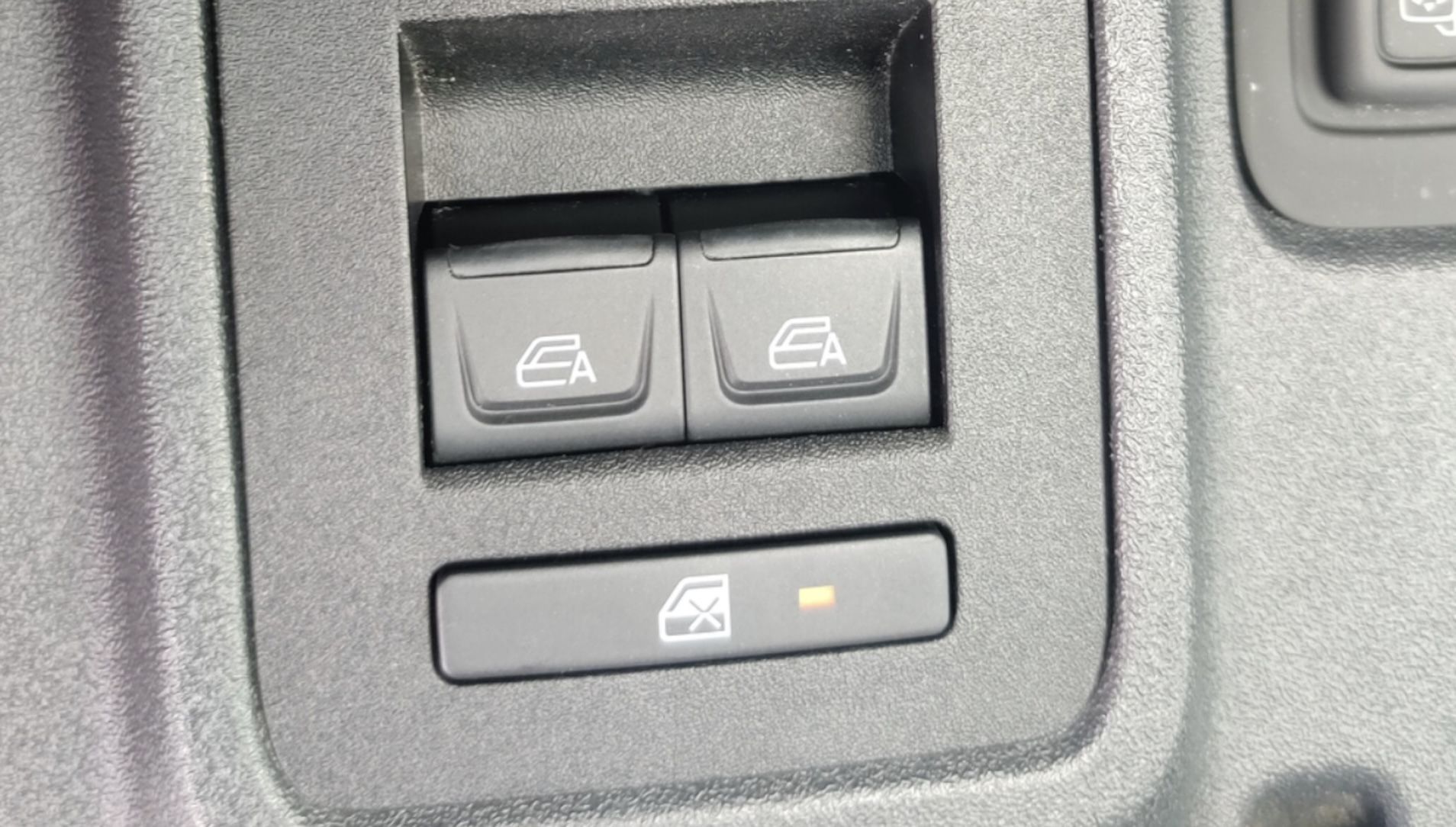

The Master Switch Initialization Sequence
Ensure the ignition is set to the ‘On’ or ‘Accessory’ position so the window motors are energized.
Lower the window completely and continue holding the switch in the ‘down’ position for 3 seconds after the window has reached the bottom.
Pull the switch up and close the window completely. Continue to hold the switch in the ‘up’ position for 3 seconds after the window is fully closed.
Verifying the Anti-Pinch Calibration
Test the system by using the one-touch “express up” feature. If the window goes up and retracts slightly on its own, the calibration was unsuccessful. Repeat the sequence, ensuring you do not let go of the switch until the full duration has passed. The module requires this hold time to “record” the current limit required to seal the glass properly without triggering the anti-pinch safety mechanism.
Troubleshooting Persistent Bronco Window Issues
If your windows continue to bounce back, don’t rush to replace the regulator. Persistent issues usually stem from a few specific culprits:
- Physical Track Obstructions: Check the vertical window tracks for loose trim, dry rubber, or debris. Use a silicone spray lubricant to reduce drag.
- False Anti-Pinch Errors: If the glass is not seated correctly, the motor draws excess current. This can be misidentified as a human hand, forcing a reverse. Ensure the glass is properly aligned in the track.
- System Reboot: If recalibration fails, a “hard reset” of the door module can be performed by disconnecting the battery for 15 minutes. This clears all temporary cache from the vehicle’s electrical system, allowing a clean attempt at initialization.
- Professional Diagnosis: If you hear a grinding, clicking, or snapping sound, there is likely a mechanical failure of the regulator cable. In this case, no amount of software resets will restore operation.
Never force the window up manually while the motor is attempting to move. This can cause the internal gears of the window regulator to strip, turning a simple software calibration into an expensive hardware repair.
Bronco Window Maintenance and Care Best Practices
Preventing Frozen Window Seals
The Bronco’s frameless door glass design is highly susceptible to ice accumulation in cold climates. When the glass freezes to the rubber seal, the motor struggles to initiate, which can lead to a “lost calibration” error as the module assumes it has hit an obstruction. Applying a high-quality silicone lubricant to the weatherstripping every autumn prevents the seal from bonding to the glass, protecting both your motor and your door module’s logic.
Protecting the Door Module from Moisture
Moisture intrusion is the silent killer of electronic control units. While the Bronco is built for the elements, consistent exposure to water inside the door panel can cause erratic behavior in the door module. Periodically inspecting the water shield inside the door panel and ensuring the drain holes at the bottom of the door are clear will ensure your electronic components remain dry and fully functional.
✅ Why It Works
- Synchronizes the motor’s position sensor.
- Sets the “Home” memory for auto-up.
- Calibrates the safety anti-pinch force.
❌ What It Won’t Fix
- Broken regulator cables.
- Burned out motor windings.
- Physical track blockages.
To summarize, the Bronco reset procedure is a software calibration, not a mechanical repair. Ensure the track is clean before beginning to avoid false-positive anti-pinch stops, and remember that most window issues in late-model Broncos are solved by this simple up-switch hold sequence. If these steps fail to restore your window, check your vehicle warranty for motor or regulator coverage, or consult your local Ford technician for a deeper diagnostic scan.
How to Reset Bronco Window: Frequently Asked Questions
Why does my Bronco window go halfway down and stop?
This is typically a symptom of the anti-pinch safety feature activating incorrectly. When the window motor detects resistance—often caused by a misaligned track, dirty seals, or a lost calibration setting—it automatically reverses direction to prevent trapping an object. Resetting the window’s travel limits usually resolves the ‘false positive’ sensor reading that causes this stop-and-reverse behavior.
Do I need a mechanic to reset my windows?
No. Resetting the Bronco window is a non-invasive procedure designed to be performed by the owner. It involves no tools and requires only the window switch itself. As long as the window motor and regulator are physically intact, you can perform this reset at home in less than three minutes, saving you the diagnostic fees typically charged at service centers.
Will a window reset fix my anti-pinch error?
Yes, a window reset is the standard professional solution for an anti-pinch error. By completing the full up-and-down cycle, you clear the erroneous data in the memory module. This allows the BCM to re-establish the baseline for where the window seal begins and ends, effectively recalibrating the force-detection threshold back to its factory intended operating parameters.
Does disconnecting the battery require a window reset?
Yes, it often does. Disconnecting the battery deprives the door control modules of constant power, which can lead to the loss of stored positional memory. If you find your express-up or express-down features are unresponsive after battery service, the system has reverted to a default state and requires the manual reset procedure to regain full functionality.
Can ice or debris block the window reset process?
Absolutely. During a reset, the motor measures physical resistance. If there is ice, dirt, or heavy debris in the window channel, the system will read this as an obstruction and fail to complete the calibration. Ensure the window tracks are clean, free of debris, and that there is no frost in the seals before attempting the reset process for best results.
