Ford Ranger Dashboard Symbols and Meanings by Color and Year 2026
Ford Ranger dashboard symbols and meanings tell you whether your truck has a system fault, needs immediate attention, or has a driving feature switched on. An oil-can warning with the engine running calls for a different response than a green cruise-control indicator or a steady 4H light.
Match the icon, color, and message to your model year, then use the guide to decide what to do. Not every Ranger has every symbol.
FordMasterX • Quick reference
Ford Ranger Dashboard Warning Guide
20 dashboard symbols explained by appearance and the next action to take. Find your symbol, then check your model-year manual.
Colored cards show action priority, not the exact color of each dashboard lamp. Symbol artwork and features vary by model year and trim.
Urgent or safety-related warnings
Oil Pressure
Oil-can outline. Stop safely; switch the engine off.
Coolant Temperature
Thermometer over waves. Stop safely; shut the engine off.
Brake Warning
BRAKE or circled exclamation. Release parking brake; if it stays on, get checked.
Charging System
Battery shape. If lit with engine running, arrange prompt inspection.
Faults and reminders to address
Check Engine
Engine outline. Diagnose steady light; flashing needs prompt service.
Wrench
Wrench symbol. Powertrain/4WD fault; check the message.
ABS
ABS letters. Anti-lock fault; have system inspected.
Airbag
Seated person and airbag. Inspect restraint system.
Tire Pressure
Tire outline with !. Check cold tire pressures.
Seatbelt
Belted-person outline. Fasten seatbelt.
Low Fuel
Fuel pump outline. Refuel soon.
Door Ajar
Door-open image or message. Secure doors safely.
Hood Ajar
Hood-open image or message. Stop and secure hood.
Normal indicators and feature status
Traction Control
Skidding-car image. Brief flashes may be normal.
Stability Control Off
Skidding-car OFF. Restore assistance when appropriate.
Auto Start Stop
Circular arrow and A. System status varies.
Four Wheel Drive High
4H lettering. High-range 4WD selected.
Four Wheel Drive Low
4L lettering. Low-range 4WD selected.
Differential Lock
Axle-lock graphic. Lock status on equipped trucks.
High Beam
Headlamp with straight rays. High beams are on.

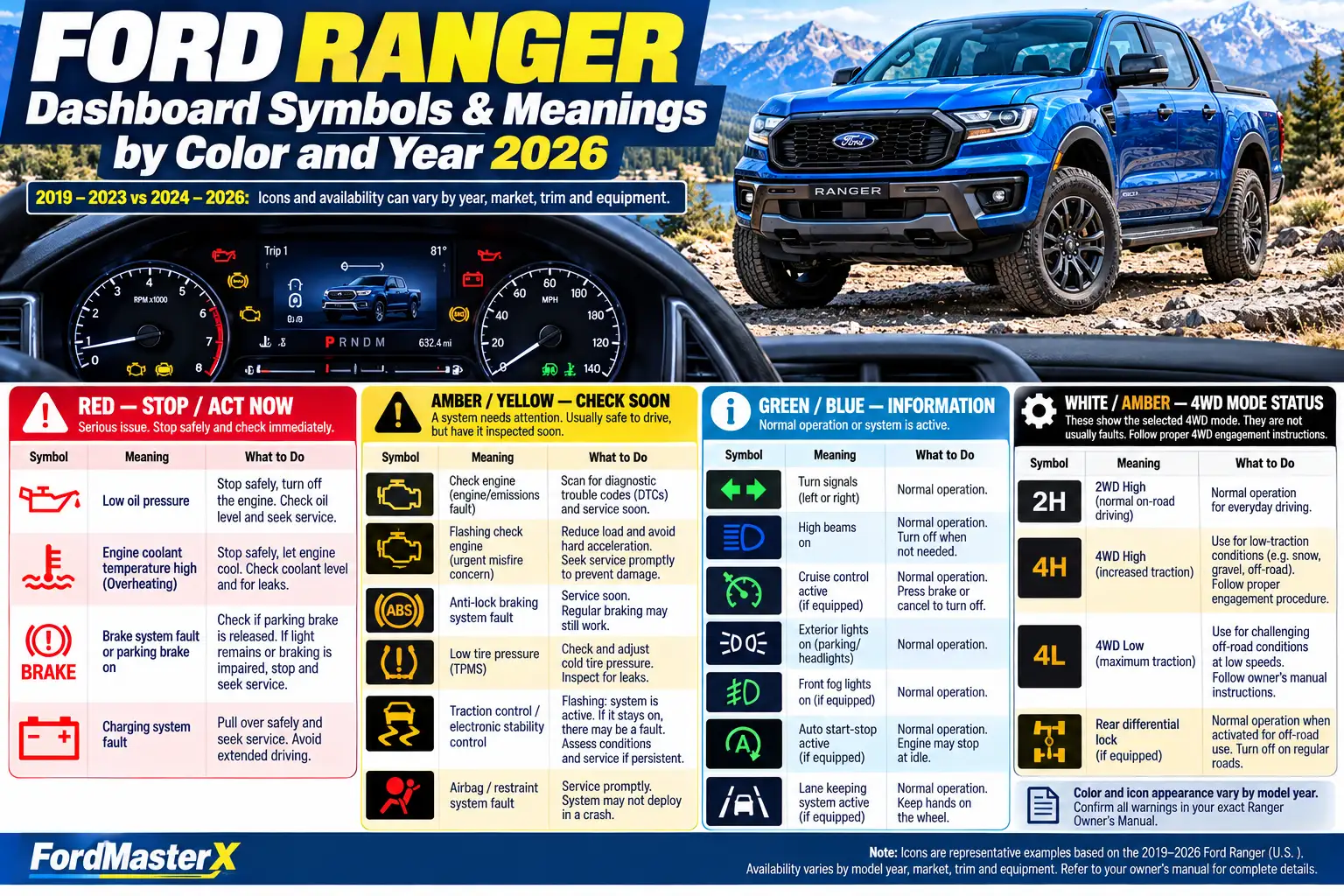

20 Ford Ranger Dashboard Symbols and Meanings Explained
The following chart covers common U.S.-market Ranger indicators. Its descriptions help identify icons without assuming that all Ford clusters use identical artwork. Ford’s 2025 Ranger owner’s manual explicitly notes that not every symbol is available on every truck.
| Dashboard symbol | What it looks like | Meaning | What to do |
|---|---|---|---|
| 1. Check engine | Engine outline | Engine or emissions-control fault | Diagnose soon; treat flashing as urgent. |
| 2. Oil pressure | Oil can with a drop | Engine oil pressure warning | Stop safely and switch the engine off. |
| 3. Coolant temperature | Thermometer over waves | Engine may be overheating | Stop safely and shut the engine off. |
| 4. Battery | Battery with plus and minus | Charging-system problem | Have the charging system checked promptly. |
| 5. Brake | BRAKE or a circle with an exclamation mark | Parking brake engaged or brake-system fault | Release the parking brake; investigate if the light remains on. |
| 6. ABS | ABS within a circle | Anti-lock braking malfunction | Arrange service; normal braking may remain, without ABS. |
| 7. Airbag | Seated person beside an airbag | Restraint-system warning | Have the system inspected promptly. |
| 8. Seatbelt | Person wearing a diagonal belt | Seatbelt not fastened | Buckle the belt correctly. |
| 9. Tire pressure | Horseshoe-shaped tire with ! | Low tire pressure or TPMS fault | Check cold tire pressures; investigate a flashing warning. |
| 10. Wrench | Wrench or spanner | Powertrain or four-wheel-drive fault | Check the message and arrange prompt diagnosis. |
| 11. Low fuel | Fuel-pump outline | Fuel level is low | Refuel soon. |
| 12. Door ajar | Open-door vehicle outline or message | A door may not be fully closed | Stop safely and secure the door. |
| 13. Hood ajar | Open-hood outline or message | Hood may not be latched | Stop and verify the hood is secured. |
| 14. Traction or stability control | Car with curved skid marks | System operating or malfunctioning | Brief flashing can be normal; persistent illumination needs checking. |
| 15. Stability control off | Skidding car with OFF | Stability or traction assistance is switched off | Restore the feature when appropriate. |
| 16. Auto Start Stop | A inside a circular arrow | Automatic engine stopping or system status | Usually normal; read the display for unavailable or OFF status. |
| 17. 4H | The characters 4H | Four-wheel-drive high range selected | Confirm this mode suits the driving surface. |
| 18. 4L | The characters 4L | Four-wheel-drive low range selected | Use only under the low-speed conditions specified by Ford. |
| 19. Differential lock | Axle and locking-differential graphic | Electronic differential lock engaged or selected | Check the system status and traction conditions. |
| 20. High beam | Headlamp with straight outward beams | High-beam headlights on | Dim the lights for other road users. |
Important: Brief startup illumination may be a normal check. Persistent warnings need interpretation; some appear as text messages.
How to Read Warning Light Colors on a Ranger
A warning’s color is a useful first clue, but it is not a complete diagnosis. The exact symbol and the message beside it determine the correct action.
| Color | Usual interpretation | Typical examples |
|---|---|---|
| Red | Serious warning or safety reminder | Oil pressure, brake warning, seatbelt |
| Amber or yellow | Fault, caution, or limited function | Check engine, ABS, low tire pressure |
| Green | Feature activated or operating | Turn signals, cruise-control status |
| Blue | A selected lighting function | High beams |
| White | Feature available or standing by | Some driver-assistance indicators |
A red seatbelt light asks you to buckle up; an oil-pressure light during engine operation means stop and switch off the engine.
Flashing check engine can signal misfire; flashing traction control may signal normal intervention. Identify the symbol first.
What Red Ford Ranger Warning Lights Require Immediate Action
Some warnings indicate a condition that can damage the engine or compromise braking. Ford’s 2019 Ranger owner’s manual provides specific instructions for oil pressure, overheating, and brake warnings.
Engine Oil Pressure Warning
The oil-can symbol warns about oil pressure, not simply the time remaining until your next oil change. If it illuminates while the engine is running, pull over safely and switch off the engine.
Check the oil level safely. Sufficient oil does not rule out a pressure-system fault, so do not continue driving on that assumption.
The distinction between pressure and oil quantity is explained further in our guide to engine oil pressure readings and warning signs.
Engine Coolant Temperature Warning
A thermometer above waves warns that the engine may be overheating. Stop in a safe location and switch off the engine. Allow the engine to cool before attempting the coolant checks described in your manual.
Never open a hot coolant reservoir. If the warning persists, arrange assistance.
Brake System Warning
A BRAKE label or a circle containing an exclamation mark can illuminate when the parking brake is applied. If it stays on after the brake is fully released, Ford identifies a possible braking-system problem.
If braking feels abnormal, stop safely and obtain assistance. An unresolved brake warning can be dangerous.
Battery Charging System Warning
The battery-shaped light indicates a charging-system problem when it remains on with the engine running. It does not, by itself, prove that the battery needs replacing.
Switch off unnecessary electrical loads and arrange inspection. Stop safely if the truck starts losing power.
Which Amber Ranger Warning Lights Need Diagnostic Checks
An amber icon rarely identifies the failed part. Read the display message and assess how the truck runs.
Check Engine and Wrench Warnings
The engine-shaped check-engine light, also called the malfunction indicator lamp, concerns a fault detected by onboard diagnostics. A steady light needs investigation. A flashing light can indicate a misfire capable of damaging the catalytic converter.
For a flashing engine light, avoid hard acceleration or deceleration and seek service promptly. Pull over if the truck runs unsafely.
The wrench has a different meaning. It indicates a non-emissions powertrain or four-wheel-drive fault, not merely that scheduled maintenance is due. Ford’s later Ranger guidance says to reduce speed immediately if this warning flashes while driving.
A detailed explanation of what the Ford wrench light means covers the difference between powertrain alerts and ordinary maintenance reminders.
On a 2025 Ranger, both the wrench and check-engine lamps illuminated together mean stop safely. Ford warns of reduced power or shutdown. Follow its restart instructions and arrange inspection.
ABS and Stability Control Warnings
The ABS symbol indicates an anti-lock braking-system fault when it stays illuminated during driving. Ford says ordinary braking can remain available, but the anti-lock function may not work. Arrange inspection promptly.
A flashing skidding-car icon can show normal intervention. Investigate persistent warnings or an unexpected OFF indication.
If the red brake warning also appears, do not rely on the less serious ABS-only explanation.
Tire Pressure Monitoring Warning
The tire-shaped symbol warns of low pressure or a monitoring-system problem. Check every tire with a reliable gauge and use the pressure listed on your truck’s driver-door or B-pillar label.
A flashing warning can mean a system fault. A spare tire may also affect TPMS. Use the Ford placard pressure, not the sidewall maximum.
What Green Blue and White Ranger Indicators Mean
Not every illuminated symbol means the Ranger needs repair. Some indicators show the selected drivetrain mode, lighting state, or a driver-assistance feature.
Four Wheel Drive Indicators
On equipped Rangers, 2H indicates two-wheel-drive high, 4H indicates four-wheel-drive high, and 4L indicates four-wheel-drive low. A solid mode indicator normally means the requested mode has been achieved.
Some newer equipped Rangers also offer 4A, an automatic four-wheel-drive setting. Ford describes 4H as a mode for suitable low-traction surfaces rather than dry pavement, while 4L provides additional low-speed torque multiplication for demanding off-road conditions.
A flashing 4WD fault message is different from a steady mode indicator.
Driver Assistance System Indicators
Cruise control, adaptive cruise control, lane keeping, and hill descent control can display different icons according to whether they are available, active, switched off, or temporarily unavailable.
Some cruise indicators are white in standby and green when set. OFF may mean disabled, not faulty.
Headlight and Start Stop Indicators
A blue headlamp icon with straight beams identifies high beams. Green arrows usually indicate a turn signal or hazard flashers. Neither is an engine warning.
The circular-arrow A marks Auto Start Stop status. It may show operation, OFF, or unavailability depending on the display.

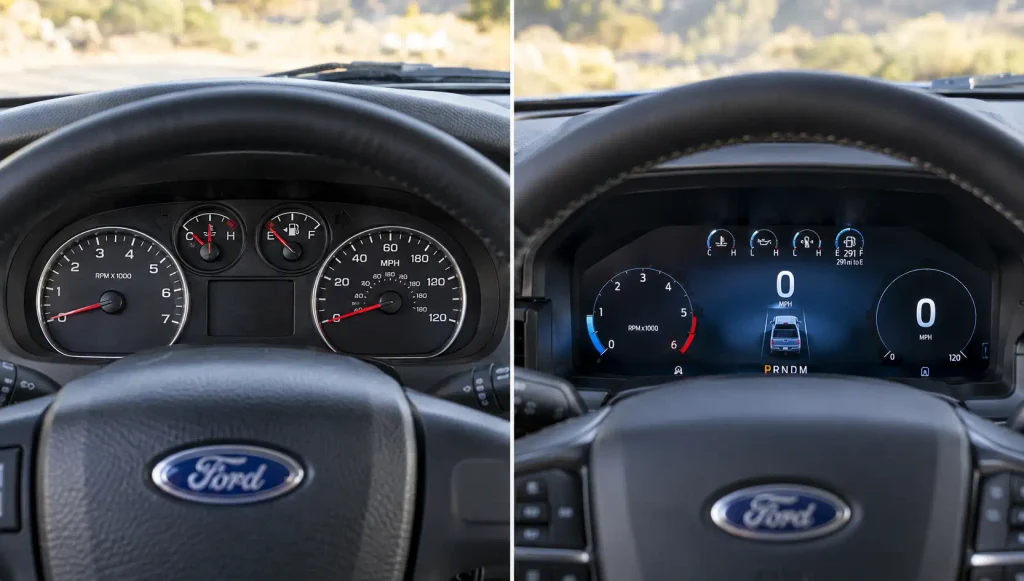

How Ford Ranger Warning Symbols Differ by Model Year
A symbol chart must match the generation of your Ranger. The same basic warning system spans several years, but clusters, options, and messages have changed considerably.
Older Ranger Instrument Clusters
The 2011 U.S. Ranger owner’s guide documents a conventional analog cluster with familiar SERVICE ENGINE SOON, BRAKE, ABS, charging, oil-pressure, airbag, and tire-pressure warnings.
This generation can also display a CHECK FUEL CAP warning. It tells the driver to check whether the fuel cap is installed properly. It should not be confused with a general engine-malfunction icon.
Brief ignition checks are normal; persistent lights need attention.
2019 to 2023 Ranger Displays
The U.S. Ranger that returned for 2019 uses a more modern instrument cluster and information display. It adds or expands features such as a dedicated wrench alert, Auto Start Stop, adaptive cruise indicators, and four-wheel-drive mode information, depending on equipment.
Some alerts appear as information-display messages instead of older-style lamps.
2024 to 2026 Ranger Displays
The redesigned Ranger uses newer digital instrument displays, with layouts that differ by trim and screen configuration. The 2025 manual documents both 8-inch and available 12-inch cluster configurations, along with many feature-dependent symbols.
4A, locking differential, assistance, and off-road icons depend on equipment. Raptor displays differ, too.
The 2025 manual does not establish every 2026 icon’s behavior. Check your exact-year manual.
How to Check a Ranger Warning in 4 Steps
Treat a serious stop-engine or brake warning immediately. For an unfamiliar warning without an urgent stop instruction, work through these four checks.
- Identify the icon and behavior. Note its shape, color, whether it stays on, and whether it flashes. Do not photograph the dashboard while driving.
- Read the information-display message. A short message can identify the affected system more clearly than an icon alone. Follow any instruction to stop safely.
- Confirm the model-year definition. Find the matching guide through Ford’s owner’s-manual lookup. Check the instrument-cluster or warning-lamps section for your year and equipment.
- Take the specified action. Correct simple conditions such as an open door or low tire pressure. Arrange diagnosis for persistent faults, especially when performance or braking changes.
After adjusting tire pressure, the warning may take time to clear. Our guide to resetting a Ford tire pressure warning is useful only after pressure is verified and the appropriate vehicle procedure is confirmed.
Never erase codes merely to hide an unexplained fault.
When Should You Stop Driving a Ford Ranger
Use the specific Ford warning instructions rather than a universal rule for red and amber lights.
| Situation | Safer response |
|---|---|
| Oil pressure light remains on with the engine running | Stop safely; switch off the engine. |
| Engine temperature warning indicates overheating | Stop safely; shut down and let the engine cool. |
| Brake warning remains on with abnormal braking | Stop safely and arrange assistance. |
| Engine light flashes and the truck runs roughly | Avoid stressing the engine; pull over if operation is unsafe and get prompt service. |
| Wrench and check-engine lights illuminate together on a 2025 Ranger | Stop safely and follow Ford’s model-specific instructions. |
| Steady ABS warning with normal braking and no red brake warning | Drive cautiously only as appropriate and arrange prompt inspection. |
| Solid 4H, 4L, or high-beam indicator in its proper operating condition | Confirm the selected setting; it is not necessarily a fault. |
Stop safely if braking, steering, or engine behavior becomes unsafe.
What to Do After Identifying Your Ranger Warning Light
Ford Ranger dashboard symbols and meanings become easier to interpret once you separate system warnings from normal operating indicators. The icon’s shape gives you the starting point. Its color, behavior, and accompanying message help establish how urgently you should respond.
Do not treat an oil-pressure warning like a routine service reminder. Likewise, do not mistake an engaged 4H light or active high beams for a mechanical failure. Older Rangers and newer digital clusters can present different icons for different equipment.
Your next step is straightforward: match the warning to your exact Ranger owner’s manual, follow its instruction, and arrange diagnosis when a genuine fault remains. Identifying the warning correctly is more useful than resetting it without understanding the cause.
5 Ford Ranger Dashboard Warning Light Questions Answered
What Does the Wrench Light Mean on a Ford Ranger?
The wrench light indicates a powertrain or four-wheel-drive fault, not an ordinary oil-change reminder. It may appear alongside reduced performance or a message. Have the truck checked promptly, and follow model-specific stop instructions if the wrench and check-engine lights appear together.
Can I Drive My Ford Ranger With the Check Engine Light On?
A steady light requires diagnosis, although it does not automatically mean you must switch off the engine immediately. A flashing light can indicate misfire and possible catalytic-converter damage. Avoid heavy acceleration and get prompt service, especially if the Ranger runs roughly. Our Ford check engine light guide explains the general diagnostic approach.
Why Do Multiple Warning Lights Appear When I Start My Ranger?
Several warning lamps normally illuminate briefly when you switch on the ignition. This checks that their indicator circuits operate. A light that does not go out after the engine starts, or behaves differently from the owner’s manual, requires further attention.
What Do the 4H and 4L Lights Mean on a Ford Ranger?
A steady 4H indicator identifies four-wheel-drive high range, while 4L identifies low range on equipped Rangers. These indicate selected operating modes, not necessarily faults. Use the correct range for traction and speed conditions, and consult the manual before shifting into or out of 4L.
Are Ford Ranger Dashboard Symbols the Same for Every Model Year?
No. Basic engine, brake, and safety warnings overlap across generations, but the graphics, information displays, available driving modes, and driver-assistance indicators differ. Match your chart to the truck’s year, market, trim, and installed features rather than relying on a generic worldwide Ranger diagram.
