Ford Maverick Dimensions Chart by Year: 2026 Length, Width, Wheelbase & Bed
The Ford Maverick dimensions chart starts with an overall length of 199.7 inches for standard 2022–2024 models and 199.8 inches for standard 2025–2026 models. The wheelbase stays at 121.1 inches, and the width measured at the door handles is 72.6 inches. With the mirrors extended, the truck measures 83.5 inches wide.
Those figures describe the standard truck, not every configuration. Tremor and Lobo versions have different exterior lengths and heights, while hybrid and EcoBoost models can differ in ground clearance and rear legroom. The charts below separate those measurements so you can compare your Maverick with a garage, parking space, or cargo requirement.
FordMasterX / Verified size reference
2022–2026
Overall size at a glance. Standard trucks share the same wheelbase, but newer years and special trims have distinct exterior measurements.
Factory exterior dimensions, in inches. Height is a representative published maximum for the specified standard configuration.
| Model year | Length | Max height* | Wheelbase |
|---|---|---|---|
| 2022 | 199.7″ | 68.7″ | 121.1″ |
| 2023 | 199.7″ | 68.7″ | 121.1″ |
| 2024 | 199.7″ | 68.7″ | 121.1″ |
| 2025 | 199.8″ Updated | 68.8″* | 121.1″ |
| 2026 | 199.8″ Updated | 68.8″* | 121.1″ |
Garage fit tip: use 83.5″ for mirror-open width, not 72.6″. A standard 2026 truck is 199.8″ (16 ft 7.8 in) long. Check your actual door opening and usable parking depth.
These are not the same length or height as the standard Hybrid FWD reference.
Read the numbers correctly: 72.6″ is measured at the door handles; 83.5″ includes the mirrors. *The 2025–2026 table height uses Hybrid FWD; other drivetrains and trims can differ. 2022–2024 values describe the standard truck, excluding Tremor differences.

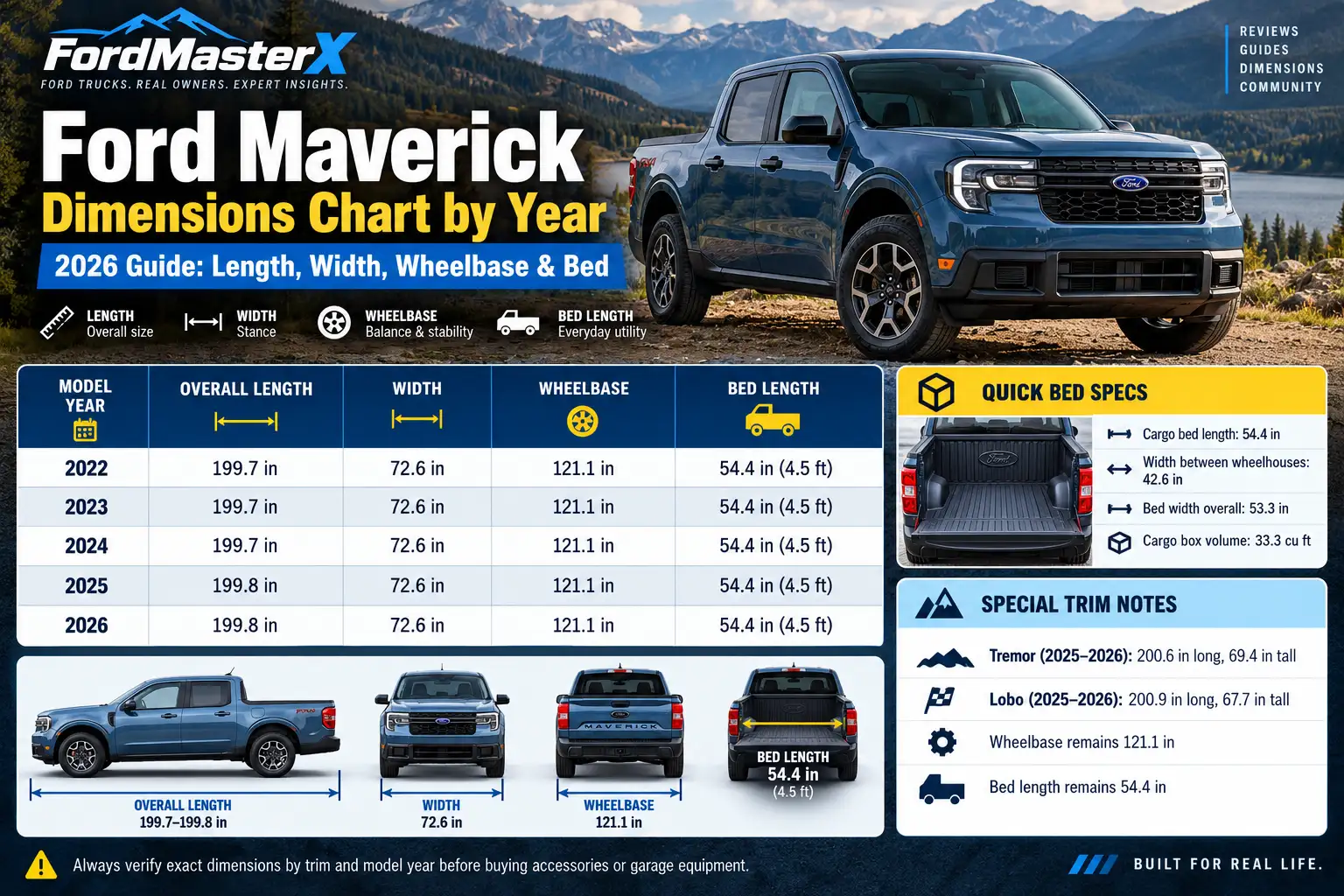

Ford Maverick Dimensions Chart for 2022 to 2026
The following chart covers standard, non-Tremor and non-Lobo configurations. Heights shown are Ford’s published maximum heights for the representative standard configuration, not a promise that every drivetrain or tire package has identical clearance.
| Model Year | Overall Length | Width at Door Handles | Maximum Height | Wheelbase |
|---|---|---|---|---|
| 2022 | 199.7 in | 72.6 in | 68.7 in | 121.1 in |
| 2023 | 199.7 in | 72.6 in | 68.7 in | 121.1 in |
| 2024 | 199.7 in | 72.6 in | 68.7 in | 121.1 in |
| 2025 | 199.8 in | 72.6 in | 68.8 in | 121.1 in |
| 2026 | 199.8 in | 72.6 in | 68.8 in | 121.1 in |
Chart notes: The 2025 and 2026 height entries refer to the Hybrid FWD configuration. The 2022–2024 height entries are standard published maximum-height figures. All values are in inches and describe factory specifications, not modified trucks.
A standard 2026 Maverick is 16 feet 7.8 inches long, or 16.65 feet. Its 72.6-inch door-handle width equals 6.05 feet, but that is not the minimum garage-door opening needed with the mirrors extended. Mirror width is covered separately below.
The change from 199.7 to 199.8 inches is just one-tenth of an inch. For most parking decisions, the bigger differences come from the mirrors, the exact drivetrain, or a special trim rather than the model year alone.
How Ford Maverick Exterior Dimensions Changed by Year
The Maverick’s 121.1-inch wheelbase stayed consistent through 2026, even as Ford introduced new configurations. Its overall length changed slightly for standard trucks in 2025, and several off-road and street-oriented variants use different bumper or suspension arrangements.
2022 to 2024 Standard Body Measurements
Ford’s 2022 Maverick technical specifications list a 199.7-inch overall length, 68.7-inch maximum height, 72.6-inch vehicle width, and 121.1-inch wheelbase. The same standard length and wheelbase appear in published specifications for the 2023 and 2024 model years.
The wheelbase measures the distance between the front and rear axle centers. Overall length, by contrast, includes the bodywork projecting ahead of and behind those axles. Two Mavericks can share a wheelbase while having slightly different bumper-to-bumper lengths.
The original standard body measurements should not be applied to every Tremor. Ford’s 2023 Maverick Tremor specifications, preserved as a copy of its technical sheet, list the Tremor at 200.7 inches long and 69.5 inches high. Its minimum running ground clearance is 9.4 inches, compared with 8.3 inches for the specified standard Hybrid FWD configuration in that document.
2025 and 2026 Updated Measurements
For standard 2025 and 2026 configurations, overall length increased to 199.8 inches. Width at the door handles remained 72.6 inches, while the wheelbase remained 121.1 inches.
One detail matters when reading height figures: a 2026 Hybrid FWD stands 68.8 inches high, while a Hybrid AWD stands 68.3 inches high. The EcoBoost FWD and AWD configurations have their own published heights, too. A chart that assigns 68.8 inches to every 2026 Maverick would be misleading.
Ford’s expanded trim lineup makes a configuration-specific chart especially useful.
How 2025 and 2026 Maverick Trims Differ in Size
The 2025 and 2026 Lobo and Tremor are the clearest examples of why Maverick dimensions depend on configuration. Both use the same 121.1-inch wheelbase as the standard model, but their overall lengths and ride heights differ.
Standard XL XLT and Lariat
Standard XL, XLT, and Lariat models share the basic 199.8-inch length, although published height changes with engine and drive configuration. Ford’s 2025 Maverick and Lobo technical specifications give a Hybrid FWD height of 68.8 inches and an EcoBoost AWD height of 68.5 inches.
For 2026, Ford adds more powertrain combinations to its detailed dimension matrix. The table below gives the factory measurements rather than assigning one height to all trims.
| 2026 Configuration | Length | Maximum Height | Ground Clearance |
|---|---|---|---|
| Hybrid FWD | 199.8 in | 68.8 in | 8.1 in |
| Hybrid AWD | 199.8 in | 68.3 in | 8.1 in |
| EcoBoost FWD | 199.8 in | 68.9 in | 8.0 in |
| EcoBoost AWD | 199.8 in | 68.5 in | 8.3 in |
| Tremor AWD | 200.6 in | 69.4 in | 9.1 in |
| Lobo AWD | 200.9 in | 67.7 in | 7.4 in |
Ford-published 2026 configurations; figures are not an availability list for every XL, XLT, or Lariat equipment combination.
Lobo and Tremor Size Differences
The 2026 Lobo is 200.9 inches long, making it 1.1 inches longer than the standard 199.8-inch truck. Its 67.7-inch maximum height is lower than the Hybrid FWD reference.
The 2026 Tremor measures 200.6 inches long and 69.4 inches high, with 9.1 inches of minimum running ground clearance. Both special models retain the standard 72.6-inch width at the door handles.
If you’re deciding which version to buy rather than checking physical measurements, the existing Ford Maverick trim levels comparison chart covers features and equipment in more detail. The next measurement to consider is room inside the cabin.
What Are the Ford Maverick Interior Dimensions by Row
The 2026 Maverick provides 42.8 inches of front legroom and 40.2 inches of front headroom without a moonroof. Rear legroom varies between the hybrid and EcoBoost configurations, so a single passenger-space number does not describe every truck.
Ford’s 2026 Maverick technical specifications provide the following interior dimensions.
| Interior Measurement | Front Row | Rear Row |
|---|---|---|
| Headroom without moonroof | 40.2 in | 39.6 in |
| Headroom with moonroof | 38.0 in | 39.4 in |
| Legroom | 42.8 in | 35.9 in Hybrid / 36.9 in EcoBoost |
| Shoulder room | 57.3 in | 55.6 in |
| Hip room | 55.4 in | 54.1 in |
2026 factory cabin measurements. Rear shoulder room is measured at the beltline. Front legroom is Ford’s maximum accelerator measurement.
Front Row Headroom and Legroom
Front-seat legroom is the same published 42.8 inches for the hybrid and gasoline versions. However, the available moonroof reduces measured front headroom from 40.2 to 38.0 inches, a 2.2-inch difference.
Earlier model years are not identical in every cabin figure. For example, Ford’s 2022 specification lists 40.3 inches of front headroom without a moonroof, compared with 40.2 inches in its 2026 sheet. Use the right model year if a small amount of head clearance matters.
Rear Row Passenger Space
The 2026 hybrid has 35.9 inches of published rear legroom; the EcoBoost has 36.9 inches. That one-inch difference is useful when evaluating rear-facing child seats or how much space remains behind a taller front passenger.
Ford lists total passenger volume at 100.3 cubic feet for the hybrid and 101.5 cubic feet for the EcoBoost. These are cabin volumes, not cargo-box volumes. If possible, check the seating position and car-seat fit in the actual truck before buying.
How Big Is the Ford Maverick Cargo Bed
The Maverick’s FLEXBED measures 54.4 inches long at the floor, 53.3 inches wide at its broadest exposed point, and 42.6 inches between the wheel wells. The published box depth is 20.3 inches, with a total cargo volume of 33.3 cubic feet.
That 54.4-inch floor length is approximately 4 feet 6.4 inches. The narrower 42.6-inch wheel-well measurement is often the more useful figure for a rigid item resting on the bed floor.
These core box measurements have stayed consistent across the 2022–2026 models. For tailgate positions, wheel-well diagrams, cargo arrangement, and accessory fitment, use the dedicated Ford Maverick bed dimensions chart rather than relying on exterior truck dimensions alone.

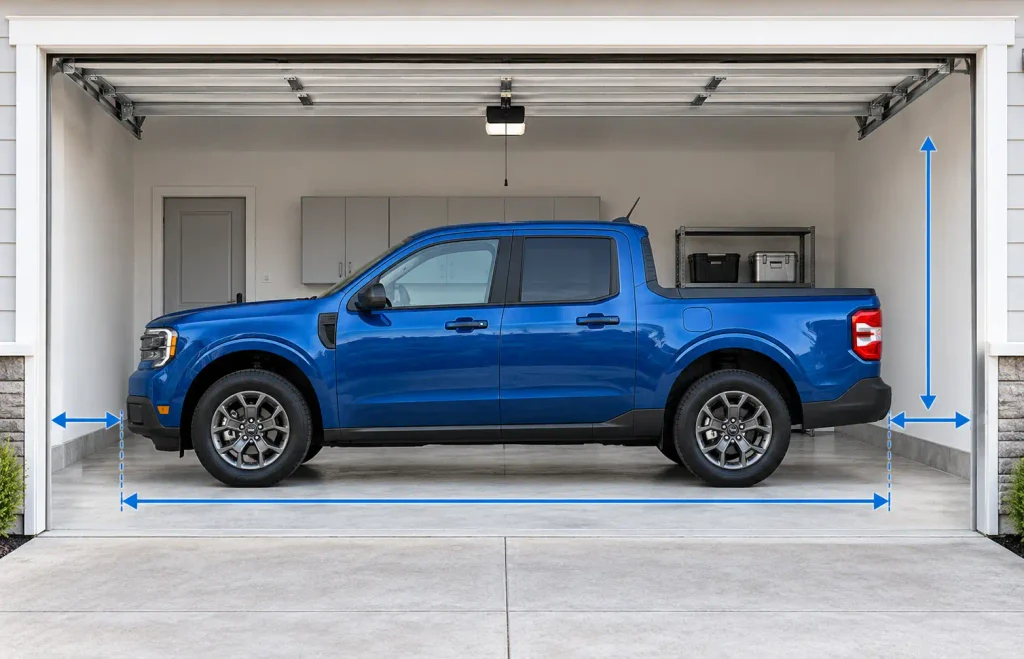

Will a Ford Maverick Fit Inside Your Garage
A Maverick can fit in many residential garages, but the answer depends on the clear usable depth, door-opening width, ceiling height, and how much space you need to walk around the truck. There is no guaranteed fit based only on a garage being called single-car or standard.
Garage Length and Door Clearance
Start with the length of your exact truck: 199.7 inches for a standard 2022–2024 model, 199.8 inches for a standard 2025–2026 model, or up to 200.9 inches for a 2025–2026 Lobo.
For a practical example, an empty garage with 18 feet of unobstructed interior depth has 216 inches available. Subtracting a 199.8-inch Maverick leaves 16.2 inches total, shared between the front and rear. Shelving, a closed garage door, and room to access the tailgate can consume that space quickly.
Measure the usable floor depth from the closed garage-door plane to the nearest obstacle, not simply from one outside wall to another. Check whether the door mechanism or stored equipment occupies the roofline area.
Mirror Width and Height Clearance
Ford’s published width measurements distinguish three different points:
| Width Measurement | Maverick Width |
|---|---|
| Maximum body width | 72.4 in |
| At the door handles | 72.6 in |
| With mirrors folded | 77.9 in |
| With mirrors extended | 83.5 in |
The 83.5-inch mirror-open width matters most when driving through a narrow garage opening. Folding the mirrors reduces the published width to 77.9 inches, but you still need safe clearance on both sides and enough room to get out once parked.
Finally, compare the garage’s clear vertical opening with the correct truck height. Measure any roof rack or aftermarket accessory separately because factory dimensions do not include modifications.
Which Maverick Ground Clearance Measurements Matter Most
Ground clearance measures space between the lowest relevant part of the truck and the ground. It is not the same as overall height, which is the measurement you need for a low garage opening.
Ford’s 2026 data lists 8.1 inches of minimum running clearance for Hybrid FWD and Hybrid AWD, 8.0 inches for EcoBoost FWD, and 8.3 inches for EcoBoost AWD. The Tremor rises to 9.1 inches, while Lobo is listed at 7.4 inches.
Cargo lift-in height is another separate dimension. Ford lists 30.4 inches for the 2026 Hybrid FWD, 30.0 inches for the Tremor, and 28.2 inches for the Lobo. Lift-in height describes the tailgate-area loading position above the ground, not the bed’s internal depth.
Factory figures apply to the specified configuration. Tire changes, leveling kits, suspension modifications, and additional equipment may change measured clearance and overall height.
Which Ford Maverick Size Measurements Should You Use
The most useful Ford Maverick dimensions chart is the one that matches your model year, trim, engine, and drivetrain. Standard 2022–2024 trucks are 199.7 inches long; standard 2025–2026 trucks are 199.8 inches. Their shared 121.1-inch wheelbase tells only part of the story.
For garage fitment, check overall length, mirror-open width, and height first. For carrying passengers, use the front and rear interior dimensions for the exact powertrain. For large cargo, use the dimensions of the FLEXBED rather than the truck’s exterior width.
If you’re comparing the Maverick’s footprint with a larger Ford pickup, see the existing Ford Maverick size comparison with the Ranger and F-150. Before buying or modifying anything, confirm measurements against your specific truck and the space or equipment you intend to use.
Ford Maverick Dimensions FAQs by Model Year
How Long Is a Ford Maverick in Feet?
A standard 2025 or 2026 Ford Maverick is 16.65 feet long, equal to 199.8 inches or 16 feet 7.8 inches. Standard 2022–2024 models measure 199.7 inches. The 2025–2026 Lobo is longer at 200.9 inches, so check trim before using a single length figure for garage planning.
How Wide Is a Ford Maverick With Mirrors?
The Ford Maverick is 83.5 inches wide with its outside mirrors extended, based on Ford’s published 2022–2026 specifications. With the mirrors folded, the width is 77.9 inches. The commonly quoted 72.6-inch width is measured at the door handles and is not the full mirror-open width.
Did the Ford Maverick Dimensions Change From 2022 to 2026?
Yes, but standard exterior dimensions changed only slightly. Standard overall length went from 199.7 inches in 2022–2024 to 199.8 inches in 2025–2026, while the wheelbase remained 121.1 inches. Tremor and Lobo measurements require separate comparisons because their exterior heights and lengths differ from the standard configurations.
Is the Ford Maverick Tremor Taller Than the Standard Maverick?
Yes. Ford lists the 2026 Tremor at 69.4 inches high, versus 68.8 inches for the 2026 Hybrid FWD configuration. Its minimum running ground clearance is also higher at 9.1 inches versus 8.1 inches. Compare exact model-year configurations because suspension and tire specifications can change the result.
Can a Ford Maverick Fit in a Standard Garage?
It may, but measure the actual garage opening and unobstructed parking space. A standard 2026 Maverick is 199.8 inches long and 83.5 inches wide with the mirrors extended. An 18-foot garage leaves only 16.2 inches of combined front and rear clearance before accounting for shelves, equipment, or access space.
