Ford Maverick Bed Dimensions Chart by Year 2022 to 2026

The Ford Maverick bed measures 54.4 inches long at the floor, 53.3 inches wide at its broadest exposed point, and 42.6 inches between the wheel wells. The box is 20.3 inches deep and provides 33.3 cubic feet of cargo volume.

Ford markets it as a 4.5-foot FLEXBED, but the actual floor measurement is slightly longer than exactly 4.5 feet. Ford’s published specifications show the same core cargo-box dimensions across the 2022 through 2026 model years.

The chart below gives you the measurements that matter for cargo, bed covers, mats, toolboxes, bikes, lumber, and other Maverick bed accessories.

Ford Maverick Bed Dimensions Chart From 2022 to 2026

Ford has kept the basic Maverick cargo-box geometry consistent since the pickup launched for the 2022 model year.

Ford’s 2022 technical specifications list a 54.4-inch floor length, 42.6-inch wheelhouse width, 53.3-inch exposed width, 20.3-inch box depth, and 33.3 cubic feet of cargo space. The 2023 specifications report the same figures.

Published 2024 technical data retains those measurements, while Ford’s 2025 technical sheet and current 2026 specifications again show the same core dimensions.

That consistency is useful when comparing basic cargo space. Accessory compatibility can still vary by model year, mounting hardware, bed rails, or accessory design.

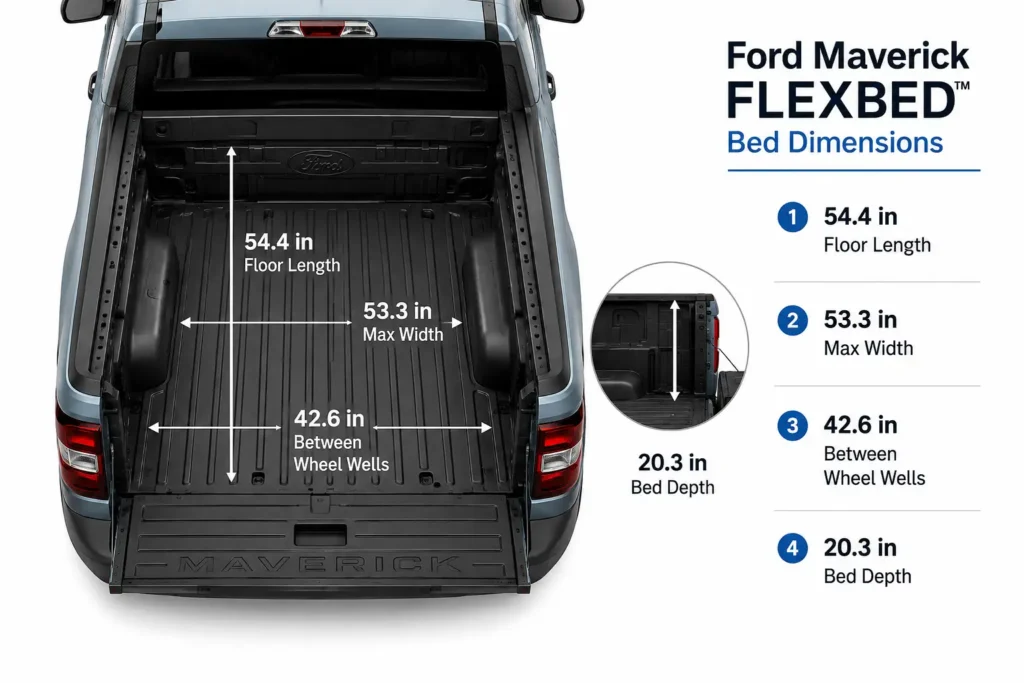

What Each Maverick Bed Measurement Actually Means

The Maverick has several different width and length specifications because each measurement describes a different part of the cargo box.

Bed Length at Floor

The bed floor is 54.4 inches long from the rear wall of the cab to the closed tailgate.

That equals about 4.53 feet, which is why the Maverick is normally described as having a 4.5-foot bed rather than a 54.4-inch bed.

Ford continues to publish the 54.4-inch figure for the 2026 Maverick.

Maximum Bed Width

The maximum exposed cargo width is 53.3 inches from sidewall to sidewall.

This number describes the wider portion of the bed. It does not mean you have a completely flat 53.3-inch-wide floor because the wheelhouses occupy space lower in the box.

Width Between Wheel Wells

The narrowest major floor measurement is 42.6 inches between the wheel wells.

This is one of the most useful numbers when checking whether a rigid box, mower, storage bin, equipment case, or other large object will sit on the bed floor.

Ford specifically highlights the 42.6-inch wheelhouse clearance in its current Maverick cargo information.

Bed Depth

The Maverick pickup body is 20.3 inches high from the floor to the top of the box.

Do not confuse bed depth with lift-in height. Bed depth measures the box itself, while lift-in height measures how high the bed floor sits above the ground.

Cargo Volume

The Maverick bed provides 33.3 cubic feet of cargo volume with the tailgate closed.

That number has remained consistent across the verified model-year specifications and current Ford data.

These five measurements cover most cargo questions, but accessory shoppers should know a few additional dimensions.

3 Extra Maverick Bed Measurements Accessory Buyers Need

Ford’s detailed 2025 specifications provide three measurements that are less commonly listed in basic bed-size charts.

Ford lists these figures across its published 2025 Maverick cargo-box configurations.

The 53.1-inch top length is slightly shorter than the 54.4-inch floor measurement because the cargo box is not a perfect rectangle from top to bottom.

The 49.8-inch upper rear opening and 48.8-inch lower rear opening matter when you need to move a rigid object through the tailgate opening.

This also explains why accessory listings may call the Maverick bed 4.5 feet, 4 feet 6 inches, 54 inches, or 54.4 inches. Those descriptions normally refer to the same basic Maverick bed class, but fitted accessories should always be checked by model and model year.

Do Maverick XL XLT Lariat Tremor and Lobo Beds Differ

The main cargo-box dimensions do not change between current Maverick XL, XLT, Lariat, Tremor, and Lobo configurations.

Ford’s 2026 specifications list 54.4 inches of bed length and 53.3 inches of exposed width for all of those models. The wheelhouse width remains 42.6 inches, the box height remains 20.3 inches, and cargo volume remains 33.3 cubic feet.

What can change is lift-in height.

Ford lists these 2026 examples:

Those differences come from ride height and configuration rather than a different cargo-box length or width.

For fitted accessories, the safest approach is still to select the exact Maverick model year instead of ordering a product only because its description says 4.5-foot bed.

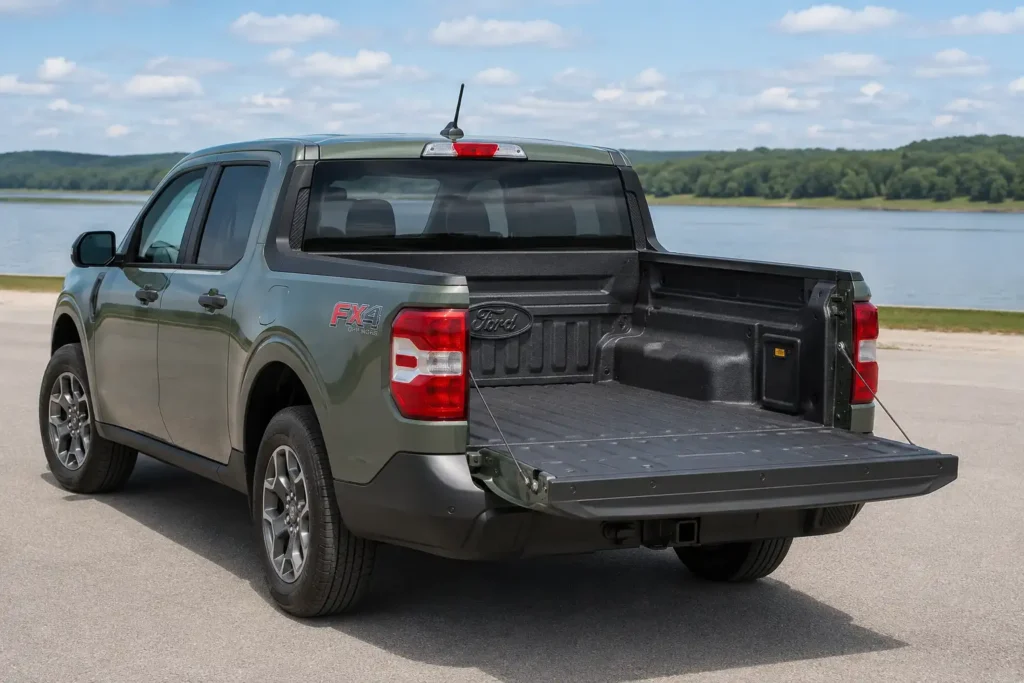

What Fits in a 54.4 Inch Maverick FLEXBED

A 54.4-inch bed is short compared with a full-size pickup box, but Ford designed the FLEXBED and multi-position tailgate around longer and wider cargo.

4 by 8 Plywood

A full 4-by-8-foot sheet is 96 inches long, so it cannot lie completely inside the Maverick with the tailgate closed.

The multi-position tailgate solves much of that problem. Ford says the FLEXBED and tailgate arrangement can carry up to 18 sheets of half-inch 4-by-8 plywood.

Ford also described the original Maverick bed as having roughly a six-foot floor with the tailgate down, giving longer material additional support.

The payload rating still matters when loading building materials. Check our Ford Maverick payload capacity chart before loading dense materials based only on available floor space.

Lumber and Long Cargo

The tailgate can be positioned flat for long items such as dimensional lumber.

Ford also designed a middle tailgate position that aligns the load surface more closely with the wheelhouse height. This gives longer material additional support instead of forcing everything to rest at the bottom of the bed.

Use tie-down points and secure long material according to its weight and length.

Bikes

Ford specifically demonstrates the middle tailgate position as a way to support a mountain bike, with the rear wheel resting against the positioned tailgate.

Bike fit still depends on wheelbase, frame size, orientation, and whether you use a rack or bed extender.

Lawn and DIY Equipment

For rigid equipment, the 42.6-inch wheelhouse clearance often matters more than the advertised 53.3-inch maximum bed width.

Ford even uses the wheelhouse measurement when describing the Maverick’s ability to accommodate commonly sized equipment.

Measure the widest fixed portion of your equipment before assuming it will fit between the wheel wells.

Which Maverick Bed Dimension Matters for Accessories

The correct bed measurement depends on what you plan to install.

A tonneau cover is a good example of why nominal bed length alone is not enough. A product may be advertised for a 4.5-foot bed but still have model-year or rail-system restrictions.

If you are shopping for one, our guide to the best tonneau cover for Ford Maverick covers Maverick-specific options rather than generic compact-truck covers.

Bed mats and molded liners need even more precise fitment because they follow the floor ribs, wheelhouses, and side contours.

For a custom divider or organizer, measure the bed at the exact height where the part will sit. The usable width changes depending on whether the part sits near the floor, between the wheelhouses, or higher on the sidewalls.

How Maverick Bed Size Compares With Other Ford Trucks

The Maverick uses one compact 4.5-foot-class bed, while larger Ford pickups offer more cargo-box choices.

The Ranger moves into a longer midsize bed, while the F-150 and Super Duty lineups offer several longer factory boxes depending on cab configuration.

If you are comparing the Maverick against other Ford pickups, our Ford truck bed size chart lists Maverick, Ranger, F-150, and Super Duty bed dimensions in one reference.

For the Maverick itself, the advantage is not raw bed length. Its FLEXBED system and multi-position tailgate are designed to make a compact box more useful for mixed daily cargo.

5 Maverick Bed Measurements Worth Saving

If you only need the key numbers from this Ford Maverick bed dimensions chart, save these five:

1. 54.4 inches bed length at floor
2. 53.3 inches maximum exposed width
3. 42.6 inches between wheel wells
4. 20.3 inches bed depth
5. 33.3 cubic feet cargo volume

Those measurements cover most cargo-planning questions for 2022 through 2026 Mavericks.

Accessory fitment needs a little more care. Check the exact model year and product compatibility before buying a tonneau cover, molded liner, rack, mat, or other fixed-size bed accessory.

5 Common Ford Maverick Bed Size Questions

Is the Ford Maverick Bed Really 4.5 Feet Long

Yes. Ford describes the Maverick as having a 4.5-foot-class cargo bed, while the exact published floor length is 54.4 inches, or about 4.53 feet.

The difference comes from rounding the bed into the nominal size commonly used for pickup bed descriptions.

How Wide Is the Ford Maverick Bed Between Wheel Wells

The Ford Maverick has 42.6 inches of width between the wheel wells.

The maximum exposed cargo width is wider at 53.3 inches, so use 42.6 inches when checking whether rigid cargo will fit flat between the wheelhouses.

Can a Ford Maverick Carry 4 by 8 Plywood

Yes, but a 4-by-8 sheet will not fit completely inside the bed with the tailgate closed.

Ford designed the multi-position tailgate to support sheet material and states that the FLEXBED setup can accommodate up to 18 half-inch 4-by-8 sheets of plywood.

How Many Cubic Feet Is the Maverick Bed

The Ford Maverick bed provides 33.3 cubic feet of cargo volume.

Ford has published that figure from the original 2022 Maverick through the current 2026 model specifications.

Do All Ford Maverick Trims Have the Same Bed Size

Current XL, XLT, Lariat, Tremor, and Lobo configurations share the same core cargo-box dimensions.

Lift-in height can differ by drivetrain and trim, but Ford’s 2026 specifications keep bed length, exposed width, wheelhouse width, depth, and cargo volume consistent across the listed configurations.
