Ford Fuel Pump Wires Color Codes for F150 F250 and F350

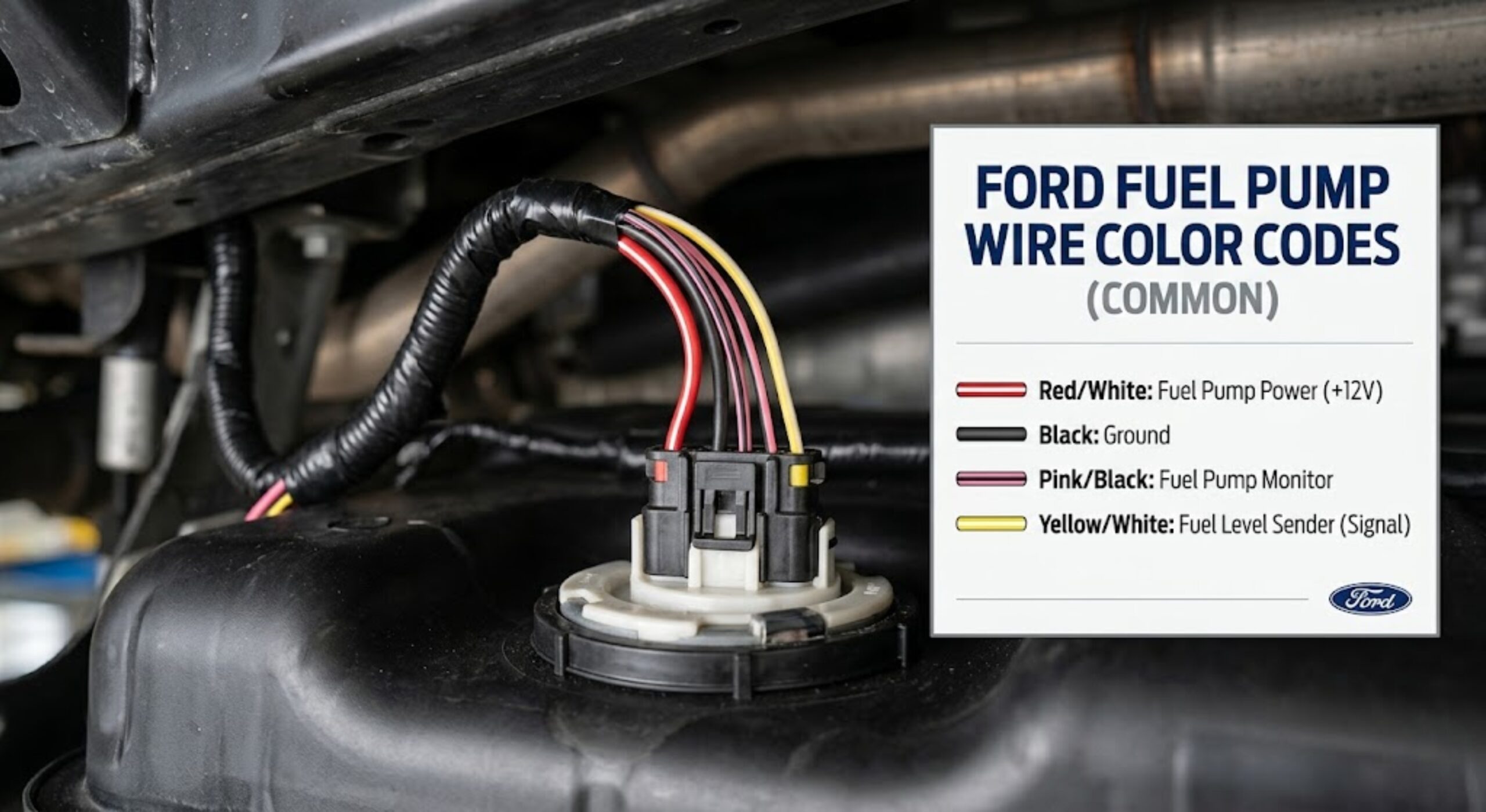

Ford fuel pump wires color codes follow a consistent logic — but the exact colors shift depending on your model, tank setup, and production year. If you’re staring at a disconnected pump connector right now, picking the wrong wire to probe or splice can leave you chasing a no-start for hours.
This guide branches by truck configuration. Identify your setup in the next section, jump to your branch, and get the correct wire colors without digging through a full factory manual.
Start by identifying your truck’s configuration below.
Why Ford Fuel Pump Wire Colors Vary by Model and Setup
Most Ford F-Series fuel pump connectors carry 4 wires. But those 4 wires aren’t always the same colors — and they don’t always do the same jobs.
Three core variables cause the differences:
- Truck model and configuration — F150 single-tank wiring differs from F250/F350 single-tank wiring, specifically in the ground wire
- Single vs. dual tank — Dual-tank trucks run two separate pump assemblies with a selector valve, which adds wiring that doesn’t exist in single-tank trucks
- Production era — Trucks built from 2004 onward introduced the Fuel Pump Driver Module (FPDM), which changes how power reaches the pump upstream — even though the connector wire colors stay the same
A fourth wildcard: aftermarket replacement pump kits. Some brands use different color conventions than Ford OEM, which can cause dangerous misidentification.
Here are the 4 conditions you need to pin down before reading the color chart.
4 Conditions That Determine Which Wire Colors Apply to Your Truck
Before reading any wire color table, identify these 4 things about your truck.
- Your model — F150, F250, or F350. The ground wire color differs between the F150 and the Super Duty trucks on single-tank setups. Using an F150 diagram on an F250 will get you the wrong ground.
- Single tank or dual tank. Check your dashboard — if there’s a front/rear tank selector switch, you have a dual-tank setup. These run two separate pump assemblies with different power wire colors for each tank.
- Production year — pre-2004 or 2004 and newer. The fuel pump relay controls the circuit on older trucks directly. On 2004+ trucks, a Fuel Pump Driver Module sits between the relay and the pump. The connector wire colors at the pump stay the same, but the upstream circuit is different.
- OEM harness or aftermarket pump harness. If someone already replaced the pump with an aftermarket unit, the harness colors may not match Ford OEM. Always probe before trusting color.
If you have a single-tank F150, go straight to the next section. If you have a dual-tank F250 or F350, skip to the dual-tank section below.
Ford F150 Fuel Pump Wire Colors for Single Tank Setup

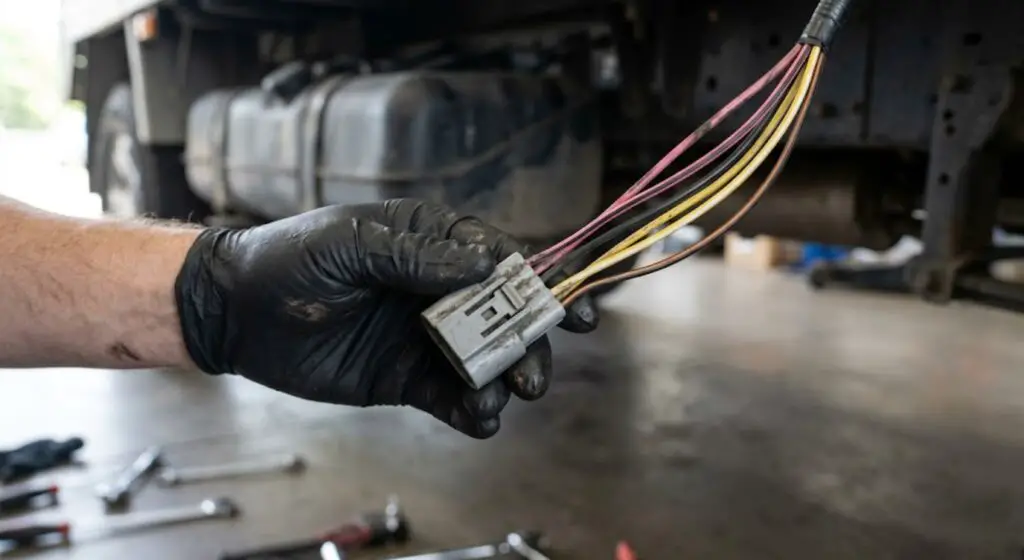

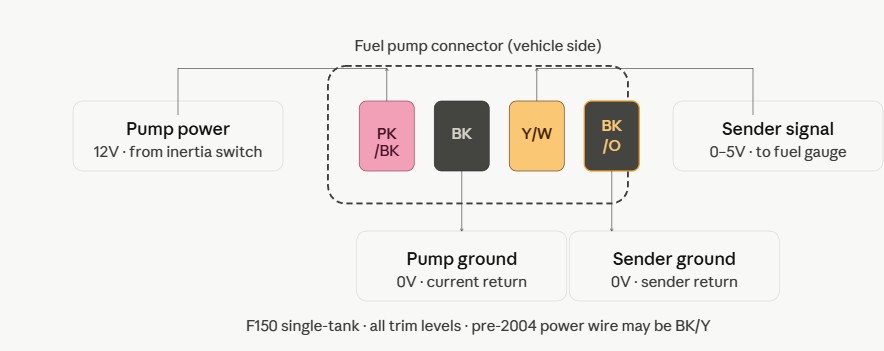

If you have a single-tank F150, your fuel pump connector carries these 4 wires.
| Wire Color | Abbreviation | Function | Expected Voltage (Key ON) |
|---|---|---|---|
| Pink / Black | PK/BK | Pump motor power — comes from inertia switch | 12V for 1–3 seconds during prime |
| Black | BK | Pump motor ground — return path for current | 0V (ground reference) |
| Yellow / White | Y/W | Sender signal — tells the fuel gauge the tank level | Low voltage signal (~0–5V variable) |
| Black / Orange | BK/O | Sender ground — completes the sending unit circuit | 0V (ground reference) |
Note on generation differences: From 1992–2003, the power wire at the pump connector is commonly Black with a Yellow stripe (BK/Y) rather than Pink/Black on some submodels and years — particularly early OBD-I trucks. From 2004 onward, Pink/Black (PK/BK) is the consistent power wire across the F150 line. If your 1990s F150 doesn’t show a PK/BK wire, look for BK/Y — it carries the same function.

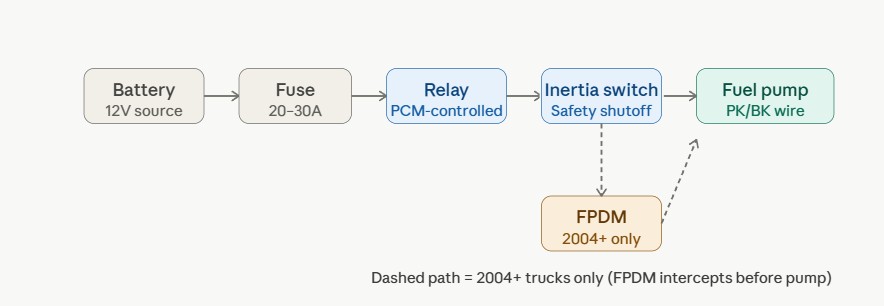

The Pink/Black wire gets its power from the inertia switch, not directly from the relay. The relay energizes first, then power flows through the inertia switch, and finally down the PK/BK wire to the pump.

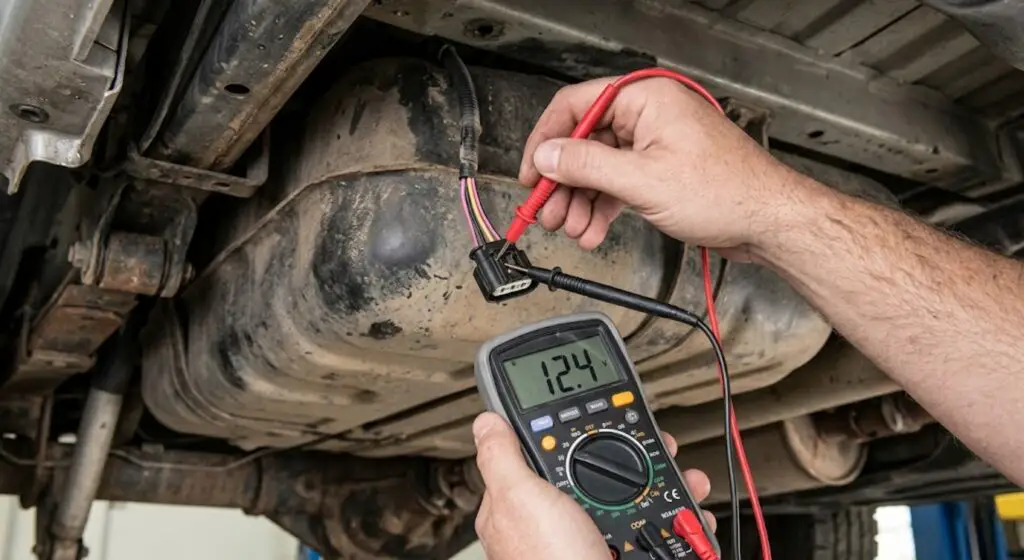

Testing with a multimeter:
Turn the ignition to RUN. Place your multimeter’s red lead on the Pink/Black wire and the black lead on a chassis ground. You should read 12 volts for roughly 1–3 seconds as the PCM primes the pump. After that, voltage drops to 0 — that’s normal.
If you read 12V on the Pink/Black wire but the pump won’t run, the problem is the pump itself — not the wiring.
If you read 0V on the Pink/Black wire with ignition ON, trace back to the inertia switch before assuming a relay fault. The inertia switch is a common culprit — especially on trucks that have been in a minor impact or rough terrain. It has a red reset button; press it and retest.
F250 and F350 with a single tank are similar to the F150 — but with one important difference in the ground wire.
Ford F250 and F350 Fuel Pump Wire Colors for Single Tank Setup

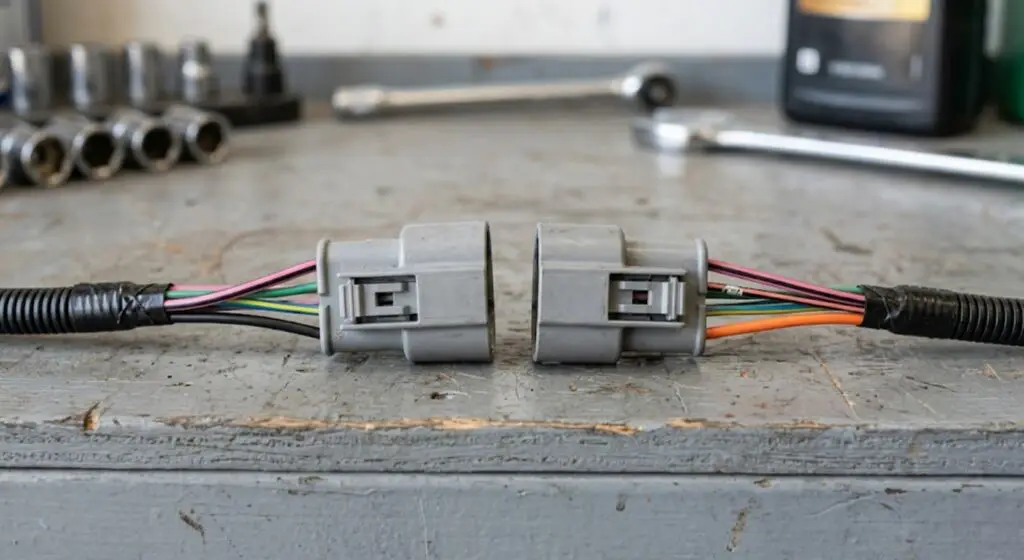

The F250 and F350 with a single fuel tank share most wire colors with the F150 — except one: the ground wire.

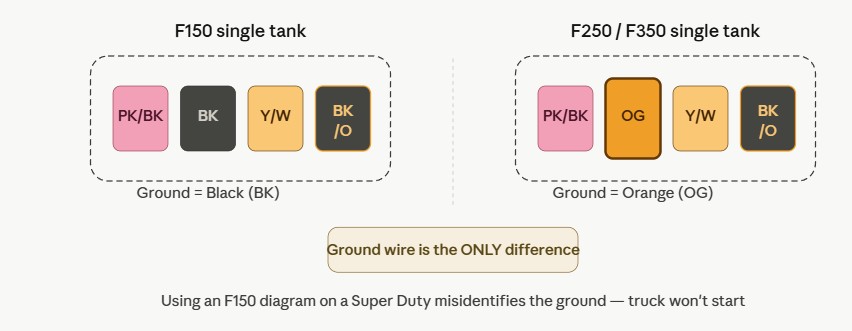

| Wire | F150 Single Tank | F250 / F350 Single Tank |
|---|---|---|
| Power | Pink / Black (PK/BK) | Pink / Black (PK/BK) |
| Pump Ground | Black (BK) | Orange (OG) |
| Sender Signal | Yellow / White (Y/W) | Yellow / White (Y/W) |
| Sender Ground | Black / Orange (BK/O) | Black / Orange (BK/O) |
The Orange wire on the F250/F350 is the pump assembly ground. It is not a power wire. If you use an F150 wiring diagram on your F350 and identify Black as the pump ground, you’ll misread the circuit. A miswired or misidentified ground causes the pump to not complete its circuit — and the truck won’t start.
If you’re using an aftermarket wiring diagram or a generic Ford guide, always verify which truck model it was written for before using it on your Super Duty.
Dual tank setups are a different story entirely.
Ford F250 and F350 Fuel Pump Wire Colors for Dual Tank Setup
Dual-tank F250 and F350 trucks run two separate fuel pump assemblies — one for the front tank, one for the rear. The wiring is different for each, and a selector valve in the cab controls which pump receives power.
Front Tank Connector (4 wires):
| Wire Color | Function |
|---|---|
| Red (RD) | Pump power — +12V from relay through selector switch |
| Orange (OG) | Pump ground |
| Deep Blue / Yellow (DB/Y) | Sender signal to instrument cluster |
| Black (BK) | Sender ground |
Rear Tank Connector (4 wires):
| Wire Color | Function |
|---|---|
| Brown / White (BR/W) | Pump power — +12V through same relay path as front |
| Orange (OG) | Pump ground |
| Yellow / Light Blue (Y/LB) | Sender signal to instrument cluster |
| Black (BK) | Sender ground |
The selector switch in the cabin routes power to the appropriate tank. When you flip to the front tank, 12V goes down the Red wire. When you flip to the rear tank, 12V goes down the Brown/White wire instead.
The selector valve itself also receives a control signal — a Dark Green/Yellow (DG/Y) wire from the PCM activates the valve’s solenoid to physically change which tank feeds the engine.
If your dual-tank F250 runs only on one tank and not the other, test the power wire for the non-functional tank before condemning the pump. If the Red wire has 12V with the front tank selected but the front pump won’t run, the pump is likely failed. If the Red wire shows 0V, the fault is upstream — selector switch, wiring, or relay.
If your front tank pump won’t run but the rear does, test the Red wire at the front pump connector with the tank switch set to front. Don’t test at the relay — probe at the pump.
Now, if your truck is a 2004 or newer model, the Fuel Pump Driver Module changes how all of this works upstream.
When the Fuel Pump Driver Module Changes the Wiring Circuit
If your truck is a 2004 or newer F150 or a 2005 or newer F250/F350, the fuel pump circuit includes an extra component — the Fuel Pump Driver Module (FPDM).

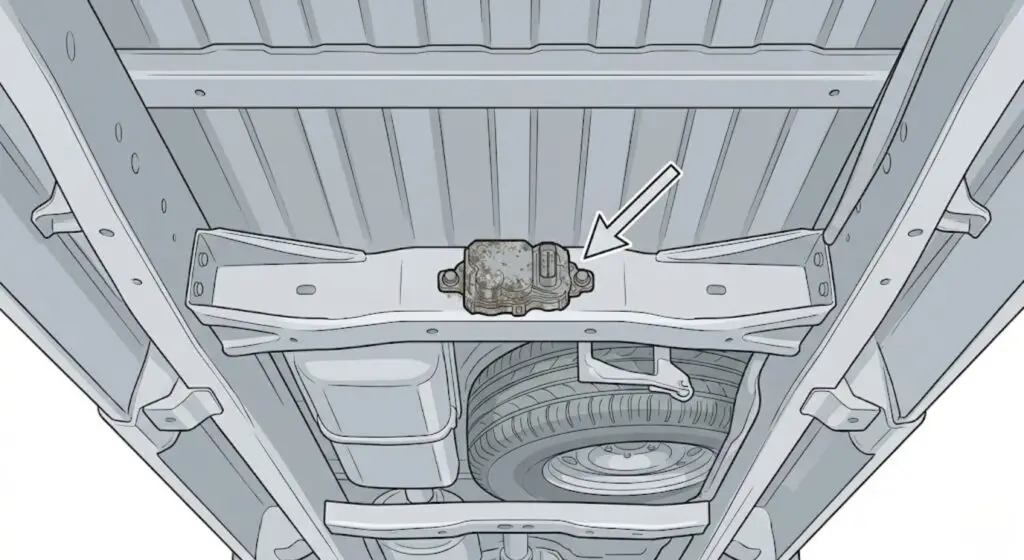

The FPDM is a small module mounted to the frame crossmember above the spare tire, under the bed. It sits between the fuel pump relay and the pump. Instead of delivering a constant 12V to the pump, the FPDM modulates voltage based on a command signal from the PCM — allowing the pump to run at the exact pressure the engine needs rather than full voltage all the time.
What this means for wire colors:
The wire colors at the pump connector itself stay the same — Pink/Black for power, Black for ground (F150) or Orange for ground (F250/F350). What changes is what’s happening upstream. The power wire no longer runs directly from the inertia switch to the pump. It now runs inertia switch → FPDM → pump.
The FPDM connector has 6 wires of its own:
| Wire at FPDM | Pin | Function |
|---|---|---|
| White (W) or Pink/Black (PK/BK) | Pin 5 | Power IN from inertia switch — should show 12V with key ON |
| Black / Yellow (BK/Y) | Pin 3 | Dedicated FPDM ground |
| Pink / Black (PK/BK) | Pin 4 | Power OUT to fuel pump |
| Brown / White (BR/W) | Pin 2 | Pump ground circuit — duty-cycled by FPDM |
| White / Yellow (W/Y) | Pin 6 | Command signal FROM PCM to FPDM |
| Light Blue / Orange (LB/O) | Pin 1 | Feedback signal FROM FPDM back to PCM |
If you have a 2004+ F150 and you’re reading 0V at the Pink/Black pump power wire, check the FPDM before assuming a wiring fault. A failed FPDM — which corrodes heavily in northern states due to its exposed location on the frame — is a common misdiagnosis as a failed pump. The pump tests fine on the bench but won’t run because the FPDM isn’t sending it power.
You can learn more about FPDM failure symptoms and diagnosis in our dedicated fuel pump driver module guide.
FPDM faults trigger specific DTCs readable with a scan tool. If you don’t have a scanner and you’re on a 2004+ truck, rent one before replacing the pump.
Three other situations can override the standard color codes entirely.
3 Edge Cases That Override the Standard Color Codes
Three situations will make the standard color codes unreliable — even on a stock truck.
- Aftermarket pump harness color mismatch. Some aftermarket fuel pump brands — including certain Spectra and universal-fit pump kits — do not match Ford OEM wire colors. A number of aftermarket kits use Black for power and Red for ground, which is the opposite of what most Ford guides show. Never assume the pump harness colors match the vehicle harness. Always verify function with a multimeter before connecting. The Ford wire harness color code system only applies to the vehicle-side connector — not what comes attached to the pump.
- Wire color fading on older trucks. On pre-2000 F-Series trucks, wire insulation fades significantly. A Pink/Black wire may appear brown-gray. A Yellow/White wire may look cream or tan. In these cases, use wire gauge to distinguish function: the two pump motor wires (power and ground) are heavier gauge than the two sender wires. If you can feel the difference in thickness, you can separate the groups even without readable colors.
- Prior spliced repairs with incorrect color wire. If the truck had a previous harness repair — especially at the inertia switch or along the frame rail — the splice may use whatever wire color was available, not the correct OEM color. Any splice point in the fuel pump circuit should be probed with a multimeter to confirm function before you trust color identification. According to automotive electrical best practices referenced by ASE-certified technicians, verifying circuit function by voltage measurement is always the correct step before any splice or connection work near a fuel system.
Use the decision chart below to find your truck’s correct wire set in under 30 seconds.
Ford Fuel Pump Wire Color Decision Chart
Find your truck configuration in the chart below to get the correct wire colors.
Ford fuel pump wire color decision matrix by model, tank setup, and era
| Truck | Tank | Era | Power wire | Ground wire | Sender signal | Sender ground |
|---|---|---|---|---|---|---|
| F150 | Single |
All years 1992–2003: may be BK/Y |
Pink/Black | Black | Yellow/White | Black/Orange |
| F250 / F350 | Single | All years | Pink/Black | Orange | Yellow/White | Black/Orange |
| F250 / F350 | Dual — front | All years | Red | Orange | Deep Blue/Yellow | Black |
| F250 / F350 | Dual — rear | All years | Brown/White | Orange | Yellow/Light Blue | Black |
| Any F-Series | Any | 2004+ FPDM | Connector colors same as above — verify FPDM is functioning before chasing pump wires | |||
Important: On 1992–1996 F-Series trucks, the pump power wire is commonly Black/Yellow (BK/Y) instead of Pink/Black. If your pre-1997 truck shows BK/Y, that is the power wire — treat it the same as PK/BK in the chart above.
If your situation doesn’t fit any row in this chart, the next section tells you when to go deeper.
When This Guide Is Not Enough
This guide covers standard OEM fuel pump wiring on gasoline F-Series trucks. Three situations push past its limits.
- Non-OEM harness modifications or engine swaps. If the truck has had an engine swap, aftermarket fuel management system, or full wiring harness replacement, the wire colors may not follow any Ford convention. In these cases, a vehicle-specific schematic from AllData or Mitchell1 is the correct tool — not a color code guide.
- FPDM fault codes on 2004+ trucks. If your 2004+ F-Series shows a no-start and you suspect the FPDM, you need a scanner capable of reading fuel system DTCs before probing wires. Wire color guides can’t tell you whether the FPDM is receiving its command signal from the PCM correctly.
- CAN-bus integrated fuel systems on 2015+ F150. The 13th and 14th generation F150 (2015 onward) uses a more integrated electronic architecture. While the physical connector wire colors remain largely consistent, the control logic is more complex and benefits from a factory-level wiring diagram specific to your VIN.
For any of these situations, pull a vehicle-specific diagram from your Factory Service Manual or a subscription service before making any connections.
Frequently Asked Questions
What color is the power wire on a Ford fuel pump?
On most F-Series trucks, the pump power wire is Pink with a Black stripe (PK/BK). It receives 12V from the inertia switch when the key is in RUN. On 1992–1996 models, the power wire is commonly Black with a Yellow stripe (BK/Y) instead — same function, different color.
What does the Yellow/White wire on a Ford fuel pump do?
The Yellow/White wire carries the sender signal from the fuel level float arm to the instrument cluster. It tells your dashboard gauge how much fuel is in the tank. It is a low-current signal wire — not a pump power wire. Do not apply 12V to it.
Why does my Ford F250 or F350 have an Orange wire instead of Black for ground?
F250 and F350 models use Orange as the pump assembly ground wire, not the Black wire used on F150 single-tank trucks. This is an OEM difference, not an error. Using an F150 wiring guide on a Super Duty will cause you to misidentify the ground, which prevents the pump from completing its circuit.
Does the Fuel Pump Driver Module change the wire colors at the connector?
No. The wire colors at the pump connector remain the same on FPDM-equipped trucks. What changes is the upstream circuit — power now flows through the FPDM rather than directly from the inertia switch to the pump. If you’re getting 0V at the connector on a 2004+ truck, test the FPDM first.
How do I test a Ford fuel pump wire with a multimeter?
With ignition turned to RUN, place the red multimeter lead on the Pink/Black (power) wire and the black lead on a clean chassis ground. You should read 12V for 1–3 seconds during the PCM prime cycle. A reading of 0V means no power is reaching the pump — trace back to the inertia switch, then the relay, before assuming the pump failed.
Conclusion
Ford fuel pump wires color codes follow a consistent pattern once you know which branch applies to your truck. For the F150 single-tank, that’s Pink/Black for power and Black for ground. For F250/F350 single-tank, the ground wire changes to Orange. For dual-tank trucks, the front tank runs Red for power and the rear tank uses Brown/White. And on any 2004+ F-Series, the FPDM sits in the circuit upstream — same connector colors, different power path.
If your wires check out but the pump still won’t run, the issue is likely the relay or the FPDM — both covered in dedicated guides on this site. Start with the fuel pump relay if you have a pre-2004 truck, or the fuel pump driver module if your truck is 2004 or newer.
