Ford Escape Oil Capacity Chart: Engines and All Years 2001-2026

The Ford Escape oil capacity chart below runs from 4.3 quarts to 6.0 quarts with the filter, and the right number depends on your engine, not just your year. A 2020 to 2026 Escape takes 5.3 quarts in the 1.5L, 5.5 quarts in the 2.0L, and 5.7 quarts in the 2.5L hybrid, according to Ford’s owner manual.

Older Escapes are messier. Ford’s manual lists 4.3 quarts for the 2013 to 2016 1.6L EcoBoost, yet owners report a fill that reads full at a different number. We flag every row where sources disagree, so you know which figures to trust before you pour.

The chart is organized by engine generation, since that is what changes the quantity.

Ford Escape Oil Capacity Chart for All 4 Generations

Recommended Best Deal Products

TPE Automotive Floor Mats & Cargo Liner Custom for Ford Escape 2020-2025…

4.7/5 · 897 reviews

Check Price

Binmotor-Floor Mats & Cargo Liner Set for 2013-2019 Ford Escape | Titanium丨SE丨S丨SEL丨Hybrid,…

4.6/5 · 2.0K reviews

Check Price

Find your model year and engine, then read the Basis label before you buy oil. Every quantity includes a new oil filter.

“Ford manual” means the figure comes from a Ford Escape owner manual we read for this chart. “3 sources agree” means at least three separate lookups match, but we did not open Ford’s page for that engine. “Sources conflict” means the numbers differ, so treat the row as a starting point.

Filter numbers come from parts lookups rather than Ford’s manual, which lists Motorcraft parts in image tables. Confirm the filter with your VIN before you order.

If you are not sure which engine sits under your hood, the next section takes about a minute.

How to Identify Your Escape Engine in 3 Steps

The 1.5L badge appears on two different Escape engines, so the badge alone is not enough. These three steps separate them.

1. Read the eighth VIN character. Ford uses it as the engine code. On a 2015 Escape, an owner quoting Ford’s fleet VIN guide reports that 9 is the 2.0L, X is the 1.6L, and 7 is the 2.5L. Codes change by year, so decode your full VIN with our guide to reading a Ford VIN number before you trust one character. You should end up with a displacement, such as 2.0L.
2. Check the model year against the badge. The 2017 to 2019 Escape used a 1.5L four-cylinder. The 2020 redesign moved to a 1.5L three-cylinder. If your Escape is 2020 or newer and says 1.5L, it is the three-cylinder.
3. Match the engine to your window sticker or build data. The original window sticker names the engine. You should see 1.5L, 2.0L, or 2.5L, plus hybrid or plug-in hybrid on those trims.

With the right row selected, you may still find a different number online, and there are five reasons why.

5 Reasons Escape Oil Capacity Numbers Disagree Online

We compared Ford’s own manuals with lookup sites, owner threads, and a federal recall filing. The same five problems appear again and again.

Two Different 1.5L Engines Share One Name

Ford’s 2017 Escape manual lists 4.3 quarts for the 1.5L four-cylinder, as shown on ManualsLib. Ford’s 2020 to 2026 Escape manual lists 5.3 quarts for the 1.5L three-cylinder.

Pages that blur the two engines publish numbers that fit neither. Our 2018 Escape 1.5L four-cylinder specs and reliability page covers the older engine in more detail.

European Kuga Manuals Get Mixed In

The Kuga is the Escape’s European sibling, and Ford’s Kuga manual lists 4.05 liters for the 1.5L EcoBoost with the filter. That is about 4.3 US quarts.

It sits close to the 2017 Escape figure, which is how Kuga data ends up in Escape charts. We did not use it for any US row.

Dipstick Marks Do Not Match the Printed Number

A 2018 Escape owner reported oil above the max mark after a dealer added the 4.3 quarts from the manual. The dealer refilled in steps, and the owner concluded the max mark sat near 4 quarts, according to the Ford Escape Forum thread on 2017 to 2019 1.5L capacity.

A 2017 owner with the 2.0L needed about 6.0 quarts to reach the top hash mark when the manual said 5.7, per a BobIsTheOilGuy thread. Forums are owner reports, not Ford specs, but the pattern repeats.

Manual Printings Changed the Figure

Ford’s 2016 manual lists 4.3 quarts for the 1.6L EcoBoost, per Ford’s Escape manual. Some owners argue that 4.3 was an Imperial-quart figure that equals about 5.2 US quarts. We could not confirm that theory from Ford.

What is documented is Ford safety recall 13S12. It notes overfill cases on 2013 Escapes with the 1.6L, where the oil capacity was not properly identified. Ford added an improved dipstick and label. Owners also quote 5.0 quarts in the 2018 and 2019 online manuals for the 1.5L four-cylinder, against 4.3 quarts in 2017.

Sites Mix Units and Filter Assumptions

One lookup site lists a 2019 Escape with a “4.1L Turbo 4 Cyl” engine and 4.3 quarts. The 4.1 is the oil volume in liters, not the engine size.

Others never say whether the number includes the filter. Ford’s Kuga table shows why that matters. It lists 4.05 liters with the filter and 3.75 liters without it.

Whichever number you follow, the oil grade matters as much as the volume.

Which Oil Viscosity Each Escape Engine Needs

Viscosity is where third-party sites disagree most, so match it to Ford’s manual, not to a chart alone. WSS (Ford’s Workshop Specification System for fluids) codes tell you which oils qualify.

For 2020 to 2026, Ford’s manuals list three grades:

• 1.5L EcoBoost: SAE 5W-20 synthetic blend, WSS-M2C945-B1. A 2021 printed manual shows WSS-M2C960-A1 for the same engine, per ManualsLib.
• 2.0L EcoBoost: SAE 5W-30 synthetic blend, WSS-M2C961-A1, per the 2.0L page of Ford’s manual as reproduced on FordEscape4.
• 2.5L Hybrid and Plug-In Hybrid: SAE 0W-20 synthetic blend, WSS-M2C962-A1, per the hybrid page of Ford’s manual as reproduced on FordEscape4.

In extremely cold climates, at -22°F or below, Ford lists 0W-20 (WSS-M2C947-B1) for the 1.5L and 0W-30 (WSS-M2C963-A1) for the 2.0L. Several dealer and parts pages say 5W-30 for the 1.5L. Ford’s manual says 5W-20.

For 2013 to 2016 and the 2.5L, Ford’s 2016 manual lists SAE 5W-20 meeting WSS-M2C945-A, with an optional full synthetic. Ford also names the Motorcraft jugs. Search these part numbers on Amazon, RockAuto, or AutoZone:

• XO-5W20-Q1SP for the 2020 to 2026 1.5L
• XO-5W30-Q1SP for the 2020 to 2026 2.0L
• XO-0W20-Q1SP for the 2020 to 2026 hybrids
• XO-5W20-QSP for the 2013 to 2016 1.6L and 2.5L

For the filter, Motorcraft FL-910-S shows up across most of the 2005 to 2026 four-cylinder lookups. Ford’s manual says a filter meeting SAE/USCAR-36 is acceptable if Motorcraft is not available. For a WSS breakdown across other Ford models, see our Ford engine oil recommendation chart by model and year.

Now for the step that decides whether the capacity number actually worked.

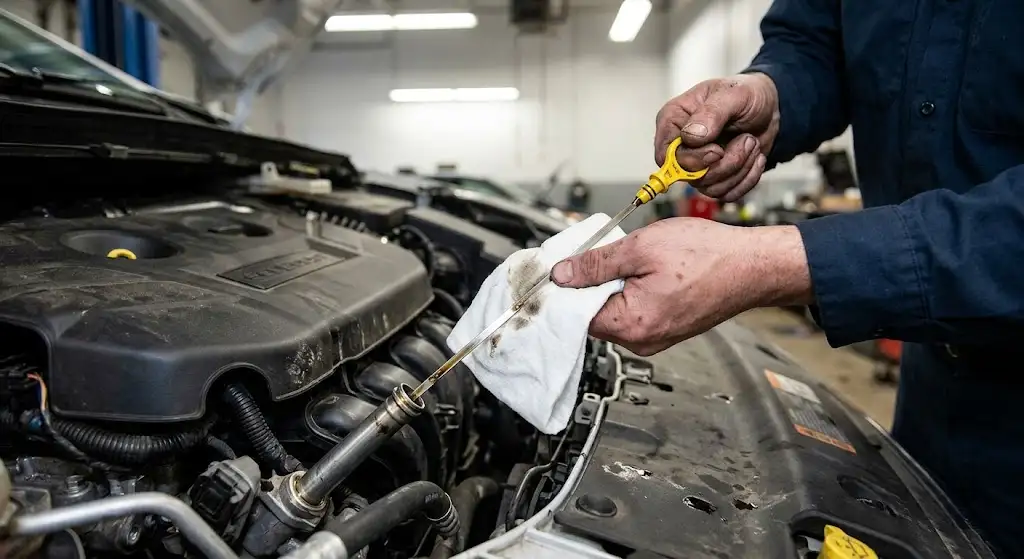

How to Set the Right Oil Level After an Oil Change

Pour to the number, then let the dipstick have the final word. Ford’s manuals warn that oil above the MAX mark may cause engine damage.

1. Park on level ground. A sloped driveway skews the dipstick. You should see the Escape sitting flat with the hood open.
2. Fill about half a quart short of the chart number. Use the row for your engine. You should have most of the oil in, with room to adjust.
3. Run the engine briefly, then shut it off. Look for leaks at the filter and drain plug. Nothing should drip.
4. Wait 15 minutes. Ford’s service procedure calls for a 15-minute drainback, and a 2024 Escape guide says the same. Older owner manuals say 10 minutes, per ManualsLib.
5. Wipe, reinsert, and read both sides. Push the dipstick in fully, pull it again, and use the lower reading. The level should sit between MIN and MAX. At MIN, add oil right away.

If the dipstick reads above MAX at the chart number, drain to the mark. Do not trust the printed quantity over the dipstick. Ford’s recall 13S12 added a new dipstick and capacity label to 2013 1.6L Escapes after overfill cases.

That covers the fill. Timing the next change is a separate question.

How Often to Change Escape Oil and Reset the Monitor

Ford’s Intelligent Oil-Life Monitor decides the interval, and web pages that quote a fixed mileage often disagree with each other. Some say 5,000 to 6,000 miles. Others say 7,500 to 10,000 miles.

Ford’s 2020 to 2026 manual says the interval may run up to one year or 10,000 miles. Hybrids may exceed 10,000 miles, but not one year. Do the change within two weeks or 500 miles of the message, per the scheduled maintenance page of Ford’s manual as reproduced on FordEscape4.

Reset the monitor after every change. If the display resets early or stops working, change the oil at six months or 5,000 miles. The general maintenance page lists both rules.

Some 2017 Escapes built on or before May 18, 2017 could not reset the indicator. Ford’s service bulletin 20-2031 calls for an updated instrument cluster on those trucks.

The Safe Way to Use Any Escape Oil Capacity Number

Find your engine first, then use the chart row as your starting quantity. For 2020 to 2026 Escapes, Ford lists 5.3 quarts for the 1.5L, 5.5 quarts for the 2.0L, and 5.7 quarts for the 2.5L hybrid.

On older engines, expect conflicts. Fill under the number, wait 15 minutes, and let the dipstick settle any disagreement. Our Ford Escape oil capacity chart flags every row where sources differ, so you know when to check twice.

Write the quantity and grade you used on your service record, and reset the oil life monitor before you close the hood.

Ford Escape Oil Capacity Questions Answered

How Many Quarts of Oil Does a Ford Escape Take

Between 4.3 and 6.0 quarts with the filter, depending on engine and year. A 2020 to 2026 Escape takes 5.3 quarts in the 1.5L, 5.5 in the 2.0L, and 5.7 in the 2.5L hybrid. Find your row in the chart above.

What Oil Does a Ford Escape 2.0L EcoBoost Need

Ford’s 2020 to 2026 manual lists SAE 5W-30 synthetic blend meeting WSS-M2C961-A1, at 5.5 quarts with the filter. The 2013 to 2019 2.0L also uses 5W-30 at 5.7 quarts, according to three separate lookups.

What Oil Does a 2.5L Escape Hybrid Take

SAE 0W-20 synthetic blend meeting WSS-M2C962-A1, at 5.7 quarts including the filter, per Ford’s 2020 to 2026 manual. The Motorcraft part number listed is XO-0W20-Q1SP.

Does Escape Oil Capacity Include the Filter

Yes. Ford’s Escape tables list the quantity with the oil filter. If you skip the filter, you add slightly less oil, so drain, measure what comes out, and confirm on the dipstick.

Can I Use 5W-30 in an Escape That Calls for 5W-20

Not on the 1.5L. Ford’s manual specifies 5W-20, and oil outside the specified grade can cause reduced fuel economy and damage the warranty does not cover. Ford allows 0W-20 only for extreme cold at -22°F or below.

Why Does My Dipstick Read Overfull at the Manual Quantity

Some Escapes read full above the printed volume. Owners report it on the 2018 1.5L, and Ford recall 13S12 added a new dipstick after overfill cases on 2013 1.6L Escapes. Drain to the mark, because oil above MAX may cause engine damage.
