Ford Bronco Dimensions Chart: 2026 Length, Width, Wheelbase & Height By Trim
The Ford Bronco dimensions chart starts with two body lengths for the 2026 Base model: 173.7 inches for the 2-door and 189.4 inches for the 4-door. Their wheelbases measure 100.4 and 116.1 inches, respectively. Both have an 86.3-inch published width with the mirrors unfolded.
Those numbers are useful starting points, but they are not universal across every Bronco. Badlands, Sasquatch-equipped models, Heritage editions, and the Raptor have different exterior measurements. Roof choice also changes some interior specifications.
The charts below separate 2021–2026 reference dimensions from 2026 trim-specific measurements so you can check the version that actually matters.
Dimensions
Reference body measurements for the full-size 2021–2026 Bronco. Match the model year and trim before using these figures.
Published lengths for the reference configuration named in each row. All dimensions below are in inches.
| Year | Reference trim | 2-door length | 4-door length | Wheelbase 2D / 4D |
|---|---|---|---|---|
| 2021 | Base | 173.7 | 189.4 | 100.4 / 116.1 |
| 2022 | Base | 173.7 | 189.4 | 100.4 / 116.1 |
| 2023 | Base | 173.7 | 189.4 | 100.4 / 116.1 |
| 2024 | Big Bend | 173.7 | 189.4 | 100.4 / 116.1 |
| 2025 | Base | 173.7 | 189.4 | 100.4 / 116.1 |
| 2026 | Base | 173.7 | 189.4 | 100.4 / 116.1 |
Fitment note: These are year-specific reference configurations, not the dimensions of every trim. Badlands, Sasquatch-equipped models and Raptor may differ. Roof choice and accessories also affect clearance.
Data basis: Ford Bronco model-year technical specifications and the reference chart in this article. Length bars are scaled relative to the 189.4-inch 4-door Base.

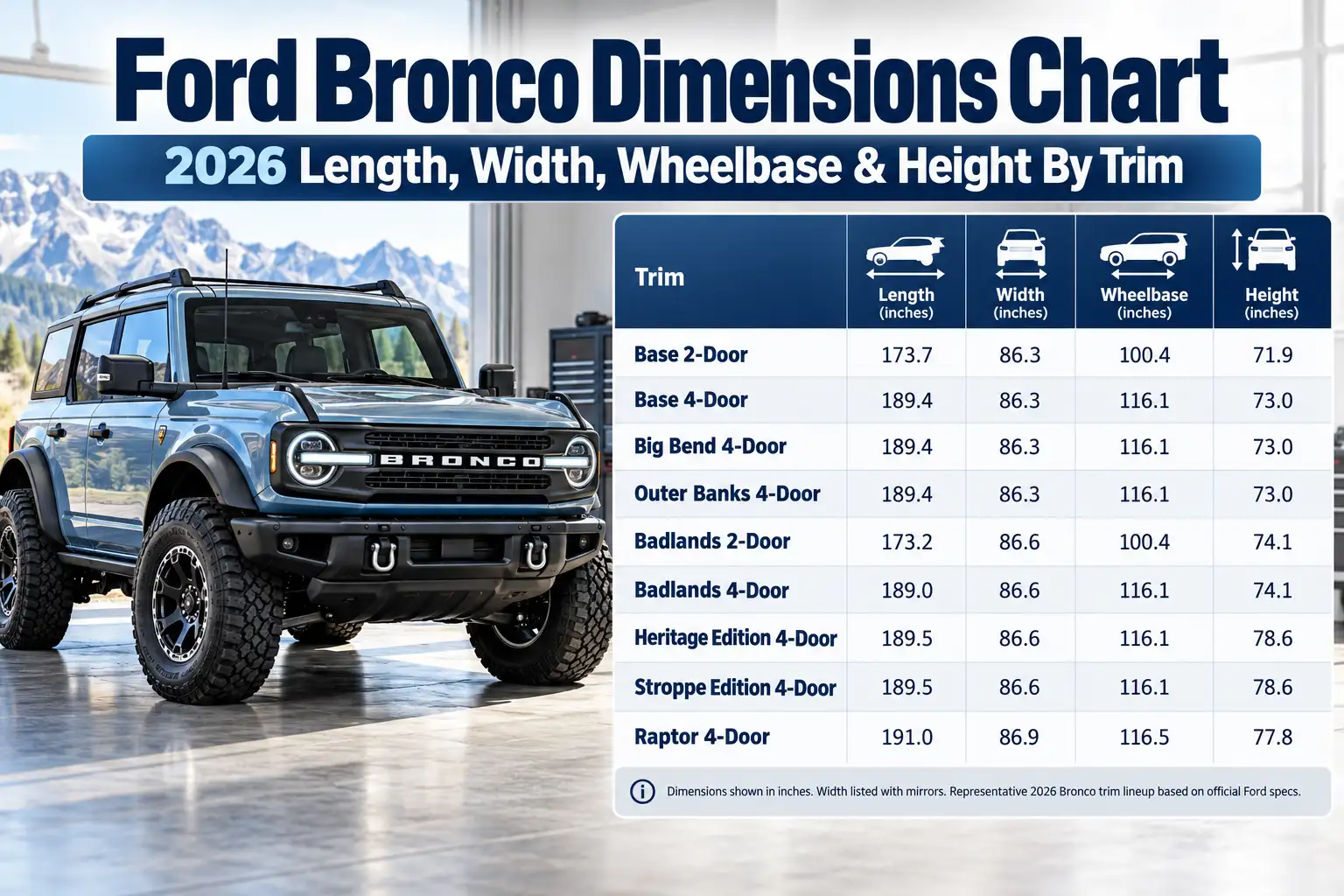

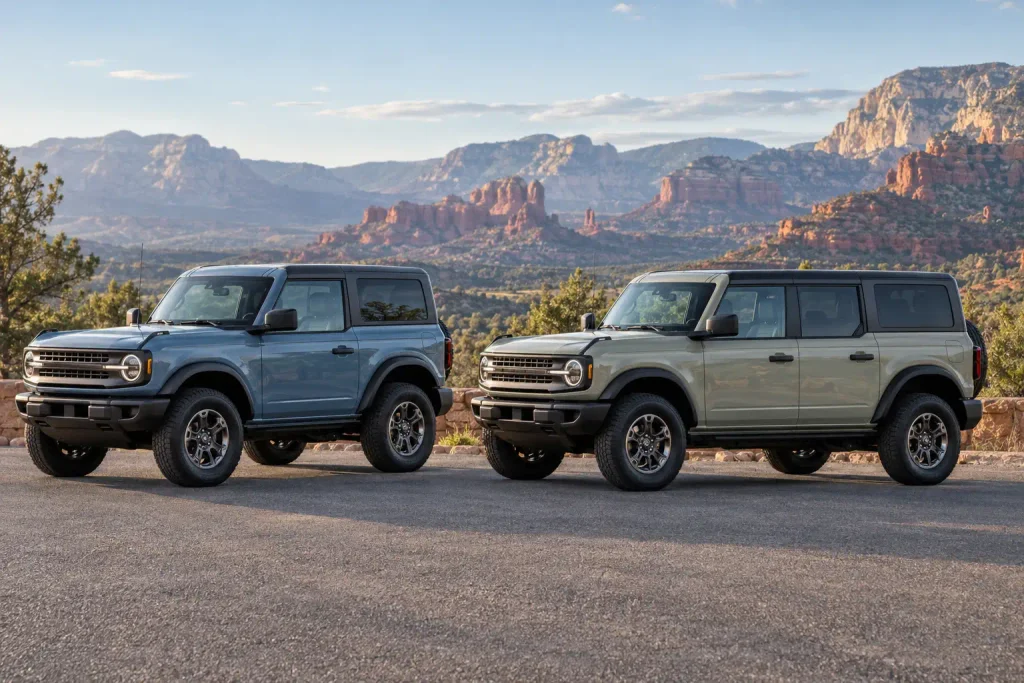

2026 Ford Bronco Dimensions Chart by Door Style
The 2026 Base is the clearest starting point for comparing Bronco body styles. Its 4-door body is 15.7 inches longer than the 2-door, with the same difference between their wheelbases.
| Measurement | 2026 Base 2-Door | 2026 Base 4-Door |
|---|---|---|
| Overall length | 173.7 in | 189.4 in |
| Wheelbase | 100.4 in | 116.1 in |
| Width, mirrors folded | 75.9 in | 75.9 in |
| Width, mirrors unfolded | 86.3 in | 86.3 in |
| Overall height | 71.9 in | 73.0 in |
| Ground clearance | 8.3 in | 8.4 in |
| Seating capacity | 4 | 5 |
Measurements are for the 2026 Base configuration. Ford specifies the 4-door Base height for a soft-top vehicle. Figures are from Ford’s official 2026 Bronco technical specifications.
In feet, the 2-door Base is approximately 14 feet 5.7 inches long, while the 4-door Base is 15 feet 9.4 inches long. The extra wheelbase primarily separates the front and rear axle positions; it is not a measurement of available passenger legroom.
Pay close attention to the mirror labels. A 75.9-inch folded-mirror width and an 86.3-inch unfolded-mirror width answer different questions. For a narrow doorway, parking gate, or enclosed trailer, the relevant value depends on whether the mirrors are folded and whether another accessory projects farther outward.
These Base measurements should not be substituted for a Badlands or Raptor without checking that trim’s specifications.
How Bronco Measurements Changed From 2021 to 2026
The sixth-generation full-size Bronco uses 100.4-inch and 116.1-inch wheelbases for its 2-door and 4-door bodies. Its familiar 173.7-inch and 189.4-inch lengths also appear in reference configurations across the 2021–2026 model years. However, Base availability and trim names have changed.
| Model Year | Reference Configuration | 2-Door Length | 4-Door Length | Wheelbase 2-Door / 4-Door |
|---|---|---|---|---|
| 2021 | Base | 173.7 in | 189.4 in | 100.4 / 116.1 in |
| 2022 | Base | 173.7 in | 189.4 in | 100.4 / 116.1 in |
| 2023 | Base | 173.7 in | 189.4 in | 100.4 / 116.1 in |
| 2024 | Big Bend | 173.7 in | 189.4 in | 100.4 / 116.1 in |
| 2025 | Base, late availability | 173.7 in | 189.4 in | 100.4 / 116.1 in |
| 2026 | Base | 173.7 in | 189.4 in | 100.4 / 116.1 in |
This is a reference-configuration chart, not a claim that every trim in each year has the same exterior length. The 2024 row uses Big Bend because Base was not offered for that model year. The 2021–2022 rows were checked against Ford’s model-year technical specifications; the 2023 row was cross-checked against 2023 Bronco specifications, and the 2024 Big Bend row against 2024 Bronco specifications.
Why the Same Wheelbase Does Not Mean the Same Length
Ford’s 2025 specifications list the Badlands at 174.8 inches long with two doors and 190.5 inches with four. The 2026 technical sheet lists 173.2 inches and 189.0 inches for the Badlands instead. The wheelbases remain 100.4 and 116.1 inches.
That is why the model-year label matters. A wheelbase is measured between the axle centers, while the overall length includes the front and rear ends of the vehicle. Bumpers and other model-specific body components can affect the exterior length without changing the wheelbase.
The change is documented in Ford’s 2025 Bronco technical specifications. A used-Bronco buyer should compare the exact trim and model year, not rely on an undated Bronco dimensions graphic.
2026 Bronco Sasquatch and Raptor Dimensions Compared
The biggest dimensional differences appear once you move beyond the Base configuration. Ford lists 13.1 inches of ground clearance for the 2026 Raptor, compared with 8.3 inches for the Base 2-door.
| 2026 Configuration | Tire Class | Ground Clearance |
|---|---|---|
| Base 2-Door | 30 in | 8.3 in |
| Base 4-Door | 30 in | 8.4 in |
| Big Bend or Outer Banks 4-Door | 32 in | 9.4 in |
| Badlands 2-Door or 4-Door | 33 in | 10.5 in |
| Sasquatch 2-Door | 35 in | 11.6 in |
| Sasquatch 4-Door | 35 in | 11.5 in |
| Raptor 4-Door | 37 in | 13.1 in |
Tire classes are Ford’s nominal categories, not precise measured tire diameters. Clearance figures follow Ford’s 2026 off-road specification table.
The Sasquatch figures describe the 35-inch-tire package configuration, not the stock height of every trim on which a package may be available. Check the installed factory tire size and package equipment before matching your Bronco to this table. For exact tire codes and nominal versus calculated diameter, see the Ford Bronco tire size chart.
How Much Bigger Is the 2026 Bronco Raptor
| Exterior Measurement | 2026 Base 4-Door | 2026 Raptor 4-Door |
|---|---|---|
| Overall length | 189.4 in | 191.0 in |
| Wheelbase | 116.1 in | 116.1 in |
| Height | 73.0 in | 77.8 in |
| Width, mirrors folded | 75.9 in | 85.7 in |
| Width, mirrors unfolded | 86.3 in | 86.9 in |
| Front track width | 65.0 in | 73.2 in |
| Rear track width | 65.0 in | 73.6 in |
The Raptor is not just a standard 4-door with taller tires. Its substantially wider track and folded-mirror width make it a different proposition for narrow trails or tight garages.
Specification discrepancy: Ford’s 2026 technical sheet lists a 116.1-inch Raptor wheelbase and a 191.0-inch overall length. A public Ford webpage has incorrectly displayed 191 inches as the wheelbase. Ford’s technical sheet also gives 77.8 inches for Raptor height, while the public page has shown 78.6 inches. The chart above follows the technical sheet; confirm the exact vehicle height before making a clearance-critical decision.
How Bronco Interior Dimensions Differ by Roof Type
The 2026 Bronco has 43.1 inches of front legroom in both body styles. More noticeable differences appear in rear legroom and in headroom between hardtop and soft-top configurations.
| Interior Measurement | 2-Door Hardtop | 4-Door Hardtop | 4-Door Soft Top |
|---|---|---|---|
| Front headroom | 41.0 in | 40.8 in | 43.3 in |
| Rear headroom | 39.8 in | 40.1 in | 41.1 in |
| Front legroom | 43.1 in | 43.1 in | 43.1 in |
| Rear legroom | 35.7 in | 36.3 in | 36.3 in |
| Front shoulder room | 57.1 in | 57.1 in | 57.1 in |
| Rear shoulder room | 51.8 in | 56.5 in | 56.5 in |
| Seating | 4 | 5 | 5 |
Figures are 2026 published interior dimensions, arranged by body and roof style.
The four-door gives rear occupants 0.6 inch more legroom than the two-door and 4.7 inches more rear shoulder room. The 4-door soft top adds 2.5 inches of front headroom compared with the 4-door hardtop specification.
These figures describe the passenger compartment, not the removable roof panels or open-top driving space. If a tall driver is comparing two Broncos, front headroom should be checked against the installed roof, seat position, and their seated height rather than the exterior roof height.
How Bronco Cargo Capacity Changes With Door Count
Cargo capacity is another reason to separate the 2-door, 4-door hardtop, and 4-door soft top. For 2026, Ford lists 20.6 cubic feet behind the rear seats in a 2-door hardtop, compared with 35.6 cubic feet in a 4-door hardtop.
| 2026 Cargo Volume | 2-Door Hardtop | 4-Door Hardtop | 4-Door Soft Top |
|---|---|---|---|
| Behind rear seats | 20.6 cu ft | 35.6 cu ft | 38.3 cu ft |
| Behind front seats, rear seats folded | 52.0 cu ft | 77.6 cu ft | 83.0 cu ft |
| Passenger volume | 97.6 cu ft | 103.6 cu ft | 108.2 cu ft |
The 4-door Raptor has a separately listed 72.9-cubic-foot volume behind the front row. Cargo figures do not guarantee that an object of a particular length or width will fit.
For a quick comparison, the 4-door hardtop has 15.0 cubic feet more space behind the rear seats than the 2-door hardtop. The 4-door soft top adds another 2.7 cubic feet behind the rear row over the 4-door hardtop figure.
Cargo volume is measured in three dimensions. It cannot tell you whether a long storage bin, bicycle, cooler, or assembled piece of furniture will pass through the rear opening. Measure the object’s width and length, the actual cargo opening, and any seat or tailgate obstruction before buying a cargo accessory.
The figures above use Ford’s 2026 cargo chart. Older model-year brochures may use different published cargo capacities, so use the year-specific documentation when measuring an earlier Bronco.

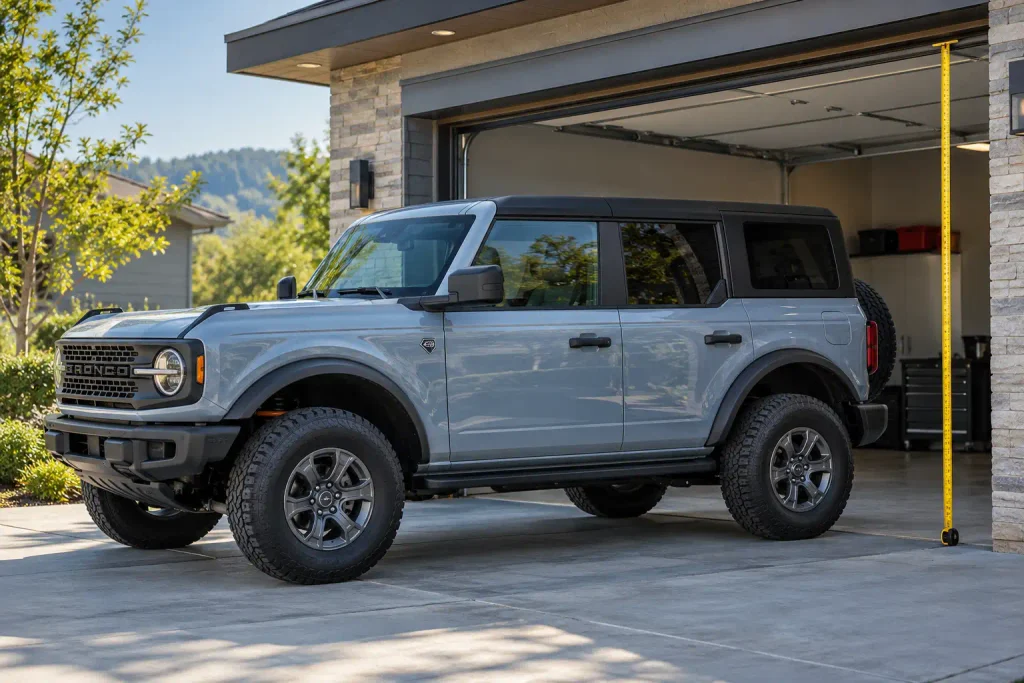

Will Your Ford Bronco Fit Inside a Garage
A stock Bronco can fit many residential garages, but the garage opening and the available interior space are separate measurements. Check height, clear width, and usable parking length before driving in.
- Measure the opening height at its lowest point. Include the position of the raised garage door, seals, rails, and any objects hanging into the opening. Use your Bronco’s actual roof, rack, and tire configuration.
- Measure the clear doorway width. Compare it with the appropriate mirror-folded or mirror-unfolded figure. Allow room for steering alignment instead of aiming for a barely possible fit.
- Measure the usable parking length. Account for shelving, workbenches, the closed garage door, and room to walk behind the spare tire.
- Check roof and rear accessories. Lifts, roof tents, racks, light bars, antennas, hitch-mounted equipment, and aftermarket tire carriers may extend beyond Ford’s stock measurements.
Example of a Tight Garage Clearance
Consider a hypothetical garage opening 80 inches high. A stock 2026 Base 2-door at 71.9 inches would have 8.1 inches of nominal vertical clearance. A 2026 Badlands listed at 74.1 inches would have 5.9 inches. These calculations assume the advertised height matches the actual vehicle and that the opening truly has a full 80 inches of unobstructed clearance.
For length, a 200-inch usable parking bay minus the 189.4-inch 4-door Base length leaves only 10.6 inches total. That is not much room to split between the front and rear, especially when accessing a rear-mounted spare tire or swing gate.
Ground clearance is not a substitute for roof height. For more detail about height by trim and the effect of added accessories, see the Bronco height and garage clearance guide.
How Full Size Bronco Dimensions Compare With Bronco Sport
The Bronco Sport is a separate SUV, not the 4-door version of the full-size Bronco. The full-size model covered here uses 2-door and 4-door body styles and a body-on-frame platform. The Bronco Sport uses a different unibody platform and has its own exterior, interior, wheel, and cargo measurements.
A dimensions search that simply says “Bronco” may return Sport figures alongside those for the full-size vehicle. Check the model name before using a length or wheelbase to choose a garage, trailer, parking space, or accessory.
Our separate Bronco vs Bronco Sport comparison covers the broader differences between the two models. The charts on this page apply only to the full-size 2021–2026 Bronco.
How to Verify Your Bronco’s Exact Measurements
Factory measurements are useful, but the right row depends on the vehicle sitting in front of you.
- Confirm the model year and trim. Start with the registration or factory vehicle information. A 2025 Badlands is not dimensionally identical to a 2026 Badlands in Ford’s published length chart.
- Identify the actual equipment. Note the door count, roof style, tire size, Sasquatch package, and installed accessories. Do not assume that every vehicle of the same trim has an identical setup.
- Choose the correct measurement definition. Overall width with mirrors unfolded is not track width. Ground clearance is not overall vehicle height. Cargo volume is not a cargo-floor dimension.
- Physically measure when fitment is critical. For tight garage openings, enclosed trailers, roof accessories, or oversized cargo, leave a sensible margin instead of relying on a specification to the nearest tenth of an inch.
When published figures conflict, favor a dated technical specification for the appropriate model year and inspect the vehicle itself before committing to tight clearances.
What Bronco Dimensions Should You Check First
The Ford Bronco dimensions chart is most useful when you start with the correct body style, then narrow the figures to the exact year, trim, roof, and package. For the 2026 Base, the essential exterior numbers are 173.7 inches long for the 2-door and 189.4 inches for the 4-door, with wheelbases of 100.4 and 116.1 inches.
If your decision involves garage parking, use actual height and mirror width rather than ground clearance or track width. If you need more storage, compare the roof-specific cargo volumes instead of assuming every 4-door has the same capacity. For a Badlands, Sasquatch, or Raptor, always use its own configuration-specific measurements.
Before ordering accessories or attempting a tight fit, check the exact specification row and take a physical measurement of the space involved.
Ford Bronco Dimensions Chart Frequently Asked Questions
How Long Is a Ford Bronco 2-Door?
The 2026 Base 2-door Bronco is 173.7 inches long, or roughly 14 feet 5.7 inches. Other trims can differ: Ford lists the 2026 Badlands 2-door at 173.2 inches, so confirm the trim rather than applying the Base measurement to every Bronco.
How Wide Is a Ford Bronco With Mirrors?
The 2026 Base Bronco is 86.3 inches wide with mirrors unfolded and 75.9 inches with the mirrors folded. Badlands and Raptor configurations have different published widths. Always use the matching mirror position and trim when checking a garage or parking entrance.
What Is the Wheelbase of a 4-Door Bronco?
The 2026 full-size Bronco 4-door has a 116.1-inch wheelbase, compared with 100.4 inches for the 2-door. Wheelbase measures the distance between the axle centers, not the total bumper-to-bumper length. Ford’s 2026 technical sheet gives 116.1 inches for the Raptor as well.
Is the Bronco Raptor Wider Than a Regular Bronco?
Yes. The 2026 Raptor measures 85.7 inches with mirrors folded, compared with 75.9 inches on the Base 4-door. With mirrors unfolded, the published values are 86.9 and 86.3 inches, respectively. That is why comparing the same width definition is essential.
Does a Bronco Hardtop Have Less Headroom Than a Soft Top?
In Ford’s 2026 four-door specifications, the hardtop has 40.8 inches of front headroom, compared with 43.3 inches for the soft top. Rear headroom is 40.1 versus 41.1 inches. These are manufacturer interior measurements, not figures for the roof removed.
