2019 Ford Escape Headlight Bulb Size Guide & Upgrade Tips in 2026

The 2019 Ford Escape represents the final model year of the vehicle’s third-generation facelift, carrying forward a highly segmented automotive lighting ecosystem. Unlike simpler platforms that utilize a single universal headlight bulb, the 2019 Escape features three distinct headlamp housing architectures distributed across its trim hierarchy.

Consequently, identifying the correct headlight bulb size, executing aftermarket Light Emitting Diode (LED) or High-Intensity Discharge (HID) upgrades, and performing routine maintenance requires a nuanced understanding of the vehicle’s specific optical and electrical engineering.

This document provides an exhaustive synthesis of OEM bulb specifications, investigates the photometric performance of modern lighting technologies, outlines critical Controller Area Network (CANbus) integration requirements, and establishes verified diagnostic and installation protocols for professional and advanced consumer applications.

Trim-Specific Headlamp Architecture and Optics

A pervasive point of friction within the automotive aftermarket is the assumption of uniform bulb fitment across all 2019 Ford Escape models. Ford engineered entirely different headlamp assemblies for the S, SE, SEL, and Titanium trims, and the internal optical mechanisms dictate varying bulb sizes that are not cross-compatible.

The base S trim is equipped with a traditional multi-surface halogen reflector housing. In this configuration, the low beam and high beam are separated into distinct reflector bowls, relying entirely on the geometry of the mirrored backing to project the light emitted by standard incandescent filaments.

Mid-tier trims, specifically the SE and SEL, are upgraded to a halogen projector assembly. The low beam utilizes an internal cutoff shield and a thick convex glass lens to focus the light into a sharp, precise horizontal beam pattern, while the high beam remains a standard reflector bowl. This optical distinction requires an entirely different high beam bulb size compared to the base model to achieve the correct focal length within the projector.

The premium Titanium trim abandons halogen primary forward lighting entirely in favor of High-Intensity Discharge (HID) Bi-Xenon technology. These sophisticated assemblies use a single D3S HID bulb to serve both low and high beam functions. A mechanical shutter inside the projector lens actuates to reveal the full light output when the high beams are engaged.

Furthermore, these advanced housings integrate dedicated halogen cornering lamps that illuminate the peripheral vision field during steering articulation. The HID housings also contain internal high-voltage ballasts and igniters necessary to generate the xenon plasma arc, rendering them entirely incompatible with the wiring harnesses of lower trims.

Comprehensive Bulb Specification Matrix

To resolve widespread dimensional confusion, the following structured data synthesizes official specifications from the manufacturer’s documentation and verified aftermarket fitment databases. Proper identification requires cross-referencing the vehicle’s trim level with the corresponding assembly type.

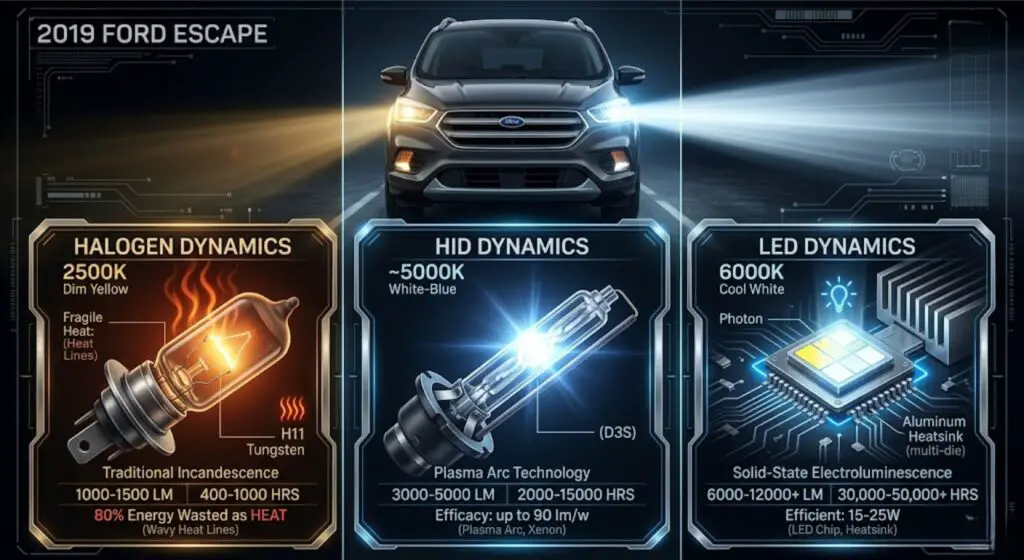

Halogen, HID, and LED Dynamics

When evaluating aftermarket lighting upgrades for the 2019 Ford Escape, analyzing the distinct operational physics, thermal dynamics, and photometric output of each technology is paramount for ensuring both safety and longevity.

Halogen bulbs operate through traditional incandescence, utilizing a tungsten filament suspended in a halogen gas mixture of iodine or bromine. Electrical resistance heats the filament to approximately 2,500 degrees Celsius to generate light. This process is inherently inefficient, as roughly 80 percent of the consumed electrical energy is wasted as infrared heat rather than visible light.

Consequently, halogen bulbs typically generate a modest 1,000 to 1,500 lumens and suffer from rapid filament degradation, yielding an average operational lifespan of merely 400 to 1,000 hours before failure.

High-Intensity Discharge (HID) lamps eliminate the fragile tungsten filament entirely. Instead, they pass a high-voltage electrical arc between two tungsten electrodes housed inside a quartz tube filled with xenon gas and metal halide salts. This plasma arc generates between 3,000 and 5,000 lumens, offering deep road penetration and high contrast. HID systems are significantly more efficient than halogens,

drawing approximately 35 watts of power while delivering a luminous efficacy of up to 90 lumens per watt. Depending on ballast quality and activation cycle frequency, HID bulbs boast a lifespan ranging from 2,000 to 15,000 hours. Unlike halogens that fail abruptly, HID bulbs degrade gradually, undergoing a visible “color shift” toward the blue or purple spectrum as the halide salts burn off, which serves as a visual indicator of impending failure.

Light Emitting Diodes (LEDs) produce light through electroluminescence. When forward voltage is applied across a semiconductor, electrons recombine with electron holes, releasing energy in the form of photons. Premium LED retrofits engineered for the Ford Escape can produce an astonishing 6,000 to 12,000 effective lumens.

LEDs achieve this while drawing a fraction of the power—typically 15 to 25 watts—making them exceptionally efficient. Furthermore, solid-state technology renders LEDs largely impervious to standard road vibration degradation, resulting in extraordinary lifespans ranging from 30,000 to over 50,000 hours, effectively outlasting the vehicle itself in many cases.

Color Temperature Dynamics and Visual Acuity

Color temperature, measured in degrees Kelvin (K), heavily influences driver visual acuity, contrast perception, and ocular fatigue over long distances. Modern LED and HID upgrades offer a spectrum of color choices, each serving specific environmental purposes.

A color temperature of 3000K produces a warm amber or yellow light. This wavelength is optimal for auxiliary fog lights (H11) on the Ford Escape. The longer wavelength of yellow light minimizes Rayleigh scattering—the phenomenon where light reflects off suspended water droplets in fog, rain, or snow—thereby reducing blinding glare in inclement weather.

Moving up the spectrum, 4300K represents a warm white tone and serves as the standard OEM specification for factory HID bulbs. This temperature perfectly mimics the chromaticity of natural daylight at noon, providing the highest usable lumen output and maximizing ocular comfort.

A temperature of 6000K yields a cool, crisp white light with a faint blue undertone. This is the most prevalent color for aftermarket LED chips, as it provides exceptional contrast against dark asphalt and highly reflective road signs, though it can marginally increase glare in heavy rain.

It is critical to note that bulbs exceeding 8000K—which produce deep blue or purple light—drastically reduce usable visible illumination and often violate compliance standards established by(https://www.nhtsa.gov) regarding street legality, making them unsuitable for highway driving.

CANbus Networks and Decoders

The electrical architecture of the 2019 Ford Escape is governed by a sophisticated Body Control Module (BCM) that utilizes a Controller Area Network (CANbus) to constantly monitor the integrity of vehicle subsystems, including forward and rear lighting circuits. The BCM measures the precise electrical resistance and amperage draw of each installed bulb to detect filament failures.

Because aftermarket LED bulbs draw significantly less wattage than factory halogen bulbs, the CANbus system interprets the sudden drop in electrical load as a burned-out bulb. The vehicle’s computer responds to this perceived failure through several disruptive mechanisms. It will typically trigger a persistent “Bulb Out” warning on the instrument cluster.

When LEDs are installed in the turn signal housings, the system induces “hyper-flashing,” blinking at twice the normal rate to alert the driver of a supposed malfunction. Most problematically, the BCM may pulse the power delivery to the headlights, resulting in a severe, visible strobing or flickering effect that renders the vehicle unsafe to drive at night.

To successfully retrofit a 2019 Ford Escape with LEDs, additional inline electrical components are strictly required to interface with the BCM. CANbus decoders act as inline capacitors that smooth out the pulse-width modulated (PWM) electrical signal from the vehicle. They store and release energy rapidly to create a perfectly linear voltage supply to the LED driver, entirely eliminating the flickering phenomenon.

For turn signal applications utilizing 7440 or 7444NA LED bulbs, 50W 6-Ohm load resistors must be spliced in parallel between the positive and negative wiring. By applying Ohm’s Law, a 6-Ohm resistor operating on a 12-volt system dissipates exactly 24 watts of power as pure heat. This artificially raises the circuit’s total power draw back to the factory halogen threshold, successfully tricking the BCM and restoring normal, metered flash rates.

Due to the extreme thermal loads generated by these resistors, they must be mounted directly to bare metal chassis components and kept strictly away from plastic wiring looms, rubber hoses, or inner wheel well liners to prevent melting or fire hazards.

Spatial Mechanics and Installation Protocols

Replacing the headlight bulbs on the 2019 Ford Escape is notoriously challenging due to the highly constrained dimensions of the engine bay. While dealership service departments frequently recommend removing the entire front bumper fascia and billing extensive labor hours, field technicians have developed specialized, non-invasive methods to access the housings from the top engine bay and lateral wheel wells.

It is a critical prerequisite that technicians wear safety glasses and nitrile gloves during this procedure. The quartz glass envelope of halogen and HID bulbs must never be touched with bare skin. Sebum—human skin oil—will transfer to the glass and carbonize during the bulb’s extreme high-temperature operation. This creates a localized thermal hotspot that drastically reduces the bulb’s structural integrity, leading to premature burnout or catastrophic shattering inside the housing.

For the driver side (left) low and high beam replacement, the housing is generally accessible from the top. The technician must locate the circular rubber dust cap on the rear of the assembly and pull it backward to expose the internals. Grasping the bulb base, the unit is rotated a quarter-turn counter-clockwise to disengage the locking lugs, allowing the bulb to be pulled straight out. Depressing the locking tab on the wiring harness frees the connector.

The new bulb must be connected to the harness prior to insertion to ensure a positive electrical lock, then carefully guided back into the housing. Aligning the asymmetrical locking tabs and twisting clockwise secures the bulb. The rubber dust cover must then be firmly reseated around its entire perimeter; any gap will result in severe moisture ingress during rain or car washes.

The passenger side (right) low beam presents a severe spatial limitation, as it is heavily obstructed by the engine’s coolant overflow reservoir. Bypassing this requires gently lifting the plastic coolant tank straight upward. It is not bolted down; it is held by friction on a molded mounting clip and a small metal post. By shifting the unclipped reservoir inward toward the engine block, an additional two inches of clearance is created directly behind the headlight.

This narrow corridor is sufficient to remove the dust cap and execute the bulb replacement using the same rotational mechanics as the driver side, after which the reservoir is snapped back onto its post. Detailed visual aids for this specific bypass can often be found by referencing repair diagrams from the Ford official support portal.

Replacing the front turn signals and lower fog lights requires a different approach entirely, as they are positioned too low in the bumper to be accessed from the engine bay. The vehicle must be parked, and the steering wheel turned to full lock in the opposite direction of the bulb being serviced to expose the wheel well.

Extracting the Torx screws and plastic push-clips securing the front edge of the inner fender liner allows the flexible plastic to be peeled back. This exposes the rear of the lower lamp housing, where the turn signal socket can be twisted counter-clockwise and removed, allowing the wedge-style bulb to be pulled straight out and replaced.

Diagnostic Troubleshooting and Fault Remediation

When owners encounter persistent lighting failures, diagnosing the root cause requires isolating variables beyond simply changing the bulb.

If the 2019 Ford Escape is consuming new halogen bulbs every few months, the issue extends beyond standard filament wear. While sebum contamination is the leading cause, electrical ground faults are equally destructive. High electrical resistance caused by a corroded grounding strap will overheat the bulb base and wiring harness.

Proper diagnostics require tracing the ground wire from the headlight assembly to the chassis, removing the grounding bolt, sanding the contact point to bare metal, and reinstalling it utilizing an external star washer to bite deeply into the chassis steel for optimal conductivity. Additionally, excessive voltage from a failing alternator voltage regulator will rapidly incinerate filaments; a multimeter should verify that the running voltage does not exceed 14.4 volts.

Moisture inside the headlight housing is a frequent and highly misunderstood complaint among Ford Escape owners. Distinguishing between normal atmospheric physics and a compromised physical seal is crucial. A fine, transparent mist covering less than fifty percent of the lens is considered acceptable condensation. Headlight housings are not hermetically sealed; they feature microscopic vents to accommodate the expansion and contraction of internal air during extreme thermal cycling.

Moist ambient air naturally enters these vents, and condensation forms when the cold exterior lens meets the hot internal operating air. This mist will naturally evaporate and exit the vents within forty-eight hours of dry weather operation. Conversely, the presence of large water droplets, visible streaks, drip marks,

or pooling water at the bottom of the housing signifies a critical failure of the perimeter butyl seal or an improperly seated rear rubber dust cap. If the housing cannot be economically replaced, technicians will sometimes drill a 1/8-inch weep hole into the lowest, unseen point of the plastic housing to allow standing water to drain continuously.

For Titanium trims equipped with factory D3S HID systems, intermittent operation requires careful component isolation. If the headlight flickers rapidly, struggles to ignite in cold weather, or shuts off randomly while driving, the high-voltage ballast is likely failing to sustain the required electrical load. However, if the light output has merely degraded in brightness over several years or has shifted to a distinctly pink or purple hue, the bulb itself has reached the end of its chemical lifecycle and requires replacement.

Optical Alignment and Beam Calibration

Following any bulb upgrade, housing replacement, or collision repair, verifying the optical alignment is a critical safety requirement. Improperly aimed headlights—particularly high-lumen LED or HID units—pose a severe hazard, either causing blinding glare to oncoming traffic or failing to project light far enough down the road to ensure safe stopping distances.

The 2019 Ford Escape features a manual vertical aiming mechanism built into the top rear of the headlamp assembly. Calibration requires parking the vehicle on a perfectly level surface exactly twenty-five feet away from a flat, vertical wall. The exact distance from the ground to the physical center of the headlight projector lens must be measured, and a horizontal line marked on the wall at this precise height using masking tape.

When the low beams are activated, the beam pattern will display a distinct horizontal cutoff line, featuring a slight upward step on the right side designed to illuminate road signs without blinding oncoming drivers. Using a Phillips #2 screwdriver, the vertical adjuster screw is rotated until the top horizontal edge of the high-intensity light zone rests exactly two to four inches below the taped center line on the wall. This intentional downward deflection ensures maximum roadway illumination while keeping the high-intensity cutoff safely below the eye-line of oncoming traffic.

Advanced Analytical Inquiries

To further clarify complex nuances surrounding the 2019 Ford Escape’s lighting ecosystem, several critical inquiries frequently arise among owners and technicians.

The necessity of CANbus decoders during LED upgrades is a primary point of confusion. Because the Escape’s Body Control Module actively monitors exact wattage consumption to detect burnt-out bulbs, the significantly lower power draw of an LED chip causes the system to assume a failure has occurred. Without an inline CANbus decoder to smooth the electrical signal and simulate appropriate resistance, the vehicle will respond with dashboard error messages or severe pulse-width-modulation flickering.

Another common discrepancy involves the owner’s manual listing conflicting high beam bulb sizes, specifically referencing both 9005 and H9. This is not an error, but rather a reflection of the vehicle’s varying trim levels. Base S trims with standard halogen reflector housings require a 9005 bulb for the high beam. Conversely, mid-tier SE and SEL trims that feature upgraded halogen projector housings utilize an H9 bulb for the high beam. Physical visual confirmation of the housing type is mandatory prior to purchasing replacements.

Regarding installation, many owners question whether removing the front bumper is strictly necessary to change the passenger-side low beam. While the space is undeniably restricted, sufficient clearance can be achieved by pulling the plastic engine coolant reservoir straight up and off its mounting clip. Pushing it slightly toward the center of the engine bay opens a two-inch gap, allowing a hand to reach the rear rubber dust cap without requiring full disassembly of the vehicle’s front fascia.

Finally, owners of the premium Titanium trim frequently attempt to replace their factory D3S HID bulbs with aftermarket LEDs. While direct D3S-to-LED aftermarket retrofits are manufactured, the factory HID housing relies on a highly specific high-voltage ballast to operate. Upgrading to LED within an HID assembly typically requires purchasing a specialized,

premium LED kit explicitly engineered to interface with the factory HID ballast, or bypassing the ballast entirely to wire the LED driver directly to the vehicle’s 12-volt source. Furthermore, HID projector optics are engineered for the specific plasma arc geometry of a xenon bulb; introducing a flat LED chip can alter the focal point, potentially compromising the beam pattern and light distribution.
