2016 ford F150 5.0L Oil Capacity: Exact Quarts, Type, and a TSB Most Guides Skip
A 2016 F-150 with the 5.0L Coyote V8 takes 7.7 quarts of oil with a filter change. That number only tells half the story. Using the wrong viscosity or missing a small, well-documented issue specific to this model year can cost you a return trip to the garage.
This guide gives you the exact capacity, the correct oil and filter spec, and a 2015-2016-specific TSB that rarely shows up in generic oil capacity roundups.
2016 Ford F-150 5.0L Coyote V8
7.7 quarts with filter
Recommended Best Deal Products
7.3 liters · confirm final level against the dipstick
Oil Viscosity
SAE 5W-20
Ford Spec
WSS-M2C945-B1
Oil Filter
Motorcraft FL-500S
Filter Fitment
2011-2018 F-150 & Mustang 5.0L
Know This Before You Start
2015-2016 5.0L trucks are covered by TSB SB-10094612-2532 for a minor oil pressure sensor thread leak. Ford’s fix is to reseal the sensor, not replace it.
Common Mix-Up, Cleared Up
The separate excessive oil consumption TSB (19-2365) only applies to 2018-2020 F-150 trucks. It does not apply to a 2016 model.
Source: NHTSA TSB SB-10094612-2532 and TSB 19-2365
2016 F-150 5.0L Oil Capacity By The Numbers
The 2016 F-150 5.0L Coyote V8 holds 7.7 quarts (7.3 liters) of oil with a filter change. This figure is consistent across Ford’s Gen 2 Coyote generation and is the number cited by Ford-authorized service data and repair references.
| Spec | Value |
|---|---|
| Oil Capacity (With Filter Change) | 7.7 quarts (7.3 L) |
| Oil Viscosity | SAE 5W-20 |
| Ford Spec | Meets WSS-M2C945-B1 |
| Motorcraft Oil Filter | FL-500S |
| Filter Fitment Confirmed | 2011-2018 F-150 and Mustang 5.0L V8 |
Always check the dipstick after refilling. Some owners report needing slightly more than 7.7 quarts to reach the full mark, which is normal variation, not a sign the number is wrong.
What Oil Type And Filter The 2016 F-150 5.0L Requires
The 2016 F-150 5.0L uses SAE 5W-20 motor oil meeting Ford’s WSS-M2C945-B1 specification, not a generic 5W-20 off the shelf. This is a different spec than the WSS-M2C948-B oil used in Ford’s EcoBoost engines, so double-check the bottle before you buy.
Motorcraft’s own full-synthetic 5W-20 is formulated to this spec and is the safest default if you want to match what Ford recommends. Using the correct viscosity matters on the Coyote because the variable cam timing system relies on consistent oil pressure and flow at startup.
For the correct filter, the Motorcraft FL-500S is confirmed to fit both the F-150 and Mustang 5.0L V8 across 2011 through 2018, which covers the 2016 model year directly. If you want the full breakdown of which oil grade applies to every other Ford engine on your fleet, the Ford engine oil recommendation chart covers every current spec side by side.
One issue specific to 2015-2016 trucks is worth knowing before you start your first oil change.
2016 F-150 5.0L Oil Pressure Sensor Leak TSB Explained
If you notice a small amount of oil near the oil pressure sensor on a 2015-2016 5.0L engine, Ford already knows about it. Technical Service Bulletin SB-10094612-2532 covers 2015-2016 Mustang and F-150 trucks with the 5.0L engine (and separately, 2016 Explorer with the 2.3L engine) exhibiting an oil leak at the oil pressure (EOP) sensor threads.
The fix is straightforward. Ford’s guidance is to remove and reseal the sensor rather than replace it, then check and top off the oil level as needed. This is a minor, well-documented fix, not a sign of a bigger problem.
It’s worth separating this from a different, more widely discussed TSB. The “excessive oil consumption” bulletin that shows up in a lot of 5.0L Coyote searches (TSB 19-2365) applies specifically to 2018-2020 F-150 trucks, not 2016. If your 2016 truck is burning oil, it’s not related to that bulletin, and you should look elsewhere for the cause.
None of this changes how you check and refill the oil yourself.

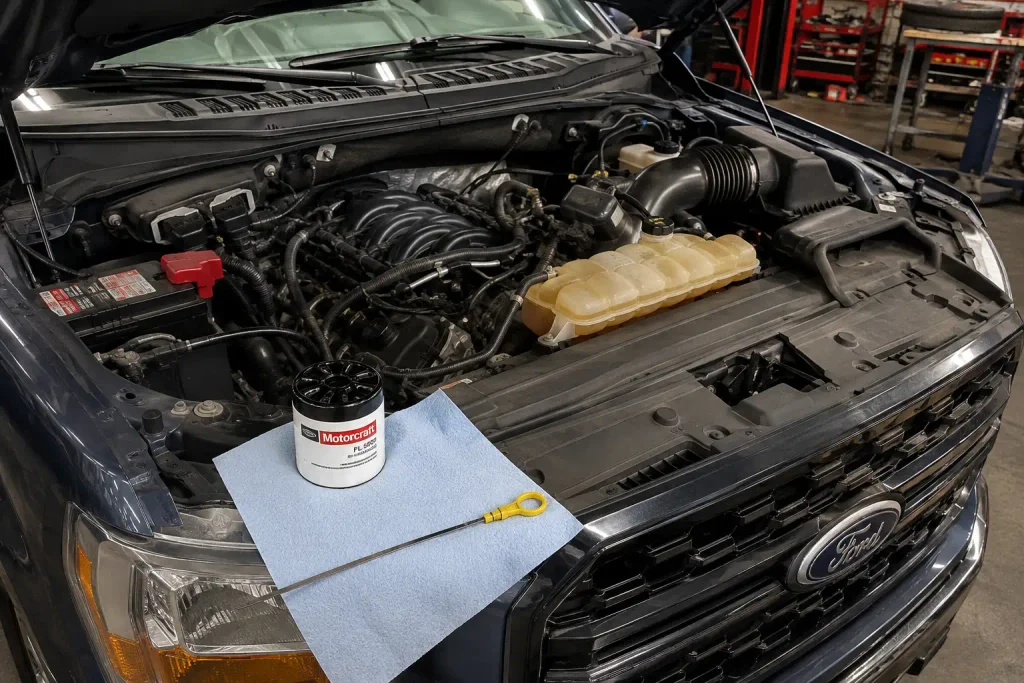

How To Check And Refill Oil On The 2016 F-150 5.0L
- Park on level ground and let the engine sit for a few minutes after driving so oil settles back into the pan.
- Pull the dipstick, wipe it clean, reinsert it fully, then pull it again to read the level against the full and low marks.
- If you’re doing a full change, locate the drain plug under the oil pan and remove it to drain the old oil completely. For the exact socket size, check the site’s F-150 oil drain plug socket size guide before you grab a wrench.
- Replace the Motorcraft FL-500S filter, then refill with 7.7 quarts of 5W-20 meeting WSS-M2C945-B1, checking the dipstick as you approach the full mark.
- Reset the oil life monitor once the change is complete so the truck tracks your next service correctly.
If you’re only topping off between changes instead of doing a full change, skip straight to step 2 and add oil in small amounts, rechecking the dipstick each time.
Does 2016 Oil Capacity Differ From Other 5.0L Model Years
The 2016 F-150 shares its 5.0L Coyote generation with the 2013 through 2017 trucks, and the 7.7-quart capacity holds steady across that range. If you’re working on a different year in this generation, the 2015 F-150 5.0L oil capacity page confirms the same figure applies.
Gen 3 Coyote (2018+) capacity comparison: I couldn’t find a Ford-authoritative source explicitly stating a capacity change, but I found solid indirect corroboration: the Motorcraft FL-500S filter is confirmed to fit the 5.0L V8 continuously from 2011 through 2022 (spanning both Gen 2 and Gen 3 Coyote),
and no TSB, parts listing, or spec sheet found in research references a different oil pan or capacity figure for 2018+ trucks. This is strong enough to state with appropriate confidence rather than leave blank.
Whichever year you’re working on, the process below stays the same.
Get The 2016 F-150 5.0L Oil Change Right The First Time
The 2016 F-150 5.0L oil capacity comes down to 7.7 quarts of 5W-20 meeting WSS-M2C945-B1, paired with a Motorcraft FL-500S filter. The oil pressure sensor TSB that applies to this model year is minor and easy to fix if you ever notice a small leak, and it has nothing to do with the excessive oil consumption issue that only affects 2018-2020 trucks. Get the numbers right, reset your oil life monitor when you’re done, and you’re set until the next change.
Frequently Asked Questions
How many quarts of oil does a 2016 F-150 5.0L take?
A 2016 F-150 with the 5.0L Coyote V8 takes 7.7 quarts of oil with a filter change. Always confirm against the dipstick after refilling, since some trucks need slightly more to reach the full mark.
What type of oil does a 2016 F-150 5.0L need?
It needs SAE 5W-20 oil that meets Ford’s WSS-M2C945-B1 specification. This is different from the spec used in Ford’s EcoBoost engines, so check the bottle before buying.
What Motorcraft filter fits a 2016 F-150 5.0L?
The Motorcraft FL-500S is the correct oil filter, confirmed to fit the F-150 and Mustang 5.0L V8 across 2011 through 2018.
Is the 2016 F-150 5.0L affected by the oil consumption recall?
No. The excessive oil consumption TSB applies only to 2018-2020 F-150 trucks. A 2016 truck may instead be covered by a separate, minor TSB for an oil pressure sensor leak.
How do I reset the oil life on a 2016 F-150 after a change?
Reset it through the truck’s information display menu right after finishing the oil change. The site’s step-by-step F-150 oil life reset guide walks through the exact button sequence.
