Fram PH8A Compatibility Guide: What Vehicles Does It Fit?
The Fram PH8A oil filter is a high-capacity filter primarily designed for older Ford, Chrysler, and Dodge V8 engines utilizing a 3/4″-16 thread size. It is most famous for its perfect fitment on iconic powerplants like the Ford 302 (5.0L) and Chrysler 318 (5.2L).
🎯 Key Takeaways
- Fits most Ford V8 engines manufactured between 1968 and 1996.
- Compatible with Chrysler/Dodge 318, 340, and 360 V8 engine families.
- Uses a standard 3/4″-16 thread pitch and 2.8-inch gasket diameter.
- Widely cross-referenced with WIX 51515 and Motorcraft FL-1A filters.
- Commonly used in marine applications and custom remote filter mounts.
The Fram PH8A is a legendary spin-on oil filter known for its massive application range, specifically across classic Ford, Chrysler, Dodge, and Jeep vehicles. If your engine utilizes a 3/4-16 thread mounting stud and requires a high-capacity filter body, the PH8A is likely the standard fitment for your block. It is most commonly associated with the golden era of American V8 engines, though its utility extends into industrial equipment and tractors.
Identifying if your vehicle uses the PH8A is critical because while many filters look similar, the internal bypass valve and thread pitch must be exact. Installing a filter with the wrong thread can strip your oil pump housing, while an incorrect bypass setting can starve your engine of oil during cold starts. This guide provides the specific vehicle and engine data you need to confirm a perfect fit for your project or daily driver.

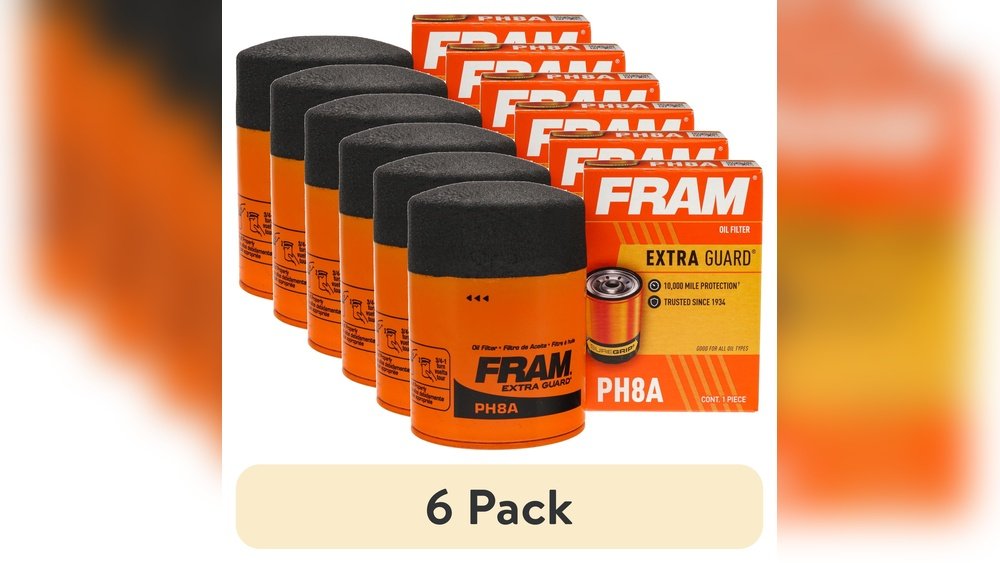

Major Vehicle Makes and Engine Types Compatible with Fram PH8A
The Fram PH8A is one of the most widely used filters in automotive history, primarily serving Ford and Chrysler platforms from the 1960s through the mid-1990s. While modern vehicles have shifted toward smaller, cartridge-style filters, the PH8A remains the “gold standard” for high-volume V8 and inline-6 engines that require a larger canister for superior filtration surface area.
The Classic American V8 and Inline-6 Connection
If you own a Ford F-150 from the 1980s or a classic Mustang, the PH8A is likely your primary oil filter. It was designed to handle the oil flow requirements of the Ford 302 (5.0L) and 351 Windsor engines. Similarly, Chrysler relied on this filter for its “LA” series small-block engines, including the 318 and 360 V8s. Beyond V8s, it is the standard fitment for the legendary Jeep 4.0L Inline-6 engine found in millions of Cherokees and Wranglers, making it one of the most purchased filters for off-road enthusiasts.
Categorized Compatibility Table
Below is a categorized list of the most common vehicle applications for the Fram PH8A. This table focuses on the “peak” years of compatibility where this filter was the OEM standard.
| Make | Model Years | Models | Engine Types |
|---|---|---|---|
| Ford | 1968–1996 | F-150, F-250, F-350 | 4.9L I6, 5.0L V8, 5.8L V8, 7.5L V8 |
| Ford | 1964–1995 | Mustang, Falcon, Torino | 289, 302, 351W, 428, 429 V8 |
| Ford | 1966–1996 | Bronco (Full Size) | 5.0L, 5.8L V8 |
| Jeep | 1987–2006 | Cherokee (XJ), Wrangler (YJ/TJ) | 4.0L I6, 2.5L I4 |
| Dodge | 1970–2002 | Ram 1500, 2500, 3500 | 3.9L V6, 5.2L V8, 5.9L V8 |
| Dodge | 1960–1974 | Charger, Challenger, Dart | 225 Slant-6, 318, 340, 360, 440 V8 |
| Chrysler | 1960–1993 | New Yorker, Imperial, Newport | 318, 360, 400, 440 V8 |
| Toyota | 1969–1992 | Land Cruiser | 3.9L, 4.2L I6 (F and 2F Engines) |
Essential Technical Specifications and Physical Dimensions
Understanding the physical specs of the PH8A is helpful if you are working on a custom engine swap or an industrial application where a “lookup tool” isn’t available. The PH8A is a relatively large filter, and you must ensure you have the physical clearance near your frame rails or headers to accommodate its height and width.
Thread Pitch and Internal Valves
The most important spec for the Fram PH8A is the 3/4-16 thread pitch. This thread size is extremely common in the automotive world, which is why the PH8A is often used as an “oversize” upgrade for smaller filters with the same thread. It also features a 12 PSI relief valve (bypass valve). This valve ensures that if the filter element becomes clogged or the oil is too thick during a sub-zero cold start, the engine still receives lubrication by bypassing the filtration media.
Physical Footprint and Size Data
If you are checking for fitment in a tight engine bay, use these exact measurements to confirm the PH8A will clear your surrounding components:
- Total Height: 5.14 inches (131 mm)
- Outside Diameter: 3.78 inches (96 mm)
- Thread Size: 3/4-16
- Gasket Outside Diameter: 2.81 inches (71 mm)
- Gasket Inside Diameter: 2.42 inches (61 mm)
- Anti-Drainback Valve: Yes (Silicone or Nitrile depending on sub-model)
The large diameter of this filter provides a significant amount of media surface area. This makes it a favorite for owners of older engines that produce more combustion byproducts, as the filter can hold more contaminants before the bypass valve is forced to open.
Cross-Reference Chart for Equivalent Oil Filters
While the Fram PH8A is a household name in the automotive world, you may occasionally find yourself at a local shop where it is out of stock. Because this filter size is so common, nearly every major manufacturer produces an equivalent. Most of these alternatives follow the same basic internal architecture, featuring a 3/4″-16 thread and an anti-drainback valve, making them interchangeable in a pinch.
Popular Alternatives to the Fram PH8A
If you prefer a different brand or need a premium synthetic option, look for these specific model numbers which offer the same fitment as the PH8A:
- Wix 51515: Often cited by enthusiasts for its robust construction and high-quality bypass valve.
- Purolator L30001: A classic “white can” filter that offers reliable filtration for standard oil change intervals.
- Mobil 1 M1-301: A high-end synthetic filter designed for longer drain intervals and better efficiency.
- Bosch 3500: Part of the Premium Filtech line, known for providing a very tight seal on older mounting plates.
- Motorcraft FL1A: The “Original Equipment” (OE) filter for most Ford vehicles that use the PH8A.
When to Upgrade to Premium Equivalents
Not all filters are created equal, even if they fit the same threading. If you are running full synthetic oil in a high-mileage classic V8, it is often worth stepping up to the Fram Ultra Synthetic (XG8A) or the Wix XP line. These versions use a wire-backed synthetic media that resists collapsing under high pressure, which is common in performance-built engines or during cold winter starts.
Application Factors: Why PH8A is the Standard for Classic V8s
The PH8A has endured for decades because it hits the “sweet spot” of filtration surface area and flow rate. Many modern filters have shrunk in size to fit into cramped engine bays, but the PH8A retains a large canister design. This volume is critical for older engines that move a high volume of oil to keep overhead cams or heavy lifters lubricated.
The Versatility of the 3/4″-16 Thread Size
The primary reason the PH8A fits such a massive variety of vehicles is the 3/4″-16 thread pitch. This became the de facto standard for Ford and Chrysler for over 30 years. Because this mounting size was so ubiquitous, it allowed engineers to design oil pump housings around a single, reliable filter specification. This universality means you can find a PH8A in almost any hardware or auto store in North America.
Internal Bypass and Anti-Drainback Features
Beyond the physical size, the PH8A is designed with specific internal mechanicals that cater to classic engine needs:
- 8-11 PSI Bypass Valve: This ensures that if the filter becomes clogged or the oil is too thick during a cold start, the engine still receives lubrication.
- Anti-Drainback Valve: This prevents oil from draining out of the filter when the engine is off, which eliminates “dry starts” that can cause premature wear on bearings.
- Large Media Capacity: The tall canister allows for more pleated paper, which can trap more carbon and metal shavings before reaching capacity.
Final Thoughts on Fram PH8A Compatibility
The Fram PH8A is more than just a part number; it is a piece of automotive history that continues to keep millions of engines running smoothly. From the iconic Ford Mustang to the dependable Jeep Cherokee, its broad compatibility makes it the go-to choice for DIY mechanics and professional technicians alike. By understanding the cross-reference options and the technical reasons behind its design, you can ensure your vehicle gets the protection it deserves.
Next Steps: Before your next oil change, double-check your vehicle’s specific oil weight requirements and inspect the filter mounting plate for any debris. If you have a classic ride, consider keeping a spare PH8A or its Motorcraft equivalent in your garage so you are always ready for maintenance. Do you have a favorite high-performance alternative to the PH8A? Let us know in the comments below!
❓ Frequently Asked Questions
Which Ford trucks are compatible with the Fram PH8A?
The PH8A fits a vast range of Ford F-Series trucks, including the F-150, F-250, and F-350, equipped with 5.0L, 5.8L, and 7.5L engines through the mid-1990s. It is also the standard filter for many Econoline E-Series vans from the same era.
Will a Fram PH8A work on Chrysler and Dodge vehicles?
Yes, it is highly compatible with classic Mopar engines such as the 318 (5.2L), 340, and 360 (5.9L) V8s found in Dodge Ram trucks and Plymouth passenger cars. Always verify the mounting clearance due to the filter’s large canister size.
What are the exact physical dimensions of the PH8A?
The filter stands approximately 5.14 inches tall with an outer diameter of 3.8 inches. It utilizes a gasket with an inner diameter of 2.42 inches and an outer diameter of 2.81 inches, requiring a relatively large mounting surface.
What are the best cross-reference alternatives to the PH8A?
Top-tier alternatives include the WIX 51515, Purolator L30001, Mobil 1 M1-301, and the Motorcraft FL-1A. These models share the same thread, gasket dimensions, and high-capacity canister volume.
Can the PH8A be used for custom or performance engine builds?
It is a popular choice for custom hot rods and marine engines that utilize a remote oil filter mount with 3/4″-16 threads. Its high internal volume makes it ideal for high-performance oil systems that require lower restriction.
Does the PH8A include an anti-drainback valve?
Yes, the Fram PH8A includes a nitrile anti-drainback valve designed to prevent oil from draining out of the filter when the engine is turned off. This helps minimize wear by ensuring immediate oil pressure during cold starts.
