Ford Ranger differential fluid capacity depends on the model year, whether the truck has four-wheel drive, and which differential is installed. For example, a 2019 Ranger takes 1.0 liter in its front axle, 1.75 liters in a standard rear axle, or 1.44 liters in a locking rear axle. A 2022 Ranger uses different quantities.
Identify your axle before buying gear oil. The chart below covers verified US-market configurations and important refill exceptions.
FORDMASTERX / MAINTENANCE REFERENCE
Ford Ranger Differential Fluid Capacity
Factory-reference fluid quantities for selected US Ford Rangers. Match your model year and differential configuration before servicing.
| Model Year | Front Axle 4WD Only |
Rear Standard | Rear Locking / Limited-Slip |
|---|---|---|---|
| 2011 Legacy | 1.70 L | 2.4–2.5 L | 2.2–2.4 L Traction-Lok; FX4 differs |
| 2019–2020 | 1.00 L | 1.75 L | 1.44 L Electronic rear locker |
| 2021–2023 | 0.775 L | 1.78 L | 1.595 L Electronic rear locker |
| 2024 | 0.705 / 0.775 L Specific front axle variants* | 1.93 L Standard high-ride | 1.73 L High-ride locker; Raptor rear 2.35 L |
| 2025–2026 | 0.865 / 0.775 L Specified no-locker / locker* | 1.93 L Standard high-ride | 1.73 L High-ride locker; Raptor rear 2.35 L |
* New-generation front axle exception: Ford publishes different front axle capacities by configuration. A separate 2026 configuration lists 0.705 L. Check your truck’s exact manual and approved oil grade.
Older Ranger exception: Ford specifies 2.5–2.6 L for the 2011 FX4 rear axle. Traction-Lok is limited-slip, not an electronic locker. Earlier model years require their own axle specifications.

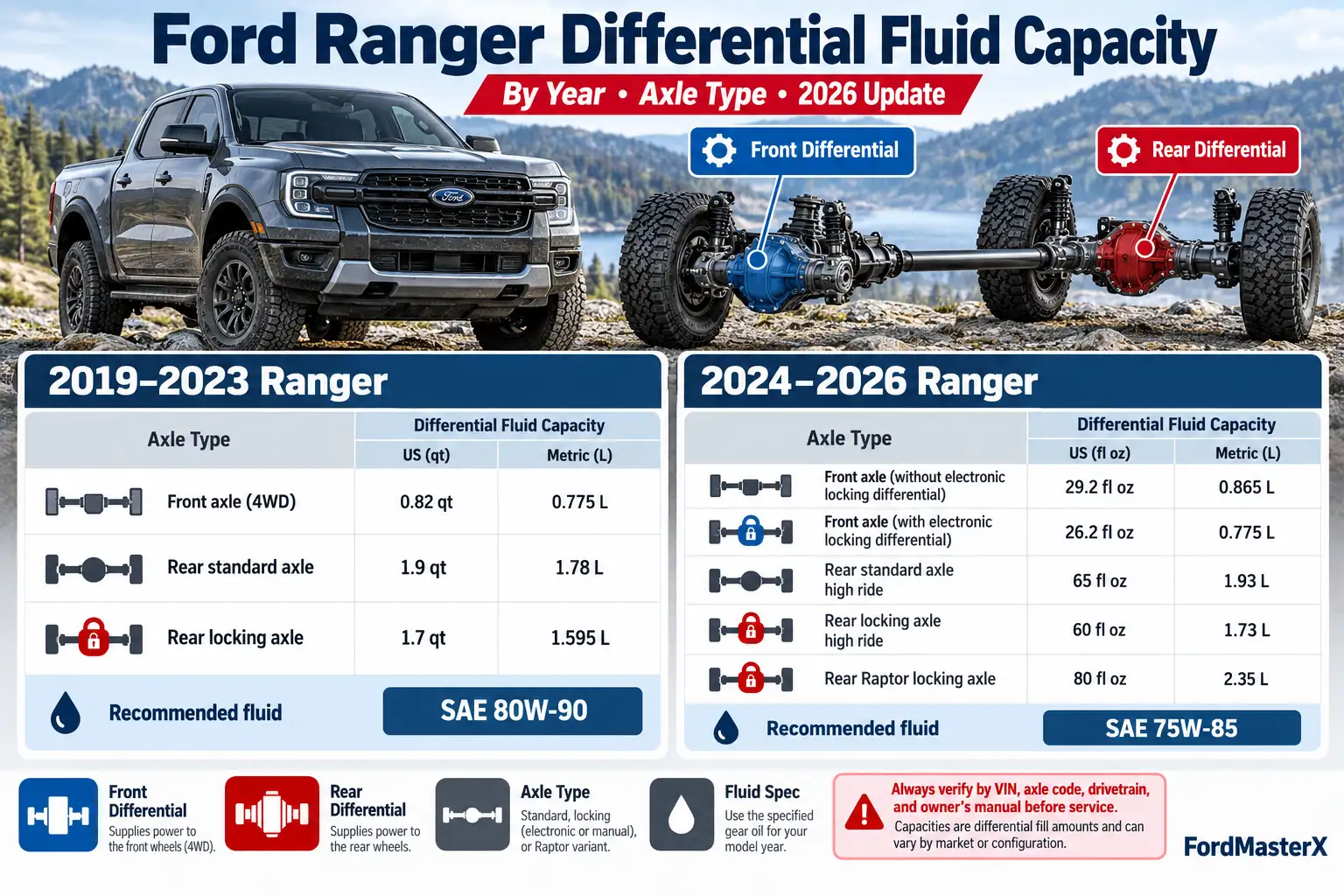

Ford Ranger Differential Fluid Capacity Chart by Year
This table gives Ford-published capacities for representative US-market configurations, in liters. A listed capacity is a reference amount, not an instruction to pour that entire amount into an already partly filled axle.
| Ranger Year and Configuration | Front Differential on 4WD | Rear Standard Differential | Rear Locking or Special Differential |
|---|---|---|---|
| 1999 Ranger | 1.7 L | 2.4–2.5 L | Traction-Lok: 2.2–2.4 L of axle lubricant |
| 2011 Ranger | 1.7 L | 2.4–2.5 L | Traction-Lok: 2.2–2.4 L; FX4 rear: 2.5–2.6 L |
| 2019–2020 Ranger | 1.0 L | 1.75 L | Electronic locking rear: 1.44 L |
| 2021–2023 Ranger | 0.775 ± 0.025 L | 1.78 L | Electronic locking rear: 1.595 L |
| 2024 Ranger | 0.705 ± 0.025 L for the specified non-locking, no-disconnect front axle; 0.775 ± 0.025 L with a front locker | 1.93 ± 0.03 L, standard high-ride axle | Locking high-ride: 1.73 ± 0.03 L; Raptor rear: 2.35 ± 0.03 L |
| 2025–2026 Ranger, specified 75W-85 configurations | 0.865 ± 0.025 L without a front locker; 0.775 ± 0.025 L with a front locker | 1.93 ± 0.03 L, standard high-ride axle | Locking high-ride: 1.73 ± 0.03 L; Raptor rear: 2.35 ± 0.03 L |
Important limits: The 1999 and 2011 entries are not universal figures for every Ranger built from 1983 through 2011. The newer rows describe the named axle configurations, not every drivetrain variant or market. Some 2026 front-axle manual entries specify 0.705 L and 80W-90 for a different configuration. Confirm your truck’s manual before treating a row as its exact refill specification.
Ford’s 2011 Ranger owner’s guide provides the legacy values and refill notes. The modern year groups are explained below, including the 2024 front-axle discrepancy.
How to Identify Your Ford Ranger Differential Type
Two Rangers from the same model year can have different rear axle capacities. An electronic locking differential is not the same thing as an open differential or the older clutch-type Traction-Lok limited-slip unit.
- Check the driver-door label. Find the axle code on the Safety Compliance Certification Label. Use it with your model year and drivetrain, not as a stand-alone number. Our Ford axle code chart explains where to find the code and why its meaning can change by model.
- Confirm whether the truck is 2WD or 4WD. A rear-wheel-drive Ranger does not have the 4WD front differential shown in the chart. Also check whether your newer truck has an electronic rear locker or the axle arrangement listed in its manual.
- Inspect the installed axle if its history is uncertain. An axle swap, aftermarket differential cover, or previous drivetrain repair can make the factory label an unreliable guide to the hardware now underneath the truck.
A 3.73 or 4.10 gear ratio does not establish oil capacity. Check the year-specific axle requirement.
Rear and Front Axle Capacity for Older Ford Rangers
Older US Rangers used several axle configurations, including 7.5-inch and 8.8-inch rear axles. Those dimensions describe ring-gear size, not the amount of oil the housing holds. Our Ranger rear axle width and identification guide helps explain the legacy axle families, but axle width alone cannot establish fluid capacity.
For a 2011 Ranger, Ford lists 1.7 L for the 4WD front axle and 2.4–2.5 L for the ordinary rear axle. Traction-Lok rear axles instead use 2.2–2.4 L of axle lubricant. The FX4 rear axle has a separate 2.5–2.6 L entry and calls for SAE 75W-140 synthetic gear lubricant rather than the regular axle’s SAE 80W-90.
Ford’s 1999 Ranger guide likewise lists 1.7 L front and 2.4–2.5 L regular rear capacities, with a separate 2.2–2.4 L Traction-Lok oil quantity. That does not establish the correct capacity or viscosity for every year between 1983 and 2011. For a Ranger from another year, confirm the axle and its original owner or workshop manual rather than copying the 1999 or 2011 figures.
A crucial older-axle detail is the fill level: the 2011 guide specifies a service refill level 6–14 mm below the bottom of the filler hole. It does not say to fill the housing until oil runs out of the opening.
Front and Rear Differential Capacity for 2019 to 2023 Rangers
The 2019–2020 and 2021–2023 US Ranger model groups do not use identical capacities. Mixing their numbers can lead to purchasing the wrong amount or filling to the wrong level.
Capacity for 2019 and 2020
For the 2019 Ranger, Ford specifies 1.0 L of front differential fluid on 4WD trucks, 1.75 L for the standard rear differential, and 1.44 L for the rear electronic locking differential. Ford’s 2020 US manual reports the same three quantities. The 2019 Ford Ranger owner’s manual confirms the baseline values.
These axles use SAE 80W-90 gear lubricant meeting Ford specification WSP-M2C197-A. Do not confuse the separate 700 mL transfer-case or power-transfer-unit figure with the front differential capacity.
Capacity for 2021 Through 2023
The 2021–2023 Ranger references list 0.775 ± 0.025 L for the 4WD front differential, 1.78 L for a standard rear differential, and 1.595 L for an electronic locking rear differential. The 2022 Ford Ranger owner’s manual documents those values and specifies SAE 80W-90 meeting WSP-M2C197-A.
The rear locking axle holds less oil than the standard rear axle in both groups. If your model year lies near a production change or you have a replacement axle, verify the installed unit before buying lubricant.
Differential Fluid Capacity for 2024 to 2026 Rangers
The redesigned US Ranger introduced another set of differential capacities and different lubricant specifications for the configurations documented in Ford’s current-generation manuals. The Ranger Raptor also has a distinct rear axle capacity.
Capacity for the 2024 Ranger
Ford’s October 2023 edition of the 2024 Ranger owner’s manual lists 705 ± 25 mL for a front axle without an electronic locker and without front axle disconnect. The front configuration with an electronic locker lists 775 ± 25 mL. Its high-ride rear axle capacities are 1.93 ± 0.03 L standard, 1.73 ± 0.03 L locking, and 2.35 ± 0.03 L for the Raptor locking rear axle.
The publication specifies SAE 75W-85 meeting WSS-M2C942-A for those axles. See Ford’s 2024 Ranger factory specification pages, especially printed page 484.
Capacity for the 2025 and 2026 Ranger
Ford’s selected US online manual entries for 2025–2026 show 865 ± 25 mL for a front axle without an electronic locker and 775 ± 25 mL with a front locker, using SAE 75W-85 meeting WSS-M2C942-A. The high-ride rear capacities remain 1.93 ± 0.03 L standard and 1.73 ± 0.03 L locking; the Raptor locking rear axle is 2.35 ± 0.03 L.
However, Ford also publishes a 2026 front-axle entry for a different configuration stating 705 ± 25 mL and SAE 80W-90. This is why a 2025–2026 model year by itself is not sufficient to select front-axle lubricant. Match the exact axle and manual edition instead of assuming every current Ranger uses 75W-85 in front.
Which Gear Oil Does Each Ford Ranger Axle Need
Capacity and viscosity are separate specifications. The oil must meet Ford’s requirement for the installed axle.
| Ranger Configuration | Gear Oil Specification |
|---|---|
| 2011 regular front and rear axles | SAE 80W-90, WSP-M2C197-A |
| 2011 FX4 rear axle | SAE 75W-140 synthetic, WSL-M2C192-A |
| 2019–2023 US Ranger front and rear axles | SAE 80W-90, WSP-M2C197-A |
| 2024 specified US Ranger front and rear axles | SAE 75W-85, WSS-M2C942-A |
| 2025–2026 specified high-ride/referenced front axle variants | SAE 75W-85, WSS-M2C942-A; verify front-axle exceptions |
For a 2011 Traction-Lok complete refill, Ford specifies 4 fl oz (118 mL) of XL-3 friction modifier or equivalent meeting EST-M2C118-A. This is a clutch-type limited-slip requirement. Do not assume that a modern electronic locker needs the same additive.
Likewise, do not transfer the 2011 FX4 rear-axle 75W-140 requirement to every FX4-badged Ranger. An equipment package name does not replace the model-year fluid specification. Check the Ford WSS or WSP approval printed on the oil container, not just the weight rating.

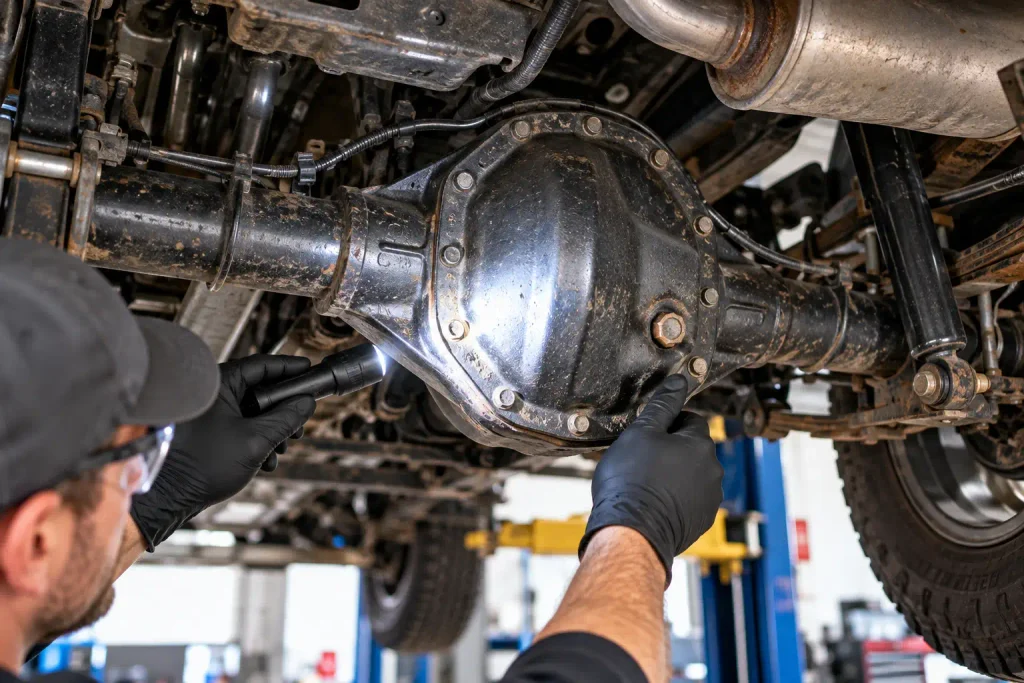

How to Check Ford Ranger Differential Fluid Level
The actual service refill must follow the axle-specific level-check procedure. Use a level surface and suitable support equipment.
- Confirm the fill procedure. Read the correct year’s axle service instructions. The fill height and plug location can vary, so do not assume the level belongs at the bottom edge of every filler opening.
- Locate the fill plug before draining. Check that the plug can be opened using the correct tool. Our rear differential fill plug location guide shows common housing and cover locations.
- Inspect the existing lubricant. Look for water contamination, obvious metallic debris, or signs of leakage. A persistent leak or suspected internal damage requires diagnosis rather than simply adding more oil.
- Refill with the approved fluid. Use a clean gear-oil pump and add fluid gradually, checking against the correct Ford level specification. A quoted capacity may differ from the actual quantity needed during a partial drain.
- Reinstall the plug and inspect. Use the correct sealing method and the torque value specified for your axle. Check for leaks after service, and dispose of used gear oil through an approved collection facility.
For example, the 2011 rear differential requires a level below the filler-hole edge. Filling it until fluid spills over would ignore the explicit Ford service note. Never substitute a generic fill-until-overflow rule for an axle-specific instruction.
When Should Ford Ranger Differential Fluid Be Changed
The 2019 and 2022 US Ranger normal-maintenance schedules list 150,000 miles (240,000 km) for front axle fluid on 4WD trucks and rear axle fluid, along with the transfer case on 4WD models. That is a normal-service reference, not a universal replacement interval for every Ranger generation or operating condition.
Ford also instructs owners to replace rear axle lubricant when the axle has been submerged in water because contamination is possible. A leaking seal or axle repair can require service outside the normal schedule. Heavy towing, repeated off-road water crossings, and other severe use deserve a check of the special-operating-condition schedule for the exact model year.
Do not assume the 150,000-mile figure automatically applies to a 1999 Ranger or a 2026 Raptor. Use the maintenance schedule supplied with that truck.
Why Ford Ranger Differential Fluid Capacity Figures Differ
Published capacities can refer to different years, lockers, axle disconnects, markets or manual editions.
The 2024 front axle illustrates the problem. Ford’s original US PDF specifies 705 ± 25 mL for the named non-locking, no-disconnect axle. Other Ford online front-axle entries show 865 ± 25 mL for a non-locking configuration. These numbers should not be averaged or treated as interchangeable. Ford’s online manuals also warn that updated information can differ from the printed manual originally supplied with a truck.
Use the manual originally provided for your specific Ranger, cross-check current Ford service information by VIN when needed, and confirm the installed axle. The rear differential, front differential and transfer case are separate components with separate fluid specifications.
Which Differential Capacity Should You Use for Your Ranger
The correct Ford Ranger differential fluid capacity is the figure for your truck’s model year and actual axle, not a generic number taken from another generation. For a 2019 standard rear axle that means 1.75 L; for a 2022 standard rear axle it means 1.78 L. An electronic locker changes the rear capacity in both cases.
Before changing fluid, identify your axle, verify the required viscosity and Ford specification, and follow the proper level-check method. Pay particular attention to older Traction-Lok units, the 2011 FX4 exception, and current-generation front axle variants. A short specification check is safer than correcting an overfill or using the wrong gear oil after the job is finished.
Ford Ranger Differential Fluid Capacity Frequently Asked Questions
How Much Fluid Does a Ford Ranger Rear Differential Hold
There is no single rear differential capacity for every Ranger. A 2019–2020 standard rear axle takes 1.75 L, a 2021–2023 standard rear axle takes 1.78 L, and the specified 2024–2026 high-ride standard rear axle takes 1.93 L. Locking versions have their own capacities.
How Much Front Differential Fluid Does a 4WD Ranger Need
The answer depends on the year and front-axle configuration. Ford specifies 1.0 L for 2019–2020 Rangers and 0.775 ± 0.025 L for 2021–2023. Newer front axle entries include 705, 775 and 865 mL, so check the equipment-specific Ford manual before refilling.
What Differential Fluid Does a 2019 Ford Ranger Use
The US 2019 Ranger manual specifies SAE 80W-90 gear lubricant meeting WSP-M2C197-A for its differential service. The 4WD front capacity is 1.0 L, while the rear holds 1.75 L with a standard axle or 1.44 L with an electronic locker.
Does a Ford Ranger Locking Differential Need Friction Modifier
An electronic locking differential does not automatically require the friction modifier used by an older Traction-Lok unit. Ford specifies 118 mL of XL-3 or an approved equivalent for a complete refill of a 2011 Traction-Lok axle. Follow your specific manual rather than adding it to every locking rear differential.
How Often Should Ford Ranger Differential Fluid Be Changed
The 2019 and 2022 normal-service schedules specify an axle-fluid change at 150,000 miles, with the front axle item applying to 4WD. Water contamination, leakage and certain operating conditions can require earlier attention. Consult the maintenance schedule for your model year and use.
