Ford Lightning Battery Specs Chart by Year 2022 to 2026
The Ford Lightning battery specs chart starts with three usable battery capacities: 98 kWh, 123 kWh, and 131 kWh. Ford launched the F-150 Lightning with 98 kWh Standard Range and 131 kWh Extended Range packs, then added a 123 kWh Extended Range configuration for later Flash models.
Battery size alone does not tell you the truck’s range. Model year, trim, wheels, charging hardware, and battery configuration change the EPA rating and charge time.
The table below separates those differences by year so you can identify the correct battery instead of assuming every Extended Range Lightning has the same pack.
F-150 Lightning Battery Reference
Ford Lightning Battery Specs by Year
Quick comparison of the 98 kWh, 123 kWh and 131 kWh usable battery packs used across Ford F-150 Lightning configurations.
Battery Specifications by Model Year
| Year | Battery | Usable Capacity | EPA Range | Power | DC 15 to 80% |
|---|---|---|---|---|---|
| 2022 | Standard Range | 98 kWh | 230 mi | 452 hp | 44 min |
| 2022 | Extended Range | 131 kWh | Up to 320 mi | 580 hp | 41 min |
| 2023 | Standard Range | 98 kWh | 240 mi | 452 hp | 44 min |
| 2023 | Extended Range | 131 kWh | Up to 320 mi | 580 hp | 41 min |
| 2024 | Standard Range | 98 kWh | 240 mi | 452 hp | 32 min |
| 2024 | Extended Range | 131 kWh | Up to 320 mi | 580 hp | 38 min |
| 2025 | Standard Range | 98 kWh | 240 mi | 452 hp | 32 min |
| 2025 | Extended Range | 123 kWh | 300 mi | 536 hp | 38 min |
| 2025 | Extended Range | 131 kWh | Up to 320 mi | 580 hp | 38 min |
| 2026 | Transition | Previous BEV form ended | Next-generation Lightning EREV announced, final battery specs not published | ||
Ford Lightning Battery Specs Chart by Year
Ford used two main battery capacities from 2022 through 2024. The three-pack lineup arrived for 2025, when the 123 kWh Extended Range battery joined the existing 98 and 131 kWh packs.
| Model Year | Battery | Usable Capacity | Horsepower | EPA Range | DC Fast Charge 15 to 80% | Level 2 48A 15 to 100% |
|---|---|---|---|---|---|---|
| 2022 | Standard Range | 98 kWh | 452 hp | 230 mi | 44 min | 10 hr |
| 2022 | Extended Range | 131 kWh | 580 hp | 320 mi XLT and Lariat, 300 mi Platinum | 41 min | 13 hr |
| 2023 | Standard Range | 98 kWh | 452 hp | 240 mi | 44 min | 10 hr |
| 2023 | Extended Range | 131 kWh | 580 hp | 320 mi XLT and Lariat, 300 mi Platinum | 41 min | 13 hr |
| 2024 | Standard Range | 98 kWh | 452 hp | 240 mi | 32 min | 10 hr |
| 2024 | Extended Range | 131 kWh | 580 hp | 320 mi Flash and Lariat, 300 mi Platinum | 38 min | 13 hr |
| 2025 | Standard Range | 98 kWh | 452 hp | 240 mi | 32 min | 10 hr |
| 2025 | Extended Range | 123 kWh | 536 hp | 300 mi Pro fleet and Flash | 38 min | 12 hr |
| 2025 | Extended Range | 131 kWh | 580 hp | 320 mi Pro fleet and Lariat, 300 mi Platinum | 38 min | 13 hr |
| 2026 | Current BEV Form | Not applicable | Not applicable | Not applicable | Not applicable | Not applicable |
Ford’s original 2022 specification confirms 98 kWh usable energy, 452 hp, and 230 miles for the Standard Range configuration. The 131 kWh Extended Range version produced 580 hp and reached 320 miles in XLT and Lariat form, while Platinum was rated at 300 miles.
The 2023 technical specification retained the same 98 and 131 kWh battery capacities but increased the Standard Range EPA rating to 240 miles. Extended Range remained 320 miles for XLT and Lariat and 300 miles for Platinum.
For 2024, Ford kept the 98 and 131 kWh packs but shortened its published 15 to 80 percent DC fast-charge estimates to 32 and 38 minutes. The 131 kWh Flash and Lariat were rated at 320 miles, while Platinum remained at 300 miles.
The major change came in 2025. Ford’s official technical sheet lists 98, 123, and 131 kWh usable battery capacities in the same model year.
If you are also comparing equipment rather than just battery size, the Ford F-150 Lightning trim comparison chart shows how Lightning trim levels changed across the production run.

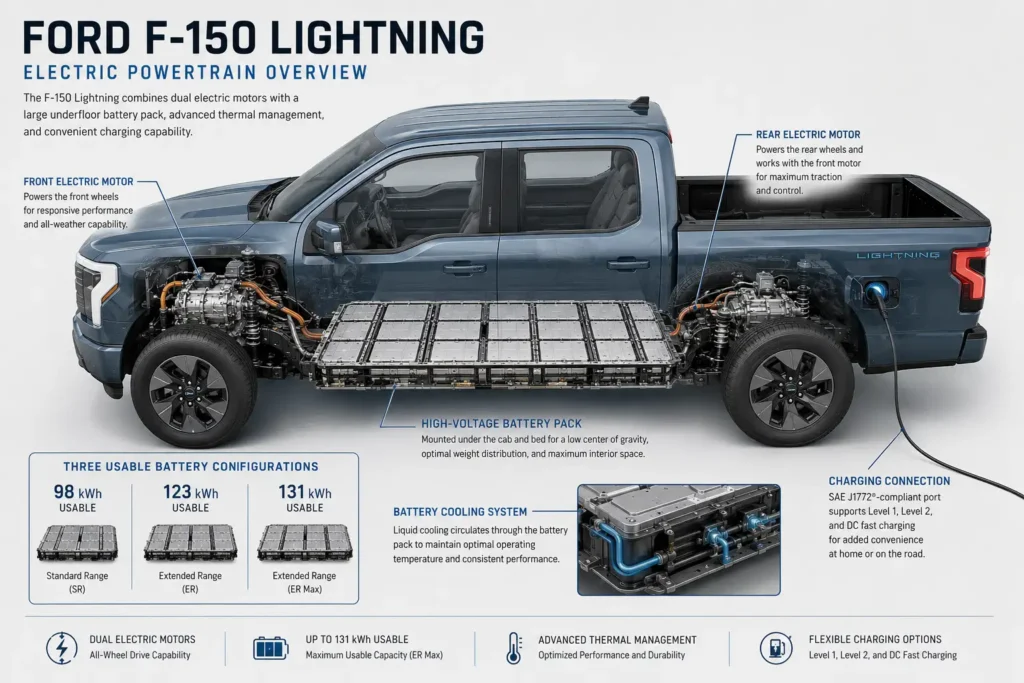

What Are the 3 Ford Lightning Battery Sizes
The three numbers describe usable energy, not an estimated gross pack capacity. That distinction matters because usable energy is the portion Ford makes available to the truck for driving and vehicle functions.
98 kWh Standard Range
The 98 kWh battery was the original Standard Range pack. Ford paired it with dual electric motors producing 452 hp and 775 lb-ft of torque.
Its EPA range started at 230 miles for 2022 and increased to 240 miles in later model years. By 2025, Ford still listed the 98 kWh pack at 240 miles.
This is the smaller and lighter of the main Lightning packs. It was used primarily on lower configurations such as Pro and XLT.
123 kWh Extended Range
The 123 kWh battery is the pack that causes the most confusion because older Lightning specifications do not include it.
Ford’s 2025 technical sheet lists the 123 kWh Extended Range pack with 536 hp, 775 lb-ft of torque, and a 300-mile EPA estimate for applicable Pro fleet and Flash configurations.
Ford’s product FAQ also confirms that the F-150 Lightning Flash comes with 123 kWh of usable battery energy.
This means a later Flash should not automatically be described as having the same 131 kWh pack used by a 2024 Flash.
131 kWh Extended Range
The 131 kWh Extended Range battery was Ford’s largest confirmed usable-capacity pack in the production Lightning.
It produces 580 hp and 775 lb-ft of torque in Ford’s specifications. Depending on trim, EPA range reached 320 miles. Platinum was typically rated at 300 miles because its configuration carries additional equipment and larger wheels.
That difference is why identifying a Lightning by the words “Extended Range” alone is no longer enough.
How Ford Lightning Battery Range Changes by Trim
A larger battery usually provides more range, but the relationship is not one-to-one.
The clearest example is the 131 kWh pack. In 2025, Ford rates a 131 kWh Lariat at 320 miles, while the 131 kWh Platinum is rated at 300 miles. Both use the same published usable battery capacity.
| Configuration | Usable Battery | EPA Range |
|---|---|---|
| 2022 Standard Range | 98 kWh | 230 mi |
| 2023 to 2025 Standard Range | 98 kWh | 240 mi |
| 2024 Flash | 131 kWh | 320 mi |
| 2024 Lariat | 131 kWh | 320 mi |
| 2024 Platinum | 131 kWh | 300 mi |
| 2025 Flash | 123 kWh | 300 mi |
| 2025 Lariat | 131 kWh | 320 mi |
| 2025 Platinum | 131 kWh | 300 mi |
Wheel size, curb weight, trim equipment, temperature, speed, payload, and towing load all influence how many miles the truck actually travels.
Ford’s Intelligent Range system also considers factors such as weather, speed, terrain, driving behavior, payload, and towing when estimating remaining range.
The Lightning’s heavy traction battery also affects how much weight the truck can carry. Our Ford F-150 payload capacity chart provides additional context if you are comparing battery-powered and gasoline F-150 configurations for hauling.

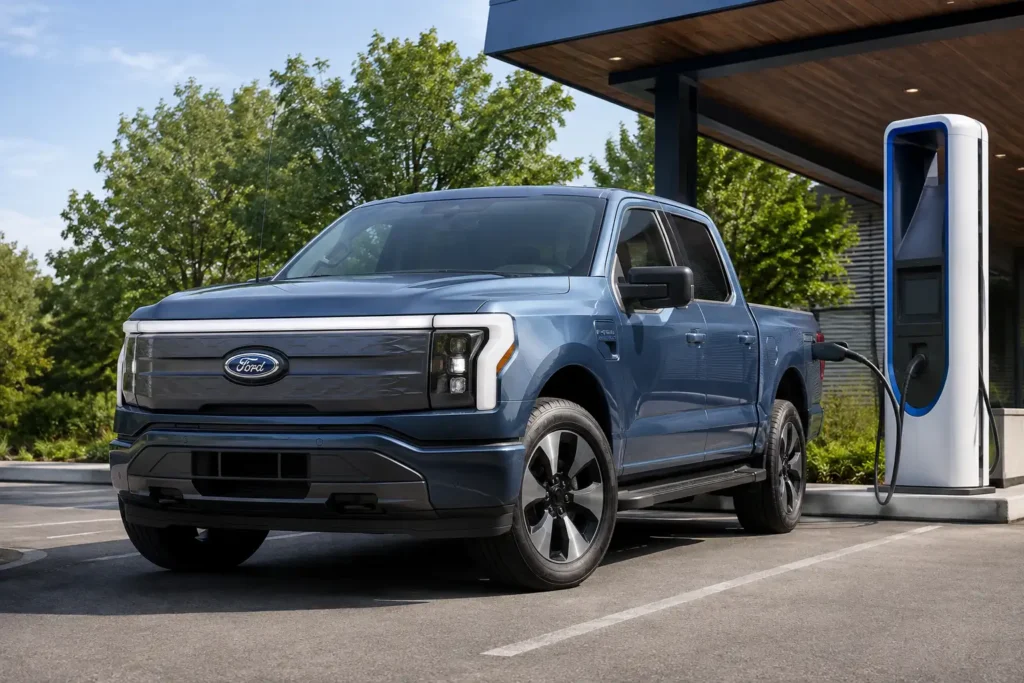

How Fast Does Each Lightning Battery Charge
Charging specifications changed during the Lightning’s production run, so one universal charge-time figure is inaccurate.
2022 and 2023 Charging Times
Ford’s early specification estimated these 150 kW DC fast-charging times from 15 to 80 percent:
| Battery | 15 to 80% DC Fast Charge | 48A Level 2 15 to 100% | 80A Charge Station Pro |
|---|---|---|---|
| 98 kWh | 44 min | 10 hr | 10 hr |
| 131 kWh | 41 min | 13 hr | 8 hr |
The larger battery could post a shorter 15 to 80 percent estimate because early Extended Range trucks supported different charging hardware and onboard charging capability. Ford listed an onboard charger of 19.2 kW input and 17.6 kW output for the 131 kWh version, compared with 11.3 kW and 10.5 kW for Standard Range.
2024 and 2025 Charging Times
Ford later published faster DC estimates.
| Battery | DC Fast Charge 15 to 80% | 48A Level 2 15 to 100% |
|---|---|---|
| 98 kWh | 32 min | 10 hr |
| 123 kWh | 38 min | 12 hr |
| 131 kWh | 38 min | 13 hr |
Ford’s charging FAQ confirms approximately 32 minutes for 2024 and 2025 Standard Range, 38 minutes for the 131 kWh Extended Range, and 38 minutes for the 2025 Flash 123 kWh battery.
The 2025 technical sheet also lists 10, 12, and 13 hours respectively when using the specified 48A Level 2 charging setup.
Actual charging time can change with battery temperature, starting state of charge, charger output, and battery condition.
What Battery Chemistry Does the F150 Lightning Use
Ford identifies the F-150 Lightning’s Standard Range and Extended Range batteries as Nickel Cobalt Manganese batteries, usually shortened to NCM.
The published technical specifications describe the battery as a lithium-ion pouch pack with internal battery management and liquid cooling. That description appears in both the original 2022 specifications and Ford’s 2025 specification sheet.
Liquid cooling allows the battery thermal-management system to control pack temperature during driving and charging.
There was earlier discussion about Ford introducing lithium iron phosphate battery technology into parts of its EV lineup. For Lightning battery identification, however, Ford’s current owner guidance explicitly labels both Standard Range and Extended Range Lightning packs as NCM.
How Long Is the Ford Lightning Battery Warranty
Ford covers the F-150 Lightning high-voltage battery for 8 years or 100,000 miles, whichever comes first.
The warranty also includes a capacity-retention provision. Ford states that coverage applies if high-voltage battery capacity drops below 70 percent of its original capacity during the warranty period, subject to the terms and exclusions in the applicable warranty guide.
| Warranty Item | Ford Coverage |
|---|---|
| High-voltage battery period | 8 years |
| Mileage limit | 100,000 miles |
| Capacity threshold | 70% of original capacity |
| Coverage basis | Defects plus applicable capacity retention terms |
Ford’s original 2022 technical documentation published the same 8-year, 100,000-mile period and 70 percent minimum capacity provision.
That makes battery state of health especially relevant when shopping for an older Lightning approaching higher mileage.
What Happened to the 2026 Ford Lightning Lineup
The 2026 situation needs to be separated from the confirmed 2022 through 2025 battery chart.
Ford’s current F-150 Lightning page says the truck is no longer available in its current form and can no longer be ordered as the existing battery-electric Lightning. Ford says support, software updates, service, and replacement parts for existing trucks will continue.
Ford also says the next-generation Lightning will use Extended Range Electric Vehicle technology, or EREV. In this layout, an electric powertrain remains central to propulsion while an onboard generator can extend driving range. Ford has not announced a specific launch date for that next-generation truck.
For that reason, we do not list an unverified 2026 BEV battery capacity in the master chart.
If you encounter an older page showing planned 2026 Lightning specifications, check the publication date. Ford’s current product statement supersedes earlier plans for the Lightning in its previous form.
How to Tell Which Lightning Battery You Have
Do not identify your battery from the Lightning badge or trim name alone. The Flash is the clearest reason because a 2024 Flash and a 2025 Flash can have different published usable battery capacities.
Use these four checks instead.
- Check the model year. A 2022 or 2023 Lightning uses the 98 kWh or 131 kWh configuration. The 123 kWh pack appears in Ford’s later documentation.
- Check the trim and original equipment. Platinum trucks use the larger Extended Range configuration, while lower trims varied more by year.
- Check the original window sticker or build information. Look for Standard Range Battery, Extended Range Battery, or the battery-related equipment description.
- Compare the original EPA rating. A 240-mile rating strongly points toward the later 98 kWh Standard Range configuration. A 2025 Flash rated at 300 miles corresponds to Ford’s 123 kWh pack, while a 320-mile 2025 Lariat corresponds to the 131 kWh pack.
For used-truck shoppers, verifying the model year and original factory configuration is safer than trusting a dealer listing that simply says “Extended Range.”
Which Ford Lightning Battery Specs Matter Most
The Ford F-150 Lightning battery story can be reduced to three confirmed usable capacities.
98 kWh is the Standard Range pack. 123 kWh appears in later Extended Range configurations such as the 2025 Flash. 131 kWh is the largest confirmed production BEV pack and powers configurations rated as high as 320 EPA miles.
Charging specifications also changed. Early 2022 and 2023 trucks carried different published DC charge times than the 2024 and 2025 models.
For a used Lightning, always match the year, trim, usable kWh, EPA range, and factory battery configuration before comparing trucks.
Common Ford Lightning Battery Questions
How Many kWh Is a Ford F150 Lightning Battery
The F-150 Lightning has been offered with 98 kWh, 123 kWh, and 131 kWh of usable battery energy. The correct capacity depends on model year and configuration.
What Is the Difference Between 98 and 131 kWh Lightning Batteries
The 98 kWh pack is the Standard Range battery, while the 131 kWh pack is an Extended Range battery. In Ford’s specifications, they produce 452 hp and 580 hp respectively, with later EPA ratings reaching 240 miles and 320 miles depending on trim.
Does the F150 Lightning Have a 123 kWh Battery
Yes. Ford’s 2025 technical specifications list a 123 kWh Extended Range battery producing 536 hp and 775 lb-ft of torque. The 2025 Flash uses this pack with an EPA-estimated 300-mile range.
How Long Does a Ford Lightning Take to Fast Charge
A 2024 or 2025 Lightning with the 98 kWh battery is rated at about 32 minutes from 15 to 80 percent. Ford lists approximately 38 minutes for the 123 kWh and 131 kWh packs in applicable later models.
What Battery Chemistry Does the Ford Lightning Use
Ford identifies the F-150 Lightning Standard Range and Extended Range batteries as Nickel Cobalt Manganese NCM batteries. Ford’s technical sheets describe them as liquid-cooled lithium-ion pouch battery systems with internal battery management.
How Long Is the Ford Lightning Battery Warranty
The high-voltage battery warranty lasts 8 years or 100,000 miles, whichever comes first. Ford also lists a 70 percent original-capacity retention threshold during the warranty period under its applicable warranty terms.
Is There a 2026 Ford F150 Lightning
Ford currently says the previous F-150 Lightning is no longer available to order in its existing form. The company is developing a next-generation Lightning using EREV technology, but it has not announced a specific availability date.
