Ford F150 Wheel Size Chart: OME Specs by Year 1975-2026
Ford F-150 factory wheel sizes range from 15 inches on early trucks to 22 inches on modern Platinum and Limited trims, and the correct size for your truck depends entirely on its generation and trim level. Getting this wrong before buying wheels means a truck that won’t roll, a speedometer that reads wrong, or a fender that rubs the first time you hit a pothole.
Wheel diameter is only one piece of the puzzle. Bolt pattern, hub bore, and offset all have to match too, or the wheel simply will not seat correctly on the hub. Below is the full breakdown by generation, followed by fitment specs and how big you can safely go if you’re planning an upgrade.
Ford F-150 Factory Wheel Sizes By Generation 1975 To 2026
The table below breaks down every factory wheel size Ford installed on the F-150 since the seventh generation. Trim level moves you within the range shown, base work trucks land at the small end and Platinum, Limited, and Raptor trims land at the large end.
| Generation | Model Years | Factory Wheel Diameter | Factory Wheel Width | Notes |
|---|---|---|---|---|
| VII to VIII | 1975-1991 | 15 inches | 6 to 7.5 inches | 5-lug steel wheels standard, alloy optional on later trims |
| IX | 1992-1996 | 15 inches | 7.5 inches | Last generation to run exclusively on 15-inch wheels |
| X (PN-96) | 1997-2003 | 16 to 17 inches | 6.5 to 7 inches | Some Lightning and special editions ran up to 18 inches |
| XI (P221) | 2004-2008 | 17 to 20 inches | 7.5 to 8.5 inches | 20-inch wheels introduced as an option on Lariat and above |
| XII (P415) | 2009-2014 | 17 to 22 inches | 7.5 to 9 inches | Raptor ran a unique 17×8.5 wheel not shared with other trims |
| XIII (P552) | 2015-2020 | 17 to 22 inches | 7.5 to 9 inches | Lug thread changed from M14x2.0 to M14x1.5 starting in 2015 |
| XIV (P702) | 2021-2026 | 17 to 20 inches | 7.5 to 8.5 inches | 18-inch became the new base trim standard starting in 2024 |
The 1975-1996 span is treated as one continuous era in most fitment guides since Ford kept the same 5×5.5 inch bolt pattern and a similar 6 to 7.5 inch wheel width range throughout, with offsets running from neutral to mildly positive.
If you own a truck from this era specifically, the door jamb placard or a Ford parts catalog is still the fastest way to confirm your exact width, since work trims and higher trims used different wheels within the same range.
Ford changed wheel diameter more often than it changed wheel width, which is why two trucks with the same tire height can still look completely different in the wheel well. If you’re cross-shopping wheels between two older F-150 wheels for a newer truck, diameter and bolt pattern are only the first two things to check.
Ford F-150 Bolt Pattern And Offset By Year
Every 2004-2026 F-150 runs a 6x135mm bolt pattern with an 87.1mm hub bore, which is the single most important number to know before buying wheels. Older trucks use a completely different pattern, and mixing them up is the fastest way to end up with wheels that physically will not bolt on.
| Model Years | Bolt Pattern | Hub Bore | Lug Thread | Torque Spec |
|---|---|---|---|---|
| 1975-1996 | 5×5.5 inches (139.7mm) | 87.1mm | 1/2-20 UNF | 100 ft-lbs |
| 1997-2003 | 5x135mm | 87.1mm | 12mm x 1.75 | 100 ft-lbs |
| 2004-2014 | 6x135mm | 87.1mm | M14x2.0 | 150 ft-lbs |
| 2015-2026 | 6x135mm | 87.1mm | M14x1.5 | 150 ft-lbs |
| 1997-1999 F-250 Light Duty, later the F-150 7700 Payload Package (2000 onward) | 7x150mm |
The most common used-wheel mistake happens between 1997 and 2003 trucks. A 1996 F-150 uses the older 5×5.5 inch pattern, but the very next model year switched to 5x135mm. The two patterns look nearly identical at a glance and neither one bolts onto the other truck.
If you’re shopping used wheels from this era, measure the bolt circle yourself before you buy rather than trusting the seller’s listed year.
The 7x150mm pattern deserves its own callout. It started life on the 1997-1999 F-250 Light Duty, a truck that looked identical to a standard F-150 but carried an F-250 badge, and it continued afterward as the F-150 7700 Payload Package.
These trucks share no wheel compatibility with either the 5x135mm F-150 of the same era or the 8x170mm Super Duty. If you count seven lug nuts on your hub, standard F-150 wheels will not fit, and aftermarket options in this pattern are extremely limited.
For the full pattern history across every F-150 generation plus F-250 and F-350 crossover notes, see the Ford F-150 bolt pattern chart.
Max Tire Size For A Stock Leveled And Lifted F-150
Here’s the honest answer to how big you can go, height by height, based on the 2015 and newer 6x135mm platform that makes up most of the trucks on the road today.
| Suspension Height | Max Tire Diameter | Recommended Wheel Width | Rubbing Risk |
|---|---|---|---|
| Stock height | 32 to 33 inches | 8 to 9 inches | Low with factory offset near +44mm |
| 2 to 2.5 inch leveling kit | 33 inches | 9 to 10 inches | Low, this is the most common upgrade path |
| 4 to 6 inch lift | 35 inches | 10 inches | Moderate, minor trimming possible depending on wheel offset |
| Factory Raptor | Up to 37 inches on the current generation | 17×8.5 factory wheel | None, engineered from the factory |
On 2009-2014 trucks the stock ceiling is closer to 30.5 to 32 inches depending on trim, since those trucks ran slightly different offsets than the 2015 and newer platform. A leveling kit is the single most common first upgrade on any generation because it removes the factory rake and opens enough clearance for the next tire size up without touching fenders.
If you’re planning to go past what a leveling kit allows, our best lift kit for F-150 breakdown covers which kits actually deliver the 35-inch clearance shown above.
How To Confirm Your Exact F-150 Wheel Size

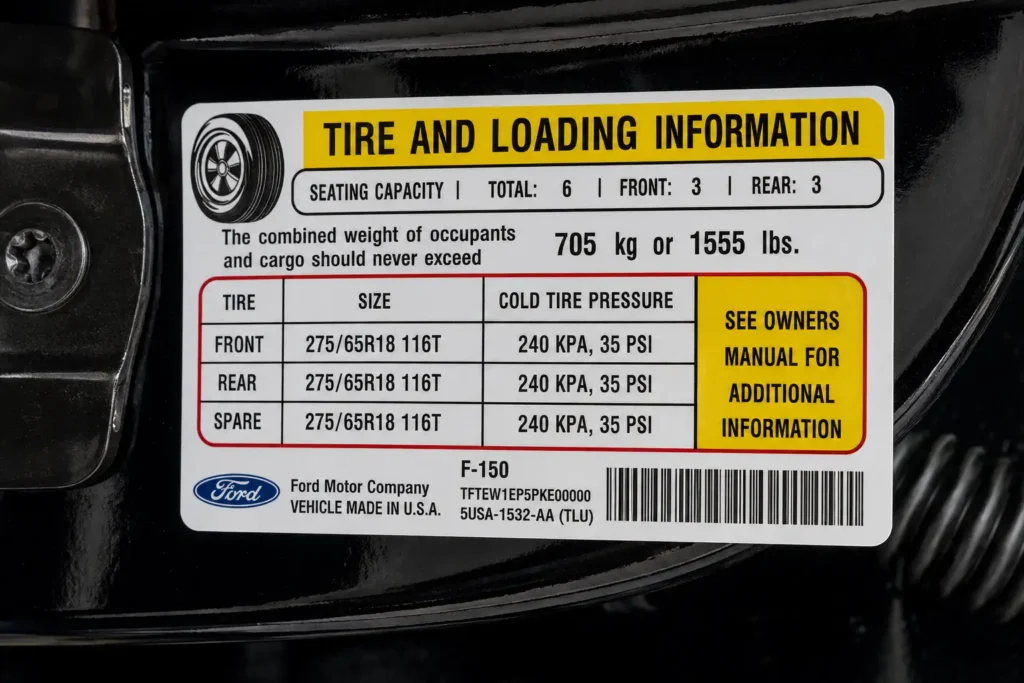

Trim level changes wheel size within the same model year, so the fastest way to confirm yours is the tire placard on the driver’s door jamb rather than a generic chart.
- Open the driver’s door and look at the sticker on the door jamb itself, not the door frame. Every F-150 built since the mid-1990s has this placard.
- Find the line that reads “Tire Size” and note the full code, something like 275/60R20.
- Read the code left to right. The first number is tire width in millimeters, the two-digit number after the slash is the aspect ratio, and the number after the R is your wheel diameter in inches.
- Check the placard again if you’ve ever had a dealer or previous owner swap wheels, since the placard reflects what Ford installed, not necessarily what’s currently on the truck.
Once you know your exact size, confirm the correct lug nut torque before you put the wheels back on. Under-torqued lug nuts loosen over time and over-torqued nuts can stretch or snap a stud, so check the F-150 lug nut torque specifications for your specific model year before you drive off.
Getting Your F-150 Wheel Fitment Right
Generation determines your bolt pattern, trim level determines your factory diameter, and suspension height determines how big you can safely go from there. The door jamb placard is always the definitive source for your specific truck, especially if you’re buying used or the wheels have ever been swapped.
Whether you’re replacing a damaged factory wheel or planning a full upgrade, confirming the F-150 wheel size chart details above before you buy saves a return shipment and a wasted afternoon at the shop. Torque the lug nuts to spec, recheck them after 50 miles, and you’re set.
Ford F-150 Wheel Size FAQ
What is the bolt pattern on a Ford F-150?
Every F-150 from 2004 through 2026 uses a 6x135mm bolt pattern with an 87.1mm hub bore. Trucks from 1997-2003 use 5x135mm, and 1975-1996 trucks use 5×5.5 inches (139.7mm).
What size wheels came stock on a 2021 F-150?
The 2021 F-150 came with 17, 18, or 20-inch wheels depending on trim, with XLT models typically running 17-inch steel or alloy wheels. Higher trims like Lariat, Platinum, and Limited moved up to 18 and 20-inch options.
Can I put 20-inch wheels on any F-150?
Only if your truck’s bolt pattern matches, which means 20-inch wheels bolt onto any 2004-2026 F-150 with the 6x135mm pattern. Pre-2004 trucks need a different bolt pattern wheel or a hub adapter to run the same size.
What is the biggest tire I can fit without a lift?
Most 2015-2026 F-150s can run up to a 33-inch tire on stock suspension with the right wheel width and offset. A 2 to 2.5 inch leveling kit is usually enough to run a true 33 without rubbing.
Do F-150 and F-150 Lightning wheels interchange?
Yes, the F-150 Lightning uses the same 6x135mm bolt pattern, 87.1mm hub bore, and M14x1.5 lug nuts torqued to 150 ft-lbs as the gas-powered F-150, so wheels physically interchange in both directions. The Lightning weighs well over 6,000 pounds thanks to its battery pack, so stick with wheels rated for that added load rather than assuming any bolt-on wheel is a safe match.
