Ford Edge Oil Capacity Chart: 2007-2026 Year and Engine
The Ford Edge oil capacity runs from 5.5 to 6.0 quarts with a filter change, and the right number depends on your year and engine. The 2.0L EcoBoost takes 5.7 quarts through 2019, then 5.5 quarts from 2020. The 2.7L EcoBoost takes 6.0 quarts in every year it was sold.
The V6 is where owners get caught. Ford’s owner guides list 5.5 quarts for 2011, then 6.0 quarts from 2012 through 2018.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free As an Amazon Associate I earn from qualifying purchases.
Below is the full chart for 2007 to 2024, followed by the oil grade, Ford spec and Motorcraft filter for each engine. Every figure comes from Ford’s own owner manuals.
How Many Quarts Does Each Ford Edge Engine Take
Recommended Best Deal Products
Most Ford Edge engines take between 5.5 and 6.0 quarts, including the filter. This table shows the factory fill by model year and engine.
| Model Year | 2.0L EcoBoost | 2.7L EcoBoost | 3.5L or 3.7L V6 |
|---|---|---|---|
| 2007 to 2010 | Not offered | Not offered | 5.5 qt, 5W-20 |
| 2011 | Not listed | Not offered | 5.5 qt, 5W-20 |
| 2012 to 2014 | 5.7 qt, 5W-30 | Not offered | 6.0 qt, 5W-20 |
| 2015 | 5.7 qt, 5W-30 | 6.0 qt, 5W-30 | 6.0 qt, 5W-20 |
| 2016 to 2018 | 5.7 qt, 5W-30 | 6.0 qt, 5W-30 | 6.0 qt, 5W-20 |
| 2019 | 5.7 qt, 5W-30 | 6.0 qt, 5W-30 | Not offered |
| 2020 | 5.5 qt, 5W-30 | 6.0 qt, 5W-30 | Not offered |
| 2021 to 2024 | 5.5 qt, 5W-30 | 6.0 qt, 5W-30 | Not offered |
All capacities include the oil filter. The 3.7L was offered from 2011 to 2014.
2.0L EcoBoost Oil Capacity
Ford’s 2019 owner manual lists 5.7 quarts for the 2.0L. The 2020 manual lists 5.5. The change happened between those two model years.
Some websites publish 5.3, 6.0 or 6.5 quarts for this engine. No Ford owner manual we checked supports those figures.
2.7L EcoBoost Oil Capacity
The 2.7L holds 6.0 quarts in every Ford Edge owner manual from 2015 through 2024. Our guide to 2.7 EcoBoost oil requirements covers this engine in more depth.
This engine can also look low on the dipstick if you check it too early. The fill section below explains the wait time.
3.5L and 3.7L V6 Oil Capacity
Ford’s 2010 owner guide lists 5.5 quarts, and the 2011 guide lists the same figure for both V6 engines. The 2012 guide lists 6.0 quarts for the 3.5L and 3.7L, and 6.0 stays through 2018.
Ford’s 2011 and 2012 guides disagree for the same engines. If you own a 2011 Edge, confirm the level on the dipstick after filling.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days As an Amazon Associate I earn from qualifying purchases.Before you buy oil, confirm which engine your Edge has.
Which Engine Is in Your Ford Edge
The engine decides the quart count, the oil grade and the filter. Three quick checks settle it.
- Check the model year and trim. The 3.5L was sold from 2007 to 2018 and the 3.7L from 2011 to 2014. The 2.7L ran from 2015 to 2024, on the Sport and later the ST.
- Decode the VIN. NHTSA’s free VIN decoder returns the engine for your exact truck.
- Compare the engine bay. Ford’s 2024 owner manual has separate Under Hood Overview pages for the 2.0L and 2.7L.
The 2.0L EcoBoost appears in Ford’s owner guides from the 2012 model year onward.
Once you know the engine, the next thing to match is the oil grade.
3 Oil Spec Changes That Affect Your Ford Edge Year by Year
Recommended Best Deal Products
Ford changed the Edge oil specification three times between 2007 and 2024. The grade on the bottle must match the code for your year.
- 2012 split the grades by engine. Through 2011 the V6 used 5W-20 to WSS-M2C930-A. From 2012 the V6 moved to 5W-20 to WSS-M2C945-A, and the 2.0L and later the 2.7L used 5W-30 to WSS-M2C946-A.
- 2019 moved the 5W-30 engines to a new code. The 2019 manual lists WSS-M2C946-B1 for the 2.0L and 2.7L, and the 2020 manual keeps it.
- 2021 introduced WSS-M2C961-A1. Ford’s 2021 manual lists it for both engines, and the 2024 manual repeats it.
For extreme cold, Ford’s 2021 and later manuals also list 0W-30 to WSS-M2C963-A1. Ford recommends it where temperatures reach -22°F (-30°C) or below.
Ford warns that oil outside the listed spec and viscosity can cause warranty-excluded component damage, longer cranking and lower fuel economy. Other models use different codes, so check our Ford engine oil recommendation chart for anything that is not an Edge.
The oil is only half the job, because the filter changed too.
Which Motorcraft Oil Filter Fits Your Ford Edge Engine
Each engine takes a different Motorcraft filter, and the 2.7L changed twice.
| Engine | Model Years | Motorcraft Filter |
|---|---|---|
| 3.5L and 3.7L V6 | 2010 to 2018 | FL-500-S |
| 3.5L V6 | 2007 to 2009 | FL-400-SB12 or FL-400-S |
| 2.0L EcoBoost | 2012 to 2024 | FL-910-S |
| 2.7L EcoBoost | 2015 | FL-500-S |
| 2.7L EcoBoost | 2016 to 2020 | FL-2062 |
| 2.7L EcoBoost | 2021 to 2024 | FL-2062A |
Ford’s 2009 owner guide states that oil filters are not interchangeable between engines. That rule still applies today.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual Plans As an Amazon Associate I earn from qualifying purchases.If a chart lists FL-500-S for a 2.7L, it can only be right for 2015. Motorcraft filters are built to Ford’s own engineering standards, which our guide to who makes Motorcraft oil filters explains.
If a Motorcraft filter is not available, Ford’s 2022 manual says to use one that meets SAE/USCAR-36.
With the right filter in hand, the last risk is overfilling.

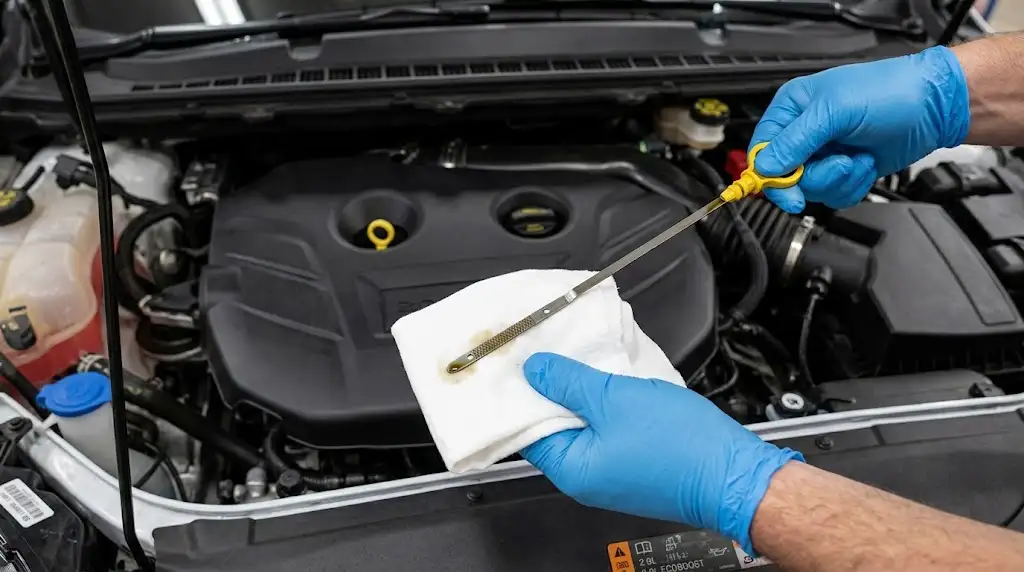

How To Check and Fill Oil Without Overfilling Your Ford Edge
Recommended Best Deal Products
Treat the chart figure as the target and the dipstick as the final check. Ford’s 2024 owner manual sets out this procedure.
- Park on level ground. Ford’s procedure starts here.
- Wait for the oil to drain back. Check before starting the engine, or shut it off after warm-up and wait 15 minutes.
- Wipe and reseat the dipstick. Wipe it clean, push it in fully, then pull it out again.
- Read both sides. Use the lower reading as the correct one.
- Add only if needed. Between MIN and MAX, do not add oil. At MIN, add oil right away.
- Never pass the MAX mark. Ford says oil above MAX may cause engine damage.
The 15 minute wait matters most on the 2.7L. Ford service bulletin SSM 49477 covers 2015 to 2021 Edge models with this engine that appear low on oil when checked too soon.
The bulletin also says to drain at operating temperature with the filter removed first, then let the pan drain for up to five minutes.
Filling correctly matters even more if you stretch the interval.
How Often Should You Change Oil in a Ford Edge
The Edge tells you. Ford’s 2024 manual says the Intelligent Oil-Life Monitor shows a message at an interval of up to one year or 10,000 miles, and you should change the oil within two weeks or 500 miles of it.
| Situation | What Ford’s Manual Says |
|---|---|
| Monitor message appears | Change oil within 2 weeks or 500 miles |
| Monitor resets early or fails | Change at 6 months or 5,000 miles |
| Any interval | Never exceed 1 year or 10,000 miles |
Ford also lists conditions that raise oil use. These include high loads, extended high engine speeds, hard cornering, track use and off-road use. Under those conditions the manual says consumption of about 1 quart per 500 miles is possible, and it advises checking the level at every refueling.
If you tow, know your rating first. Our Ford Edge towing capacity by year guide lists it.
One documented problem is worth knowing. Ford TSB 19-2243 covers 2016 to 2017 Edge models with the 2.7L built from April 1, 2016 through January 1, 2017. It describes smoke, rough idle and oil use of a quart in under 3,000 miles.
Here is the short version to keep.
Match Your Edge Year and Engine Before You Buy Oil
The Ford Edge oil capacity comes down to three numbers. The 2.0L takes 5.7 quarts through 2019 and 5.5 from 2020, the 2.7L takes 6.0, and the V6 takes 5.5 through 2011 and 6.0 after that.
Match the oil code and the Motorcraft filter to your year, then let the dipstick have the last word. Wait 15 minutes before reading it, especially on the 2.7L.
Save this chart for your next oil change, and check your model year against it before you open the jug.
5 Ford Edge Oil Questions Owners Ask Most
How many quarts of oil does a Ford Edge take?
It takes 5.5 to 6.0 quarts, depending on year and engine. The 2.0L takes 5.7 quarts through 2019 and 5.5 from 2020. The 2.7L takes 6.0, and the V6 takes 6.0 from 2012 to 2018.
Does the 2.7L Edge take the same amount of oil as the 2.0L?
No. The 2.7L takes 6.0 quarts in every year. The 2.0L takes 5.7 or 5.5 quarts, depending on model year, so the two engines are never filled the same way.
What oil weight does a Ford Edge need?
The 2.0L and 2.7L use 5W-30, and the 2007 to 2018 V6 uses 5W-20. Ford lists 0W-30 as an alternative in extreme cold of -22°F or below on 2021 and later models.
What oil filter does a Ford Edge use?
The 2.0L uses the Motorcraft FL-910-S. The V6 uses FL-500-S from 2010 to 2018. The 2.7L uses FL-500-S in 2015, FL-2062 from 2016 to 2020 and FL-2062A from 2021.
Can you use full synthetic oil in a Ford Edge?
Ford’s 2016 owner manual lists Motorcraft full synthetic as an optional oil at the same spec. Ford’s 2021 manual lists a synthetic blend as its recommended Motorcraft oil. The rule is to use oil that meets the spec for your year.
