Ford 5.4 Coolant Temp Sensor Location: Find It Fast!

The Ford 5.4 coolant temp sensor is located near the thermostat housing. It’s positioned on the engine’s front side.

The coolant temperature sensor plays a crucial role in monitoring the engine’s temperature. It sends real-time data to the vehicle’s computer. This data helps in regulating the engine’s performance and fuel efficiency. Proper functioning of the sensor is essential for preventing overheating and ensuring optimal engine performance.

Regular maintenance and timely replacement of a faulty sensor can avoid potential engine issues. Understanding its location and function helps in quick diagnostics and repairs. This knowledge assists in maintaining your Ford 5. 4 engine in top condition.

Introduction To Coolant Temp Sensor

The coolant temperature sensor is a small but crucial part of your Ford 5.4 engine. It monitors the engine’s temperature and ensures it runs smoothly. Knowing its location and function can save you time and effort.

Purpose Of The Sensor

The coolant temperature sensor checks the engine’s temperature constantly. It sends this information to the engine control unit (ECU). The ECU then adjusts the fuel mixture and ignition timing.

Here are the main roles of the coolant temp sensor:

  • Monitors engine temperature.
  • Sends data to the ECU.
  • Helps in adjusting fuel and ignition.

Importance In Engine Performance

The coolant temperature sensor plays a vital role in engine performance. It helps the engine run efficiently and prevents overheating.

Why is it important?

  1. Prevents engine overheating: The sensor alerts the ECU to adjust cooling.
  2. Ensures fuel efficiency: Proper temperature control saves fuel.
  3. Enhances engine lifespan: Prevents damage from extreme temperatures.

A faulty sensor can lead to poor performance and high fuel consumption. Keeping it in good condition is essential for your Ford 5.4 engine.

Ford 5.4 Coolant Temp Sensor Location: Find It Fast!

Credit: www.f150forum.com

Identifying The Ford 5.4 Engine

The Ford 5.4 engine, also known as the Triton V8, is a robust and reliable engine. It has been a popular choice for many Ford vehicles. This engine is well-known for its power and durability.

Engine Overview

The Ford 5.4 engine is part of the Modular engine family. It features a V8 configuration with a displacement of 5.4 liters. This engine has a single overhead camshaft (SOHC) design. It also comes with three valves per cylinder. The Ford 5.4 engine provides a balance of power and efficiency.

Here are some key specifications of the Ford 5.4 engine:

Specification Details
Engine Type V8
Displacement 5.4 liters
Valvetrain SOHC, 3 valves per cylinder
Power Output 300-550 horsepower

Common Applications

The Ford 5.4 engine is used in various Ford models. These include:

  • Ford F-150
  • Ford Expedition
  • Ford E-Series Vans
  • Ford Super Duty Trucks
  • Ford Excursion

These vehicles benefit from the 5.4 engine’s power and reliability. The engine is suitable for both light and heavy-duty applications.

To locate the coolant temp sensor on the Ford 5.4 engine, first identify the engine. Knowing the exact model and year helps, as sensor placement may vary.


Tools Needed For The Job

Working on your Ford 5.4 coolant temp sensor requires specific tools. Using the right tools makes the job easier and safer. Here’s a breakdown of what you need.

Essential Tools

  • Socket Set: A set of sockets is crucial. You need different sizes.
  • Wrench Set: Both metric and standard wrenches can be handy.
  • Ratchet: A ratchet helps you turn sockets with ease.
  • Torque Wrench: Ensures bolts are properly tightened.
  • Screwdriver Set: You will need flathead and Phillips screwdrivers.
  • Coolant Drain Pan: To catch the old coolant.
  • Needle Nose Pliers: Useful for removing clips and small parts.

Safety Equipment

  • Gloves: Protect your hands from sharp edges and hot surfaces.
  • Safety Glasses: Keeps your eyes safe from debris and splashes.
  • Work Light: Illuminates the area you are working on.
  • Protective Clothing: Wear clothing that covers your arms and legs.
  • Fire Extinguisher: Always have one nearby in case of emergencies.

Using the right tools and safety equipment is vital. It ensures the job is done efficiently and safely. Make sure you have everything ready before you start.

Ford 5.4 Coolant Temp Sensor Location: Find It Fast!

Credit: www.justanswer.com

Locating The Coolant Temp Sensor

Knowing the location of the coolant temp sensor in your Ford 5.4 engine is crucial. This sensor helps monitor the engine’s temperature. It ensures the engine runs efficiently and prevents overheating.

Engine Bay Layout

The engine bay of a Ford 5.4 is well-organized. Key components are easily accessible. Familiarize yourself with the layout before starting. The coolant temp sensor is near other vital parts.

Component Location
Radiator Front of the engine bay
Battery Driver’s side, near the front
Coolant Temp Sensor Near the thermostat housing

Sensor Position

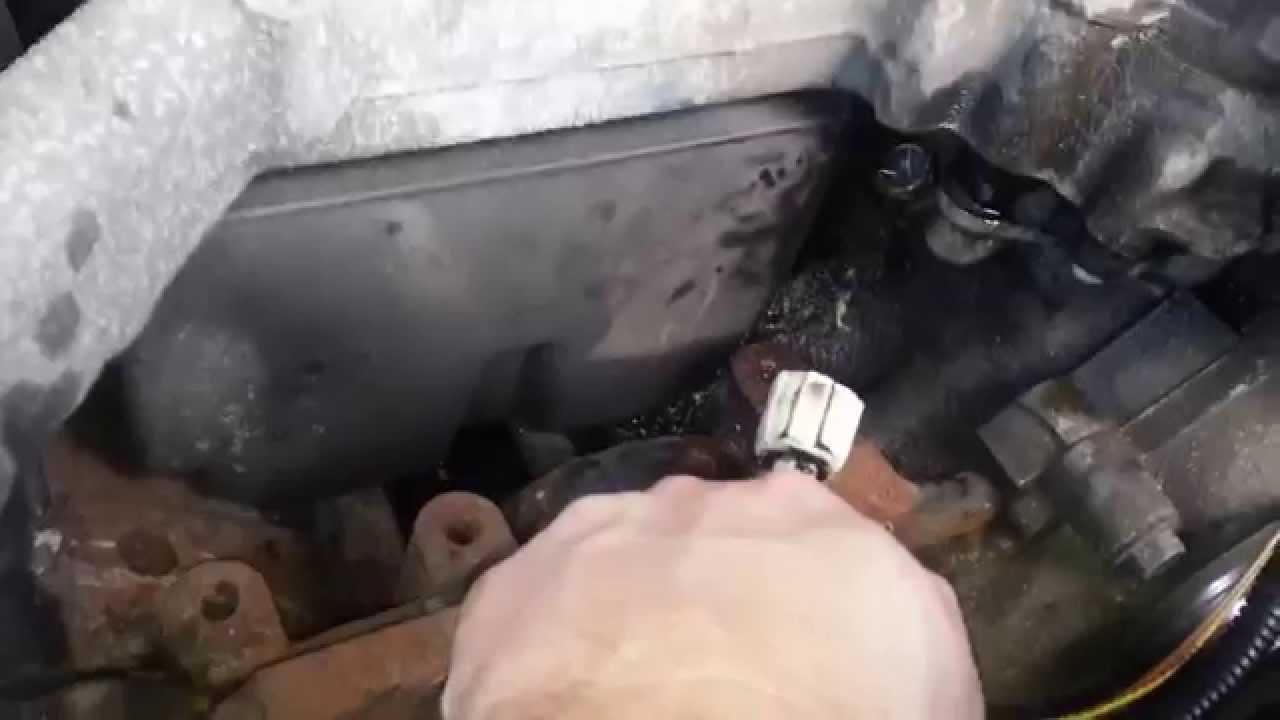

The coolant temp sensor is typically found near the thermostat housing. This area is towards the front of the engine, close to the radiator. Look for a small, plug-like component with electrical wiring attached.

  1. Open the hood of your Ford 5.4.
  2. Locate the thermostat housing near the front.
  3. Find the sensor attached to the housing.

It’s essential to handle the sensor carefully. Damaging it can lead to inaccurate readings. If you need to replace it, consult your vehicle’s manual.

Step-by-step Guide

Finding the coolant temperature sensor on your Ford 5.4 engine can be tricky. This guide will help you locate and replace it. Follow these steps carefully for a smooth process.

Preparation Steps

Before you start, gather all necessary tools. You’ll need:

  • Socket set
  • Wrench
  • Screwdriver
  • Coolant
  • New temperature sensor

Ensure your engine is cool. This prevents burns and injuries. Also, disconnect the battery to avoid shocks.

Detailed Instructions

  1. Open the hood of your Ford 5.4.
  2. Locate the radiator. It’s at the front of the engine bay.
  3. Find the upper radiator hose. Follow this hose to the engine block.
  4. Look for the thermostat housing. The coolant temp sensor is near this housing.
  5. Use your wrench to remove the sensor. Be careful not to strip the threads.
  6. Install the new sensor. Tighten it securely, but do not over-tighten.
  7. Reconnect the battery. Refill any lost coolant.
  8. Start the engine. Check for leaks and ensure everything is running smoothly.

By following these steps, you will locate and replace the coolant temperature sensor easily. This ensures your Ford 5.4 runs optimally.

Ford 5.4 Coolant Temp Sensor Location: Find It Fast!

Credit: www.ford-trucks.com

Common Issues And Solutions

The Ford 5.4 coolant temp sensor is crucial for your engine’s performance. Understanding common issues and their solutions can help maintain your vehicle. This section will discuss sensor malfunctions and troubleshooting tips.

Sensor Malfunctions

The coolant temp sensor can sometimes malfunction, causing various problems. Here are some common issues:

  • Erratic temperature readings
  • Engine overheating
  • Poor fuel economy
  • Check engine light illumination

These problems can affect your vehicle’s performance. Identifying and addressing them is essential.

Troubleshooting Tips

Follow these troubleshooting tips to resolve sensor-related issues:

  1. Check the sensor connection: Ensure it’s securely plugged in.
  2. Inspect wiring: Look for damaged or frayed wires.
  3. Test the sensor: Use a multimeter to check resistance.
  4. Replace if necessary: Install a new sensor if the old one fails.

These steps can help you identify and fix sensor problems quickly.

Issue Solution
Erratic temperature readings Check sensor connection and wiring
Engine overheating Inspect and test the sensor
Poor fuel economy Replace faulty sensor
Check engine light Scan for error codes and address issues

Maintenance Tips

Maintaining your Ford 5.4 engine’s coolant temp sensor is essential. This sensor helps monitor the engine’s temperature. Proper upkeep can prevent engine overheating. Follow these maintenance tips for optimal performance.

Regular Checks

Regularly check the coolant temp sensor for signs of wear. A faulty sensor can lead to incorrect temperature readings. Inspect the sensor’s wiring and connections. Ensure there are no signs of corrosion or damage.

Frequency Check
Every 3 months Inspect sensor and wiring
Every 6 months Check for corrosion

Preventive Measures

Taking preventive steps can extend the sensor’s life. Keep the engine bay clean to avoid debris buildup. Use quality coolant to prevent sensor damage. Monitor the engine’s temperature regularly.

  • Keep engine bay free of debris
  • Use high-quality coolant
  • Regularly monitor engine temperature

These measures ensure the sensor functions correctly. A well-maintained sensor can help avoid costly repairs.

Frequently Asked Questions

What Happens When Coolant Temperature Sensor Goes Bad?

A bad coolant temperature sensor can cause engine overheating, poor fuel economy, and erratic temperature readings. It may trigger the check engine light.

Where Is The Coolant Temperature Sensor On A 2002 Ford F150?

The coolant temperature sensor on a 2002 Ford F150 is located near the thermostat housing. It’s on the engine block.

Where Is The Temperature Sensor On A 2003 Ford F150?

The temperature sensor on a 2003 Ford F150 is located near the thermostat housing. It is on the engine’s intake manifold.

Where Is The Cooling Temperature Sensor Located?

The cooling temperature sensor is typically located near the thermostat housing or on the engine block. It monitors coolant temperature.

Conclusion

Finding the Ford 5. 4 coolant temp sensor location is crucial for engine maintenance. Proper knowledge ensures efficient vehicle performance. Regular checks can prevent overheating issues. Always refer to your vehicle’s manual for accurate information. Keep your Ford running smoothly by understanding these essential components.

Stay informed and keep your engine healthy.
