The Ford 3.5 EcoBoost firing order is 1-4-2-5-3-6. Ford lists this same sequence in official 3.5L EcoBoost specifications and identifies the ignition system as coil on plug.
That firing sequence is not the same as cylinder numbering. On a longitudinal F150 installation, cylinders 1, 2, and 3 form Bank 1, while cylinders 4, 5, and 6 form Bank 2. Transverse applications such as the Explorer place those banks differently in the engine bay.
Firing order tells you when each cylinder fires. Cylinder numbering tells you where that cylinder sits in the engine.

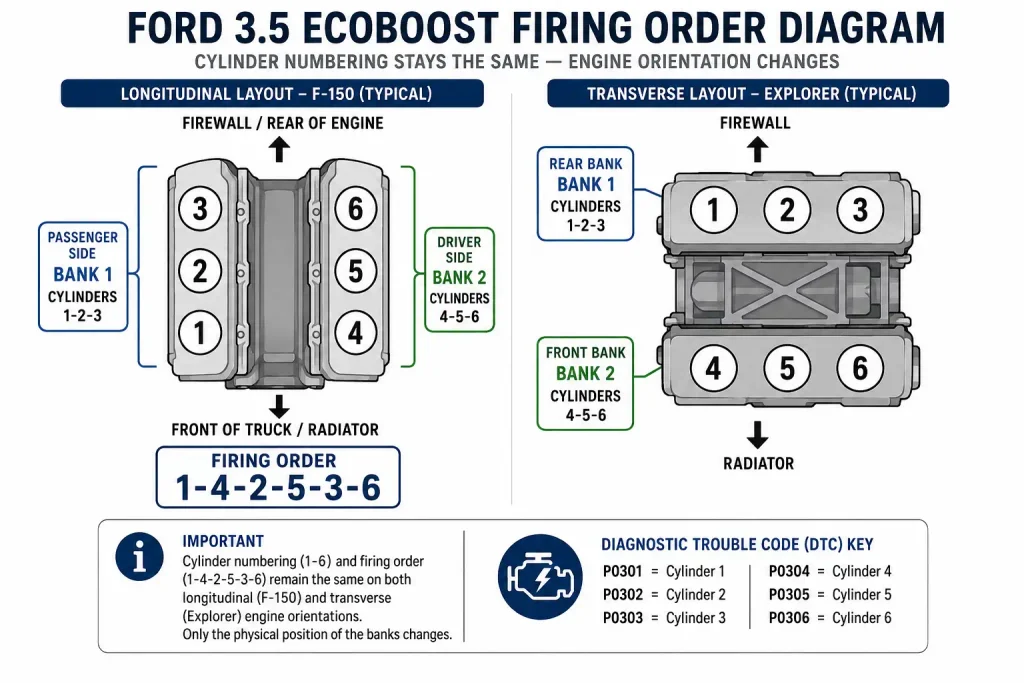

F150 Longitudinal Layout

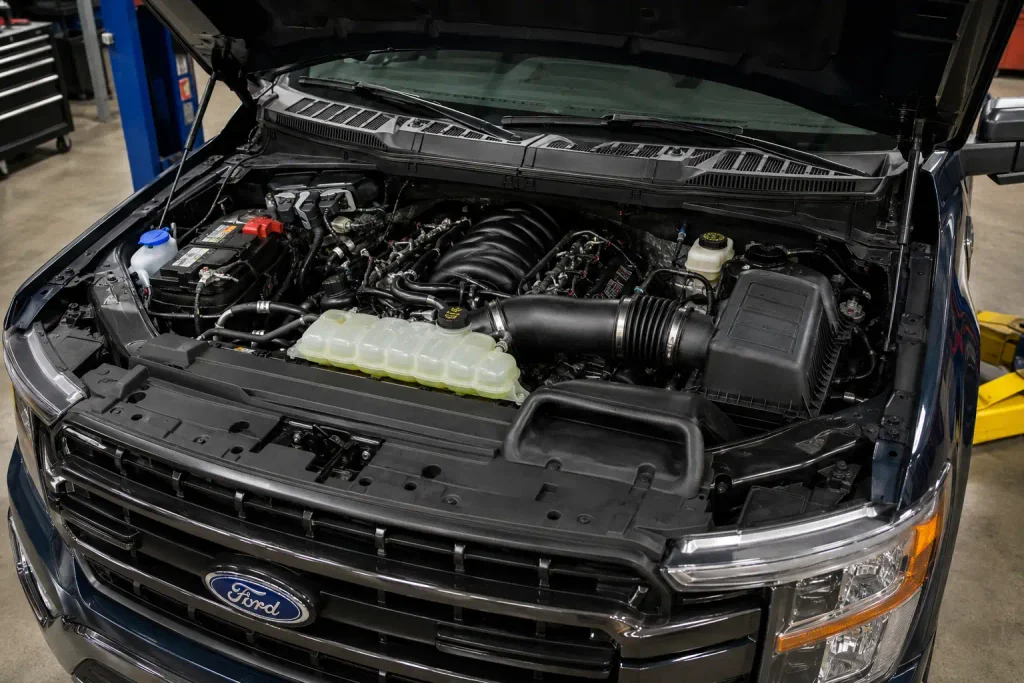

Viewed from the front bumper looking into the engine bay
Explorer Style Transverse Layout
The same cylinder numbers appear rotated in the engine bay
| OBD-II Code | Cylinder | F150 Location |
|---|---|---|
| P0301 | 1 | Bank 1 Front |
| P0302 | 2 | Bank 1 Middle |
| P0303 | 3 | Bank 1 Rear |
| P0304 | 4 | Bank 2 Front |
| P0305 | 5 | Bank 2 Middle |
| P0306 | 6 | Bank 2 Rear |
Quick rule: firing order is 1-4-2-5-3-6. On an F150 longitudinal layout, Bank 1 contains cylinders 1-2-3 on the passenger side and Bank 2 contains cylinders 4-5-6 on the driver side.

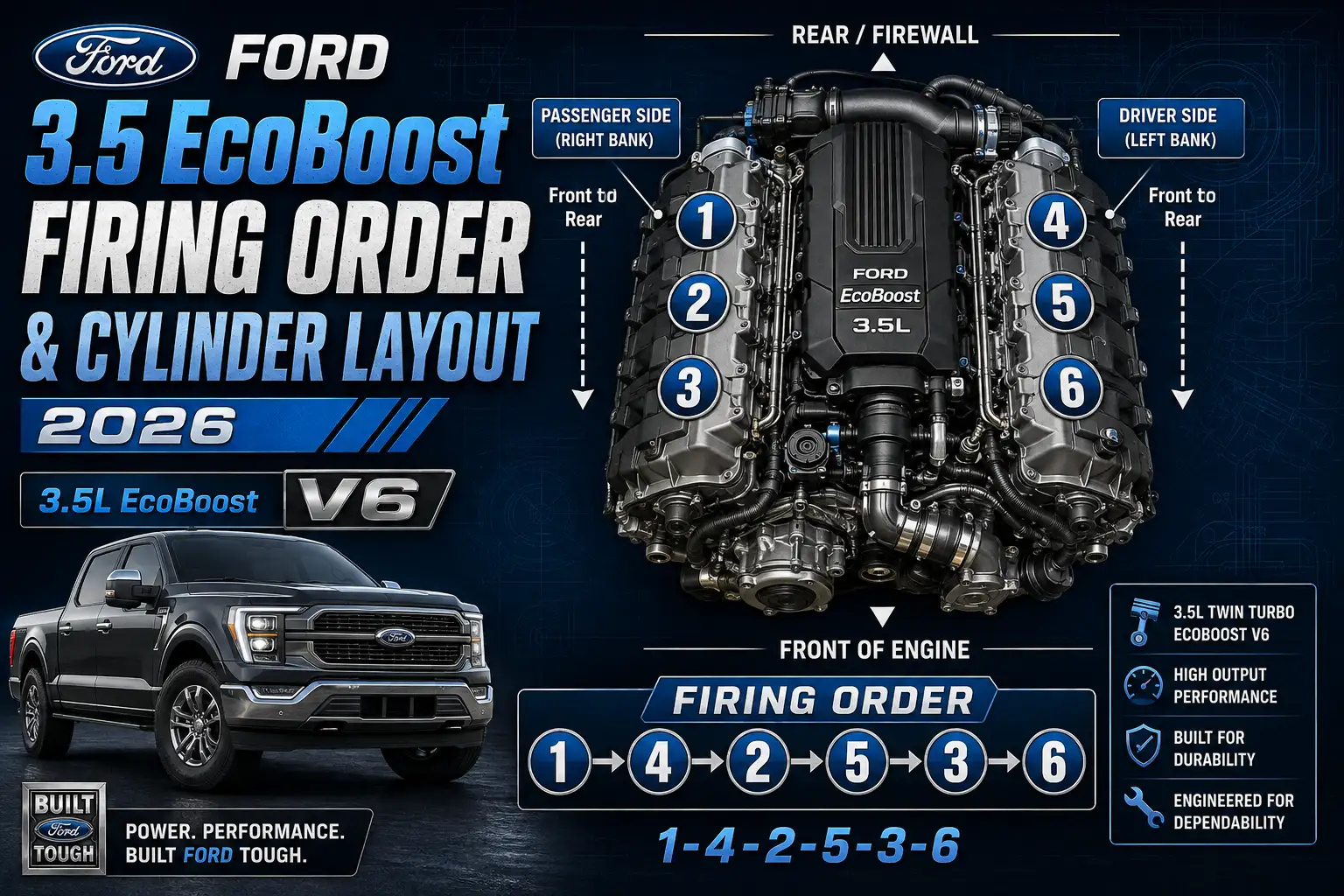

The diagrams below separate firing order, physical cylinder location, bank numbering, and P0301 through P0306 misfire codes.
What Is the Ford 3.5 EcoBoost Firing Order
Ford fires the six cylinders in this sequence:
1 → 4 → 2 → 5 → 3 → 6
Ford’s official specifications confirm the 1-4-2-5-3-6 order on both earlier and current 3.5L EcoBoost applications. Current F150 documentation also confirms a coil-on-plug ignition system.
| Item | Ford 3.5L EcoBoost Specification |
|---|---|
| Engine | 3.5L EcoBoost V6 |
| Number of Cylinders | 6 |
| Firing Order | 1-4-2-5-3-6 |
| Bank 1 | Cylinders 1, 2, 3 |
| Bank 2 | Cylinders 4, 5, 6 |
| Ignition System | Coil on plug |
The firing order describes when each cylinder produces its power stroke. It does not tell you where those cylinders physically sit in the engine bay.
This distinction matters during misfire diagnosis. If your scanner reports P0304, you need to locate Cylinder 4, not the fourth cylinder in the firing sequence.
Where Are Cylinders 1 Through 6 on F150
On the longitudinal Ford F150 3.5 EcoBoost, Bank 1 is on the passenger side and Bank 2 is on the driver side. Cylinder numbering runs from the front of the engine toward the firewall.
Use this layout while standing at the front bumper and looking into the engine bay:
FIREWALL
Rear of Engine
PASSENGER SIDE DRIVER SIDE
BANK 1 BANK 2
Cylinder 3 Cylinder 6
Cylinder 2 Cylinder 5
Cylinder 1 Cylinder 4
Front of Engine
|
RADIATOR
The layout gives you four important reference points:
- Cylinder 1: Bank 1 front
- Cylinder 3: Bank 1 rear near the firewall
- Cylinder 4: Bank 2 front
- Cylinder 6: Bank 2 rear near the firewall
This cylinder numbering is separate from the 1-4-2-5-3-6 firing sequence.
If you specifically need the front cylinder on Bank 2, FordMasterX has a dedicated guide showing the Cylinder 4 location on the Ford F150 3.5 EcoBoost.
Before disconnecting a coil or injector, identify the cylinder from this physical layout first. That prevents the most common mistake of counting cylinders according to firing order.
How Bank 1 and Bank 2 Differ on EcoBoost
The easiest way to understand the two banks is to identify the bank containing Cylinder 1.
Bank 1 Cylinders
Bank 1 contains:
- Cylinder 1
- Cylinder 2
- Cylinder 3
On a longitudinal F150 3.5 EcoBoost, this is the passenger-side cylinder bank.
Cylinder 1 sits toward the front of the engine. Cylinder 2 sits in the middle, while Cylinder 3 is toward the firewall.
Bank 2 Cylinders
Bank 2 contains:
- Cylinder 4
- Cylinder 5
- Cylinder 6
On the longitudinal F150 installation, Bank 2 is on the driver side.
Cylinder 4 sits toward the radiator, Cylinder 5 occupies the middle position, and Cylinder 6 sits toward the firewall.
Bank identification becomes especially useful when diagnosing camshaft timing, variable cam timing, oxygen-sensor, or cylinder-specific faults.
If cam timing symptoms are part of your diagnosis, the site’s 3.5 EcoBoost cam phaser replacement guide covers the EcoBoost timing system in much greater detail.
The bank numbers stay tied to the cylinder numbering even when Ford installs the engine in a different orientation.
How Explorer 3.5 EcoBoost Cylinder Orientation Changes
Explorer-style transverse installations use the same basic cylinder numbering, but the engine sits sideways in the engine bay.
This is why an Explorer 3.5 EcoBoost diagram can look completely different from an F150 diagram even though Bank 1 still contains cylinders 1, 2, and 3.
For common transverse 3.5L EcoBoost applications:
- Bank 1 with cylinders 1, 2, and 3 sits toward the firewall
- Bank 2 with cylinders 4, 5, and 6 sits toward the radiator
Current diagnostic references for transverse Explorer applications identify Cylinder 2 on the rear Bank 1 near the firewall, supporting this orientation.
A simplified transverse reference looks like this:
FIREWALL
BANK 1 Cylinders 1 2 3
Rear Cylinder Bank
BANK 2 Cylinders 4 5 6
Front Cylinder Bank
RADIATOR
Do not interpret “passenger side Bank 1” as a universal rule for every 3.5 EcoBoost installation. That description works for the longitudinal F150 layout because of how the engine sits in the truck.
On a transverse Ford, identifying the firewall and radiator sides is more useful than copying a truck diagram.
Model year and platform still matter. Before removing an intake manifold or replacing an ignition component on an Explorer, Taurus SHO, Flex, or another transverse application, verify the exact layout for that model.
Which Cylinder Matches P0301 Through P0306
The last digit in P0301 through P0306 identifies which cylinder registered the misfire.
Ford’s published OBD-II code information maps P0301 through P0306 directly to cylinders 1 through 6.
| OBD-II Code | Meaning | F150 Longitudinal Location |
|---|---|---|
| P0301 | Cylinder 1 misfire | Bank 1 front |
| P0302 | Cylinder 2 misfire | Bank 1 middle |
| P0303 | Cylinder 3 misfire | Bank 1 rear |
| P0304 | Cylinder 4 misfire | Bank 2 front |
| P0305 | Cylinder 5 misfire | Bank 2 middle |
| P0306 | Cylinder 6 misfire | Bank 2 rear |
A P0304 code therefore tells you that the PCM detected a misfire associated with Cylinder 4. It does not prove that the ignition coil is bad.
Possible causes of a cylinder-specific misfire include:
- Worn or fouled spark plug
- Weak ignition coil
- Damaged coil connector or wiring
- Fuel injector problem
- Fuel delivery problem
- Intake or vacuum leak affecting combustion
- Low compression
- Valve or mechanical engine problem
A useful first diagnostic step is comparing the plug and coil on the affected cylinder with a known good cylinder. If you move a suspected coil and the misfire follows it, the coil becomes a much stronger suspect.
If testing points toward the ignition coils, see the site’s guide to coil packs for the 3.5 EcoBoost rather than replacing unrelated components first.
A flashing check-engine light during an active misfire deserves immediate attention. Continuing to operate an engine with a severe misfire can expose the catalytic converter to unburned fuel.
4 Firing Order and Cylinder Numbering Mistakes
Most mistakes happen because firing order, cylinder numbering, and engine orientation are treated as the same thing.
Reading the Firing Order as Layout
The sequence 1-4-2-5-3-6 tells you when cylinders fire.
It does not mean Cylinder 1 physically sits beside Cylinder 4, followed by Cylinder 2 and Cylinder 5.
Always use the cylinder layout diagram when locating a coil, plug, or injector.
Counting Across Both Cylinder Banks
The longitudinal F150 does not number cylinders by zigzagging from one side of the engine to the other.
Bank 1 contains 1-2-3, while Bank 2 contains 4-5-6.
Mixing those two systems can lead you to test or replace a perfectly good component while leaving the actual misfiring cylinder untouched.
Assuming Driver Side Is Bank 1
On the F150 3.5 EcoBoost, Bank 1 is the passenger side.
A better general rule is to identify the bank containing Cylinder 1 rather than assuming Bank 1 always means driver side or passenger side on every Ford platform.
That becomes critical when moving between longitudinal and transverse EcoBoost applications.
Using an F150 Diagram on Explorer
The Explorer’s transverse engine orientation changes where the two banks appear in the engine bay.
Bank 1 is toward the firewall on common transverse 3.5L EcoBoost applications, while Bank 2 sits toward the radiator.
The cylinder numbers have not changed. Your viewing orientation has.
Ford 3.5 EcoBoost Firing Order Quick Reference
For an F150-style longitudinal installation, these are the numbers worth saving:
- Firing order: 1-4-2-5-3-6
- Bank 1: Cylinders 1-2-3
- Bank 2: Cylinders 4-5-6
- F150 Bank 1: Passenger side
- F150 Bank 2: Driver side
- Cylinder 1: Passenger-side front
- Cylinder 3: Passenger-side rear
- Cylinder 4: Driver-side front
- Cylinder 6: Driver-side rear
FIREWALL
BANK 1 BANK 2
Passenger Driver
3 6
2 5
1 4
RADIATOR
Firing Order 1 4 2 5 3 6
Ford documents the firing sequence as 1-4-2-5-3-6 across multiple 3.5L EcoBoost applications, including current F150 specifications.
Use the cylinder diagram for physical location and the firing order only for the combustion sequence.
What To Check Before Working on Your EcoBoost
The Ford 3.5 EcoBoost firing order is 1-4-2-5-3-6, but knowing that sequence alone is not enough for cylinder-specific repairs.
On a longitudinal F150, Bank 1 contains cylinders 1, 2, and 3 on the passenger side. Bank 2 contains cylinders 4, 5, and 6 on the driver side. Transverse applications rotate that physical orientation, so identify the engine installation before using left, right, front, or rear descriptions.
When a scan tool gives you P0301 through P0306, match the last digit to the cylinder number first. Then diagnose the plug, coil, injector, wiring, and mechanical condition rather than replacing parts based only on the code.
Frequently Asked Questions
What Is the Firing Order on a 3.5 EcoBoost
The Ford 3.5L EcoBoost firing order is 1-4-2-5-3-6. Ford lists this sequence in official specifications for multiple 3.5L EcoBoost applications.
Where Is Cylinder 1 on a Ford 3.5 EcoBoost
On a longitudinal F150 3.5 EcoBoost, Cylinder 1 is the front cylinder of Bank 1 on the passenger side. On transverse installations, Bank 1 is positioned differently, so use the model-specific engine orientation before locating Cylinder 1.
Which Side Is Bank 1 on a 3.5 EcoBoost F150
Bank 1 is on the passenger side of a longitudinal Ford F150 3.5 EcoBoost. It contains cylinders 1, 2, and 3 from the front of the engine toward the firewall.
Where Is Cylinder 4 on a 3.5 EcoBoost
On a longitudinal F150 3.5 EcoBoost, Cylinder 4 is the front cylinder on Bank 2, which is the driver-side bank. FordMasterX also has a dedicated 3.5 EcoBoost Cylinder 4 location guide with model-specific identification details.
Does P0303 Mean Cylinder 3 Is Bad
P0303 means the engine computer detected a misfire associated with Cylinder 3. Ford’s OBD-II documentation identifies P0303 as a Cylinder 3 misfire code, but the code does not tell you whether the root cause is the plug, coil, injector, wiring, compression, or another combustion problem.
