2019 F-150 5.0L Oil Capacity: Quarts, Type, and Known TSB
The 2019 Ford F-150 with the 5.0L Coyote V8 takes approximately 7.7 quarts of SAE 5W-20 oil when changed along with a new filter. Getting this number right matters more on this engine than on most Ford V8s,
because Ford issued a specific technical service bulletin covering oil behavior on this exact model year. This guide covers the correct fill, the filter you need, why some 2019 5.0L owners see the dipstick read low sooner than expected, and how to do the change yourself.
2019 F-150 5.0L Oil Fill At A Glance
Coyote V8 oil change specifications
Know TSB 19-2365 Before You Assume A Leak
Some 2018-2020 F-150 5.0L trucks can burn over 1 quart per roughly 3,000 miles with no visible leak. Ford’s fix involves a PCM reprogram, a new oil level indicator, and a full oil and filter change.
Recommended Best Deal Products
2019 F-150 5.0L Oil Capacity and Type by Fill
| Spec | Value |
|---|---|
| Oil capacity (with filter change) | Approximately 7.7 quarts [UNVERIFIED, widely cited across parts and retailer fitment data, not yet confirmed against the 2019 F-150 owner’s manual or motorcraftservice.com spec sheet] |
| Oil type | SAE 5W-20, Motorcraft Synthetic Blend Motor Oil (part number XO-5W20-Q1SP) |
| Oil filter | Motorcraft FL-500S (Ford factory part number AA5Z-6714-A) |
| Drain plug size | 15mm, commonly cited (confirm before use, see note below) |
The oil type and filter part number above are confirmed directly from a Ford technical service bulletin covering the 2018-2020 F-150 5.0L, not just retailer listings. The capacity figure is repeated consistently across Motorcraft oil change kit listings for the 2019 F-150 5.0L,
but has not yet been cross-checked against the printed owner’s manual, so treat it as a strong estimate rather than a manual-verified number until you confirm it against your dipstick fill or Ford’s 5.0L oil capacity chart across other model years.
Always fill in stages and check the dipstick rather than dumping the full amount in at once. Some 5.0L owners report needing slightly more than the commonly cited figure to reach the full mark, which is normal variation between individual engines and is not a sign of a problem.
Why 2019 5.0L F-150 Owners Should Know TSB 19-2365
Ford issued a technical service bulletin specifically covering oil behavior on this engine and model year. TSB 19-2365-05 (issued December 2019, superseding an earlier bulletin 19-2338) covers 2018-2020 F-150 trucks with the 5.0L engine.
The issue: some of these trucks can show oil consumption of more than 1 quart over roughly 3,000 miles with no visible leak anywhere on the engine. Ford traces this to high intake manifold vacuum during certain deceleration fuel shut-off (DFSO) events, which pulls oil into the combustion chamber from the crankcase, valve guides, and PCV system.
Ford’s fix under this bulletin is not a simple oil top-off. The service procedure calls for reprogramming the powertrain control module (PCM) to reduce vacuum during those DFSO events, installing a new engine oil level indicator, and performing a full oil and filter change with the parts listed above.
If your 2019 F-150 5.0L is burning oil faster than you’d expect between changes and there’s no visible leak, this TSB is worth mentioning to a dealer before assuming something is mechanically wrong. It’s a documented, warranty-eligible condition, not a rare fluke.

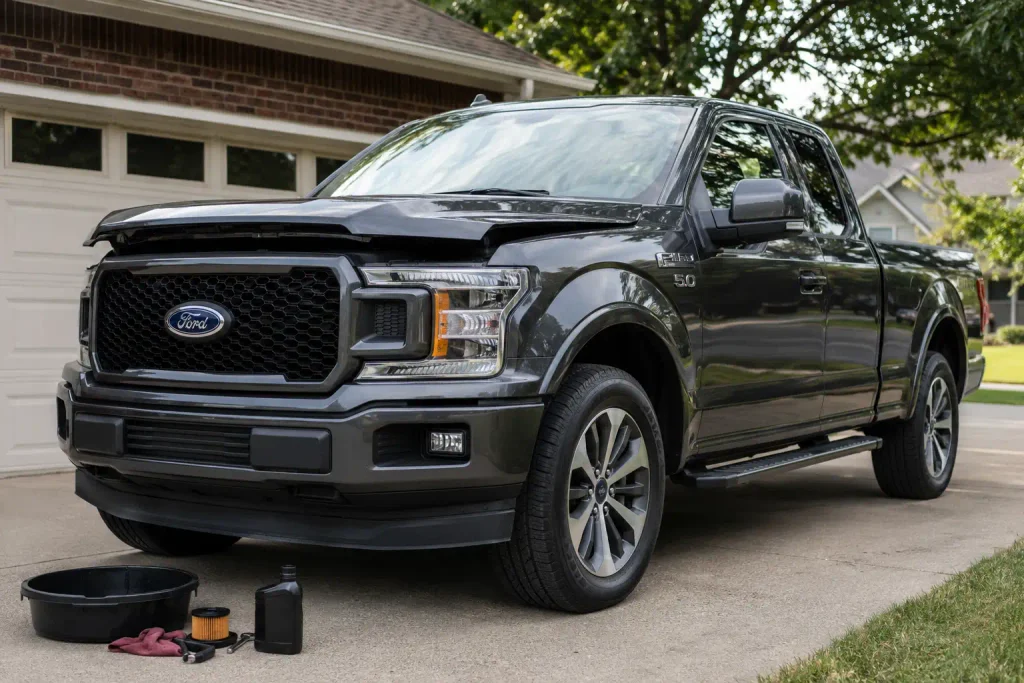

How To Change Oil On A 2019 F-150 5.0L Step By Step
Gather your tools before starting: an oil drain pan, a 15mm socket or wrench for the drain plug [UNVERIFIED, confirm exact drain plug socket size and torque spec against the 2019 F-150 5.0L workshop manual before publishing, do not rely on the general figure below], an oil filter wrench, a funnel, shop rags, and a torque wrench if you have one.
- Warm the engine briefly, then shut it off and let it sit a few minutes so the oil settles without being scalding hot.
- Position the drain pan under the oil pan drain plug, then remove the plug with your socket and let the oil fully drain.

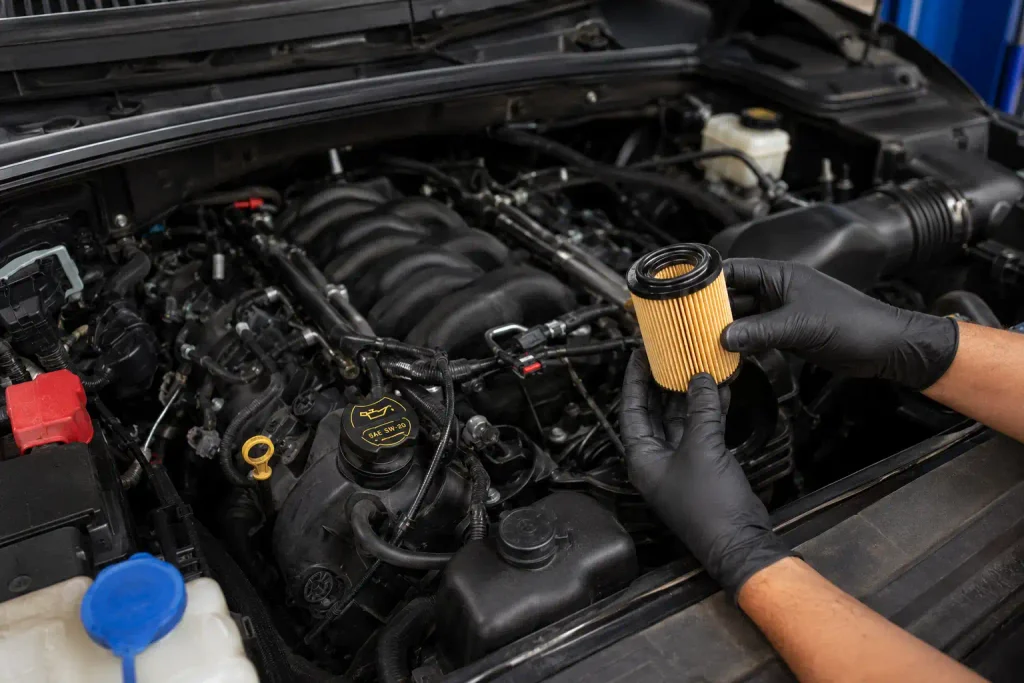

- Locate and remove the oil filter, positioned on the side of the engine. Use a filter wrench if it’s on too tight to remove by hand.
- Prep the new filter by lightly oiling the gasket, then thread it on by hand until snug. Do not overtighten.
- Reinstall the drain plug and tighten it. [UNVERIFIED, the commonly cited range for this class of drain plug is roughly 25 to 30 ft-lbs, but this has not been confirmed against Ford’s official specification for the 2019 5.0L oil pan. Do not torque to this figure without verifying it first, overtightening can strip the pan threads.]
- Add oil in stages, checking the dipstick as you approach the estimated capacity rather than pouring it all in at once.
- Start the engine briefly, then shut it off and recheck the dipstick once the oil settles, topping up as needed.
- Check under the truck for leaks around both the drain plug and the new filter before considering the job done.
If you’re shopping for a filter, this reviewed 5.0L oil filter option breaks down a few choices worth considering, and confirming the correct drain plug socket size before you start saves a trip back to the toolbox mid-job.
Common Mistakes When Filling A 5.0L Coyote With Oil
Overfilling Past The Dipstick Mark
Adding oil in one continuous pour instead of checking the dipstick as you go is the most common way owners end up overfilled. Add in stages and stop as soon as the dipstick reads full.
Using The Wrong Viscosity
Not every Ford V8 uses 5W-20. Diesel and some other Ford gas engines call for different weights, so double check the cap or dipstick label rather than assuming based on a different Ford you’ve owned.
Forgetting To Reset The Oil Life Monitor
The dash oil life percentage doesn’t reset itself. Skipping this step means the truck keeps nagging you for a change you already did.
Getting Your 2019 F-150 Oil Fill Right
A 2019 F-150 5.0L takes roughly 7.7 quarts of SAE 5W-20 with a filter change, using a Motorcraft FL-500S filter or the equivalent Ford part AA5Z-6714-A. Beyond just the numbers, this is one of the few model years where Ford has publicly documented a specific oil consumption condition through TSB 19-2365,
so an unexpectedly low dipstick reading isn’t automatically a leak to chase down. Once your fill is done, don’t forget to reset the oil life monitor so the dash reflects the fresh oil.
Frequently Asked Questions
How many quarts of oil does a 2019 F-150 5.0 take?
Approximately 7.7 quarts with a filter change, based on widely cited Motorcraft fitment data for this engine and model year. This figure should still be confirmed against your dipstick fill or owner’s manual, since it has not yet been cross-checked against Ford’s printed spec.
What type of oil does a 2019 F-150 5.0L need?
SAE 5W-20, specifically Motorcraft Synthetic Blend Motor Oil (part number XO-5W20-Q1SP), as confirmed in Ford’s own technical service bulletin for this engine and model year.
What oil filter fits a 2019 F-150 5.0L?
The Motorcraft FL-500S, listed under Ford factory part number AA5Z-6714-A in Ford’s TSB documentation for this engine.
Why is my 2019 F-150 5.0L low on oil between changes?
Some 2018-2020 F-150 5.0L trucks are covered under TSB 19-2365 for documented oil consumption above 1 quart per roughly 3,000 miles with no visible leak. If this matches what you’re seeing, it’s worth raising with a dealer rather than assuming a leak.
How often should I change the oil on a 2019 F-150 5.0L?
Follow the dash oil life monitor rather than a fixed mileage number, since Ford’s system adjusts based on driving conditions. If you’re seeing the consumption pattern described in TSB 19-2365, you may need to check the level between scheduled changes.
