Ford F250 Tie Rod Diagram: 2026 Component Breakdown & Repair
The Ford F250 tie rod system features an inner and outer tie rod assembly connected to the drag link. The layout includes adjustment sleeves for toe-in calibration. Located behind the front wheels, these components link the steering gear to the knuckles, maintaining wheel alignment and vehicle handling under heavy load conditions.
📌 Key Takeaways
- The F250 steering linkage utilizes a solid steel structure with dual-nut adjustment sleeves.
- Always mark the thread count on the tie rod end before removal to maintain approximate alignment.
- Torque the tie rod castle nut to 85-110 ft-lbs, depending on the specific model year and suspension trim.
- The most common failure point is the grease boot rupture, leading to inner joint contamination.
- A professional wheel alignment is mandatory after any tie rod replacement to prevent premature tire wear.
The steering system of a heavy-duty pickup like the Ford F-250 Super Duty is a critical mechanical arrangement designed to manage significant front-end loads and towing stresses. When navigating steering instability or uneven tire wear, utilizing a precise Ford F-250 tie rod diagram is the most effective way to identify the wear points within the linkage system. This guide focuses on the technical nuances of the steering configuration, providing the schematic knowledge required to execute repairs, ensure proper alignment, and maintain the structural integrity of your truck’s front-end geometry. Understanding the relationship between these hardened steel components is the difference between a reliable suspension system and potential steering failure.

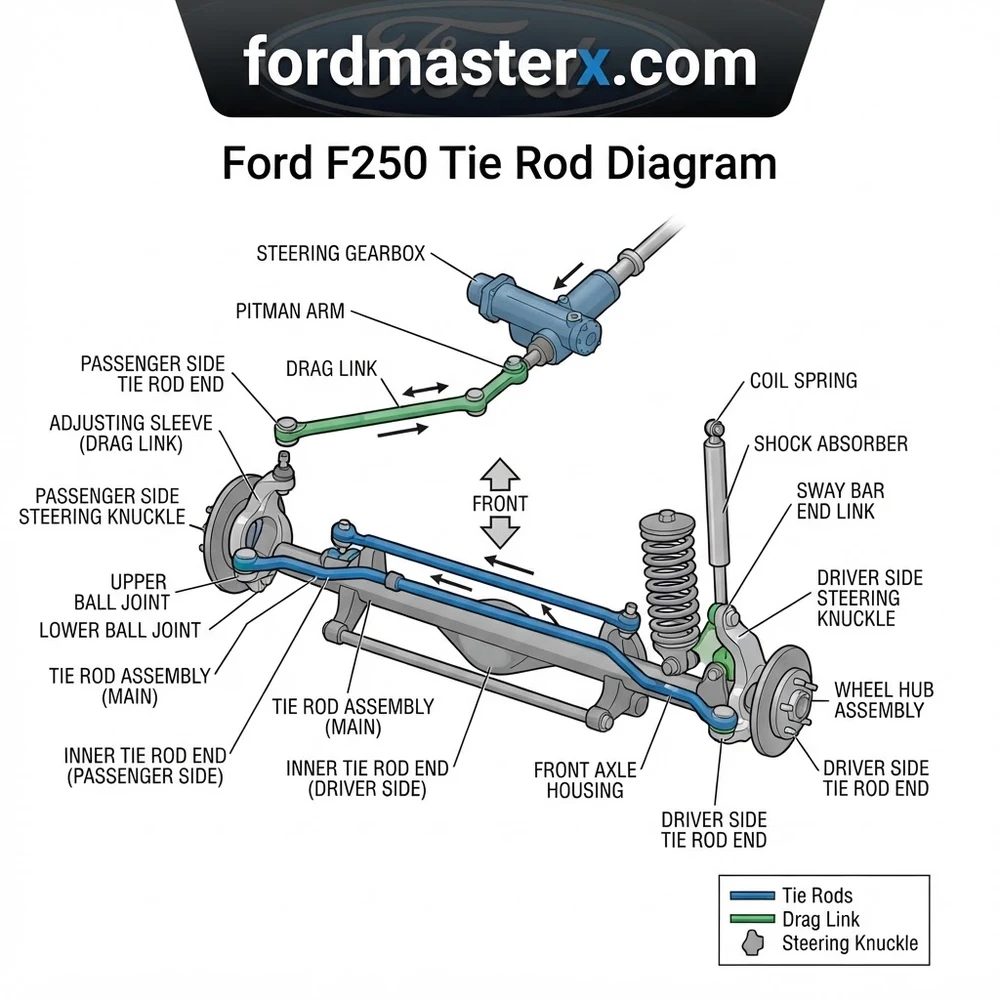

[DIAGRAM_PLACEHOLDER: Insert schematic illustration of F-250 steering linkage, showing connection points from steering gearbox to spindle assemblies, including drag link, track bar, and individual tie rod ends.]

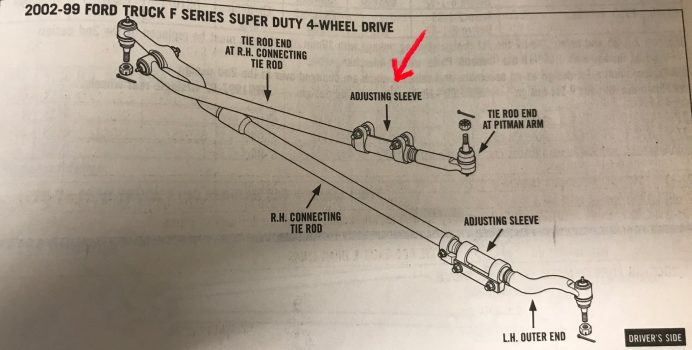

Ford F250 Tie Rod Diagram: Component Breakdown and Layout
Recommended Best Deal Products
The steering layout for the Ford F-250 is primarily a parallelogram-style linkage, engineered to withstand the rigors of heavy hauling. Referencing the Ford F-250 tie rod diagram, the system is comprised of several distinct components that must function in perfect harmony to maintain wheel tracking. The drag link connects the pitman arm to the passenger side knuckle, while the tie rod assembly spans the distance between the two front wheels.
| Component | Technical Function | Service Note |
|---|---|---|
| Inner Tie Rod End | Transmits force from the adjusting sleeve to the knuckle assembly. | Check for radial play using a pry bar. |
| Outer Tie Rod End | Connects steering linkage to the steering spindle. | Always replace in pairs to maintain geometry. |
| Drag Link | Transfers motion from the steering box to the linkage. | Ensure castle nut cotter pin is seated correctly. |
| Adjusting Sleeve | Provides length adjustment for toe-in/toe-out calibration. | Clean threads with wire brush; apply anti-seize. |
The inner and outer tie rod ends utilize a ball-and-socket design encased in a greaseable or sealed housing. As shown in the Ford F-250 tie rod diagram, the structural integrity of these parts is dependent on the tightness of the jam nuts. If the jam nut loosens, the sleeve can rotate, causing the steering wheel to lose its centered position and inducing rapid tire wear. The drag link often features a specific bend to clear the differential housing; installing a standard component on a lifted vehicle may result in contact issues under full compression. Always cross-reference your specific chassis build with the OEM schematic to ensure the correct hardware profile.
For Super Duty trucks equipped with steering stabilizers, ensure the mounting bracket is inspected whenever the tie rod ends are serviced. Vibration transferred through the steering box often masks failing tie rod bushings until the link experiences complete detachment.

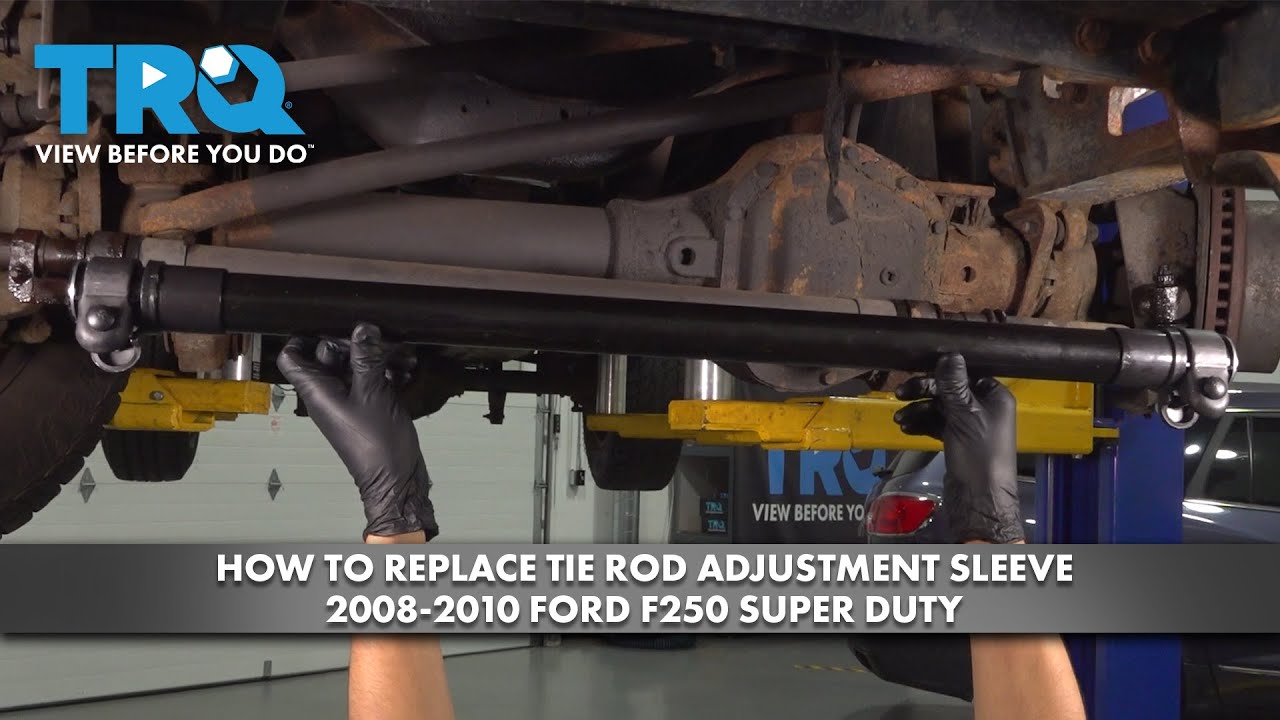

How to Read the Ford F250 Tie Rod Diagram Step by Step
Interpreting the Ford F-250 tie rod diagram requires an understanding of how force is transferred from the steering gearbox to the wheel knuckles. The schematic is essentially a blueprint of your truck’s pivot points. When you begin a teardown, identifying the orientation of the castle nuts and the location of the jam nuts is paramount. The process begins at the steering gearbox, where the pitman arm drives the drag link. Follow the path shown in the diagram to the steering arm on the passenger side knuckle.
To safely replace these linkage components, follow this technical sequence:
1. Identification and Prep: Locate the specific tie rod end highlighted on the Ford F-250 tie rod diagram. Clean all threaded areas with penetrant to prevent snapping the adjusting sleeve studs.
2. Unseating the Taper: Remove the cotter pin and loosen the castle nut. Do not remove the nut entirely; leave it flush with the threads. Use a ball-joint separator or a hammer to break the taper fit. Avoid striking the threaded end of the stud directly, as this will mushroom the metal and ruin the component.
3. Linkage Removal: Once the taper is freed, remove the nut and pull the tie rod end from the steering knuckle. Measure the distance from the center of the stud to the edge of the jam nut on the adjusting sleeve. This measurement is crucial for a “base” alignment during reassembly.
4. Adjusting Sleeve Integrity: Inspect the threads inside the adjusting sleeve. If they appear deformed or severely corroded, replace the entire sleeve along with the tie rod ends.
5. Installation: Thread the new tie rod end into the sleeve, matching your pre-recorded measurement. Tighten the jam nut to manufacturer-specified torque.
6. Final Seating: Insert the new stud into the knuckle, install the castle nut, and tighten to the OEM torque specification—typically 85-110 ft-lbs, but verify with your specific model year manual. Always align the castle nut slots with the hole for the cotter pin; never back off the nut to align the hole.
Never apply heat to steering linkage components to aid in removal. The internal plastic or nylon bushings in tie rod ends will melt, leading to immediate mechanical failure and loss of steering control.
Common Ford F250 Tie Rod Diagram Problems and Fixes
Recommended Best Deal Products
Failing steering components present with distinct symptoms that can be traced back to the Ford F-250 tie rod diagram. If you experience a “dead spot” in the steering—a condition where the steering wheel can be turned slightly without the wheels moving—this is a primary indicator of lateral play within the tie rod end sockets. By visualizing the layout in the schematic, you can isolate which joint is contributing to the slack.
Toe-in issues are the most frequent complaint regarding steering geometry. If the front wheels are pointed slightly inward or outward more than specified, the vehicle will exhibit “darting” on the highway. This is often caused by the adjusting sleeve slipping due to a loose jam nut. When inspecting the layout, verify that the sleeve clamps are tightened to the factory torque setting. If the sleeve itself shows signs of fatigue or thread stripping, it must be replaced immediately.
Bump steer is another complication related to the drag link angle. If you have modified your vehicle’s ride height without correcting the geometry through a drop pitman arm or adjustable track bar, the tie rod angles will deviate from the OEM diagram, causing the vehicle to steer itself when hitting bumps. Troubleshooting this requires comparing your current link angles to the stock Ford F-250 tie rod diagram. If the angles are too steep, you are placing excessive leverage on the tie rod ball joints, which will cause them to fail prematurely, regardless of brand quality.
Typical Toe-in Specification: Most Super Duty models call for a total toe-in of 0.10 to 0.20 degrees. Always confirm these values using a digital alignment rack or a precision tracking gauge after replacing any linkage part.
Post-Installation Alignment for Ford F250 Steering Systems
Replacing steering components according to the Ford F-250 tie rod diagram is only half the battle. Because the steering linkage geometry is intrinsically linked to the tire contact patch, a professional alignment is mandatory. Even if you have matched your previous measurements perfectly during the installation of the tie rod ends, factory tolerances allow for enough variation to ruin a set of tires within 5,000 miles.
For trucks equipped with suspension lift kits, alignment becomes even more critical. Larger tires and altered caster angles change the feedback loop between the road and the steering gearbox. During the alignment process, the technician must account for the specific geometry dictated by the aftermarket components. If the truck pulls to one side, it is rarely due to a single bad tie rod; it is almost always a culmination of incorrect toe, unequal caster between left and right sides, and potentially a failing steering gear box. Using the Ford F-250 tie rod diagram as a roadmap, the alignment technician can quickly determine if the linkage is binding or if the drag link needs adjustment to center the steering wheel.
Do not attempt to “eyeball” the alignment on these vehicles. The Super Duty’s steering system is designed to provide high levels of feedback under load; therefore, minor deviations in toe result in significant handling instability. Ensure that the alignment shop centers the steering wheel lock-to-lock before performing the final toe adjustments. Failure to do so will result in the steering sensors or physical stops hitting limits before the wheels reach full lock.
Ford F250 Tie Rod Diagram Questions Answered
Recommended Best Deal Products
Is it necessary to replace both sides of the tie rod assembly?
Yes. The Ford F-250 tie rod diagram illustrates a symmetric system. If one tie rod end is failing, the other has undergone the exact same number of stress cycles and road vibrations. Replacing them in pairs ensures uniform rigidity and simplifies the subsequent alignment process, as both sides will react to adjustments in the same way.
Can I upgrade to a heavy-duty steering linkage using the stock diagram?
Many aftermarket steering kits utilize the same layout shown in the Ford F-250 tie rod diagram but feature thicker-walled tubing or greasable, sealed-bearing joints. These upgrades are highly recommended for vehicles used for off-road work or heavy snow plowing. Ensure the kit specifies that it retains the original steering geometry to avoid bump steer.
Why does my steering wheel shake after I replaced a single tie rod end?
This is often caused by an imbalance in the force being applied to the steering knuckles. If you replaced only one end, the “new” side may be stiffer than the “old” side, leading to inconsistent tracking. It may also indicate that the alignment was not performed correctly, or that the jam nut on the adjusting sleeve has worked itself loose, creating a variable toe condition while driving.
What torque should be applied to the jam nut?
While specific year-to-year requirements vary, most F-250 jam nuts require between 80 and 120 ft-lbs of torque. Always refer to your chassis-specific service manual, as the thread pitch and metal hardness of aftermarket sleeves can differ from OEM specifications. Always ensure the threads are clean and free of rust before torquing to avoid an inaccurate reading.
How often should I inspect the tie rod configuration?
For heavy-duty equipment usage, incorporate a visual inspection of the linkage layout into your oil change interval—roughly every 5,000 to 7,500 miles. Look for torn dust boots, leakage of grease from the sockets, and any evidence of contact between the drag link and the axle housing. Addressing minor play early prevents a complete steering lockout on the road.
Step-by-Step Guide to Understanding the Ford F250 Tie Rod Diagram
Identify – Inspect the steering system and match existing parts to the diagram layout.
Locate – Position the truck on a level surface and lift the front end using approved jack points.
Reference – Use the diagram to map the connection sequence of the drag link and tie rod ends.
Connect/Route – Install the new components, ensuring the adjustment sleeves are centered correctly.
Verify – Torque all castle nuts to specification and install new cotter pins to secure the system.
Troubleshoot – Check for any binding in the steering arc and perform a final professional alignment check.
