Ford Ranger Heater Hose Routing Diagram: 2026 Proper Routing Guide
The heater hose system uses two primary lines connected to the engine block coolant outlet and the firewall heater core inlet/outlet. The supply hose routes from the intake manifold or water pump to the heater core, while the return hose cycles back to the thermostat housing to maintain consistent cabin temperature control.
📌 Key Takeaways
- Heater hoses typically use 5/8-inch ID reinforced rubber tubing for standard cooling system pressures up to 16 PSI.
- The supply line is identified by the smaller diameter connection exiting the cylinder head or water pump assembly.
- Ensure hose clamps are positioned 1/4-inch from the end of the fitting to prevent coolant leaks and hose fatigue.
- The most common failure point is the ‘Y’ connector or quick-disconnect fitting on the heater core inlet, often causing localized overheating.
- Consult a professional if you observe excessive corrosion on the aluminum heater core pipes, as these are highly susceptible to stress-induced fractures.
Maintaining the climate control and cooling efficiency of your Ford Ranger requires a precise understanding of the engine bay plumbing. Whether you are dealing with a cooling system leak, an engine overheating issue, or a lack of cabin heat, the diagram Ford Ranger heater hose routing serves as the definitive roadmap for your repairs. The cooling loop is a pressurized circuit, and incorrect hose orientation or poor connections can lead to catastrophic engine failure or localized steam pockets. This guide provides the technical specifications, component identification, and procedural framework necessary to master the heating system configuration on these versatile trucks, ensuring long-term reliability for your vehicle’s HVAC and cooling performance.

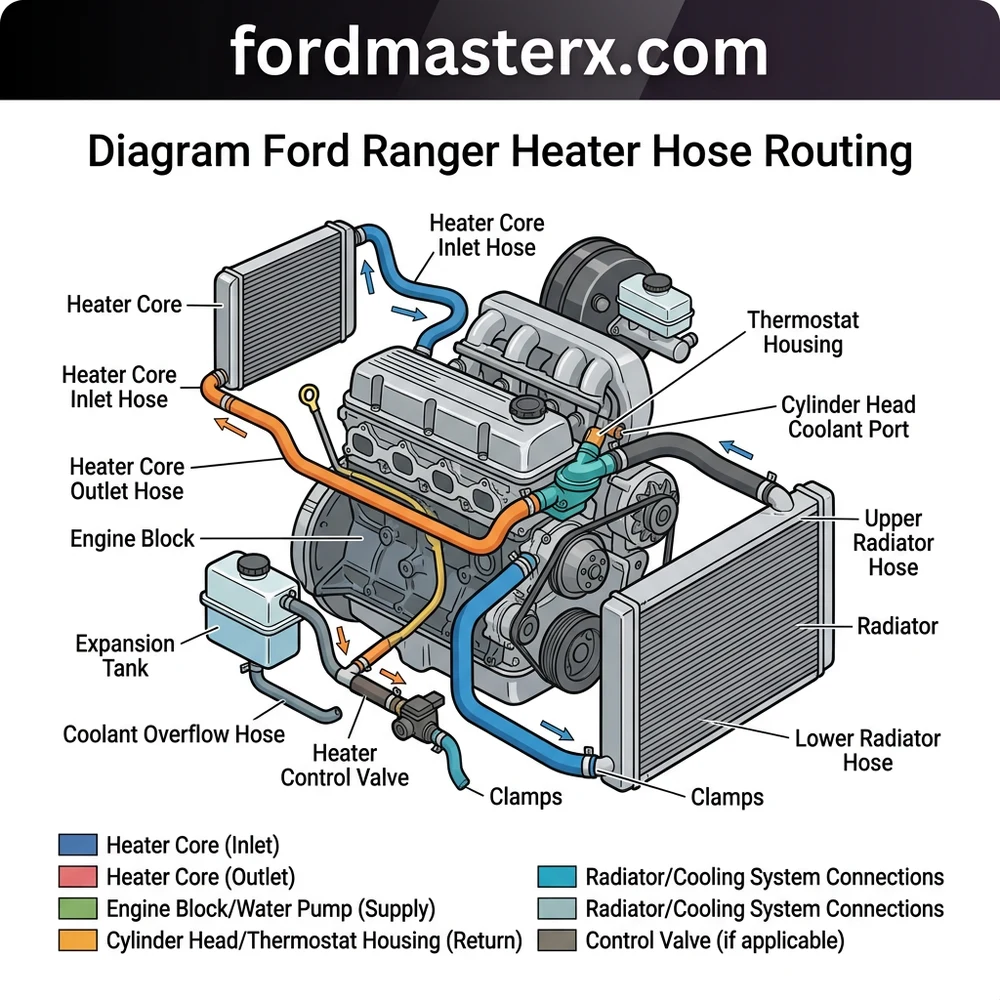

[DIAGRAM_PLACEHOLDER: A professional-grade schematic illustration showing the supply and return lines originating from the water pump and intake manifold, traversing to the firewall, and passing through the heater control valve to the heater core inlets.]
Diagram Ford Ranger Heater Hose Routing: Essential Components
To effectively navigate the cooling system layout, you must first identify the primary hardware that dictates fluid flow. The system is designed as a parallel loop off the main engine coolant circuit, meaning coolant is diverted from the high-pressure side of the water pump, through the heater core, and returned to the suction side of the system. Failure to correctly distinguish between the supply and return lines can impede coolant flow, often resulting in airlocks that prevent hot coolant from reaching the cabin heater core.
Recommended Best Deal Products
| Component | Function | Technical Spec |
|---|---|---|
| Heater Core | Heat exchange matrix | Copper or Aluminum |
| Supply Hose | Carries hot coolant | 5/8″ or 3/4″ ID reinforced |
| Return Hose | Cools and recirculates | 5/8″ or 3/4″ ID reinforced |
| Control Valve | Regulates flow rate | Vacuum or Cable actuated |
The heater core acts as a secondary radiator. As indicated in the diagram Ford Ranger heater hose routing, the supply line typically connects to the intake manifold port, while the return line bridges back to the water pump inlet pipe. The heater control valve, depending on your model year, may be a vacuum-actuated bypass valve. This component is critical; if it fails in the closed position, you will experience a total loss of cabin heat regardless of engine temperature. Conversely, a stuck-open valve will result in constant heat, which can be particularly problematic during summer months. Inspect the hose integrity regularly for signs of swelling or “sponginess,” which suggests internal degradation from electro-chemical erosion.
For Rangers equipped with the 4.0L V6 or 2.3L Duratec engines, pay close attention to the molded plastic fittings near the firewall. These are notorious for heat-cycling brittleness. Always replace the O-rings if you disconnect these quick-connect fittings to ensure a leak-free seal upon reinstallation.
Understanding the Ford Ranger Heater Hose Layout for Performance
The cooling system architecture on the Ford Ranger is a closed-loop system designed to maintain stable engine operating temperatures while simultaneously providing heat to the cabin. Understanding the blueprint of this system involves recognizing the role of the thermostat and the mechanical water pump. The water pump creates a pressure differential that forces coolant through the supply hose, into the heater core, and then back through the return hose.
If the hose layout is configured incorrectly, or if there is a kink in a line, the water pump will encounter significant resistance. This resistance can lead to cavitation at the pump impeller, which reduces the overall coolant flow efficiency. This effect is compounded when the HVAC blend door is misaligned or the blend door actuator fails, as this keeps the air path across the heater core restricted, even if the liquid coolant flow is perfect.
Furthermore, the thermostat is the gatekeeper of this entire system. If the thermostat fails to open, the pressure inside the block will spike, potentially causing the pressurized heater hoses to rupture at their weakest point—usually near the crimped hose clamps or the plastic T-junctions. By studying the schematic of the routing, you can determine if your specific Ranger utilizes a single-loop system or one that incorporates a bypass hose to allow for cabin heating even before the engine reaches full operating temperature. Monitoring the engine coolant temperature (ECT) sensor output via an OBDII scan tool while the engine is running will allow you to verify that the thermostat is responding appropriately to the heat load.
Step-by-Step Guide for Replacing Ford Ranger Heater Hoses
Mechanical intervention requires strict adherence to safety protocols, especially when handling a pressurized cooling system. Before attempting to replace or reroute any hoses, ensure the engine has cooled completely to avoid thermal injury.
1. Depressurize the cooling system by slowly turning the radiator cap to the first stop. Once the pressure is vented, remove the cap and drain the radiator into a clean catch pan using the petcock valve at the bottom of the radiator.
2. Locate the quick-connect fittings at the firewall. For many Ford Ranger configurations, these use a plastic locking ring. Apply a specialized quick-disconnect tool to the ring and push inward while simultaneously pulling the hose outward to release the retention teeth.
3. Loosen the spring-tension clamps or worm-gear clamps at the engine-side connections (intake manifold and water pump inlet). Use a pair of hose-clamp pliers to slide the clamps back several inches along the hose body.
4. Twist the hoses slightly to break the seal against the metal or plastic spigots before attempting to pull them free. Do not use excessive force, as the metal heater core tubes can be fragile and prone to bending or crimping.
5. Install the new hoses, ensuring the routing follows the original configuration precisely to avoid contact with moving components like the serpentine belt or sharp edges of the engine block.
6. Refill the cooling system with the manufacturer-recommended coolant, specifically adhering to the motorcraft gold or specialty green specification for your model year.
7. Perform an air-bleed procedure. With the heater turned to the “Max Heat” setting, run the engine with the radiator cap off. As the thermostat opens, top off the coolant to eliminate air pockets, which are the primary cause of gurgling noises in the dashboard.
System torque for hose clamps on modern Ford Ranger setups is typically 2.5–3.5 Nm. Over-tightening with a screwdriver or impact driver will bite into the rubber and cause premature hose failure.
Troubleshooting Diagram Ford Ranger Heater Hose Routing Failures
A deviation from the intended configuration often manifests as persistent HVAC issues. If you have consulted the diagram Ford Ranger heater hose routing and suspect a fault, look for these clinical symptoms:
Lukewarm air output: This is the most common sign of a restricted return hose or an airlock in the heater core. Check for temperature differentials between the supply hose and the return hose using an infrared thermometer.
Sweet, pungent odor in the cabin: This indicates a leaking heater core or a failure of the hose-to-core connection. Check for damp carpet on the passenger side floorboard.
Engine overheating at idle but normal temperature at highway speeds: This may indicate that the heater circuit is not effectively drawing heat away from the block, potentially due to a restricted heater control valve or a kink in the hose routing.
Visible coolant residue at firewall junctions: If the plastic quick-connects are compromised, they will often leave a white, crusty deposit where the coolant has evaporated over time.
* Intermittent loss of heat while accelerating: This often points to a failing water pump impeller, which cannot maintain flow pressure at low RPMs, or air trapped within the system that shifts during vehicle acceleration.
If you encounter these issues, always verify the orientation of the flow. In most Ford Ranger configurations, the coolant must flow from the intake manifold, through the heater core, and back to the engine. If the hoses have been reversed during a previous repair, the coolant may face internal resistance from the valve, leading to poor heating performance. Always cross-reference your specific engine block configuration (e.g., 2.3L I4, 3.0L V6, 4.0L V6) against an official service manual, as the specific hose routing can vary significantly between these three powerplants.
Never use generic, non-reinforced rubber hose for heater circuits. The system is subject to high-pressure thermal cycling and engine-bay vibrations. Using the incorrect hose material can result in an engine-side blow-out, leading to rapid coolant loss and potential engine seizure.
Diagram Ford Ranger Heater Hose Routing Questions Answered
Is the heater control valve necessary for proper flow?
The heater control valve is integral to the cooling system balance. It modulates the coolant flow based on demand. If the valve is bypassed or removed, the cooling system will technically continue to function, but you may experience significantly higher cabin temperatures during summer and potential issues with the engine reaching operating temperature in extreme winter conditions.
Why does my heater core still make a gurgling sound?
Gurgling sounds are symptomatic of trapped air in the system. Because the heater core is often one of the highest points in the cooling loop, air naturally rises to this area. You must run the vehicle at a steep incline or use a vacuum-fill cooling tool to ensure the system is completely purged of air.
Can I use worm-gear clamps instead of the factory spring clamps?
While worm-gear clamps provide a secure fit, they exert uneven pressure on the hose. If you choose to use them, ensure they are high-quality, lined stainless steel clamps to prevent them from cutting into the rubber hose. Factory spring clamps are preferred as they maintain constant tension regardless of the thermal expansion or contraction of the hose.
How often should I inspect the heater hose assembly?
Inspect the hoses every 30,000 miles or whenever the cooling system is opened for other services, such as a water pump replacement. Focus on the areas where the hoses make sharp bends or contact plastic fittings, as these are the zones where the rubber typically fails due to heat aging and oxidation.
Does the routing change between two-wheel drive and four-wheel drive models?
Generally, the heater hose routing is dictated by the engine block configuration rather than the drivetrain. However, on some 4WD models, the clearance around the transmission bellhousing may result in slightly different hose lengths or bracket mounting points. Always ensure that the hoses do not come into contact with the front driveshaft or exhaust headers, as the proximity to heat sources will drastically reduce hose life.
