2016 F150 5.0 Coolant Hose Diagram: Proper Routing & Maintenance 2026
The 2016 F150 5.0L Coyote engine coolant network utilizes a complex topology involving the degas bottle, water pump, and heater core. Key connections include the lower radiator hose, upper hose with integral quick-connects, and bypass lines. Ensure the subnet pressure rating is maintained and verify the gateway thermostat housing for proper flow.
📌 Key Takeaways
- The 5.0L Coyote cooling system operates at a static pressure of 16-18 PSI.
- Quick-connect fittings require a specific O-ring seal; replace if weeping occurs.
- Ensure the bypass hose is routed clear of the accessory drive belt to prevent abrasion.
- Most common failure involves the plastic Y-connector cracking near the firewall junction.
- Consult a certified technician if the degas bottle shows signs of sludge or oil contamination.
The cooling system of the 2016 Ford F-150 equipped with the 5.0L Coyote V8 is a complex, high-pressure network that requires precise maintenance to ensure engine longevity. Understanding the 2016 f150 5.0 coolant hose diagram is essential for any technician tasked with routine servicing or major component replacement. Because this engine utilizes specialized quick-connect fittings and a degas bottle pressurized system, the topology of the coolant routing is significantly different from older modular engines. This guide provides the technical breakdown of the cooling loop, inspection protocols, and critical failure mitigation strategies required to keep the Coyote V8 within its optimal operating thermal envelope.

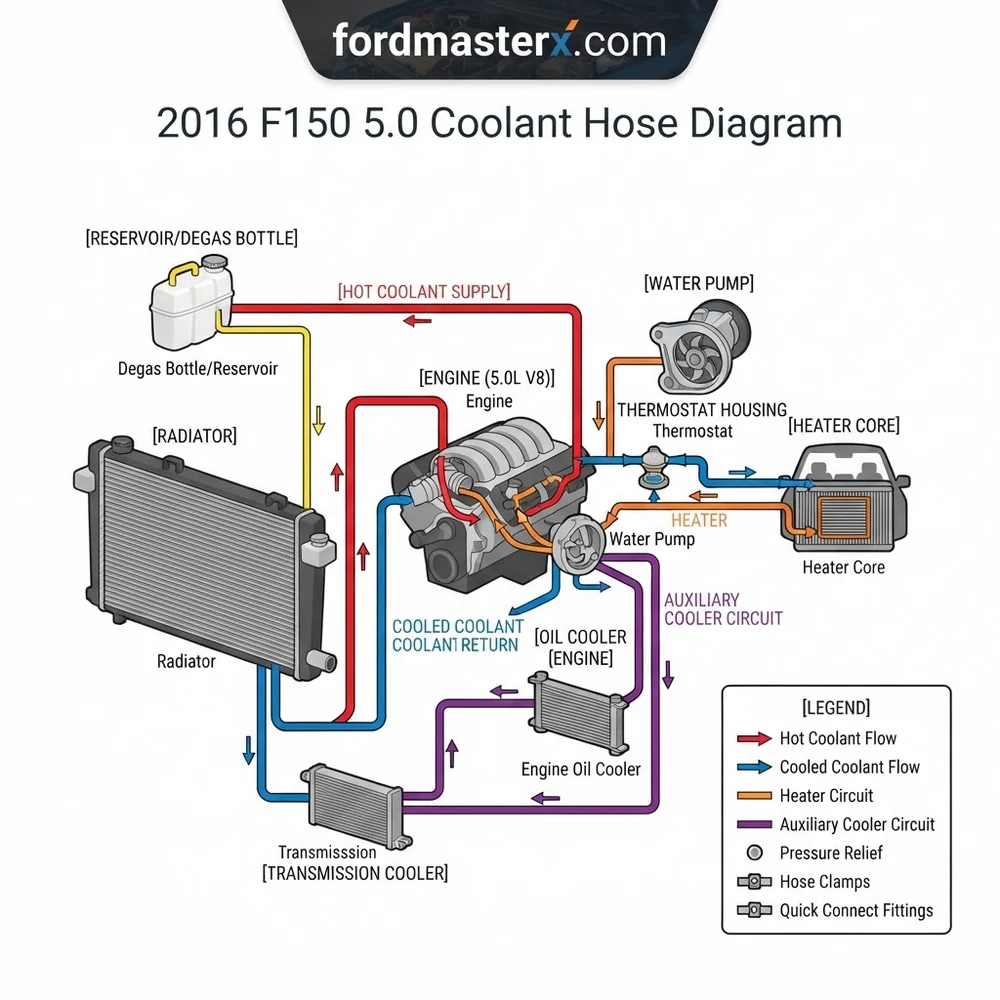

[DIAGRAM_PLACEHOLDER: Network-style schematic illustrating coolant flow from the water pump to the radiator, heater core, and degas bottle.]
2016 F150 5.0 Coolant Hose Diagram: Every Part Labeled
Recommended Best Deal Products
The cooling topology of the 2016 F-150 5.0L is categorized by specific flow paths managed by the mechanical water pump and the integrated thermostat housing. Unlike a simple series circuit, the cooling system functions as a parallel network where the engine block, heater core, and degas bottle act as distinct nodes. The primary switch for this system is the dual-stage thermostat, which regulates the flow based on thermal demand. When inspecting the 2016 f150 5.0 coolant hose diagram, you must identify each branch to prevent diagnostic errors, such as misidentifying a heater return line as a bypass hose.
| Component | Function | Connection Type |
|---|---|---|
| Upper Radiator Hose | Transports hot coolant to radiator inlet | Spring Clamp/Quick-Connect |
| Lower Radiator Hose | Transports cooled fluid to water pump | Quick-Connect/O-ring Seal |
| Degas Bottle Hose | Air venting and fluid expansion | Quick-Connect |
| Heater Core Feed | Supplies hot coolant to interior cabin | Spring Clamp/Quick-Connect |
| Thermostat Bypass | Internal circuit flow during warm-up | Integrated Manifold |
The upper hose serves as the primary gateway for coolant exiting the engine block. The coolant flow rate is highly dependent on the integrity of the quick-connect interfaces. If the O-ring inside the quick-connect fitting degrades, you will experience a localized leak that mimics a coolant hose failure, though the hose itself may remain intact. Technicians must treat the degas bottle as the system’s “DNS”—or primary reference point—for fluid level and pressure stability. If the degas bottle cap fails to maintain its pressure rating, the entire topology of the system suffers from premature boiling point depression, leading to air pockets trapped in the heater core.
Furthermore, the heater core lines act as a secondary circuit. When the climate control system is activated, the flow is redirected through this loop. Any restriction in these hoses results in inconsistent interior heating performance. The 2016 f150 5.0 coolant hose diagram reveals that these lines are routed specifically to minimize resistance while maintaining thermal transfer. Ensure that when replacing these components, you follow the factory routing precisely to prevent rubbing against the serpentine belt or transmission cooling lines, which can lead to catastrophic system failure.
Always inspect the quick-connect retaining clips for fatigue. These clips are designed to snap into a specific groove on the aluminum or plastic pipe interfaces. If the clip fails to seat, the pressurized coolant will push the hose off the fitting, leading to immediate engine overheating.
How to Read the 2016 F150 5.0 Coolant Hose Diagram Step by Step
Reading the 2016 f150 5.0 coolant hose diagram requires a methodical approach, much like debugging a complex network topology. You are essentially tracing the flow of thermal energy from the heat source (engine block) to the heat sink (radiator). Follow these steps to ensure accurate diagnosis and service.
1. Perform a Static System Analysis: Before dismantling any components, perform a visual scan of the hoses against the diagram. Identify each node, including the heater inlet, degas bottle return, and the water pump manifold. Check for signs of weepage at all quick-connect fittings, as these are the most common failure points.
2. Execute a Pressure Decay Test: Use a cooling system pressure tester calibrated to 15-18 PSI. Apply pressure and monitor the gauge. If the pressure drops, use an ultrasonic leak detector to pinpoint the specific hose joint. This process functions like checking for packet loss in a data network; if the pressure isn’t held, the system is compromised.
3. Isolate the Faulty Link: If a leak is identified at a quick-connect fitting, do not simply tighten a clamp. These fittings rely on internal O-rings. If the O-ring has failed, the entire hose assembly must be replaced to restore the integrity of the connection point.
4. Initiate the Coolant Bleed Procedure: Air trapped in the 5.0L cooling system can cause localized “hot spots.” Once the hoses are serviced, fill the system through the degas bottle. Run the engine with the heater set to the highest temperature. This forces the coolant to cycle through the heater core, purging trapped air.
5. Verify Thermal Topology: Monitor the engine coolant temperature (ECT) via OBDII data. The system is operating correctly when the temperature stabilizes and the degas bottle level remains constant.
When conducting these steps, treat the cooling system as you would a digital network’s gateway; if the gateway (thermostat/degas system) is clogged or failing, the entire engine “network” cannot communicate heat effectively. For professional results, always use a vacuum-assisted cooling system filler. This tool removes air from the entire loop before introducing new fluid, ensuring that no air pockets (which act like noise in a network signal) impede the coolant flow.
For the 2016 5.0L engine, always use Motorcraft Yellow concentrated antifreeze (or the updated equivalent specification). Mixing coolant types or using water-heavy mixtures can lead to electrochemical degradation of the hose internals and aluminum radiator core.
Common 2016 F150 5.0 Coolant Hose Diagram Problems and Fixes
Even with regular maintenance, specific failure modes appear in the cooling topology of the 2016 F-150. Addressing these common issues quickly prevents cascading failures in other engine systems.
Quick-Connect Failure: The primary point of failure on the 2016 f150 5.0 coolant hose diagram is the O-ring interface. Over time, heat cycling causes the rubber to harden, leading to coolant weeping. If ignored, this weepage often dries into a crust, which can mask more serious cracks in the plastic quick-connect housing.
Electrolysis and Internal Corrosion: Using incorrect coolant or failing to change it at the recommended intervals creates an electrochemical differential. This leads to internal pitting of the aluminum ports that the hoses attach to. Once the surface is pitted, no amount of new O-rings will seal the connection.
Cavitation and Air Pockets: If the degas bottle cap loses its ability to hold pressure, the coolant will cavitate at the water pump impeller. This creates micro-bubbles in the coolant flow, reducing the heat transfer efficiency. In the 5.0L engine, this is often confused with a head gasket leak; always test the cooling system pressure first.
Degradation of Rubber Compounds: The stock coolant hoses are formulated for specific heat-transfer properties. Using generic aftermarket hoses that lack the correct fiber reinforcement can lead to the hose collapsing under high-suction conditions, effectively acting as an “access point” obstruction that starves the engine of cooling flow.
To mitigate these problems, you must enforce a rigid maintenance cycle. Treat the coolant like an operating system; if the environment becomes contaminated (due to acidity or sediment), the “logic” of the cooling flow is disrupted. If you find debris in the degas bottle, perform a full system flush.
Never remove the degas bottle cap while the engine is hot. The system remains pressurized well above the boiling point, and the resulting steam release can cause severe third-degree burns. Allow the system to cool for at least two hours before attempting to open the loop.
2016 F150 5.0 Coolant Hose Diagram Questions Answered
Is it possible to replace only the O-rings inside the quick-connect fittings?
While aftermarket O-ring kits exist, OEM repair procedures for the 2016 F-150 specify replacing the entire hose assembly. Because the plastic quick-connect housing itself is prone to stress cracking, reusing the housing after a leak is a high-risk practice that may lead to sudden pressure loss on the road.
What role does the degas bottle play in the overall coolant topology?
The degas bottle acts as the central hub of the system. It handles fluid expansion and provides a dedicated point for air to escape the cooling circuit. In terms of your cooling “network,” the degas bottle is the gateway that ensures the fluid loop remains free of air (interference) and maintains the necessary operating pressure (signal strength).
Why does my heater core lose heat even though the engine temp is normal?
This is typically a symptom of an air pocket trapped within the heater core circuit. Because the heater core is located at a high point in the topology, air often collects there. Ensure the system is bled correctly using the vacuum method, and verify that the heater control valve is receiving the correct signal to open.
How often should the coolant hoses be inspected for integrity?
For the 2016 5.0L engine, inspect the hoses every 30,000 miles or during every major oil change. Focus on the quick-connect interfaces and the areas near the engine pulleys. If you see signs of “blooming” (white or colored powder-like residue), the hose compound is failing and requires immediate replacement to prevent a major hose burst.
Step-by-Step Guide to Understanding the 2016 F150 5.0 Coolant Hose Diagram
Identify – Review the diagram to map the existing coolant network and locate all connection points.
Locate – Drain the system and pinpoint the failing component within the engine bay subnet.
Reference – Use the diagram to verify the orientation of the replacement hose to avoid kinks or restricted flow.
Connect/Route – Attach the hoses to the gateway junction points, ensuring quick-connects click securely.
Verify – Perform a pressure test to ensure the cooling network holds pressure without leaks.
Troubleshoot – Refill with Motorcraft specialty orange/yellow coolant and check for bubbles or temperature spikes.
