The 2006 Ford Fusion serpentine belt routing path travels around the crankshaft, A/C compressor, alternator, idler pulley, and water pump. To install, use a 3/8-inch drive breaker bar on the belt tensioner to compress the spring, release tension, and loop the belt over the pulleys according to the specific engine diagram.
📌 Key Takeaways
- The standard serpentine belt for the 2.3L 4-cylinder engine is approximately 84.5 inches in length.
- Ensure the ribbed side of the belt matches the grooves on the alternator and crankshaft pulleys.
- Always inspect the idler pulley for bearing play; replace if grit or resistance is felt during rotation.
- Over-tightening is impossible with the automatic belt tensioner, but improper routing can cause immediate failure.
- If you encounter extreme tensioner stiffness or seized pulleys, professional shop intervention is required to avoid damage to the engine block.
Replacing a serpentine belt on a vehicle approaching two decades of service requires precision, as the 2006 Ford Fusion serpentine belt diagram varies significantly between the inline-four and the V6 engine configurations. Relying on improper routing leads to immediate cooling system failure, alternator charge issues, or premature accessory bearing wear. Whether you are addressing an aging belt exhibiting signs of cracking or replacing a snapped component, understanding the specific deck engagement of the belt across the tensioner and idler pulleys is paramount. This guide provides technical specifications, routing geometry, and professional procedural steps to ensure proper accessory drive functionality for both the 2.3L Duratec and 3.0L Duratec engine platforms.

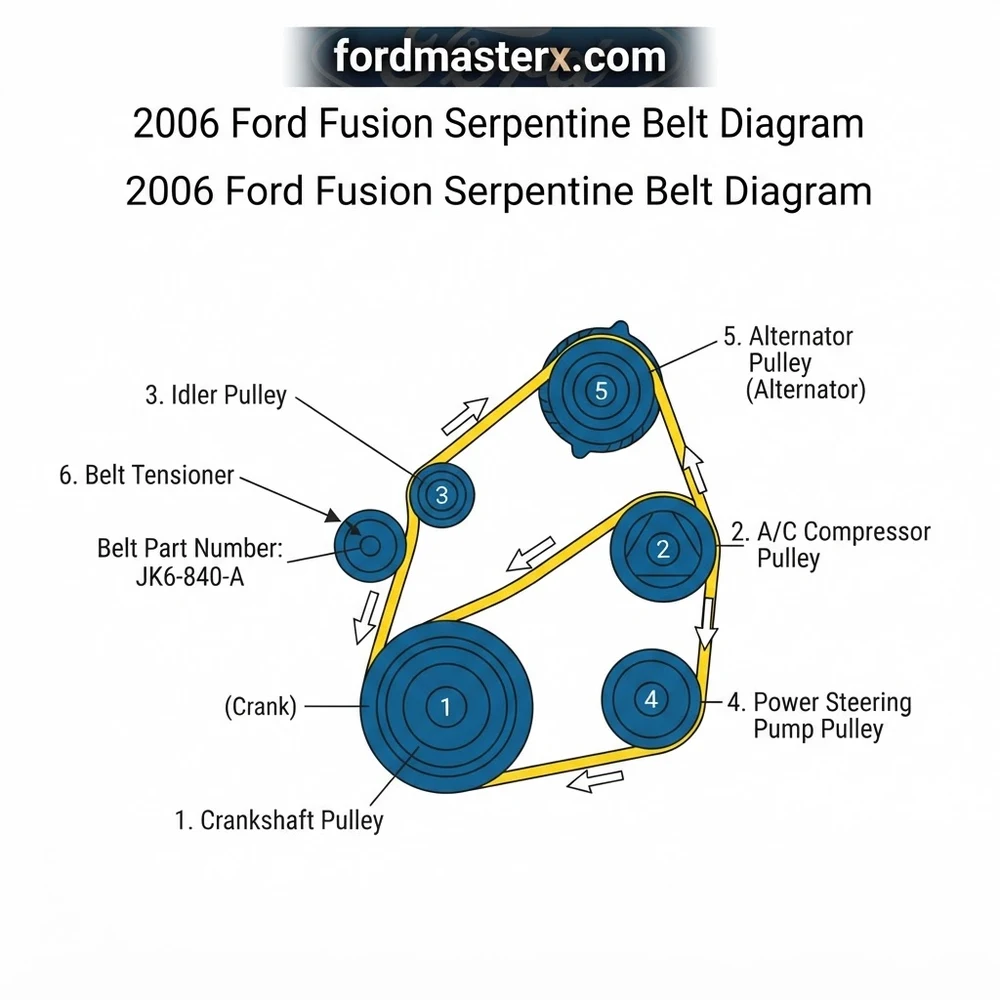

[DIAGRAM_PLACEHOLDER: Insert schematic for 2.3L I4 and 3.0L V6 routing paths here]
Mastering the 2006 Ford Fusion Serpentine Belt Diagram Variations
Recommended Best Deal Products
The accessory drive system for the 2006 Ford Fusion is categorized by two distinct engine architectures. The 2.3L I4 engine utilizes a single serpentine belt layout, while the 3.0L V6 utilizes a dual-accessory drive configuration that requires careful navigation. The primary objective when referencing the 2006 Ford Fusion serpentine belt diagram is identifying the correct orientation of the grooved versus smooth pulley surfaces.
For the 2.3L I4 engine, the belt routing path is relatively linear. The belt traverses the crankshaft pulley, wraps around the alternator, passes through the water pump, and engages the A/C compressor and power steering pump. The belt tensioner is positioned strategically to maintain constant deck engagement, ensuring that the grooved side of the belt mates perfectly with the ribbed pulleys, while the flat side of the belt rides against the smooth idler pulley and tensioner pulley.
The 3.0L V6 engine presents a more complex scenario. Because this engine uses two belts—one for the alternator/power steering and another for the A/C compressor—confusion often arises regarding the specific routing around the harmonic balancer. Mechanics must distinguish between the inner and outer grooves of the pulley stack. Failing to observe the correct pulley diagram for the V6 can result in misaligned belt tracking, causing the belt to walk off the pulleys during high-load engine operation. The alternator pulley, in particular, requires consistent wrap to prevent voltage fluctuations under heavy electrical load. Always verify the orientation of the idler pulley, as an improperly seated belt can cause immediate friction-based failure or premature tensioner spring fatigue.
For high-mileage vehicles, inspect the power steering pump pulley for signs of excessive run-out. Even with a new OEM belt, lateral movement in a worn pulley bearing will cause the belt to shed material, leading to premature failure of the new component.
2006 Ford Fusion Serpentine Belt Part Numbers and Specifications
Securing the correct component is critical, as belt size tolerances are measured in millimeters. Using a generic aftermarket part may lead to inconsistent tensioner behavior. Refer to the table below for standard OEM-equivalent sizing and identifiers based on the specific engine displacement.
| Engine | Belt Type | Industry Part Number |
|---|---|---|
| 2.3L I4 | Serpentine Belt | K060950 / 6PK2415 |
| 3.0L V6 | Main Drive Belt | K060805 / 6PK2045 |
| 3.0L V6 | A/C Compressor Belt | K040330 / 4PK0840 |
When sourcing parts, prioritize EPDM (Ethylene Propylene Diene Monomer) construction. Unlike older neoprene designs, EPDM belts resist cracking and maintain elasticity throughout the life of the component. Always cross-reference the part number with the OEM belt specifications provided by Ford for the specific production date, as some late-2006 models transitioned to updated pulley diameters.
How to Use the 2006 Ford Fusion Serpentine Belt Diagram Step by Step
Recommended Best Deal Products
Successful installation requires a systematic approach, beginning with proper safety protocols. Ensure the engine has cooled to ambient temperature before proceeding, as the harmonic balancer and radiator hoses remain in close proximity to the working area.
1. Preparation and Tooling: Acquire a dedicated serpentine belt tool, ideally with a low-profile handle, to ensure clearance between the frame rail and the belt tensioner. Standard socket wrenches often provide insufficient leverage and may collide with vehicle bodywork.
2. Belt Tensioner Release: Locate the belt tensioner on the 2.3L or the primary tensioner on the 3.0L engine. Rotate the tensioner arm clockwise (or counter-clockwise, depending on engine orientation; confirm by observing the diagram) to relieve pressure. Once the tension is slack, slide the belt off the idler pulley first to minimize the risk of pinching fingers.
3. Routing Validation: Follow the 2006 Ford Fusion serpentine belt diagram strictly. Begin routing at the crankshaft pulley, as this is the primary drive point. Ensure the belt grooves are perfectly indexed with the crankshaft teeth. Misalignment here will cause the entire belt to track incorrectly, leading to “belt walk.”
4. Final Engagement: Route the belt around the alternator and water pump, leaving the tensioner pulley for last. Before final tensioning, verify the belt is fully seated in all pulley grooves. Any “rib-skip” will cause immediate vibration and noise.
5. Verification: Once the belt is routed, release the tensioner slowly. Start the engine and observe the belt path for 30 seconds. Look for any oscillation in the idler pulley, which indicates improper seating or a failing pulley bearing.
Never attempt to force the belt onto a pulley using a screwdriver or metal pry bar. This will damage the belt cords internally, leading to a catastrophic snap during high-RPM operation. Always use the tensioner release point to provide adequate slack.
Tensioner Inspection and Accessory Belt Adjustment Protocols
The longevity of the serpentine belt is inextricably linked to the health of the belt tensioner and the idler pulley. Even the most robust OEM belt will degrade rapidly if the tensioner spring has lost its calibrated resistance.
Inspect the tensioner for “dampening” ability. The arm should move smoothly through its arc without catching. If you observe the arm vibrating excessively while the engine is idling, the internal damping mechanism has likely failed. A failed tensioner produces a distinct “chatter” noise and contributes to the uneven wear of the belt’s rib profile.
Simultaneously, evaluate the idler pulley by spinning it by hand after removing the belt. It should rotate silently with minimal resistance. If the pulley emits a grinding noise, the bearing has lost its lubricant and requires immediate replacement. Never neglect the accessory pulleys—the A/C compressor and power steering pump—as these are high-load items. If you find the belt is consistently “polishing” the surface of one specific pulley, it suggests an alignment issue or a seized accessory bearing. Always consult the 2006 Ford Fusion serpentine belt diagram to confirm if the idler pulley is positioned correctly, as some aftermarket pulleys are incorrectly machined and can lead to misalignment of the belt deck engagement by several millimeters.
Replacement intervals for the 2006 Ford Fusion serpentine belt should occur every 90,000 to 100,000 miles. However, in high-heat or severe-duty climates, inspection for micro-cracks (more than three per inch) should occur at every 50,000-mile service interval.
2006 Ford Fusion Serpentine Belt Diagram Questions Answered
Recommended Best Deal Products
Can I use the same belt for all 2006 Ford Fusion trim levels?
No, trim levels do not dictate the belt, but engine displacement does. The 2.3L I4 and 3.0L V6 engines have completely different routing paths and pulley configurations. Always verify your engine code before purchasing a replacement belt to avoid incorrect sizing.
What causes the belt to squeal immediately after installation?
Squealing post-installation is typically caused by one of three issues: contaminated pulley surfaces (oil or coolant residue), a misaligned belt on one of the ribbed pulleys, or an old, weak tensioner that cannot provide the required PSI to the belt path. Ensure the pulley faces are cleaned with brake cleaner before installation.
How do I know if the belt is aligned properly on the pulleys?
Visually inspect the alignment from the side of the engine. The belt ribs should sit perfectly centered within the grooves of every pulley. If the belt is overhanging the edge of a pulley by even a fraction of an inch, it is misrouted or a pulley bearing is failing. Use the 2006 Ford Fusion serpentine belt diagram to re-verify the path.
Does the A/C compressor belt on the V6 require special tools?
The V6 A/C belt is a stretch-fit design on some production runs, requiring a specialized installation tool to guide the belt onto the pulley without snapping the internal fibers. Verify if your specific VIN requires the stretch-fit method, as forcing it without the correct tool will permanently damage the belt’s tensile structure.
What happens if I ignore belt wear indicators?
Ignoring wear leads to a snapped belt, which causes an immediate loss of the alternator (battery drain), loss of power steering, and, most importantly, loss of the water pump. Overheating occurs within minutes of a water pump failure, which can lead to catastrophic cylinder head warping. Always replace the belt at the first sign of cord exposure or heavy cracking.
Step-by-Step Guide to Understanding the 2006 Ford Fusion Serpentine Belt Diagram
Identify – Check your engine bay for the sticker showing the belt routing path.
Locate – Position the belt tensioner pulley and the idler pulley within the accessory drive assembly.
Reference – Follow the routing diagram to place the belt around the crankshaft and water pump first.
Connect/Route – Use the breaker bar to pivot the tensioner, allowing enough slack to slide the belt over the final A/C compressor pulley.
Verify – Ensure the ribs of the belt are centered perfectly within the grooves of every pulley.
Troubleshoot – Start the engine briefly; if the belt squeals, stop and verify that the belt is not misaligned on any pulley edge.
