Ford Emblem Size Chart: The Ultimate Guide to F-150, Ranger, & Super Duty Badge Dimensions

In the complex ecosystem of automotive restoration and customization, few components generate as much confusion as the Ford Blue Oval. To the casual observer, the emblem is a static piece of branding that has adorned grilles and tailgates for a century. However, a granular analysis of Ford’s production history reveals a chaotic matrix of physical dimensions, curvature radii, and mounting architectures.

For the automotive technician or enthusiast, the query “ford emblem size chart” is rarely a search for trivia; it is often the precursor to a repair or modification that can easily go wrong due to a millimeter of variance.

The evolution of the Ford emblem tracks closely with the aerodynamic and cooling requirements of the vehicles they adorn. As trucks like the F-150 and Super Duty grew in stature to accommodate larger cooling stacks and intercoolers, the “Blue Oval” scaled proportionally, transforming from a modest 5-inch accent in the 1990s to a 13-inch dominant architectural element in modern heavy-duty applications.

This dimensional inflation was not merely aesthetic; it ran parallel to the integration of advanced driver-assistance systems (ADAS). Modern emblems are no longer simple plastic discs but sophisticated housings for high-definition cameras, radar sensors, and washer nozzles, turning a simple cosmetic swap into a technical procedure involving wiring harnesses and fluid lines.

This research report serves as an exhaustive technical reference for Ford emblem fitment. By synthesizing data from Original Equipment Manufacturer (OEM) catalogs, technical service bulletins, and enthusiast fitment databases, we establish a definitive size guide. We move beyond generic “9-inch” or “7-inch” descriptors to analyze the specific part numbers, pin locations, and surface curvatures that dictate compatibility.

Whether the objective is replacing a delaminated badge on a 2004 F-150 Heritage or retrofitting a lighted emblem on a 2024 Super Duty, this document provides the requisite data to ensure precision fitment.

1. Dimensional Architectures and Measurement Protocols

The aftermarket community is rife with misinformation regarding emblem sizing, primarily due to a lack of standardized measurement protocols. A discrepancy often arises between the physical outer dimensions of the part (the "Hard Part") and the visual dimensions of the blue field (the "Graphic"). Understanding this distinction is critical for procuring the correct replacement components or vinyl overlays.

1.1 The "Tip-to-Tip" vs. "Blue Field" Standard

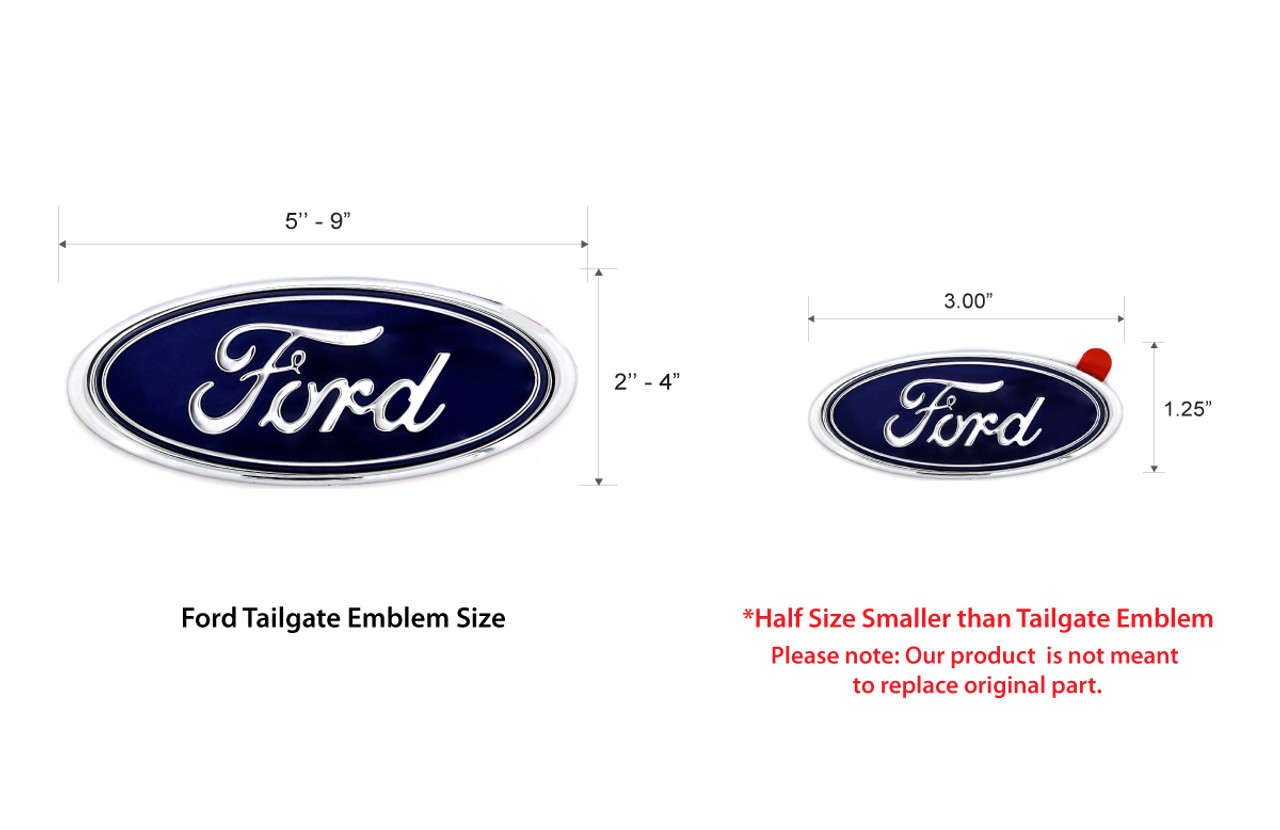

When OEM parts catalogs reference emblem size, they almost exclusively refer to the Tip-to-Tip measurement. This is the linear distance from the furthest left edge of the chrome bezel to the furthest right edge, measured horizontally across the face. This metric determines whether the physical puck will seat correctly into the recessed oval on the grille or tailgate. For example, the ubiquitous "9-inch" emblem typically measures between 8.875 inches and 9.5 inches depending on the specific mold.

Conversely, the vinyl overlay industry utilizes the Blue Field measurement. This metric isolates the inner blue surface area, excluding the raised chrome perimeter. This distinction is vital because the chrome bezel width is not uniform across all generations. A badge with a 9-inch physical width may have a blue field that varies from 8 inches to 8.25 inches depending on the thickness of the chrome ring.

As noted in detailed fitment charts, a physical emblem measurement of 6.25" x 2.375" corresponds to a decal size that is significantly smaller, and failure to distinguish between these two metrics results in poor aesthetic coverage where the chrome is inadvertently obscured or the blue vinyl falls short of the bezel edge.

1.2 The Curvature Variable

A frequently overlooked variable is the radius of curvature. Two emblems may share an identical 9-inch width and 3.5-inch height yet remain incompatible due to the mounting surface profile. Grille emblems typically feature a convex curvature to match the aerodynamic sweep of the front fascia. Tailgate emblems, particularly on older models, are often flatter.

Attempting to force a flat tailgate emblem onto a curved grille places the adhesive under tension, leading to eventual edge lift and bond failure. Conversely, a curved grille emblem installed on a flat tailgate will make contact only at the edges, leaving a gap in the center that compromises adhesion and allows water intrusion.

1.3 Mounting Topologies

The mechanical interface between the emblem and the vehicle body has evolved through three distinct phases, each requiring specific removal and installation techniques.

Phase 1: Adhesive Retention (Legacy)

Found primarily on vehicles prior to 2004, such as the 10th generation F-150 and older Rangers, this method utilizes a double-sided 3M Very High Bond (VHB) tape. Alignment is achieved either visually or via two small pilot holes. These badges are prone to "sliding" if the adhesive degrades in high-heat environments.

Phase 2: Alignment Pin Registration (Transitional)

As manufacturing tolerances tightened, Ford introduced alignment pins molded into the back of the emblem. These plastic dowels mate with corresponding holes in the sheet metal or grille mesh to enforce a level horizon line. Crucially, the spacing of these pins varies by model year. A 2006 F-150 emblem and a 2012 F-150 emblem may both be 9-inch ovals, but the pin distance often differs by millimeters, preventing interchangeability without modification.

Phase 3: Mechanical Fasteners (Modern)

On modern large-aperture grilles, aerodynamic pressure at highway speeds can exceed the shear strength of adhesive tape. Consequently, modern grille emblems (e.g., 2009+ F-150) utilize threaded plastic posts secured from the rear with speed nuts. This design requires access to the rear of the grille for removal, complicating the replacement process compared to the simple "pry-and-peel" method of earlier generations.

2. Ford F-150 Emblem Chronology (1997–2025)

The Ford F-150 serves as the primary case study for emblem evolution. As the flagship vehicle, it often pioneers the design language that subsequently trickles down to the Ranger and Expedition.

2.1 10th Generation (1997–2003) & F-150 Heritage (2004)

The "Jellybean" era of the F-150 utilized modest branding consistent with 1990s design trends. The emblems from this era are significantly smaller than contemporary badges.

• Front Grille: The standard grille emblem measures approximately 7 inches in width.
• Tailgate: The rear emblem is typically a 5-inch or 6-inch oval, often mounted off-center on the lower left or right of the tailgate rather than the center.
• The Heritage Anomaly: In 2004, Ford sold the new 11th generation truck alongside the old body style, branded as the "F-150 Heritage." It is crucial to identify the body style, as the Heritage model retains the 10th generation's smaller 7-inch/5-inch emblem configuration, whereas the new 2004 model jumped to the larger 9-inch format.

2.2 11th Generation (2004–2008)

This generation introduced the "Bold Moves" industrial design, characterized by a tall, upright grille. To maintain visual proportionality, the grille emblem size increased dramatically.

• Front Grille (The 9-Inch Standard): This era standardized the 9-inch width x 3.5-inch height oval for the front grille. This dimension became the de facto standard for Ford trucks for the next decade.
• Rear Tailgate: The rear emblem remained smaller, typically measuring 7 inches (Part Number 4L3Z-1542528-AB). This established the "9-inch Front / 7-inch Rear" dichotomy that confuses many owners who assume the badges are identical.

2.3 12th Generation (2009–2014)

The 12th generation maintained the 9-inch grille standard but revolutionized the rear emblem with the integration of the backup camera.

• Front Grille: Remains a 9-inch bolt-on oval (Part CL3Z-8213-A).
• Rear Tailgate (Non-Camera): Uses a standard 7-inch adhesive emblem.
• Rear Tailgate (With Camera): This is a critical divergence point. Trucks equipped with the rearview camera do not use a standalone emblem. Instead, they feature a large bezel assembly that houses the camera, into which a specific two-piece emblem snaps. The badge itself is often a "cap" that fits over the camera housing. Owners of these trucks cannot simply stick a flat aftermarket badge over the assembly; they must source the specific "Camera Emblem" bezel or insert.

2.4 13th Generation (2015–2020)

With the shift to aluminum bodywork, the F-150's grille grew wider, and the emblem scaled slightly to match.

• Front Grille: Commonly referred to as 9-inch, the physical dimension is closer to 9.5 inches x 3.825 inches.
  • Camera Integration: High-trim models (Lariat, King Ranch, Platinum, Limited) with the 360-degree camera system feature a front-facing camera mounted directly beneath the emblem. These badges (e.g., Part GL3Z-8213-A) include a provision for the camera lens and a washer nozzle. They are structurally distinct from the XL/XLT badges, which lack the camera mount infrastructure.
• Rear Tailgate: The tailgate design bifurcated. Standard trims use a centered emblem, while premium trims use a satin aluminum "Applique" panel spanning the tailgate width, with a specific oval insert that may differ in mounting depth.

2.5 14th Generation (2021–Present)

The current generation represents the peak of emblem complexity and size.

• Front Grille: The standard emblem has grown to approximately 11 to 13 inches on some trims, dominating the front fascia.
• Design Shift (2024): A significant aesthetic update occurred for the 2024 model year. Ford moved away from the traditional 3D chrome-and-blue design to a flattened, modernized "White and Blue" or "Black and White" motif. The inner chrome ring was removed, and the lettering became white. This design language change means that retrofitting a 2024 badge onto a 2022 truck may result in a visual clash with other chrome trim elements.
• Illumination: This generation was designed with illuminated emblems in mind. OEM accessories (Part VML3Z-8A224) plug directly into the headlight harness, illuminating the outer ring. Fitment is dependent on the headlight type (Halogen vs. LED), as the wiring connectors differ.

F-150 Data Matrix: Emblem Dimensions by Generation

3. Ford Super Duty: The Heavyweight Division

The Super Duty lineup (F-250, F-350, F-450) operates on a different scale. While they share cabs with the F-150 in certain generations, the front end architecture is unique, necessitating significantly larger branding elements to match the massive cooling openings.

3.1 The "Dinner Plate" Era (2011–2016)

The 2011 redesign introduced a grille size that was unprecedented in the consumer truck market. To prevent the emblem from looking undersized, Ford specified a massive badge measuring approximately 13 inches (330mm) in width. This part (Part BC3Z-8213-A) is often colloquially referred to as the "Dinner Plate" due to its circumference. It is strictly a grille component; the rear tailgate retained the standard 7-inch or 9-inch sizing depending on the camera package. Owners attempting to swap F-150 badges onto a Super Duty of this era will find them comically undersized.

3.2 The Aluminum Era (2017–2022)

When the Super Duty adopted the F-150’s aluminum cab architecture in 2017, the emblem strategy became more unified, though part numbers remained distinct due to the unique grille meshes of the HD trucks.

• Tailgate Complexity: The rear emblem on these trucks (Part M-1447-SDC for the black kit) involves a sophisticated assembly. The emblem is not merely stuck to the metal; it is integrated into a housing that often includes the tailgate release button and the backup camera. The "Camera Provision" mentioned in parts listings refers to the specialized bracketry required to center the camera lens within the blue oval assembly.
• Dimensions: The front grille badge typically hovers in the 11.5-inch to 13-inch range, while the rear assembly varies based on the presence of the "Ultimate Trailer Tow" camera package.

4. Ford Ranger: Compact vs. Midsize Evolution

The Ranger’s history is divided into two distinct epochs: the long-running compact truck (ended 2011) and the modern midsize T6 platform (reintroduced 2019).

4.1 The Compact Era (1983–2011)

For the majority of its life, the Ranger utilized smaller 4-inch or 5-inch badges appropriate for its size. However, the final facelift (2006–2011) saw the Ranger adopt the F-150's aggressive styling.

• The 2004-2005 Confusion: There is significant debate and variation regarding the 2004-2005 model years. Some grilles retain the smaller badge, while others transition to larger sizes. Enthusiast communities recommend physical measurement for these specific years.
• The 2006-2011 Standard: During this period, the Ranger adopted the 9-inch front grille emblem, effectively sharing the visual identity of the 11th Gen F-150. However, the rear emblem remained the classic 7-inch size (Part E7TZ-9842528-A), maintaining the "Big Front / Small Rear" dynamic.

4.2 The T6 Midsize Era (2019–2023)

The reintroduced Ranger features modern dimensions that differ from the F-150.

• Front Grille: The standard oval measures approximately 8.25 inches (210mm) in width. This is notably smaller than the contemporary F-150's 9.5-inch badge, preventing cross-compatibility.
• Rear Tailgate: The rear emblem is a thick assembly housing the backup camera.
• Blackout Kits: The Ford Performance Black Oval Kit (Part M-1447-RNGR) is the gold standard for this generation. It includes both the front and rear "Smoked Chrome" ovals. The kit confirms that the front and rear are distinct parts, not interchangeable.

5. SUV and Car Specifics: Explorer, Fusion, Mustang

While trucks dominate the conversation, Ford’s unibody vehicles possess their own unique emblem requirements.

5.1 Ford Explorer

The Explorer's transition from a truck-based SUV (body-on-frame) to a unibody crossover impacted its front fascia design.

• Fifth Generation (2011–2019): This generation utilized a 9-inch front grille emblem (compatible with the 2011-2014 Edge and 2004-2014 F-150). The rear emblem is a standard 7-inch oval. This consistency makes finding replacements relatively easy for this generation.
• Sixth Generation (2020–Present): The redesign introduced a slimmer, more integrated grille. The "Black Badging" kit (Part M-1447-EX) confirms a specific fitment for 2020-2025 models, utilizing a ~9-inch front and a uniquely profiled rear emblem that sits flush against the liftgate.

5.2 Ford Fusion (2013–2020)

The second-generation Fusion, with its "Aston Martin" style grille, features one of the largest width discrepancies in the lineup.

• Front Grille: To fill the upper proportion of the trapezoidal grille, the emblem measures a massive 10.7 inches. This makes it larger than the standard F-150 badge of the same era.
• Rear Decklid: In stark contrast, the rear emblem is a diminutive 4.5 inches.
• Fitment Warning: Owners often mistakenly order F-150 badges for the Fusion grille, only to find the alignment pins do not match and the curvature is incorrect.

5.3 Ford Mustang

The Mustang is unique in that the "Ford Oval" is secondary to the "Running Pony" emblem.

• Grille Emblem: The standard Running Pony emblem for S197 (2005-2014) and S550 (2015+) Mustangs measures 8 inches wide by 3 inches high. It attaches via alignment pins and adhesive or clips.
• Decklid: The rear panel typically features a circular "GT" or "Pony" faux gas cap emblem rather than an oval. However, Mach-E models utilize the Pony branding exclusively, with no Blue Oval on the grille.

6. Detailed Part Number Cross-Reference

To facilitate precise sourcing, the following table aggregates verified OEM part numbers against their dimensional specifications.

Table 2: Master Part Number Index

7. Technology Integration: Cameras and Sensors

The modern Ford emblem is a functional component of the vehicle's safety suite. Understanding the technology behind the badge is essential for avoiding costly errors during replacement.

7.1 Front Camera Systems (360-Degree View)

On 2015+ F-150s and 2017+ Super Duty trucks equipped with the 360-degree camera package, the front emblem sits atop a "pedestal" bracket. This bracket houses the camera lens and, crucially, a high-pressure washer nozzle designed to clean road grime from the lens.

• Replacement Implications: One cannot simply install a solid aftermarket badge on these trucks. The replacement part must have the Camera Provision—a physical cutout or pass-through structure. Installing a solid badge will block the camera and obstruct the washer nozzle, potentially causing back-pressure damage to the washer pump system or fluid leaks behind the grille.

7.2 Radar Transparency (ACC)

While Adaptive Cruise Control (ACC) radar units are typically mounted lower in the bumper, recent trends in automotive design are moving these sensors behind the grille emblem (a technique used by brands like Mercedes and Toyota). While Ford primarily places the radar module offset in the bumper on the F-150, the material composition of the emblem is becoming increasingly important. Metallic paints or chrome plating can attenuate radar signals. Therefore, when customizing a vehicle with ADAS, it is recommended to use OEM-grade painted parts or non-metallic vinyl wraps to ensure no interference with sensor suites.

7.3 Illuminated Emblems

The trend toward illuminated grilles has led to official accessories like the "Luminix" series by Putco (licensed by Ford). These emblems are thicker than stock to accommodate the LED circuit board and heat sink.

• Wiring Nuances: The installation is not universal. The wiring harness differs depending on whether the truck has factory Halogen, LED, or Quad-Beam LED headlights. Using the wrong harness can result in hyper-flashing turn signals or failure of the emblem to light up. Part VML3Z-8A224-A is typically for Halogen, while VML3Z-8A224-D is for LED models.

8. Installation Guide and Best Practices

Replacing an emblem varies in difficulty from a simple cosmetic swap to a mechanical disassembly.

8.1 The "Fishing Line" Method (Rear Adhesive Emblems)

For emblems mounted with adhesive (e.g., standard F-150/Ranger tailgates), the risk of paint damage is high if prying tools are used incorrectly.

1. Heat Application: Use a heat gun on a low setting to warm the emblem surface to approximately 100°F. This softens the VHB tape.
2. The Cut: Wrap heavy-duty fishing line (20lb test or higher) around your index fingers. Slide the line behind the emblem and use a sawing motion to slice through the foam tape. This separates the badge from the body without touching the paint.
3. Residue Removal: A significant amount of foam tape will remain on the paint. Use an eraser wheel attached to a drill (at low RPM) or a chemical adhesive remover like Goo Gone to clean the surface.
4. Reinstallation: Ensure the alignment pins on the new badge match the holes in the tailgate. If they do not align, snap the pins off—but be aware that manual alignment is now required.

8.2 The "Grille Removal" Method (Front Bolt-on Emblems)

For 2015+ F-150s and modern Super Duties, the grille emblem is secured with speed nuts accessible only from the rear.

1. Shroud Removal: Open the hood and remove the plastic radiator cover (held by push-pins).
2. Active Grille Shutters: On EcoBoost models, the Active Grille Shutters (AGS) block access to the back of the emblem. In these cases, the entire grille assembly must be removed from the truck. This typically involves removing the headlight surround trim and the upper bumper bolts.
3. Nut Removal: Once the grille is off, use a 10mm deep socket to remove the speed nuts. Warning: Do not over-tighten these nuts upon reinstallation. The studs on the emblem are plastic and will shear off instantly if torqued like a metal bolt.

9. Frequently Asked Questions (FAQ)

Q: Can I put a 2024 "White" Ford emblem on my 2018 F-150?

A: Physically, yes, provided you select the correct 9.5-inch size class. However, the aesthetic clash is significant. The 2024 design is flat and uses white accents, while the 2018 trim is designed for the dimensional chrome/blue look. Additionally, the camera mounts may differ, so verify if your 2018 has a front camera before attempting the swap.

Q: Why does my replacement emblem have 3 pins when my truck only has 2 holes?

A: This is a common issue when using "Universal" OEM parts that cover multiple years. The "Guide Pin" (usually the center one) is sometimes extraneous for certain model years. It is generally safe to snap off the plastic pin that interferes with the mounting surface, provided the adhesive and remaining pins are sufficient for alignment.

Q: What is the correct size for a Ford Fusion grille emblem?

A: The Fusion (2013-2020) uses a unique 10.7-inch front emblem. Do not buy a standard F-150 9-inch badge; it will be too small, the pins will not align, and it will look incorrect in the large grille opening.

Q: My emblem has turned silver/white. Is this a defect?

A: This phenomenon is known as delamination. The UV protective clear coat fails, allowing the blue pigment to oxidize and wash away, leaving the chrome foil underneath exposed. This was particularly common on 2004-2012 era trucks. Modern emblems use improved UV-resistant acrylics, making a replacement a long-term fix.

10. Conclusion

The search for the correct Ford emblem size is a journey through the brand's history of design and engineering. From the humble 7-inch badges of the 1990s to the integrated camera-washer-sensor assemblies of the 2020s, the "Blue Oval" has evolved into a complex component.

• For F-150 Owners: Identify your generation (Gen 11, 12, 13, or 14) and camera status.
• For Super Duty Owners: Be aware of the massive grille size differences between 2011-2016 and 2017+ models.
• For Customization: Always verify the "Blue Field" size if buying overlays, and ensure "Camera Provisions" are present if buying hardware.
