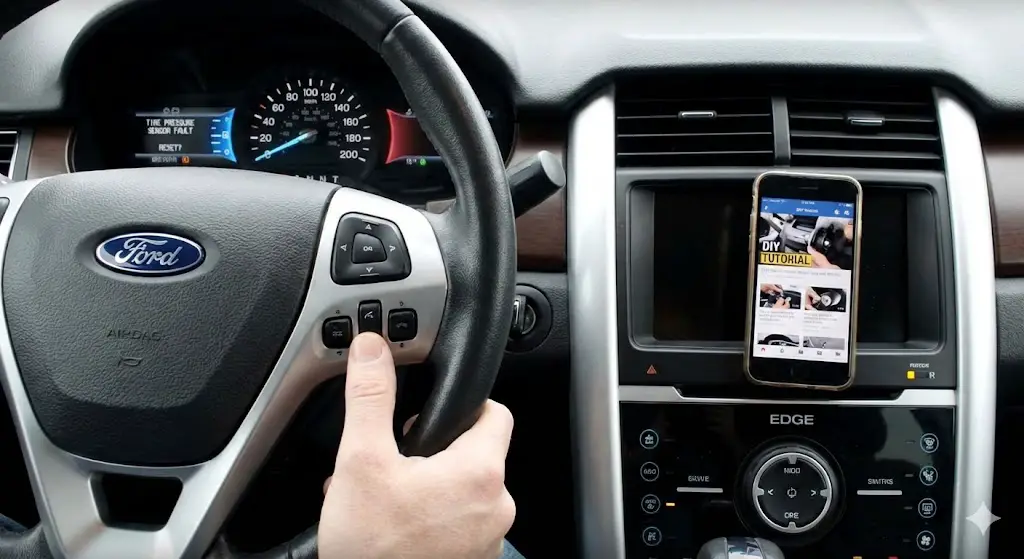

Deep Research Report: The Definitive Guide to Ford Edge TPMS Reset Protocols Without Activation Tools

The Tire Pressure Monitoring System (TPMS) within the Ford Edge ecosystem represents a sophisticated convergence of automotive safety regulations, radio frequency (RF) engineering, and embedded systems logic. Since the federal mandate established by the TREAD Act, Ford has implemented a Direct TPMS architecture that relies on wheel-mounted sensors communicating with a central Body Control Module (BCM).

While dealership protocols typically prescribe the use of a 125 kHz low-frequency activation tool (such as the Motorcraft TPMS19) to trigger these sensors during relearn procedures, the system architecture retains legacy “manual” protocols. These protocols allow the vehicle owner or technician to synchronize new sensor locations or pressures without specialized electronic equipment, utilizing instead the physics of pressure differentials and specific human-machine interface (HMI) sequences.

This report serves as an exhaustive technical resource for the “without tool” reset procedures for the Ford Edge, covering the entire production run from the CD3-platform First Generation (2007) to the CD4-platform Second Generation (2015–Present). It provides a granular analysis of the “Key Cycle” method, the “Push-Button” variation, and the modern “Hazard Light” back-door entry, supported by deep diagnostics of the underlying hardware, sensor frequencies (315 MHz vs. 433 MHz), and electrical fuse topologies.

The Engineering and Regulatory Framework of Ford TPMS

To fully grasp the “how” of resetting a Ford Edge TPMS light without a tool, one must first understand the “why” and “what” of the system’s design. The Ford Edge does not simply “know” the pressure of its tires; it must be taught to recognize distinct radio signatures from four independent transmitters.

The TREAD Act and FMVSS No. 138

The Transportation Recall Enhancement, Accountability, and Documentation (TREAD) Act of 2000 was the regulatory catalyst for widespread TPMS adoption in the United States. It led to the creation of Federal Motor Vehicle Safety Standard (FMVSS) No. 138, which mandated that all vehicles with a gross vehicle weight rating (GVWR) of 10,000 pounds or less be equipped with a monitoring system capable of detecting when one or more tires is significantly under-inflated (25% below placard pressure).

Ford’s response to FMVSS No. 138 for the Edge platform was the adoption of a Direct TPMS architecture. Unlike Indirect systems utilized by some competitors—which infer low pressure by measuring rotational speed variances via ABS sensors—Direct TPMS employs physical Micro-Electromechanical Systems (MEMS) sensors inside the tire cavity. These sensors provide high-fidelity data including absolute pressure, temperature, and acceleration status.

The Physiology of a Ford TPMS Sensor

The “without tool” reset method relies entirely on manipulating the internal logic of the TPMS sensor. Understanding the sensor’s components reveals why the method works. A typical Motorcraft or Schrader-built sensor for the Ford Edge contains:

• Piezoelectric Pressure Transducer: This component converts physical air pressure into a voltage signal. It is sensitive enough to detect minute changes, which is the mechanism used in the “deflation method” of resetting.
• ASIC (Application-Specific Integrated Circuit): The “brain” of the sensor. It manages power, processes the pressure data, and formats the radio transmission packets.
• RF Transmitter: Operates on Ultra High Frequency (UHF) bands—specifically 315 MHz or 433 MHz depending on the model year—to send data to the vehicle’s receiver.
• LF Receiver: A low-frequency (125 kHz) antenna designed to “wake up” the sensor when pinged by a handheld tool.
• Lithium-Ion Battery: A potted, non-replaceable power source (usually a CR2032 or similar chemistry) designed to last 7–10 years.¹

Operational Modes: The Key to Manual Activation

The sensor is not always transmitting. To conserve its limited battery life, the sensor firmware operates in distinct modes:

1. Storage/Sleep Mode: Used during shipping. Minimal activity.
2. Park Mode: When the vehicle is stationary (detected by an internal accelerometer sensing < 5g of centrifugal force), the sensor sleeps, waking only to sample pressure periodically. It rarely transmits unless a critical fault is detected.
3. Drive Mode: Once the vehicle exceeds roughly 20 mph, the centrifugal switch closes, and the sensor transmits data packets at regular intervals (typically every 60 seconds).
4. Relearn/Alert Mode: This is the critical mode for manual resetting. If the sensor detects a rapid change in pressure (Delta P)—interpreted as a blowout or puncture—it wakes up immediately and broadcasts bursts of data to alert the BCM.

The “Without Tool” Insight: By manually releasing air from the tire to create a rapid pressure drop, the operator forces the sensor into Relearn/Alert Mode. The vehicle’s computer, having been placed in “Training Mode” via an ignition sequence, captures this burst signal and registers the sensor’s ID, assuming the operator is intentionally training the system rather than experiencing an actual blowout.

Ford Edge Generation 1 (2007–2014) Reset Architectures

The first-generation Ford Edge, built on the CD3 platform, utilizes a specific set of logic rules for TPMS training. This generation is bifurcated into the pre-facelift (2007–2010) and post-facelift (2011–2014) eras, which introduced changes in ignition hardware (standard key vs. intelligent access button) but largely retained the same 315 MHz RF protocol.

The Standard “Key Cycle” Procedure

For vehicles equipped with a traditional bladed key, the reset procedure exploits the ignition switch and the brake pedal. The brake pedal is electrically connected to the BCM; pressing it sends a signal that confirms the operator’s physical presence and intent, acting as a “shift” key for the ignition commands.

Prerequisites

Before initiating this sequence, it is imperative that the vehicle is parked in a safe environment away from RF interference (e.g., radio towers, high-voltage lines). All tires must be inflated to the recommended placard pressure, typically 35 PSI for standard fitments.³ An air compressor capable of re-inflating tires is mandatory, as the procedure involves significant air loss.

Step-by-Step Protocol

1. Vehicle State: Ensure the ignition is in the OFF position. All doors should be closed to prevent door-ajar chimes from masking the horn confirmation.
2. Wake-Up Signal: Press and release the brake pedal once. This wakes the CAN bus network from sleep mode.
3. Ignition Sequence A: Turn the ignition switch from OFF to RUN three times, ending in the RUN position.
   • Note: The “RUN” position is where the instrument cluster illuminates and the climate control powers on. Do not turn the key to “START” (which engages the starter motor).
   • Timing: This sequence should be performed briskly, within roughly 3-5 seconds.
4. Confirmation Signal: Press and release the brake pedal again.
5. Ignition Sequence B: Turn the ignition switch to OFF. Then, repeat the three-cycle turn: OFF to RUN three times, ending in RUN.
6. System Feedback: If the timing was correct, the vehicle’s horn will chirp once, and the TPMS indicator light on the dashboard will flash. If equipped with a message center, it will display “TRAIN LEFT FRONT TIRE”.⁴

This sequence toggles a specific bit in the BCM’s memory, engaging the TPMS Learning Subroutine. The system is now listening for RF signals.

The “Push-Button” Intelligent Access Variation

With the 2011 mid-cycle refresh, higher trims (Limited, Sport) received the Intelligent Access push-button start. The lack of a physical key cylinder necessitates a different tactile input to achieve the same logical result.

Step-by-Step Protocol

1. Vehicle State: Engine OFF. Key fob present inside the vehicle cabin.
2. Wake-Up: Press and release the brake pedal once.
3. Ignition Sequence A: Press the START/STOP button five times.
   • Nuance: Do not depress the brake pedal while pressing the button, as this would attempt to start the engine. You want to cycle the electrical modes (ACC/RUN/OFF).
   • Cadence: Press at a steady rhythm of approximately one press per second.
4. Confirmation Signal: Press and release the brake pedal once.
5. Ignition Sequence B: Press the START/STOP button six times.
6. System Feedback: The horn will chirp once, indicating entry into training mode.

Technical Note: The exact number of presses (5 vs. 3, or 6 vs. 3) can vary slightly depending on the specific firmware version of the BCM installed at the factory. If the 5/6 sequence fails, attempting the standard 3/3 sequence using the button is a valid troubleshooting step.⁵

The “Delta Pressure” Training Sequence

Once the vehicle is in Training Mode, the BCM expects to receive sensor IDs in a rigid, hard-coded order: Left Front (LF) -> Right Front (RF) -> Right Rear (RR) -> Left Rear (LR).² This clockwise rotation is non-negotiable; skipping a tire or doing them out of order will result in a “Training Failed” message or incorrect position data on the dashboard.

Execution of the Manual Trigger

1. Left Front Training: Proceed immediately to the driver’s side front tire. Remove the valve cap. Using a valve core tool (or a small object like a key), depress the valve stem pin to release air.
   • The Physics: You must release air continuously for 10 to 30 seconds. The goal is to drop the pressure by at least 3-6 PSI rapidly. This steep pressure gradient ($\Delta P / \Delta t$) triggers the sensor’s alert logic.
   • Confirmation: Wait for the horn to chirp once. This indicates the BCM has successfully captured the LF sensor’s ID and assigned it to the LF memory block.⁶
2. Right Front Training: Move clockwise to the passenger front tire. Repeat the deflation process until the horn chirps.
3. Right Rear Training: Move to the passenger rear tire. Deflate until the horn chirps.
4. Left Rear Training: Move to the driver’s side rear tire. Deflate until the horn chirps.
5. Completion: Upon the successful training of the final (LR) tire, the horn will chirp twice. The message center will display “TIRE TRAINING COMPLETE.”

Warning: The system has a built-in timer (typically 2 minutes per wheel). If you fail to trigger a sensor within this window, the session times out, the horn sounds a double-chirp error, and the entire process must be restarted from the beginning. This highlights the risk of the “without tool” method: if the sensors are sluggish or the user is slow, significant time and air pressure are wasted.

Ford Edge Generation 2 (2015–2024) Reset Protocols

The transition to the CD4 global platform for the 2015 model year brought significant changes to the electrical architecture of the Ford Edge. While the basic principles of Direct TPMS remained, the integration of the Body Control Module into the global Ford network allowed for more streamlined, albeit different, access protocols.

The “Hazard Light” Hack

For the Gen 2 Edge, the “Key Cycle” method is often superseded by the “Hazard Light” method. This procedure utilizes the hazard flasher switch as a discrete input device, bypassing the potential confusion of push-button ignition modes. This method is widely regarded as the most reliable for 2015+ models.⁷

Step-by-Step Protocol

1. Ignition On: Press the Start button once (without touching the brake) to enter the RUN mode (engine off). The instrument cluster should be fully illuminated.
2. Input Sequence: Locate the Hazard Flasher switch (usually a red triangle button on the center stack).
3. Activation: Press and release the Hazard button six times within five seconds.
   • Rhythm: Click-Click-Click-Click-Click-Click.
   • Visuals: The hazard lights will flash on the exterior, but the BCM is counting the switch toggles.
4. System Feedback: The horn will chirp once, and the “TRAIN LEFT FRONT TIRE” message will appear on the productivity screen in the gauge cluster.

Visual Feedback Enhancements

A notable improvement in the Gen 2 Edge is the integration of exterior lighting into the feedback loop. During the training process, the turn signal lamp corresponding to the wheel being trained will illuminate.

• Example: When the system is waiting for the Left Front sensor, the Left Front turn signal will burn steadily. Once the horn chirps, the LF signal turns off, and the Right Front signal turns on. This visual cue provides excellent confirmation for the operator, especially in noisy environments where the horn might be hard to hear.⁹

The “Soft Reset” vs. “Hard Relearn” Distinction

Owners of Gen 2 Edge models often confuse the instrument cluster menu reset with a sensor relearn.

• Hard Relearn: The process described above (Hazard/Ignition method). This is required when sensors are replaced, or tires are rotated, to map the Hex IDs to the correct corners.
• Soft Reset: Accessed via Settings > Driver Assist > Tire Monitor on the steering wheel menu. This function does not learn new sensors. Instead, it resets the baseline pressure threshold.
  • Use Case: If you are towing a heavy trailer and inflate the rear tires to 45 PSI (above the standard 35 PSI), you perform a Soft Reset to tell the BCM, “45 PSI is the new normal.” If you simply rotate tires and use this menu, the BCM will still believe the rear tires are on the front, leading to “ghost” warnings.¹⁰

Deep Dive: Sensor Frequencies and Compatibility

A critical failure point for “without tool” resets on the Ford Edge—especially for model years 2020 through 2022—is the mismatch of sensor transmission frequencies. The BCM’s receiver is tuned to a specific frequency bandwidth; it is physically incapable of “hearing” a sensor on a different band, regardless of how much air is released.

The 315 MHz vs. 433 MHz Split

For the majority of its lifecycle (2007–2020), the US-market Ford Edge utilized 315 MHz sensors. This is the standard frequency for North American automotive remote systems. However, a production change occurred in the 2021 model year as Ford harmonized its global supply chain (where 433 MHz is standard in Europe and Asia).

Implications for Troubleshooting

If a 2022 Ford Edge owner installs a set of winter wheels from a 2018 Edge, the reset procedure will fail. The vehicle will enter Training Mode (horn chirp), but when the owner deflates the LF tire, the BCM will wait indefinitely. The 2018 sensors are screaming at 315 MHz, but the 2022 receiver is only listening at 433 MHz. No amount of manual resetting can bridge this hardware gap.

• Diagnostic Tip: If the “Hazard Light” method successfully enters training mode, but the vehicle refuses to acknowledge the first tire despite massive deflation, suspect a frequency mismatch or dead sensor batteries immediately.¹²

Aftermarket Programmable Sensors

For DIYers using aftermarket sensors (e.g., Autel MX-Sensor or Schrader EZ-Sensor), these universal units can broadcast on both frequencies. However, they must be programmed to the specific vehicle application before installation. The “without tool” manual relearn procedure cannot program a blank sensor; it can only introduce an already-configured sensor to the BCM. If you buy “universal” sensors online and install them straight out of the box, they will likely be silent, and the manual reset will fail.

Detailed Troubleshooting and Diagnostics

When the manual reset fails, it is rarely due to the user’s thumb speed. It usually points to a deeper systemic issue within the vehicle’s electrical or RF subsystems.

The “Double Chirp” of Failure

A double horn chirp during the training sequence is the BCM’s error tone. It typically signifies a Timeout.

• Cause: The BCM waited (usually 120 seconds) for a valid signal from the expected corner and received nothing.
• Resolution: Restart the process. Ensure the valve core is clean and allows airflow. Consider removing the valve core entirely (using a specialized removal tool) to dump pressure faster, ensuring the Delta P threshold is crossed before the timer expires. Caution: Be ready to reinstall the core immediately to prevent the tire from unseating from the bead.

Interference and RF Noise

The 315 MHz band is a crowded spectrum, shared by garage door openers and various consumer electronics.

• Scenario: A user attempts to reset the TPMS in their garage. The LF tire trains fine, but the RF tire fails repeatedly.
• Culprit: A nearby LED shop light, a cheap USB charger plugged into the car’s 12V port, or a dash cam can emit electromagnetic interference (EMI) that “jams” the weak signal from the TPMS sensor.
• Fix: Turn off all non-essential electronics. Unplug dash cams and phone chargers. Move the vehicle to an open driveway away from metal structures.¹⁴

Hardware Faults: The RTM and Water Intrusion

A known vulnerability in the Ford Edge (specifically Gen 2) involves the Radio Transceiver Module (RTM).

• Location: The RTM is typically located in the headliner, near the rear of the vehicle or the C-pillar.
• The Issue: The panoramic sunroof drains on the Edge are prone to clogging or disconnecting. Water leaks into the headliner and often pools directly on the RTM.
• Symptoms: The TPMS light flashes for roughly 75 seconds and then stays solid (Malfunction Indicator). The Key Fob remote entry (which shares the RTM) may also work intermittently.
• Diagnosis: If the reset procedure fails to even start (no horn chirp on hazard/ignition sequence), or if the system reports “Tire Monitor Fault” immediately, check for dampness in the rear headliner. A corroded RTM requires replacement and dealership programming.¹⁵

Electrical Topology: Fuse Locations

Before condemning a module, verify the power supply. The TPMS logic is often integrated into the BCM, so a blown fuse affects multiple systems (like interior lights or door locks), but checking is prudent.

Fuse Table for Gen 2 Ford Edge (2015–2020):

Note: Fuse assignments vary slightly by year. Always consult the specific Owner’s Manual diagram for the exact model year.¹⁶

Comprehensive Data Reference

Recommended Tire Pressures

Proper inflation is the baseline for the TPMS system. The system does not dictate pressure; it monitors adherence to the placard.

Insight: The “Low Pressure” warning is triggered when pressure falls approximately 25% below these values (i.e., < 26 PSI). However, the “Reset” procedure requires the tires to be at or above these values before deflation begins to ensure enough air volume exists to trigger the Delta P event.³

Logic Matrix: Which Method for My Edge?

Strategic Recommendations for the DIY Owner

While the “without tool” method is a valid and engineered feature of the Ford Edge, it carries practical caveats.

1. Assess Your Equipment: Do not attempt the deflation method with a 12V emergency tire inflator that takes 15 minutes to fill one tire. You will need to reinflate four large SUV tires from ~15 PSI back to 35 PSI. This requires a robust compressor (e.g., a garage-style pancake compressor or a high-volume 12V unit). The risk of burning out a cheap pump is high.
2. The “Tool” Cost-Benefit: The activation tool (Motorcraft TPMS19 or generic equivalents) costs roughly $30 USD. It reduces the training time from ~20 minutes (deflation/inflation) to ~2 minutes. For anyone maintaining multiple Ford vehicles or swapping winter tires seasonally, the tool is a justified investment that saves wear on the compressor and the valve stems.
3. Visual Inspection: Before attempting a reset, inspect the valve stems. If they are metal (clamp-in style), check for galvanic corrosion. If they are rubber (snap-in style), check for dry rot. A sensor with a corroded stem may snap when you attempt to depress the core, turning a reset procedure into a flat tire repair.¹⁴

Conclusion

The manual “Delta Pressure” reset protocol for the Ford Edge serves as a critical redundancy in the vehicle’s safety architecture. By leveraging the physics of the piezoelectric sensors—specifically their “blowout detection” wake-up logic—owners can effectively communicate with the Body Control Module without proprietary dealership hardware. Whether utilizing the ignition-cycle dance of the Gen 1 models or the streamlined hazard-light sequence of the Gen 2 platform, the process demonstrates the complex interplay between mechanical inputs and digital responses. However, as the automotive industry moves toward more encrypted and higher-frequency systems (433 MHz and Bluetooth LE), the window for such “analog” hacks is narrowing. For the current fleet of Ford Edge vehicles on the road, these procedures remain the definitive solution for extinguishing the TPMS warning light and ensuring accurate tire monitoring.

Frequently Asked Questions

Q: Can I drive the car to reset the TPMS light?

A: It depends on the issue. If the light is solid (indicating low pressure), inflating the tires and driving for 20 minutes at speeds >20 mph will often clear the light as the sensors wake up and report the new pressure. However, if the light is flashing (indicating a fault) or if you have rotated the tires, driving alone will not fix the issue. You must perform the Relearn Procedure to update the BCM’s position map.

Q: I bought new sensors online, but the car won’t learn them. Why?

A: There are three likely reasons:

1. Frequency Mismatch: You bought 315 MHz sensors for a 2021+ Edge (which needs 433 MHz), or vice versa.
2. Blank Sensors: You bought “programmable” sensors (like Autel) that were not pre-programmed with the Ford protocol before shipping. The “relearn” process cannot program a blank sensor.
3. Defective/Dead: The sensors arrived with dead batteries..

Q: Why does the horn chirp twice when I try to train the first tire?

A: The double chirp signals a Timeout or Invalid Signal. If it happens immediately, there is likely RF interference preventing the BCM from hearing the sensor. If it happens after 2 minutes of silence, the sensor failed to trigger (didn’t wake up). Try letting air out faster to create a sharper pressure drop.

Q: Does the “Soft Reset” in the dashboard menu work for new sensors?

A: No. The menu option under Driver Assist > Tire Monitor is only for resetting the load setting (e.g., telling the car you are carrying a heavy load and have intentionally over-inflated the tires). It does not initiate a search for new sensor IDs. Using this menu without performing a true relearn will result in the car looking for the old sensors in the old positions..

Q: Where is the TPMS Reset Button on a Ford Edge?

A: Unlike some older vehicles (like Toyotas or Hondas) that had a physical button under the dash, the Ford Edge does not have a dedicated TPMS reset button. The “button” is virtual—it is accessed by the combination of brake/ignition inputs or the hazard light switch sequence described in this report.
