Ford F150 Rear Differential Cover Torque Specs: Essential Guide
The Ford F150 rear differential cover torque specs are 33 ft-lbs. Ensure proper tightening to avoid leaks.
Ford F150 owners often need to maintain their vehicles for optimal performance. One crucial aspect is ensuring the rear differential cover is correctly torqued. Incorrect torque can lead to fluid leaks and potential damage. Properly torquing the differential cover to 33 ft-lbs ensures a secure seal, preventing leaks and ensuring the longevity of the differential components.
Regular maintenance and proper torque specifications can help avoid costly repairs and keep your Ford F150 running smoothly. Always refer to the vehicle’s manual for specific guidelines and ensure you use the correct tools for the job. This practice ensures safety and reliability for your vehicle.
Credit: www.ford-trucks.com
Tools Needed
Working on your Ford F150’s rear differential cover requires specific tools. This section outlines the tools you need. Proper tools ensure you achieve the correct torque specs. Let’s dive into the essentials.
Basic Tools
These tools are common in many garages. You might already have them:
- Socket Set: A standard socket set with various sizes.
- Torque Wrench: Essential for accurate torque specs.
- Ratchet: Useful for loosening and tightening bolts.
- Screwdriver Set: Both flathead and Phillips types.
- Rubber Mallet: Helps in gently tapping parts into place.
Specialized Equipment
Some tasks need specialized tools. These tools make the job easier:
- Brake Cleaner: Cleans the differential cover and area.
- Gasket Scraper: Removes old gasket material.
- Sealant: Ensures a tight seal.
- Drain Pan: Catches fluid when removing the cover.
- Jack and Jack Stands: Safely lifts and supports your truck.
Having these tools ready will streamline your work. It ensures you meet the correct torque specs without hassle. Make sure to gather all tools before starting. This preparation saves time and effort.
Credit: official.bankspower.com
Preparation Steps
Before working on the Ford F150 rear differential cover, proper preparation is essential. Follow these steps to ensure a smooth and safe process. Proper preparation will help you avoid mistakes and ensure your vehicle runs smoothly.
Safety Precautions
Safety comes first. Always wear protective gloves and safety glasses. Ensure the work area is well-lit and free of clutter. Keep a fire extinguisher nearby. These steps will help prevent accidents and injuries.
Vehicle Positioning
Correct vehicle positioning is crucial. Park your Ford F150 on a flat, stable surface. Engage the parking brake and place wheel chocks behind the front wheels. These steps will keep your vehicle from moving.
| Step | Description |
|---|---|
| 1 | Park on a flat surface |
| 2 | Engage the parking brake |
| 3 | Place wheel chocks |
Once positioned, you can begin the rear differential cover work. Proper positioning ensures safety and easier access.

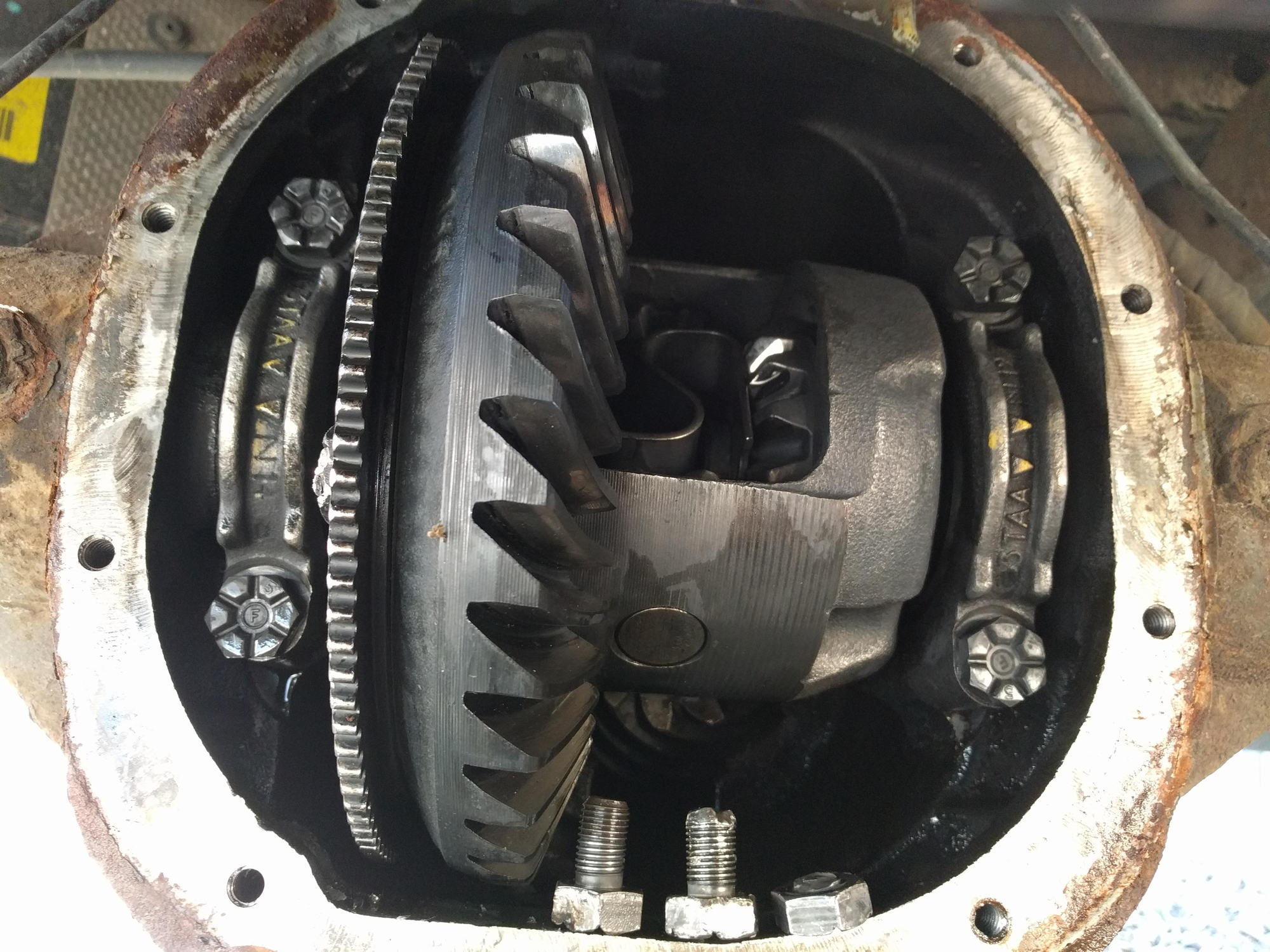

Locating The Rear Differential Cover
Finding the rear differential cover on your Ford F150 is essential. Knowing its location helps in maintenance tasks. This section guides you on how to locate and identify the rear differential cover.
Identifying The Cover
The rear differential cover is usually a metal casing. It is located at the back of the rear axle. Look for a round or oval-shaped cover with bolts around its perimeter. This is the differential cover.
Ensure the vehicle is on a flat surface. Use a flashlight to see the cover clearly. The cover is often dirty or greasy, so you may need to clean it a bit.
Access Points
To reach the rear differential cover, you need to access the underside of your truck. Secure your Ford F150 with jack stands for safety. Here are the steps to access the cover:
- Park the truck on a flat surface.
- Use a jack to lift the rear of the truck.
- Place jack stands under the rear axle for safety.
- Lower the truck until it rests securely on the jack stands.
With the truck securely lifted, you can now access the rear differential cover. Make sure to have all necessary tools ready. Typically, you will need a socket wrench set.
Removing The Old Cover
Removing the old cover is the first step in changing the rear differential cover of your Ford F150. This process ensures you have a clean and secure surface for the new cover. Follow these steps to make the job easier and more effective.
Loosening Bolts
First, gather your tools: a socket wrench, penetrating oil, and a drip pan.
- Place the drip pan under the differential to catch any fluid.
- Spray penetrating oil on each bolt to make them easier to remove.
- Use the socket wrench to loosen each bolt in a crisscross pattern.
Loosening the bolts in this pattern helps to avoid warping the cover.
Cleaning The Surface
After removing the old cover, it’s important to clean the surface properly.
- Use a scraper to remove old gasket material from the surface.
- Wipe the surface with a clean rag to remove any debris.
- Ensure the surface is completely dry before placing the new cover.
A clean surface ensures a good seal for the new cover.
Applying The New Cover
Replacing the rear differential cover on your Ford F150 is crucial. It ensures the longevity and performance of your vehicle. This section guides you through the correct process of applying the new cover. Proper alignment and bolt insertion are key to a successful installation.
Aligning The Cover
Start by cleaning the surface where the new cover will sit. Use a scraper to remove old gasket material. This ensures a smooth surface for the new gasket.
Place the new gasket on the differential housing. Make sure it aligns with the bolt holes. Gently press it to ensure it sticks.
Next, position the new cover over the gasket. Align the bolt holes of the cover with the gasket and housing. This step is critical for a proper seal.
Inserting New Bolts
Begin by hand-threading the new bolts into the aligned holes. This helps prevent cross-threading. Tighten the bolts in a crisscross pattern. This ensures even pressure on the gasket.
| Step | Action |
|---|---|
| 1 | Hand-thread all bolts |
| 2 | Tighten in a crisscross pattern |
| 3 | Use a torque wrench for final tightening |
Use a torque wrench to tighten the bolts to the specified torque. For the Ford F150, the rear differential cover bolts should be tightened to 30-40 ft-lbs.
Check the manual for your specific model year. This ensures you use the correct torque specs.
After tightening, inspect the seal for any gaps or misalignments. A proper seal prevents leaks and keeps your differential fluid in place.
- Clean the surface
- Align gasket and cover
- Hand-thread bolts
- Tighten in crisscross pattern
- Use torque wrench to specified torque
Credit: www.youtube.com
Torque Specifications
Understanding the torque specifications for your Ford F150’s rear differential cover is crucial. Proper torque ensures the cover is securely fastened, preventing leaks and damage. This guide will help you achieve the correct torque settings.
Recommended Torque Values
The recommended torque values for the rear differential cover bolts are typically specified by Ford. For most Ford F150 models, the torque value is 30-35 lb-ft. Always refer to your vehicle’s manual for precise specifications.
| Component | Torque Specification (lb-ft) |
|---|---|
| Rear Differential Cover Bolts | 30-35 |
Using A Torque Wrench
A torque wrench is an essential tool for this task. It ensures you apply the correct amount of force. Follow these steps to use a torque wrench:
- Set the torque wrench to the specified value.
- Place the wrench on the bolt head.
- Turn the wrench until it clicks.
- Ensure the wrench is calibrated.
- Double-check each bolt.
Using a torque wrench correctly ensures the bolts are neither too tight nor too loose. This prevents potential damage to the rear differential cover.
Final Checks
Completing the installation of your Ford F150 rear differential cover is a significant step. The final checks ensure everything is in place and functioning well. Below, we provide detailed steps under the headings Inspecting the Seal and Test Drive.
Inspecting The Seal
After torquing the bolts, it’s crucial to inspect the seal. Ensure there are no gaps or leaks.
- Visual Inspection: Check the seal around the entire cover.
- Feel for Leaks: Use your fingers to feel for any oil.
- Check Tightness: Confirm all bolts are properly torqued.
Use a torque wrench to double-check each bolt. This ensures they are tightened to the recommended specs.
| Component | Torque Spec |
|---|---|
| Differential Cover Bolts | 25-30 ft-lbs |
Test Drive
Next, perform a test drive to ensure everything works correctly.
- Short Drive: Drive around the block first.
- Check for Noises: Listen for unusual noises.
- Monitor Performance: Observe how your truck handles.
After the short drive, inspect the differential cover again. Look for any signs of leaks. Finally, take your truck for a longer drive. This ensures long-term performance and reliability.
Maintenance Tips
Keeping your Ford F150’s rear differential cover in top shape is crucial. Regular maintenance ensures longevity and optimal performance. Here are some essential tips to help you maintain the rear differential cover.
Regular Inspections
Performing regular inspections is vital for your F150’s rear differential cover. Check for any signs of wear or damage. Look for leaks around the differential cover. Use a flashlight to inspect the bolts and the cover itself. Make sure the bolts are tight. A loose bolt can cause leaks and damage.
- Inspect the cover every 3 months.
- Check for oil leaks.
- Tighten loose bolts to the proper torque specs.
Common Issues
There are a few common issues with the rear differential cover. Identifying these early can save time and money. One common problem is oil leaks. Leaks usually occur due to loose bolts or a damaged gasket. Another issue is rust and corrosion. Rust weakens the cover and leads to oil leaks.
- Identify oil leaks early.
- Look for rust and corrosion.
- Replace damaged gaskets immediately.
Here is a table to summarize the torque specs:
| Component | Torque Specs |
|---|---|
| Rear Differential Cover Bolts | 30-40 ft-lbs |
Keeping these tips in mind ensures your Ford F150 runs smoothly. Regular inspections and addressing common issues promptly is key to a healthy rear differential cover.
Frequently Asked Questions
What Is The Torque On The Rear Diff Cover On A 2018 Ford F150?
The torque specification for the rear differential cover on a 2018 Ford F150 is 33 lb-ft. Make sure to use a calibrated torque wrench for accuracy.
What Is The Torque Spec For The Dana 44 Cover?
The torque spec for the Dana 44 cover bolts is 30 ft-lbs. Ensure bolts are tightened evenly in a crisscross pattern.
How Much Fluid Does A F150 Rear Differential Hold?
The F150 rear differential typically holds around 2. 5 to 3 quarts of fluid. Always check the owner’s manual for precise specifications.
What Vehicles Have A Ford 9.75 Rear End?
The Ford 9. 75 rear end is found in Ford F-150 trucks from 1997 to 2010 and Ford Expedition SUVs.
Conclusion
Proper torque specs for your Ford F150 rear differential cover are crucial. Follow the guidelines to ensure safety and performance. Regular maintenance can prevent costly repairs. Always consult your vehicle’s manual for specific details. Proper care extends the life of your truck.
Keep your Ford F150 running smoothly with these essential tips.
