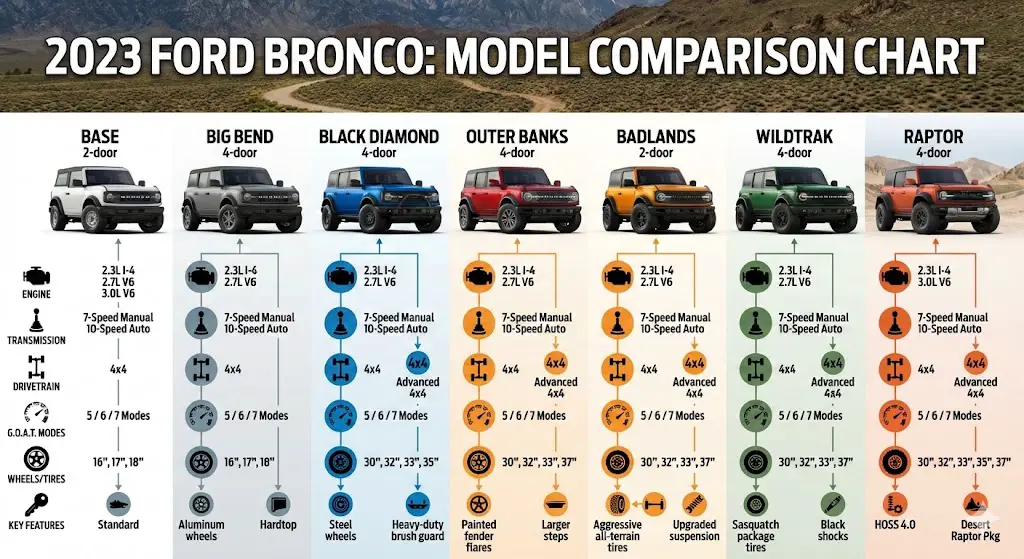

2023 Ford Bronco Model Comparison Chart – Technical Analysis, Engineering Specifications, and Year Evaluation

The 2023 Ford Bronco represents the maturation of Ford Motor Company’s strategic reentry into the rugged mid-size utility segment. Built upon the body-on-frame T6 architecture, a platform shared globally with the Ford Ranger, the Bronco is engineered to deliver high-speed desert running capabilities alongside low-speed technical rock crawling precision.

This duality of purpose necessitates a complex integration of powertrain dynamics, suspension geometry, and structural rigidity that distinguishes the Bronco from unibody competitors like the Bronco Sport or Land Rover Defender, placing it in direct competition with the Jeep Wrangler.

The 2023 model year introduces critical refinements to the sixth-generation platform, including the expansion of the Heritage Edition lineup and the standardization of the HOSS 3.0 suspension system on the Wildtrak trim, a move designed to address durability concerns regarding steering components in high-speed off-road environments.

Assembled at the Michigan Assembly Plant in Wayne, Michigan, the vehicle utilizes a fully boxed high-strength steel frame featuring seven cross members, providing the torsional stiffness required to support the removal of structural roof panels and doors without compromising chassis integrity.

This report provides an exhaustive technical evaluation of the 2023 Ford Bronco. It dissects the engineering specifications of the powertrain options, analyzes the kinematic properties of the suspension systems, provides a granular breakdown of trim-level equipment stratifications, and evaluates long-term reliability data, including critical NHTSA recall campaigns.

The analysis draws upon official technical specifications, homologation documents, and service data to serve as a definitive reference for automotive professionals and prospective stakeholders.

2. Powertrain Engineering and Thermal Management

The propulsion strategy for the 2023 Bronco relies on the Ford EcoBoost family of turbocharged direct-injection engines. Unlike naturally aspirated predecessors, these powerplants rely on forced induction to generate low-end torque, a critical attribute for overcoming the rolling resistance of large-diameter all-terrain tires and the vehicle’s substantial curb weight, which ranges from approximately 4,300 lbs to over 5,300 lbs depending on configuration.

2.1 Engine Specifications and Internal Architecture

The lineup consists of three distinct engine configurations: the 2.3-liter Inline-4, the 2.7-liter V6, and the Raptor-exclusive 3.0-liter V6.

2.3L EcoBoost I-4

The entry-level powerplant is a 2.3-liter (2,264 cc) Ti-VCT GTDI inline-four engine. It utilizes a twin-scroll turbocharger design, which separates exhaust pulses from pairs of cylinders to reduce turbo lag and improve throttle response at low RPMs. The engine features a bore of 87.5 mm and a stroke of 94.0 mm (approximate based on displacement), emphasizing a long-stroke design conducive to torque generation. Output is rated at 300 horsepower and 325 lb-ft of torque when utilizing premium fuel.

2.7L “Nano” EcoBoost V6

The volume-selling upgrade is the 2.7-liter (2,694 cc) V6. This engine is notable for its use of a Compacted Graphite Iron (CGI) block, a material typically reserved for diesel applications due to its high tensile strength and vibration-damping properties. This allows for a lighter block architecture without sacrificing the durability needed to withstand high cylinder pressures.

• Bore x Stroke: 83 mm x 83 mm (Square architecture).
• Compression Ratio: 10.0:1.
• Fuel Delivery: Port fuel injection combined with direct injection (PFDI) to optimize efficiency under low loads and power under high loads, while also mitigating carbon buildup on intake valves.
• Induction: Dual mono-scroll turbochargers with electrically actuated wastegates for precise boost control.
• Valve Train: DOHC with Roller Finger Followers and hydraulic compensating lash adjusters. Intake valve lift is 10.0 mm; exhaust lift is 9.0 mm.

3.0L EcoBoost V6 (Raptor)

Exclusive to the Raptor, this engine shares the “Nano” architecture with the 2.7L but increases displacement to 2,956 cc. It features specific tuning to produce 418 horsepower and 440 lb-ft of torque, necessitating an upgraded cooling system and induction tract to manage the increased thermal load.

2.2 Thermal and Electrical Systems

Off-road environments place unique stresses on vehicle systems, particularly during low-speed, high-load crawling where airflow through the radiator is minimal. The 2.7L engine is equipped with a substantial coolant capacity of 11.7 liters and an oil capacity of 6.6 liters, ensuring sufficient thermal mass to resist heat soak during prolonged ascents.

The electrical architecture is equally robust to support aftermarket accessories such as winches, refrigeration units, and lighting arrays. A 240-amp alternator is standard equipment on the 2.7L variants, paired with an H7 AGM battery rated at 800 Cold Cranking Amps (CCA) and 80 Amp-hours, providing resilience against deep cycling.

2.3 Powertrain Comparative Data Matrix

The following table synthesizes the technical specifications across the available engine range for the 2023 model year.

3. Transmission and Driveline Dynamics

The 2023 Bronco offers two transmission choices that fundamentally alter the vehicle’s character: a 7-speed manual transmission (Getrag MT-88) and a 10-speed automatic transmission (Ford 10R60).

3.1 The Getrag MT-88 7-Speed Manual

Available exclusively with the 2.3L engine, this transmission is a defining feature for the enthusiast market. It is technically a 6-speed manual with an additional “Crawler” gear, located below first gear in the shift pattern (dogleg left and down).

• Crawler Gear Ratio: 6.588:1.
• Application: This ultra-short ratio allows for creeping speeds without clutch modulation, significantly reducing clutch wear and driver fatigue in technical terrain.
• Crawl Ratio Calculation: When paired with the available 4.70:1 rear axle ratio and the electromechanical transfer case (3.06:1 low range), the manual Bronco achieves a crawl ratio of 94.75:1.⁵ This implies that for every 94.75 rotations of the engine, the wheels rotate once, multiplying torque sufficiently to move the vehicle at idle up steep grades.

3.2 The 10R60 10-Speed Automatic

Standard on 2.7L and 3.0L models, and optional on the 2.3L, the 10R60 is a lighter-duty variant of the 10R80 used in the F-150 and Mustang. It features a wide ratio spread of 7.4, allowing for aggressive launch acceleration (4.714:1 first gear) and efficient highway cruising (0.636:1 tenth gear).

While it lacks the specific crawler gear of the manual, the torque converter provides hydraulic torque multiplication at stall speed. The maximum mechanical crawl ratio for the automatic (with 4.70 axles and 3.06 transfer case) is 67.80:1. While numerically lower than the manual, the fluid coupling allows for infinite “gearing” down to zero mph without stalling.

3.3 Gear Ratio Comparative Analysis

3.4 Transfer Case Technologies

Ford utilizes two distinct transfer case architectures in the 2023 Bronco, dictating the vehicle’s behavior in mixed-traction environments.

1. Electronic Shift-on-the-Fly (ESOF) – Part-Time:
   • Availability: Standard on Base, Big Bend, Black Diamond, Outer Banks, Heritage.
   • Mechanism: A mechanical linkage engages the front driveshaft. It locks the front and rear driveshafts to rotate at the same speed.
   • Modes: 2H, 4H, 4L.
   • Low Range Ratio: 2.72:1.
   • Limitation: Cannot be used on dry pavement due to driveline binding (crow hopping) in turns.
2. Advanced 4×4 with Automatic On-Demand (EMTC):
   • Availability: Optional on lower trims, Standard on Badlands, Wildtrak, Everglades, Raptor, Heritage Limited.
   • Mechanism: Utilizes an electromechanical clutch pack to vary torque distribution to the front axle.
   • Modes: 2H, 4A (Auto), 4H, 4L.
   • Benefits: The “4A” mode allows for 4-wheel drive capability on variable surfaces (rain, patchy snow, pavement) by slipping the clutch pack to accommodate wheel speed differences in turns, functioning similarly to an All-Wheel Drive (AWD) system.
   • Low Range Ratio: 3.06:1. This deeper reduction further enhances crawling control.

4. Suspension Architecture and HOSS Systems

The suspension geometry of the 2023 Bronco is built around a short-long arm (SLA) independent front suspension (IFS) and a solid rear axle with a five-link location system (Panhard rod, two lower control arms, two upper control arms). This setup—IFS front and solid rear—compromises between the high-speed stability and ride quality of IFS and the articulation and durability of a solid rear axle.

Ford markets the suspension tuning under the HOSS (High-Performance Off-Road Stability Suspension) nomenclature. For 2023, the stratification of these systems is critical for trim selection.

4.1 HOSS 1.0: The Baseline

Standard on Base, Big Bend, Outer Banks, and Black Diamond.

• Components: Hitachi twin-tube dampers, standard coil springs, cast alloy lower control arms.
• Geometry: Optimized for stability and general trail use.
• Front Travel: 202 mm (7.9 inches).
• Rear Travel: 249 mm (9.8 inches).
• Application: Adequate for fire roads and moderate trails, but prone to heat fade during extended washboard driving.

4.2 HOSS 2.0: The Technical Crawler

Standard on Badlands, Heritage, Everglades, and all Sasquatch-equipped vehicles.

• Components: Bilstein position-sensitive dampers (PSD) with end-stop control valves.
• Mechanism: These monotube dampers feature external reservoirs (piggyback rear, remote front on some configs) to increase oil volume and cooling. The “position-sensitive” nature means the damping force changes based on where the piston is in the travel stroke—soft in the middle for comfort, stiff at the ends to prevent bottoming out.
• Front Travel: 222 mm (8.7 inches).
• Rear Travel: 259 mm (10.2 inches).
• Implication: The increased travel and heat capacity allow for higher speeds over rough terrain and greater articulation in rock gardens.

4.3 HOSS 3.0: High-Speed Desert Specification

Standard on Wildtrak for 2023.

• Components: FOX 2.5-inch Internal Bypass dampers, severe-duty steering rack, heavy-duty tie rods.
• Mechanism: The internal bypass technology allows fluid to bypass the piston shim stack in the “ride zone” for plushness, but forces fluid through the piston in the “bump zone” for extreme resistance.
• Steering Upgrade: Crucially, the HOSS 3.0 system integrates the “Ford Performance Severe-Duty” steering rack, derived from the F-150, which includes significantly stronger tie rods. This addresses a known weak point in the HOSS 1.0/2.0 systems where tie rods could bend under high-impact loads with large tires.

4.4 HOSS 4.0: Raptor Specification

Standard on Raptor.

• Components: FOX Live Valve 3.1 Internal Bypass Semi-Active dampers.
• Mechanism: These dampers utilize electronic solenoids to adjust compression damping hundreds of times per second based on sensor inputs (steering angle, throttle position, g-force).
• Architecture: The shock towers are unique to the Raptor to accommodate the massive damper length, resulting in 13 inches of front travel and 14 inches of rear travel—a 60% / 40% increase over the base model.

5. Off-Road Geometry and Capability Metrics

A vehicle’s ability to traverse terrain is mathematically defined by its approach, departure, and breakover angles, alongside its ground clearance. The 2023 Bronco’s modular nature means these figures vary wildly based on tire size and door count.

5.1 Wheelbase Physics: 2-Door vs. 4-Door

The two-door Bronco rides on a 100.4-inch wheelbase, while the four-door stretches to 116.1 inches. This 15.7-inch disparity has profound effects on the Breakover Angle.

• The Problem of Length: A longer wheelbase increases the risk of “high-centering”—scraping the frame belly on the crest of a hill.
• The Data: A 2-Door Sasquatch Bronco has a breakover angle of 29.0 degrees, whereas the 4-Door Sasquatch drops to 26.3 degrees.
• Implication: For purely technical terrain with sharp crests, the 2-Door is mechanically superior. However, the 4-Door offers superior longitudinal stability on steep climbs (resisting backward rollover) and better tracking at highway speeds.

5.2 The Sasquatch Advantage

The Sasquatch Package acts as a geometry multiplier. By installing 35-inch tires (LT315/70R17), the axle centerlines are raised, lifting the lowest points of the vehicle (the differentials). This results in a ground clearance of 11.5 to 11.6 inches, compared to approx. 8.4 inches on the base model.

5.3 Dimensional Specifications Matrix

The following table illustrates the geometric evolution from a standard Base model to a high-clearance Sasquatch configuration.

5.4 Stabilizer Bar Disconnect Mechanism

Exclusive to the Badlands and Raptor (and Heritage Limited), the front stabilizer bar disconnect is a hydraulic/electronic system. Unlike the Jeep Wrangler’s electronic disconnect which requires the vehicle to be on level ground and in 4WD to re-engage or disengage, the Bronco’s system can disconnect under load. This allows the independent front suspension to articulate fully, keeping tires on the ground to maintain traction. When the system detects speed above 20 mph, it automatically reconnects the bar to ensure handling stability, then disconnects again when speed drops, maximizing the “Ramp Travel Index” (RTI) score seamlessly.

6. Trim Level Specification and Market Positioning

The 2023 Bronco lineup is highly segmented. Understanding the standard equipment and available packages is essential for value analysis.

6.1 Trim Hierarchy and Equipment

Base

• Mission: The blank canvas.
• Core Spec: 2.3L engine, 7MT or 10AT, HOSS 1.0, 16-inch steel wheels, cloth seats, 8-inch SYNC 4 screen.
• Key Insight: It is the cheapest way to access the Bronco platform. Crucially, the Sasquatch package is available here, allowing for a ~$45k vehicle with elite capability but basic interior.

Big Bend

• Mission: Mainstream utility.
• Core Spec: Adds 17-inch aluminum wheels, 32-inch tires, leather-wrapped steering wheel, LED fog lamps.
• Options: Access to Mid Package (Heated seats, Dual-zone climate, Co-Pilot360).

Black Diamond

• Mission: Rugged durability / Water resistance.
• Core Spec: Standard Rear Locking Differential, Steel Bumpers (Front/Rear), Full underbody bash plates (steel), Rock Rails, Marine-grade vinyl seats, Rubberized washout flooring with drain plugs.
• Key Insight: This is the high-value trim for off-roaders. It includes the protection equipment that costs thousands in the aftermarket. It runs on 32-inch General Grabber A/T tires.

Outer Banks

• Mission: Style and On-Road Comfort.
• Core Spec: Body-color fender flares, 18-inch machined wheels, standard Mid Package, tube steps.
• Comparison: It lacks the rock rails and steel plates of the Black Diamond. It is designed for the buyer who wants the “look” but prioritizes pavement manners.

Badlands

• Mission: Extreme Rock Crawling.
• Core Spec: HOSS 2.0 (Bilstein), Front Stabilizer Bar Disconnect, Front and Rear Locking Differentials, 33-inch BFGoodrich KO2 tires, Steel Bumpers, Vinyl/Rubber interior.
• Key Insight: The only non-Raptor trim with a sway bar disconnect. It allows for 33-inch tires without the fuel economy penalty of the Sasquatch’s 35s, creating a balanced “overlanding” build.

Wildtrak

• Mission: High-Speed Desert Running.
• Core Spec: Standard 2.7L Engine, Standard Sasquatch Package, Standard HOSS 3.0 (FOX dampers & upgraded steering rack).
• Differentiation: Unlike Badlands, it does not have the sway bar disconnect. It trades low-speed articulation for high-speed damping control.

Heritage / Heritage Limited

• Mission: Nostalgia.
• Heritage: Based on Big Bend with Sasquatch. 2.3L engine. White grille/top.
• Heritage Limited: Based on Badlands. 2.7L engine. Leather/Plaid seats. Limited production.
• Aesthetics: Oxford White modular hardtop, 17-inch white painted wheels, “FORD” red grille lettering.

6.2 Equipment Packages Analysis

Ford bundles options into tiered packages. In 2023, availability is restricted by trim.

7. Safety, Reliability, and Recall Analysis

While the Bronco offers high capability, the 2023 model year is subject to specific reliability concerns that prospective operators must verify.

7.1 The 2.7L EcoBoost Intake Valve Failure (Recall 24V-189 context)

A significant engineering defect was identified in 2.7L and 3.0L EcoBoost engines produced within specific windows (affecting 2021-2022 and early 2023 models). The intake valves, supplied by Eaton Corporation, were manufactured with “over-specification hardness” at the keeper groove location.

• Failure Mode: The brittleness of the valve stem allows it to fracture under repetitive stress. If a valve drops into the combustion chamber, it causes catastrophic engine failure (piston/head destruction).
• Status: Ford issued a recall to inspect and replace engines if necessary. For 2023 models, checking the engine build date against the VIN database is mandatory. Engines built after the supplier correction (late 2023) utilize a softer, more ductile alloy.

7.2 Child Safety Lock Malfunction (NHTSA 24V-189)

Certain 2023-2024 Bronco 4-Door models have a defect where the left-side rear door child safety lock may appear engaged (“ON”) but the internal mechanism is not coupled.

• Risk: A child could open the door from the inside despite the safety lock appearing active.
• Remedy: Dealers inspect the latch and replace the entire mechanism if the coupling is defective.

7.3 Structural Quality: The MIC Hardtop

The Molded-In-Color (MIC) hardtop remains a point of contention. Early models (2021) suffered from “honeycombing” and delamination. While the “2.0” top on 2023 models is improved, owners continue to report water leaks at the panel seams (specifically the mid-panel junction) and excessive wind noise compared to competitors. This is largely due to the frameless window design which relies heavily on perfect seal alignment.

7.4 Other Common Issues

• Rollaway Risk: Investigations into transmission parking pawl engagement have been noted, where the vehicle may roll if the electronic parking brake is not engaged.
• Electrical/Infotainment: The SYNC 4 system has been subject to freezing or black screens, often resolved via Over-The-Air (OTA) updates, but occasionally requiring APIM module replacement.

8. Market Positioning and Ownership Costs

8.1 Fuel Economy and Environmental Impact

The Bronco is aerodynamically inefficient, with a drag coefficient significantly higher than crossovers. The addition of the Sasquatch package exacerbates this.

Analysis: The real-world penalty of the Sasquatch package is severe. The rotational mass of the 35-inch tires requires higher boost levels to maintain speed, often dropping real-world highway economy below 16 MPG in headwind conditions.

8.2 Towing Capabilities

The standard towing capacity for the 2023 Bronco is 3,500 lbs (Class II). The Raptor increases this to 4,500 lbs due to chassis reinforcements.

• Limitation: The towing guide notes that frontal area is a limiting factor. Towing a travel trailer with a large frontal surface area may trigger thermal limitations even if the weight is within the 3,500 lb limit.²⁹
• Comparison: This matches the 4-door Jeep Wrangler but trails the Toyota 4Runner (5,000 lbs) and Land Rover Defender (7,716 lbs).

8.3 Competitive Landscape

• Vs. Jeep Wrangler: The Bronco offers a superior on-road ride due to the Independent Front Suspension (IFS). Rack-and-pinion steering provides better directional stability than the Wrangler’s recirculating ball steering. However, the Wrangler’s solid front axle still offers a theoretical durability advantage in extreme rock bouncing.
• Vs. Toyota 4Runner: The 4Runner is a legacy platform (15+ years old). The Bronco offers vastly superior technology (12-inch screens, 360 cameras) and powertrain performance (330 HP vs 270 HP). However, the 4Runner holds a perceived reliability advantage due to its simplicity.

9. Conclusion

The 2023 Ford Bronco represents a successful synthesis of modern engineering and legacy capability. By segmenting the lineup through the HOSS suspension tiers, Ford has created distinct vehicles for distinct users: the Outer Banks for the lifestyle buyer, the Badlands for the technical rock crawler, and the Wildtrak for the high-speed desert enthusiast.

For the automotive analyst or prospective buyer, the 2023 model year is defined by the availability of the Sasquatch Package on lower trims and the critical HOSS 3.0 upgrade on the Wildtrak. However, due diligence regarding the 2.7L engine valve recall is paramount for any transaction involving this model year. When equipped correctly, the Bronco offers a level of factory-backed off-road performance that currently sets the benchmark for the mid-size SUV segment.
