Ford 5.4 Cam Phaser Replacement: Ultimate DIY Guide

Ford 5.4 cam phaser replacement involves changing the camshaft phasers to restore engine performance and eliminate noise. This process requires specialized tools and mechanical expertise.

The Ford 5. 4 engine, popular in trucks and SUVs, often experiences cam phaser issues over time. Symptoms include a rattling noise, rough idling, and poor performance. Addressing these problems promptly is crucial to maintain engine health and avoid further damage.

Replacing the cam phasers can significantly improve the engine’s efficiency and smoothness. This task is complex, requiring mechanical skills and specific tools. It’s advisable to consult a professional mechanic or follow a detailed guide if attempting a DIY fix. Proper maintenance ensures your vehicle remains reliable and performs optimally.

Tools And Materials

Replacing the cam phasers on a Ford 5.4 engine is a detailed task. Having the right tools and materials is crucial for success. This guide will outline everything you need.

Essential Tools

You’ll need several tools to replace the cam phasers. Here is a list of the most important ones:

  • Socket set – Various sizes, including deep sockets.
  • Torque wrench – Essential for precise measurements.
  • Screwdrivers – Both flathead and Phillips.
  • Camshaft holding tool – Prevents camshaft movement.
  • Pry bar – Helpful for removing components.
  • Oil catch pan – To catch any draining oil.

Required Materials

In addition to tools, you’ll need specific materials for the job:

  • Replacement cam phasers – Must be compatible with your engine.
  • New gaskets – Ensure a proper seal.
  • Engine oil – For refilling after the replacement.
  • Thread locker – Keeps bolts secure.
  • Shop towels – For cleaning up spills and grime.

Having these tools and materials ready will streamline the process. Ensure everything is within reach before starting. This preparation will save you time and effort.

Preparation Steps

Replacing the cam phaser on a Ford 5.4 engine requires careful preparation. Proper preparation ensures safety and efficiency. Follow these steps for a smooth process.

Safety Precautions

Before starting, ensure you have the right tools and equipment. Safety should be your top priority.

  • Wear safety goggles to protect your eyes.
  • Use mechanic gloves to shield your hands.
  • Work in a well-ventilated area to avoid inhaling fumes.
  • Keep a fire extinguisher nearby for emergencies.
  • Ensure the vehicle is on a flat surface to prevent rolling.

Initial Vehicle Setup

Proper setup of the vehicle is crucial. Follow these steps to get started:

  1. Use a car jack to lift the front of the vehicle.
  2. Place jack stands under the frame for support.
  3. Disconnect the battery to avoid electrical hazards.
  4. Remove the engine cover for easier access.
  5. Ensure all tools and parts are within reach.

Having everything ready speeds up the process. It also prevents accidents.

Required Tools Purpose
Socket Wrench Removing bolts and nuts
Torque Wrench Tightening bolts to correct torque
Screwdrivers Removing screws
Cam Phaser Tool Removing and installing cam phasers
Oil Drain Pan Catching oil during the process

Ensure you have these tools ready. They make the job easier and faster.

Removing The Old Cam Phaser

Replacing the cam phaser in a Ford 5.4 engine can seem daunting. But with the right steps, it becomes manageable. Removing the old cam phaser is a critical step. It involves careful handling and precision.

Accessing The Engine

First, accessing the engine is essential. You need to disconnect the battery. This ensures safety during the process. Next, remove the engine cover. This exposes the components beneath.

Locate the valve cover. Use a wrench to detach it. Be careful not to damage any surrounding parts. Once removed, you will see the camshaft and the cam phaser. Ensure you have a clear workspace. This helps in avoiding any mishaps.

Detaching The Cam Phaser

With the engine exposed, start detaching the cam phaser. Use a specific cam phaser locking tool. This tool holds the camshaft in place. Next, remove the cam phaser bolt. This might require some force. Make sure to keep the bolt safe for later use.

After removing the bolt, gently slide the cam phaser off the camshaft. Be cautious not to drop it. Inspect the camshaft and surrounding areas. Ensure there is no debris or damage. This ensures a smooth installation of the new cam phaser.

Step Action
1 Disconnect the battery
2 Remove the engine cover
3 Locate and remove the valve cover
4 Use the cam phaser locking tool
5 Remove the cam phaser bolt
6 Slide the cam phaser off the camshaft

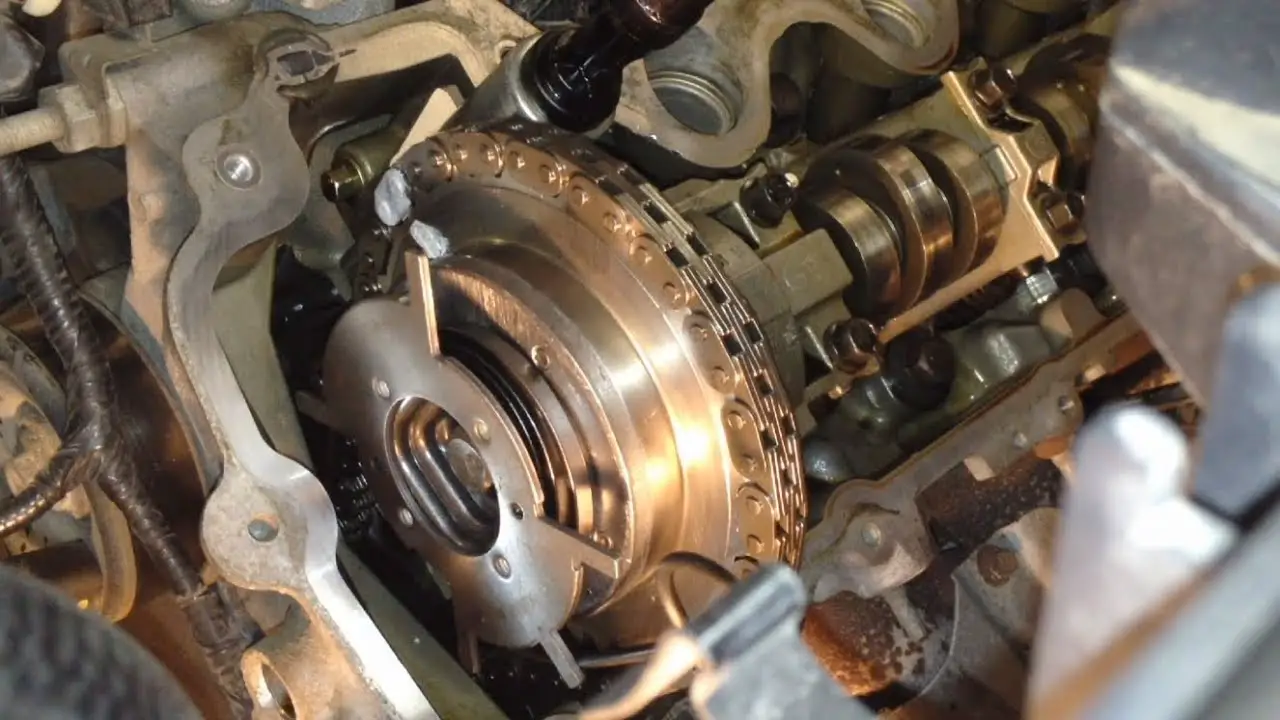

Ford 5.4 Cam Phaser Replacement: Ultimate DIY Guide

Credit: www.f150forum.com

Installing The New Cam Phaser

Replacing the cam phaser on a Ford 5.4 engine can seem tough. This guide will help you install the new cam phaser easily. Follow these steps to ensure a smooth installation.

Positioning The New Phaser

First, align the new cam phaser with the camshaft. Ensure the timing marks match perfectly. If not, the engine won’t run correctly. Check the marks twice before proceeding.

Use a clean cloth to wipe the camshaft end. Any dirt can cause issues later. Place the cam phaser gently on the camshaft. Ensure it sits flush against the camshaft end.

Securing The Phaser

Once positioned, secure the cam phaser with the main bolt. Tighten it using a torque wrench. Refer to the manual for the correct torque specification. This ensures the phaser stays in place.

Use the following steps to secure the phaser:

  1. Align the bolt with the camshaft hole.
  2. Hand-tighten the bolt to hold the phaser.
  3. Use a torque wrench to tighten to the correct specification.

Lastly, recheck all bolts and connections. Ensure everything is tight and secure. This prevents any future issues.

Reassembling The Engine

Reassembling the engine after replacing the Ford 5.4 Cam Phaser is crucial. This ensures the engine runs smoothly and efficiently. Follow these steps carefully to achieve the best results.

Reattaching Components

Start by reattaching the timing chain to the camshaft. Ensure the timing marks are aligned correctly. Next, place the valve covers back on the engine. Tighten the bolts to the specified torque.

Reconnect the intake manifold and the fuel injectors. Make sure all gaskets are seated properly. This prevents any leaks. Finally, reattach the alternator and the serpentine belt. Ensure all components are secure.

Double-checking Connections

Once all components are in place, double-check all connections. Verify that all bolts and nuts are tightened to the correct specifications. Ensure all electrical connectors are securely attached.

Use a checklist to ensure you have not missed any steps:

  • Timing Chain
  • Valve Covers
  • Intake Manifold
  • Fuel Injectors
  • Alternator
  • Serpentine Belt
  • Electrical Connectors

Double-checking these connections can save you from future headaches. It ensures everything functions correctly.

Ford 5.4 Cam Phaser Replacement: Ultimate DIY Guide

Credit: www.reddit.com

Testing The Replacement

After replacing the Ford 5.4 cam phaser, it’s time to test it. This ensures the replacement is successful and the engine runs smoothly. Follow these steps to make sure everything is in order.

Starting The Engine

First, start the engine. Turn the key in the ignition. Listen as the engine starts. It should start smoothly without any unusual noises.

Check the dashboard for warning lights. If any appear, there might be an issue. Address it before continuing. Let the engine run for a few minutes. This helps it settle into its new parts.

Listening For Issues

Next, listen for any unusual sounds. Pay attention to the engine’s noise. It should run quietly and smoothly.

  • Ticking Sounds: A ticking noise may indicate a problem. This could be due to improper installation.
  • Rattling: Rattling sounds might mean loose parts. Check the cam phaser and other components.
  • Knocking: A knocking sound is a serious issue. It may indicate internal damage. Turn off the engine and inspect it.

If you detect any of these sounds, stop the engine. Investigate the source of the noise. Recheck all the replaced parts and ensure they are correctly installed.

Using these steps will help you ensure the cam phaser replacement is successful. Keeping the engine running smoothly is crucial for your vehicle’s performance.

Maintenance Tips

Keeping your Ford 5.4 engine running smoothly requires regular maintenance. Proper care ensures your vehicle performs at its best and extends its lifespan. Follow these maintenance tips to keep your cam phasers in top shape.

Regular Inspections

Perform regular inspections to catch issues early. Check the engine for unusual noises. Listen for ticking or knocking sounds. These can indicate cam phaser problems. Inspect the oil regularly. Dirty oil can damage the cam phasers. Ensure you change the oil as per the manufacturer’s recommendations.

Common Problems To Watch For

Be aware of common issues with cam phasers. Here are a few problems to watch for:

  • Engine Noise: Listen for a loud ticking noise.
  • Rough Idling: Notice if the engine idles roughly.
  • Check Engine Light: The light may indicate cam phaser issues.
  • Poor Performance: The engine may lose power or hesitate.

Address these problems immediately to avoid further damage. Regular maintenance helps prevent these issues and keeps your engine running smoothly.

Maintenance Task Recommended Frequency
Oil Change Every 5,000 miles
Engine Inspection Every 10,000 miles
Check Engine Light Scan As needed

Follow these tips to maintain your Ford 5.4 cam phasers. Regular care ensures better performance and a longer engine life.

Ford 5.4 Cam Phaser Replacement: Ultimate DIY Guide

Credit: www.youtube.com

Frequently Asked Questions

How Much Does It Cost To Replace Cam Phasers On A 5.4 Ford?

Replacing cam phasers on a 5. 4 Ford typically costs between $800 and $2,500. Prices vary based on labor rates and parts.

Why Do 5.4 Cam Phasers Fail?

5. 4 cam phasers often fail due to oil pressure issues. Poor lubrication and low-quality oil contribute to this problem. Regular maintenance and using high-quality oil can prevent failures.

What Are The Symptoms Of A Bad Cam Phaser?

A bad cam phaser can cause rough idling, engine knocking, poor acceleration, and increased fuel consumption. It may trigger the check engine light.

What Years Did Ford Have Cam Phaser Problems?

Ford experienced cam phaser problems in the 2004-2010 model years. These issues mainly affected the 5. 4L Triton V8 engines.

Conclusion

Replacing the Ford 5. 4 cam phaser is essential for optimal engine performance. Regular maintenance prevents costly repairs. Ensure you use quality parts and follow expert advice. This keeps your vehicle running smoothly. Proper care of your engine enhances its longevity.

Keep your Ford 5. 4 in top shape for a reliable driving experience.
